DarwinFPV BabyApe III Mini 2 Inch Freestyle FPV Frame (Wide-X) 20g, 97mm Wheelbase, 25.5x25.5

DarwinFPV

$32.99 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Model Frame Side Plates(2pcs) Mid Plate Bottom Plate Front TPU Mount Base

Quantity

View full details

Overview

DarwinFPV BabyApe III Mini 2 Inch Freestyle FPV Frame is a compact FPV frame platform for the BabyApe III series, designed around a lightweight Wide-X layout and a one-piece molded carbon structure. It targets sub-250 g builds (regulatory requirements vary by region) and supports multiple FPV video transmission (VTX) configurations, with a dedicated battery roll cage for added retention and protection.

Key Features

Compact Wide-X frame structure with one-piece molded arm/frame design
T300-grade carbon fiber plates with rubber paint coating (manufacturer-stated)
Dedicated battery roll cage to help prevent battery ejection/disconnection during crashes
Battery fit note: fits 16-20 mm wide batteries; other sizes can be mounted externally; cable-tie holes are reserved on the base plate
VTX space supports analog VTX, Walksnail Avatar VTX, DJI O4 VTX, or no VTX

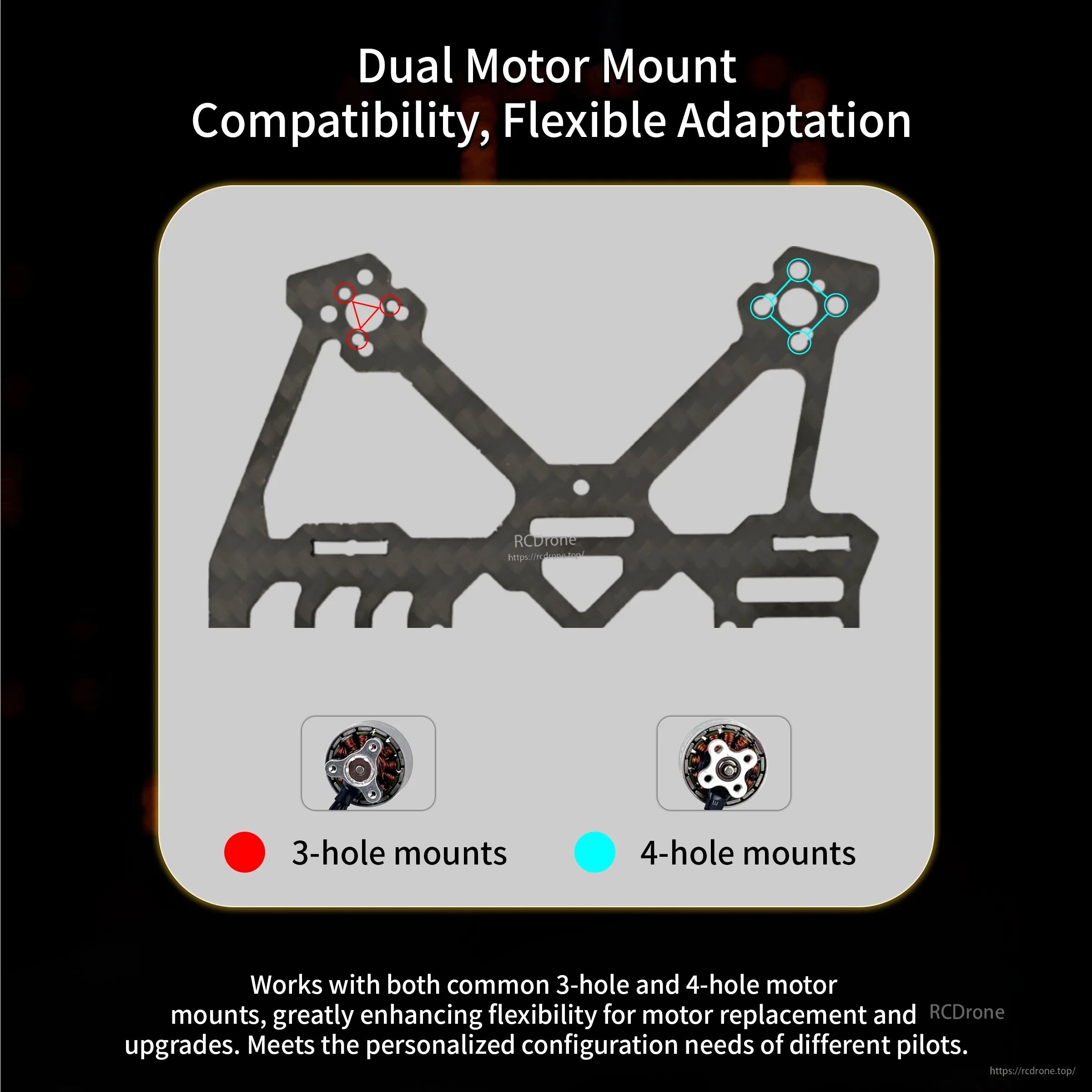

Dual motor mount compatibility: common 3-hole and 4-hole motor mounts

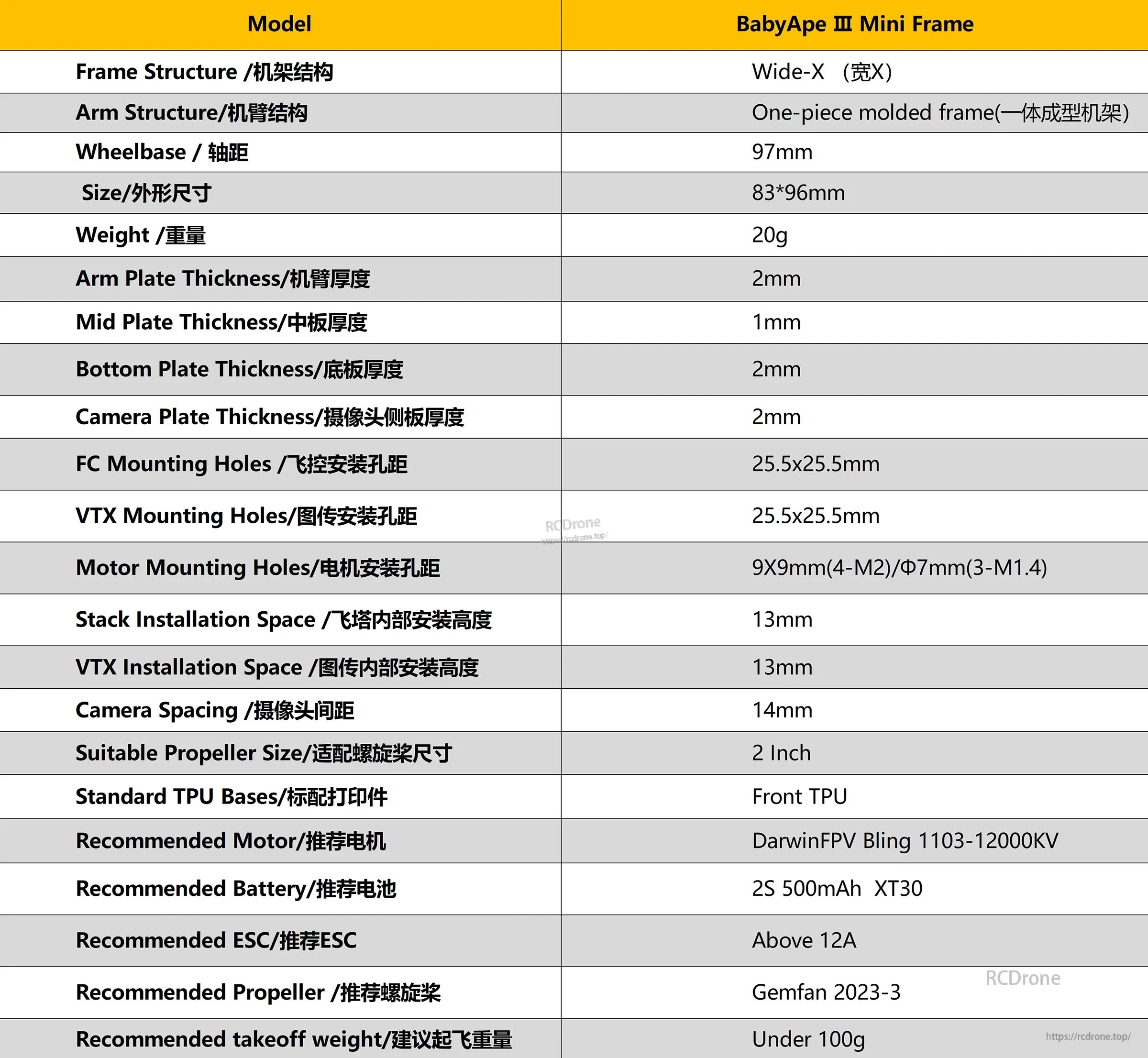

Specifications

Model	BabyApe III Mini Frame
Frame Structure	Wide-X
Arm Structure	One-piece molded frame
Wheelbase	97mm
Size	83*96mm

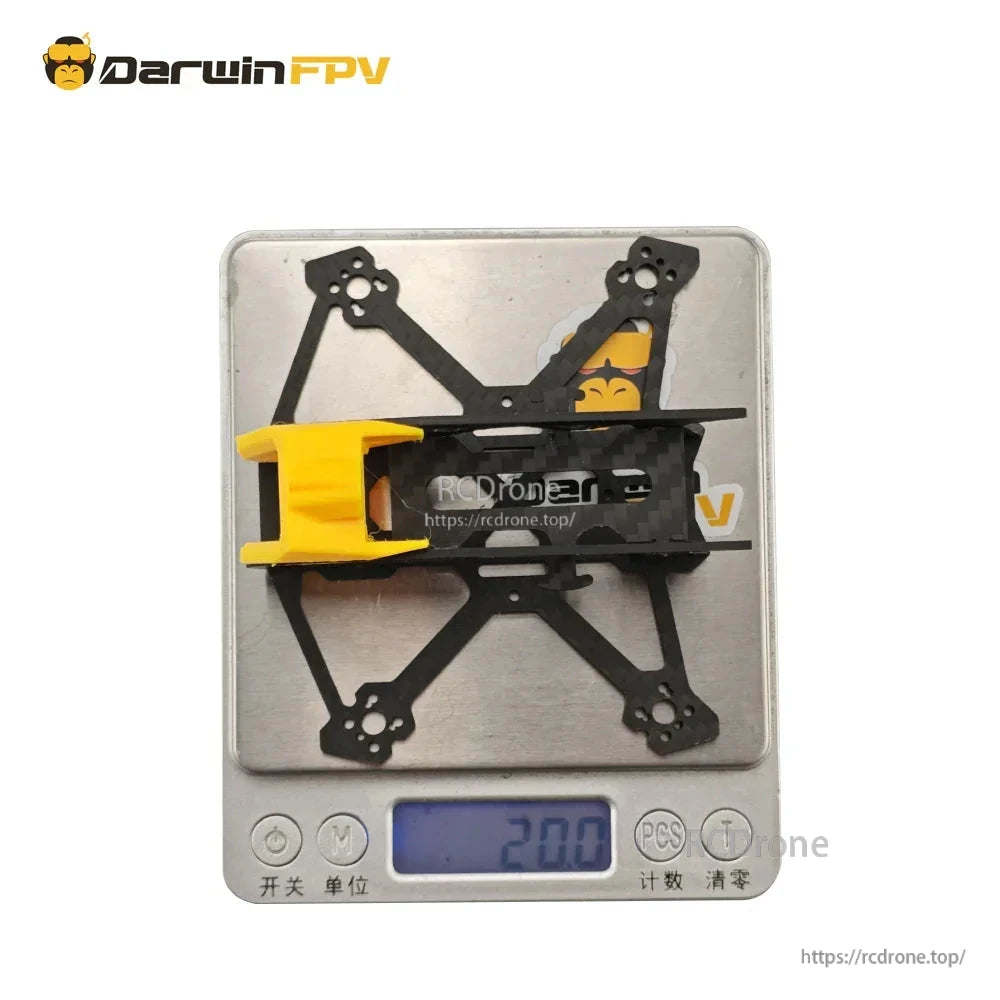

Weight	20g
Arm Plate Thickness	2mm
Mid Plate Thickness	1mm
Bottom Plate Thickness	2mm
Camera Plate Thickness	2mm
FC Mounting Holes	25.5x25.5mm
VTX Mounting Holes	25.5x25.5mm
Motor Mounting Holes	9X9mm (4-M2) / Φ7mm (3-M1.4)
Stack Installation Space	13mm
VTX Installation Space	13mm
Camera Spacing	14mm
Suitable Propeller Size	2 Inch
Standard TPU Bases	Front TPU
Recommended Motor	DarwinFPV Bling 1103-12000KV
Recommended Battery	2S 500mAh XT30
Recommended ESC	Above 12A
Recommended Propeller	Gemfan 2023-3
Recommended takeoff weight	Under 100g

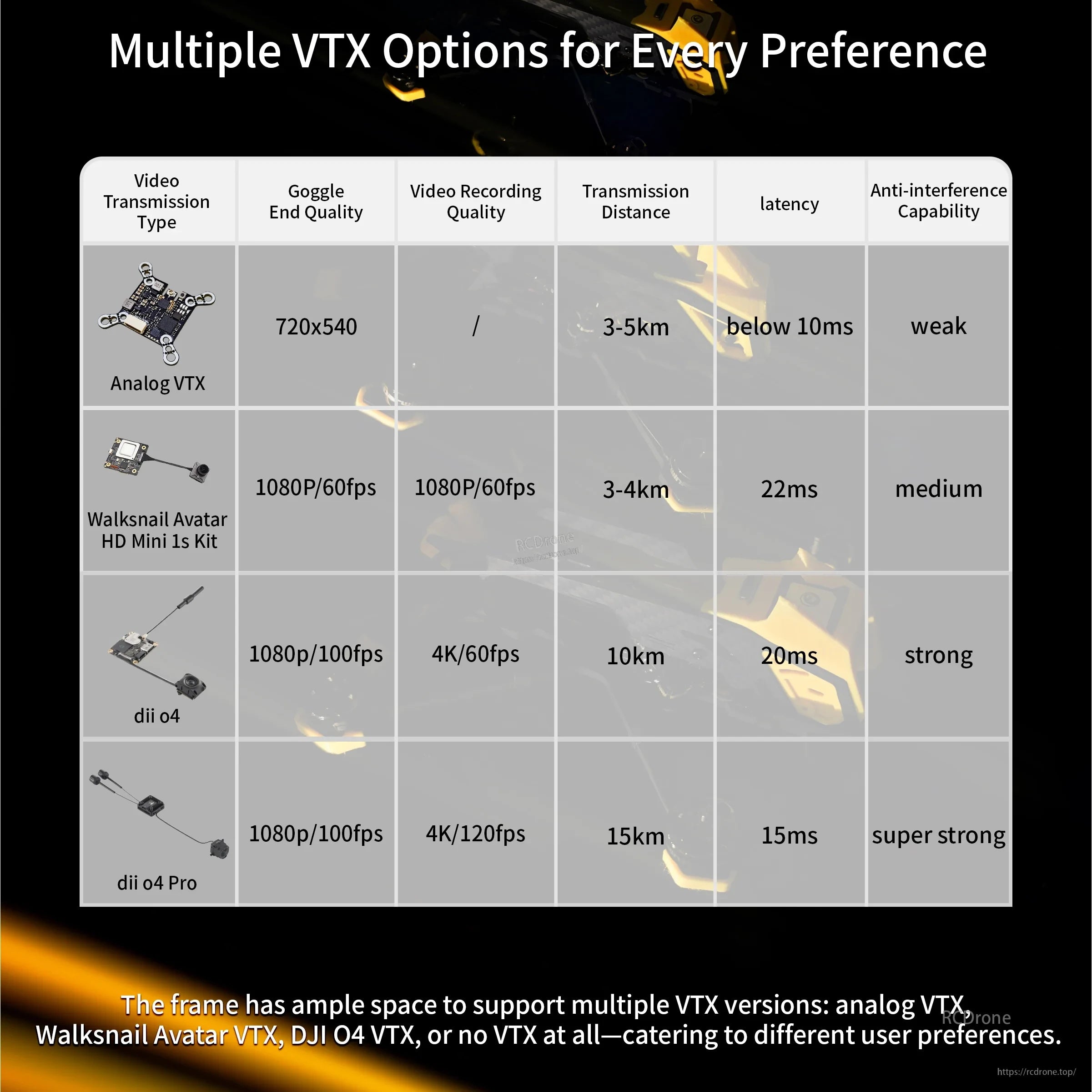

VTX Options (Reference Table)

Video Transmission Type	Goggle End Quality	Video Recording Quality	Transmission Distance	Latency	Anti-interference Capability
Analog VTX	720x540	/	3-5km	below 10ms	weak
Walksnail Avatar HD Mini 1s Kit	1080P/60fps	1080P/60fps	3-4km	22ms	medium
dji o4	1080p/100fps	4K/60fps	10km	20ms	strong
dji o4 Pro	1080p/100fps	4K/120fps	15km	15ms	super strong

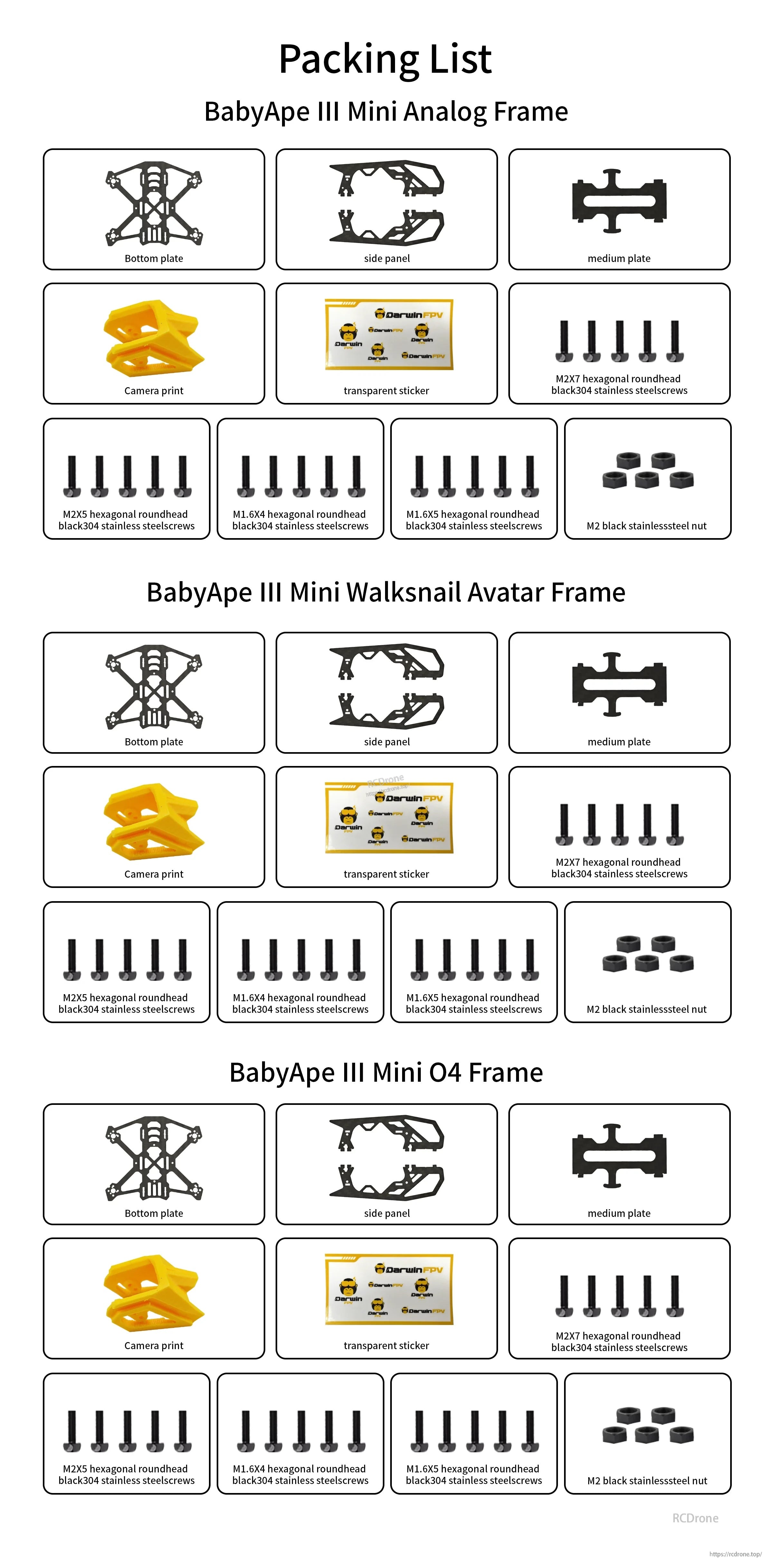

What’s Included

BabyApe III Mini Analog Frame

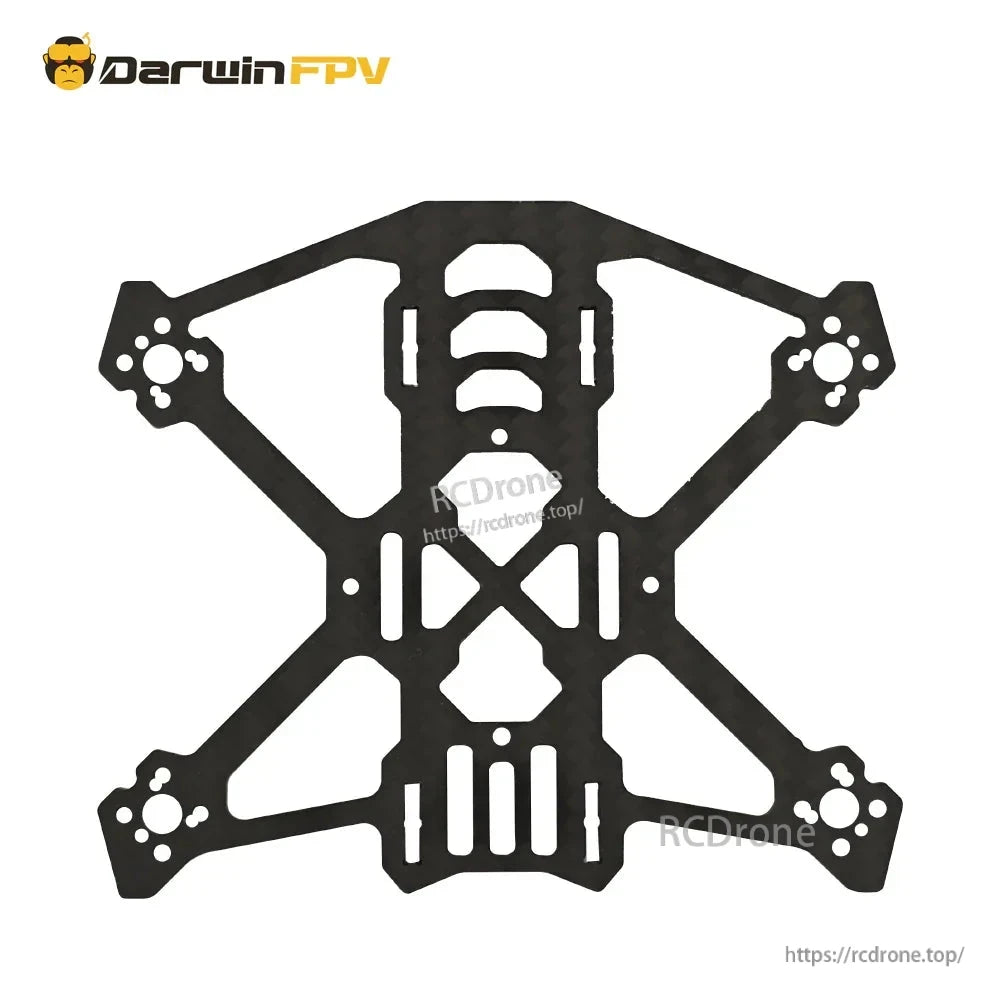

Bottom plate

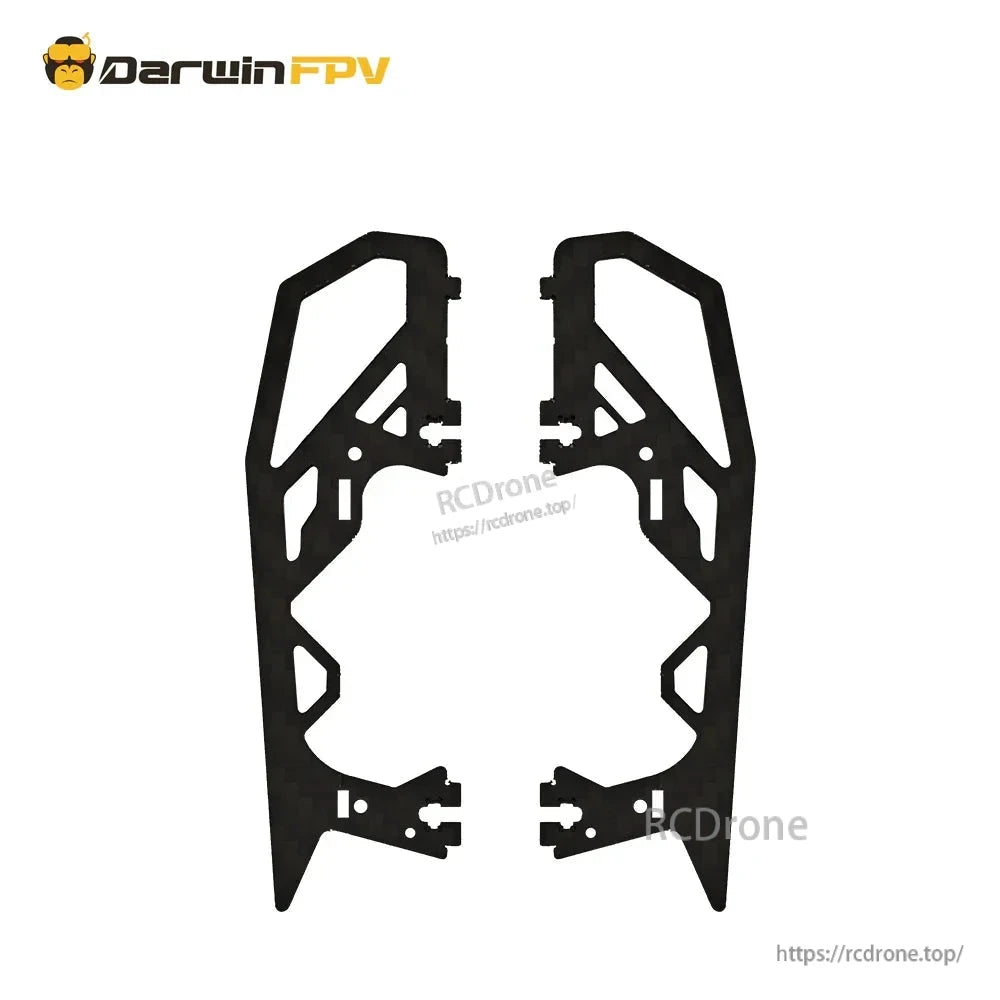

Side panel
Medium plate

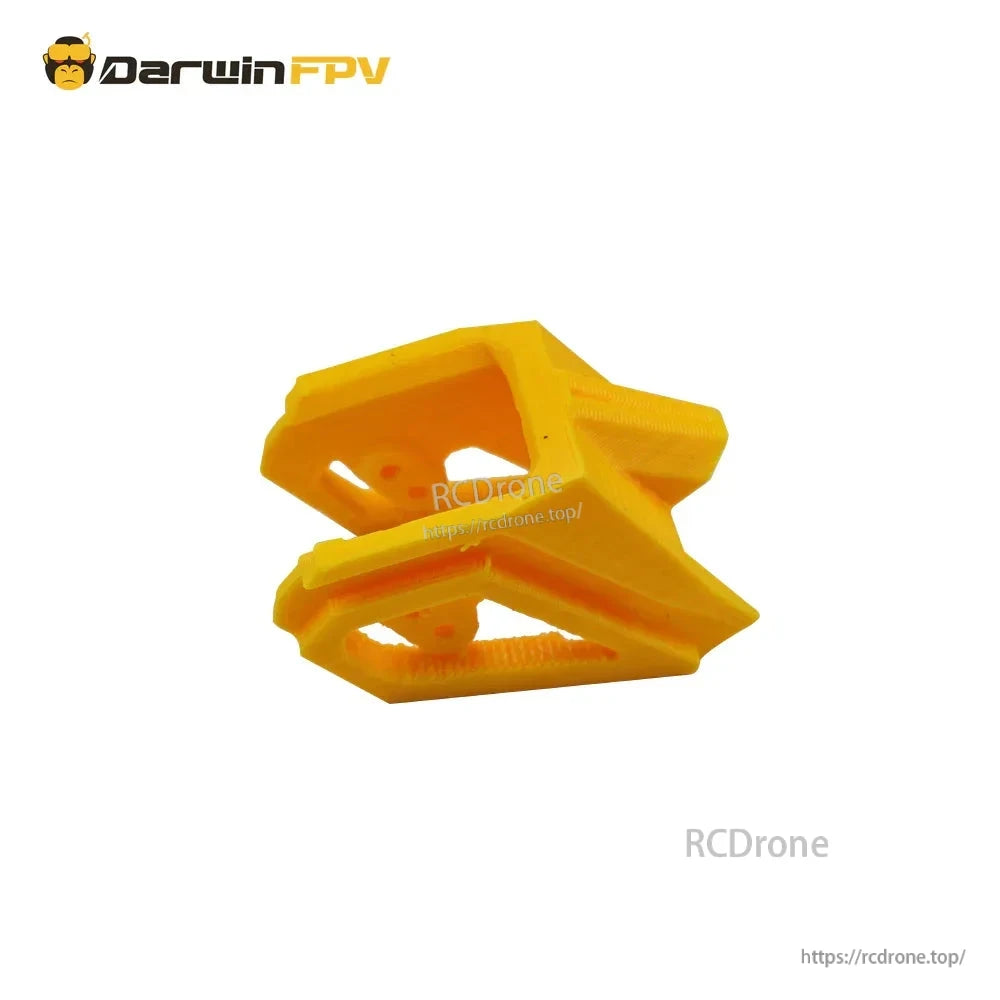

Camera print
Transparent sticker
M2X7 hexagonal roundhead black 304 stainless steel screws
M2X5 hexagonal roundhead black 304 stainless steel screws
M1.6X4 hexagonal roundhead black 304 stainless steel screws
M1.6X5 hexagonal roundhead black 304 stainless steel screws
M2 black stainless steel nut

BabyApe III Mini Walksnail Avatar Frame

Bottom plate
Side panel
Medium plate
Camera print
Transparent sticker
M2X7 hexagonal roundhead black 304 stainless steel screws
M2X5 hexagonal roundhead black 304 stainless steel screws
M1.6X4 hexagonal roundhead black 304 stainless steel screws
M1.6X5 hexagonal roundhead black 304 stainless steel screws
M2 black stainless steel nut

BabyApe III Mini O4 Frame

Bottom plate
Side panel
Medium plate
Camera print
Transparent sticker
M2X7 hexagonal roundhead black 304 stainless steel screws
M2X5 hexagonal roundhead black 304 stainless steel screws
M1.6X4 hexagonal roundhead black 304 stainless steel screws
M1.6X5 hexagonal roundhead black 304 stainless steel screws
M2 black stainless steel nut

Applications

2-inch micro freestyle FPV builds
Portable FPV setup for parks, yards, and camping (follow local regulations)
Beginner-friendly builds where durability and easy maintenance are priorities

For build advice and compatibility questions (electronics, VTX, battery sizing), contact support at https://rcdrone.top/ or support@rcdrone.top.

Details

Lifestyle graphic promoting compact BabyApe III Mini 2-inch FPV build for flying in forest, yard, park, and camping areas

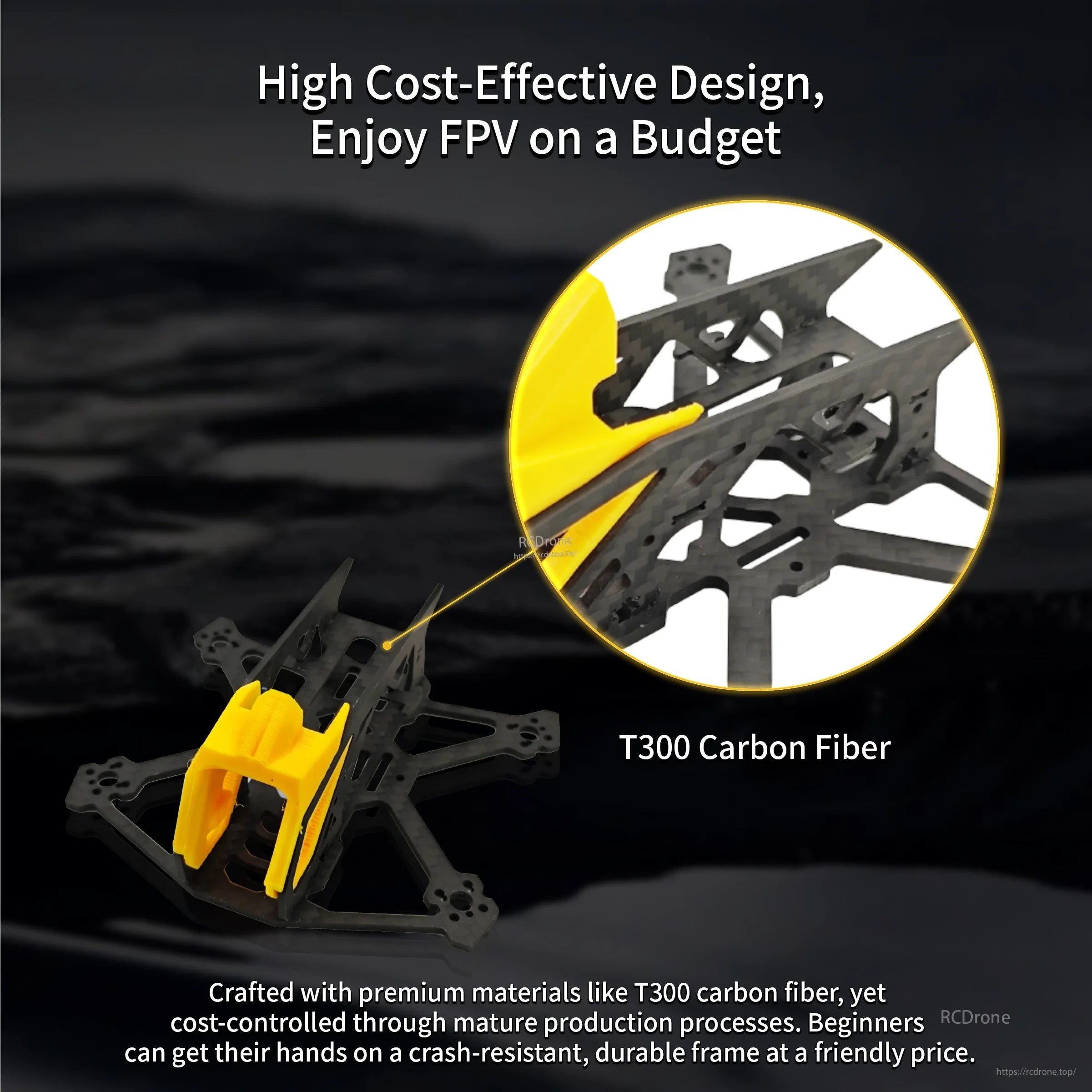

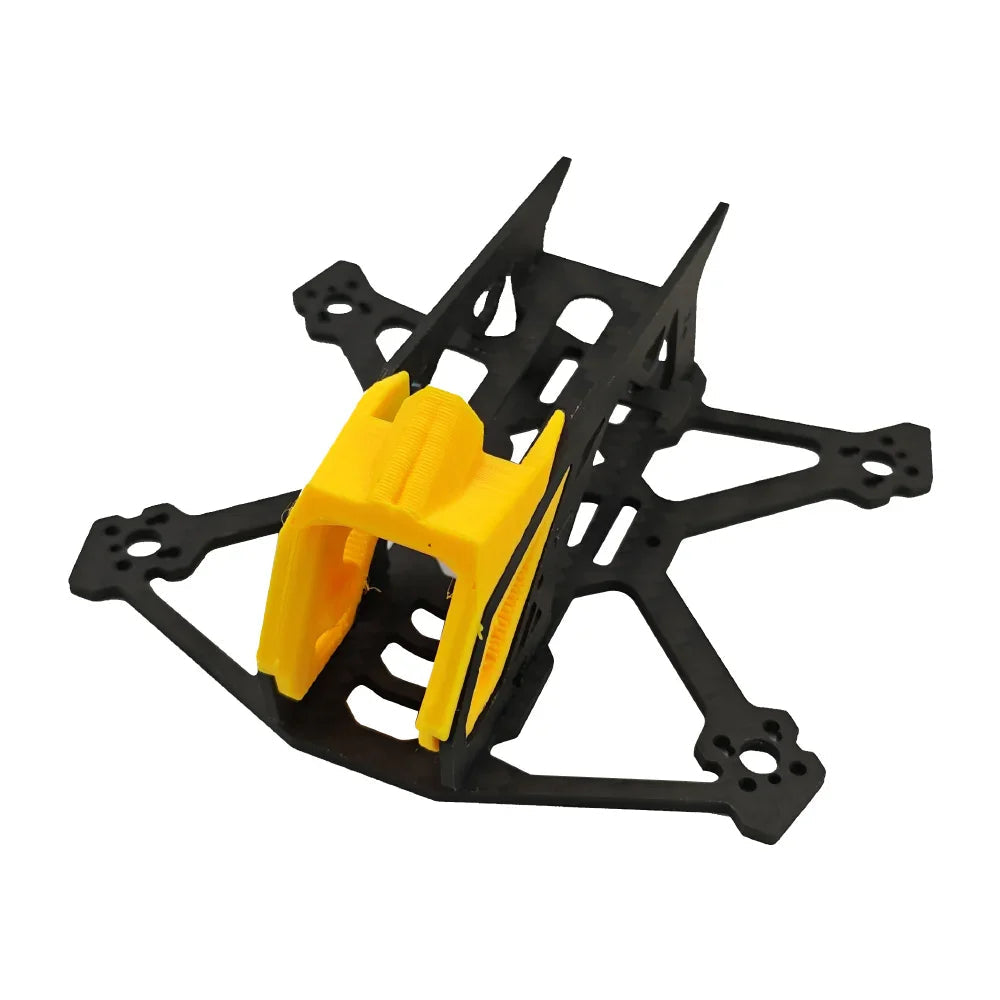

DarwinFPV BabyApe III Mini 2-inch freestyle FPV frame highlighting Wide-X carbon plate structure and T300 carbon fiber callout

Built around a lightweight Wide-X layout, the BabyApe III Mini frame uses a one-piece carbon structure aimed at durable, budget-friendly builds.

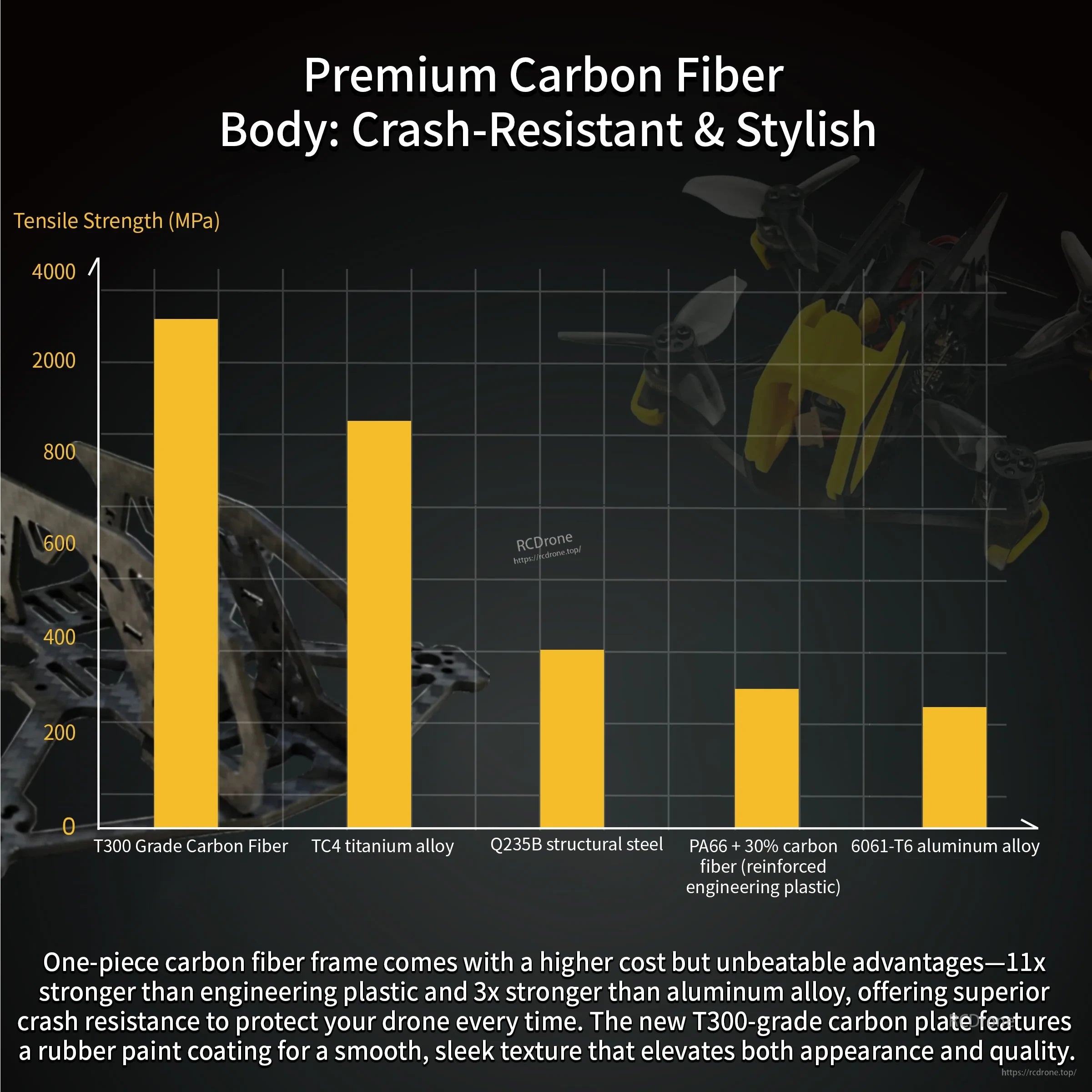

Infographic comparing tensile strength of T300 carbon fiber versus other materials, emphasizing crash-resistant carbon body

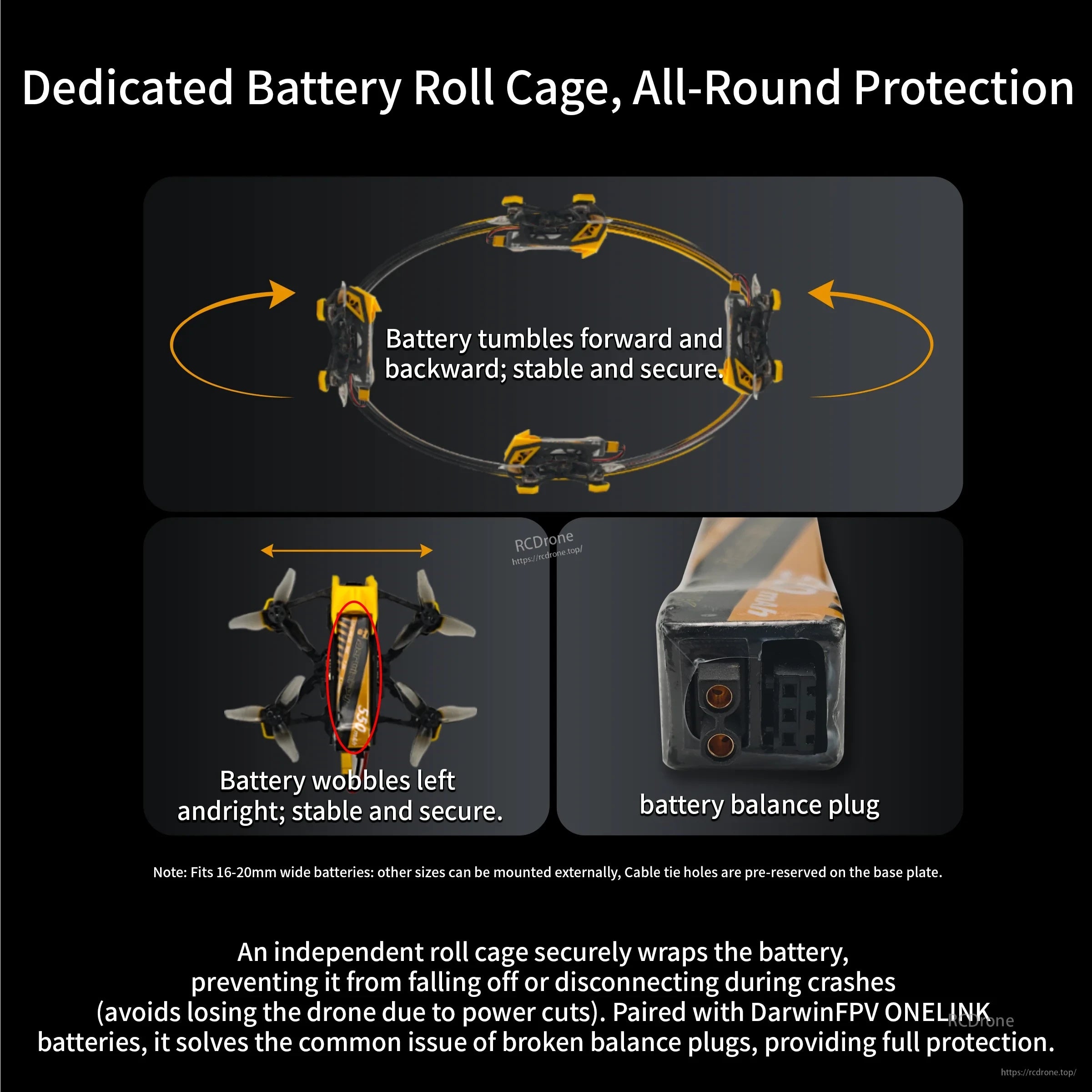

Battery roll cage protection graphic for BabyApe III Mini frame, with retention directions and battery balance plug protection callout

A dedicated battery roll cage helps keep the pack secure in crashes and reduces the chance of battery or balance lead disconnects.

Multiple VTX installation options make it easy to choose analog or HD systems like Walksnail Avatar or DJI O4 based on your preferred range and latency.
