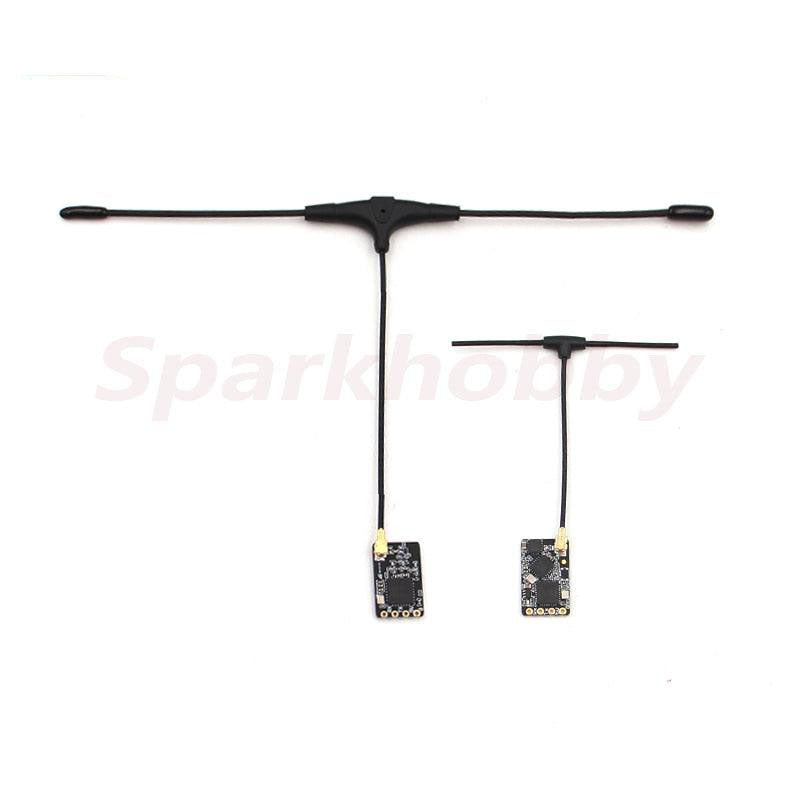

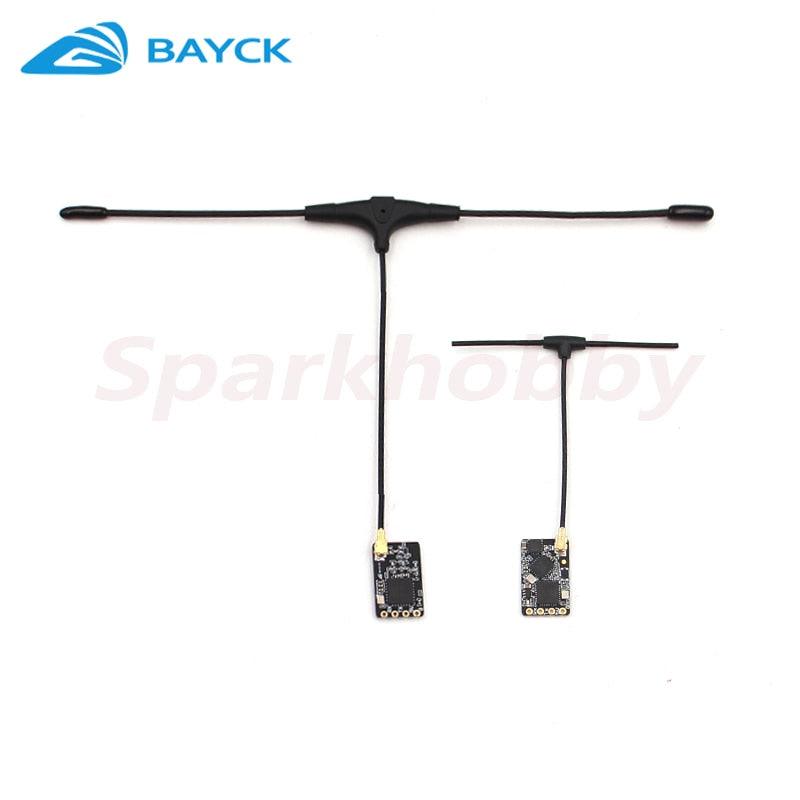

BAYCK ELRS 915MHz / 2.4GHz NANO ExpressLRS Receiver SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Remote Control Peripherals/Devices: Receivers

Recommend Age: 12+y

RC Parts & Accs: Receivers

Origin: Mainland China

Model Number: ELRS NANO

Material: Composite Material

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Brand Name: SPARKHOBBY

ExpressLRS
ExpressLRS aims to provide the best completely open, high refresh radio control link while maintaining a maximum achievable range at that rate with low latency. Vast support of hardware in both 900 Mhz and 2.4 GHz frequencies.

SPECIFICATIONS  1
Brand:BAYCK
Model:ELRS 2.4G NANO
RF Freq:2.4Ghz
IC:SX1281+ESP8285
TX Power:100mW
Color:Black
Connector:IPEX 1
Input Power:3.6-5.5V
Weight:0.4g(receiver only)
Size:11mm*18mm
Firmware: BETAFPV Nano 2400 RX   2.2.0

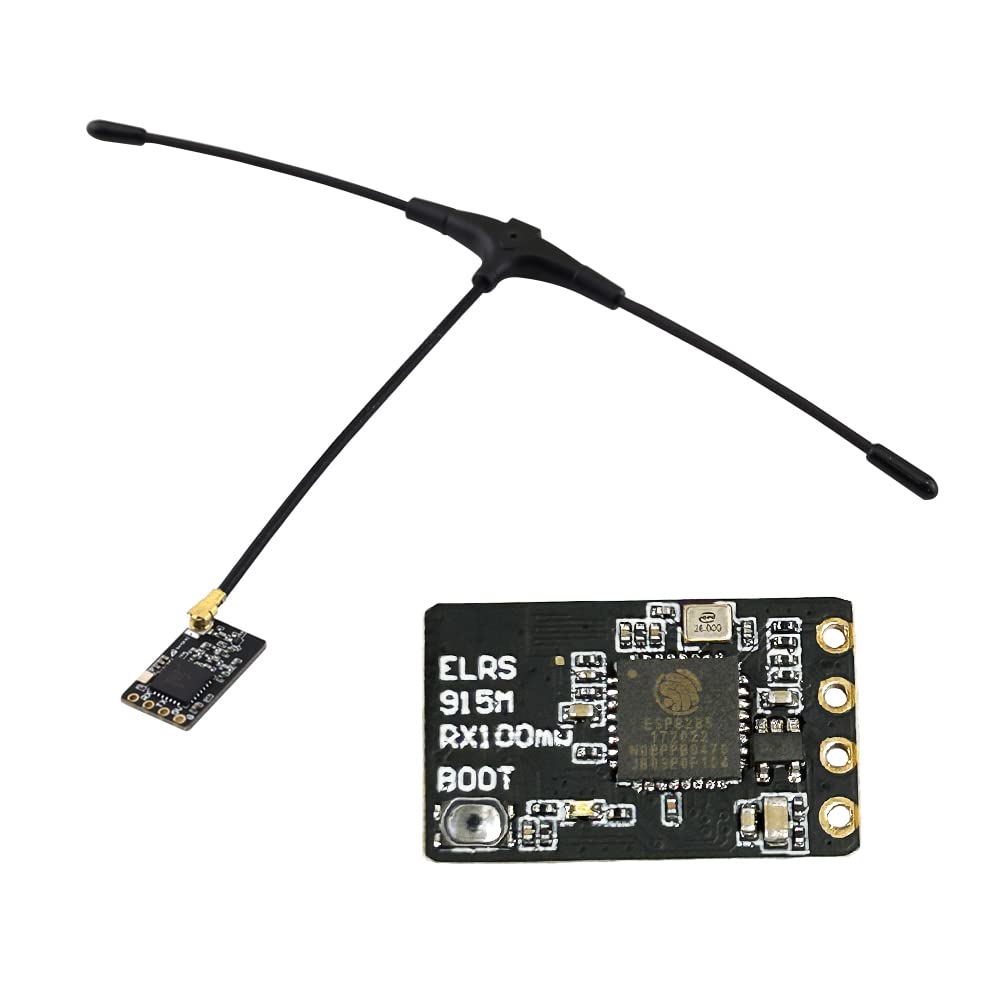

SPECIFICATIONS  2
Brand:BAYCK
Model:ELRS 915M NANO
RF Freq:915Mhz
IC:SX1276+ESP8285
TX Power:100mW
Color:Black
Connector:IPEX 1
Input Power:3.6-5.5V
Weight:0.6g(receiver only)
Size:11mm*18mm
Firmware: BETAFPV 900 RX 2.2.0

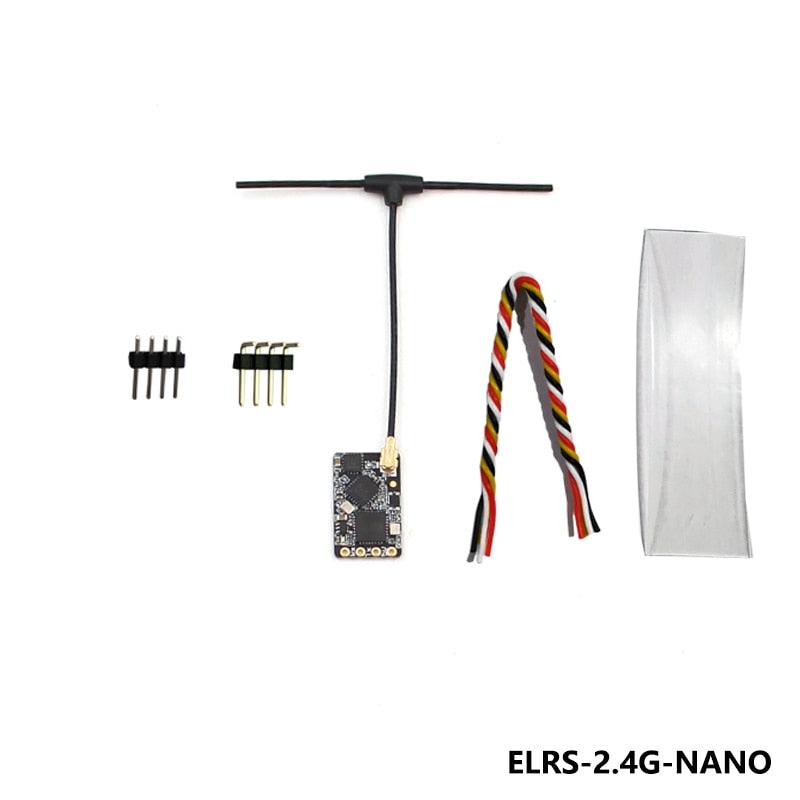

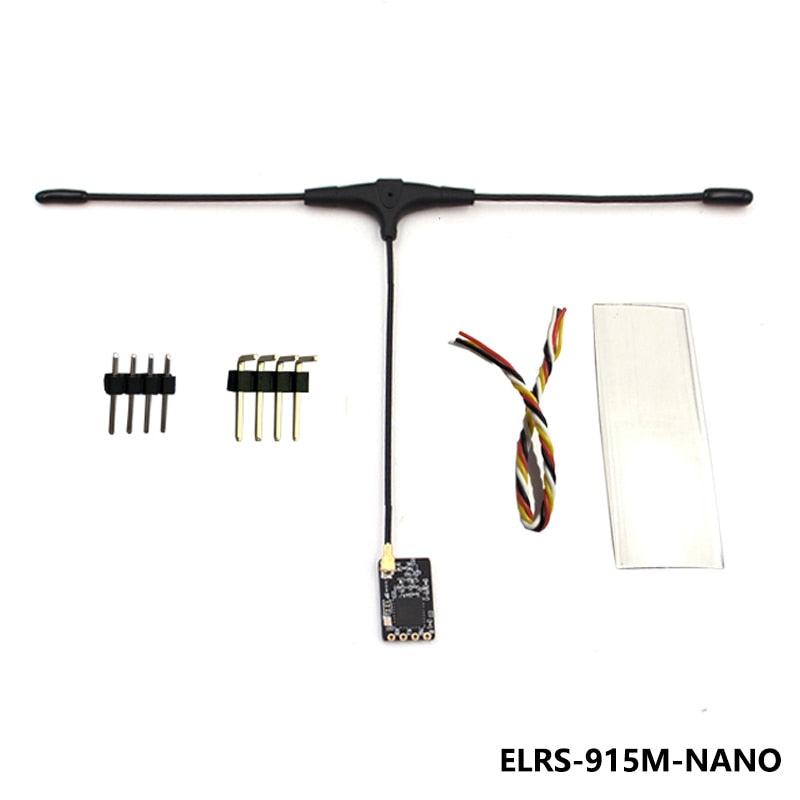

• Package Included:
• Nano Receiver x 1

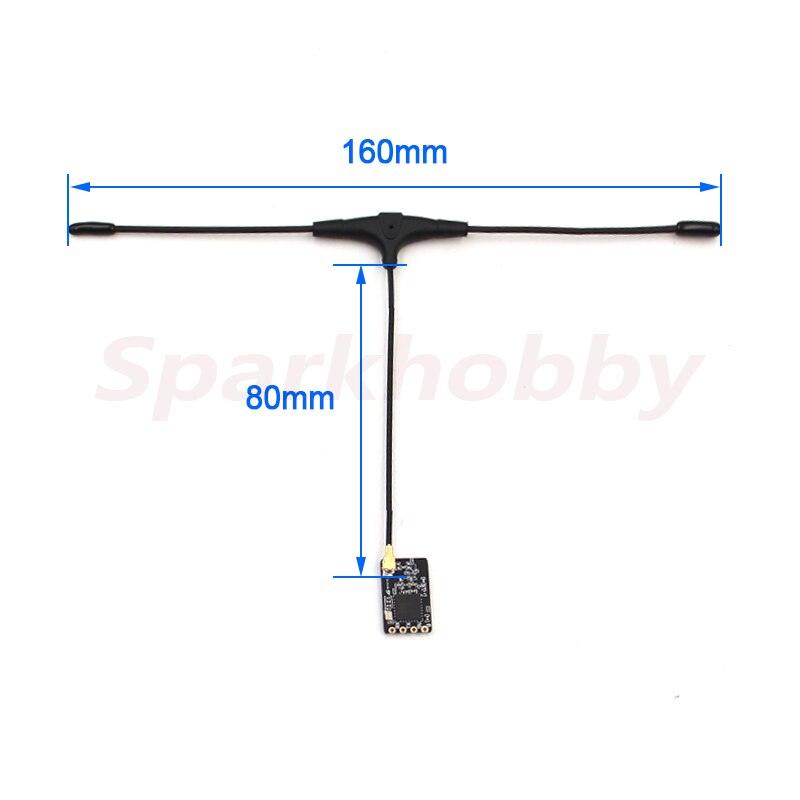

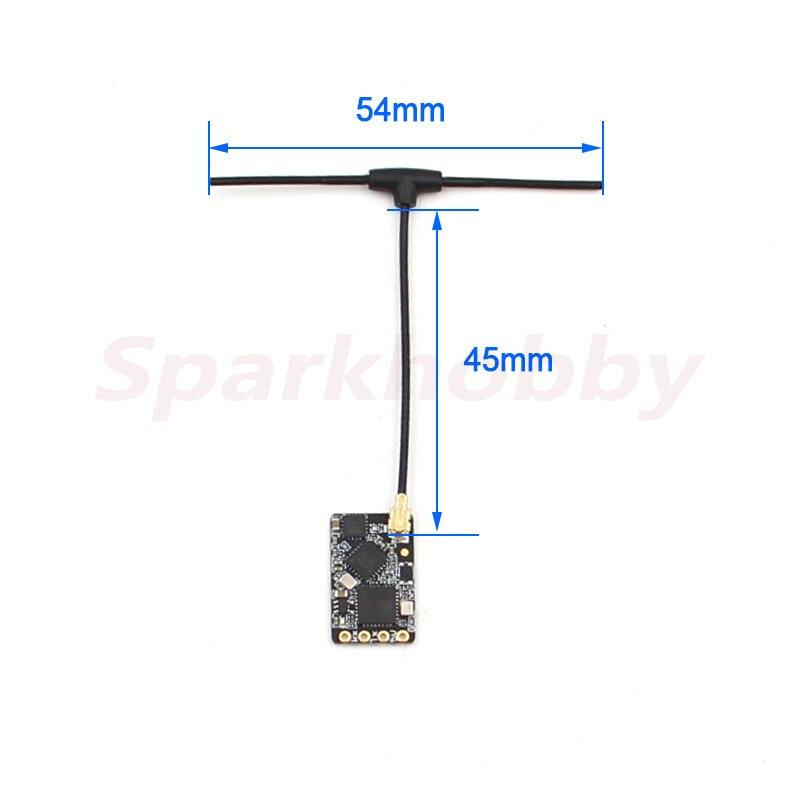

  T type receiver antenna x 1
  Heat shrink tube x 1
  30AWG Silicone Wire x 4
  2.54mm connector 1x4pin x 2

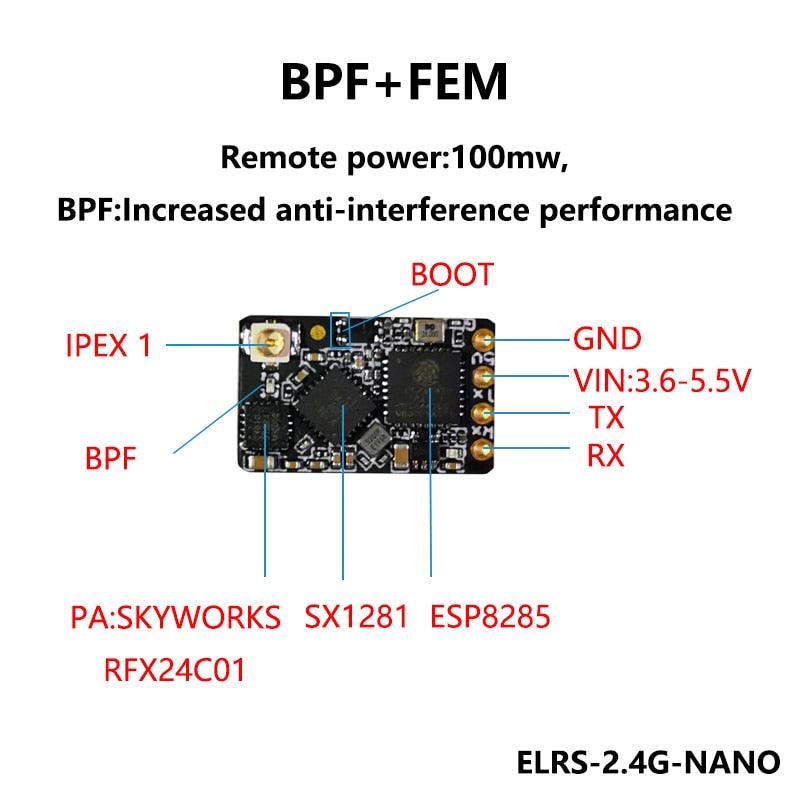

BPF+FEM Remote power:1OOmw, BPF:Increased anti-interference performance BOOT IPEX 1 GND VIN.3.6-5.5V TX BPF RX PASKYWORKS SX1281 ESP8285 RFXZACO1 ELRS-2.4G-NA

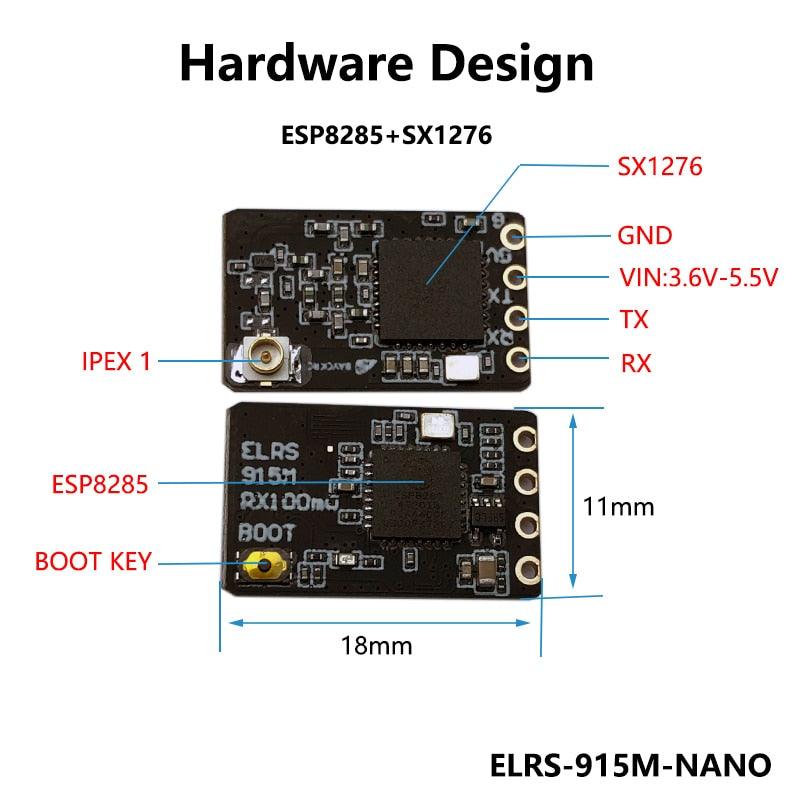

Hardware design featuring ESP8285 and SX1276 components, with specifications including GND and VIN inputs operating within a voltage range of 3.6V to 5.5V, TX and RXI pins, IPEX connector, and an 11mm boot key, specifically designed for the ELRS-91SM-NANO receiver.
