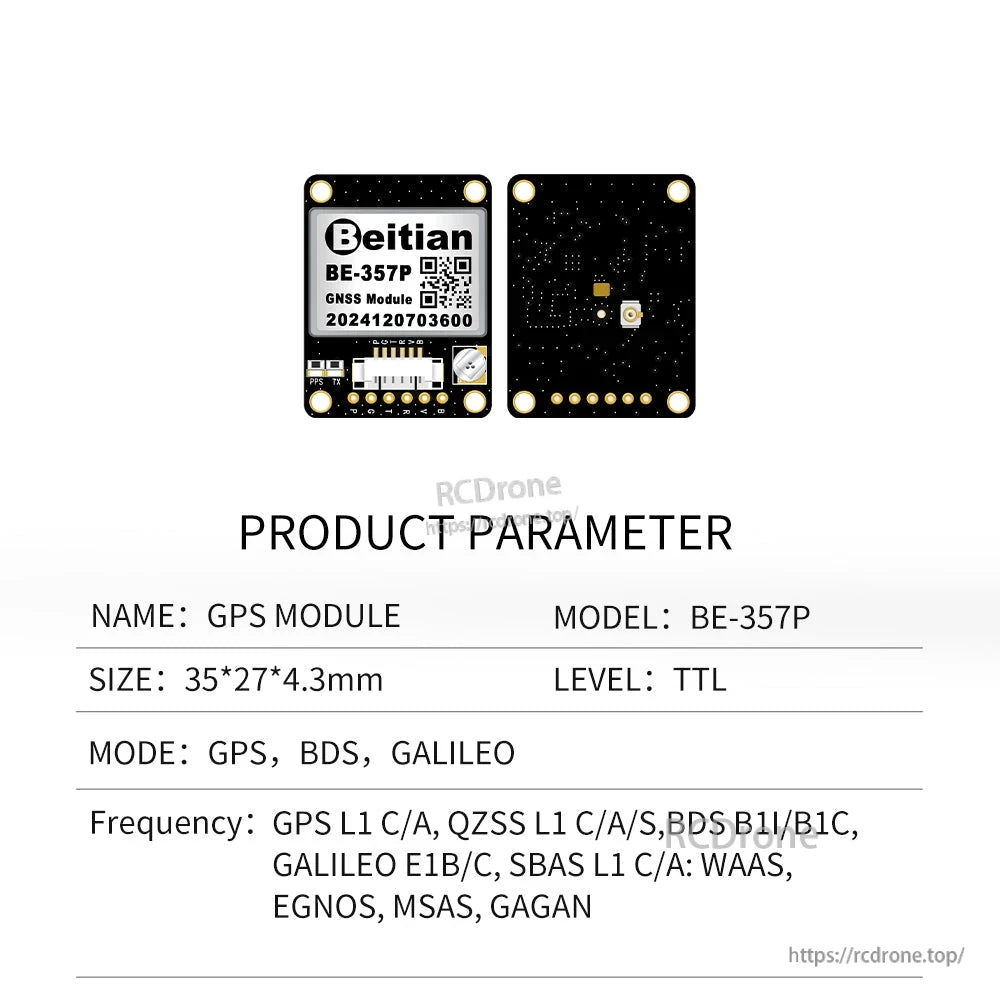

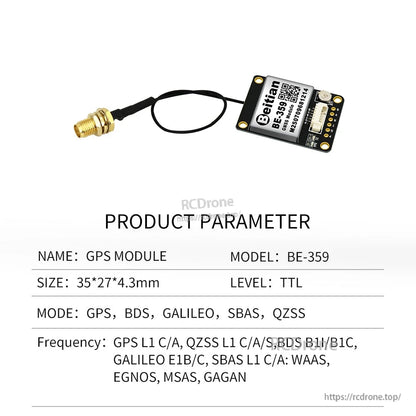

  • Product parameter sheet for BE-357P GPS module showing front and back board views

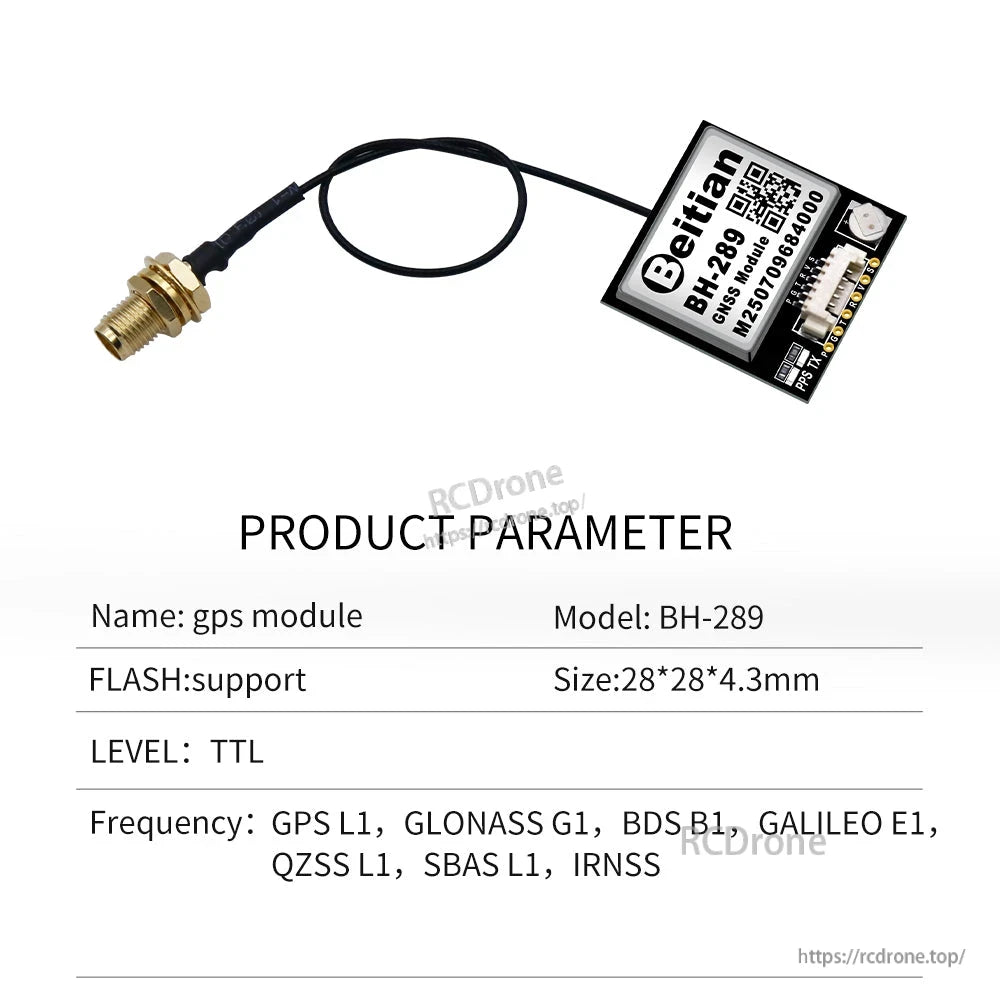

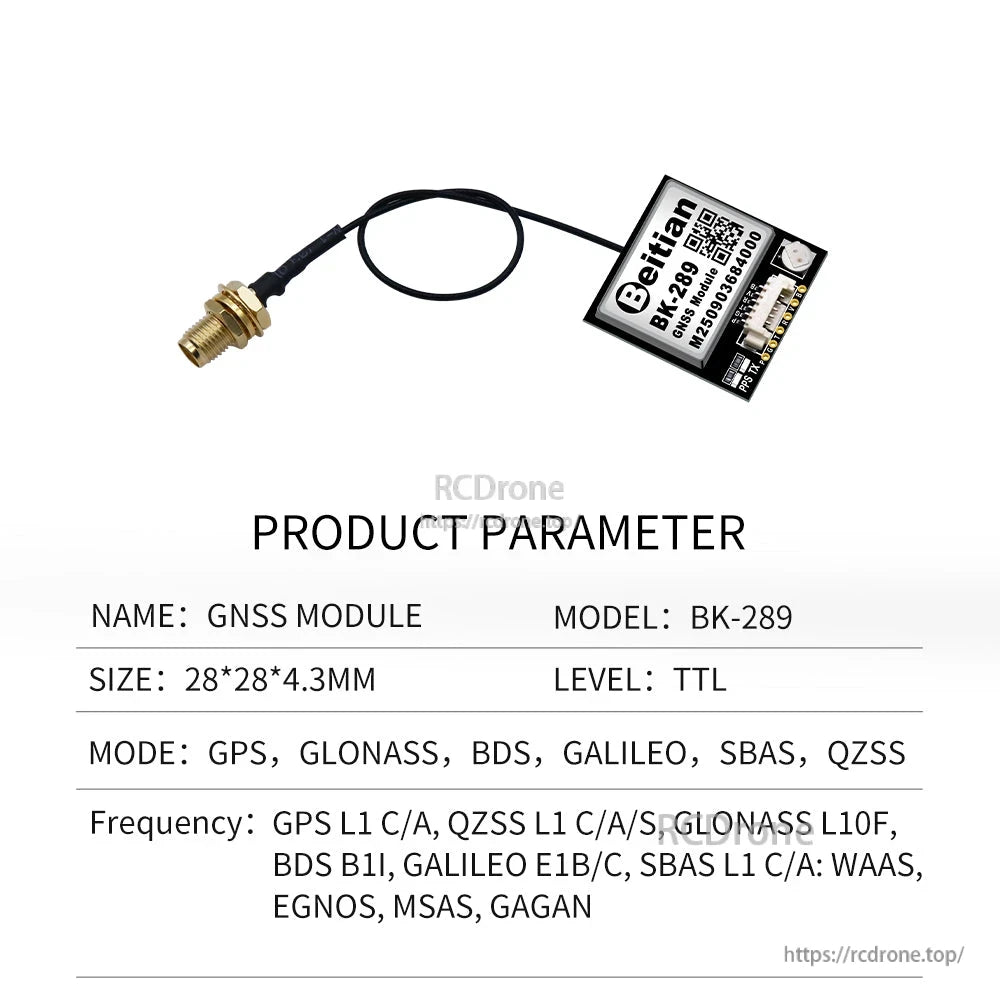

  • BH-289 GNSS module product parameter sheet showing flash support and TTL level

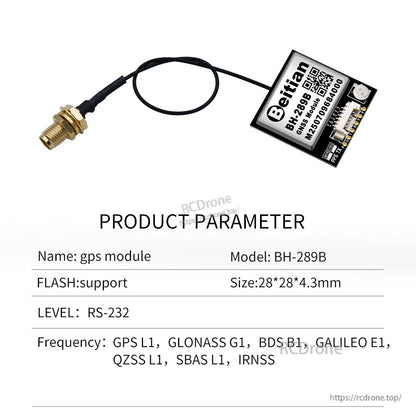

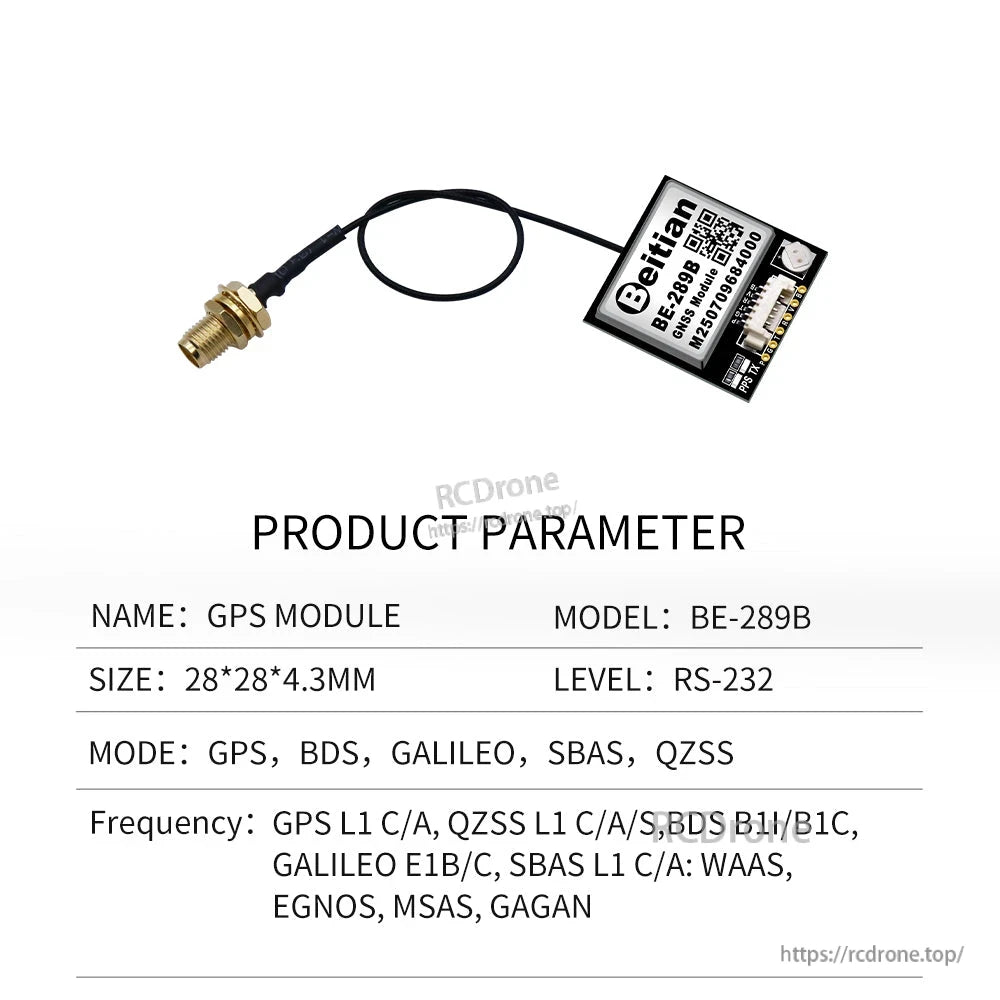

  • BH-289B GNSS module product parameter sheet showing flash support and RS-232 level

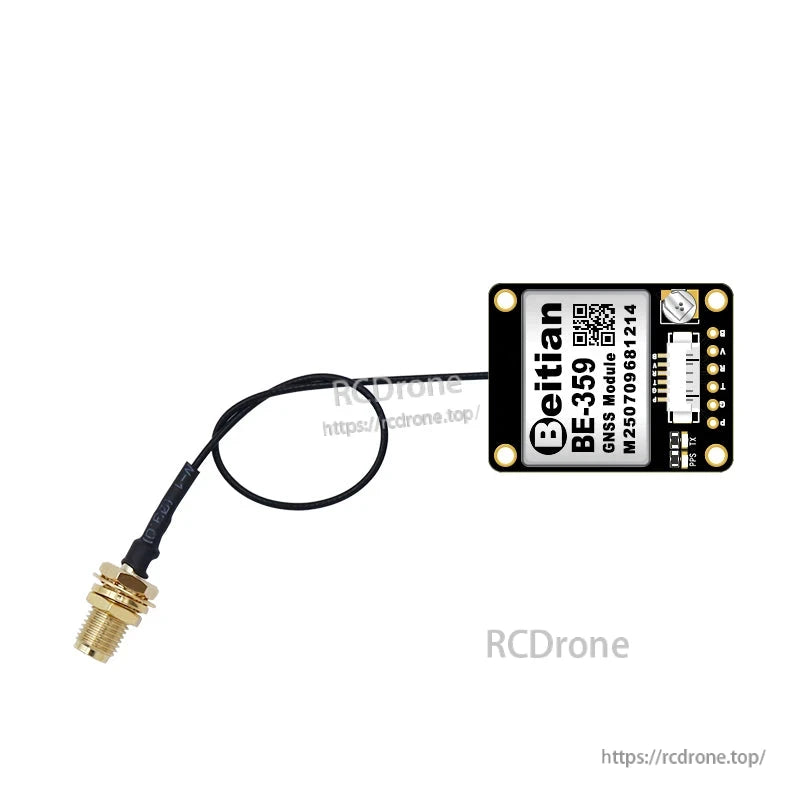

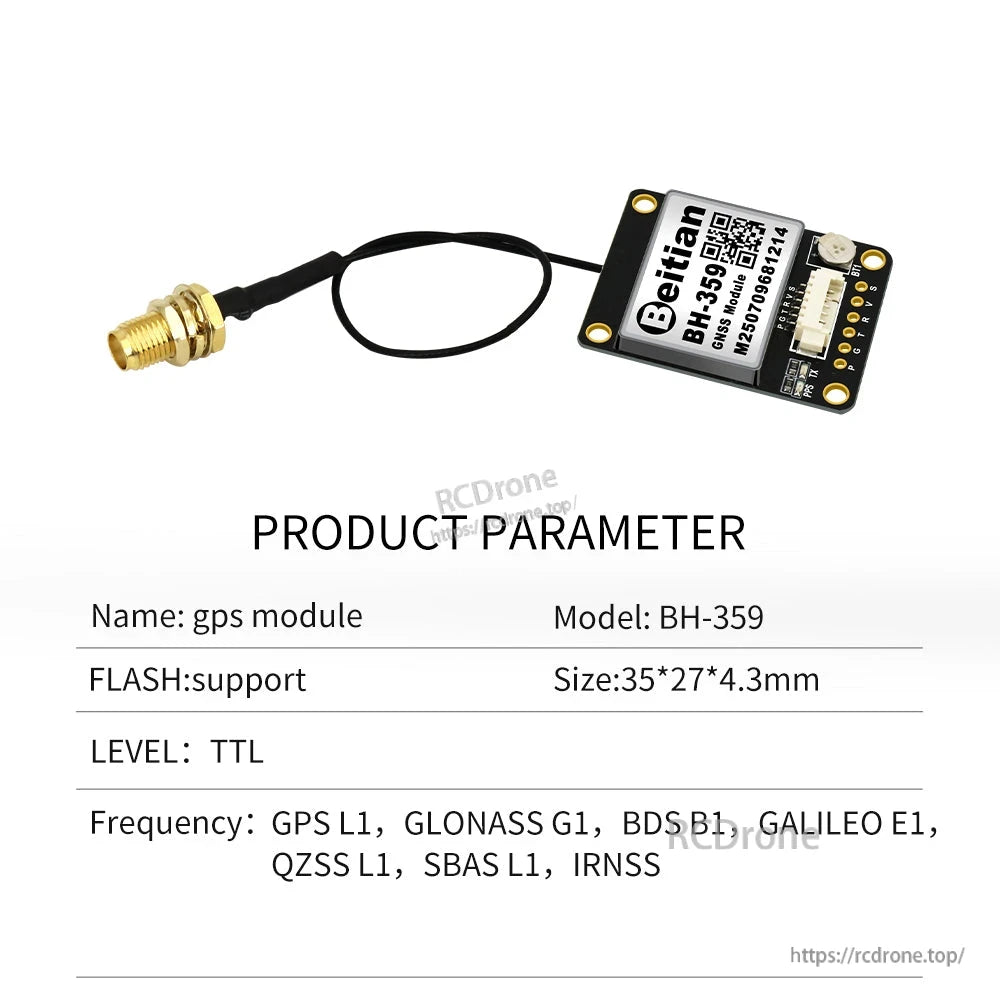

  • Beitian GNSS GPS module board with SMA antenna connector, wiring header, and separate antenna lead

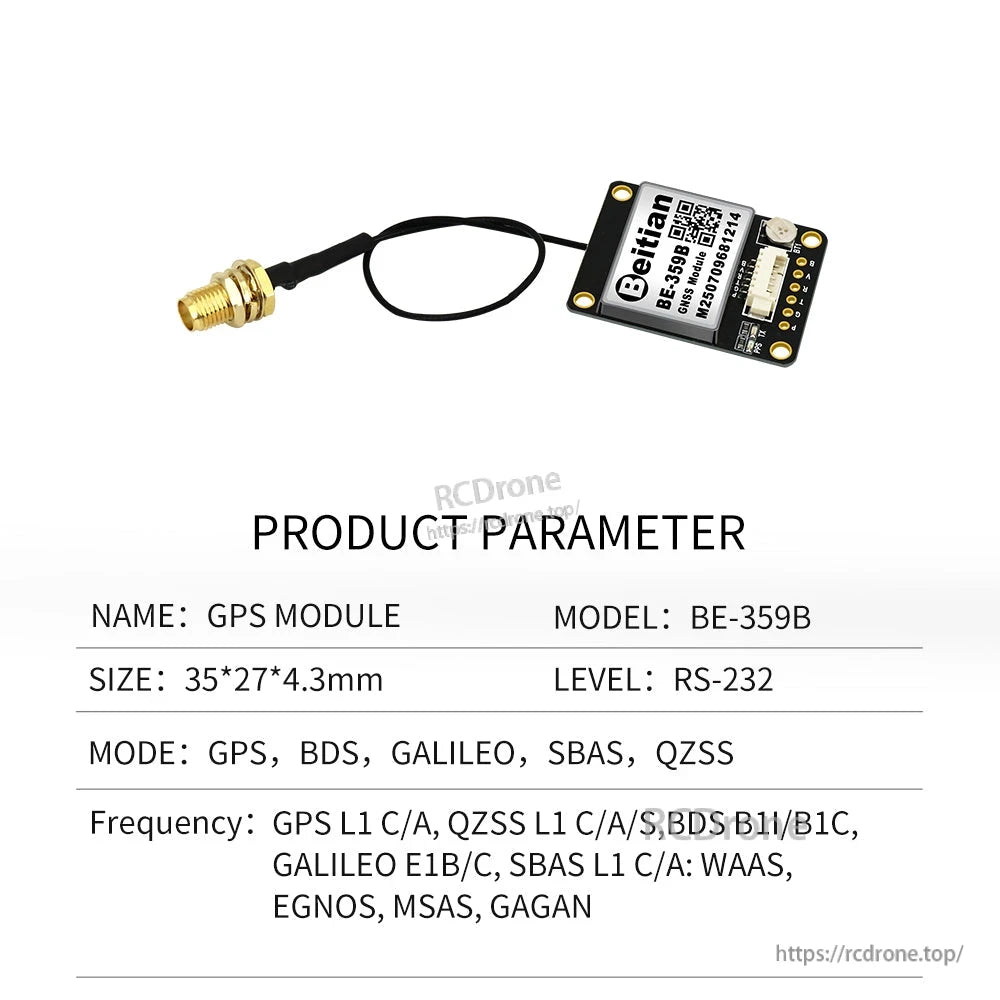

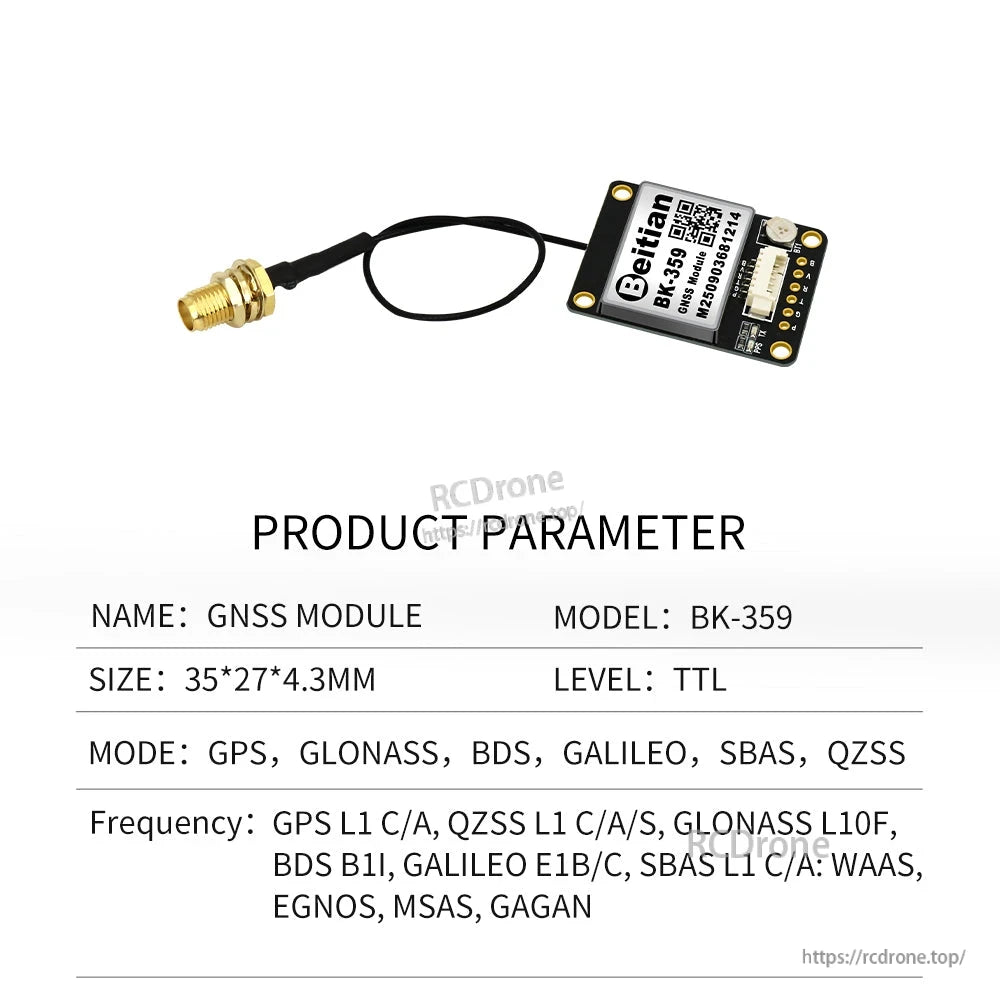

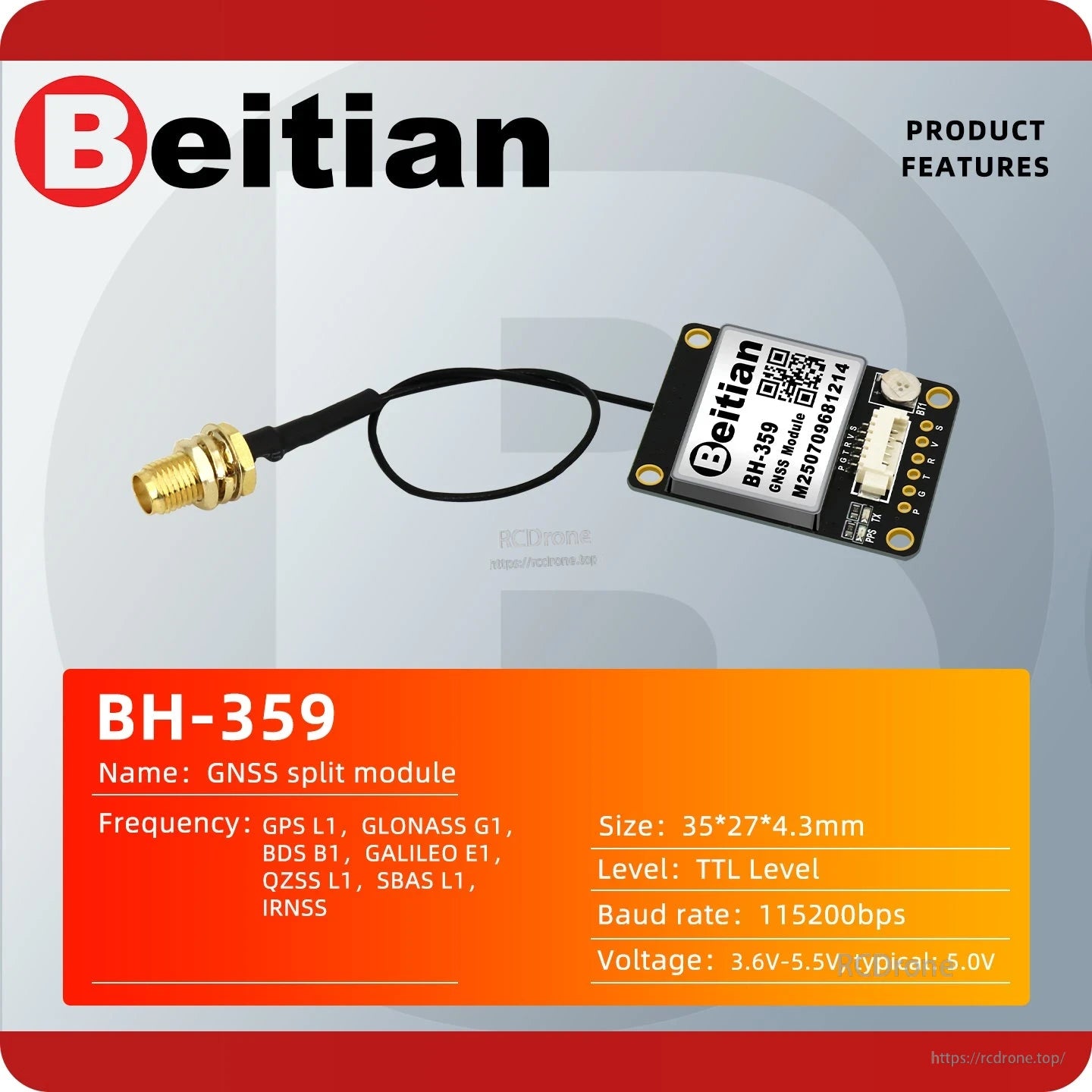

  • Beitian BH-359B GNSS GPS module with separate SMA antenna and compact connector board

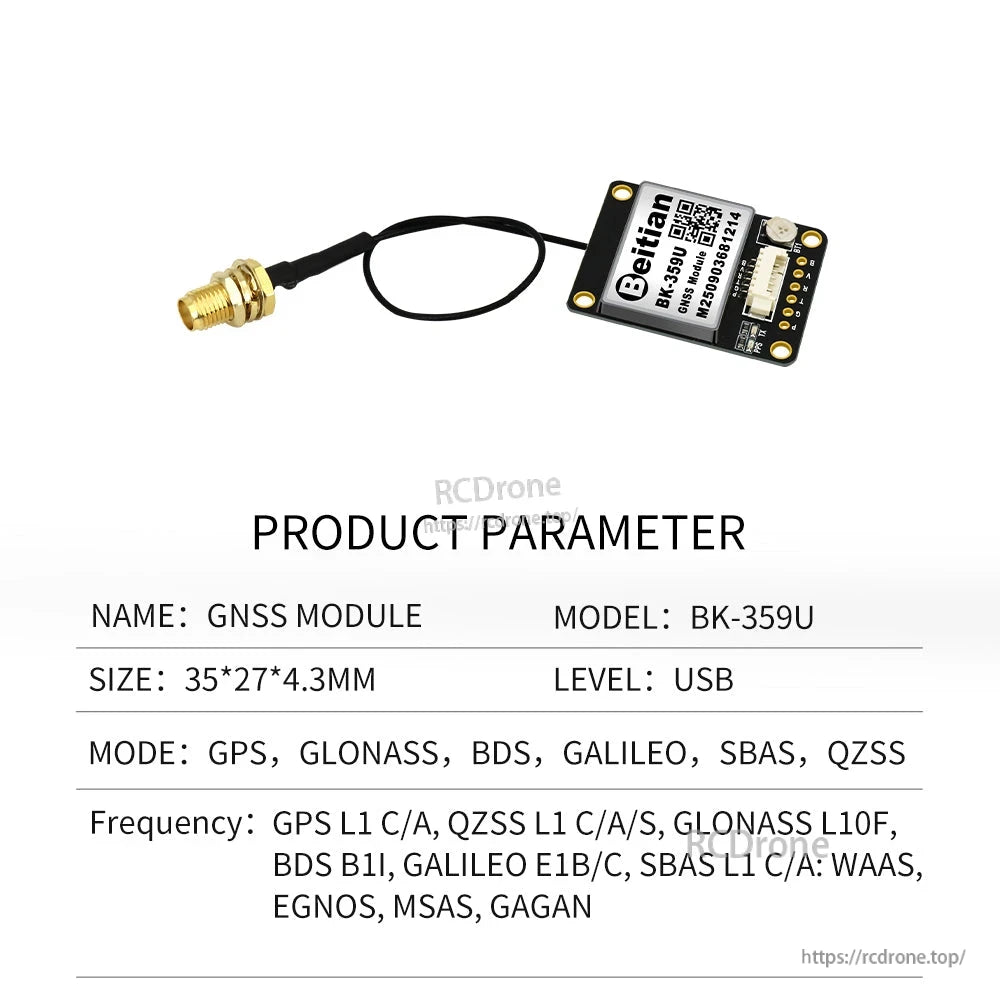

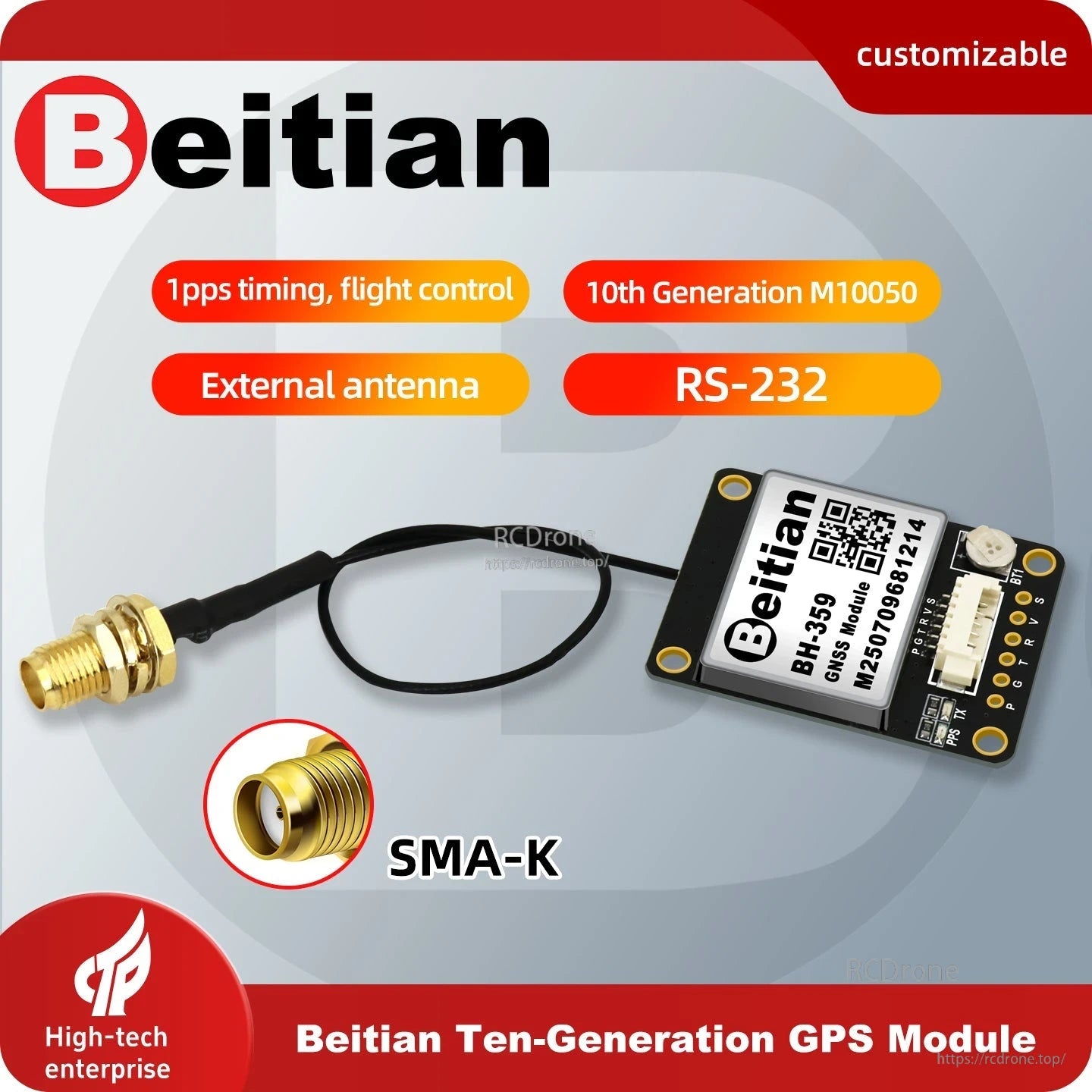

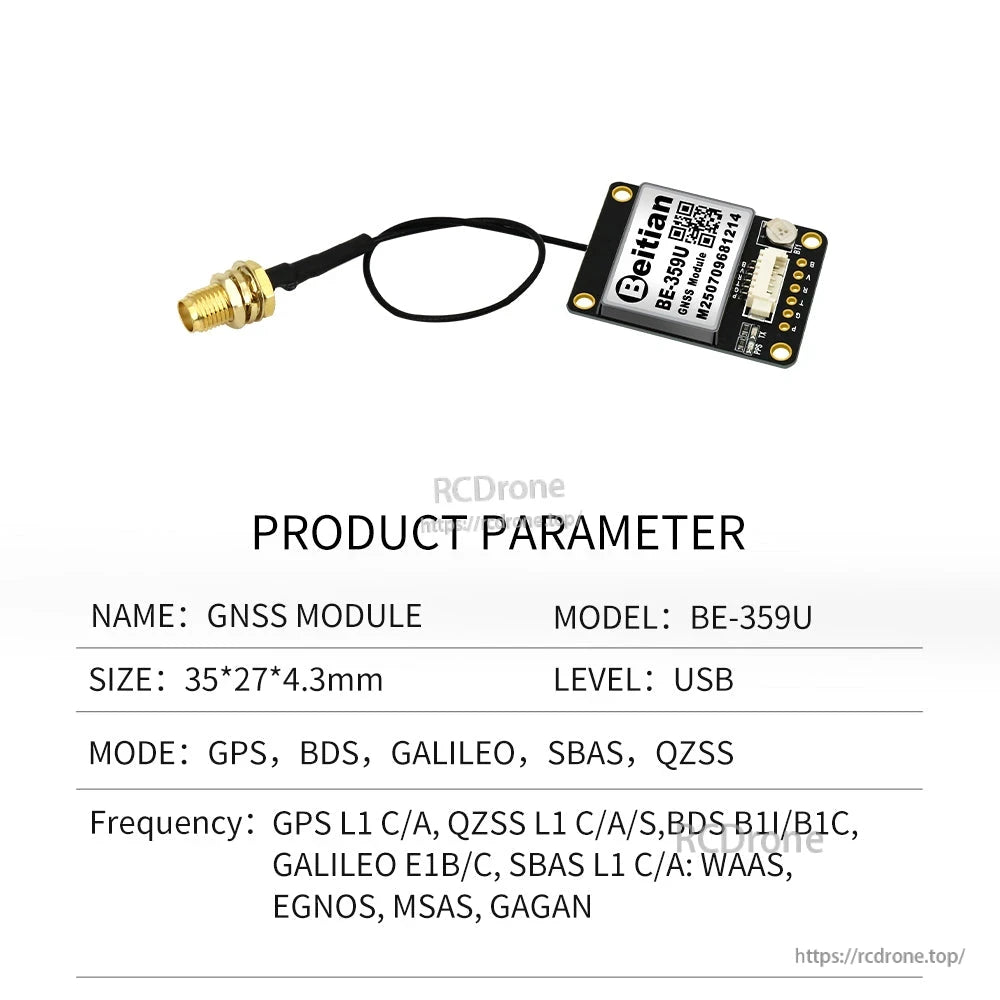

  • Beitian BH-359U GNSS module with separate SMA antenna and compact flight controller board

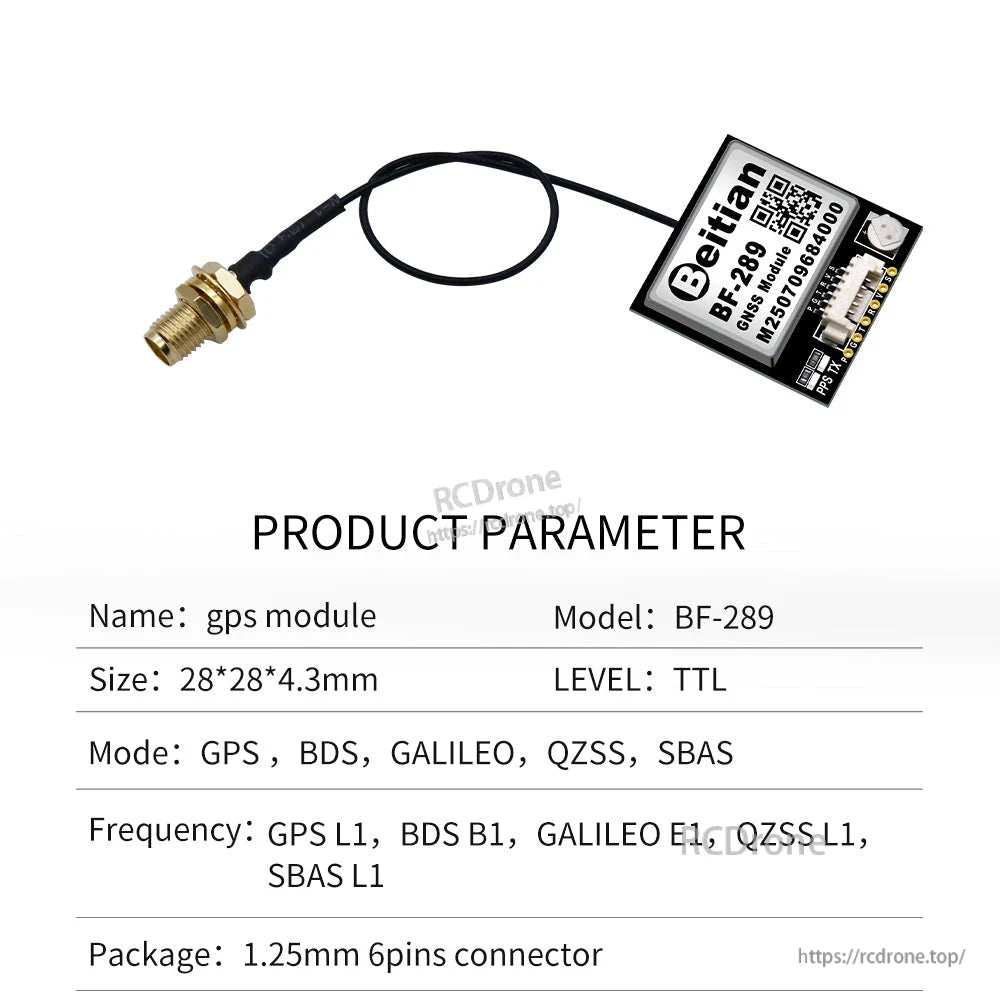

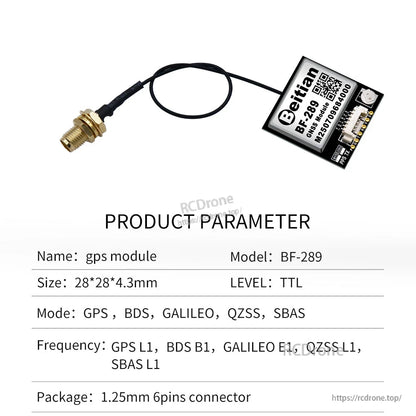

  • Beitian BE-289 GNSS timing module with separate SMA antenna and 6-pin connector board

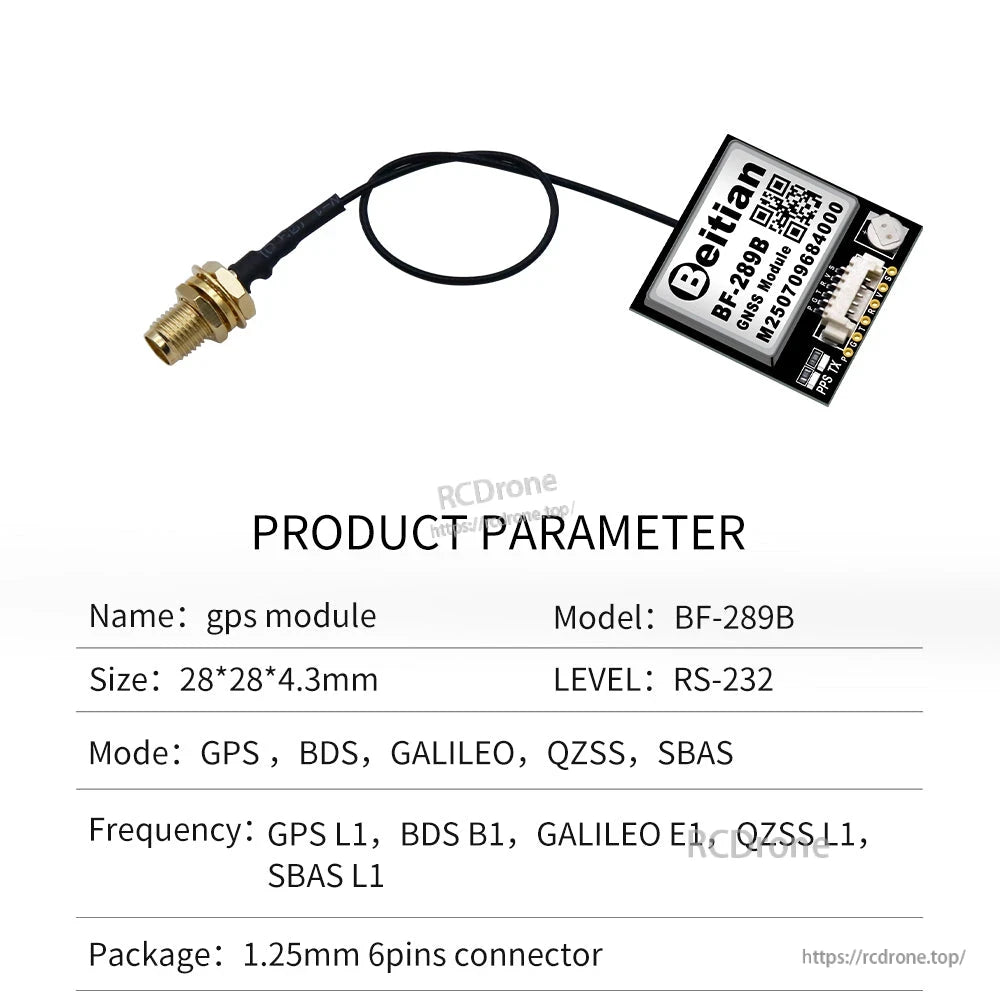

  • Beitian BF-289B GNSS timing navigation module with SMA antenna connector and 6-pin interface

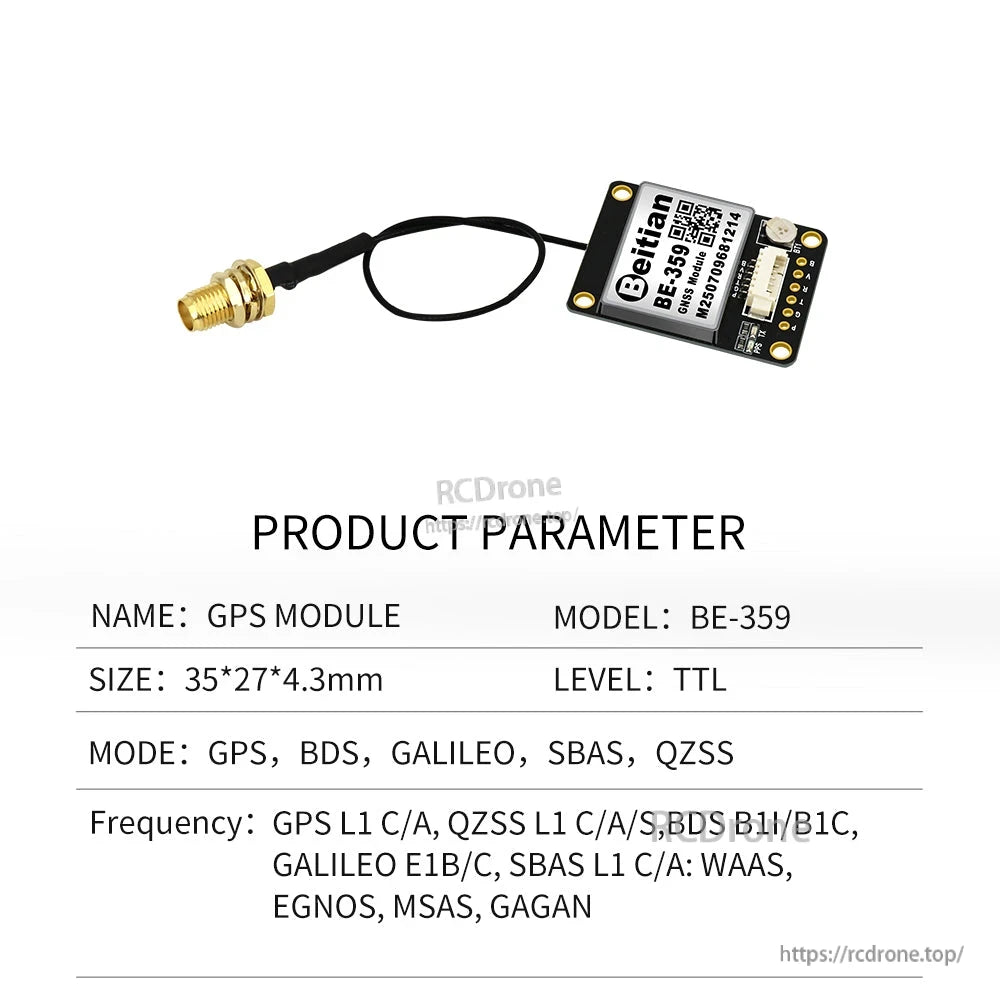

  • Beitian BF-359 GNSS GPS module with SMA antenna connector and 6-pin board layout

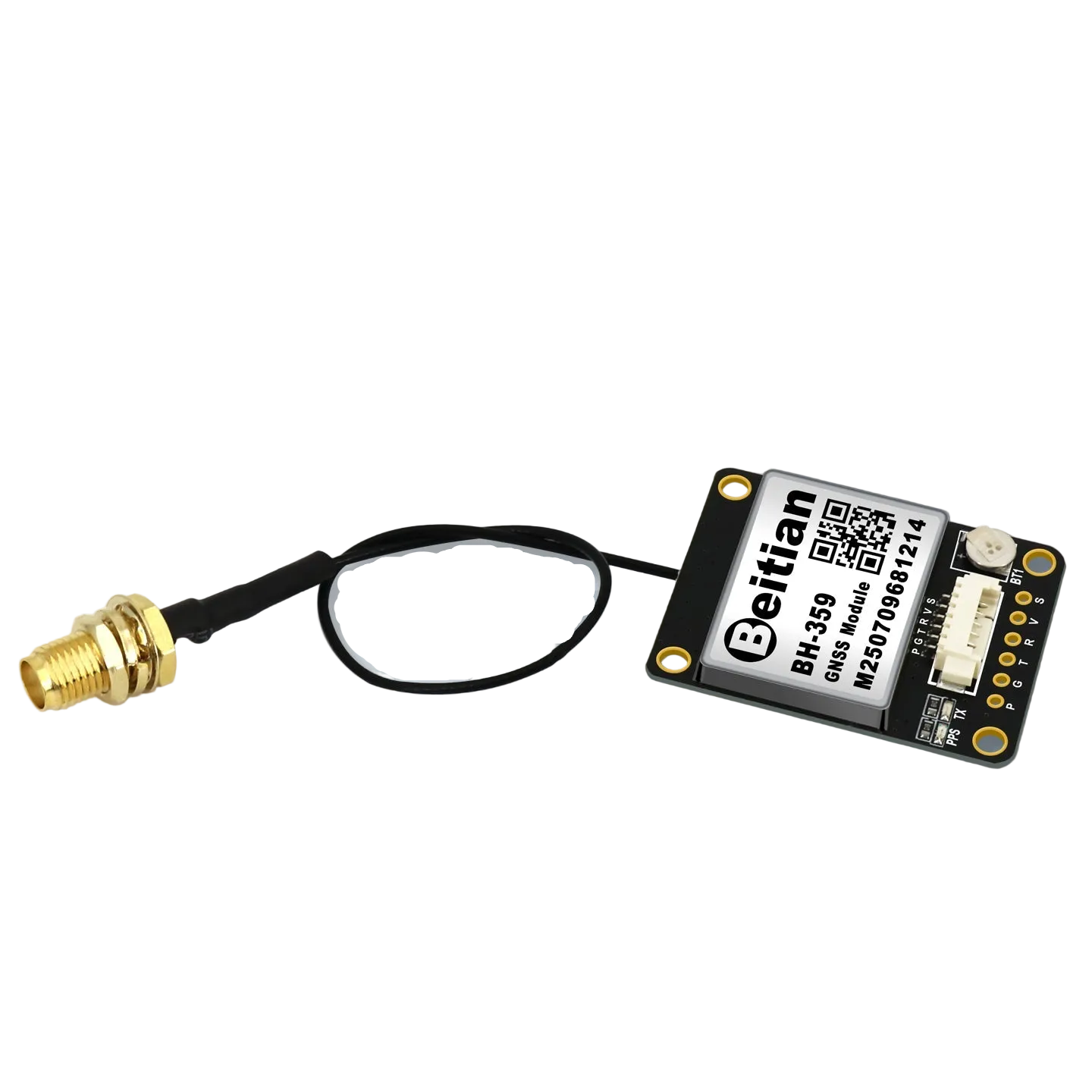

  • Beitian GNSS GPS module with separate SMA antenna, 6-pin connector, and compact black PCB

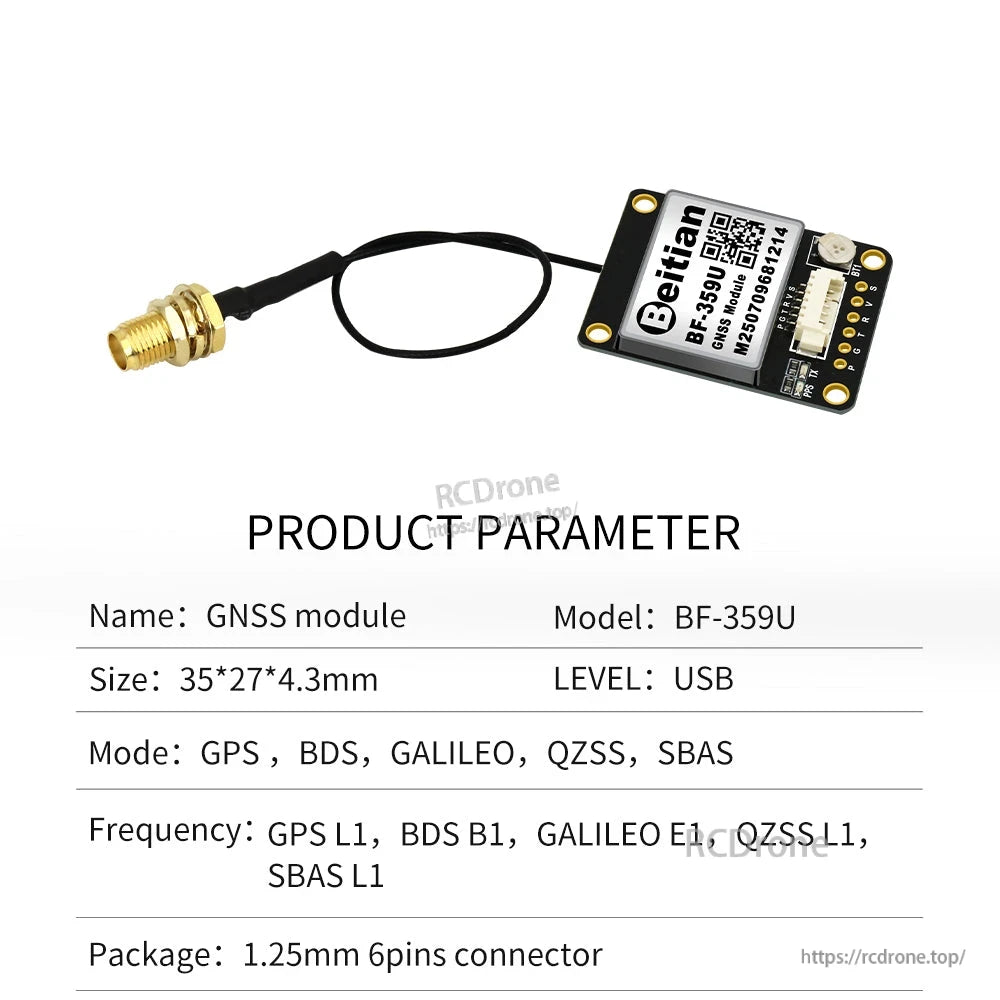

  • Beitian GNSS timing navigation module with SMA-K antenna connector and 6-pin board layout

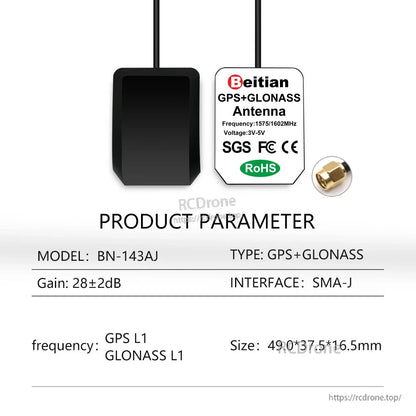

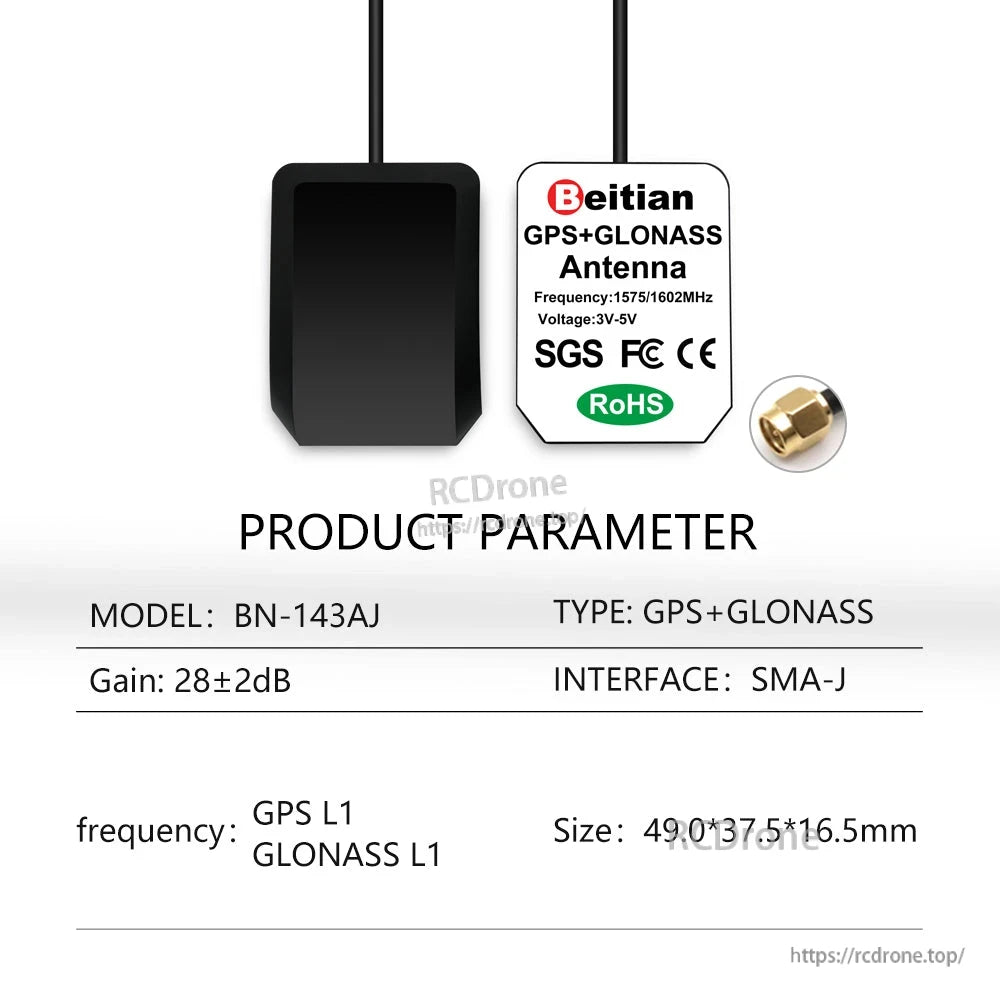

  • Beitian GPS+GLONASS antenna module with separate receiver unit and SMA connector, labeled 28dB gain

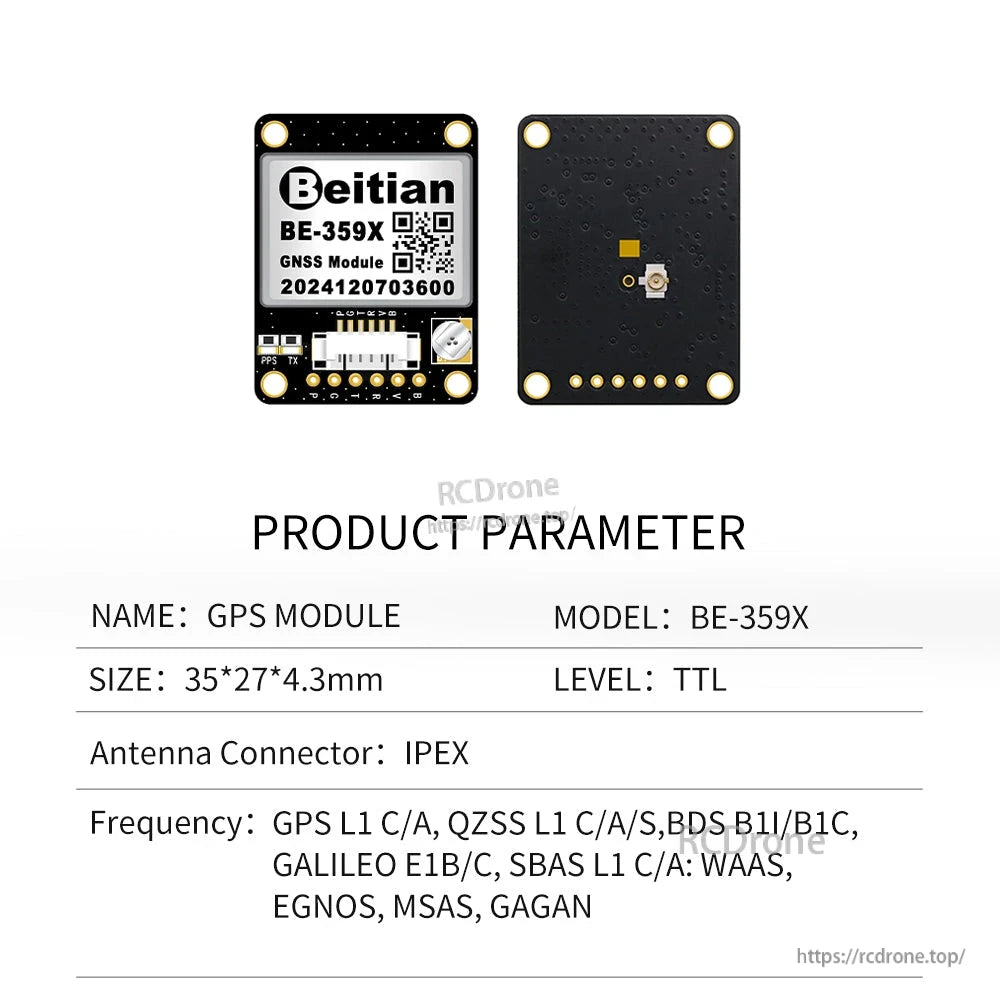

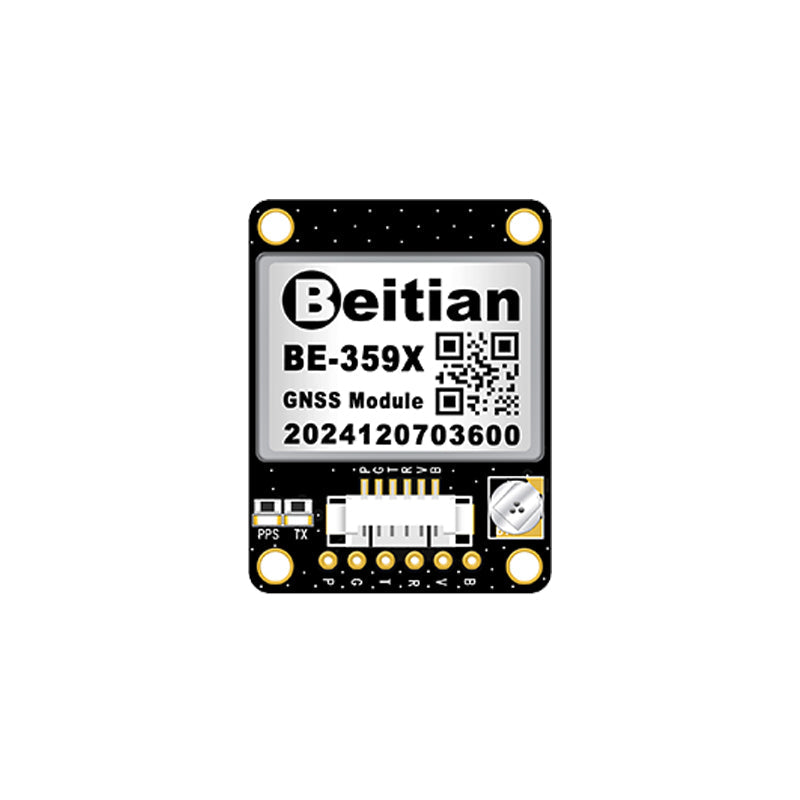

  • Beitian BE-359X GNSS module board with IPEX antenna connector, TTL interface, and mounting holes
1 20

Beitian BE-289 M10050 GNSS Timing Navigation Positioning Module for Flight Control, Separate Antenna SMA-K

Beitian BE-289 M10050 GNSS Timing Navigation Positioning Module for Flight Control, Separate Antenna SMA-K

Beitian

$23.34 USD
$23.34 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Model
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

Beitian BE-289 GNSS timing navigation positioning module for flight control, built around the M10050 chip and designed for serial-port output with a separate antenna connection. The visible working mode supports GPS L1 C/A, QZSS L1 C/A/S, BDS B1I/B1C, Galileo E1/B/C, and SBAS L1 C/A (WAAS, EGNOS, MSAS, GAGAN).

For product support, visit https://rcdrone.top/.

Key Features

  • GPS + BDS + Galileo joint positioning, with single-mode positioning and multi-mode combination positioning options.
  • Basic function: positioning information is obtained through the satellite signal and output to the device through the serial port.
  • Lightweight and compact design with low power consumption; visible size is 28*28*4.3mm and weight is 7.5g.
  • Impedance matching 50 ohm, antenna VSWR less than 1.5, with antenna detection and short-circuit protection.
  • NMEA-0183 output data items shown in the product chart include GGA, GSA, GSV, RMC, and VTG.

Specifications

Model BE-289
Chip M10050
Working mode GPS L1 C/A, QZSS L1 C/A/S, BDS B1I/B1C, Galileo E1/B/C, SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
Channel N/A
Cold boot -148dBm
Warm boot -160dBm
Horizontal 2.0m CEP
Speed accuracy <0.05m/s
Dynamic heading 0.3 deg
PPS time accuracy RMS 30ns, 99% 60ns
Cold boot time 27s
Warm boot time 1s
Baud rate (bps) 4800bps - 921600bps, default 115200bps
Output level TTL level
Output protocol NMEA, UBX
Frequency of updates 0.25Hz-18Hz, default 1Hz
FLASH With FLASH
Operational limits Altitude 80,000m; Velocity 500m/s; Dynamics <4g
Voltage DC 3.6V-5.5V, typical: 5.0V
Current 30mA/5.0V
Size 28*28*4.3mm
Weight 7.5g
Connector 1.25mm 6pins connector
Length 15cm
Antenna connector SMA-K

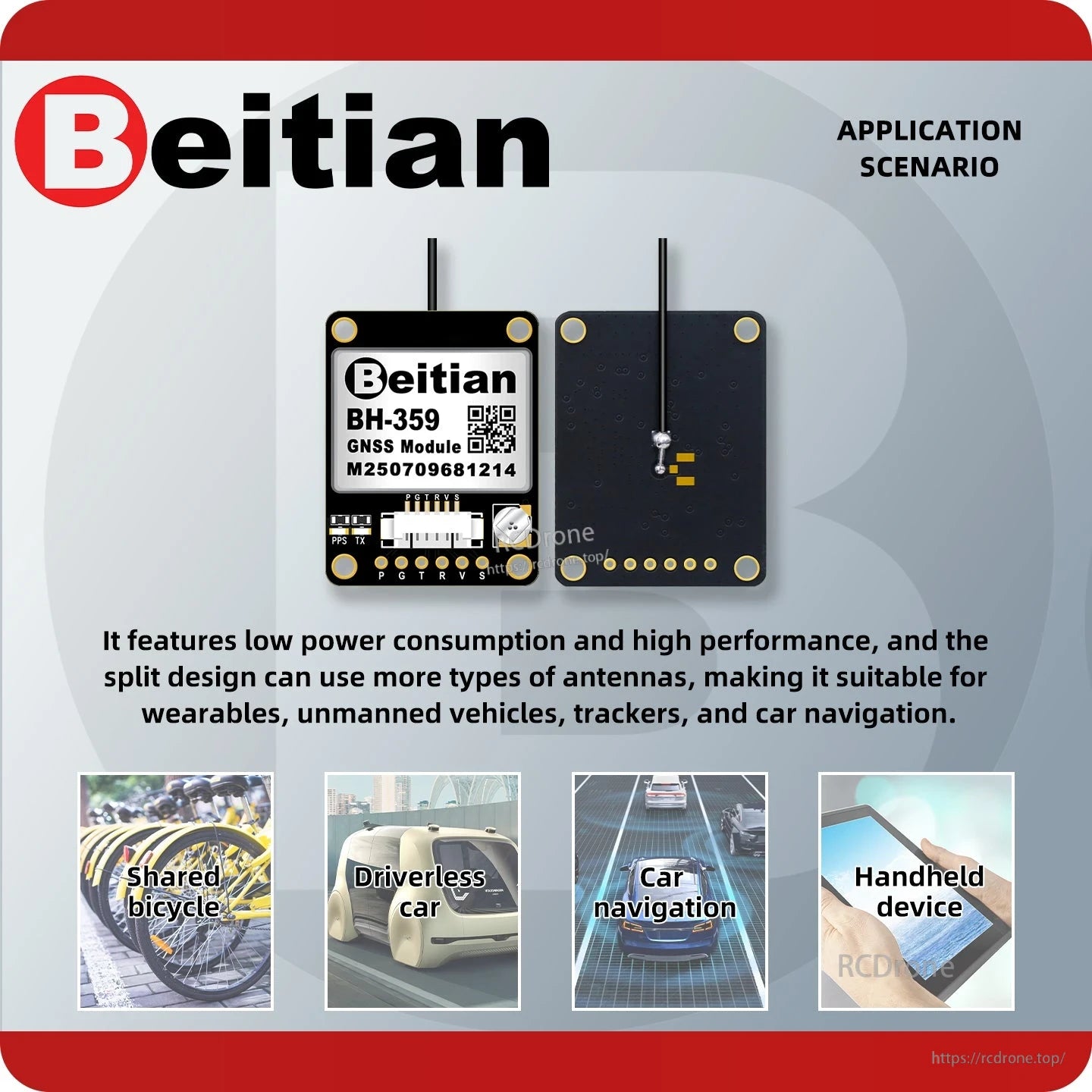

Applications

  • Shared bicycle
  • Unmanned vehicles
  • Vehicle navigation

Details

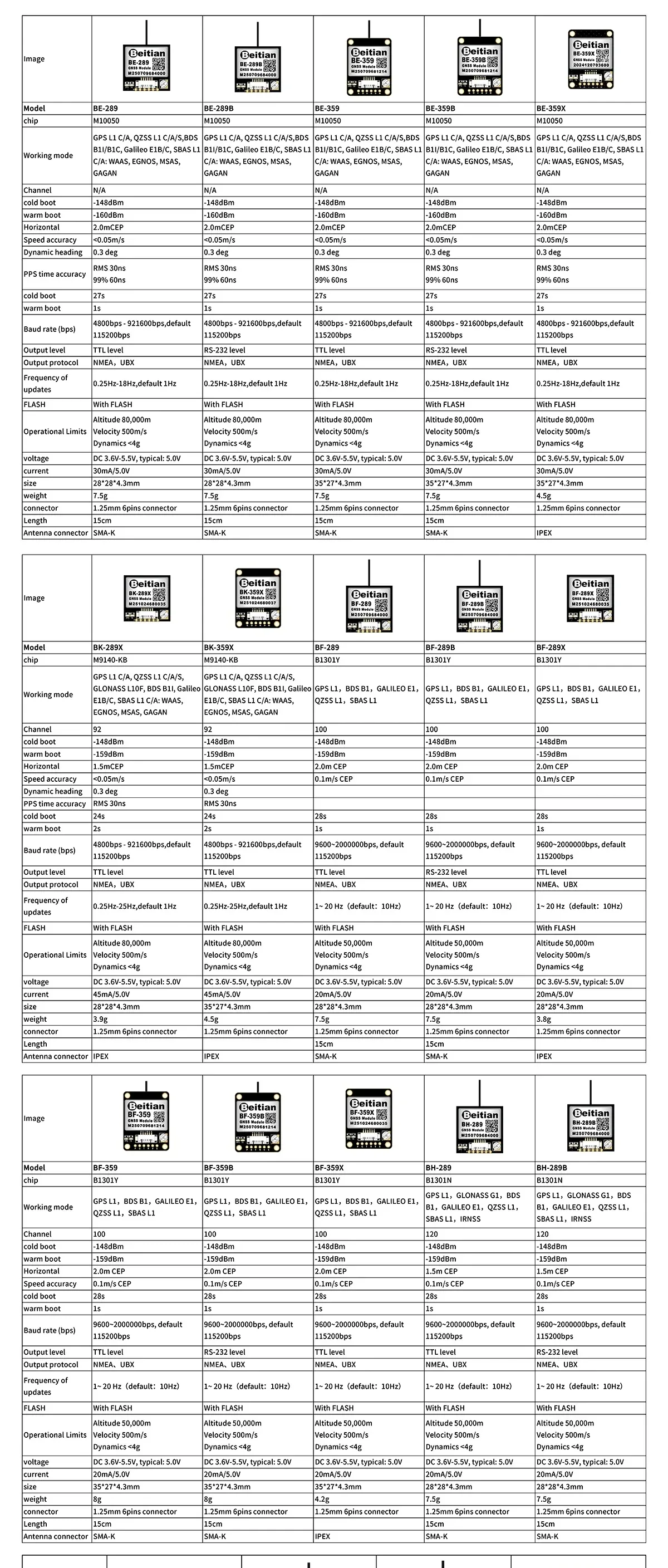

Beitian BE-289 M10050 GNSS timing navigation module specifications comparison table

The BE-289 pairs a compact M10050 receiver with serial output and a separate SMA-K antenna connection.

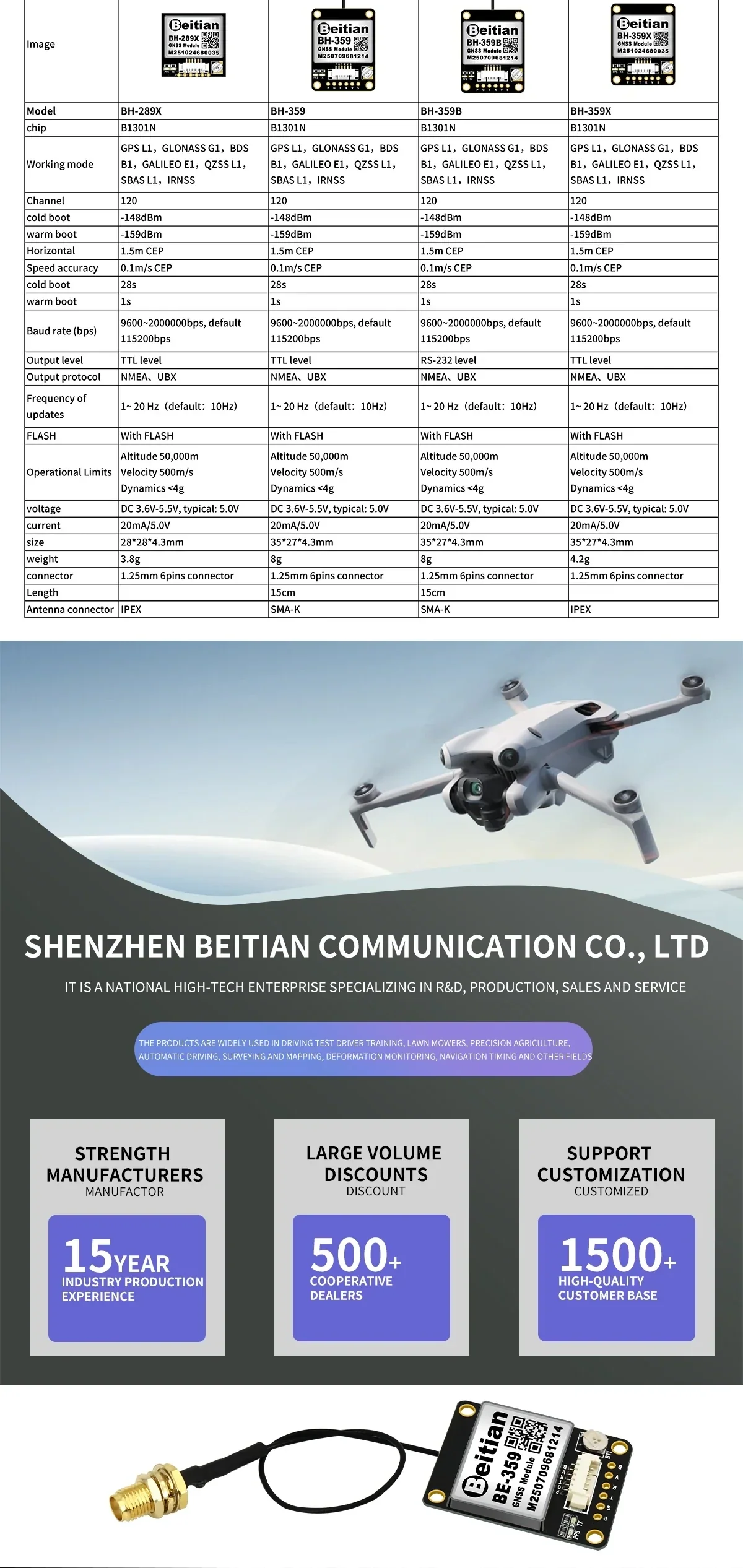

Beitian BE-289 GNSS module compared with related Beitian timing and navigation models

Model comparison highlights the BE-289's place in the Beitian GNSS module range and its compact board layout.

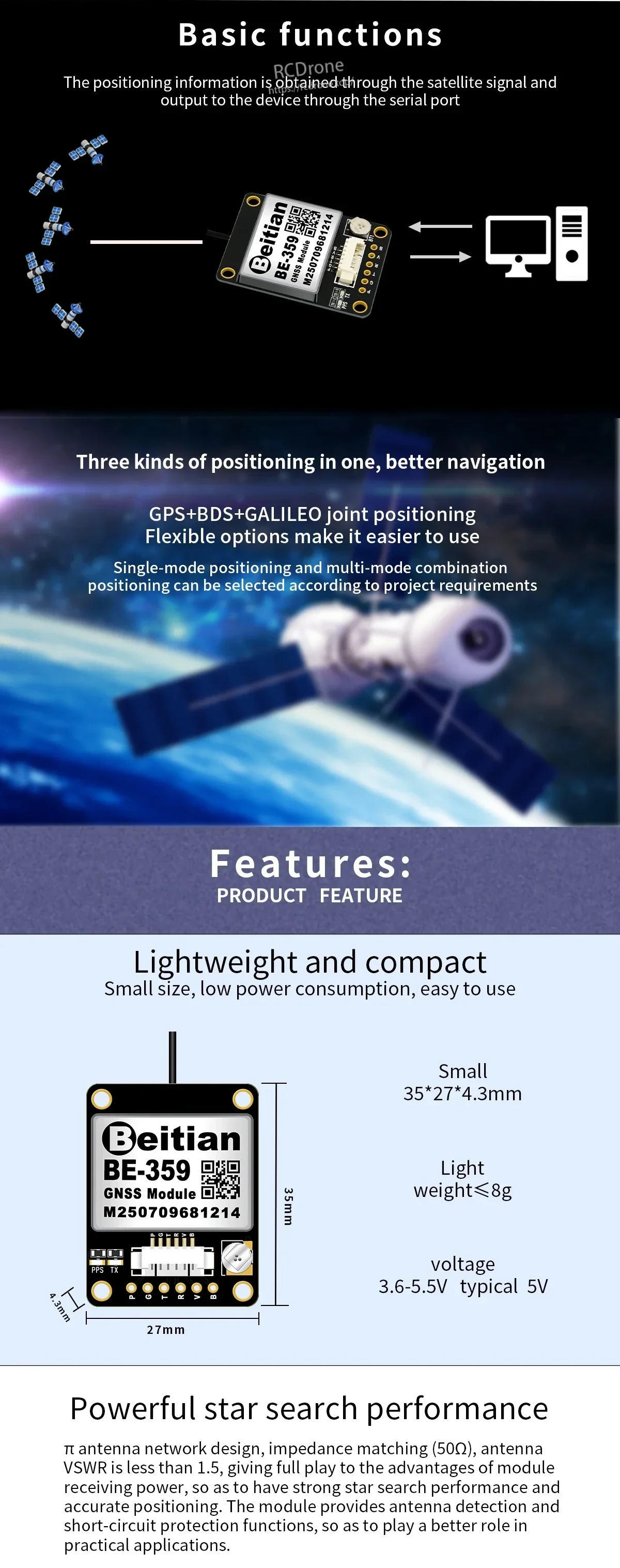

BE-289 GNSS module basic function diagram with satellite input and serial port output

Satellite signals feed the module, then positioning data is sent back to the host device through the serial port.

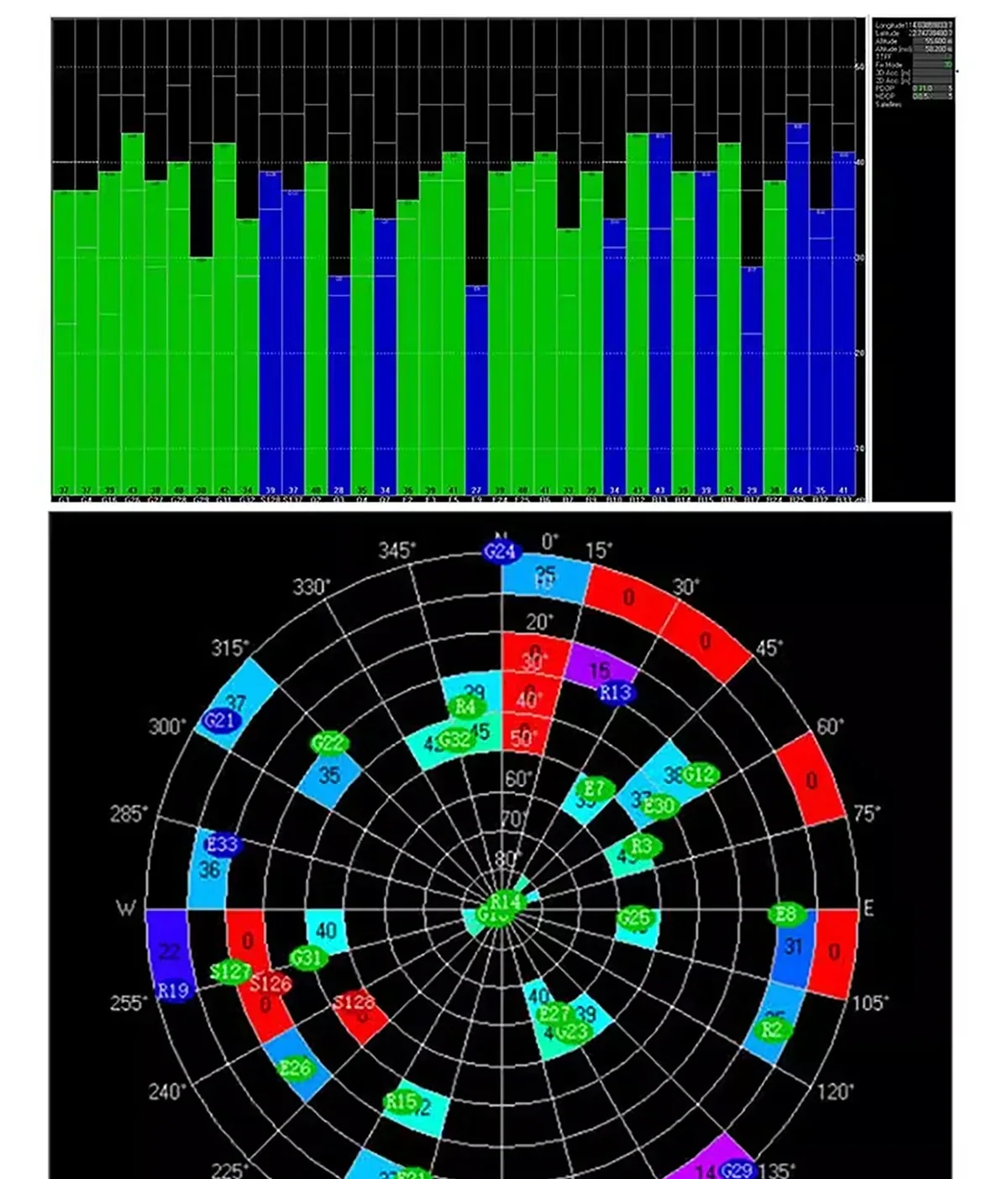

GNSS satellite signal strength and sky view chart for the Beitian module

Signal charts support the positioning claims with visible satellite tracking and data reception feedback.

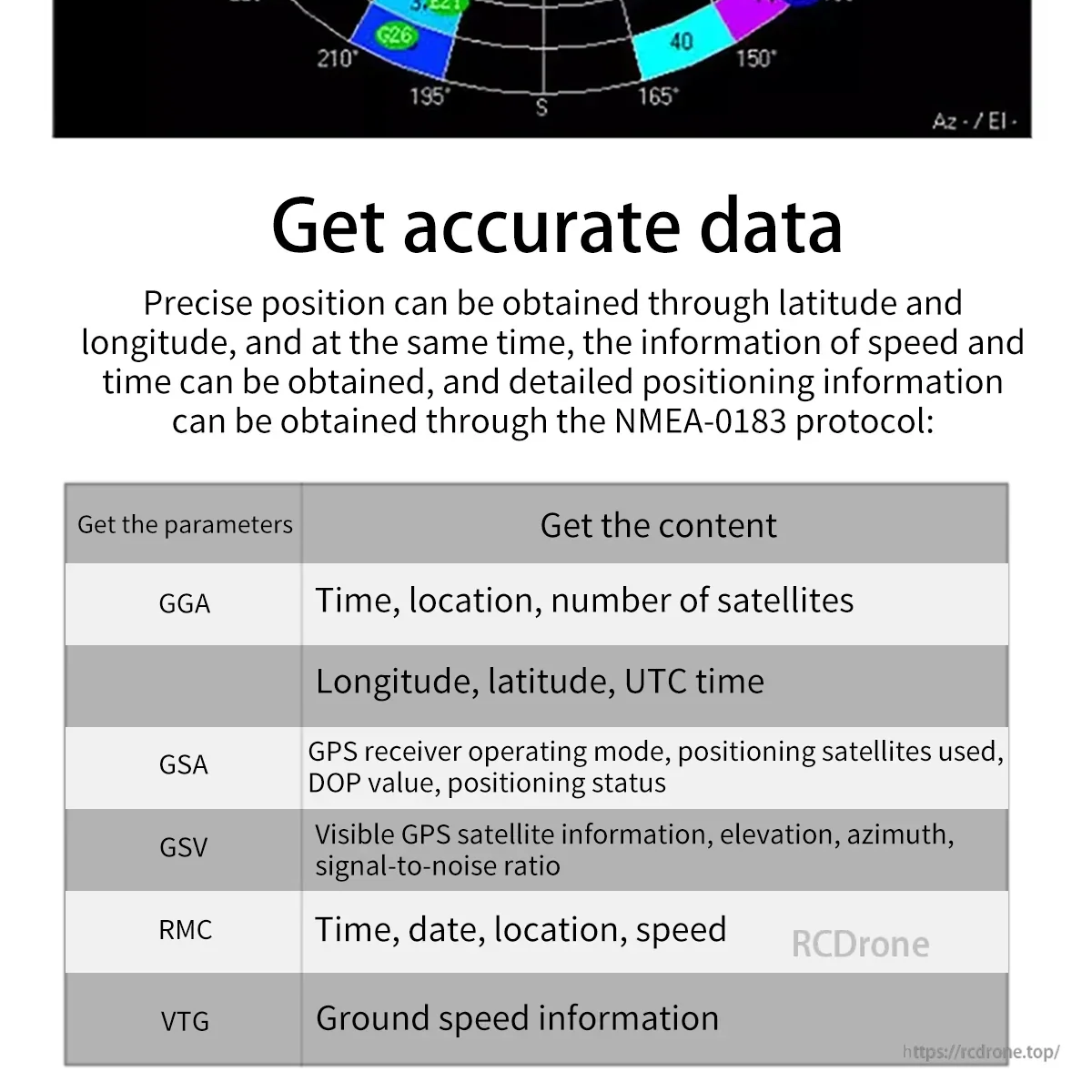

NMEA-0183 output data table showing GGA, GSA, GSV, RMC, and VTG messages

The module can output standard NMEA data fields for time, position, satellite status, and ground speed.

Beitian BE-289 product parameters, pin definition, wiring diagram, and application scenarios

Wiring details and use cases make integration easier for drones, vehicle navigation, and other embedded projects.
