Betaflight Flight Controller Board - F4V3S F4 V3 V3S LC INAV Barometer OSD TF BN880 Quadcopter RC Drone FPV Racing

Betaflight Flight Controller Board - F4V3S F4 V3 V3S LC INAV Barometer OSD TF BN880 Quadcopter RC Drone FPV Racing

RCDrone

Regular price $49.89 USD
Regular price $74.84 USD Sale price $49.89 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

109 orders in last 90 days

Color

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 12+y

Recommend Age: 14+y

Origin: Mainland China

Material: EVA

Brand Name: rctosky

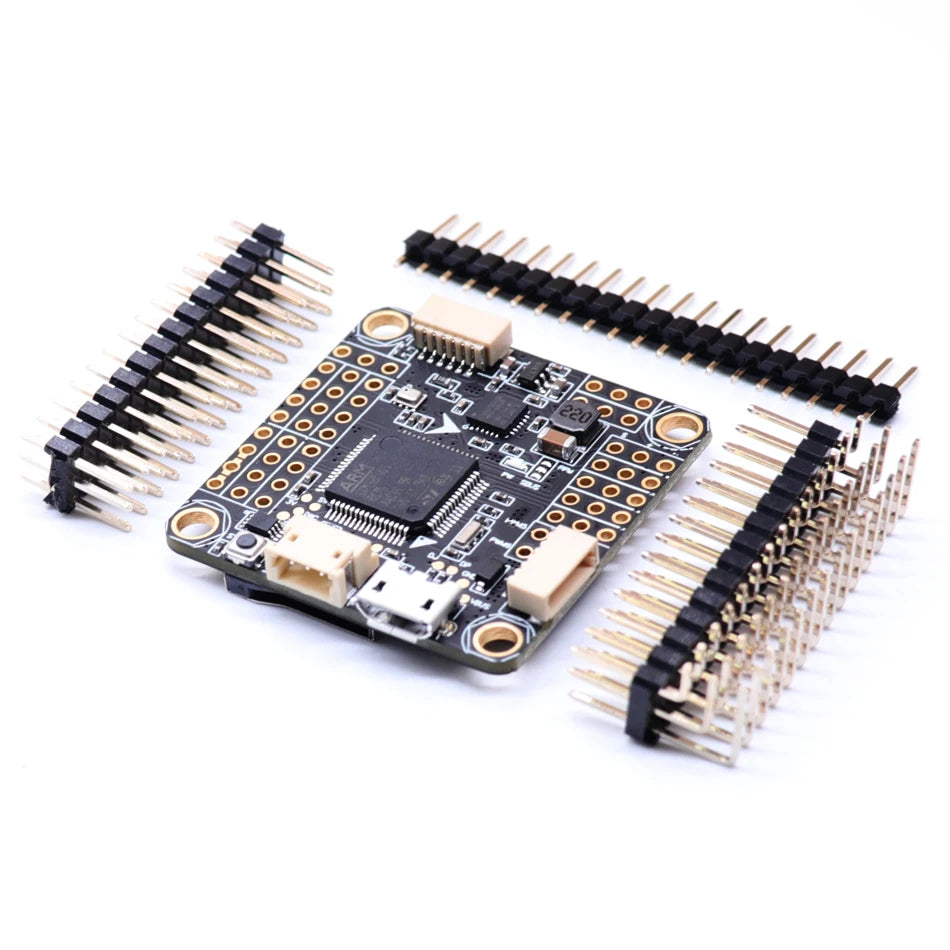

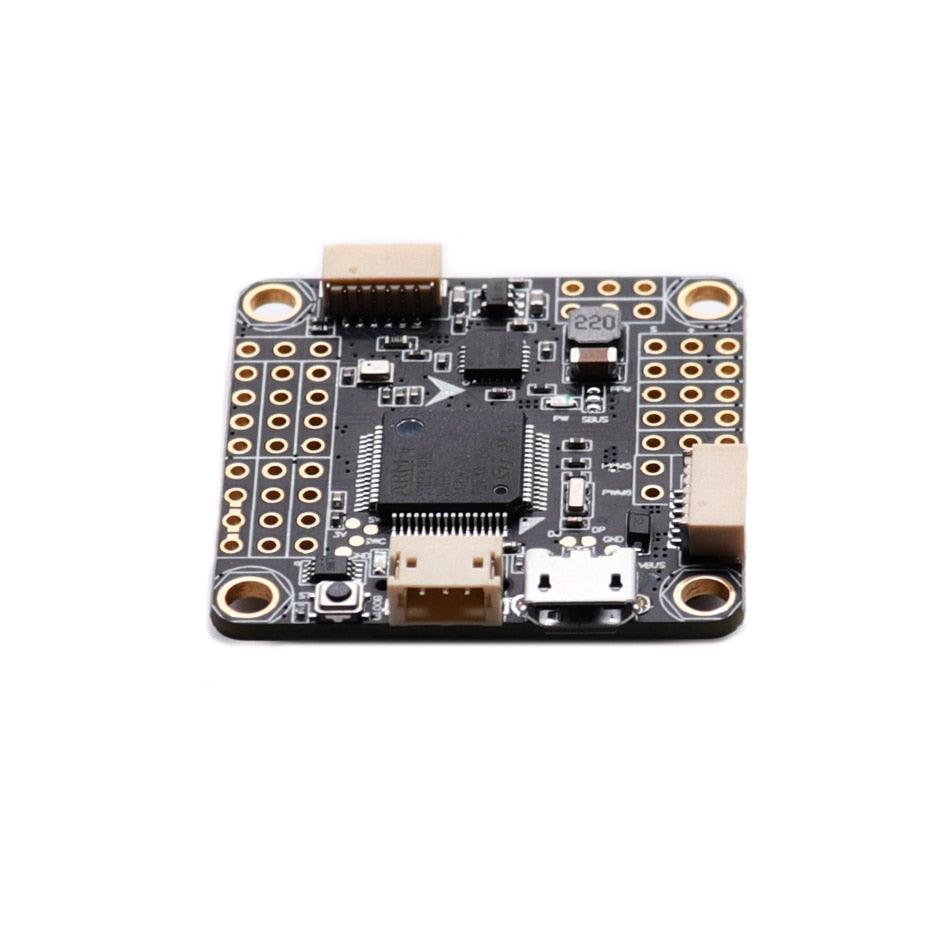

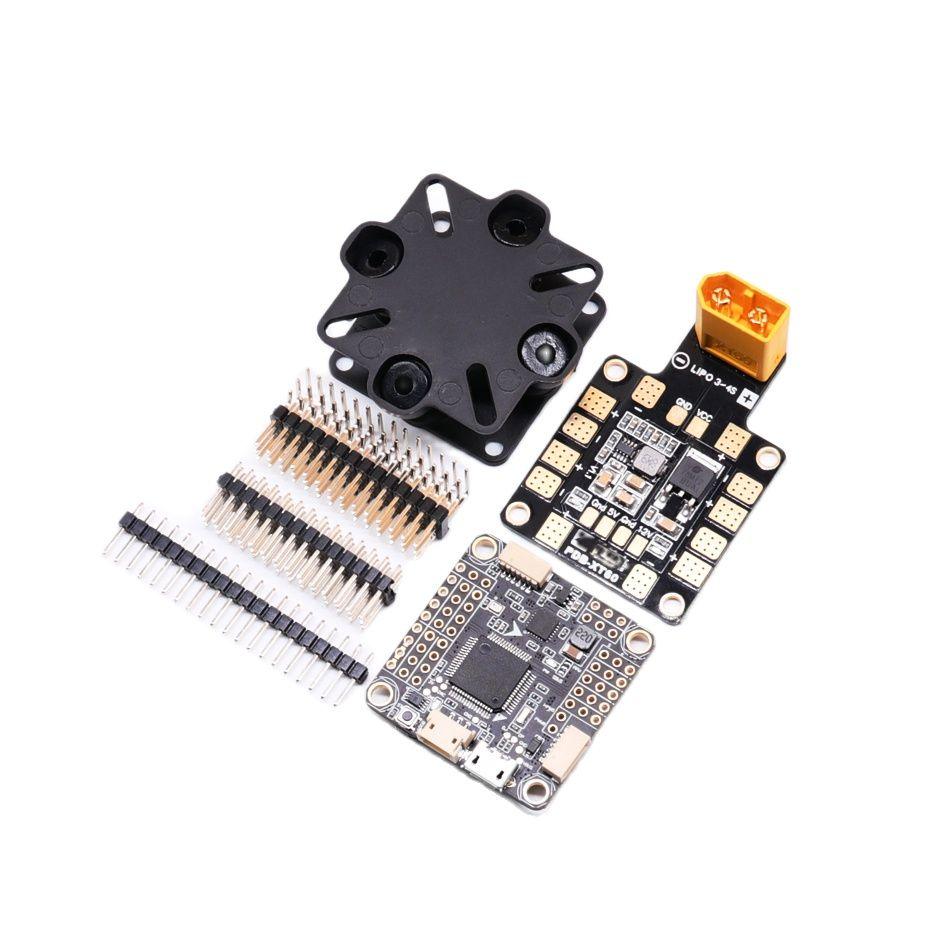

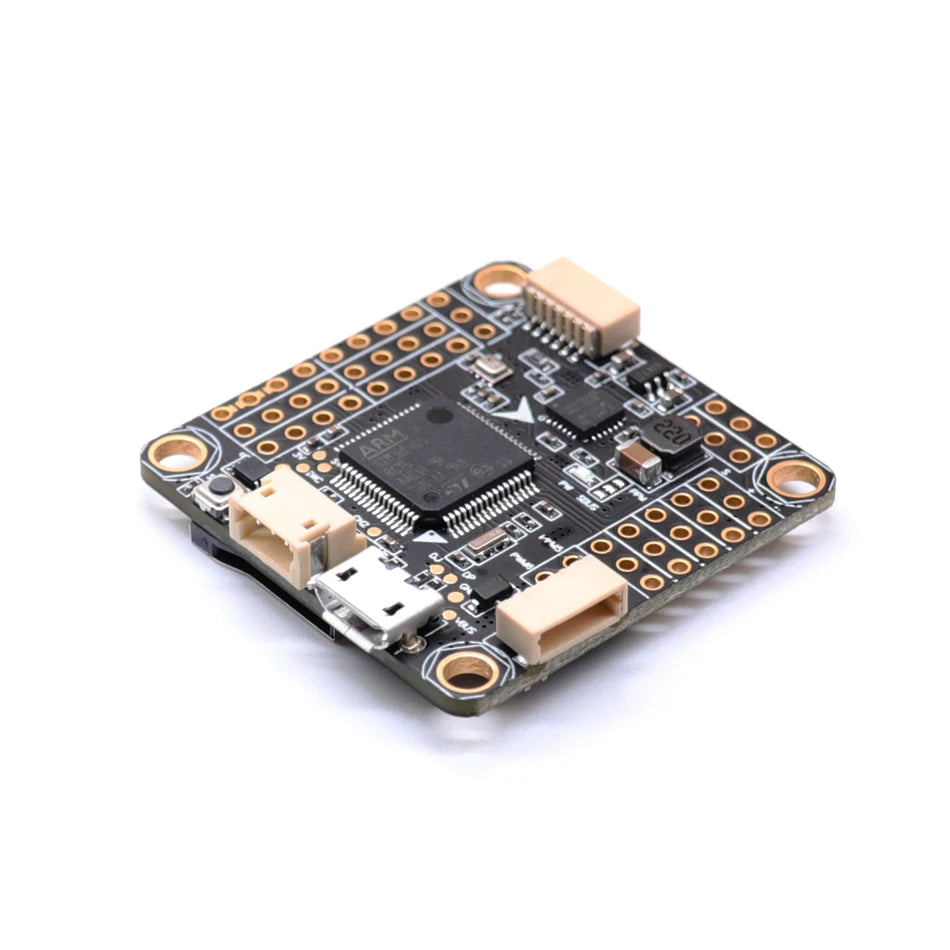

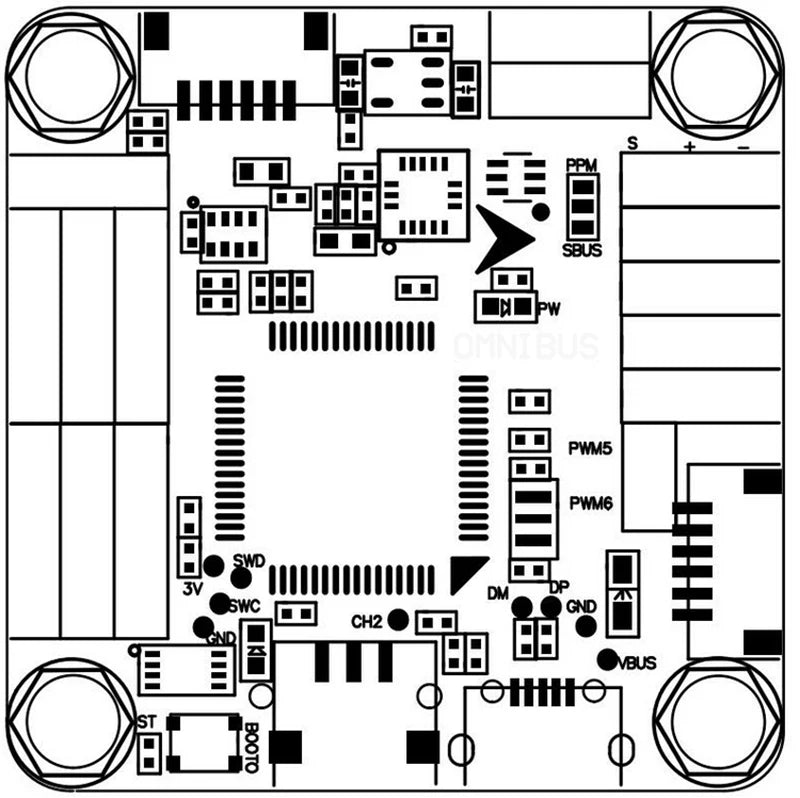

F4V3S flight controller



F4V3S flight controller Item Specifics:
Product Name: F4 Flight Controller Board
Material: Electronic component
Standard Board Size: about 36x36mm
Standard Size of Mount Hole: 30.5x30.5mm

Features:
-STM32 F405 MCU
-Dshot support
-Drag and Drop OSD configured via Betaflight Configurator
-Smartaudio v2 support  Tune your PID's and configure the omnibus F C from your Transmitter
-IC268G 6 axis SPI Gyro & Accelerometer (show as MPU6500 at inav-configurator if upload INAV firmware)
-SBUS/PPM AND Spketrum dsm-x Ports
-SD card blackbox
-Baro(BMP280)
-5V 3A SBEC
-On-board Video Filter(only can supply 5V to VTX and Camera)
-SmartAudio V2 via tx6 on J10
-4×3 pin ESC pin layout
-IR pins for lap timing transponder

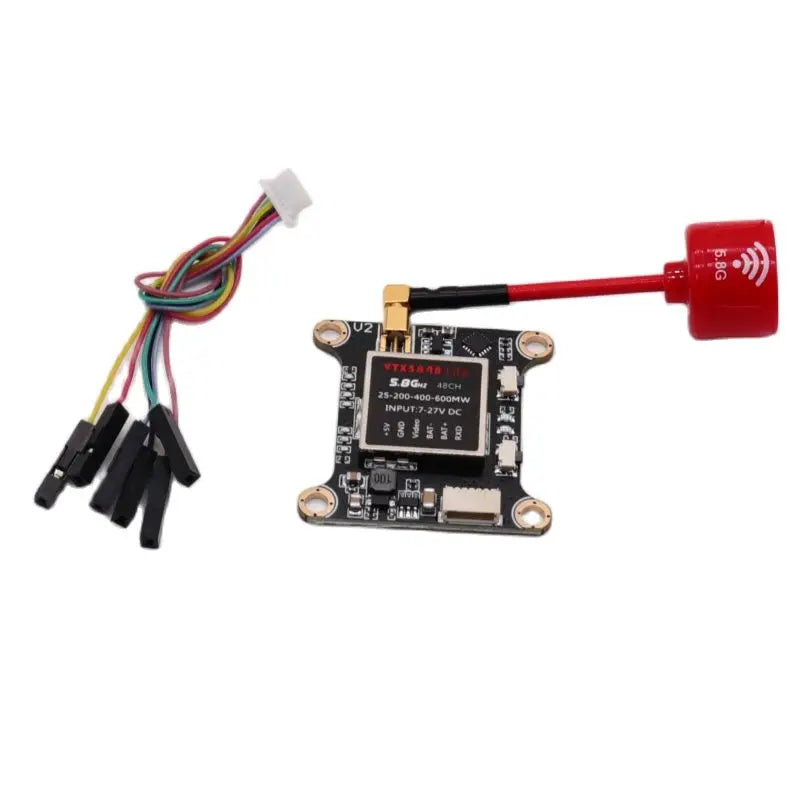

VTX5848 Item Specifics:
Item name: VTX5848 LITE FPV video transmitter
Input voltage: DC 7-27V
Input current: 3s or 4s battery, 600mW=360 MA±10MA
Output voltage: DC 5V 1A
Output power: 25/100/200/400/600mW switchable
Channel: 48CH
Frequency switch: manual button/OSD (simultaneous support)
Connector: MMCX
Size: 36x36x9mm
Mounting hole: 30.5x30.5mm, M3

Features:
-Stable output power, long transmission distance
-Fast 5-speed power switch, independent two red indicator, indicating the current output power 25/ 200/ 400/ 600MW
-Using 4(blue)*3(green) LED display 48 channel
-Support OSD signal remote frequency control, support PIT mode ( omW output power only can be open in OSD)
-With power filter
-Antenna using MMCX to SMA reducing the space
-Strong power chip, input up to 27V, output 5V/1A low ripple, less interference
-30.5mm*30.5mm mounting hole distance, suitable for CC3D, NAZE32, F3, F4, F7 flight controller

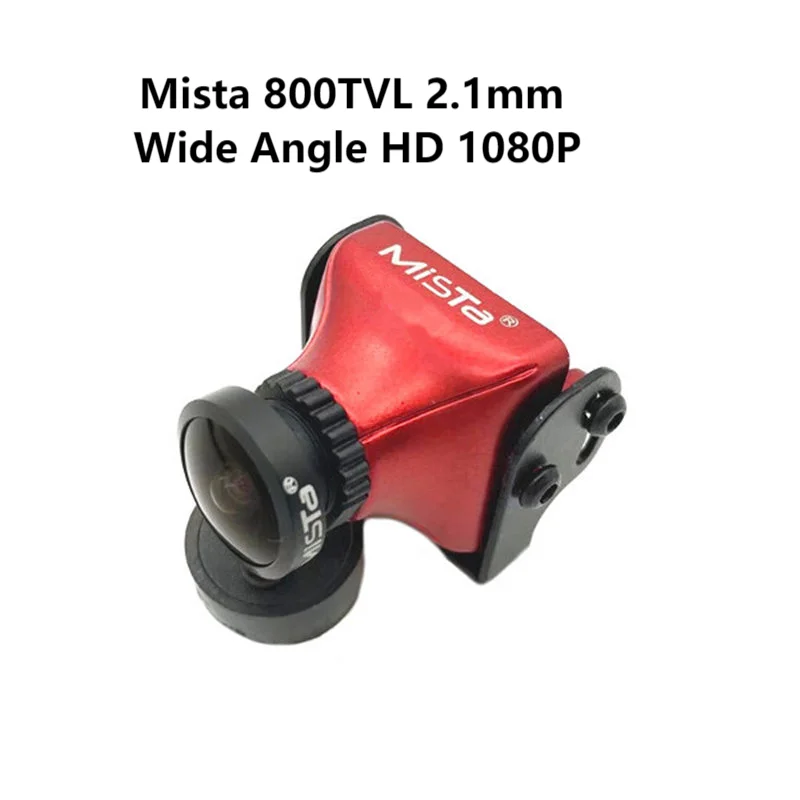

FPV Camera Item Specifics:
Sensor: 1/2. 7 800TVL CCD
Resolution: D1 1080P
Len: 5MP 2.1mm
Video formats: PAL / NTSC (OSD adjustable Internal)
Signal to noise ratio> 60Db (AGC OFF)
Electronic shutter: PAL: 1 / 50-100,000, NTSC: 1 / 60-100,000
Automatic gain control: YES
Backlight compensation: YES
Illumination intensity: 0.001Lux / 1.2F
Automatic gain control: adjustable
Backlight compensation: adjustable
Power: DC 5V-22V
Shell material: Aluminum alloy
Dimension: 28mm * 26mm * 28mm
Net Weight: 18g

Feature:
Upgraded Mista 800TVL 2.1mm Wide Angle HD 1080P CCD PAL/NTSC Switchable 16:9 OSD FPV Camera.

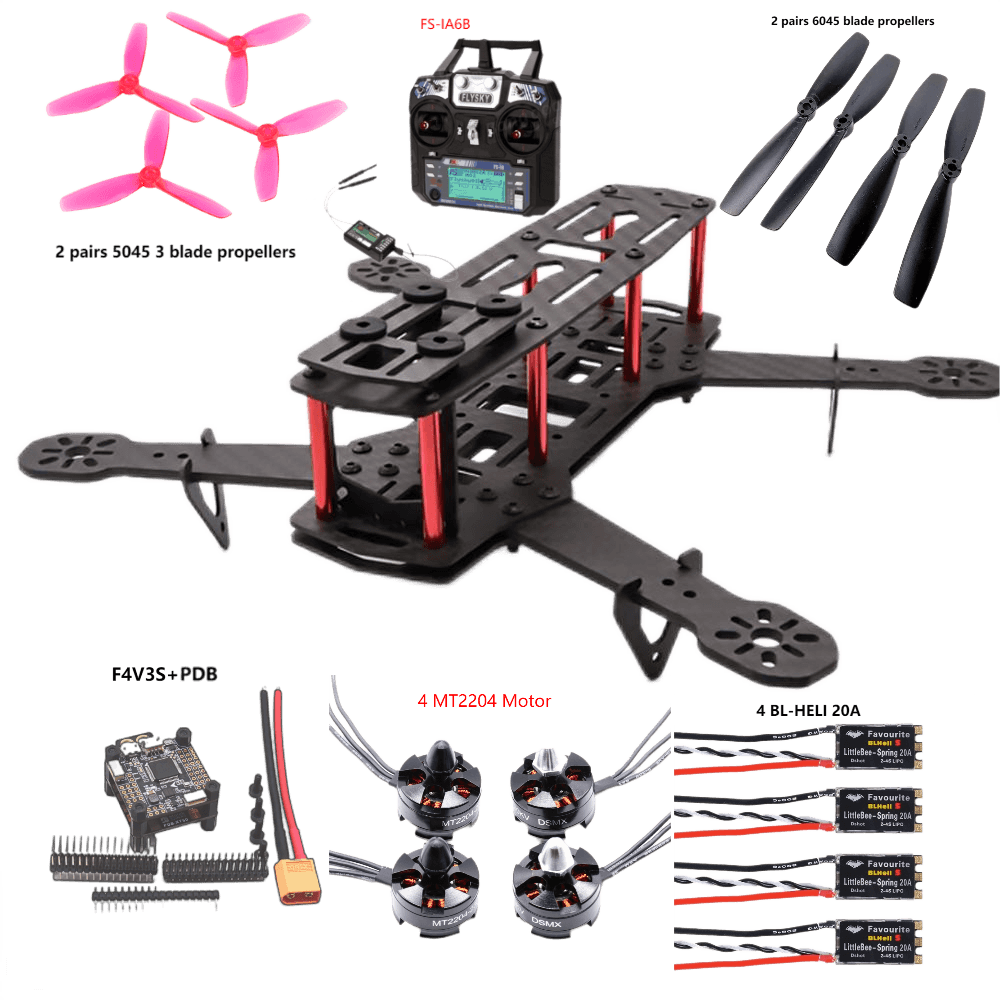

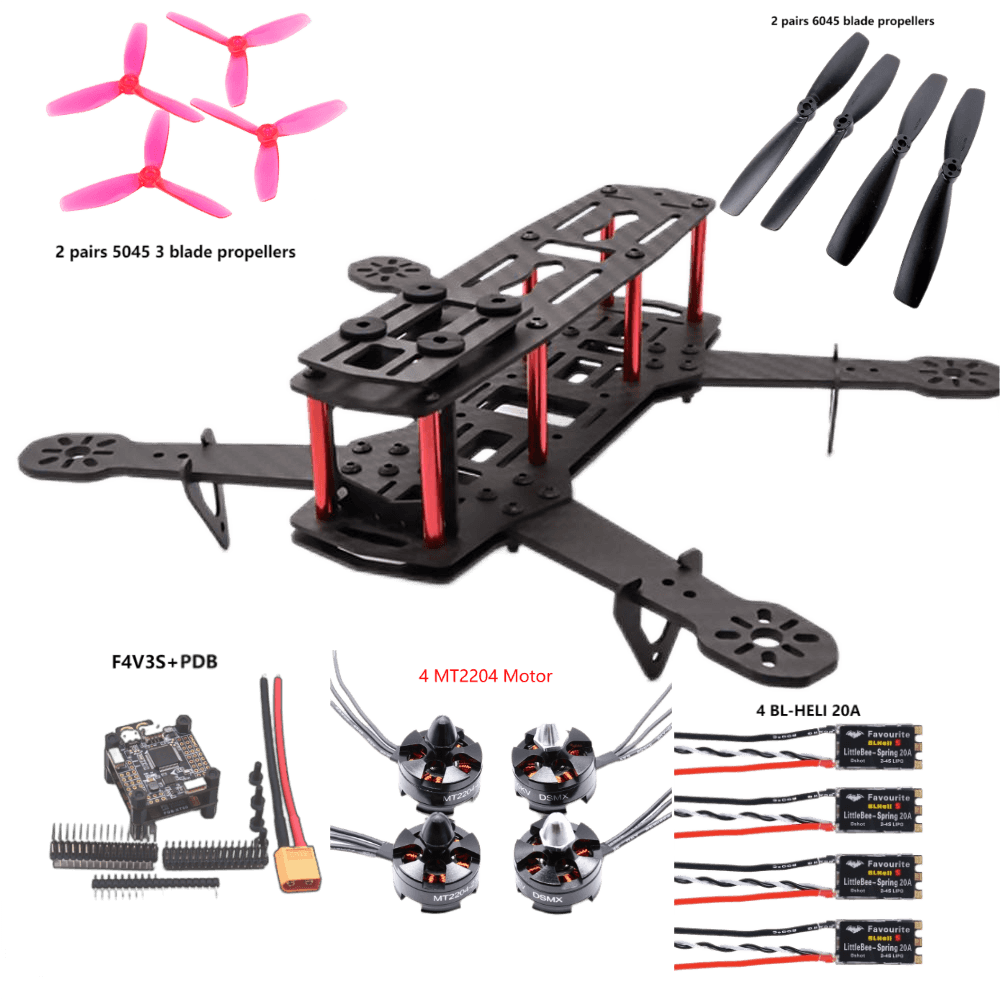

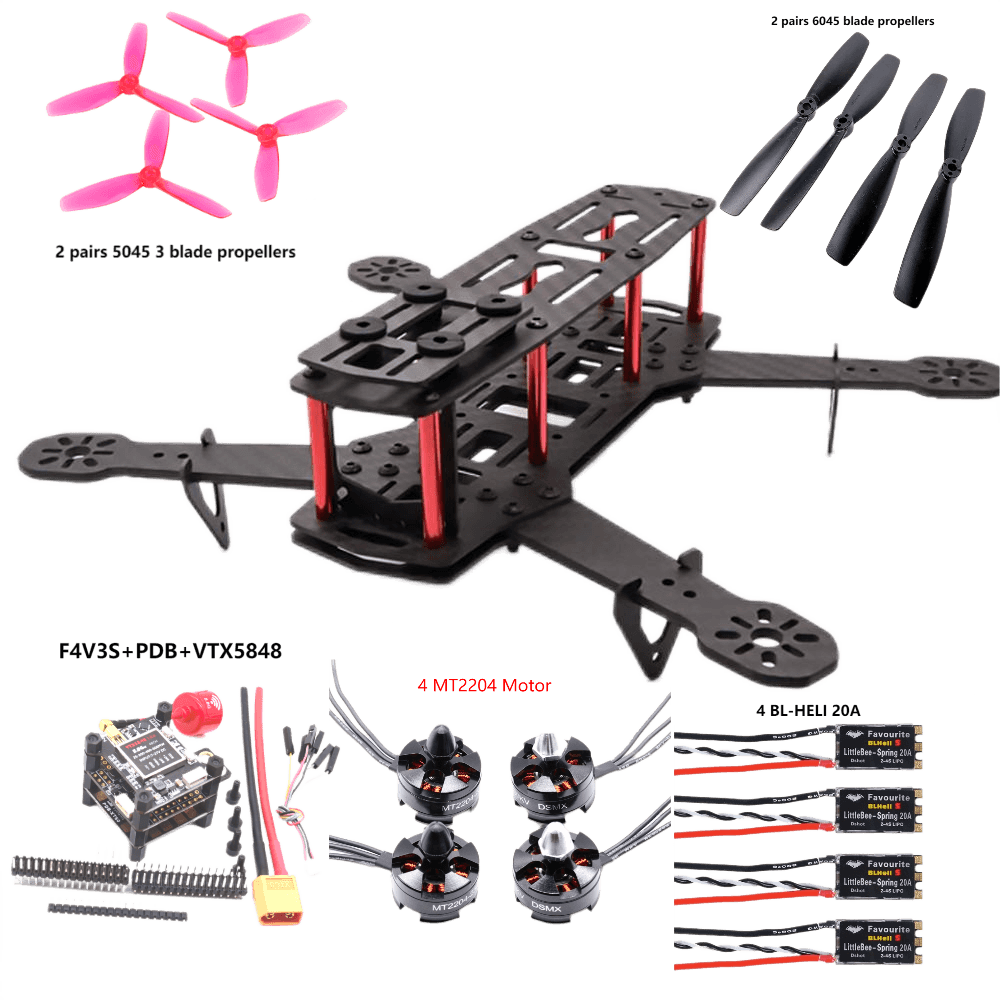

QAV250  250mm Carbon Fiber 4 Axis Mini Quadcopter Frame Kit

Features:
Main material: 3K Weave Carbon fiber
Arm thickness: 3mm
Upper and lower plate:1.5mm
Wheelbase: 250mm
With rubber damper to decrease vibration during flight
Aluminum alloy spacer, light weight, reliable
Specifications:
Wheelbase: 250mm
Weight: About 139g

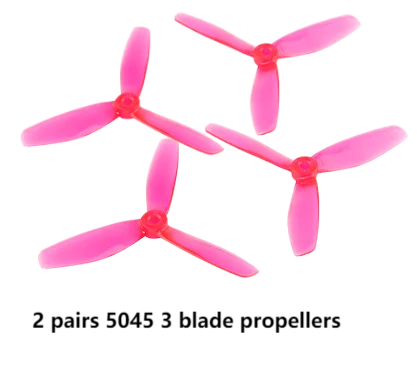

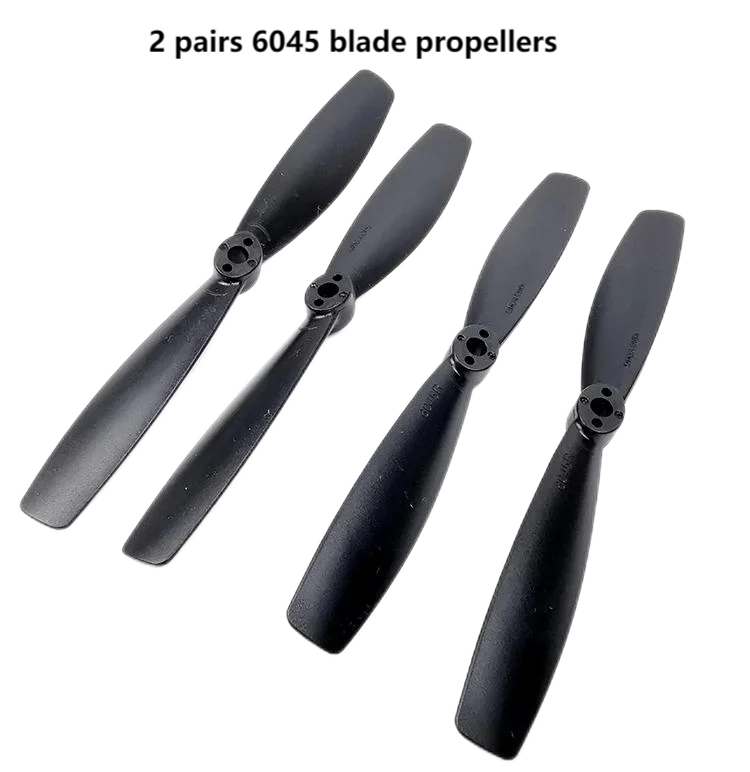

Prop suggest: 5*3
Motor suggest: 2205-2208
Battery suggest: 3S 1300-1800ma
it come with only a carbon frame.
Recommend:(do not include in the package)
Flight controller: Naze32, CC3D EVO, mini Cc3D F3 flight controller
Motor:1804-2204 motor
ESC:12A-20A
Battery suggest: 3S 1300-1800ma

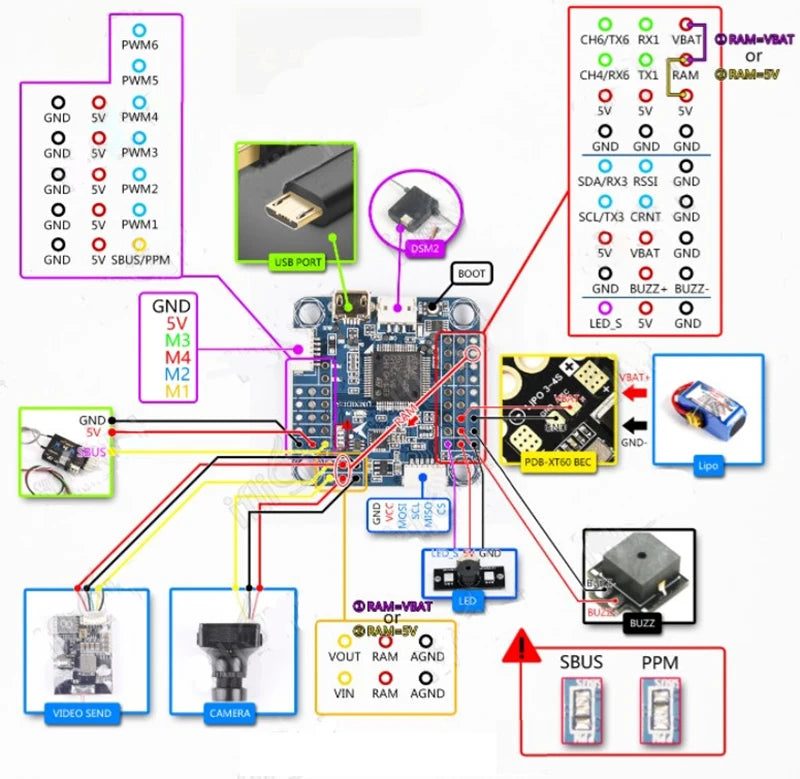

Betaflight Flight Controller Board, QAV250 250mm Carbon Fiber 4 Axis Mini Quadcopter Frame Kit Features:

Betaflight Flight Controller Board, Flight controller: Naze32, CC3D EVO, mini Cc3DBetaflight Flight Controller Board, QAV250 250mm Carbon Fiber 4 Axis Mini Quadcopter Frame Kit Features:F4V3S Betaflight Flight Controller Board, rctosky F4V3S flight controller Board Material: electronic component .

VTX5848

Betaflight Flight Controller Board, Mista 800TVL 2.1mm Wide Angle HD 1080P CCD PAL/

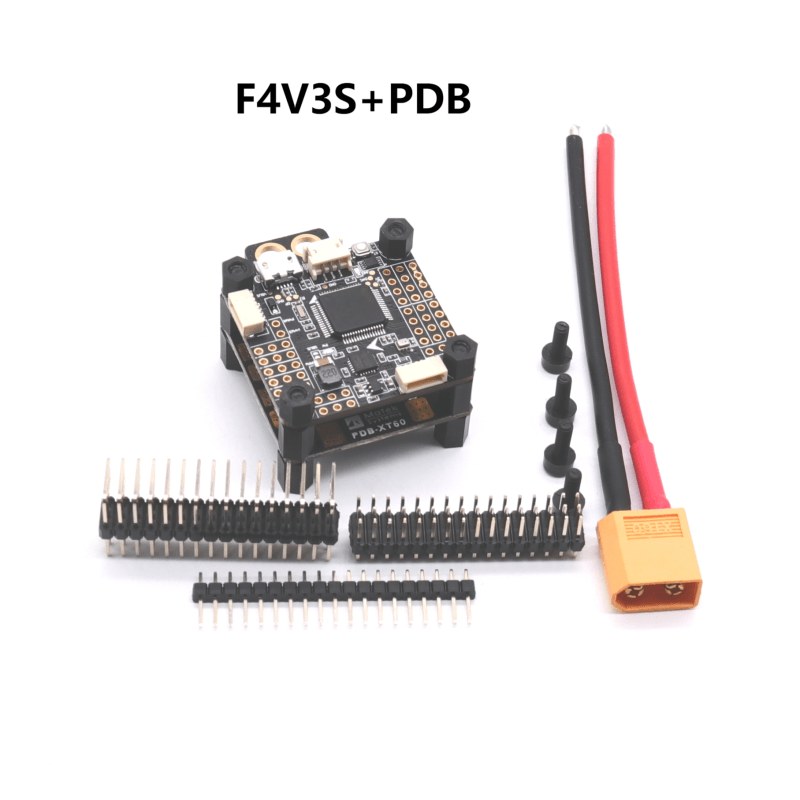

PDB

Betaflight Flight Controller Board, rctosky F4V3S flight controller Board Material: electronic component .FPV Camera

Betaflight Flight Controller Board, Mista 8OOTVL 2.Imm Wide Angle HD 108OP 9 MiSTa

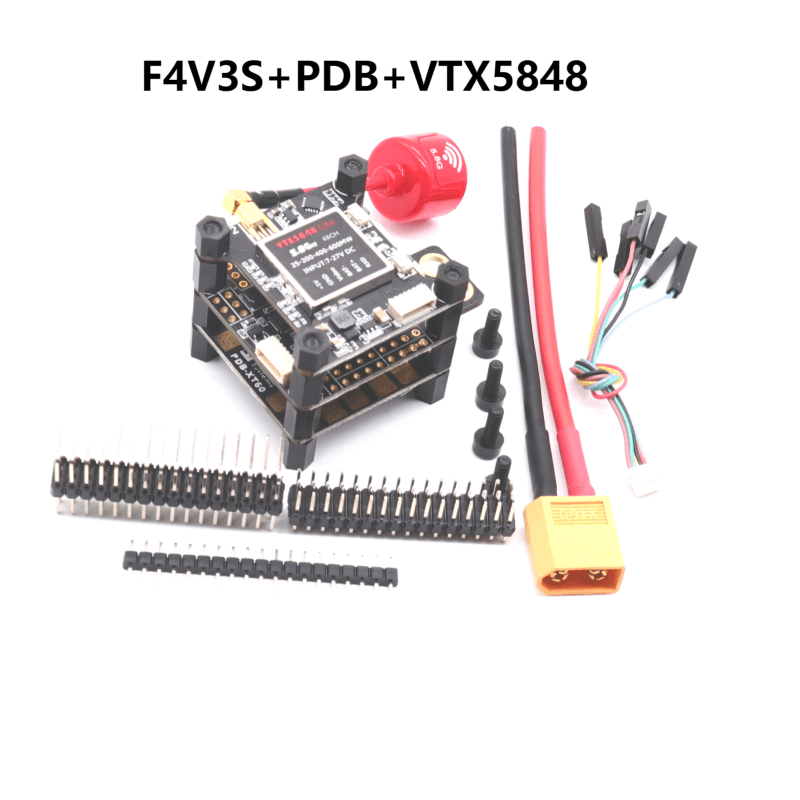

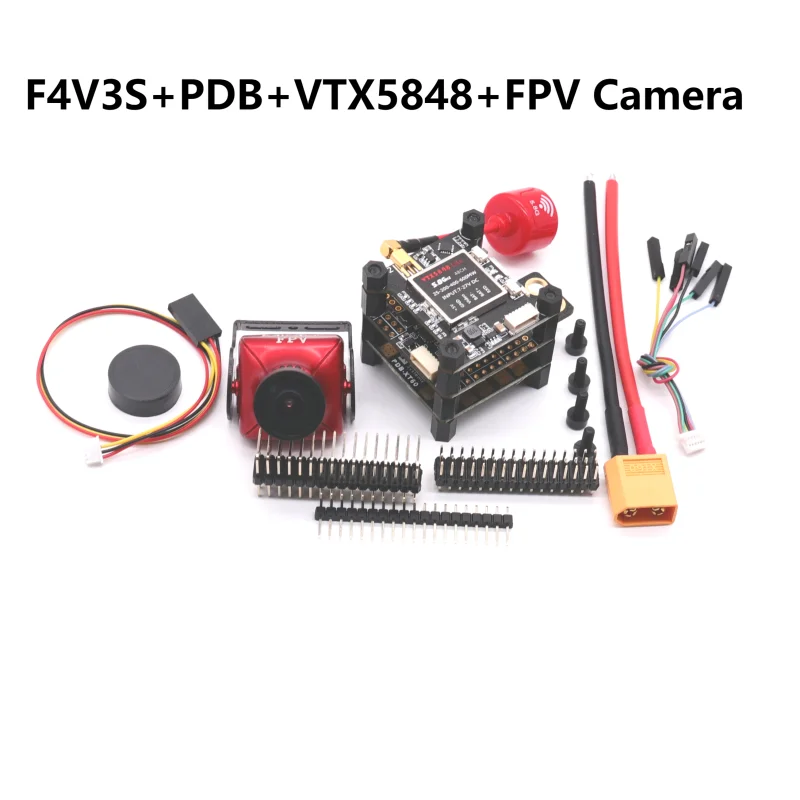

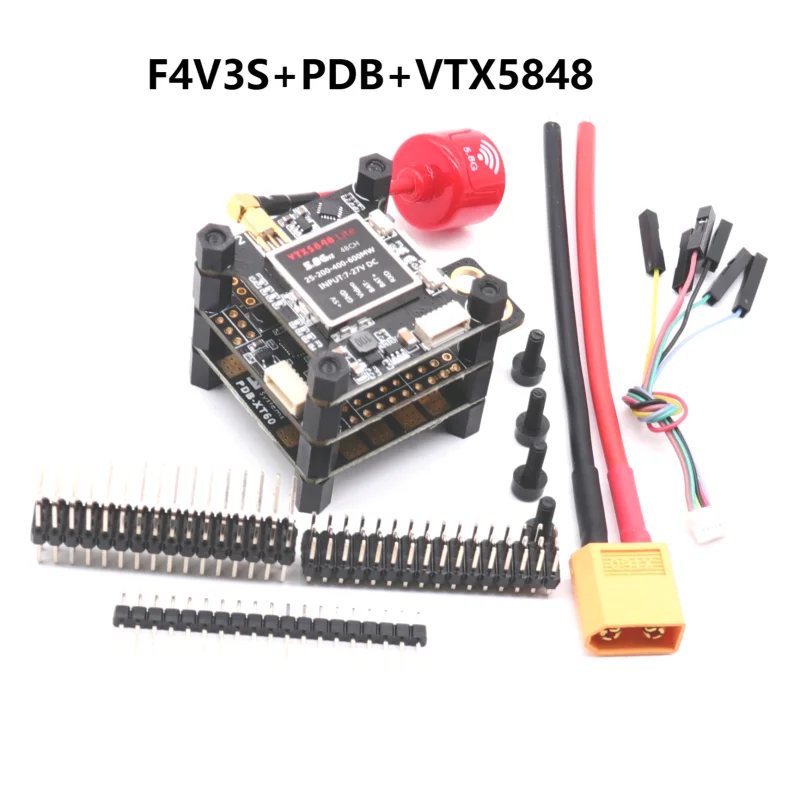

Betaflight Flight Controller Board, F4V3S+PDB+VTX5848 A 2 Jotr DouBetaflight Flight Controller Board, Camera Cc: F4V3S+PDB+VTX5848+Betaflight Flight Controller Board, Mista 800TVL 2.1mm Wide Angle HD 1080P CCD PAL/

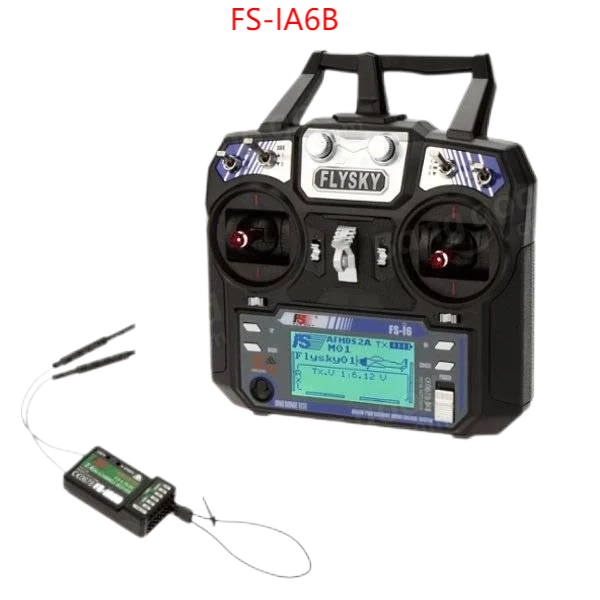

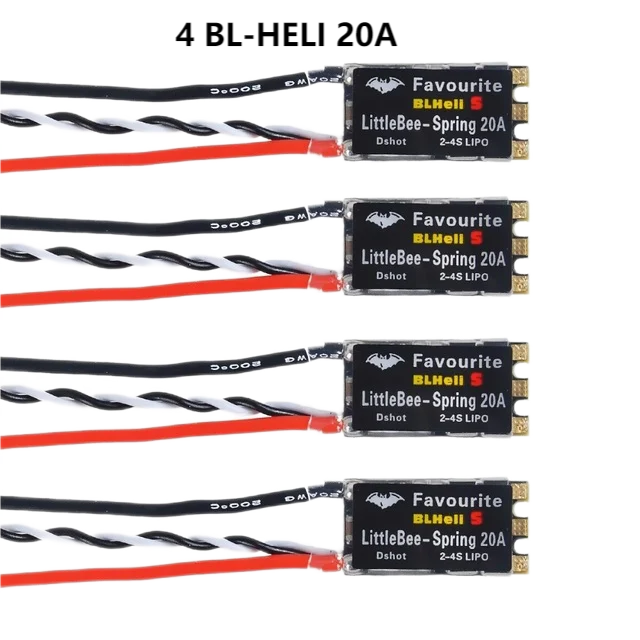

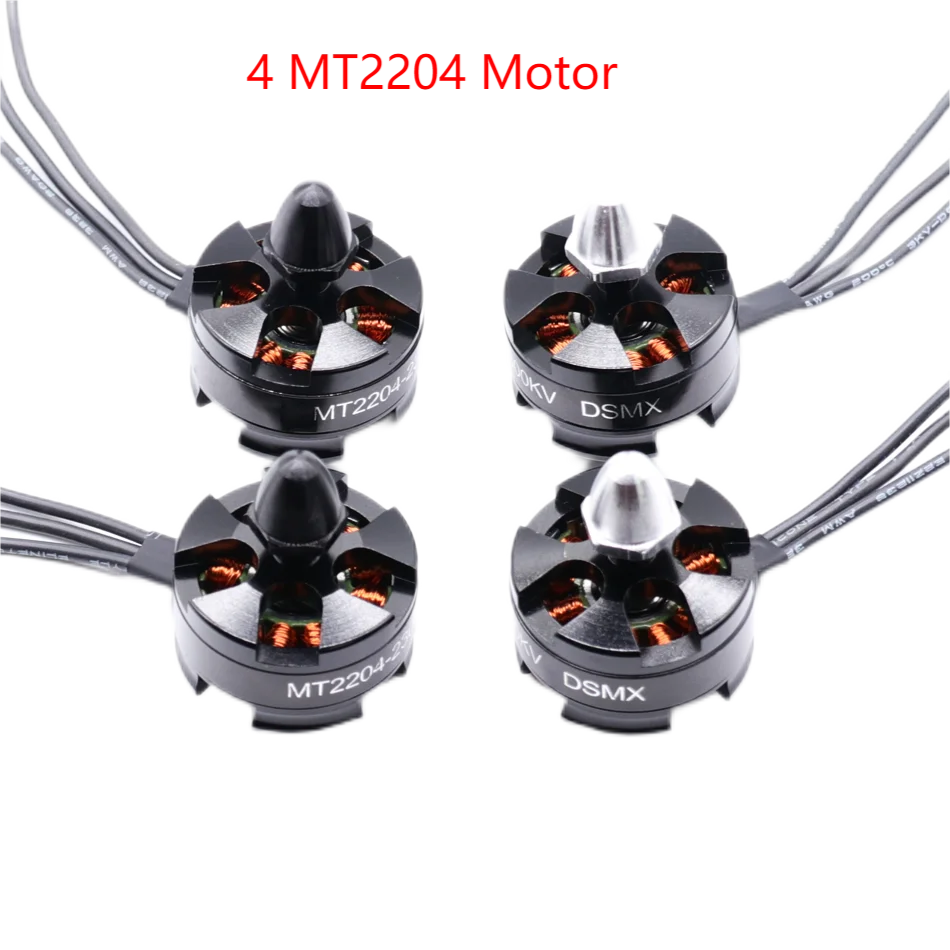

Betaflight Flight Controller Board, Hods2n Txn1n6. 12 U uekuoBetaflight Flight Controller Board, ILCZ7 DSMX AKV MT22204 MT2204 DBetaflight Flight Controller Board, Favourite Blheli LittleBee-Spring 20A Dshot 24SBetaflight Flight Controller Board, QAV250 250mm Carbon Fiber 4 Axis Mini Quadcopter Frame Kit Features:Betaflight Flight Controller Board, Flight controller: Naze32, CC3D EVO, mini Cc3D

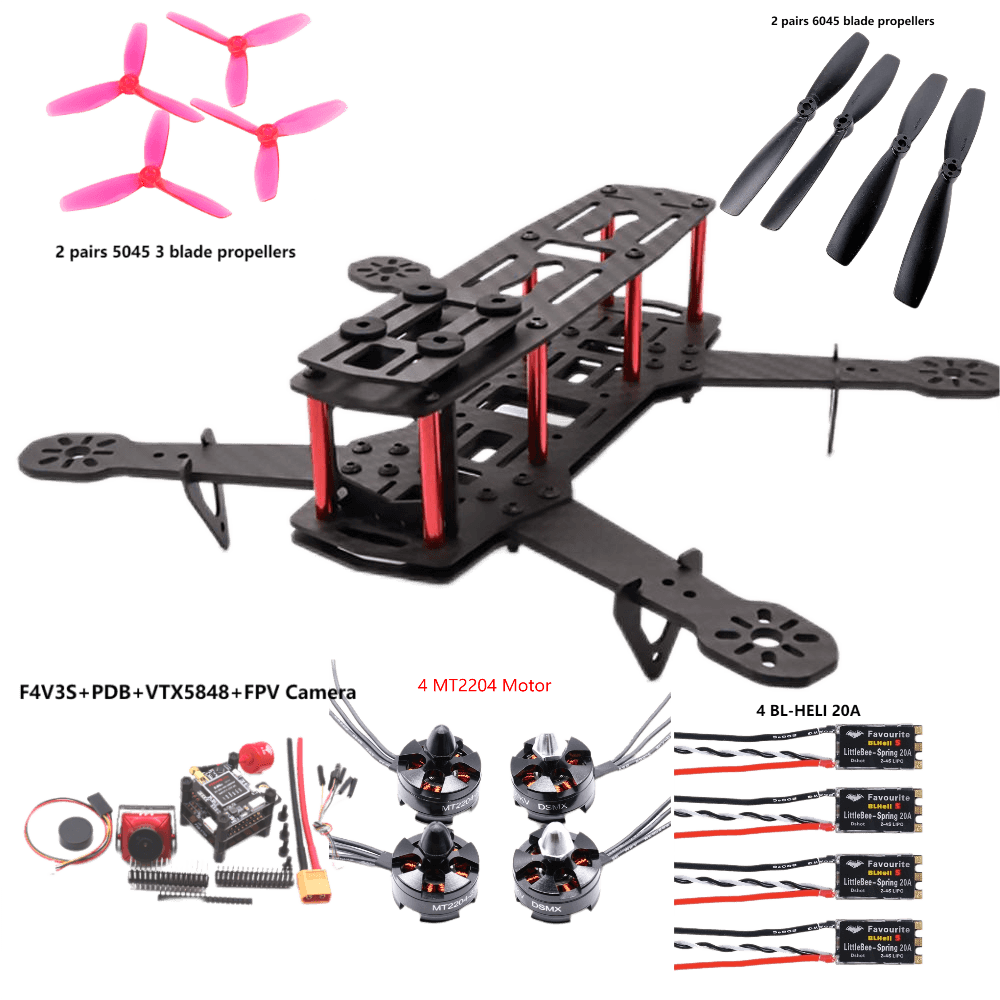

F4V3S 250 PACKAGE A

Betaflight Flight Controller Board, d Favouettn aatati Liblobat Shina Favom

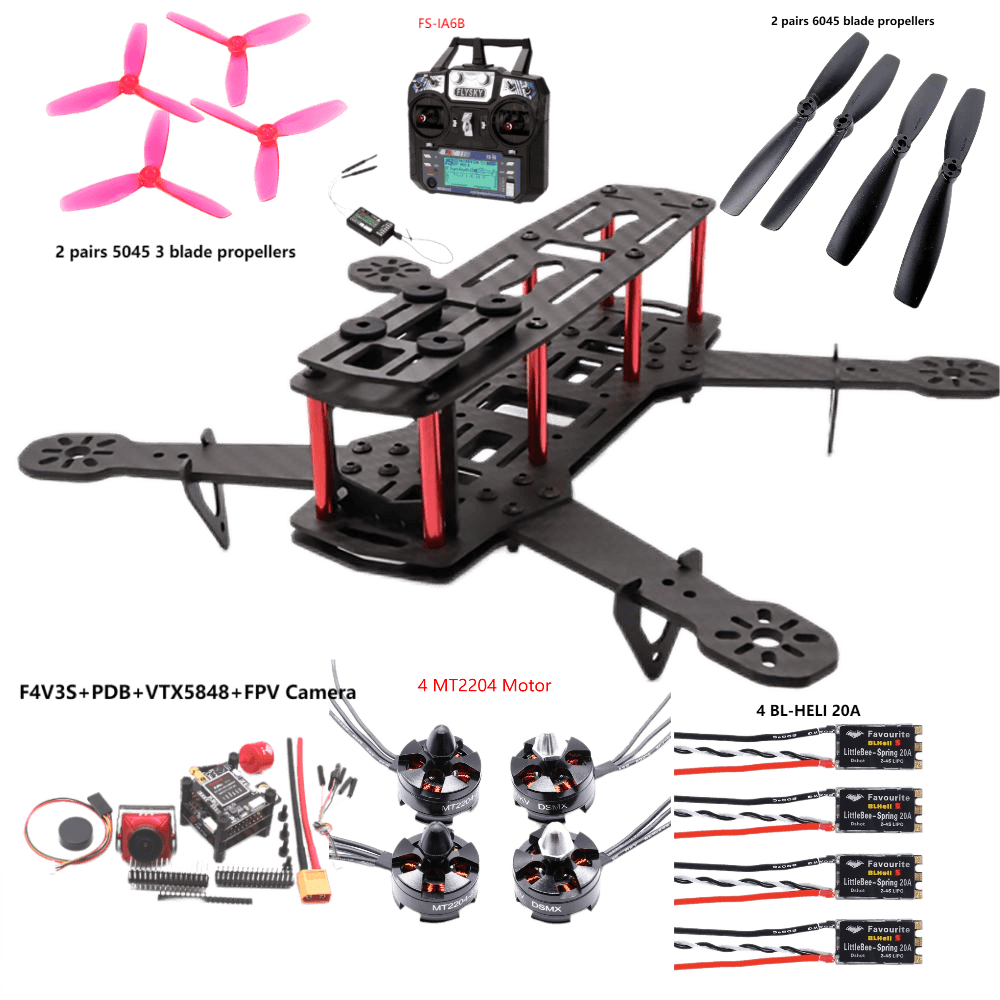

F4V3S 250 PACKAGE B

Betaflight Flight Controller Board, He 577 Favouritc Litllebet Spnno zn

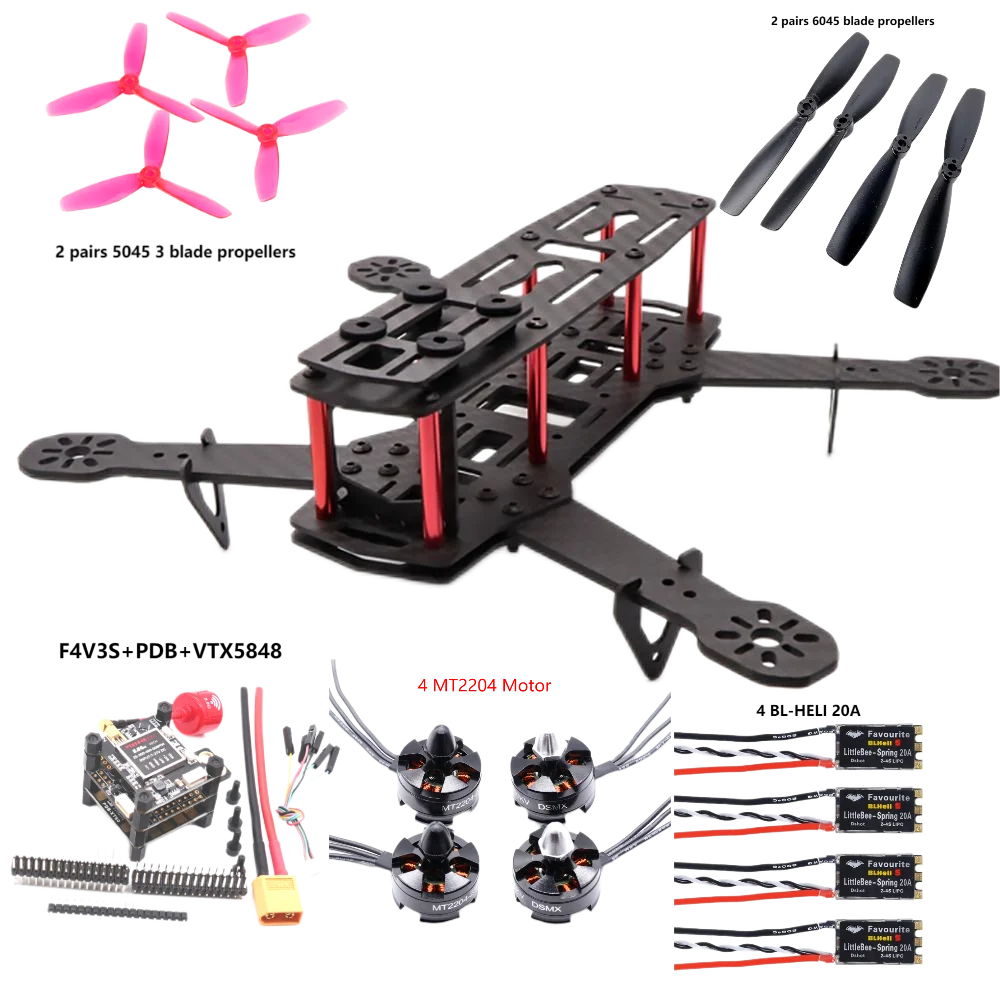

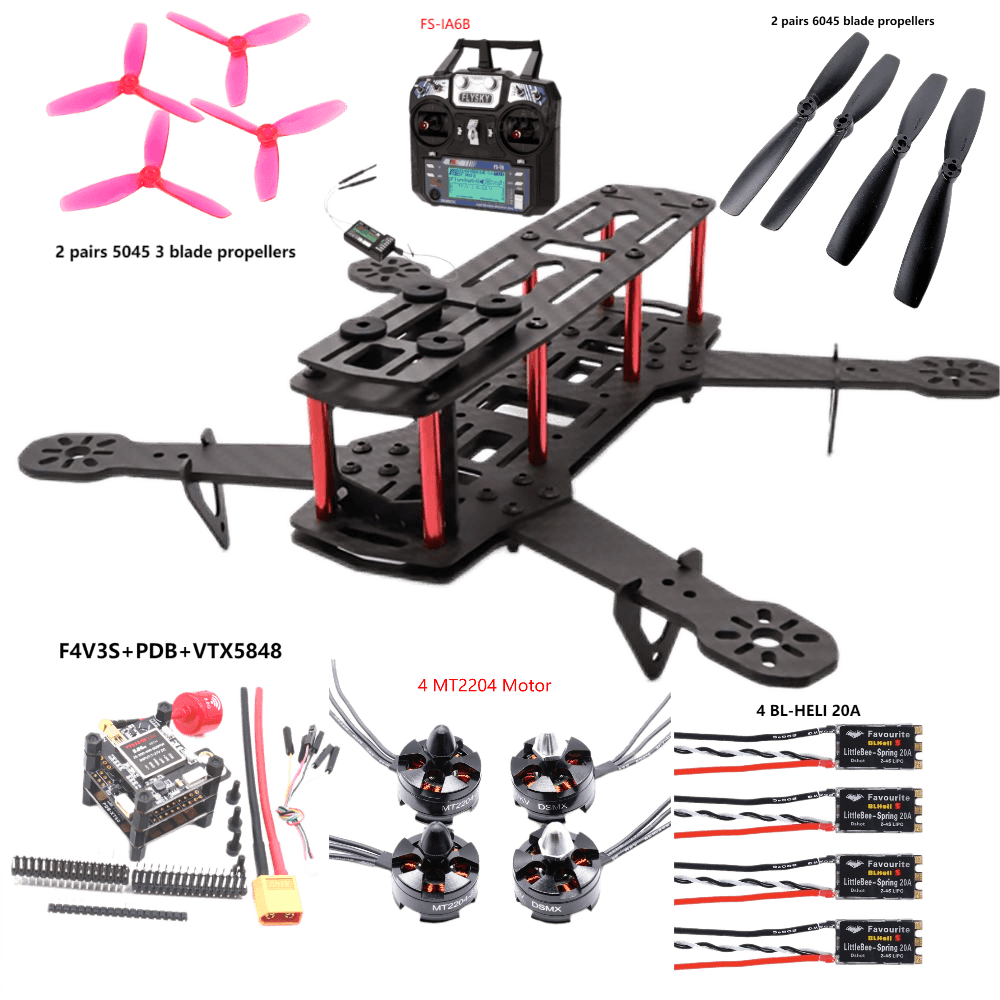

F4V3S 250 PACKAGE CBetaflight Flight Controller Board, Favouritc Litlebet Spnno Znt Aawd

Favouritc Litlebet Spnno Znt Aawdnneia LinlleBer - Spning ZDa 204 Fatomete LatnAL LlllleBet - . Spnng ZDn lren Iec .

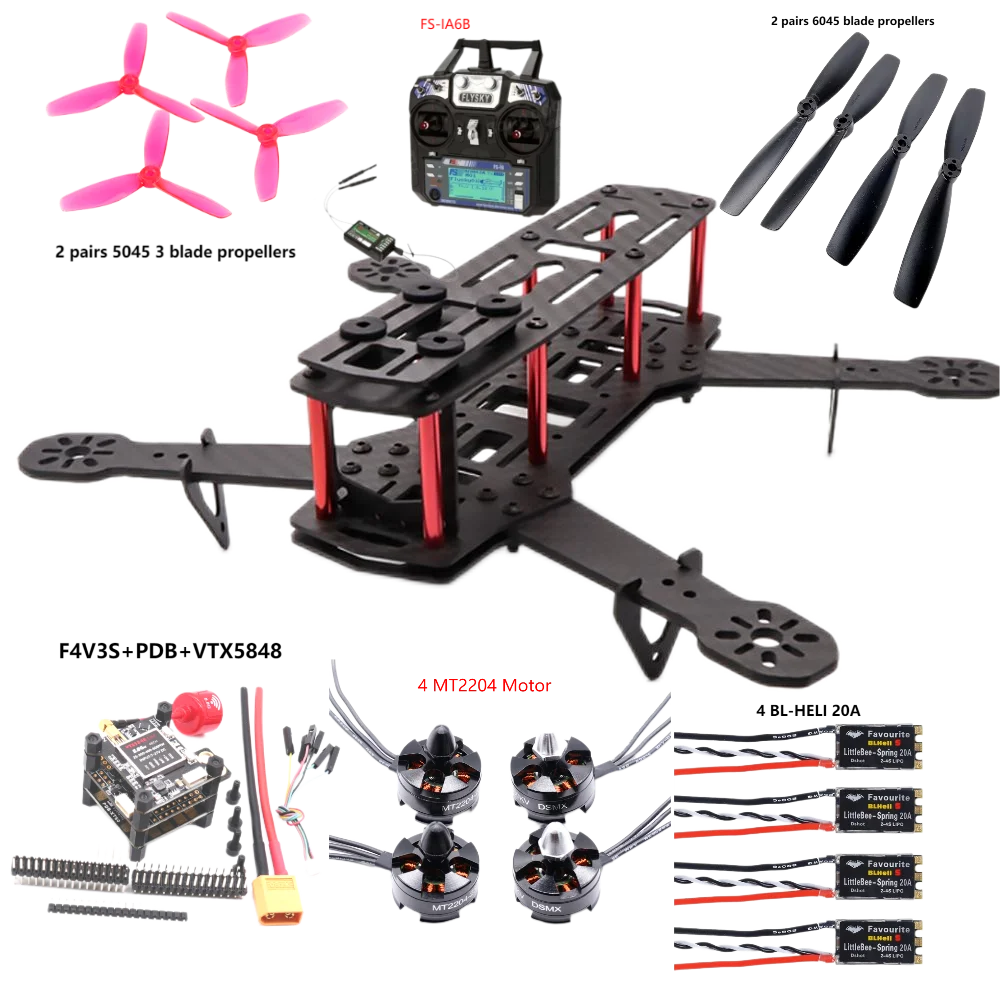

F4V3S 250 PACKAGE DBetaflight Flight Controller Board, LitlleBet Spnno znt Aawdnn

LitlleBet Spnno znt Aawdnneia LinlleBer - Spring ZDa Favouritc LitileBet - 204 Fatomete HLaeAL LitllleBet- Spnng ZDn 47 lren oren .

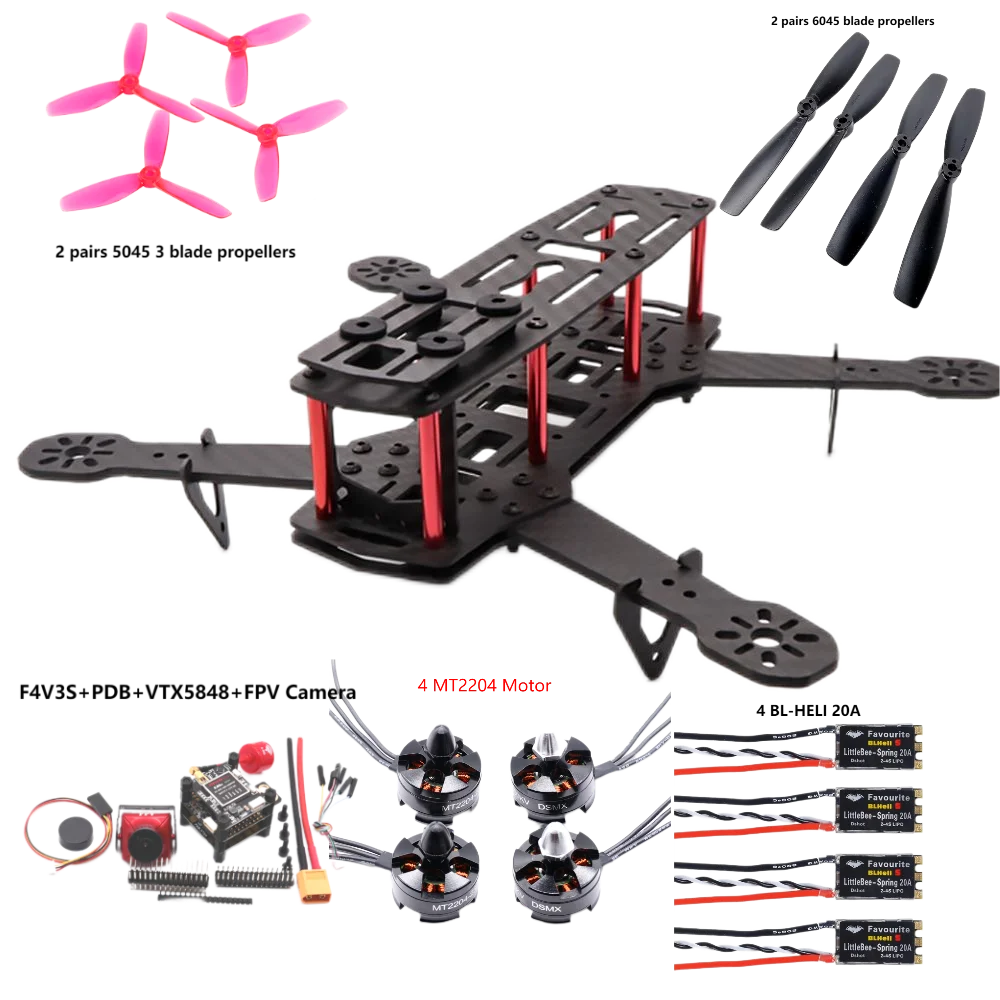

F4V3S 250 PACKAGE EBetaflight Flight Controller Board, Favouritc Litlebet Spnno Zt Aawdn

Favouritc LitlleBet Spnno Zt Aawdnneina LinlleBer - Spring ZDa - 204 Fatomete LAtEAL Lllllebet - Spnng Zbn iren orett

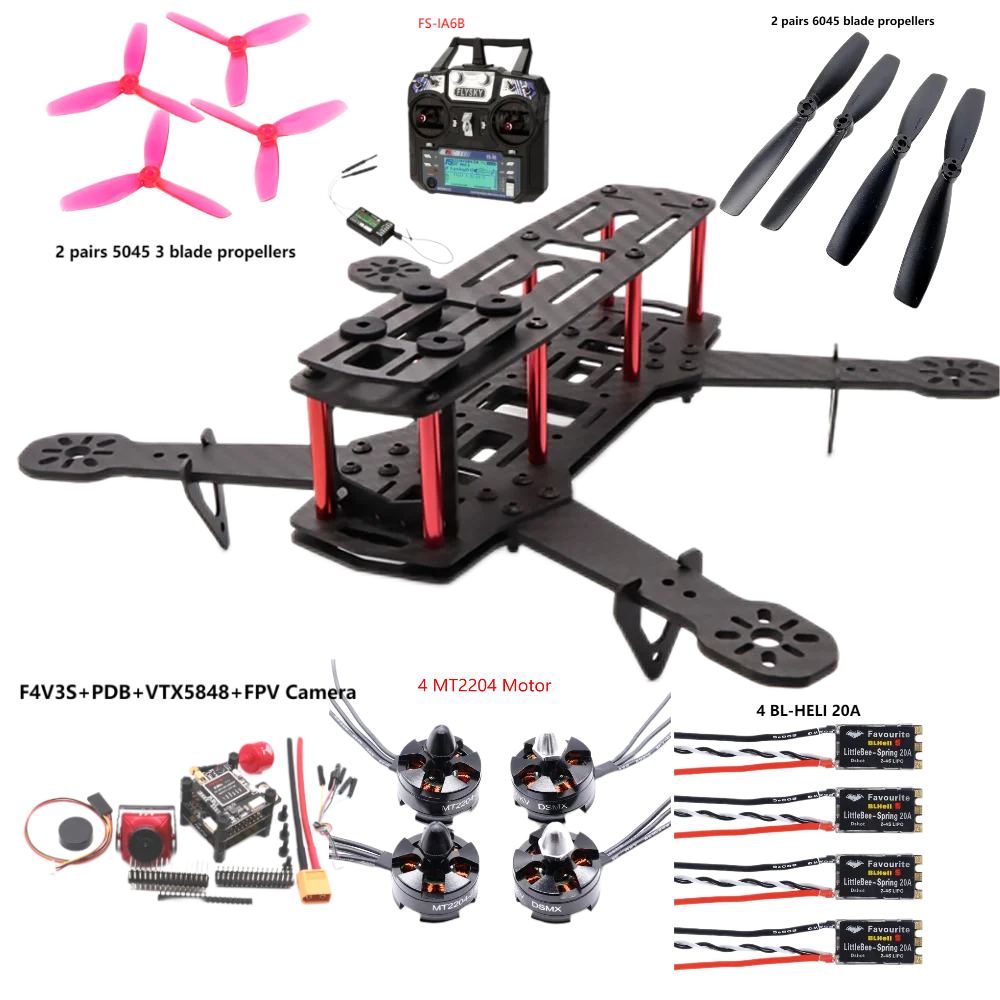

F4V3S 250 PACKAGE FBetaflight Flight Controller Board, Favouritc LitlleBet Spnno Znt Aaw

Betaflight Flight Controller Board, QAV250 250mm Carbon Fiber 4 Axis Mini Quadcopter Frame Kit Features:Betaflight Flight Controller Board, Flight controller: Naze32, CC3D EVO, mini Cc3DBetaflight Flight Controller Board, Flight controller: Naze32, CC3D EVO, mini Cc3D
