BETAFPV Meteor75 Pro O4 1S 80.8mm Wheelbase Whoop FPV Drone with DJI O4 Air Unit and 1102 22000KV Motors

Overview

The BETAFPV Meteor75 Pro O4 Brushless Whoop FPV Drone is a premium indoor cinematic platform tailored for the DJI O4 digital system. Featuring an 80.8mm wheelbase, high-speed 1102 22000KV motors, and Gemfan 45mm 3-blade propellers, this 1S drone provides unmatched stability and thrust for smooth, high-definition flight experiences. Engineered with the advanced Matrix 1S 3IN1 HD FC and DJI O4 shock-mitigation system, the Meteor75 Pro O4 is built for creators who demand exceptional image clarity, stable video capture, and extended flight endurance of up to 5 minutes 30 seconds—all in a micro whoop format.

---

Key Features

Built for DJI O4 Performance

• Seamlessly integrates with DJI O4 Air Unit via precision-engineered shock-absorbing mounts.

• Reduces vibration artifacts and supports crystal-clear HD video indoors or in tight spaces.

Matrix 1S 3IN1 HD FC Integration

• Combines flight controller, 12A ESC, and ELRS 2.4G receiver into one compact unit.

• Optimized BEC for digital systems ensures consistent video feed and reliable control.

High-Power Motor & Prop Combo

• Equipped with 1102 22000KV motors and 45mm Gemfan tri-blade props, delivering responsive thrust for stable hover and agile control.

• Designed to handle the increased weight of DJI O4 components with ease.

Extended Flight Time

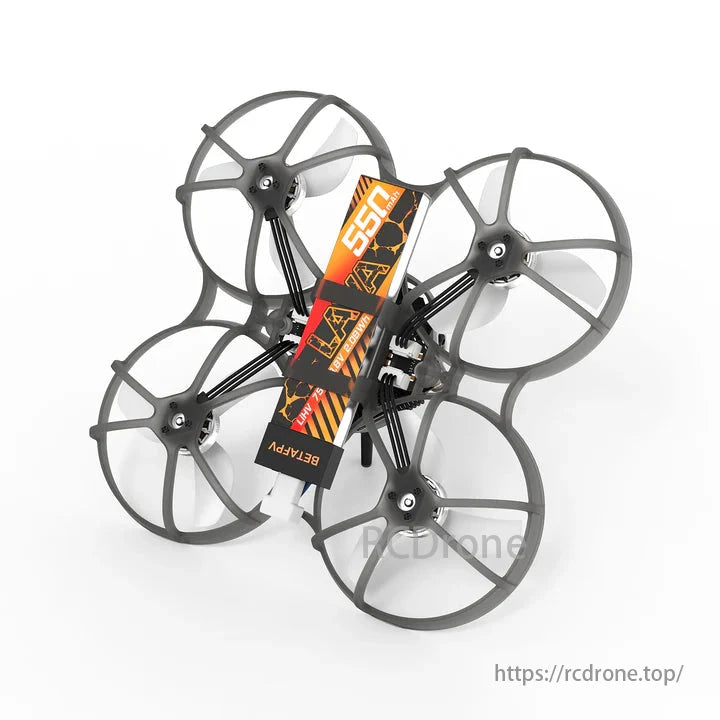

• Powered by a LAVA 1S 550mAh battery, the setup achieves up to 5:30 minutes of flight under typical indoor conditions.

• Offers longer sessions for cinematic shots or continuous content capture.

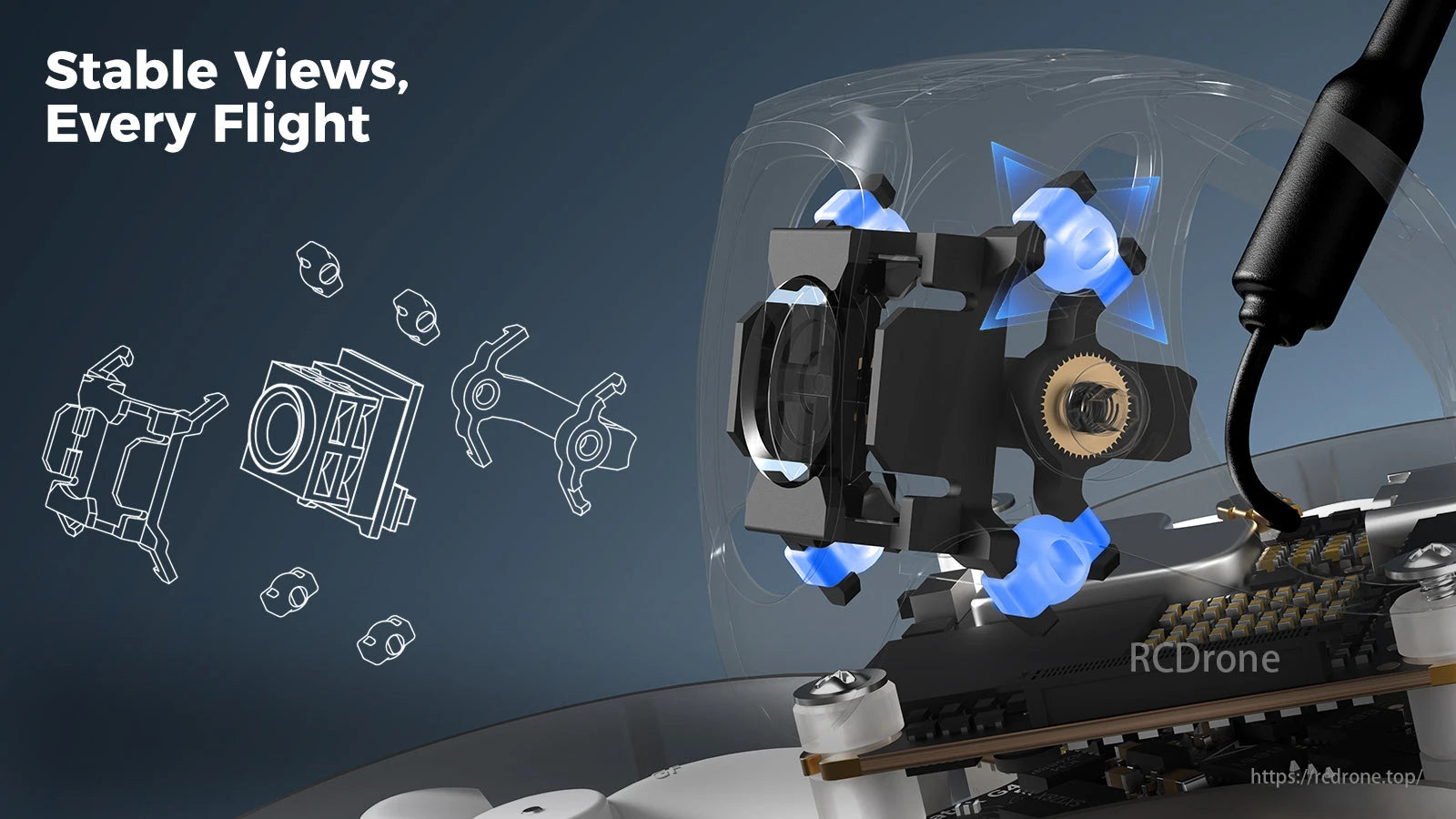

Shock-Isolated HD Imaging

• Features four-point shock-absorbing camera mounting system, minimizing gyro noise interference from DJI’s onboard stabilization.

• Clean image capture free from jello or high-frequency shake.

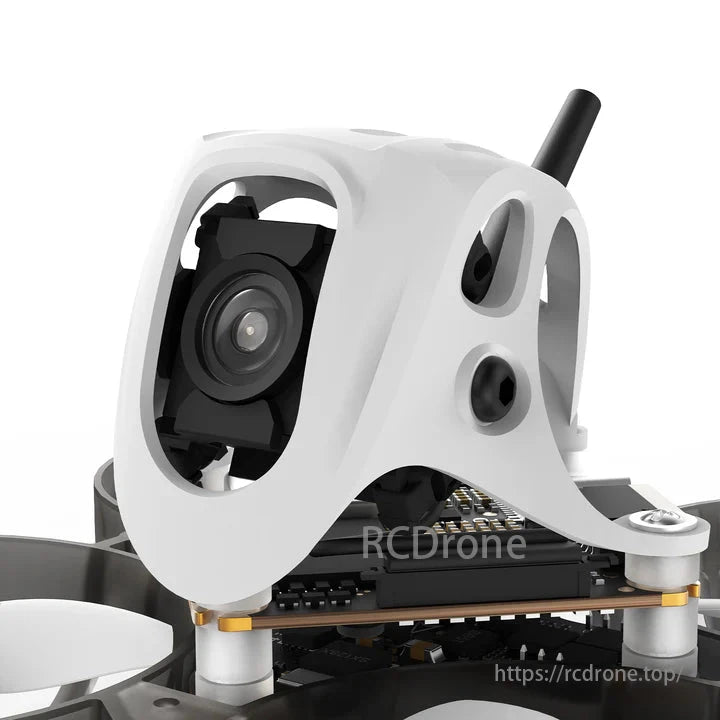

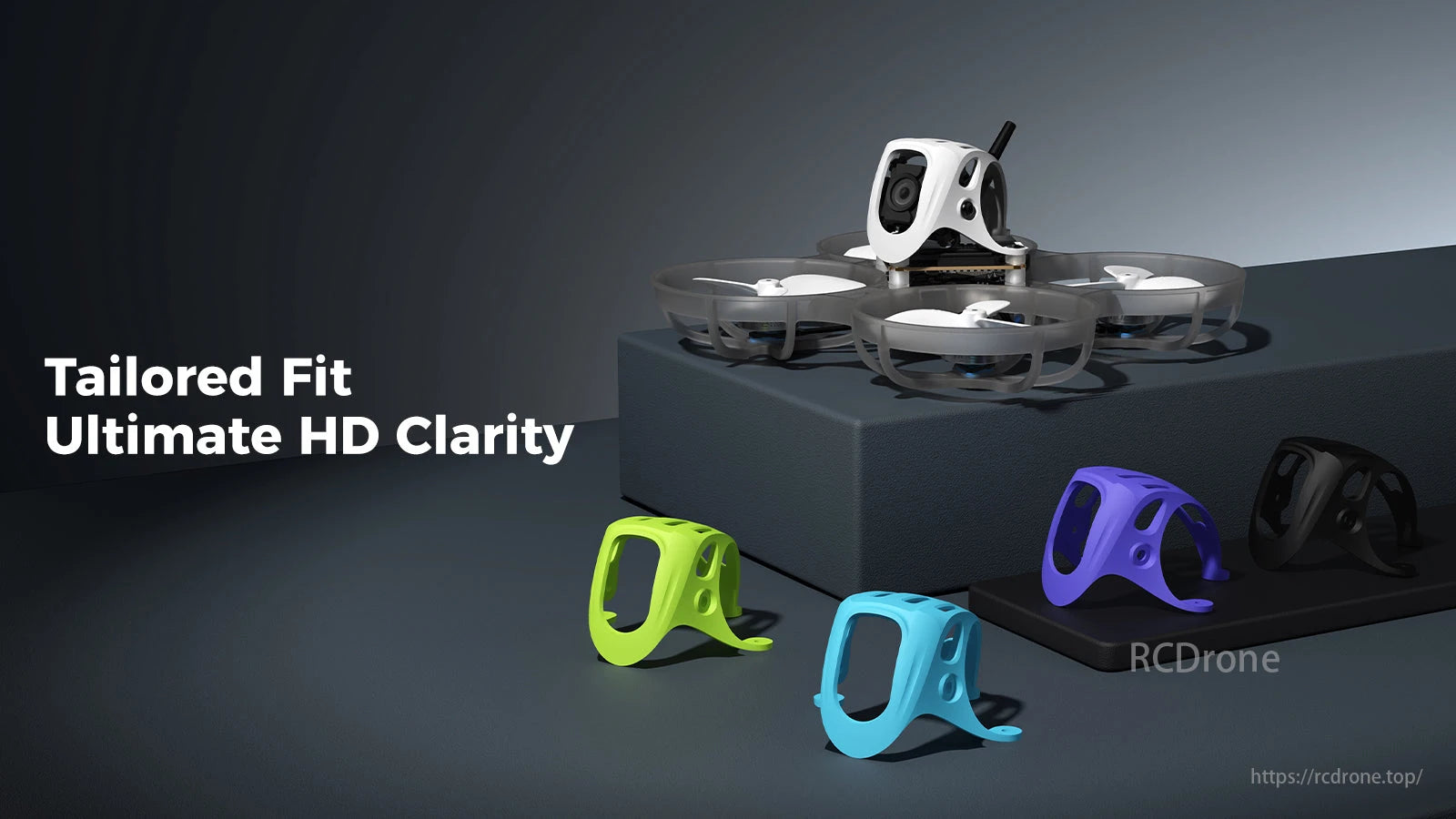

Redesigned Canopy for O4

• Specifically engineered canopy allows precise camera angle adjustment from 10° to 35°, tailored for micro FPV drones.

• Keeps the frame out of the view and enhances mounting stability.

---

Specifications

---

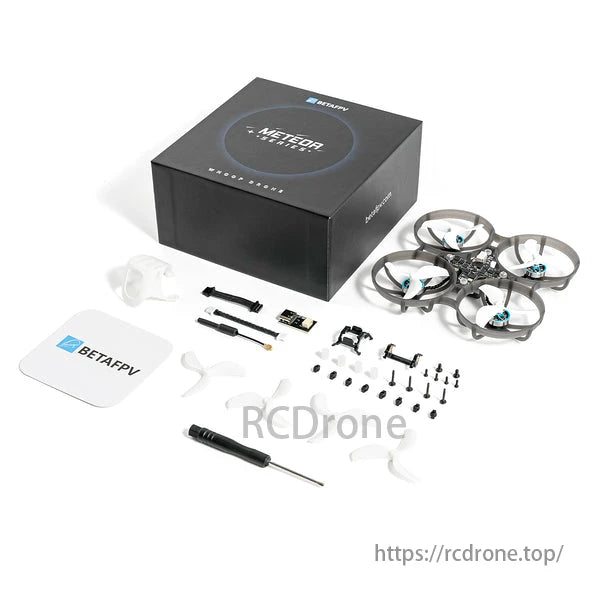

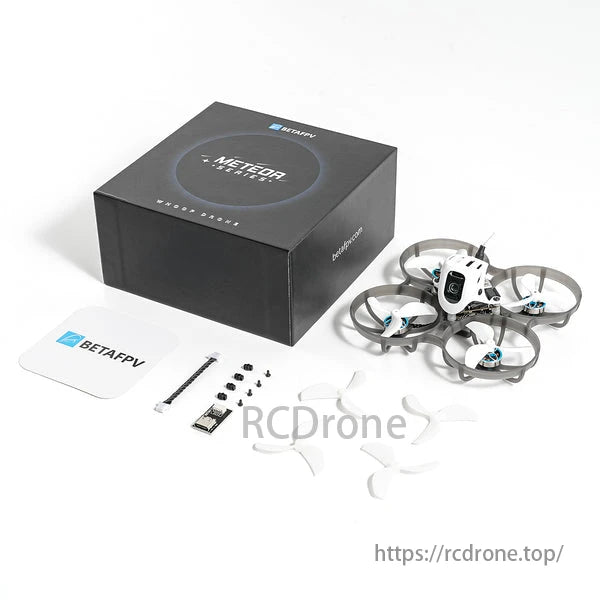

What’s Included

DJI O4 Version

• 1 × Meteor75 Pro O4 Quadcopter

• 4 × Shock-Absorbing Balls for DJI O4 Camera

• 4 × GF 45mm 3-Blade Propellers

• 1 × Type-C to SH1.0 Adapter

• 1 × SH1.0-4Pin Adapter Cable

• 4 × M1.4×4 Phillips Flat Head Screws

PNP Version

• 1 × Meteor75 Pro O4 Quadcopter

• 1 × Canopy for O4 Air Unit

• 4 × GF 45mm 3-Blade Propellers

• 1 × Type-C to SH1.0 Adapter

• 1 × SH1.0-4Pin Adapter Cable

• 1 × SH1.0-6Pin HD Cable

• 1 × 5.8G VTX Antenna

• 4 × Shock-Absorbing Balls

• 8 × Additional Shock-Absorbing Balls

• 1 × DJI O4 Camera Bracket

• 1 × DJI O4 Shock-Absorbing Mount

• 4 × M1.4×4 Flat Head Screws

• 4 × M1.4×10 Flat Washer Screws

• 4 × M2×4 Socket Cap Screws

• 1 × Phillips Screwdriver

---

Meteor75 Pro O4 vs Meteor65 Pro O4

---

Recommended Accessories

• Radio: LiteRadio 3 Pro / LiteRadio 3 / LiteRadio 2 SE

• Battery: LAVA 1S 550mAh

• Motors: 1102 22000KV Brushless

• Propellers: Gemfan 45mm 3-Blade (1.5mm shaft)

• Canopy: Canopy for DJI O4 Air Unit

• Frame: Meteor75 Pro Brushless Frame



Details

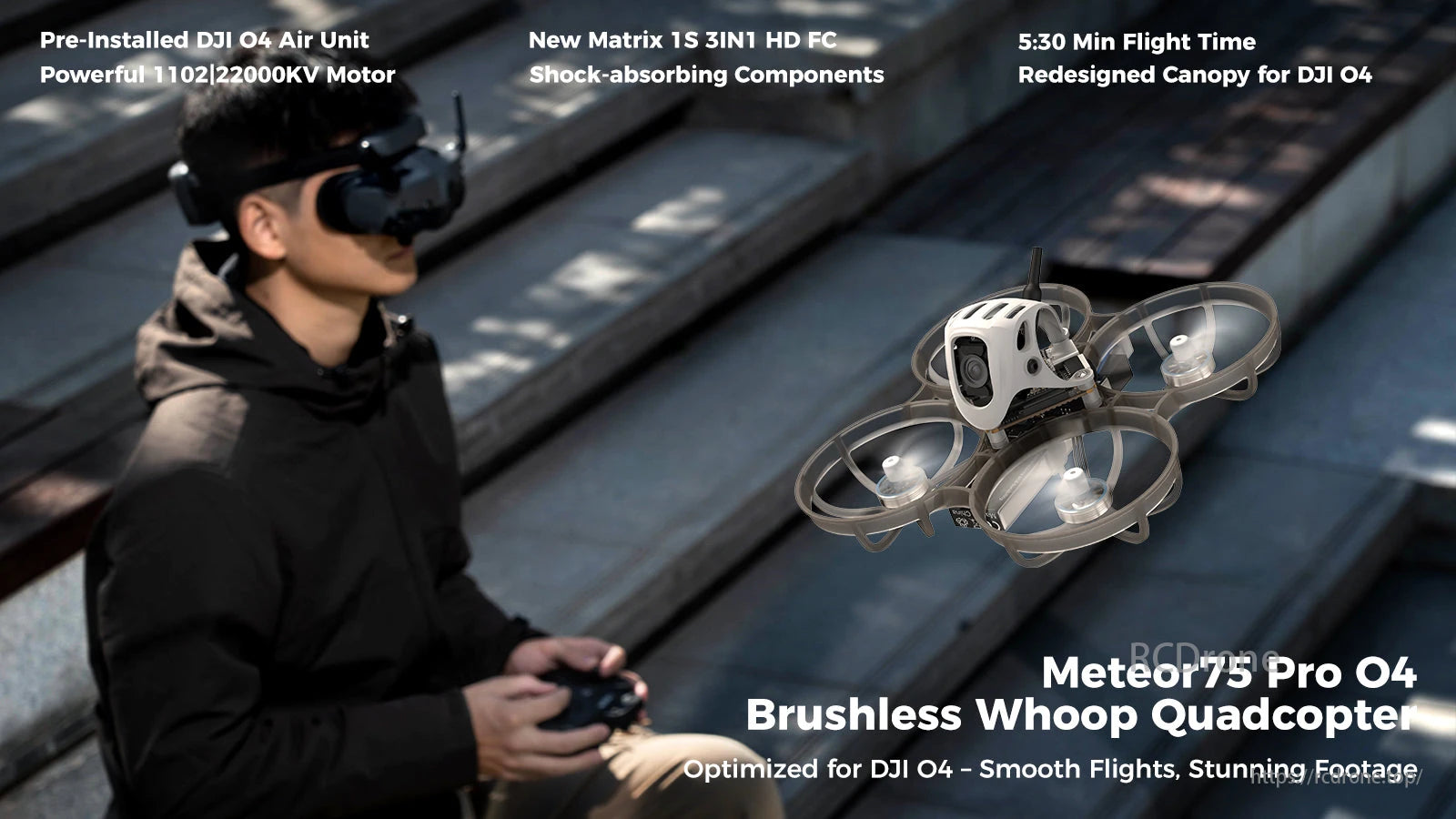

Meteor75 Pro O4 Brushless Whoop Quadcopter with DJI O4 Air Unit, 1102/22000KV motor, Matrix 1S FC, 5.5 min flight time, shock-absorbing components, optimized for smooth flights and stunning footage.

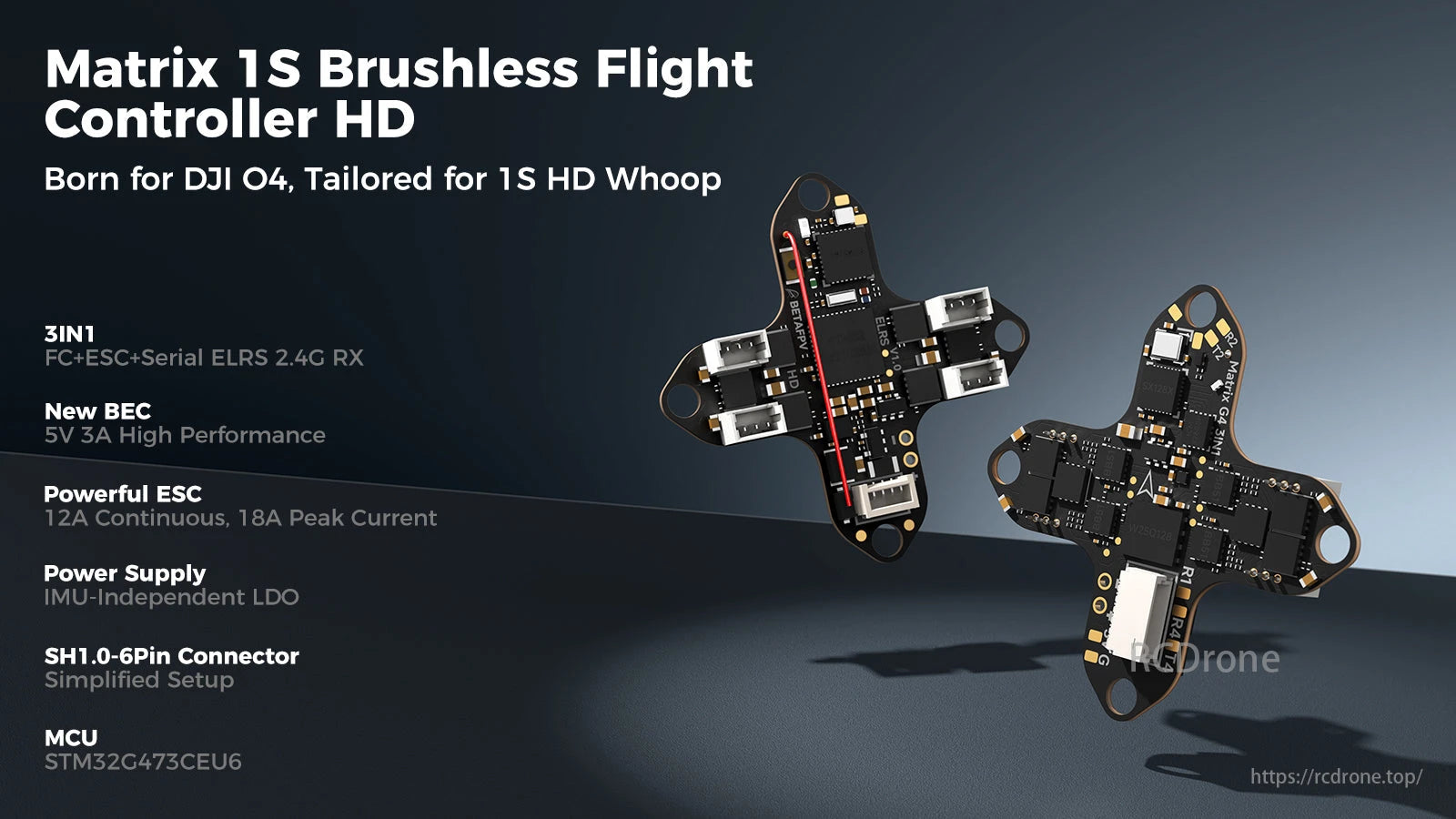

Matrix 1S Brushless Flight Controller HD, designed for DJI O4 and 1S HD Whoop. Features include 3IN1 FC+ESC+Serial ELRS 2.4G RX, New BEC with 5V 3A high performance, Powerful ESC with 12A continuous and 18A peak current, IMU-independent LDO power supply, SH1.0-6Pin connector for simplified setup, and STM32G473CEU6 MCU. This controller offers advanced functionality and reliability for enhanced flight experiences.

Precision tuning ensures stable flight and smooth camera movements for DJI O4.

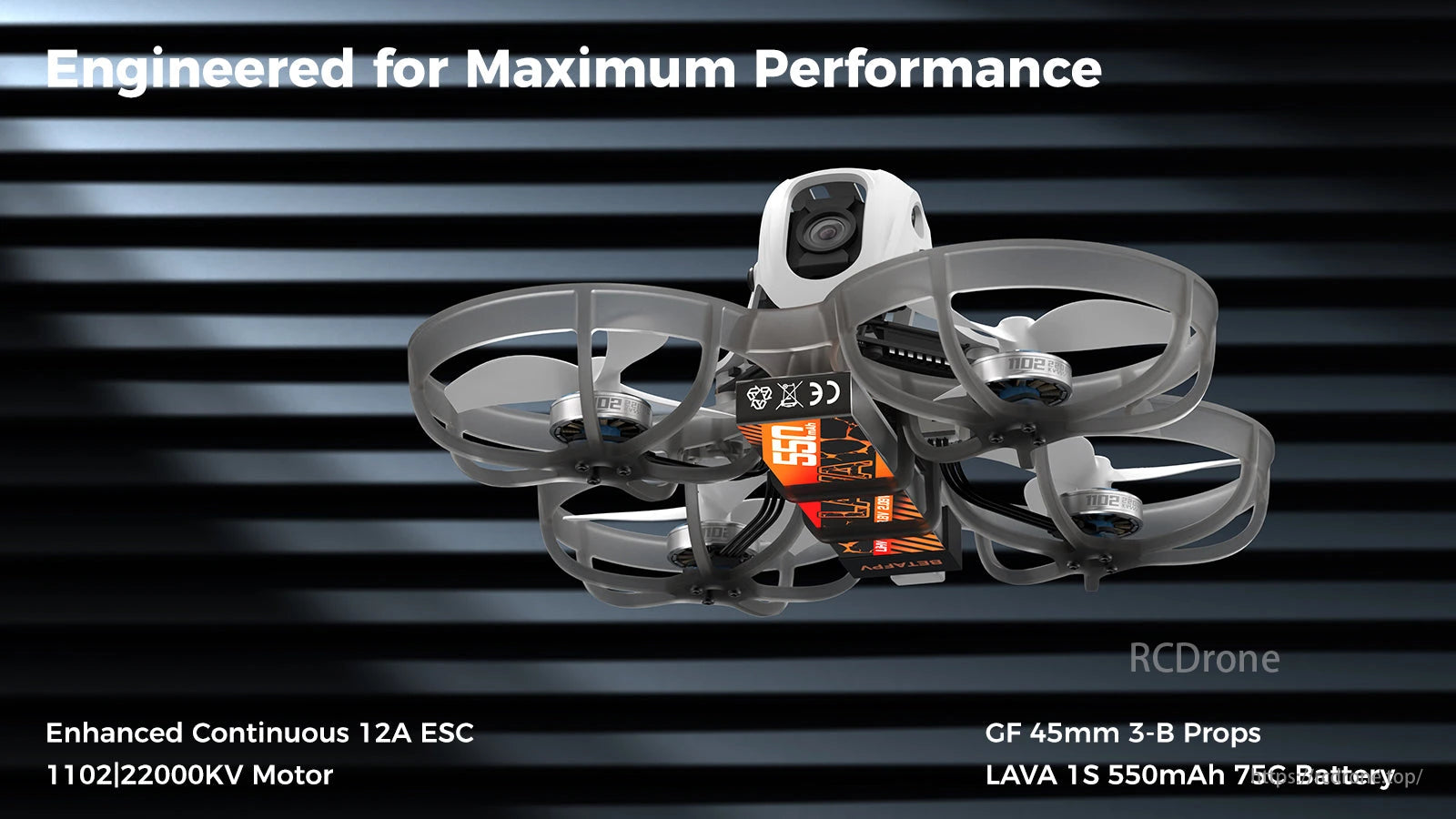

Engineered for maximum performance, this motor features a high-performance 8X propeller and 12A ESC with 4Smm batteries and a 1102/2200 OKV motor, ideal for LAVA 1S S50mAh 75C battery use.

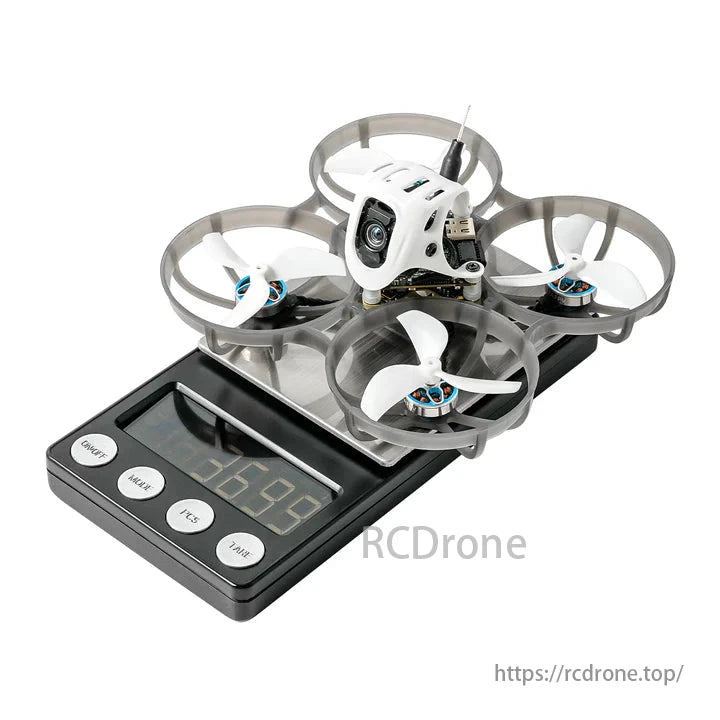

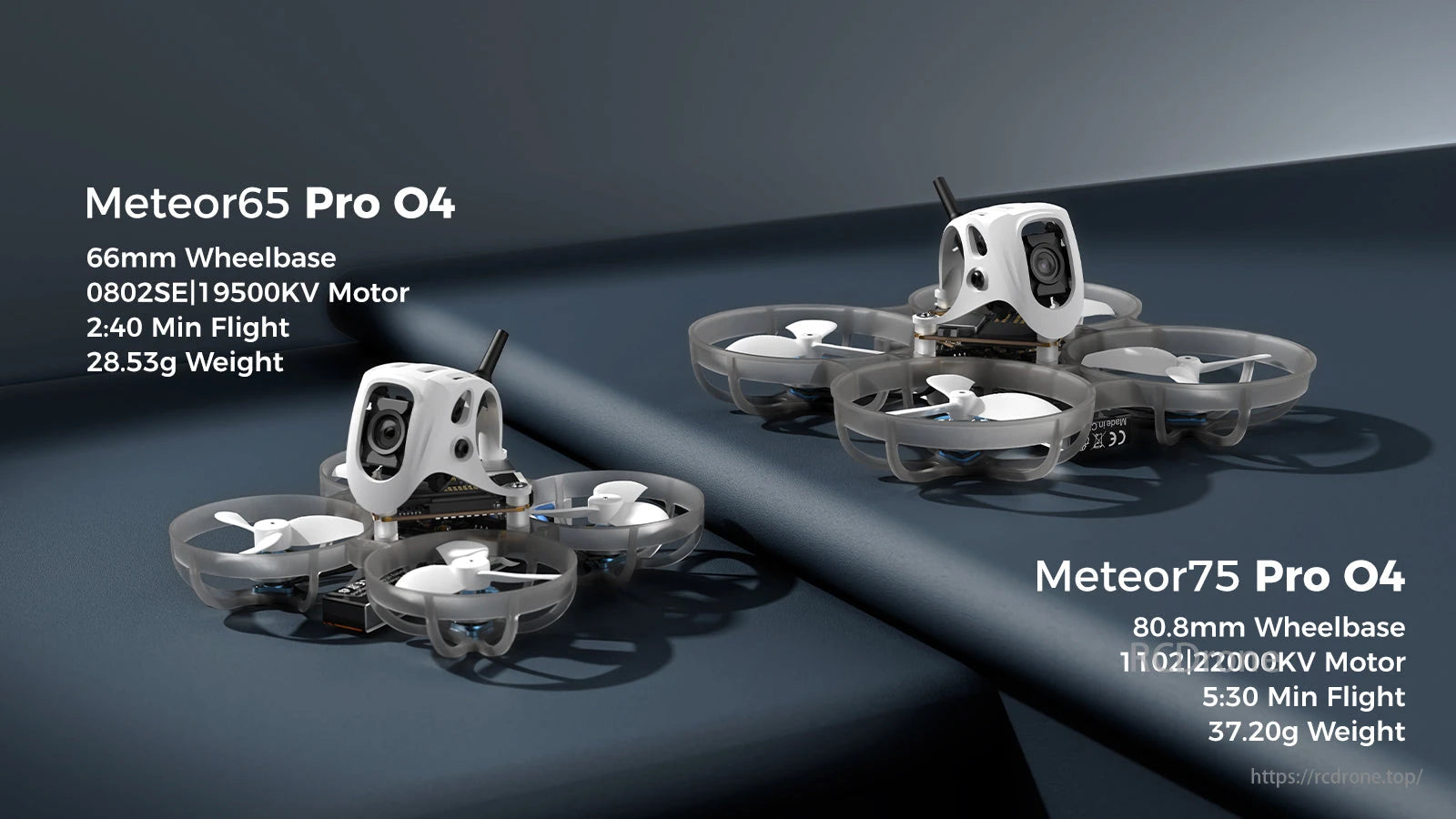

Meteor65 Pro O4: 66mm wheelbase, 0802SE|19500KV motor, 2:40 min flight, 28.53g weight. Meteor75 Pro O4: 80.8mm wheelbase, 1102|22000KV motor, 5:30 min flight, 37.20g weight.
