Boscam TS832 Transmitter SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Frame
Tool Supplies: Grinded
Technical parameters: Value 2
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 12+y
RC Parts & Accs: Transmitters
Origin: Mainland China
Model Number: TS832+Camera
Material: Metal
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
FPV Kit 800TVL CCTV Camera with 600mw TS832 Video Transmitter Suit For QAV250 Walkera DJI Phantom
Package include:
TS832 Video Transmitter + 800TVL CCTV Camera
TS832 Video Transmitter
Features:
- 48 channels: Cover A, B, E bands and F band (Airwave band), 4 bands and all frequencies compactable;
- Two switching buttons: CH button for frequencies channels switching, FR button for frequencies bands switching;
- Two digits display: one for CH and the other for FR, real-time positioning which frequency band and which channel received;
- Power off memory: Replay the very last frequency band and channel
- Independent video and audio signal outputs
Specifications:
- Video format supported: NTSC/PAL
- Antenna connection: RP-SMA, jack (module side ) See connector type diagram
- Power input: 7.4-16V (3S Lipo suggested)
- Transmitting power: 600mA
- Antenna gain: 2db
- Working current: 220mA at 12V
- Video bandwidth: 8M
- Audio bandwidth : 6.5M
- Weight: 22g
- Dimension: 54x 32x 10mm(excluding antenna)
*Note:TX antenna must be installed properly before it is switched on, power on without install antenna, or a improper antenna was used may easily burn the TX.
![aeProduct.getSubject()](http://ae01.alicdn.com/kf/HTB1w3JINXXXXXXmXFXXq6xXFXXXW/200939963/HTB1w3JINXXXXXXmXFXXq6xXFXXXW.jpg)

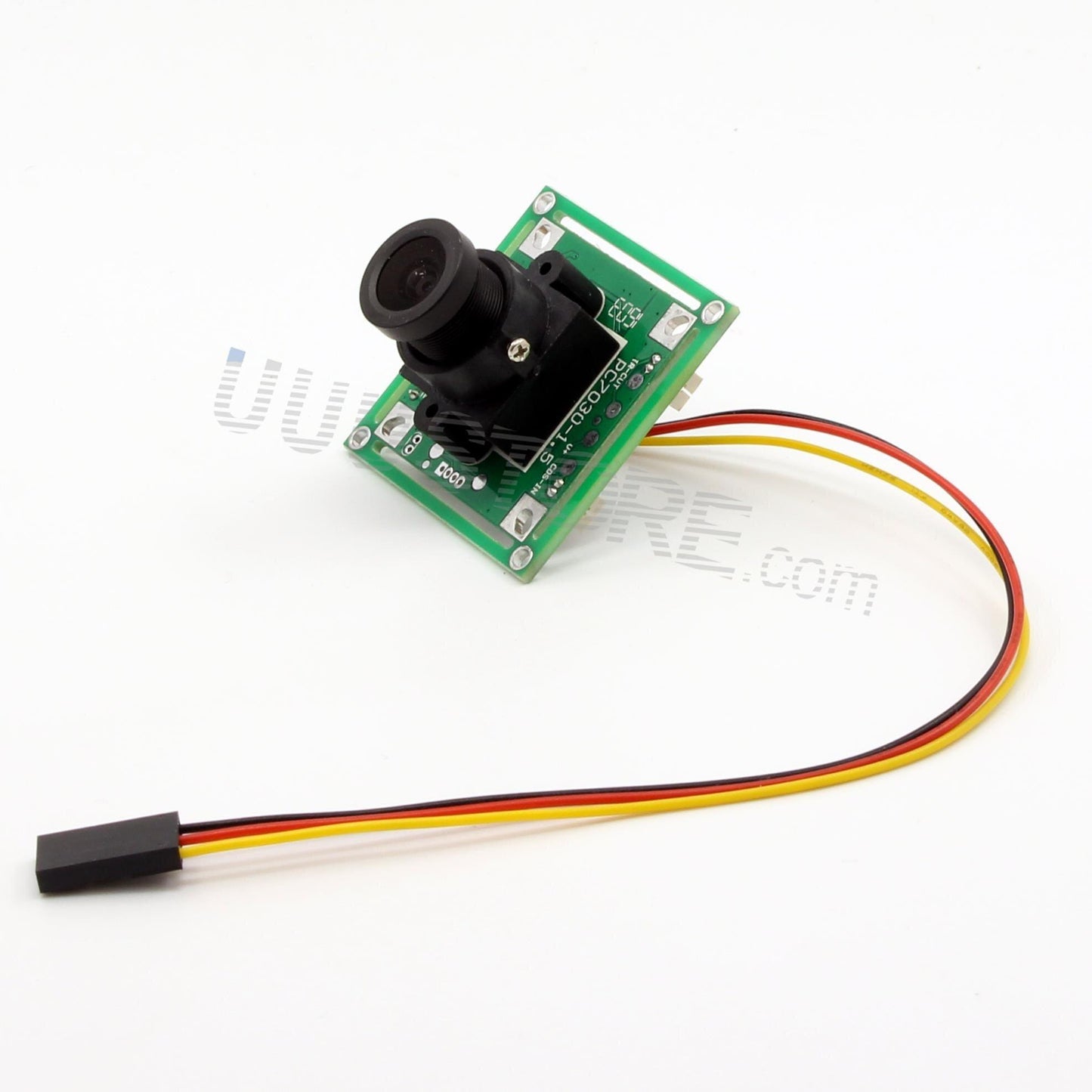

800TVL Camera
Specification:
Image Device: 1/3 Inch COMS Sensor
System: NTSC 2.1mm
Resolution: 700TVL
Min. Illumination: 0.03 Lux / F1.0
S/N Ratio: More than 52dB
Electronic Shutter: 1/50(60) to 1/100,000
White Balance: Auto
Digital Wide Dynamic Range (D-WDR): ON / OFF
Digital Noise Reduction (2D NR): ON / OFF
Auto Gain Control (AGC): Auto
DAY/NIGHT Mode: Auto/ Color/ Black and White/ External Trigger
Back Light Comp (BLC): ON / OFF
Private Mask: ON / OFF (8 replaceable zone)
Sync. System: Internal synchronization
Video Output: 1Vp-p / 75Power Requirements: DC 12V
Power Consumption: 80 mA
Operating Temp.: -10 C to +50 C ( 14 F to 122 F )
Operating Humidity: 20 to 80 %
Storage Temp.: 40 C to +60 C ( -40 F to 140 F )
Storage Humidity: 20 to 95 %
Dimension: 36mm x 36mm
Package size: 9.5 * 6.5 * 5.5cm / 3.7 * 2.6 * 2.2in
Package weight: 101g / 3.6oz
