BrotherHobby Avenger 2812 V3 Motor(CW) 900KV/1115KV FPV Drone Motor

AvenGeR Avenger Vi 2812 V3 2812-1115kU RPM:16416 rpm ESC:6S 40A Thrust efficiency:3.42 gf/W Valtage:23.8V 900 40 2750g Max Current:33.8A Input Power:804.44w KV Thrust-weight Thrust Prop:9.4*4.7 CF Dualblade ratio The temperature of inside copper wire is 97.8"C after 100% throttle ratio running 2 mins: (

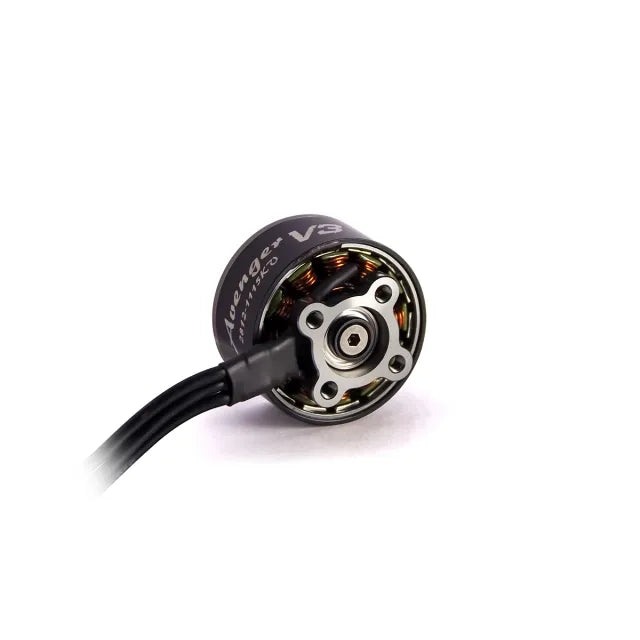

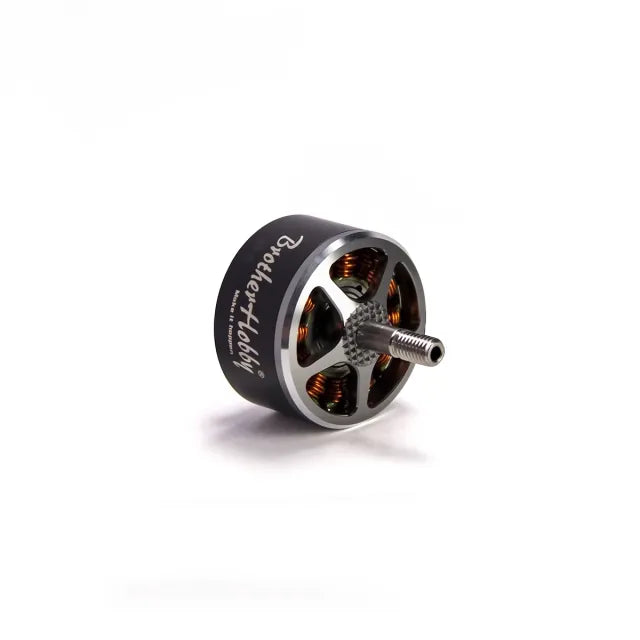

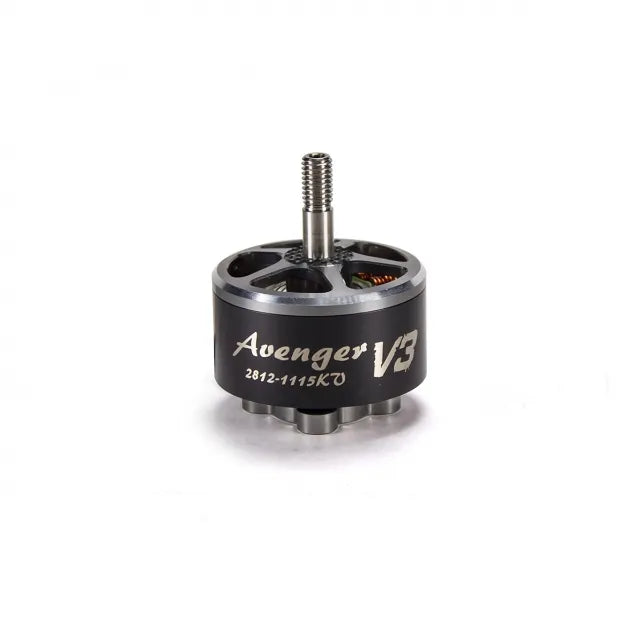

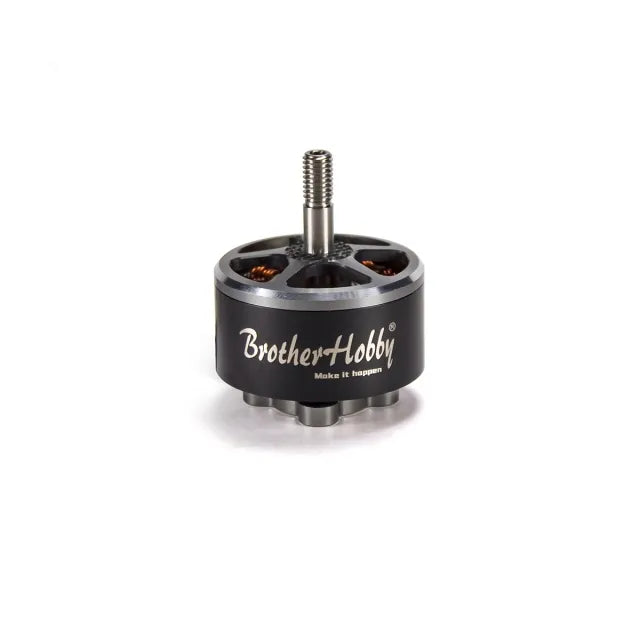

The Brother Hobby Avenger 2812 V3 motor features a solid construction with a smooth interior, made from aerospace-grade 7075 aluminum alloy. It also boasts Japanese NMB bearings for a silky-smooth performance, along with a cover that ensures quiet and free flying. Additionally, the heat-treated alloy steel shaft provides durability and reliability.

Specifications: * KV: 900KV/1115KV * Base Casing: Aerospace-grade 7075 aluminum alloy * Configuration: 12N14P (twelve coils, fourteen poles) * Bell Cap: Aerospace-grade 7075 aluminum alloy * Wire: AWG 18 (0.812mm in diameter) - 25cm long * Bearings: Japanese NMB brand, dimensions 12mm x 6mm x 4mm * Magnet: NSZH arc magnets for enhanced performance * Stator: 0.2mm thick Kawasaki silicon steel * Shaft: Titanium hollow shaft for durability and reduced weight * Bolt Pattern: M3 (19x19mm) - compatible with standard FPV drone hardware

Avenger V3 2812-1115KV-6S-80A-HQ 9X5X3 Test Report . aWG 18#, 250mm Length Stator Height (mm) 12 (Kawasaki 1200# 0.2mm lamination) Weight Including Cable (g) 77.50 Magnet N52H Internal Resistance(mQ) 53.00 Idle Current@1OV (A) 1.33A/10V No. of Cells(Lipo) (S) 6S

Test Report for BrotherHobby Avenger V3 Motor (2812-1115KV, 6S, 60A, HQ): * Specifications: 98FC Avenger HQ 60 * Dimensions: + Length: 25.10mm + Width: 14.80mm + Weight: 12329g (12.33 kg) + Thrust-to-Weight Ratio: 1443.00 (units not specified) + Efficiency: 371.48% * Other notable features: + KV rating: 8X (8000KV or higher) + Motor dimensions: 4.5mm x 3mm

Specifications for BrotherHobby Avenger V3 Motor (W3): * KV Rating: 900KV * Configuration: 12N14P * Stator Dimensions: + Length: 28.00mm + Width: 33.9mm + Height: 42.0mm * Motor Dimensions: + Length: 250mm (250mm) * Wire AWG: #18 (0.812mm in diameter)

Specifications for BrotherHobby Avenger V3 Motor (2812-900KV): * KV Rating: 900KV * Configuration: 12N14P * Stator Dimensions: + Length: 28.00mm + Width: 33.9mm + Height: 42.0mm * Motor Dimension: 250mm (length) x 33.9mm (width) x 42.0mm (height) * Wire AWG: #18 (0.812mm in diameter) * Weight (including cable): 76.00g * Magnet Type: N52H * Internal Resistance: 87.00mΩ * Idle Current @ 10V: 0.95A/10V * Number of Cells: unknown (not specified)
