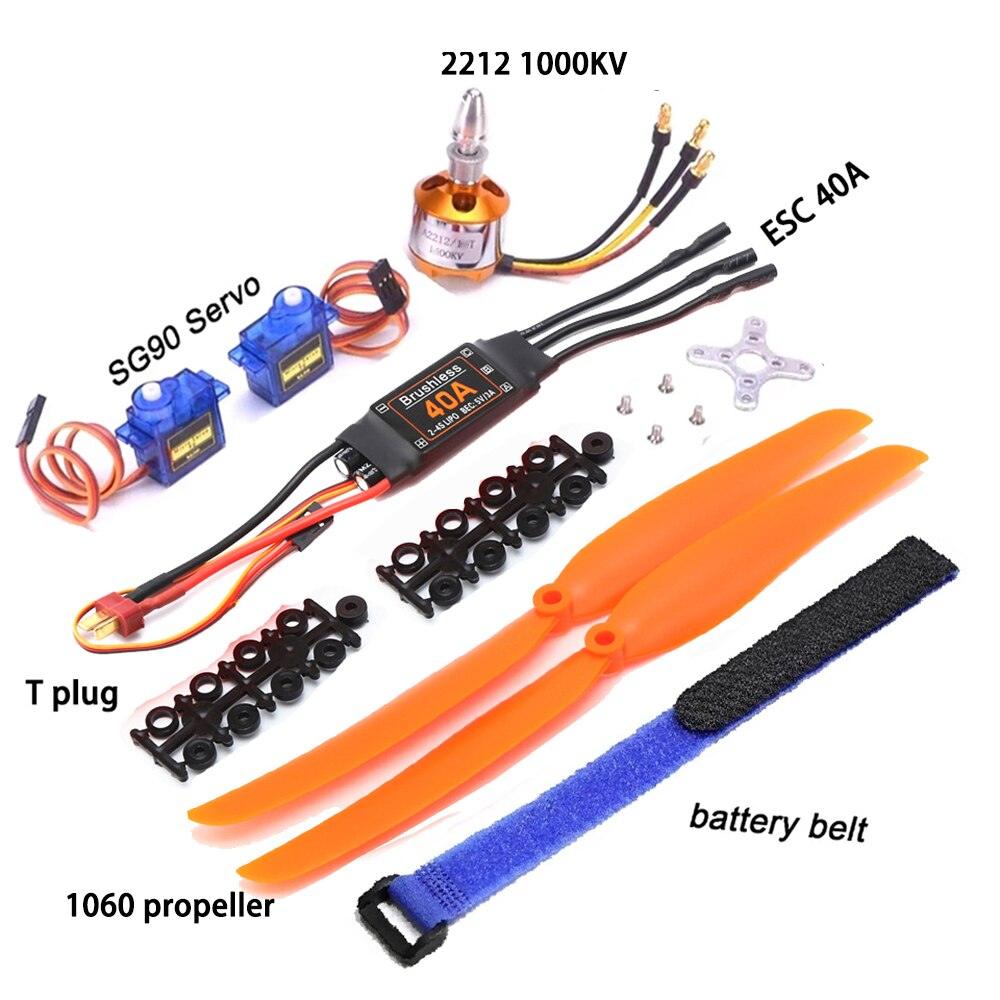

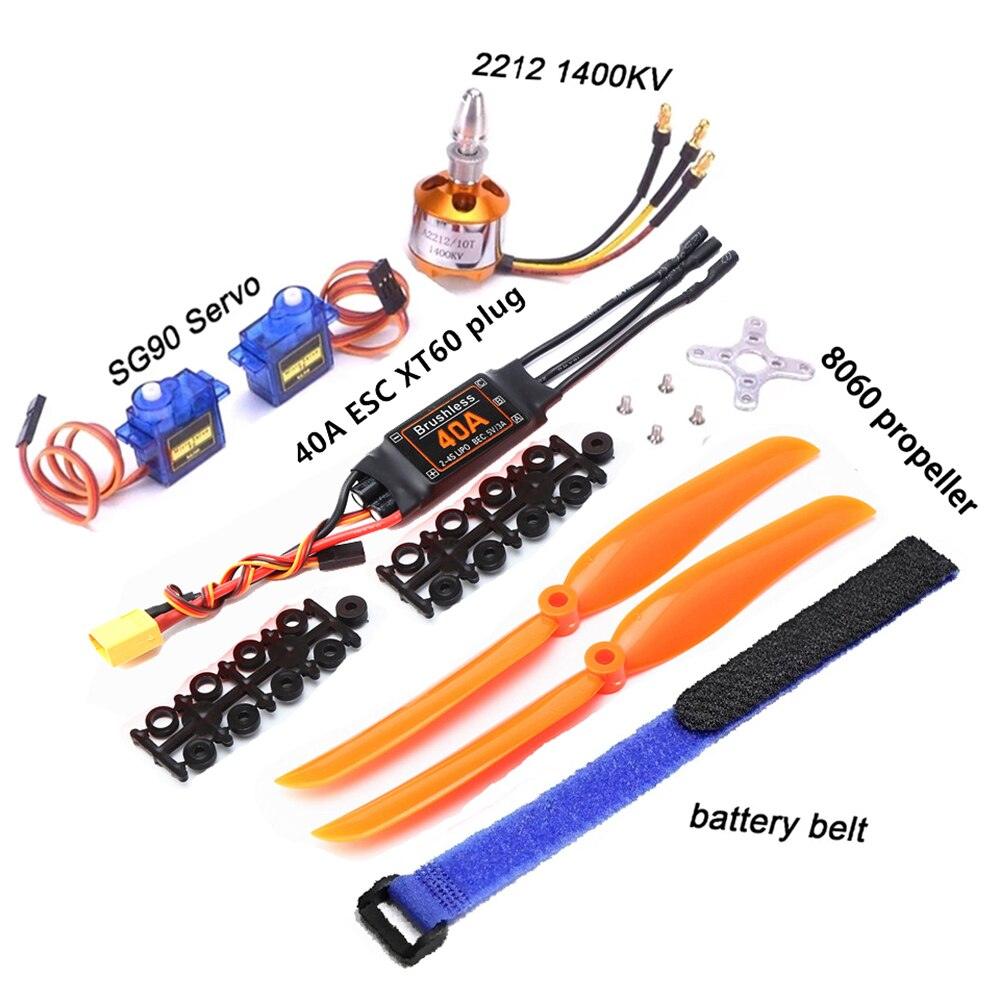

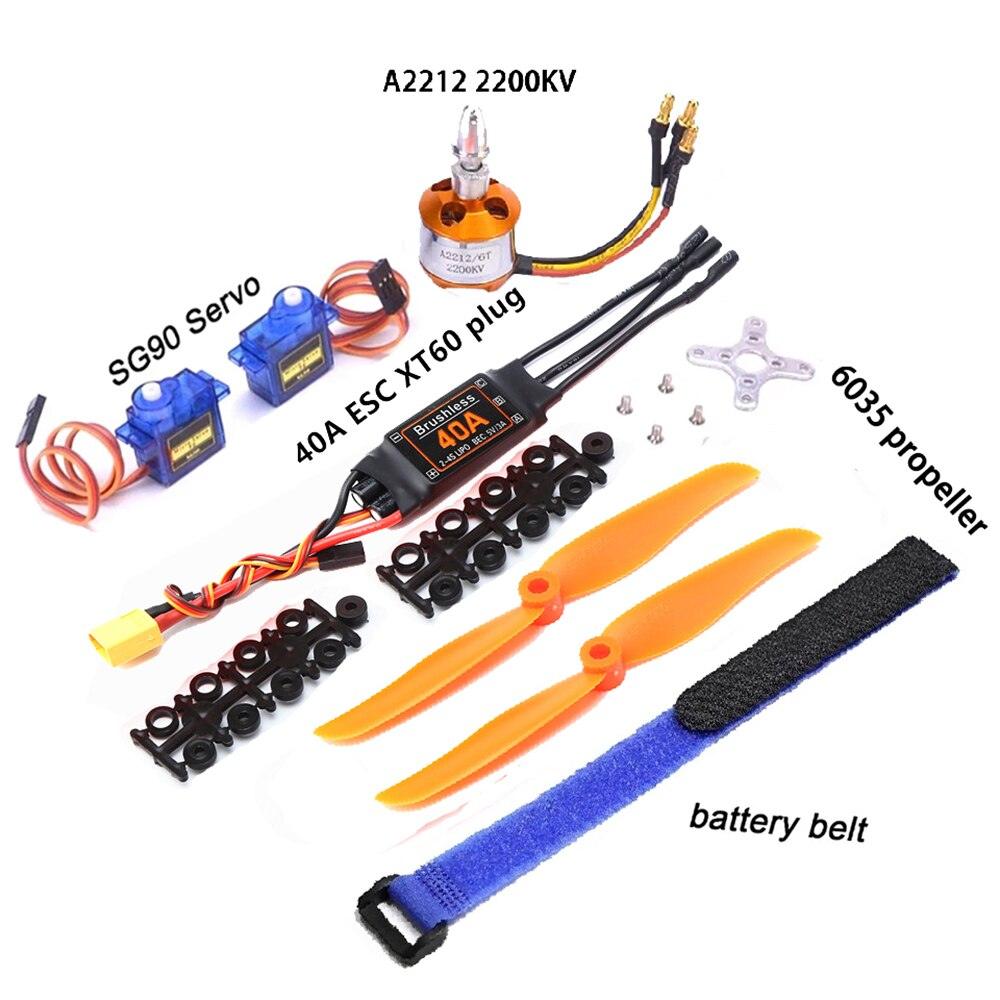

Brushless Motor A2212 2212 1000KV/1400KV/2200KV 40A ESC 6035/8060/1060 Propeller SG90 9G Servo for RC Fixed Wing aircraft

Brushless Motor A2212 2212 1000KV/1400KV/2200KV 40A ESC 6035/8060/1060 Propeller SG90 9G Servo for RC Fixed Wing aircraft

RCDrone

Regular price $15.77 USD
Regular price $31.54 USD Sale price $15.77 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

90 orders in last 90 days

Color

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SPECIFICATIONS

Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Mootor

Tool Supplies: Sticker

Technical parameters: Value 3

Remote Control Peripherals/Devices: ESC

RC Parts & Accs: Speed Controllers

Quantity: 1 pcs

Origin: Mainland China

Model Number: A2212 Motor and 40A ESC

Material: Composite Material

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Brand Name: Skyquist

Brushless Motor, efficiency current: 4-10A (>75%) Current capacity: 12A/60s No

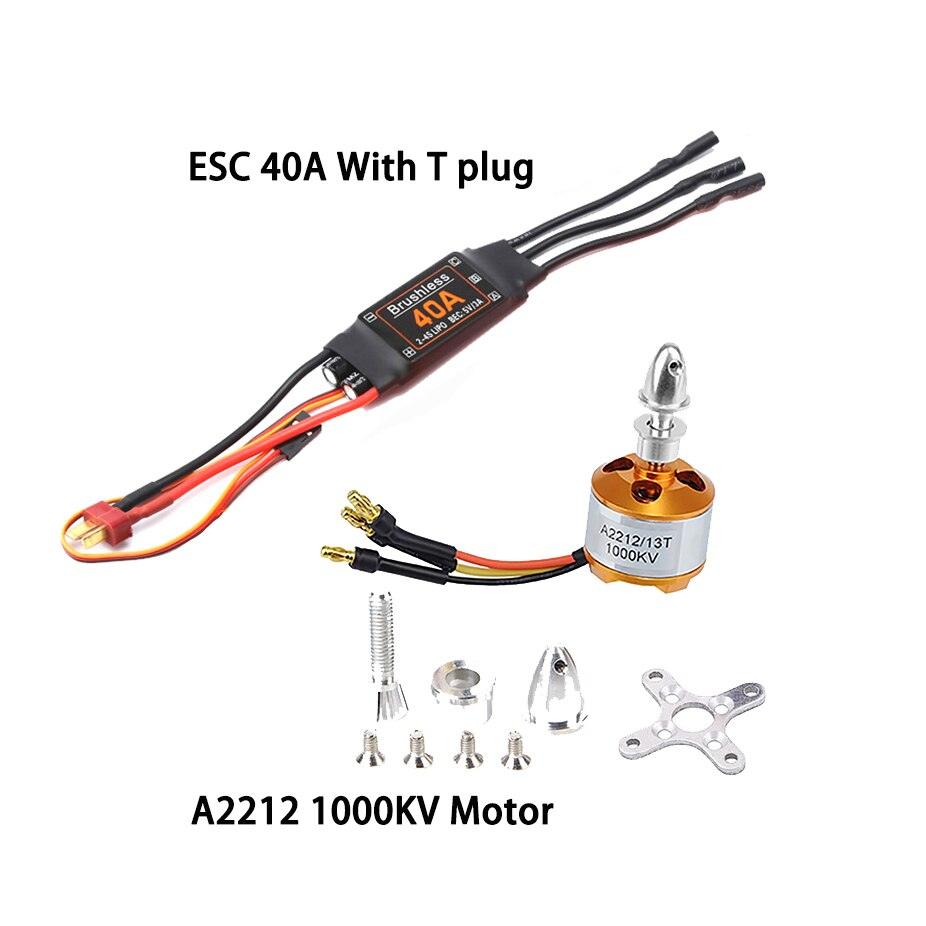

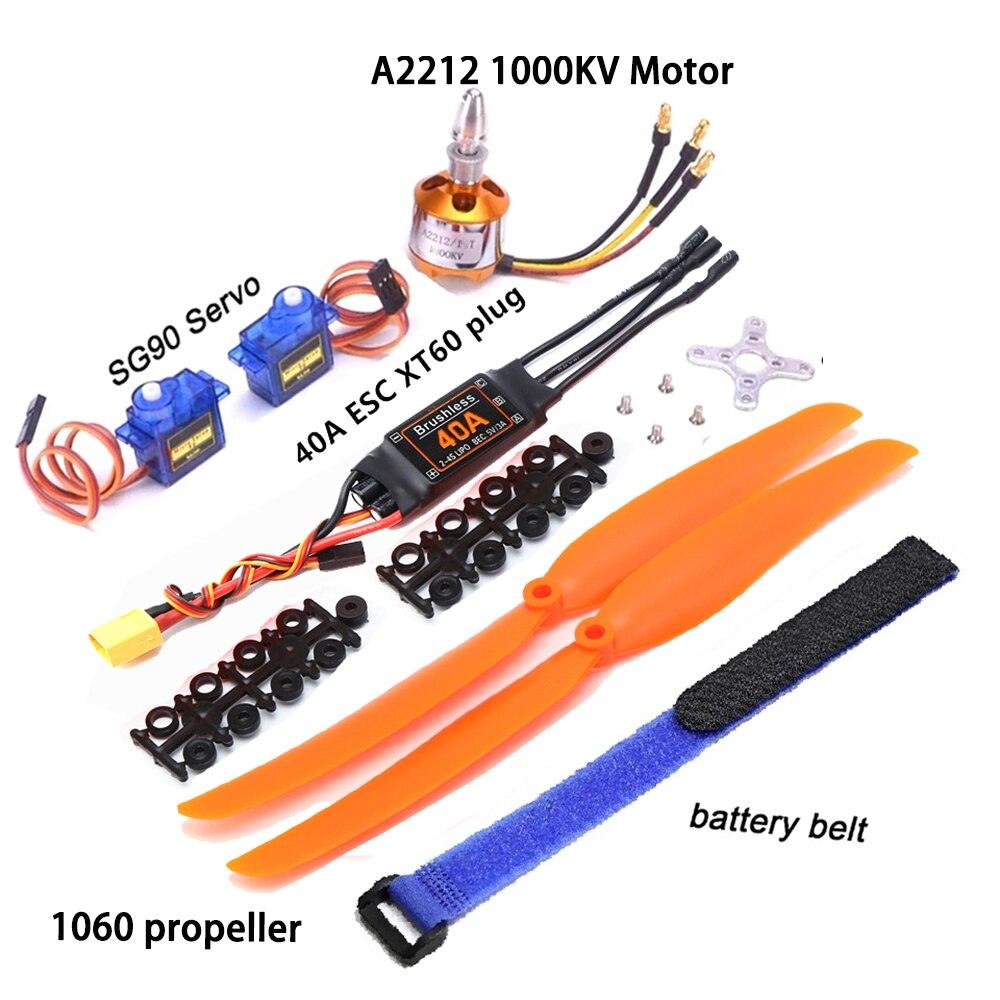

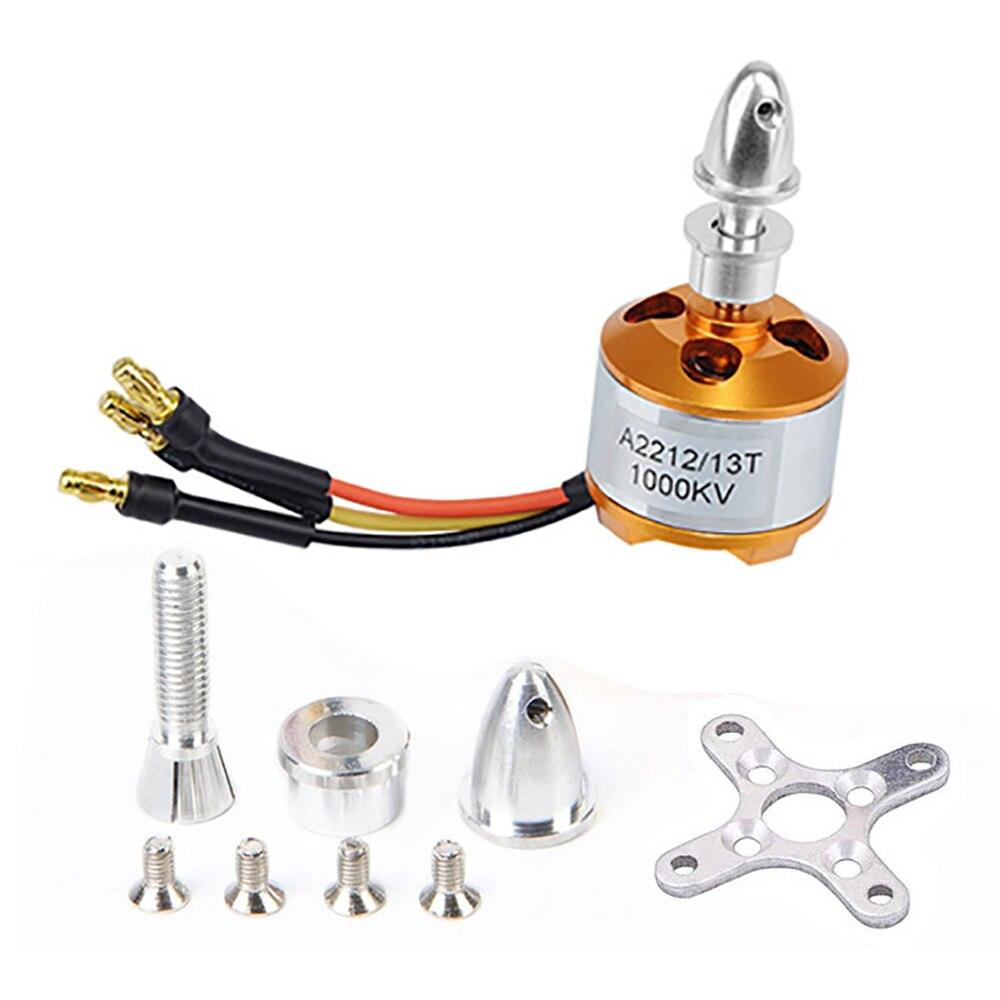

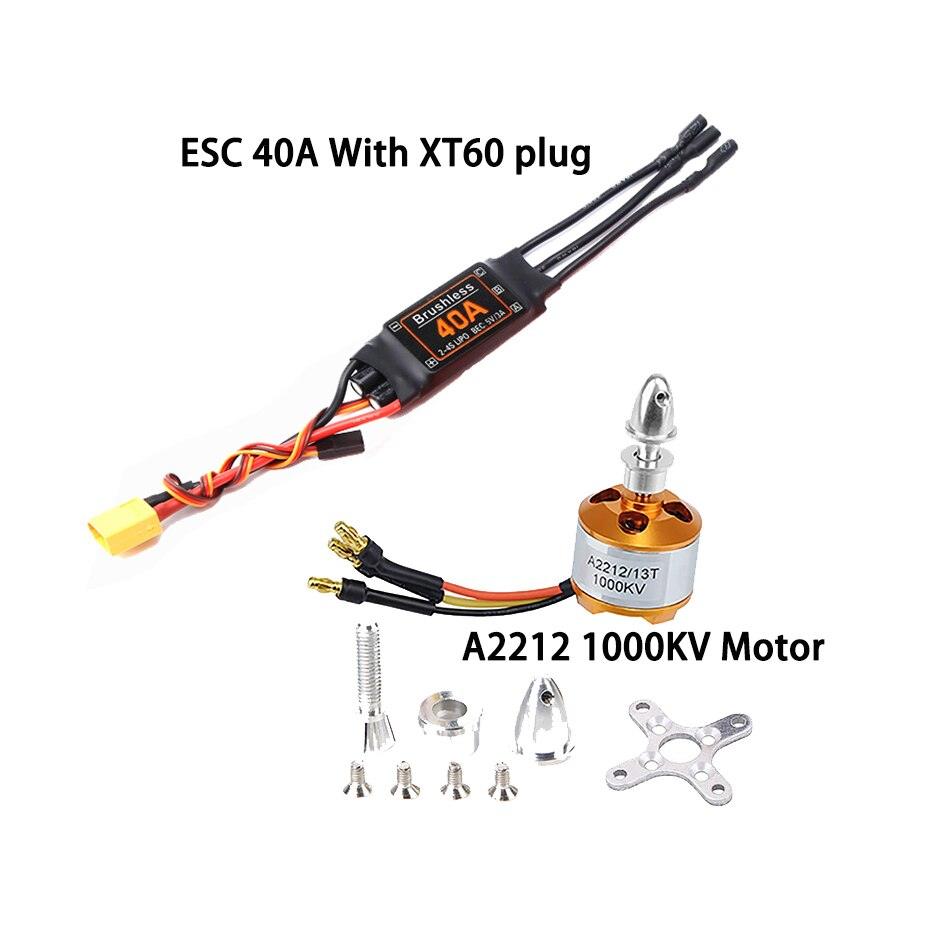

XXD A2212 1000KV brushless outrunner motor:
KV: 1000
Max. efficiency: 80%
Max. efficiency current: 4-10A (>75%)
Current capacity: 12A/60s
No Load current @ 10V: 0.5A
No. of cells: 2-3 Li-Poly
Motor size: 27.5 * 27mm / 1.1 * 1.1in
Shaft diameter: 3.17mm / 0.1in
Weight: 48g / 1.7oz

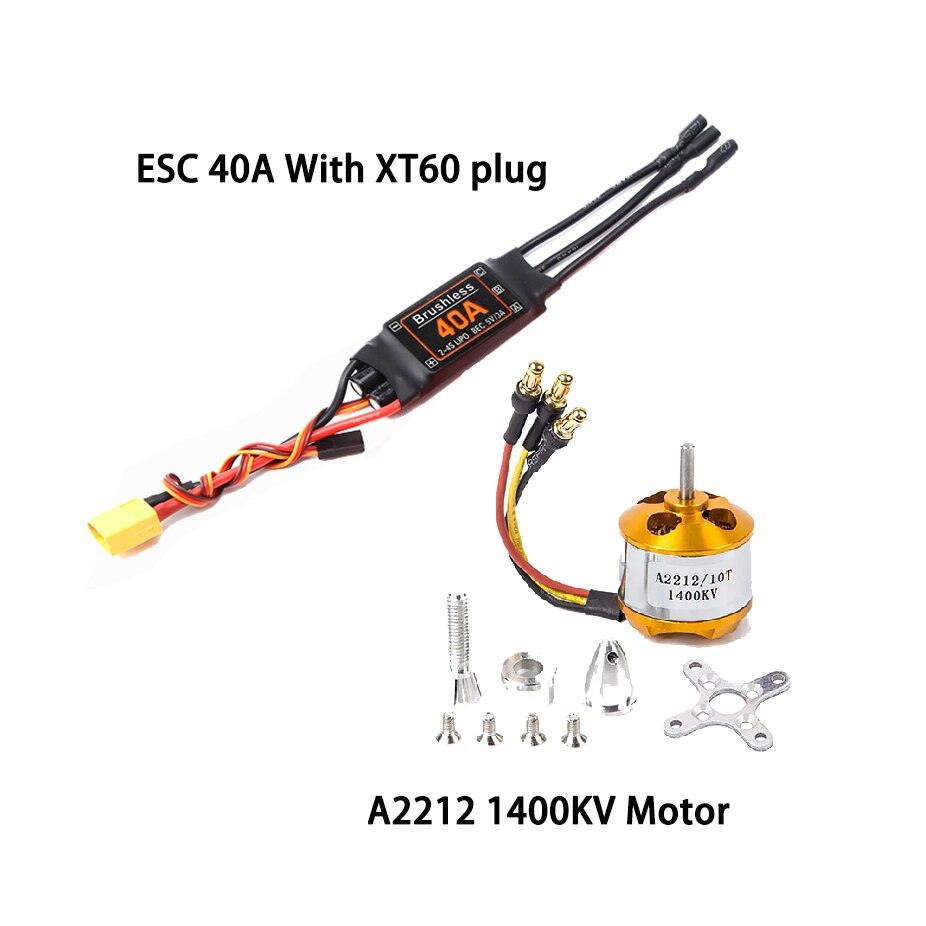

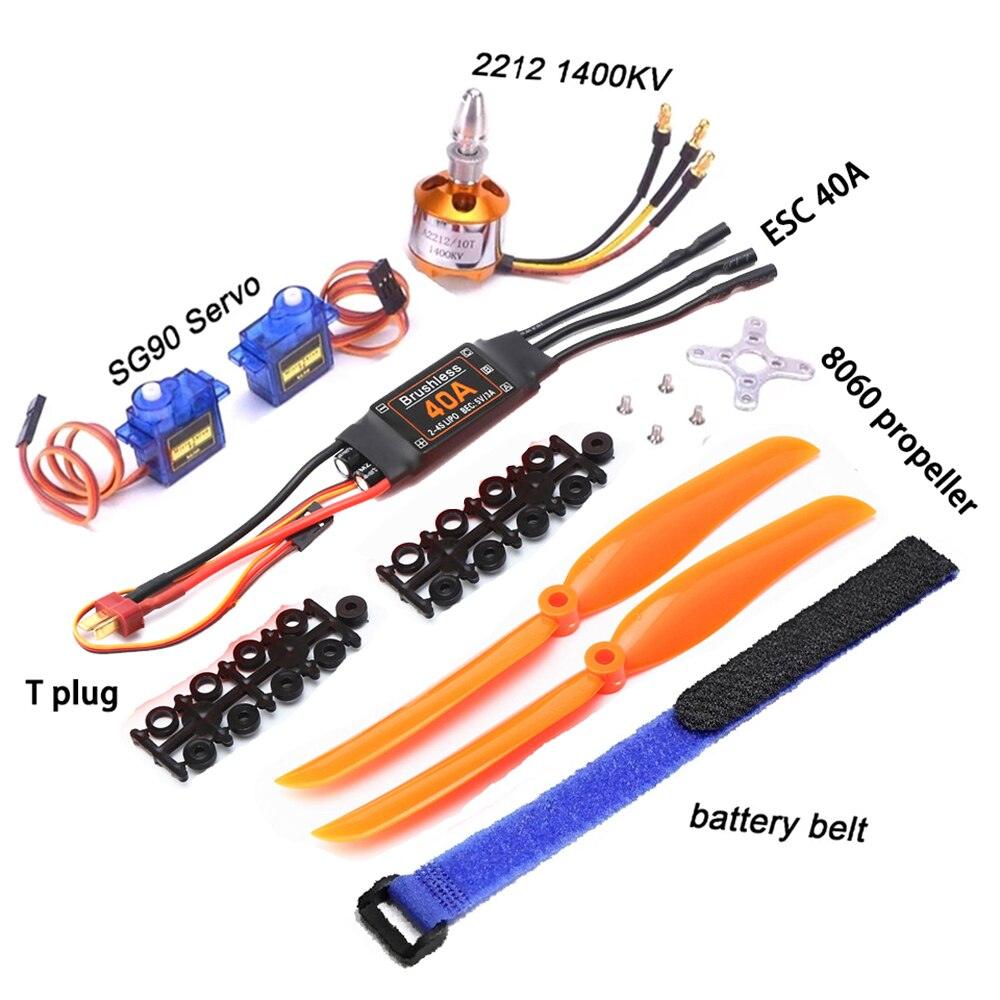

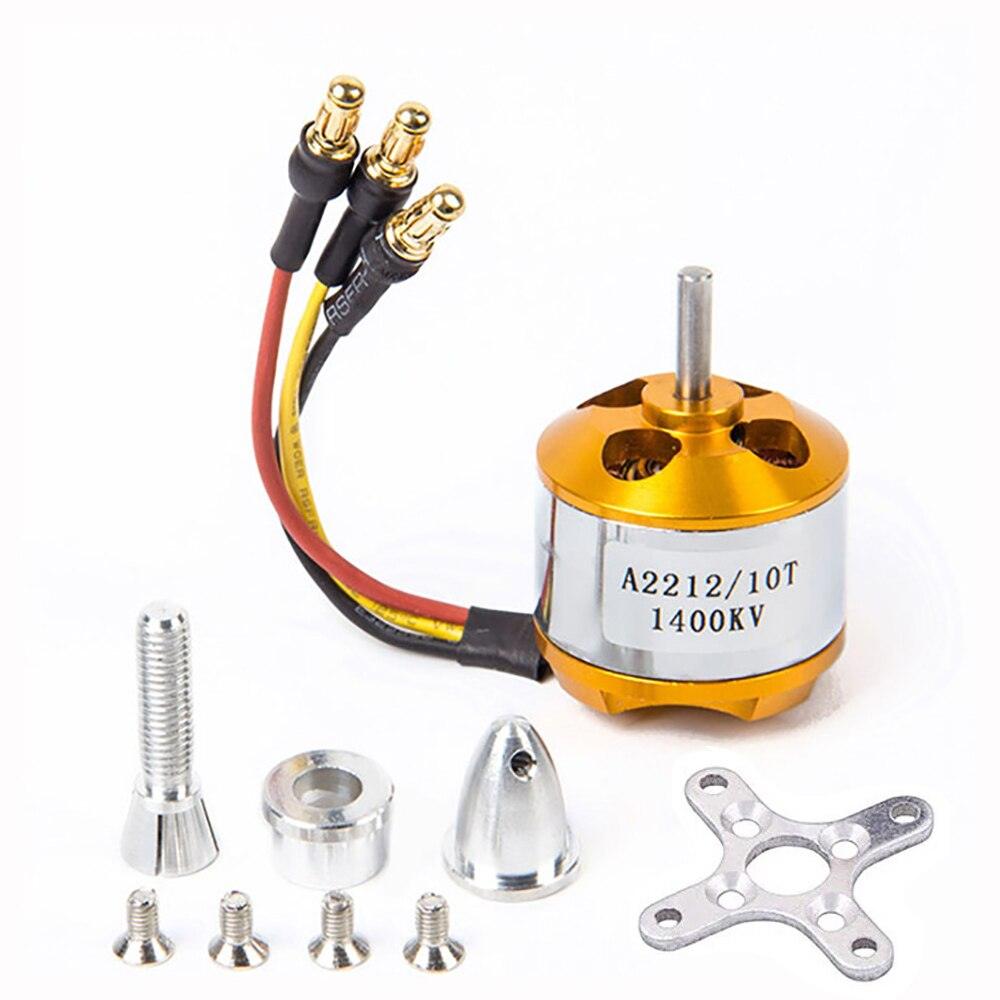

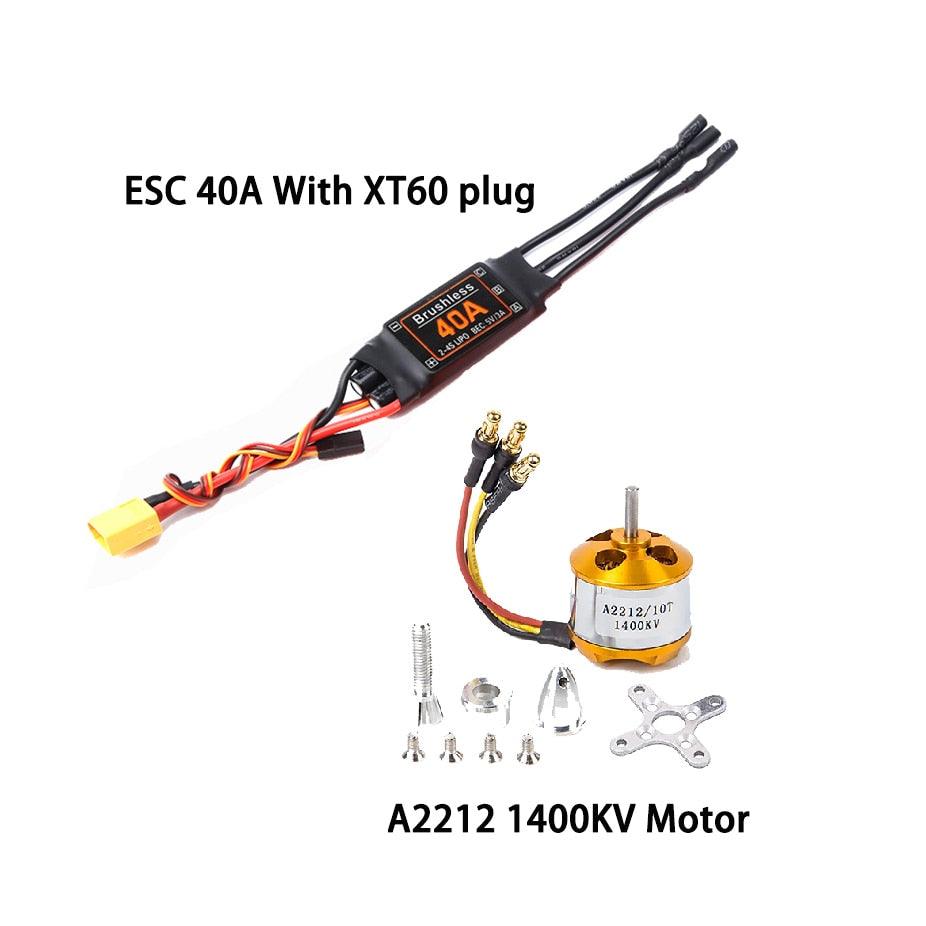

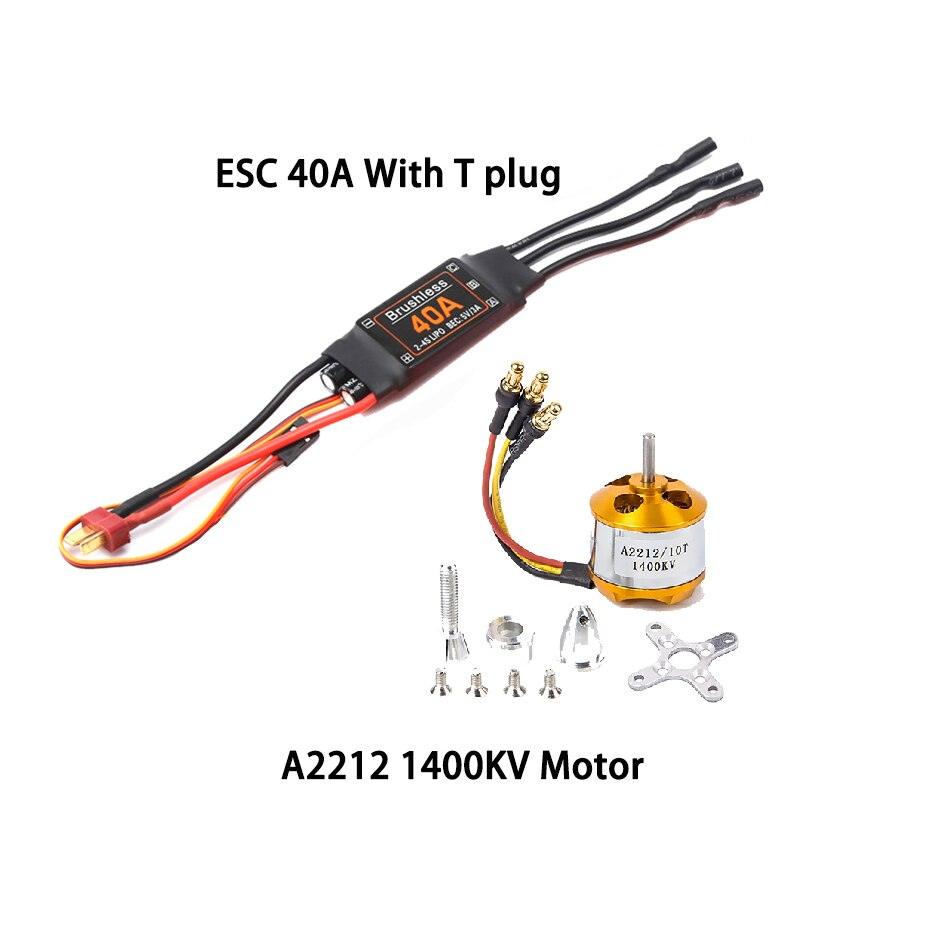

XXD A2212 1400KV brushless outrunner motor:
- Shaft diameter: 3.17mm
- Dimension : 27.8mm x 27mm
- Recommended Propeller: 2-cells 7*3.5 , 3-cells 6x3
- Weight: 48g

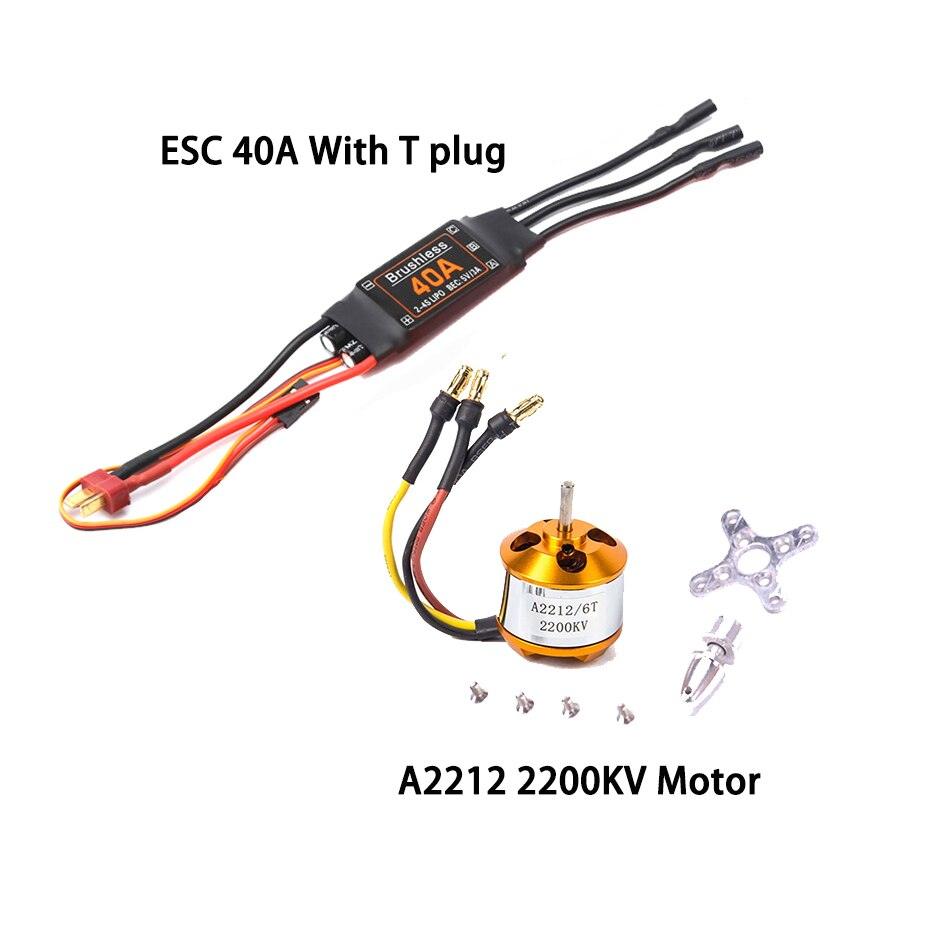

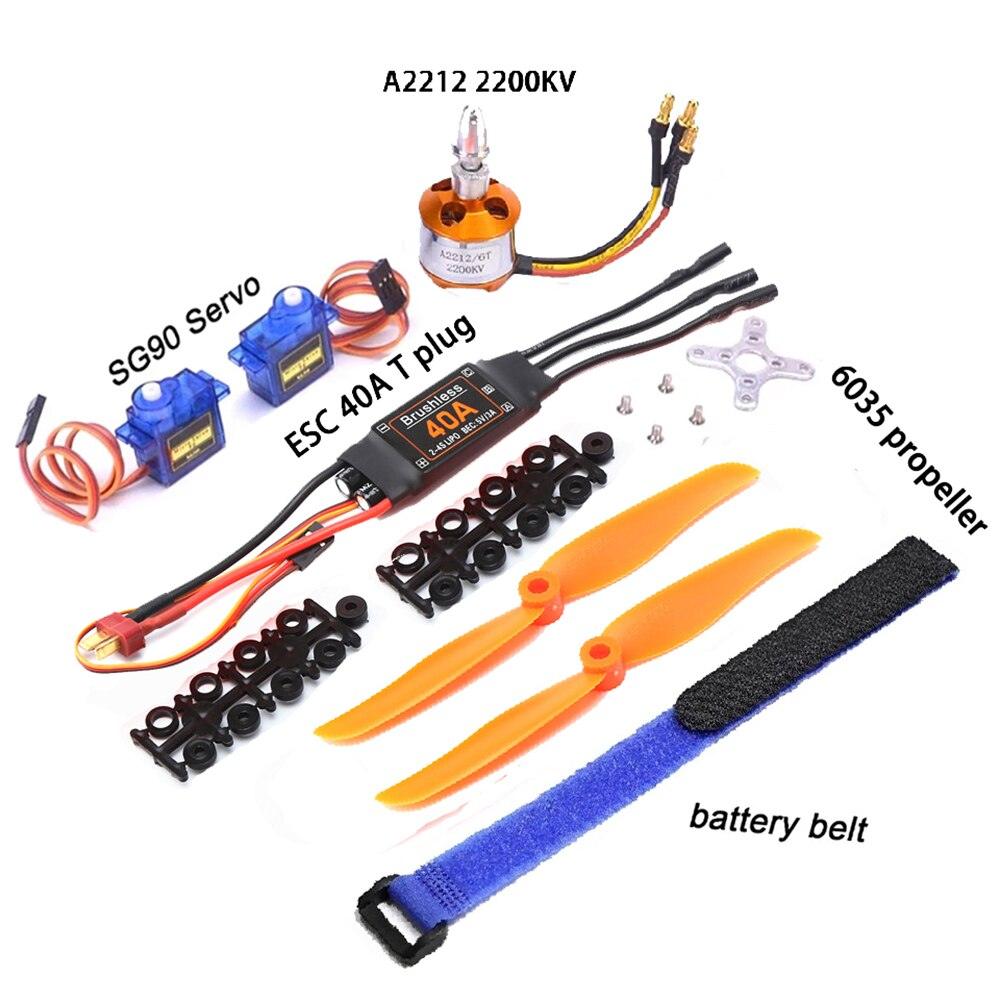

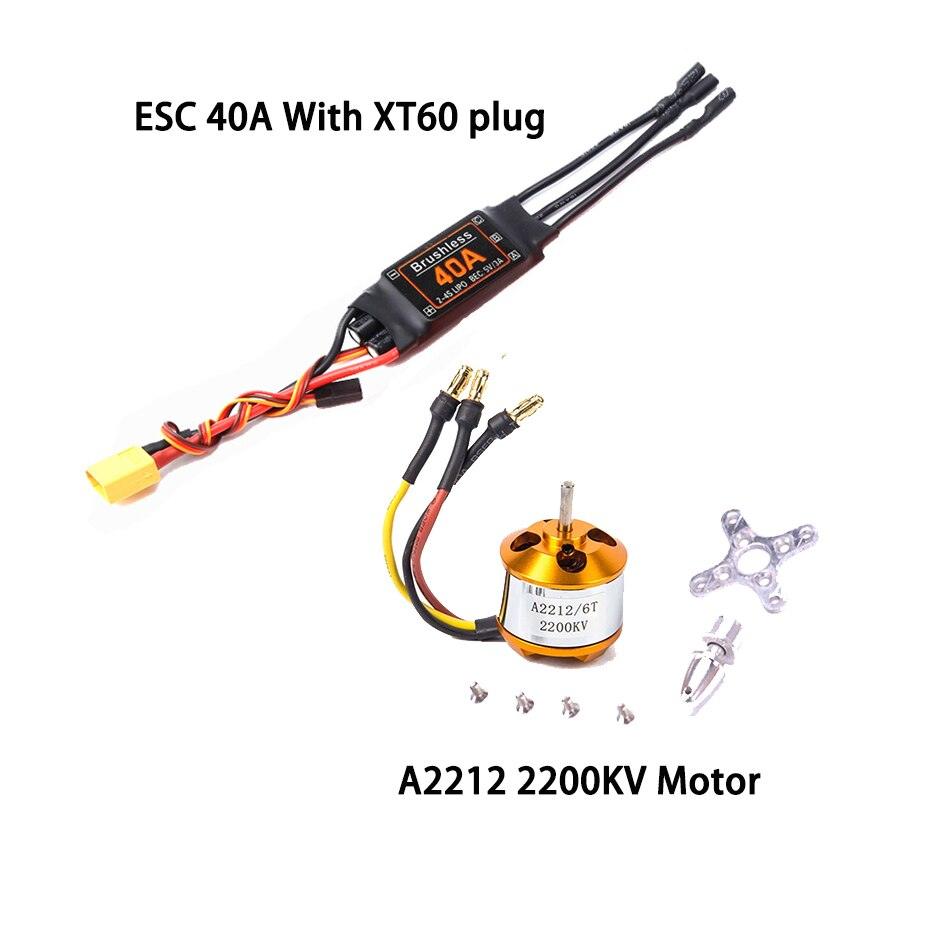

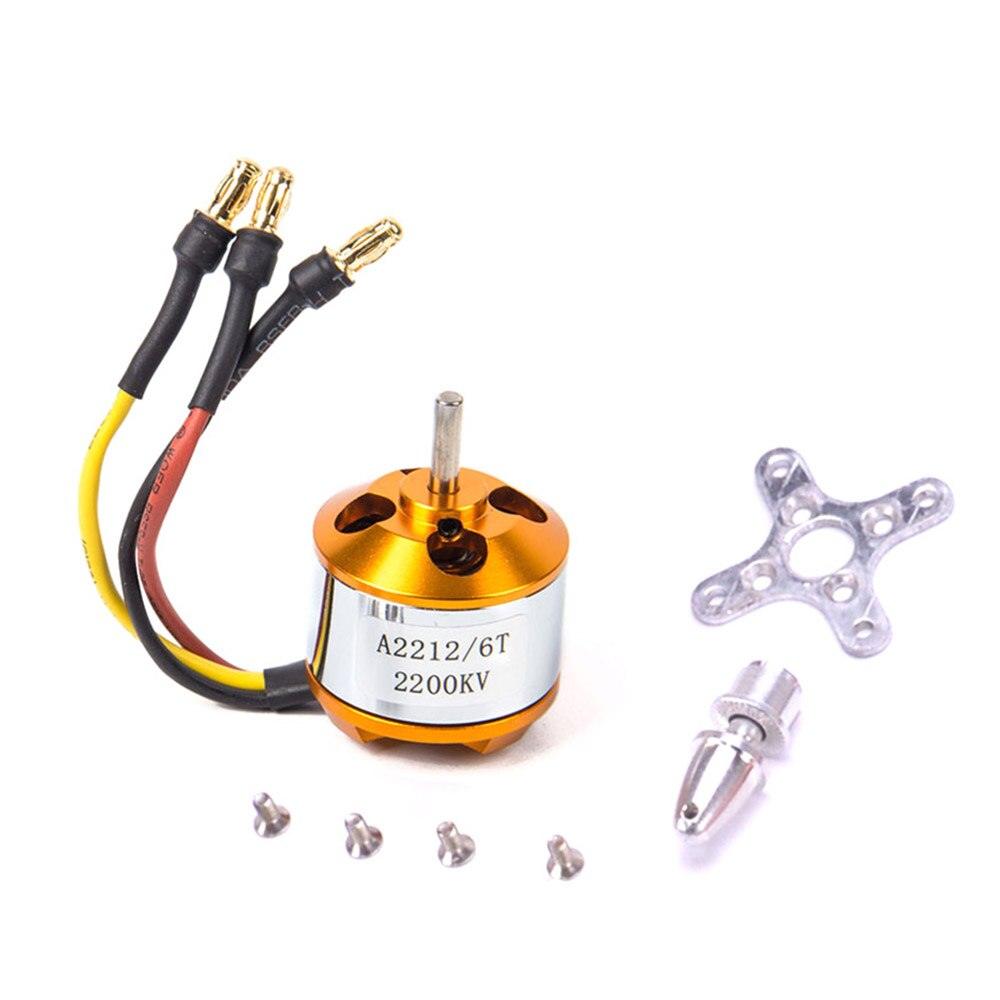

XXD A2212 2200KV brushless outrunner motor:
Max Efficiency: 80%
Max Efficiency Current: 4-10A (>75%)
Current Capacity: 12A/60s
No Load Current @ 10V: 0.5A
No. Of Cells: 2-3 Li-Poly
Motor Dimensions: ?27.5 x 30mm
Shaft Diameter: ?3.17mm
Weight: 47g



Item Name: SG90 Mini Analog Servo
Operating Speed (4.8V no load): 0.12sec/60 degrees
Stall torque: 1.2kg / 42.3oz(4.8V);1.6 kg / 56.4oz (6.0V)
operating voltage: 3.0-7.2V
Temperature range: -30~60
Dead band width: 7us
Item size: 3.2 x 3 x 1.2cm
Item weight: about 9g
Connector wire length: 24.5cm

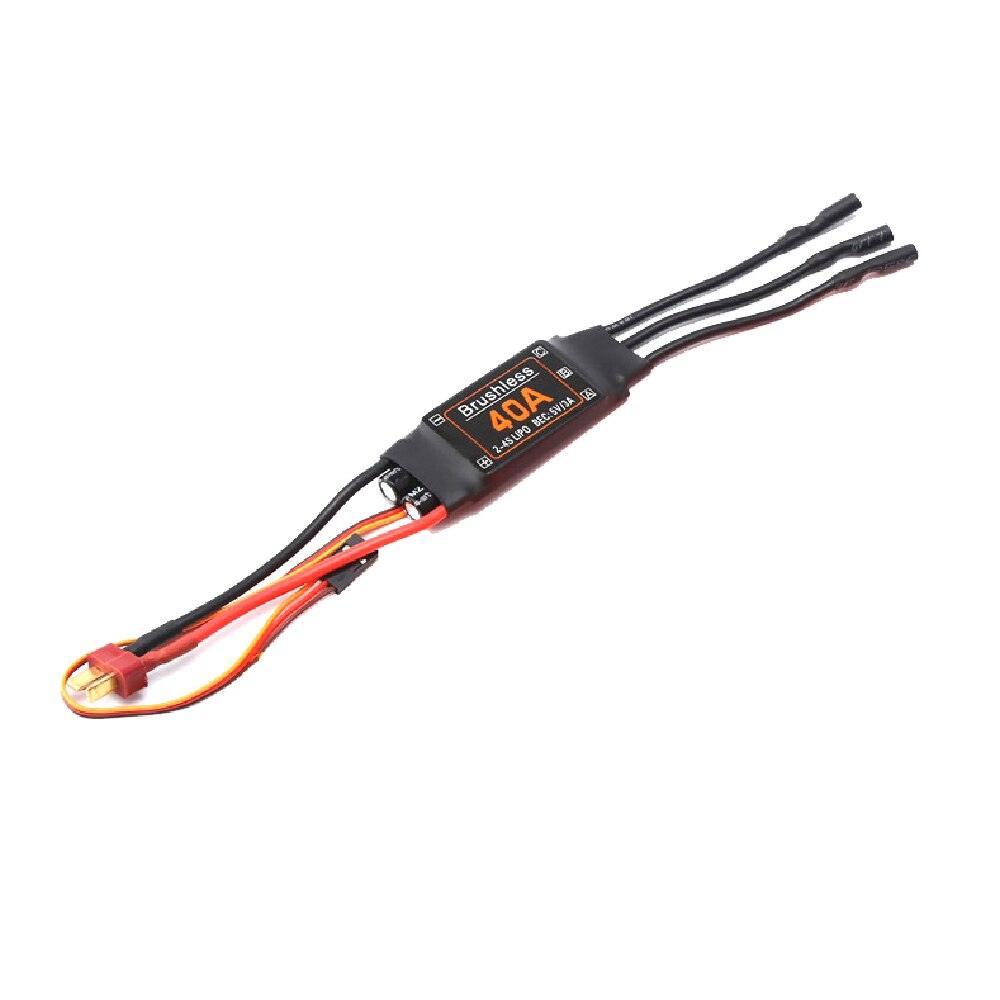

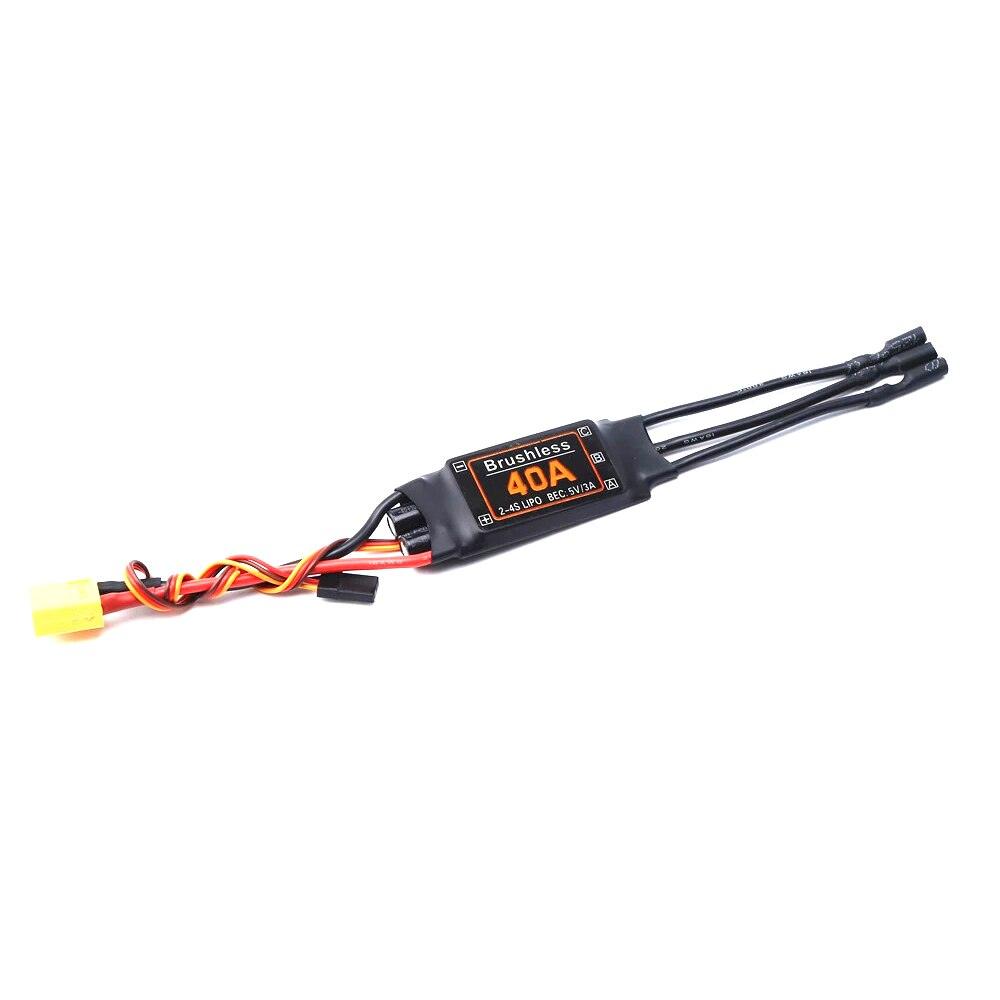

40A ESC:
Continuous / peak current: 40A/55A
Number of battery sections: 2-3S LiPo
BEC output: linear mode: 5V, 3A
Power cord: red -16AWG-100mm*1; black -16AWG-100mm*1
Output line: blue -16AWG-75mm*3
Power plug: T Plug (can be customized according to requirements)
Output plug: 3.5Mm bananer  connect (female)



Brushless Motor, recommended Propeller: 2-cells 7*3.5 , 3-cells 6x3






Brushless Motor, 2-3S LiPo BEC output: linear mode: 5V, 3A Power cordBrushless Motor, BEC Brushless 4OA ASVIza 2-45 LBrushless Motor A2212 2212 1000Brushless Motor, *12/101 Servo plug SG9O Xtgo 2 ESC
