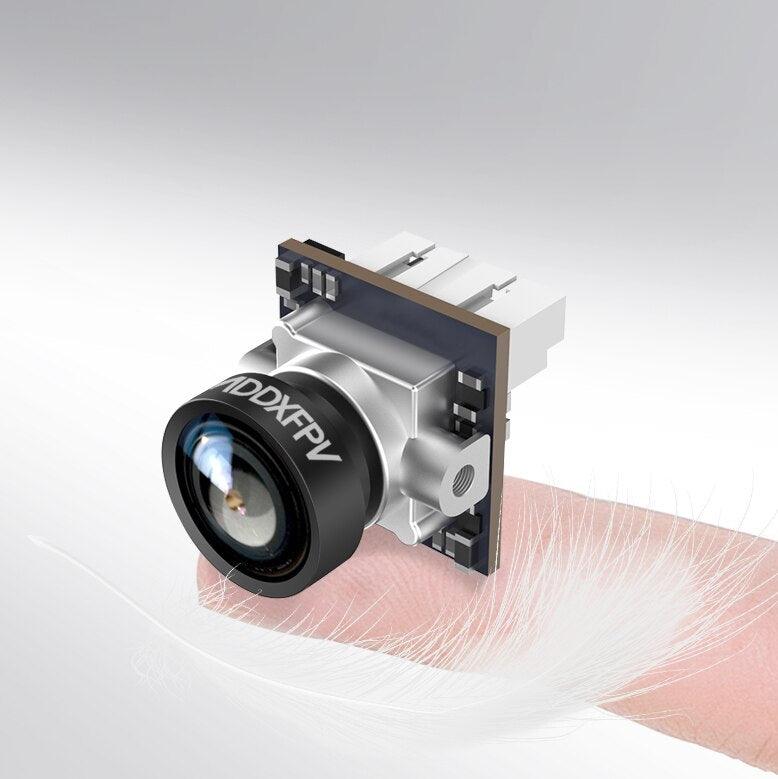

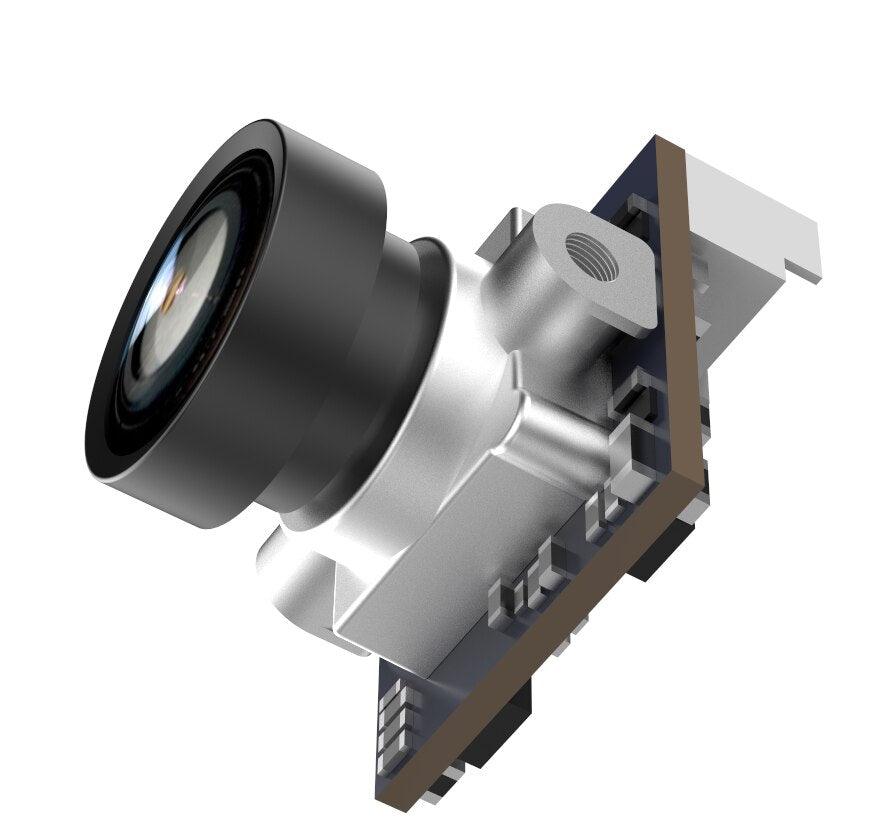

CADDX ANT / ANT LIE 1200TVL Global WDR OSD 1.8mm Ultra Light FPV Nano Camera 16:9 4:3 NTSC / PAL for RC FPV Cinewhoop Toothpick

CADDX ANT / ANT LIE 1200TVL Global WDR OSD 1.8mm Ultra Light FPV Nano Camera 16:9 4:3 NTSC / PAL for RC FPV Cinewhoop Toothpick

Caddx

Regular price $30.42 USD
Regular price $48.68 USD Sale price $30.42 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

140 orders in last 90 days

Color

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SPECIFICATIONS

Weight: 0

Size: 0

Package: Yes

Origin: Mainland China

Model Number: Caddx

Compatible Drone Model: Caddx

Compatible Drone Brand: Caddx

Brand Name: Jumpeak


We will send it according to your choice. You can choose Ant or Ant Lite versions. thank


Specification

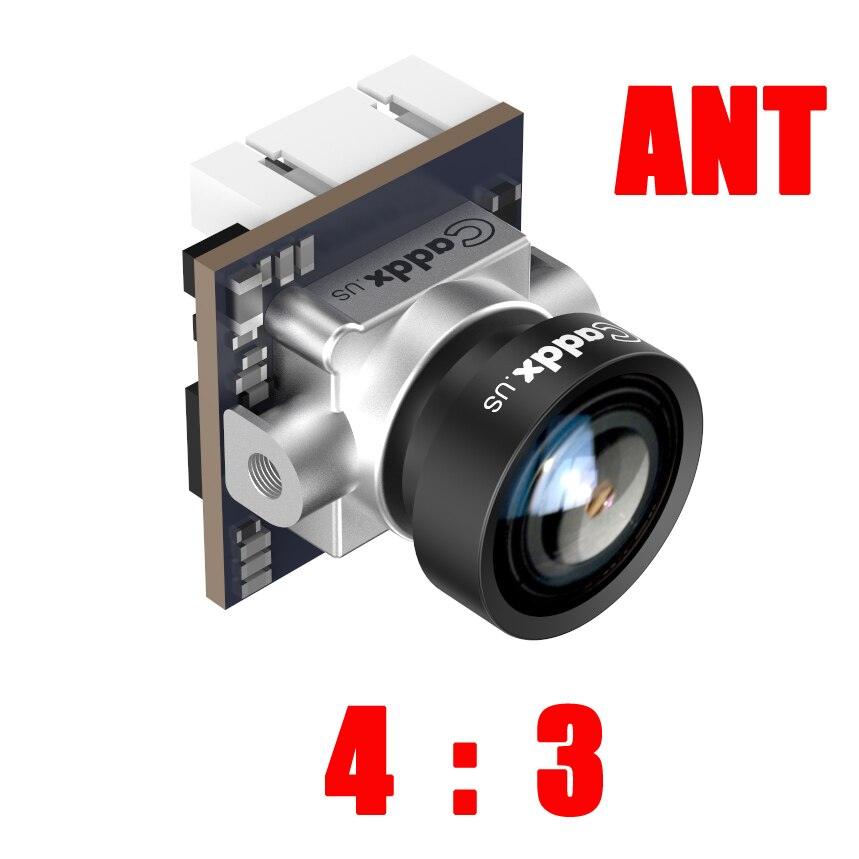

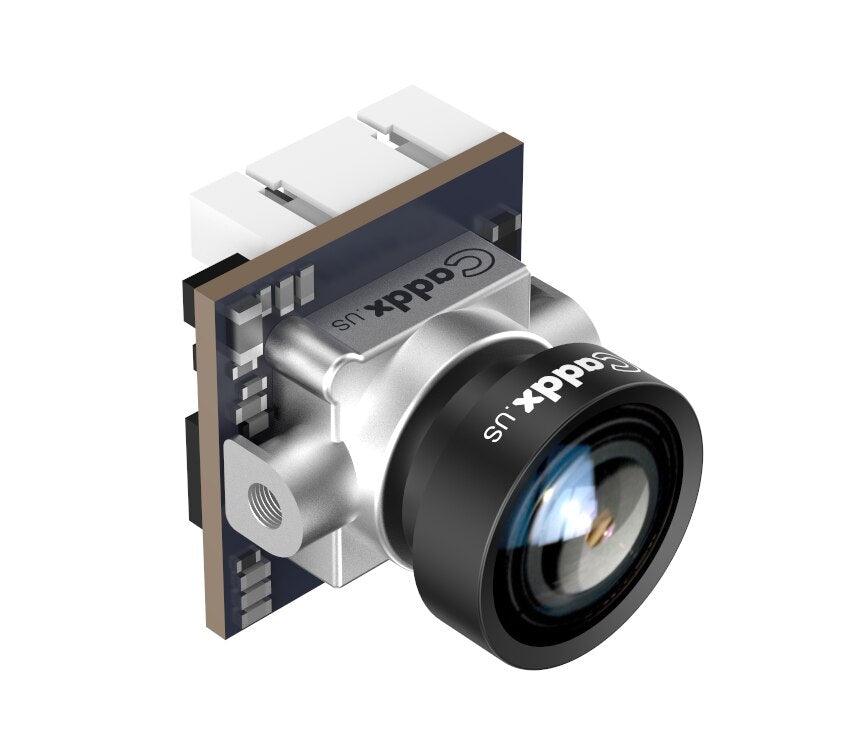

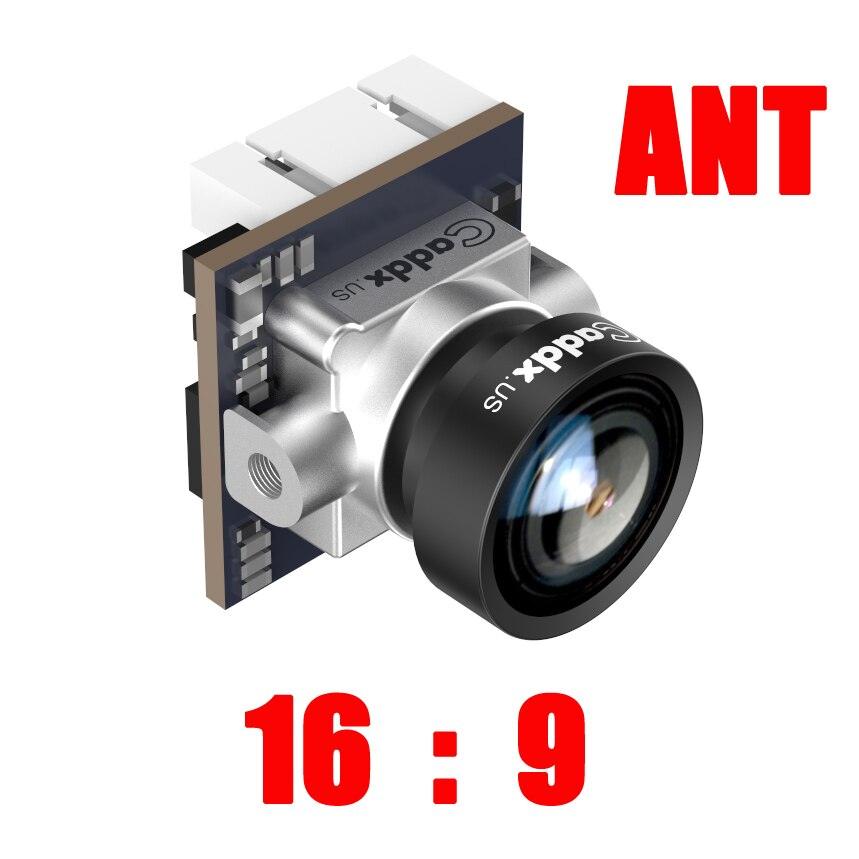

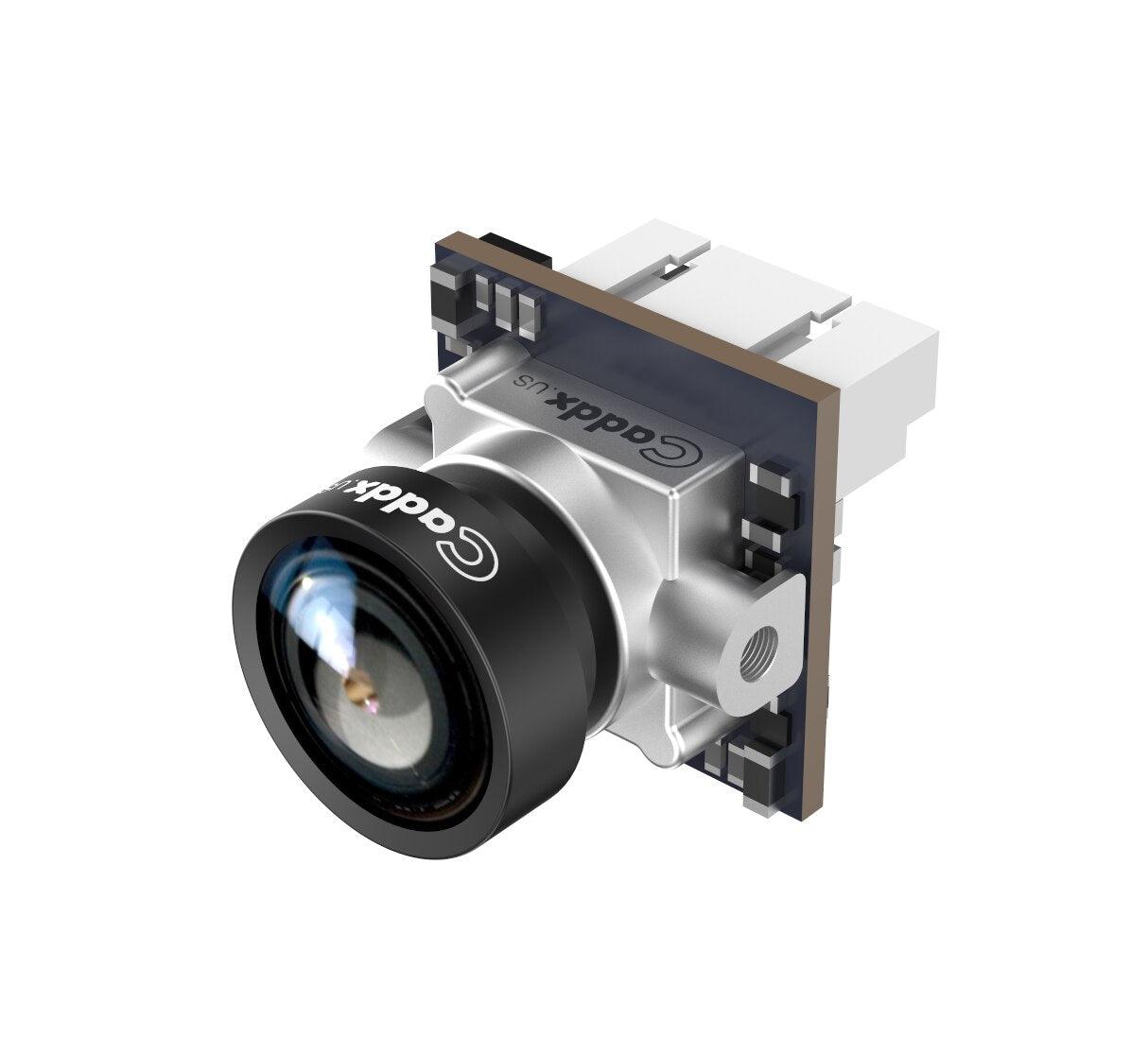

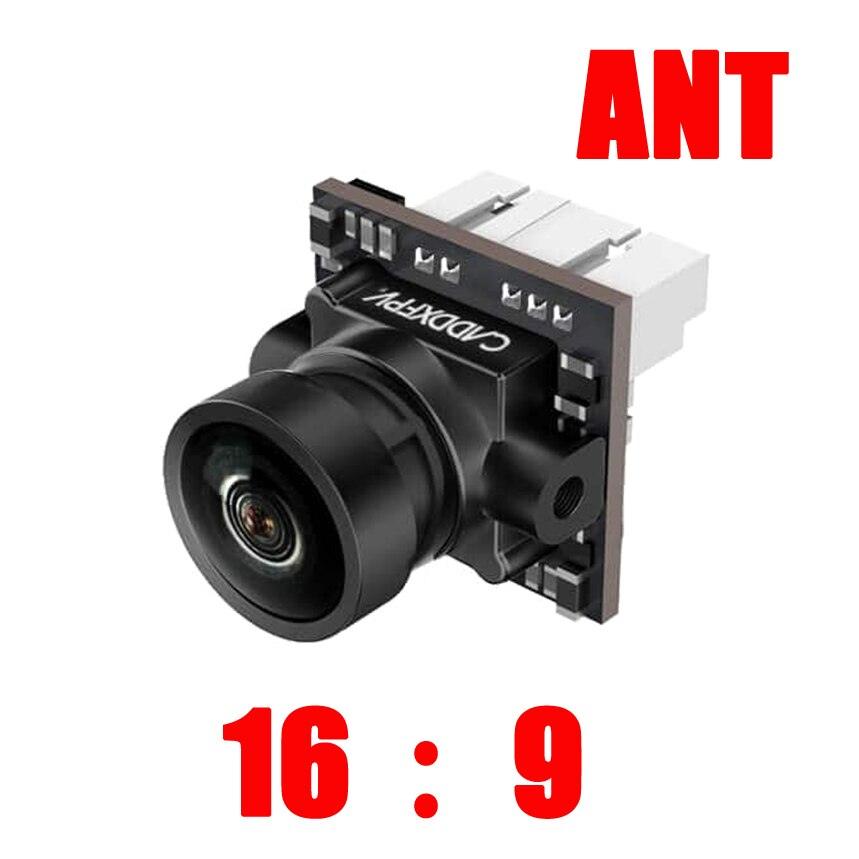

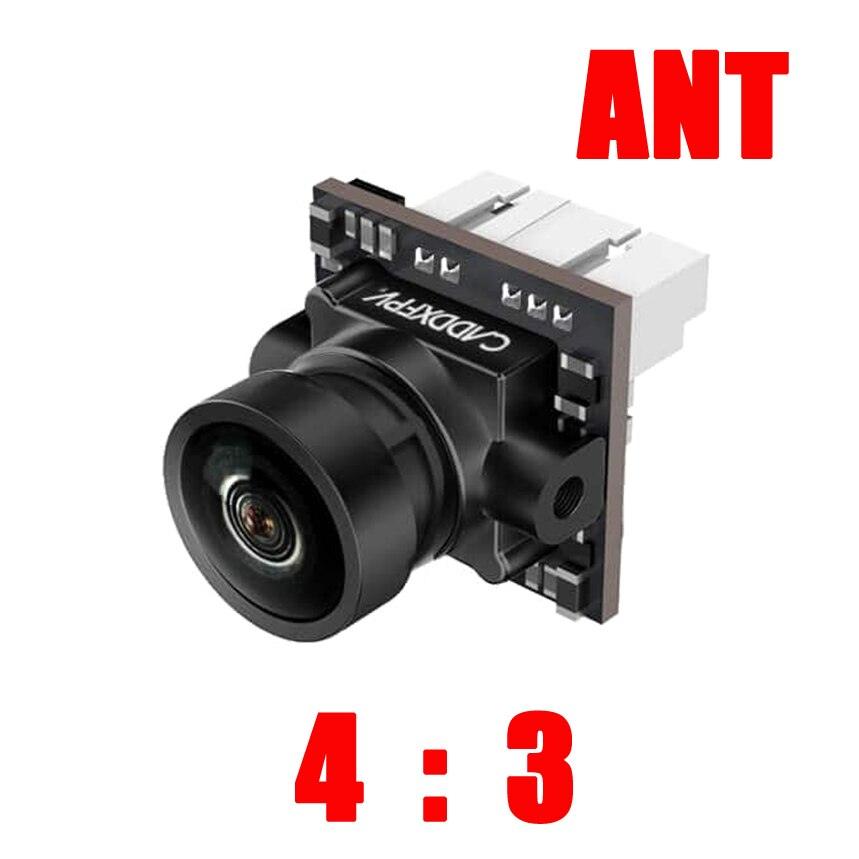

Model:caddx Ant

lmage Sensor: 1/3" CMos Sensor

Horizontal: 1200 TVL

Resolution

TV System: NTSC or PAl

MENU: Support

IMAGE: 16:9 or 4:3

Synchronization:lnternal

Electronic Shutter: PAL: 1/50r100,000; NTSC: 1/60~100,000

S/N Ratio: >52dB(AGC OFF)

video Output: cVBs

Lens: 1.8mm

Min.lllumination: 0.001Lux@F1.2

Auto Gain Control: YES

BLC: YES

WDR: Global WDR

DNR: 3D DNR

Dimensions: 14*14mm(bracket to 19* 19mm)

Wide Power Input: DC 3.7-18V

Work Temperature: -20℃~+60℃

work Humidity: 20%~"80%

weight: 2g(N.W.)


ANT Packing List:

screws x 4

camera x1

19mm case x1

3pin silicone cable x1

Warranty card x1




Specification:
Model:

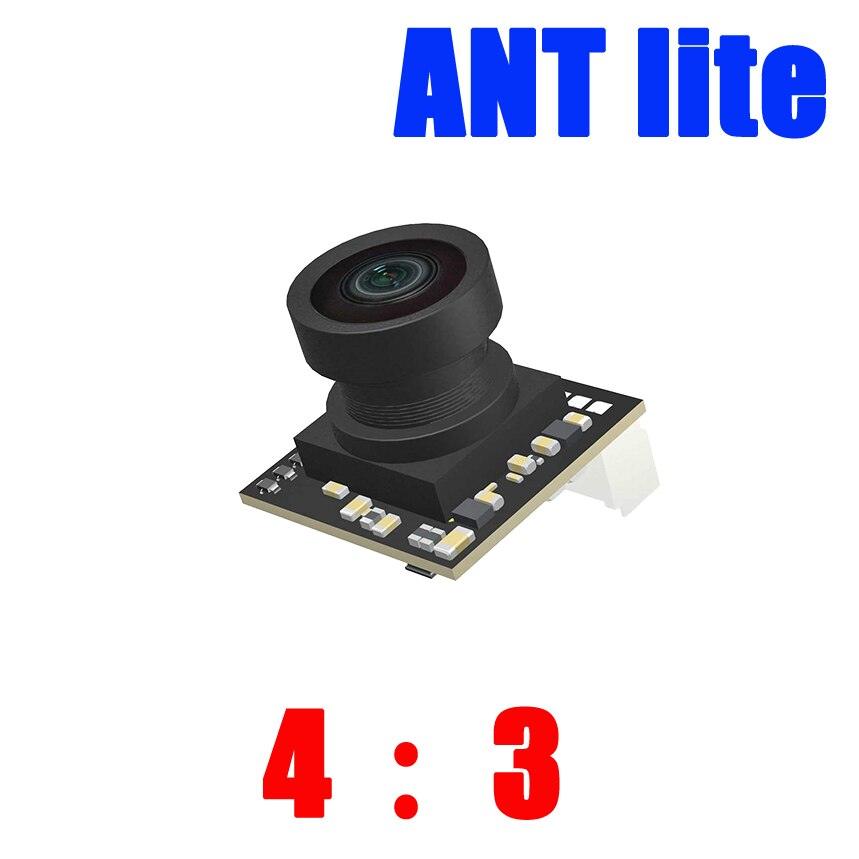

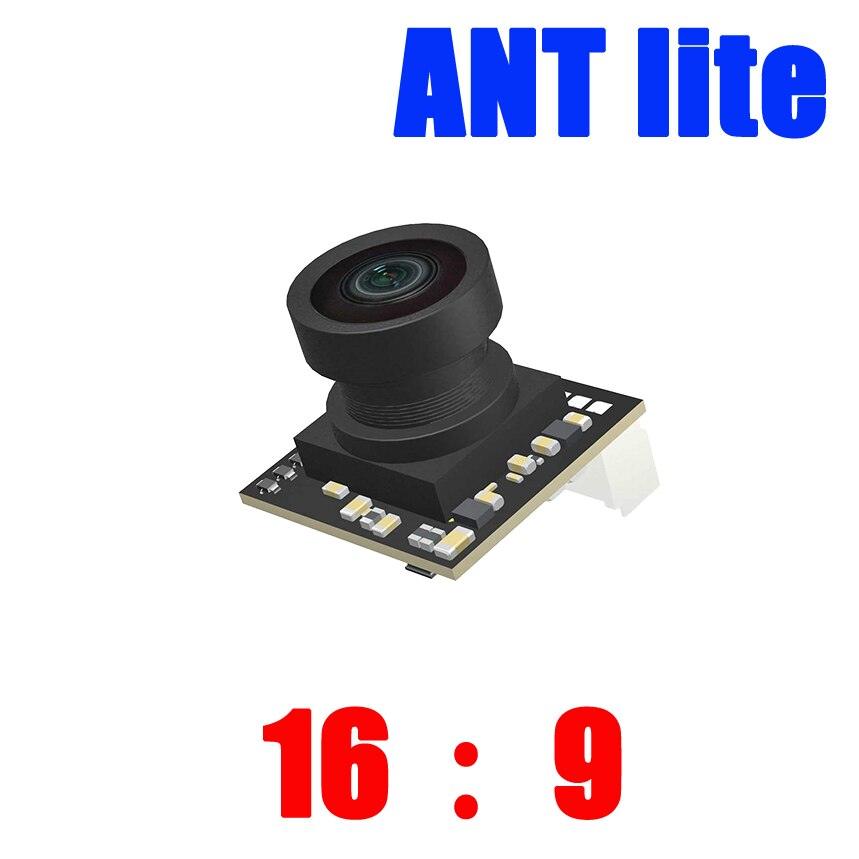

Caddx Ant lite
Image Sensor: 1/3" CMOS Sensor
Horizontal Resolution: 1200 TVL
TV System: NTSC and PAL(switchable)
MENU: Support
IMAGE: 4:3
Synchronization: Internal
Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio: >52dB (AGC OFF)
Video Output: CVBS
Lens: 1.8mm/F2.5
Min. llumination: 0.001Lux
Auto Gain Control: YES
BLC: YES
WDR: Global WDR
DNR: 3D DNR
Dimensions: 14* 14mm
Wide Power Input: DC 3.7-18V
Work Temperature: -20°C~+60C
Work Humidity: 20%~80%
Weight: 1.7 g (N.W.)

CMOS Senso Horizontal 1200 TVL Resolution System NTSC PAL

CMOS Senso Horizontal 1200 TVL Resolution System NTSC PAL MENU Support IMAGE 16.9 or 4.3 Synchronization Interna Electronic Shutter PAL: /50100,000; .NTSC: 1/6010,000 SIN Ratio >52dB (AGC OFF) Video Output CVBS Lens 1.8mm Min_ Illumination O.O01Lux@F1.2 Auto Gain Control YES BLC yES W

ANT NEW GENERATION OF NANO CAMERAS WDR OSD Menu

ANT NEW GENERATION OF NANO CAMERAS WDR OSD Menu 3.7-18V 2g Weight Global WDR MDXFP

Caddx Compatible Drone Brand : Jumpeak We will send it according to yourCADDX ANT / ANT LIE 1200TVL Global WDR OScaddx Ant lmage Sensor: 1/3" CMos Sensor Horizon



Caddx Ant lite

ANT lite is a full-featured nano camera 1.7g (n.

ANT lite is a full-featured nano camera 1.7g (n.w.) camera with a resolution of 1200 x 1200 pixels . it is compatible with both NTSC and PAL (switchable) resolutions .
