Product Description

Bullet Point for Camera

2K pixel, 120fps, 4:3 native sensor
Support Gyroflow
1080P HD FPV
F/2.0 Large Aperture
160° wide-angle FOV

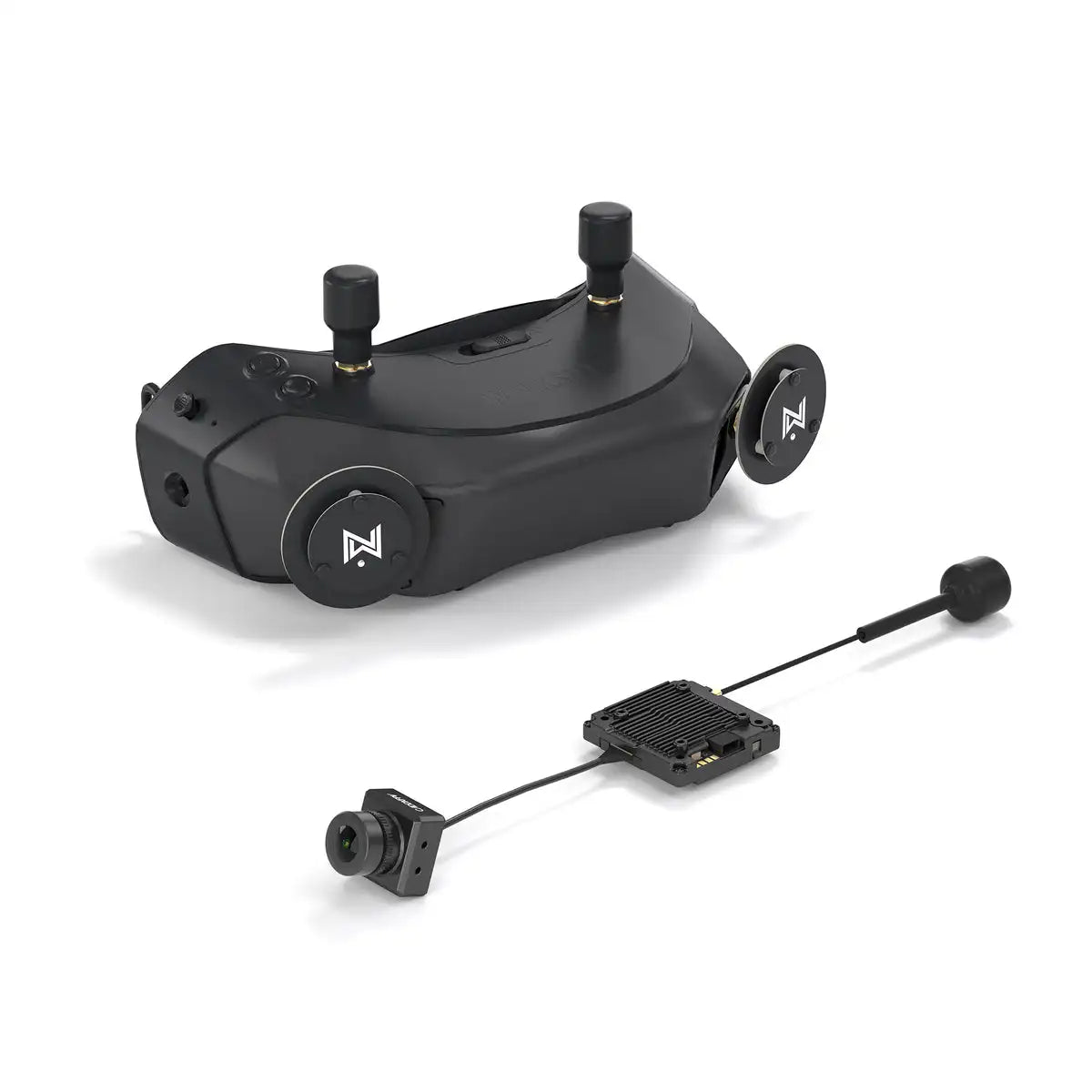

Bullet Point for Avatar HD kit V2

The Avatar HD system uses H.265 code, an industry-leading technology, to provide 1080p FPV image quality with ultra-low latency.
Camera V2 with 2K pixels, 4:3 native sensor for better image quality and native 4:3 mode image ratio allows you to capture more of the surrounding scenery while flying the drone, resulting in more comprehensive and visually appealing images.Meanwhile, it's better fit for regular FPV race as well.

New VTX with enhanced TVS protection and support for up to 6S. With a wide input voltage the range of 6V to25.2V, our VTX delivers unmatched stability and resistance to GPS interference. Enjoy unparalleled performance and take your FPV adventures to new heights with our cutting-edge technology.

The Avatar VTX comes with 8g/32g built-in storage it can record 1080p or 720p HD flight videos without interference.32G built-in storage, recording video time increased by 4 times.

Supports both high frame rate and standard frame rate, it has an average latency of 22ms with the high frame rate.

The compact and convenient single-antenna design makes it easier to assemble your FPV drone. The quality of the antenna is upgraded, and the working performance of the whole frequency band is more stable.

HD 1080p OLED Dual Micro Displays

The Avatar goggles are designed to be lightweight, mini, small and have a 46° field of view, making them more comfortable for pilots while giving them a more immersive FPV experience.

The goggles have the feature of adjusting the focus without the need to install, corrective lenses.

HDMI Output

Turn on the ranging mode to display the distance between the drone and goggles in real time,in case the drone is lost due to long distance flight.

Device Information: Channel frequency 5.9G, share settings available, playback settings accessible, device buzzer functionality enabled, ranging mode set to 'On', reminder for weak signal alerts, reset option available, all device information accessible.

When using a 6S battery, please ensure that you connect a capacitor to the power input end. It is recommended to use a capacitor with a rating of at least 10V/47uF or higher.

Specification

Camera Model: Avatar V2 camera Sensor: 1/3.2-inch, 4MP, 4:3 sensor Video Resolution: 1080P at 60fps 720P at 100fps 720P at 60fps Lens: Focal Length: 2mm Field of View (FOV): 160° Aperture: F2.0 Shutter Type: Rolling Shutter Minimum Illumination: 0.001 Lux Weight: [Dimensions not specified] Coaxial Cable: 14mm Gyroflow Support: Only 32G VTX supported Image Format: [Not specified]

VTX Model: Avatar V2 Communication Frequency: 5.725-5.850 GHz (FCC compliant, with a maximum power output of 30 dBm) Certifications: FCC: 1.4 dB SRRC: 20 dB Interface: JST J10-4 (power input) JST J08-6 (USB) Mounting Holes: 25.5 mm x 25.5 mm 20 mm x 20 mm Dimensions: 33.5 mm x 33.5 mm x 10.5 mm Storage: 86 mm (approximate width) x 326 mm (approximate height) Recording Resolution: 1080p (at a maximum frame rate of 720 fps)

Avatar V2 Antenna: Polarization: Left-Hand Circular Polarization (LHCP) Frequency Band: 560 MHz - 600 MHz Gain: 1.9 dBi VSWR: 1.5 Input Impedance: 500 ohms Interface: IPEX-1 Size: 45 mm (without cable) Weight: 29 g Packing List: USB transfer extension cable
