CaddxFPV Alink Controller RC Remote Controller, ELRS 2.4GHz 10-Channel CRSF, USB Type-C, Mode 2
CaddxFPV Alink Controller RC Remote Controller, ELRS 2.4GHz 10-Channel CRSF, USB Type-C, Mode 2
CADDXFPV
Regular price
$73.60 USD
Regular price
Sale price
$73.60 USD
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Overview

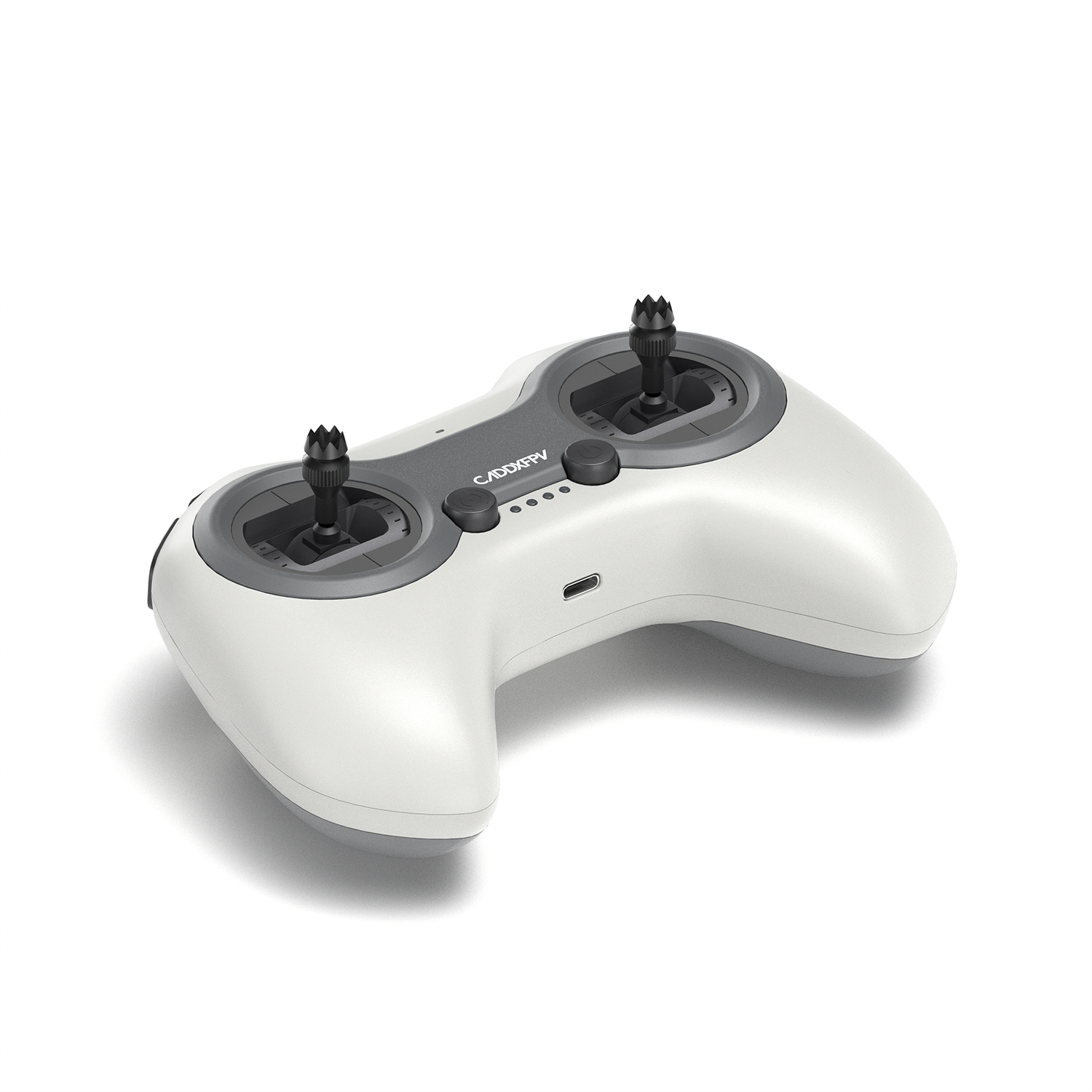

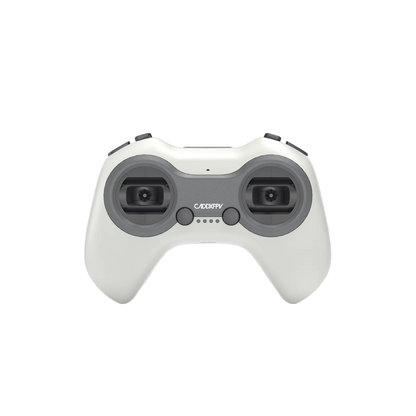

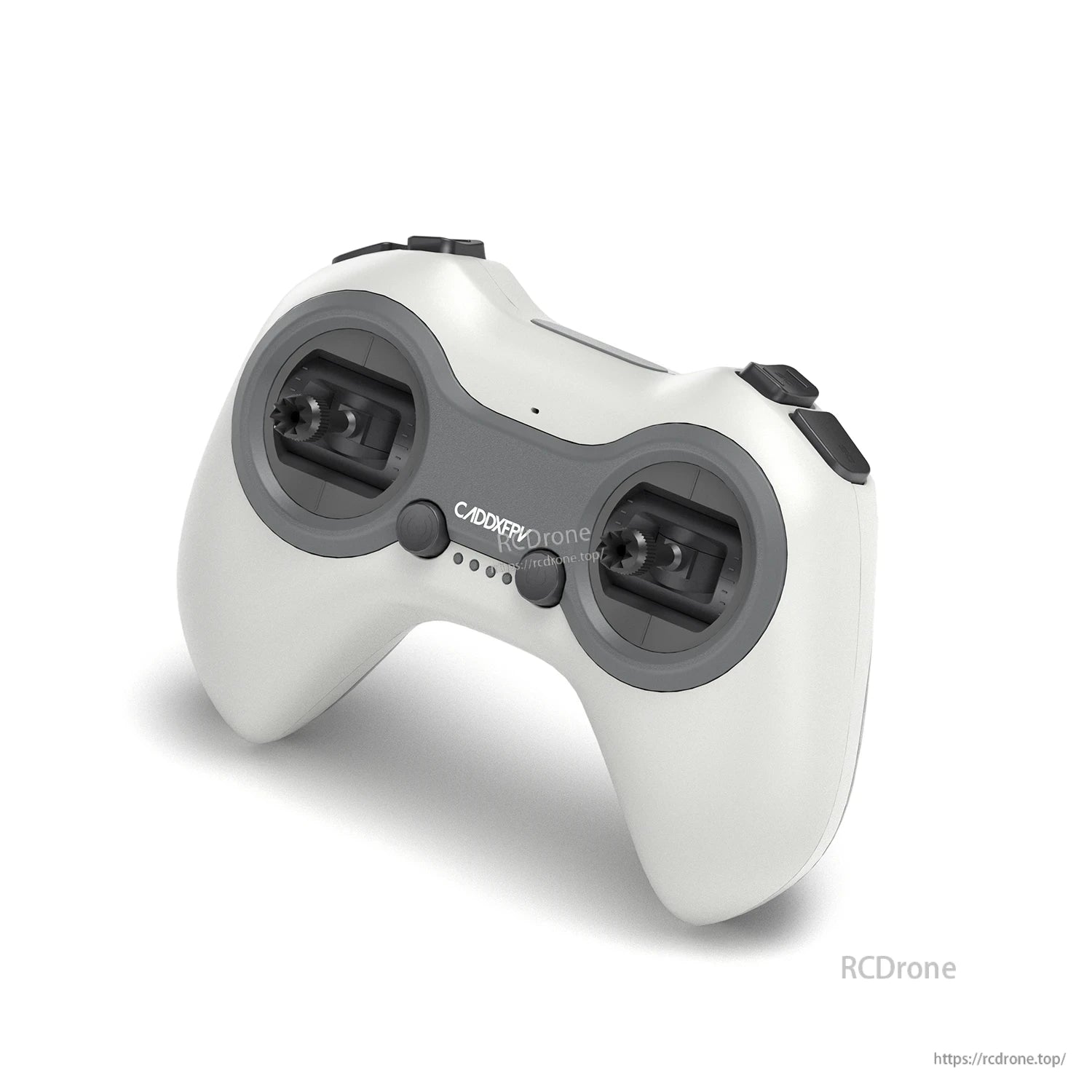

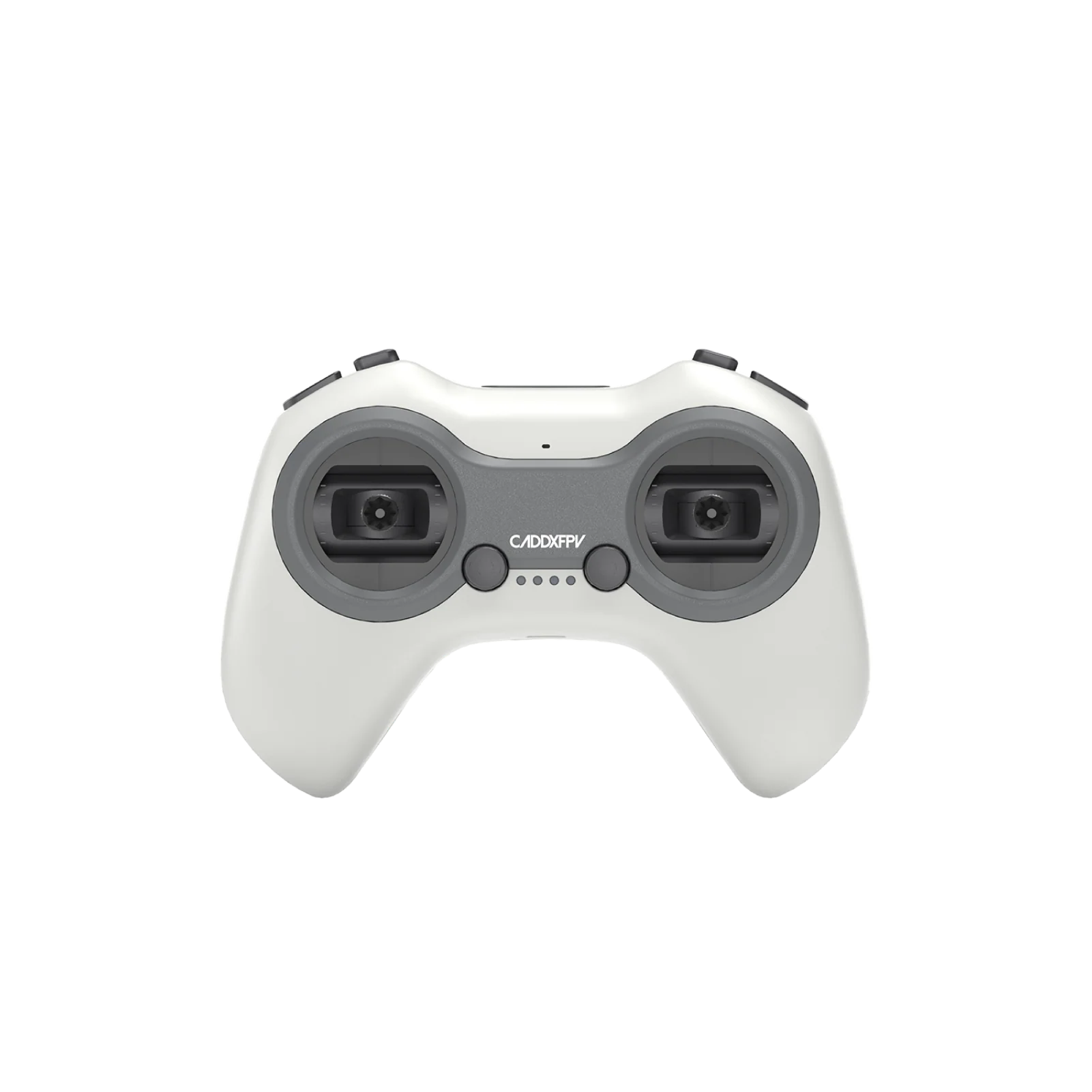

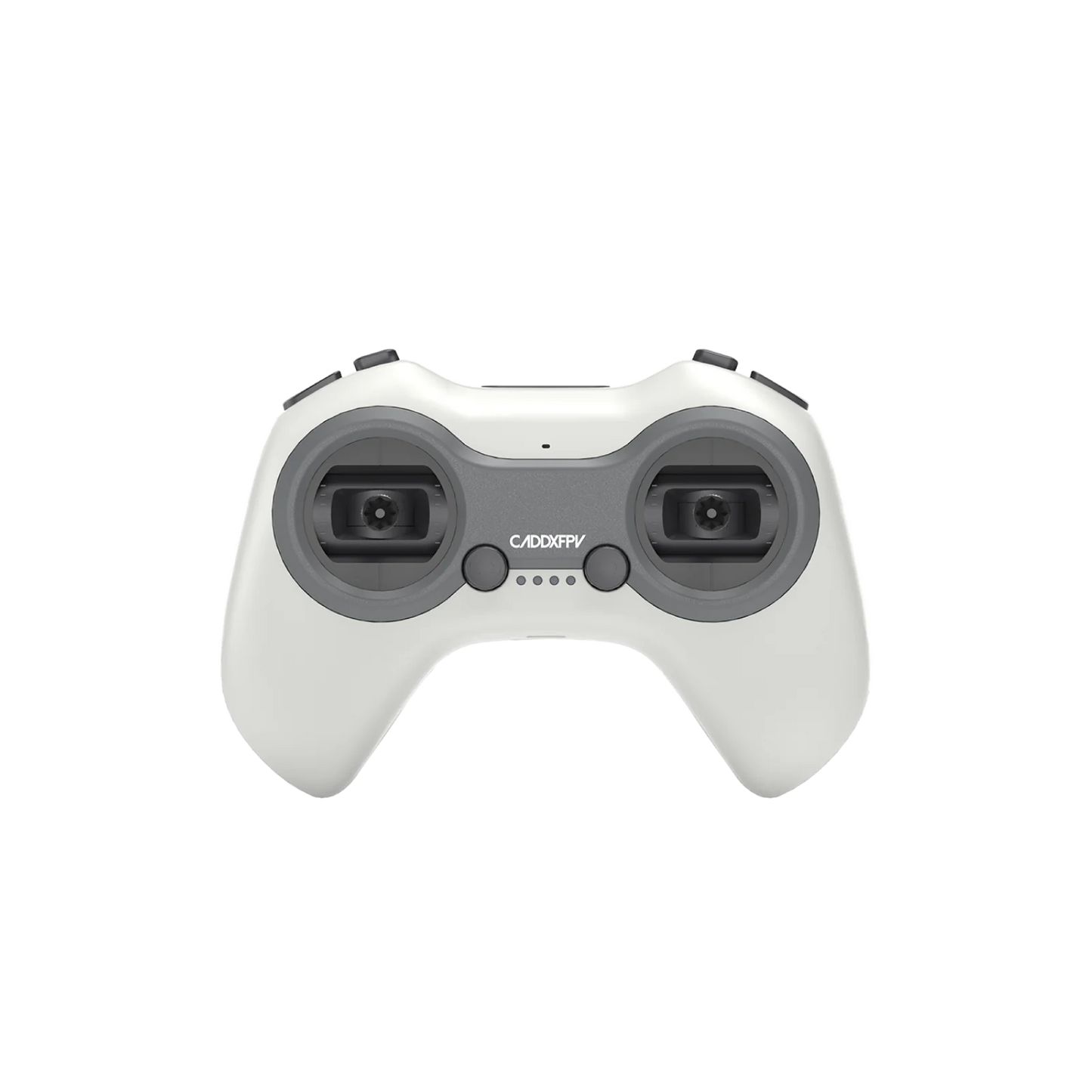

The CaddxFPV Alink Controller is an RC remote controller with a built-in ELRS 2.4GHz RF module and 10-channel control. It is designed to control RC models equipped with an ELRS 2.4GHz receiver.
Note: Mode 2 only.
Key Features
- Built-in ELRS 2.4GHz RF module
- CRSF RF protocol
- 10 channels (including 4 joystick channels)
- Full-bearing hall-sensor joystick assembly
- USB Type-C for charging and communication
- PC connection support for FPV flight simulators via Type-C data cable
Specifications
| Model | CADDXFPV Alink |
| FCC IC | 2BHG9-C0PJ-YKL19 |
| Main Control Chip | AT32 F413RCT7 |
| RF Module | ELRS 2.4GHZ |
| RF Protocol | CRSF |
| Max RF Power | 100mW (20dB) |
| Number of Available Channels | 10 Channels (including 4 joystick channels) |
| Joystick Type | Full-Bearing Hall-Sensor Joystick Assembly |

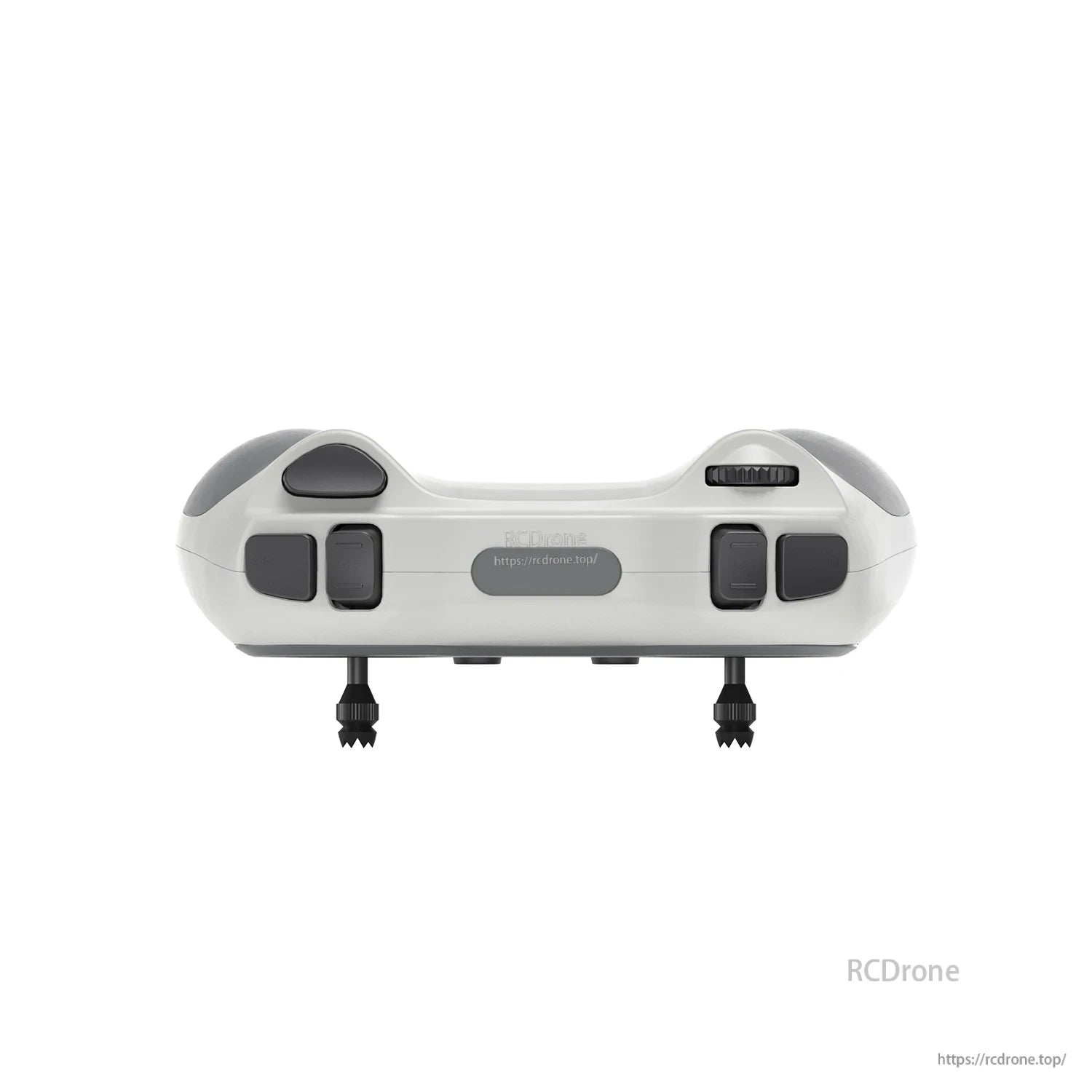

| Function Switch | 1 x Latching Button / 2 x Momentary Buttons / 2 x 3-Position Toggle Switches / 1 x Scroll Wheel |
| Status Indicator Module | 4 x Status Indicator LEDs / Buzzer |
| Charging & Communication Interface | USB-Type C |
| Battery Specification | Lipo 1s 1000mAh |
| Max Charging Power | 5V / 1A / 3.50W |
| Charging Time | ≈90:00 min |
| Operating Voltage Range | DC 3.50V~4.20V |
| Dimensions | 158mmx108mmx58mm |
| Weight | 180g±5g |
Applications
- ELRS 2.4GHz RC model control (requires ELRS 2.4GHz receiver on the model)
- FPV flight simulator practice via USB Type-C connection to a computer
For setup and troubleshooting support, contact support@rcdrone.top or visit https://rcdrone.top/.
