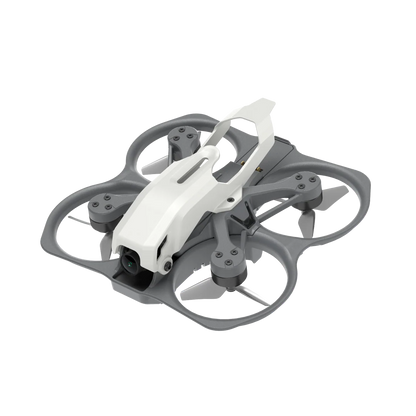

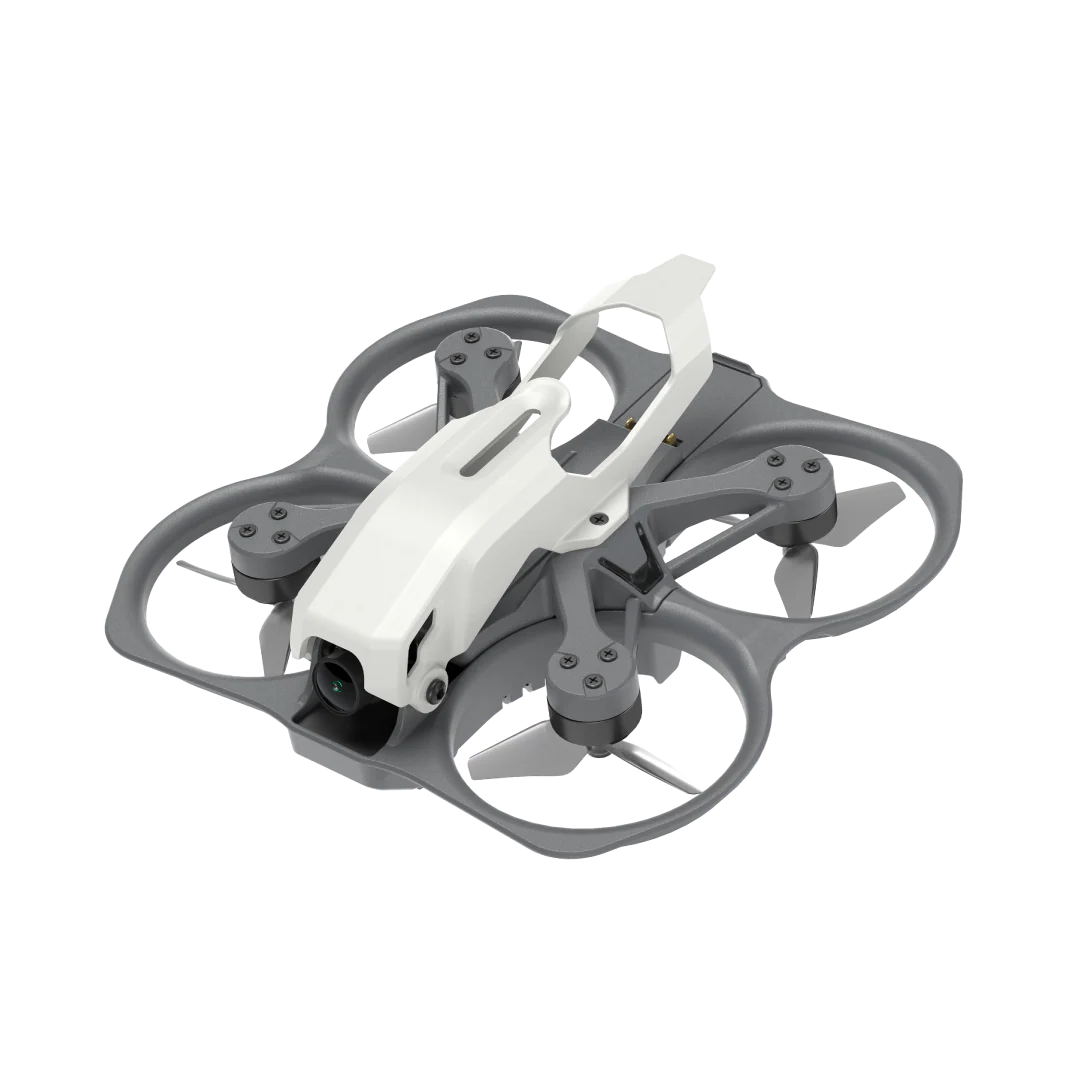

• CaddxFPV Protos 1.6in FPV drone with ducted prop guards, front camera and white canopy

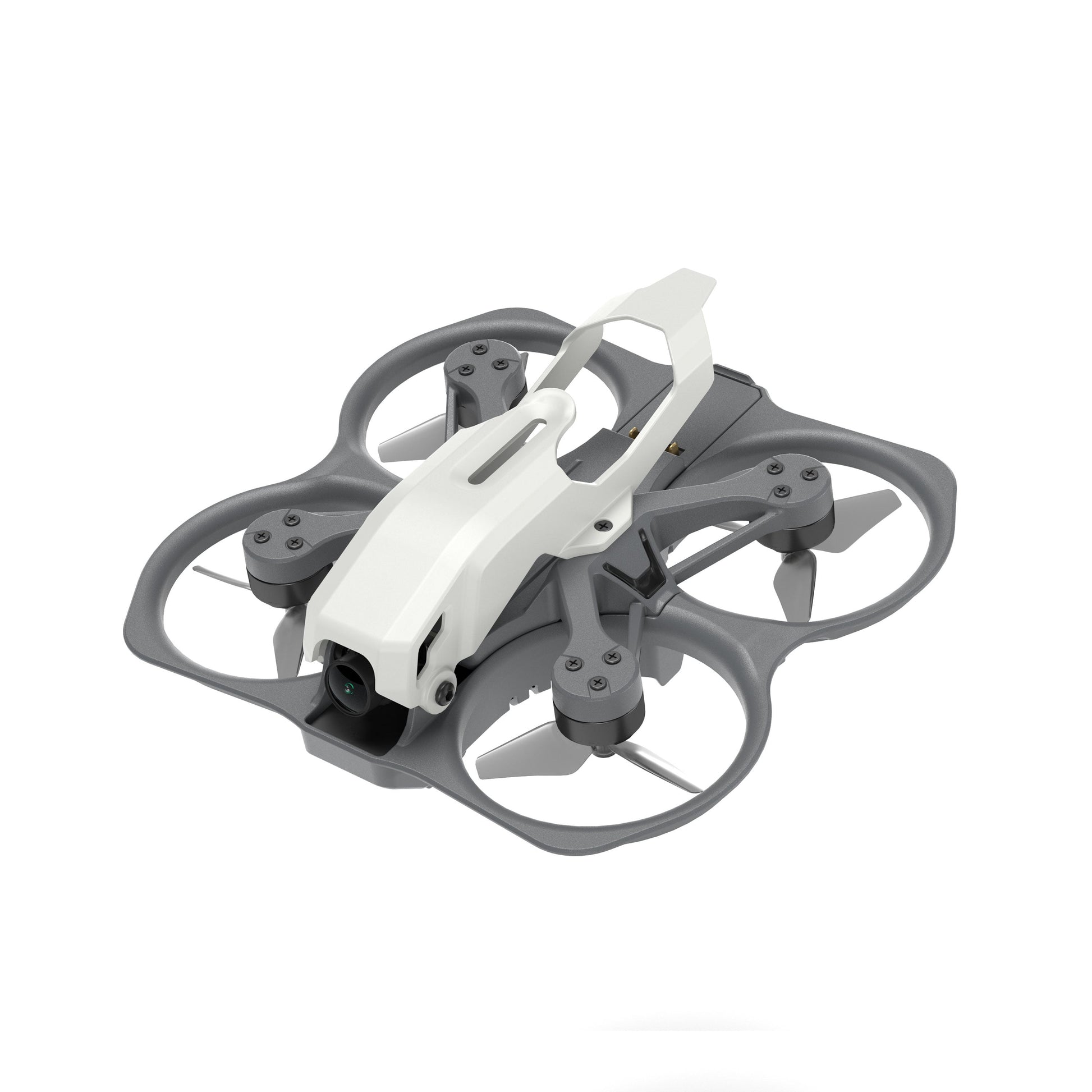

  • Front-left view of Protos 1.6-inch ducted FPV quadcopter showing camera pod, frame and prop guards
  • Angled top view of the Protos micro FPV drone showing canopy, ducts, motors and camera housing
1 3

CaddxFPV Protos 1.6in FPV Drone, ELRS 2.4GHz, Ascent Lite VTX, 1080p/60fps, up to 3km

CaddxFPV Protos 1.6in FPV Drone, ELRS 2.4GHz, Ascent Lite VTX, 1080p/60fps, up to 3km

CADDX FPV

$185.60 USD
$185.60 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Options
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The CaddxFPV Protos 1.6" FPV drone is a compact brushless quad designed for indoor and outdoor FPV flying, training, and freestyle practice. It uses a Caddx Protos AIO flight controller and an Ascent Lite video transmission system for real-time FPV feed.

Key Features

  • Brushless power system: 1102 14000KV motors with HQprop U40mm x 3GR-PC-1.5mm propellers
  • Ascent Lite video transmission system (VTX model: Ascent Lite), with selectable power 25~100mW
  • Max transmission range: max 3km
  • Low latency FPV: average delay 35ms (also shown as 30ms low-latency in product graphics)
  • Camera/video: 1080P 60FPS or 720P 60FPS, 16:9, 147° FOV, 1/2.8 inch sensor; also shown as “2MP FPV HD Camera” in product graphics
  • Optical flow for indoor hovering, plus a failsafe lock for emergency recovery
  • Flight modes shown: Posh(hold) mode, Angle mode, Acro mode
  • Stunt flying shown: flip, roll, 180° spin turn, FOAC (feature name shown in product graphics)
  • Low-light sensitivity shown: 0.01 Lux
  • Throttle response shown: 10ms; max speed shown: 10 m/s

Specifications

Flight controller Caddx Protos Aio 1.0
Main control chip STM32-F405RGT6
Gyroscope BMI270
Barometer SPL06
Onboard receiver ESP8285
RC receiver / protocol ELRS 2.4GHz
ESC protocol compatibility Bluejay / BLHeli-S (optional)
ESC maximum current 12A (single channel)
Motor diagonal distance 78mm
Motors 1102 14000KV
Propellers HQprop U40mm x 3GR-PC-1.5mm
Dimensions 110 x 102.8 x 41mm
Weight 104.4g +/- 1.5g (also shown as “lightweight 100g design” in product graphics)
Flight endurance 8.5min +/- 0.5min (also shown as “10-minute flight time” in product graphics)
VTX model Ascent Lite
Video transmission Ascent Lite (also shown as 5.8GHz FPV transmission in product graphics)
VTX power 25~100mW
Max transmission range Max 3km
Latency Average delay 35ms
Image sensor 1/2.8 inch sensor
Field of view (FOV) 147°
Aspect ratio 16:9
Video resolution 1080P 60FPS; 720P 60FPS
Built-in storage N/A

Applications

  • Indoor flight and FPV training
  • Outdoor flying and general FPV practice
  • Drone racing (practice)
  • Freestyle maneuvers such as flips, rolls, and 180° spin turns

For setup and compatibility questions (radio link, ELRS binding, VTX settings), contact support@rcdrone.top or visit https://rcdrone.top/.

Details

CaddxFPV Protos 1.6-inch FPV drone use cases: indoor flight, outdoor camping, racing, and FPV training

Built for indoor practice and outdoor flying, Protos keeps training sessions and casual freestyle in one compact quad.

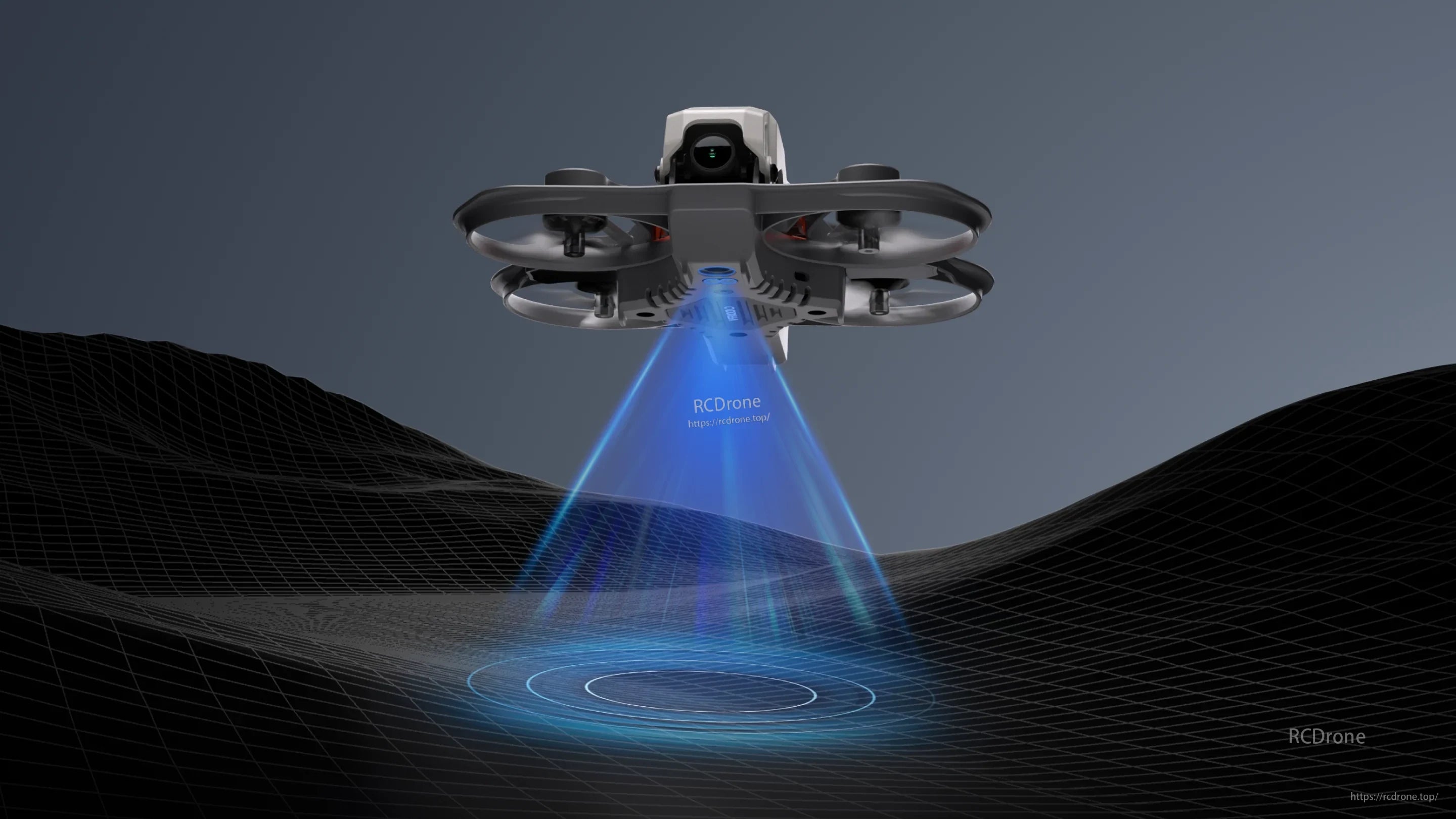

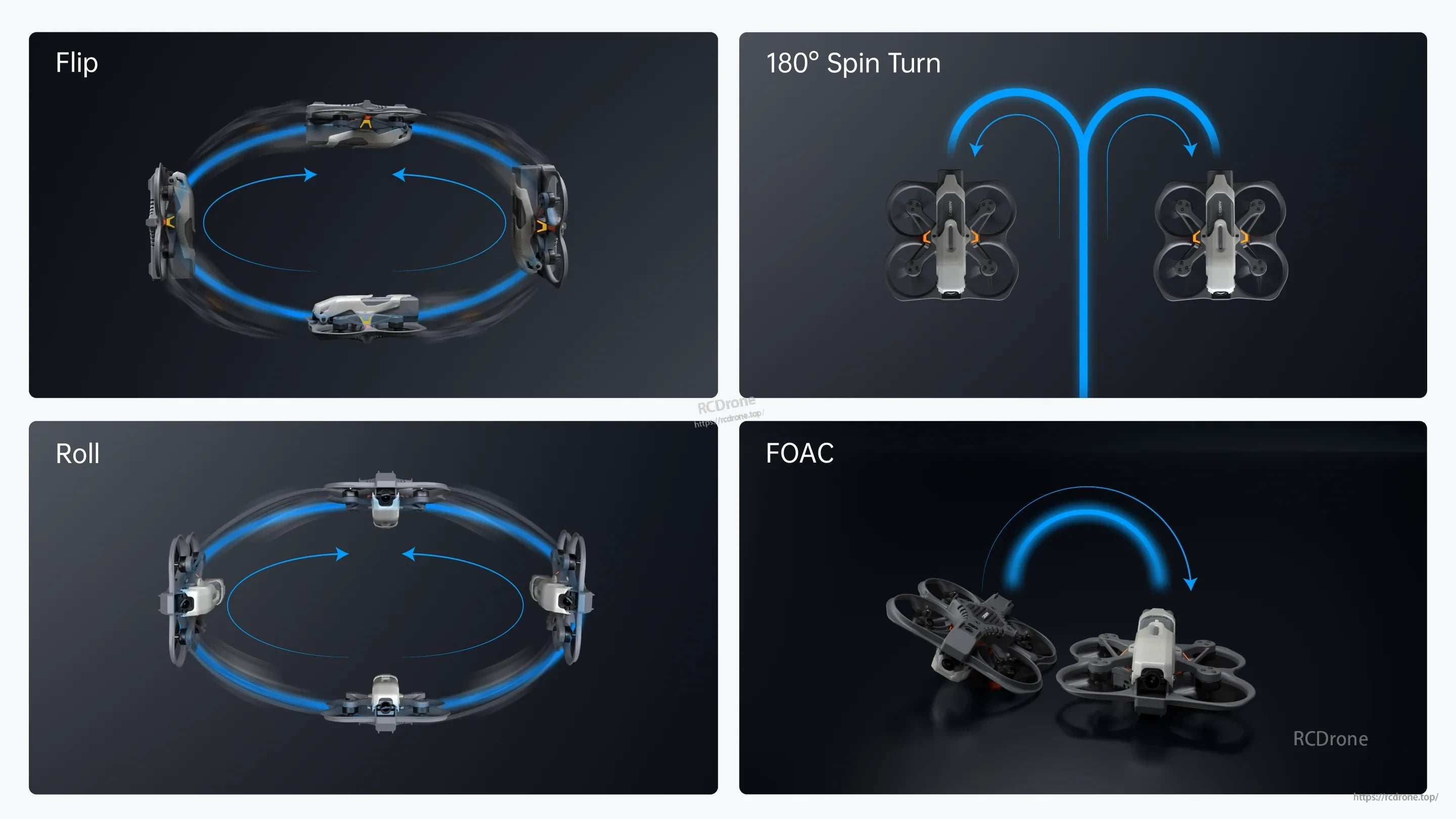

Freestyle move graphics for the Protos micro FPV quad: flip, roll, 180° spin turn, and FOAC maneuverProtos 1.6in FPV drone illustrating optical flow positioning for indoor hover stability over the ground

Optical flow helps maintain a steadier hover indoors for easier learning and smoother close-range flights.

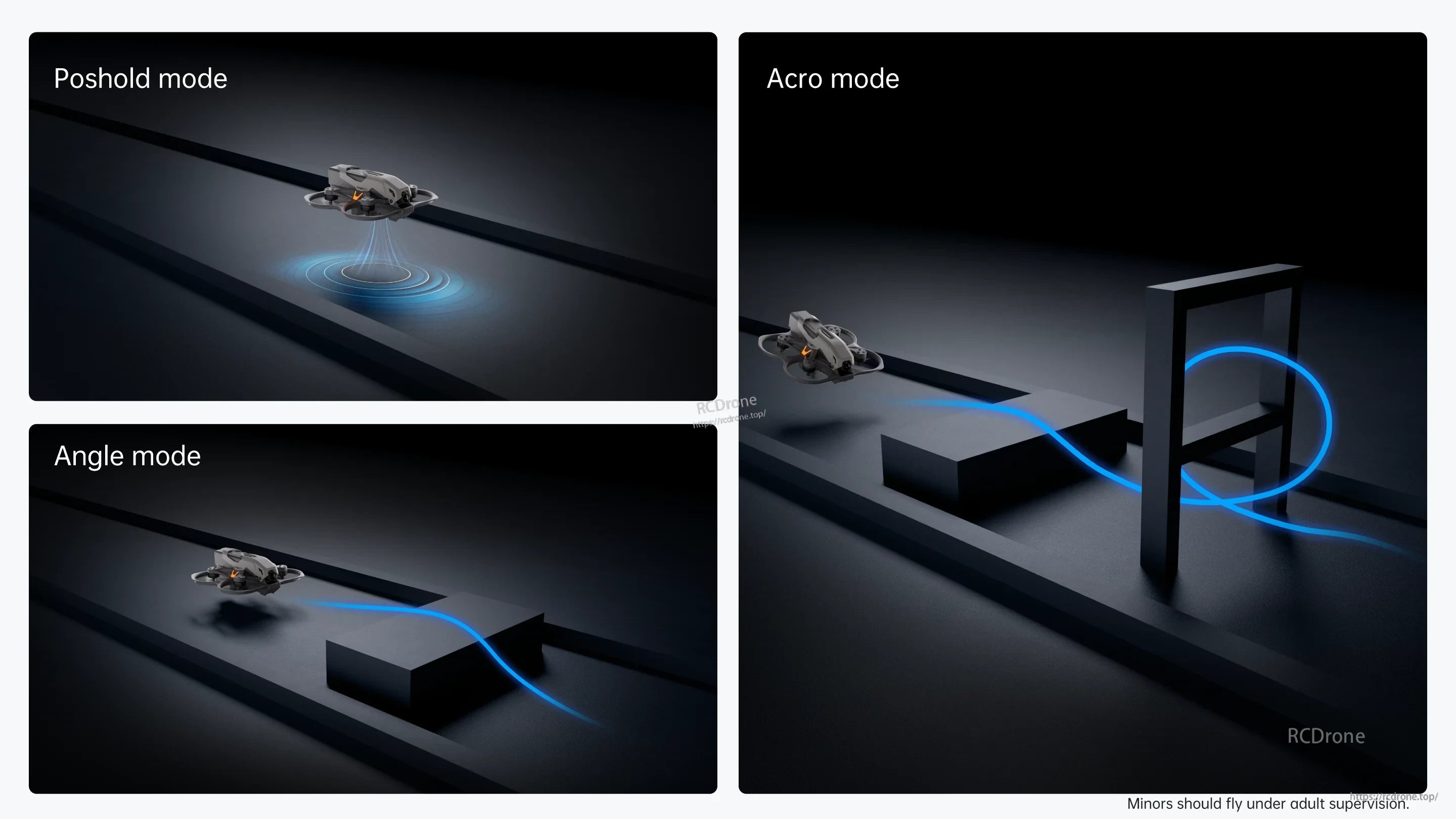

Flight mode options on the Protos micro quad: Posh(hold) mode, Angle mode, and Acro mode for manual control

Switch between Posh(hold), Angle, and Acro modes to match beginners, trainers, and full manual freestyle control.

Low-light performance timeline graphic indicating visibility from daytime through night for FPV flyingClose-up of brushless motor and ducted prop area on the Protos 1.6in quad for responsive power deliveryAscent Lite HD VTX system graphic highlighting ultra-low latency and up to 3 km video transmission range

Ascent Lite VTX focuses on low-latency video and solid signal penetration for longer-range FPV sessions.

Feature grid: 2MP FPV HD camera, 1080p 60fps, 10-minute flight time, 100g lightweight design, 5.8GHz transmission, 10ms response

Key specs at a glance: 2MP HD FPV camera, up to 1080p/60fps, 5.8GHz video link, lightweight build, and quick throttle response.
