CCD Camera IR Sensitive for FPV SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Other

Unit Type: piece

Tool Supplies: Assembled class

Technical parameters: Value 5

Remote Control Peripherals/Devices: Other

Recommend Age: 18+,12+y

RC Parts & Accs: Connectors/Wiring

Package Weight: 0.1kg (0.22lb.)

Package Size: 10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)

Origin: Mainland China

Model Number: HS1177

Material: Composite Material

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Brand Name: uuustore

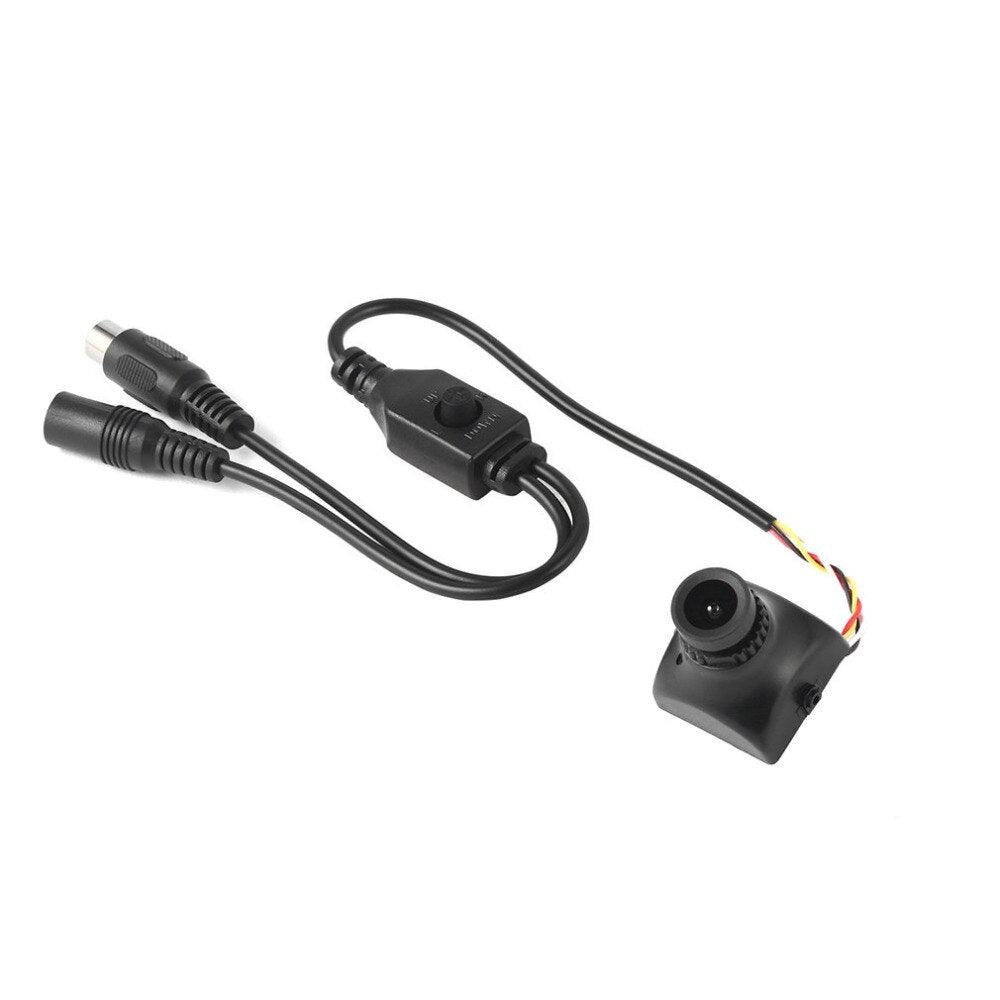

1PCS HS1177 600TVL 2.8mm Lens 1/3" SUPER HAD II CCD Camera IR Sensitive for FPV Racing Quadcopter QAV250 PAL/NTSC

This is a mini version of the classic CC1333 600TVL Sony Super Had II CCD board FPV camera. It uses a 1/3" Sony Super HAD II CCD, Nextchip 2040 DSP, D-WDR, 2D-DNR, minimum illumination reach 0.01 Lux (black/white) with a powerful OSD.



A customized 3pin servo cable is also included.



NOTE: This is the plastic cased version of this camera. See the related items for the heavier metal cased version.



Features:

- 600TVL high picture quality

- 1/3" SONY SUPER HAD II CCD

- Nextchip 2040 DSP

- Powerful OSD menu

- D-WDR (Wide Dynamic Range)

- 2D-DNR (Digital Noise Reduction)

- Low Power Consumption(70mA)

- Mirror function

- Privacy areas: 8 areas

- Low illumination: 0.01Lux

- 2.8mm Lens

- Low Power Consumption

- Suitable for FPV



Specifications:

- Model: HS1171

- CCD: 1/3” Sony SUPER HAD II CCD

- Pixel: PAL: 976(H) x 494(V);NTSC: 768(H)×494(V)

- TV System: PAL/NTSC(according to country)

- Resolution: 650TVL(b/w), 600tvl(color)

- Synchronization : internal synchronize

- Shutter Speed: (CCD IRIS) PAL: 1/50~1/100000 sec; NTSC: 1/60~1/100000 sec

- Noise: > 60 (AGC OFF)

- Video Out: 75ohm, synchronize

- Min. Illumination: 0.01Lux

- Auto Gain: Off/Low/Mid/High

- Back Light Compensation (BLC): Off /Back light compensation/ Strong light suppression

- Private shading (PRIVACY): 1~8 private shading area

- Motion Detection (MD): On/ Off (Multi level sensitivity settable)

- Auto White Balance: Manual / Auto / Auto track

- Mirror: Horizontal Mirror optional

- Negative: Positive / Negative optional

- Color to B&W: Auto

- DNR: 2DNR

- WDR: D-WDR

- Day / Night Shift: Auto/ Color/ B&W

- Menu (OSD): English menu

- White Dot Repair: Support

- Image Adjustment: Support

- Camera Title: Support

- Power Requirement: DC5V~22V

- Working Temperature: -10 C ~ +50 C

- Working Humidity: 20~80%

- Storage Temperature: -40 C ~ +60 C

- Storage Humidity: 20~95%

- Dimensions(mm): 25X25(W*L)

- Power Consumption: 70mA

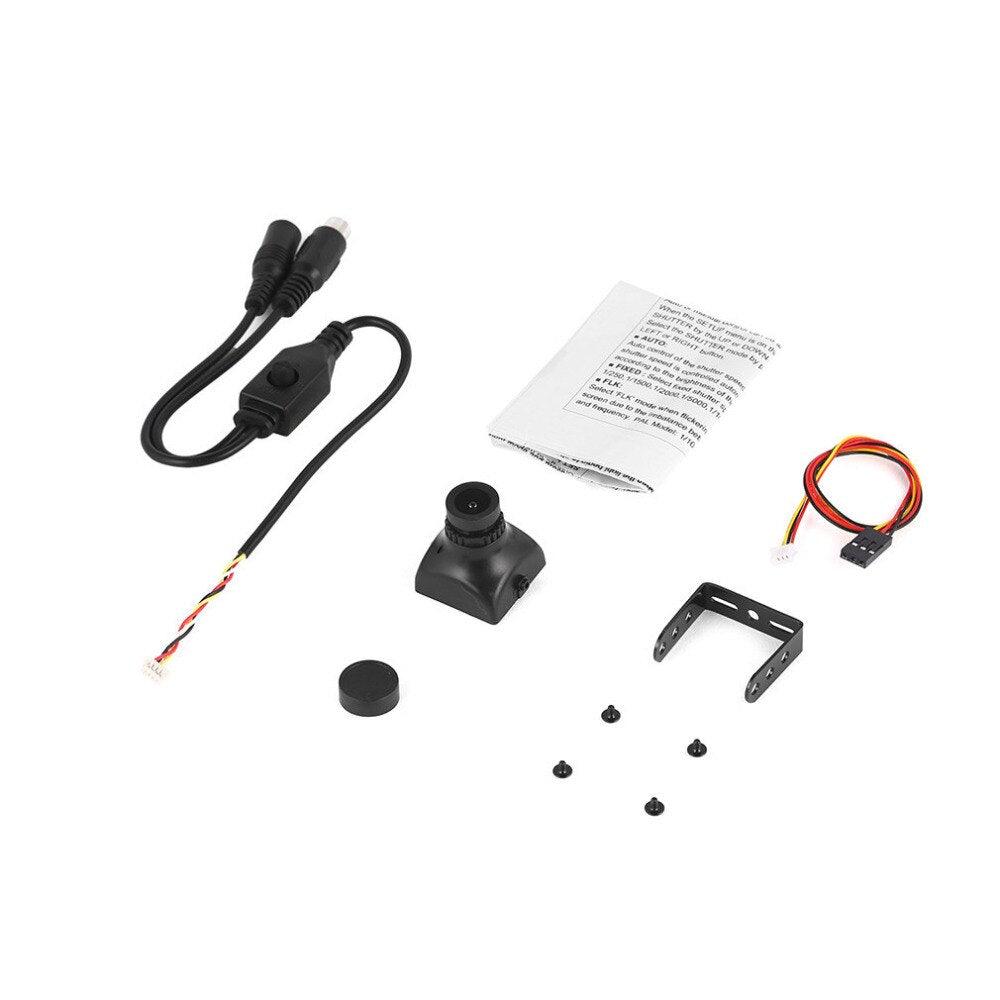

Package includes:

1 x 650TVL HS1177 Camera

1 x 3pin video cable

1 x 4pin servo cable

1 x Manual

1 x Mount

4 x Screws



'
