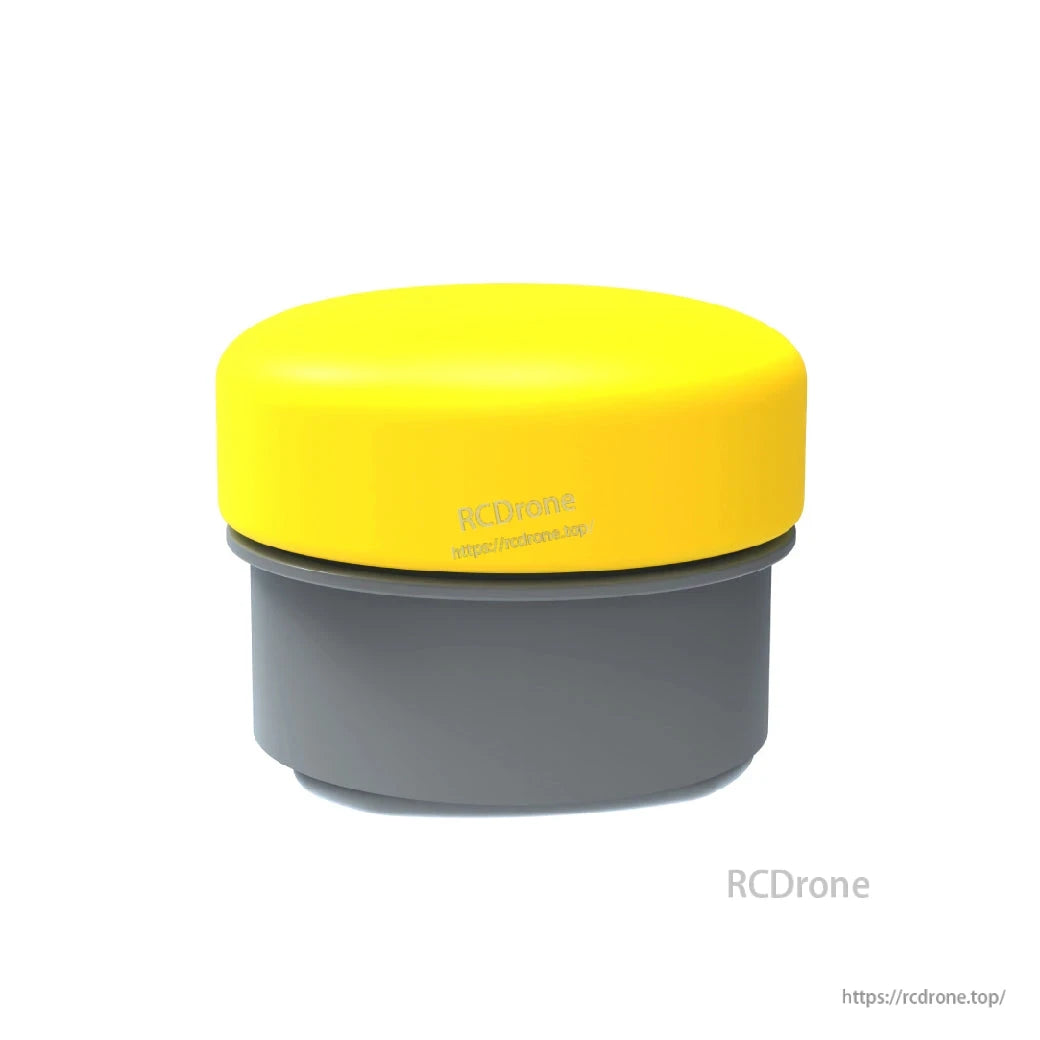

CHASING Distance Lock Sonar for M2 S / M2 PRO / M2 PRO MAX – 4-Direction Distance Hold & Collision Avoidance

CHASING Distance Lock Sonar for M2 S / M2 PRO / M2 PRO MAX – 4-Direction Distance Hold & Collision Avoidance

Chasing

$2,249.00 USD
$2,249.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Used for
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The CHASING Distance Lock Sonar is a dedicated add-on for CHASING ROVs that enables fixed-distance inspection and automatic collision avoidance. After setting a target distance in the App, the ROV can measure and hold distance independently in four directions—front, left, right, and bottom—to stabilize close-up imaging and reduce operator workload. Key specs: measurement accuracy ±25 mm, resolution 1 mm, blind spot <20 cm, IP68 protection, 10.8–26.4 VDC input, and maximum diving depth 150 m.

Compatibility

  • CHASING M2 S

  • CHASING M2 PRO

  • CHASING M2 PRO MAX

Key Features

  • Four-direction distance lock for automatic inspection and obstacle avoidance.

  • Lock-distance mode enables top-to-bottom perimeter inspection of nets, columns, and similar structures.

  • Millimeter-level resolution for precise standoff during detailed inspections.

  • Industrial reliability with IP68 rating and 150 m maximum operating depth.

  • Fixed-mount design with standard and extended bases for flexible placement.

  • Wide 10.8–26.4 VDC power range.

Specifications

Item Value
Application Underwater collision avoidance; fixed-distance ranging/holding
Range Not specified in the provided materials
Blind spot < 20 cm
Measurement accuracy ±25 mm
Resolution 1 mm
Launch angle 13° ± 2°; 26° between axis-1 and axis-2
Power supply 10.8–26.4 VDC (measurement range varies with voltage)
Storage temperature −20 °C to 60 °C (non-frozen environment)
Probe installation Fixed installation
Protection level IP68
Sonar installation base (default) 64 × 64.8 × 79 mm
Sonar installation base (optional) 64 × 64.8 × 153 mm
Base weight (default / optional) 54 g / 108 g
Maximum diving depth 150 m
Sonar size Upper cover: 81.3 × 30 mm; Housing: 79.3 × 55.9 mm
Sonar weight 286 ± 5 g

What’s in the Box

  • Distance lock sonar ×1

  • Swappable mounting bracket ×1

  • Double-headed connection cable ×1

  • M3×8 screws ×8

  • M6×16 screws ×4

  • Document package ×1

Typical Applications

  • Automatic perimeter inspection of fish nets, piles, piers, and other column-shaped structures

  • Close-range imaging with constant standoff and safer obstacle avoidance

  • Routine underwater maintenance: docks, sluice gates, hull checks, and infrastructure surveys

Details

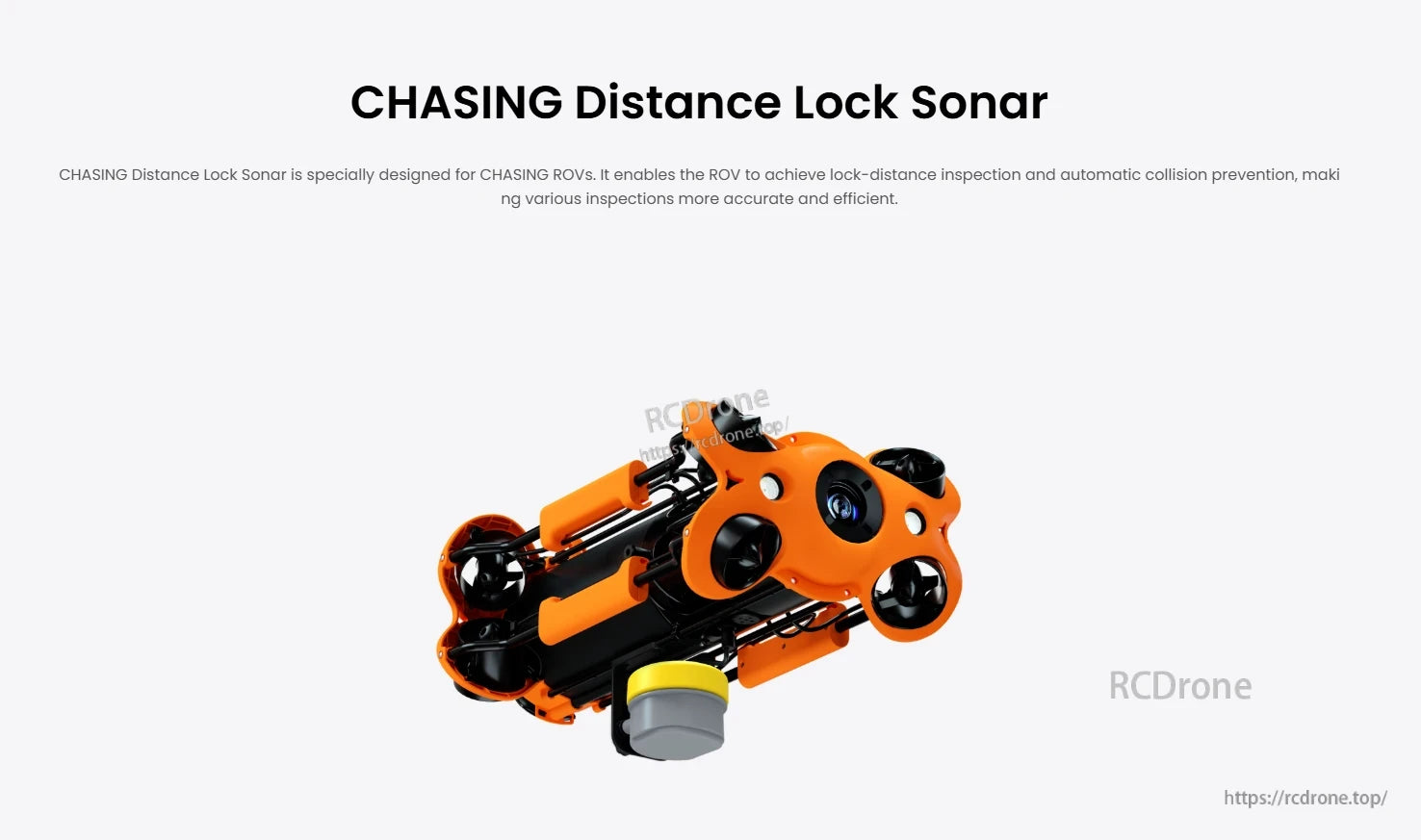

Mavic Distance Lock Sonar, CHASING Distance Lock Sonar allows ROVs to maintain set distances, enabling precise inspections and automatic collision avoidance for efficient underwater operations.

CHASING Distance Lock Sonar enables ROV lock-distance inspection and automatic collision prevention for accurate, efficient operations.

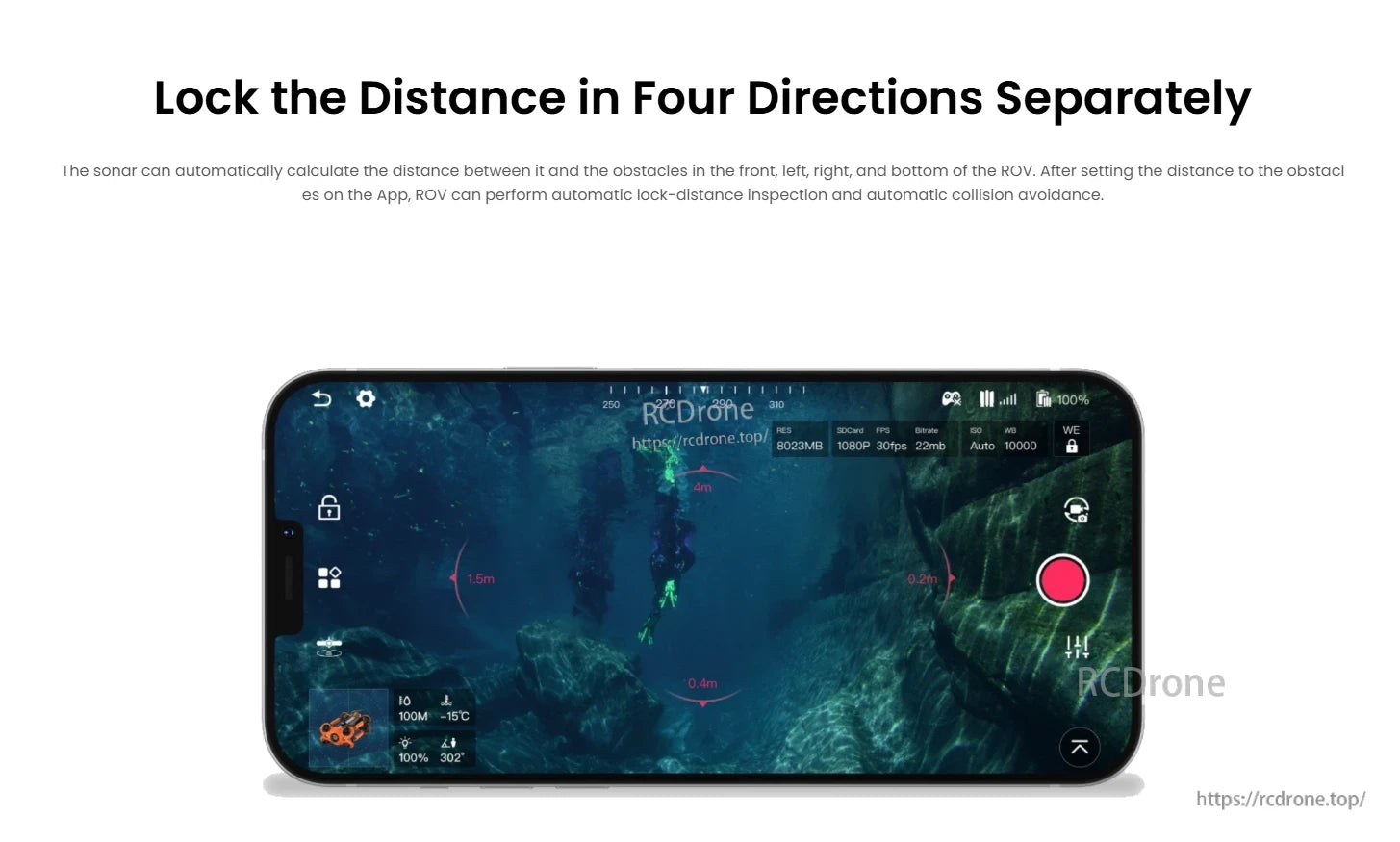

Mavic Distance Lock Sonar, Sonar measures distance in four directions, with app-controlled lock-distance, collision avoidance, and real-time data on depth, temperature, battery, and video.

Sonar enables distance measurement in four directions. App settings allow automatic lock-distance inspection and collision avoidance. Real-time data includes depth, temperature, battery, and video specs.

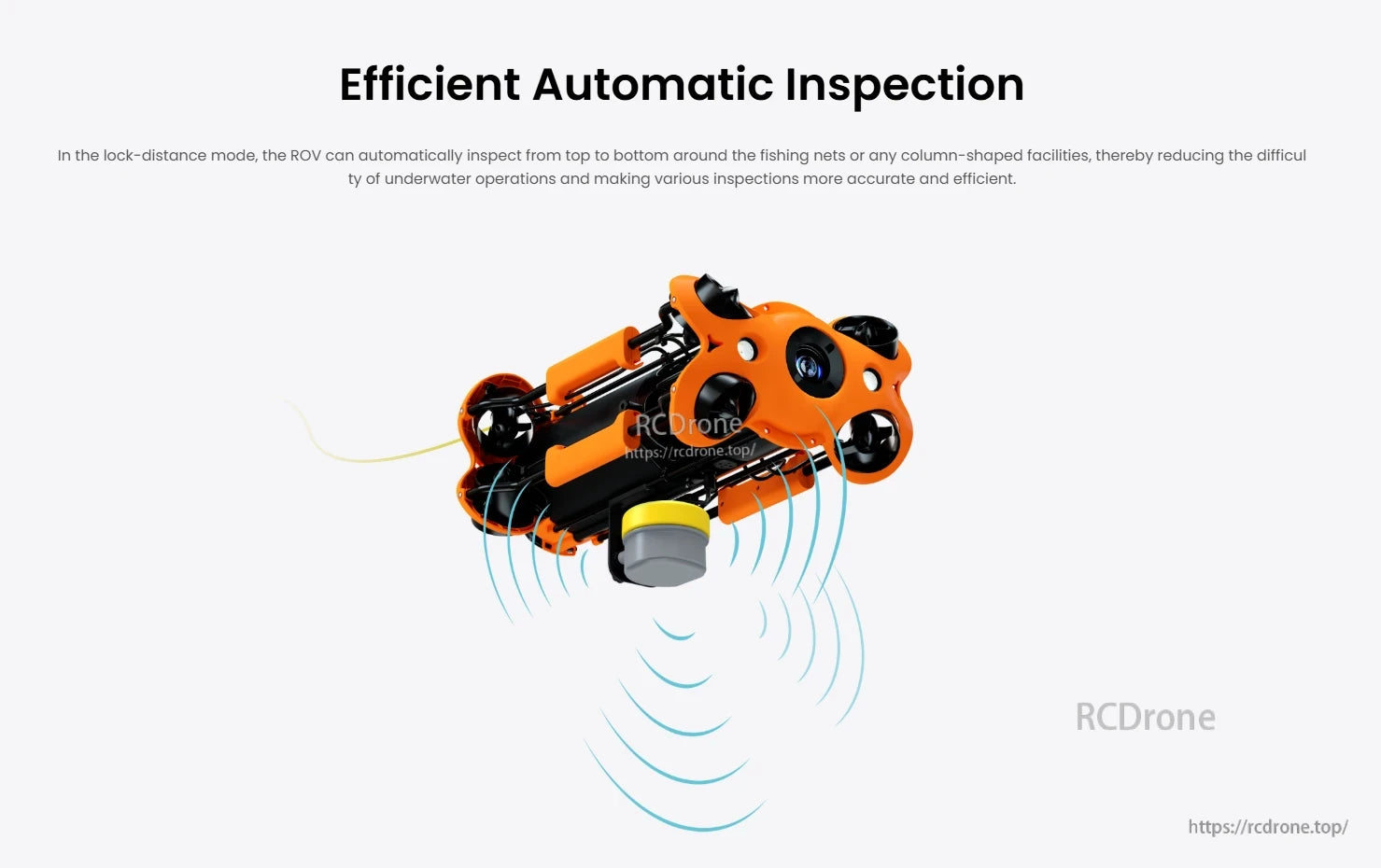

Mavic Distance Lock Sonar, ROV autonomously inspects nets or columns, improving accuracy and efficiency in underwater operations.

Efficient Automatic Inspection. ROV autonomously inspects fishing nets or columns, enhancing underwater operation accuracy and efficiency.

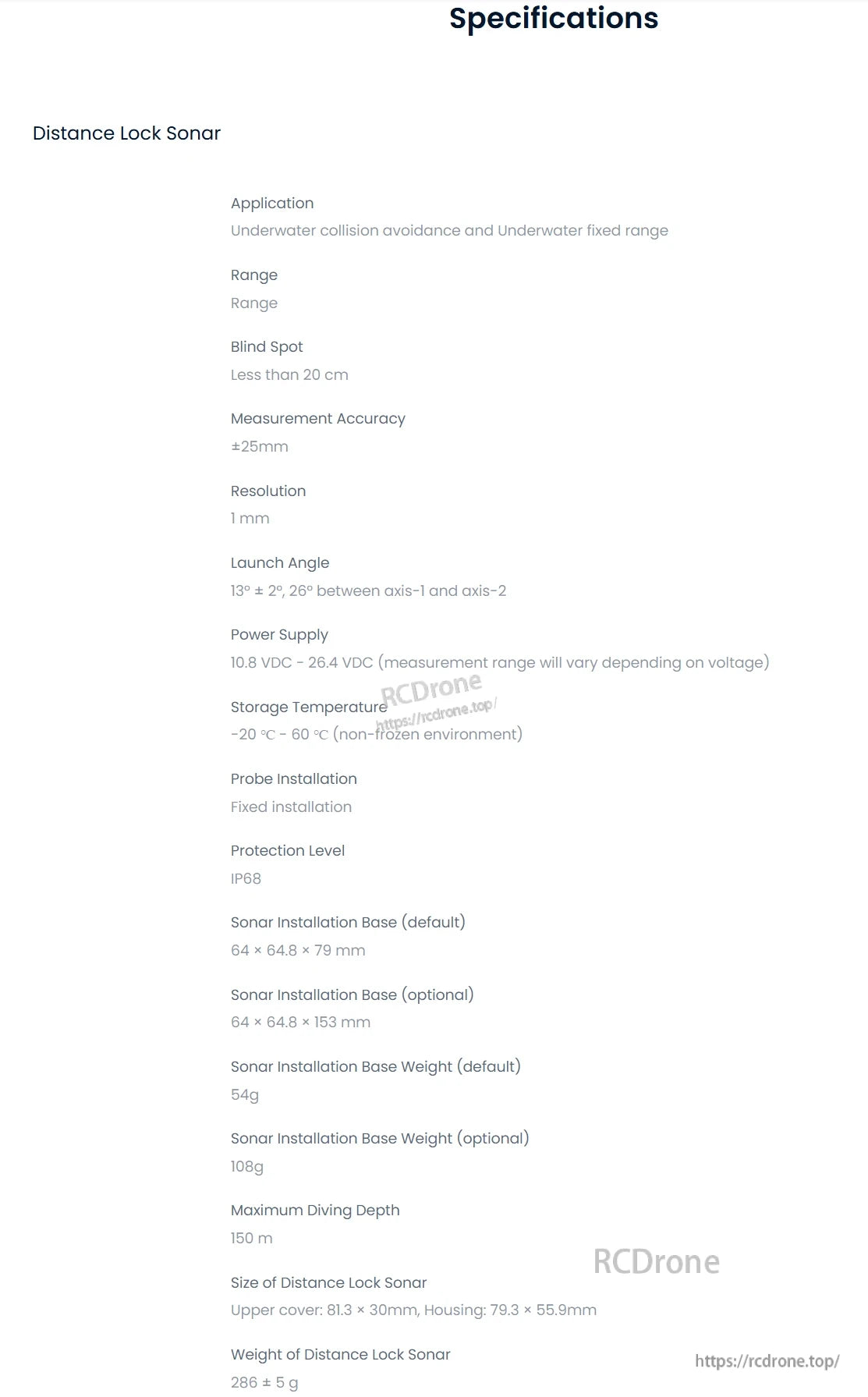

Mavic Distance Lock Sonar, Distance Lock Sonar: 150m range, ±25mm accuracy, 1mm resolution. IP68, 10.8-26.4VDC, -20°C to 60°C. Compact size, 286g. Ideal for underwater collision avoidance.

Distance Lock Sonar for underwater collision avoidance and fixed range. Range up to 150m, accuracy ±25mm, resolution 1mm. IP68 rated, 10.8-26.4VDC, -20°C to 60°C. Dimensions: 81.3×30mm (cover), 79.3×55.9mm (housing). Weight: 286±5g.

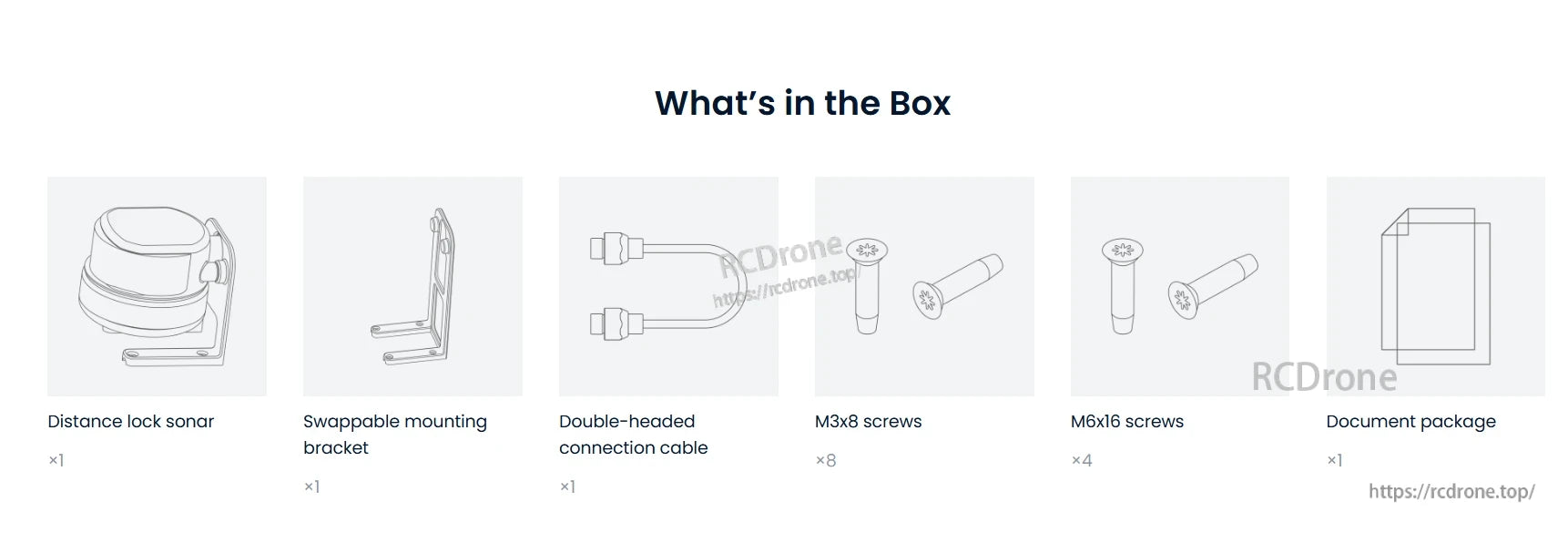

Mavic Distance Lock Sonar, Distance lock sonar, mounting bracket, cable, screws, documents included.

Distance lock sonar, mounting bracket, cable, screws, documents included.
