Overview

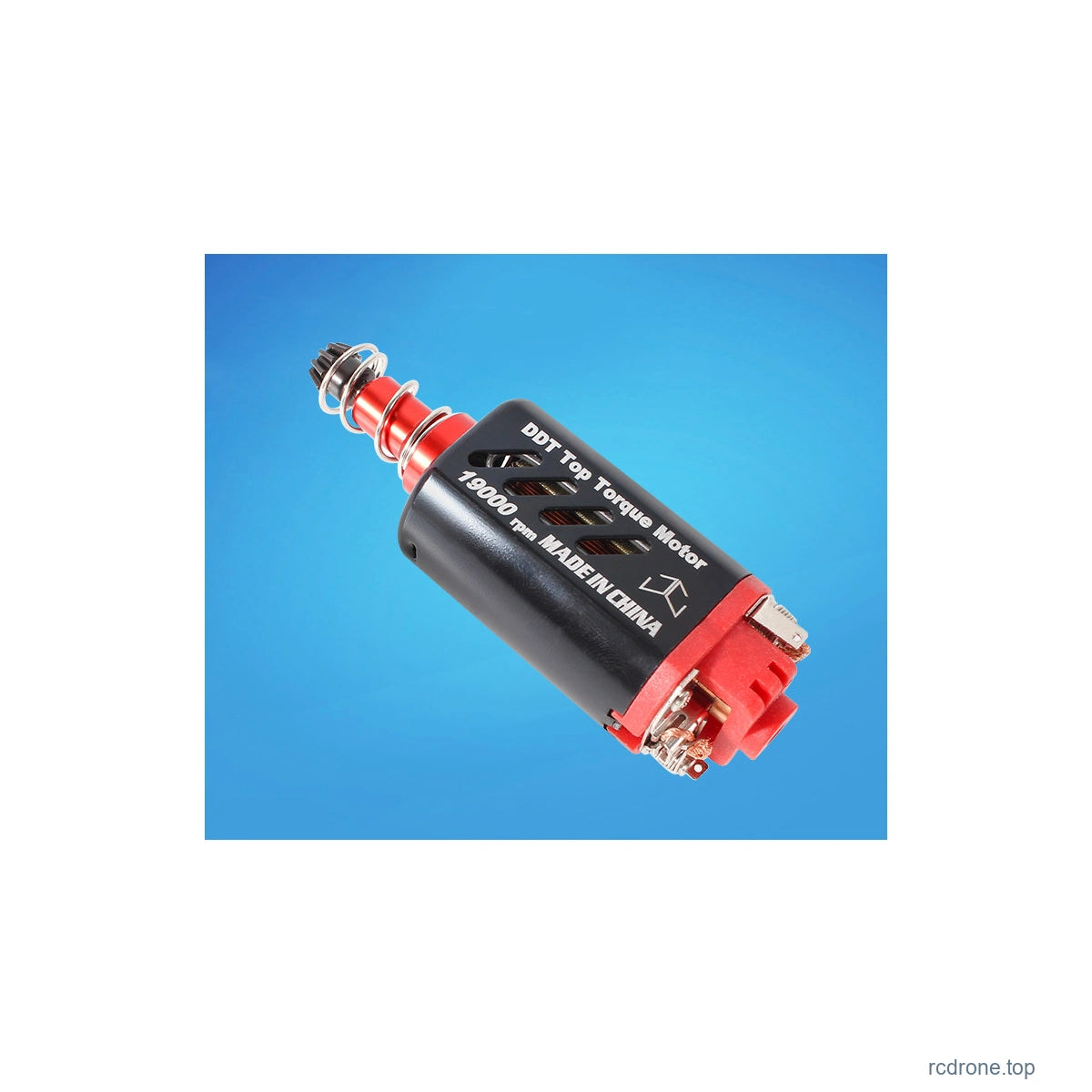

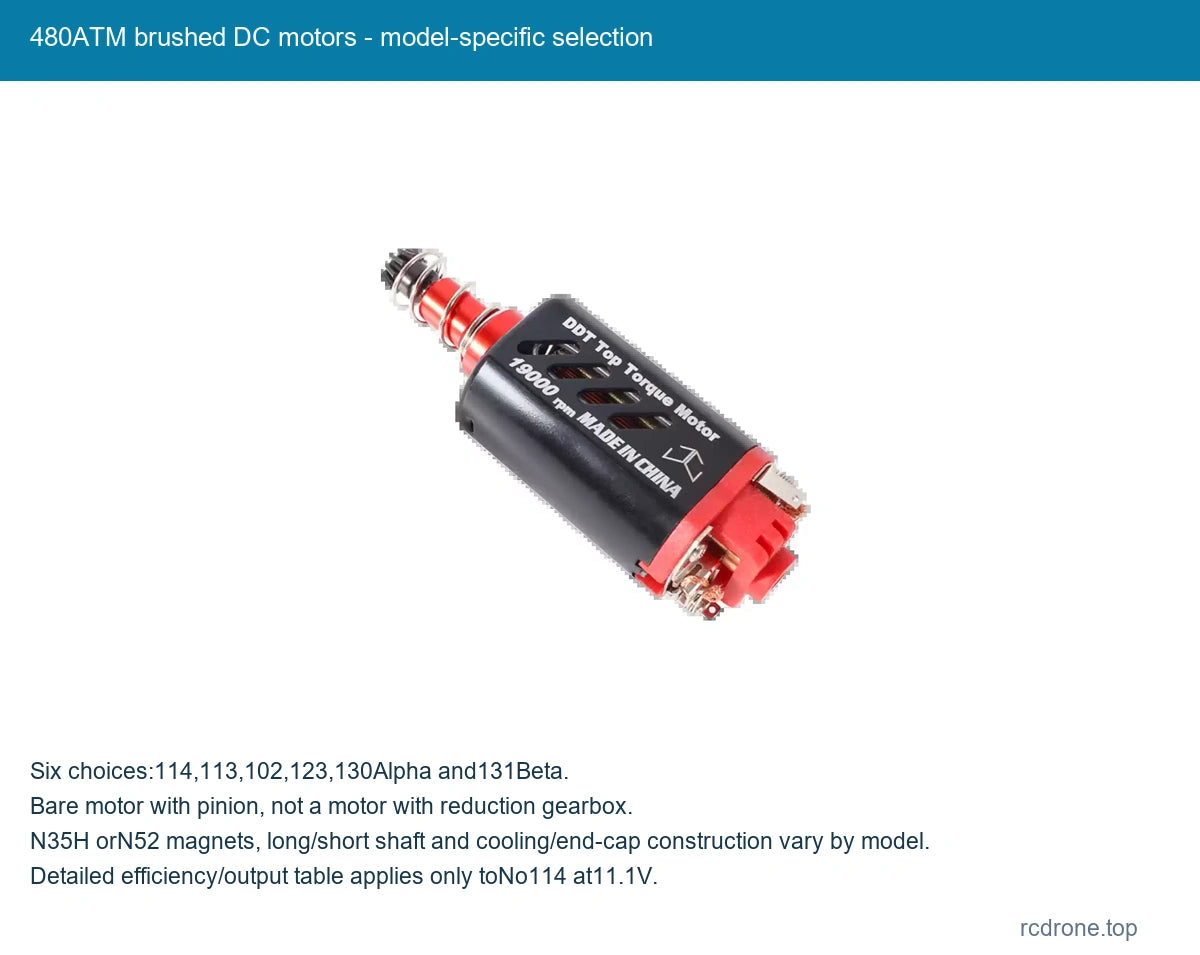

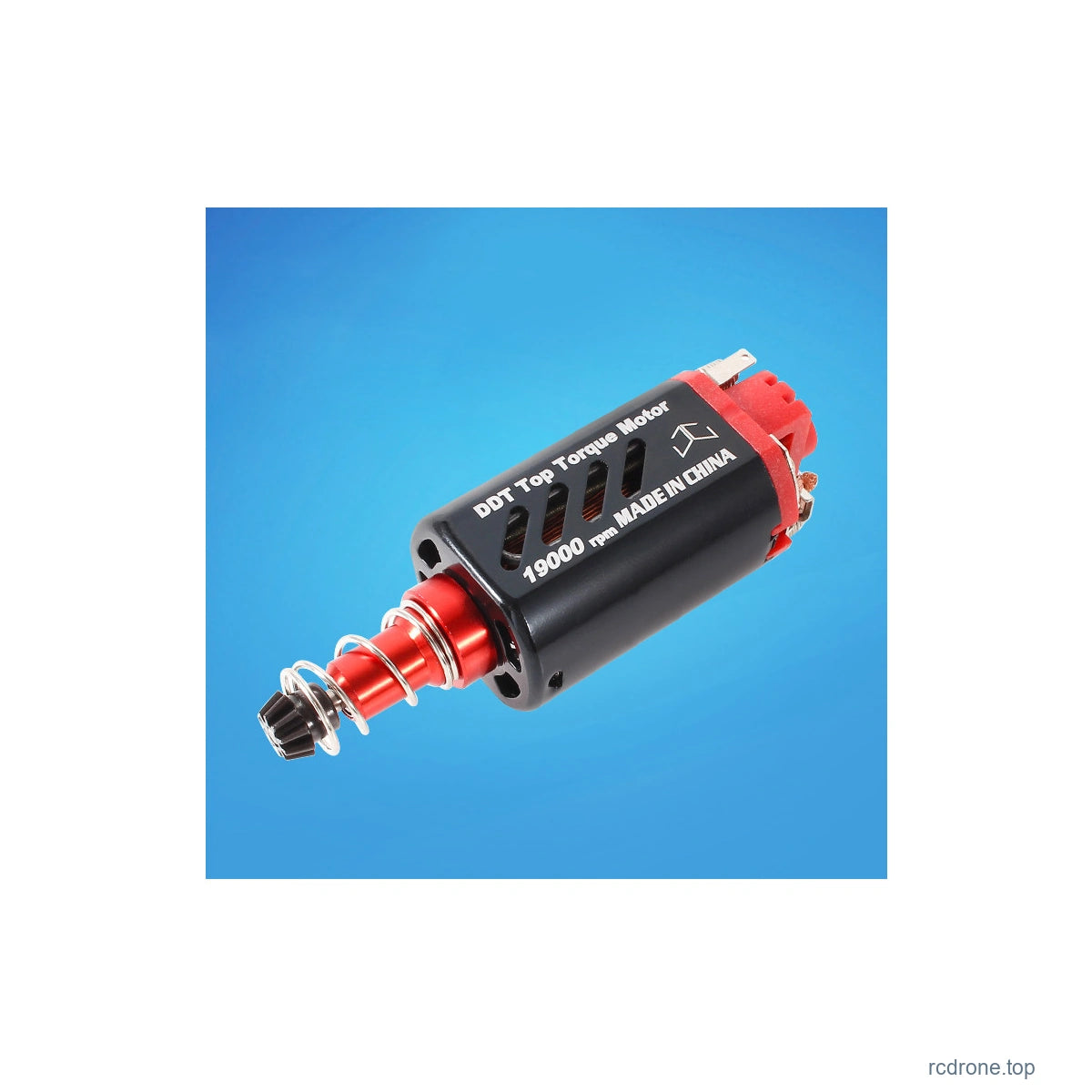

The CHIHAI MOTOR 480ATM Series is a selection of brushed DC motor configurations with a bevel pinion, ball-bearing support and model-specific shaft length and magnetic design. Choose114 low-speed high-torque,113 long-shaft,102 short-shaft,123 N52,130 Alpha or131 Beta to match the intended drive assembly.
Features
- Permanent-magnet brushed DC construction with ball-bearing shaft support.
- Hardened MIM steel bevel pinion for the matching mechanical drive.
- Long-shaft and short-shaft configurations with clearly separated speed references.
- N35H magnet configurations or the No123 N52 option.
- Vented or enclosed housing and nylon/aluminum rear-cap construction according to model.
Specifications
| Item | Specification |
|---|---|
| Motor family | 480ATM / CHF-480WA brushed permanent-magnet DC motor with pinion; no reduction gearbox |
| Model choices | 114,113,102,123,130 Alpha,131 Beta |
| Common size references | 29.5 mm overall width;45.5 mm motor-body length; long/short shaft per model |
| No114 envelope reference | 29.5 x25.2 x88 mm including shaft and pinion; motor-can photograph shows23 x23 mm section reference |
| No114 net mass reference | Approximately140 g; other model shipping masses estimated separately |
| Pinion | Hardened MIM injection-steel bevel pinion |
| Bearings | Ball-bearing construction |

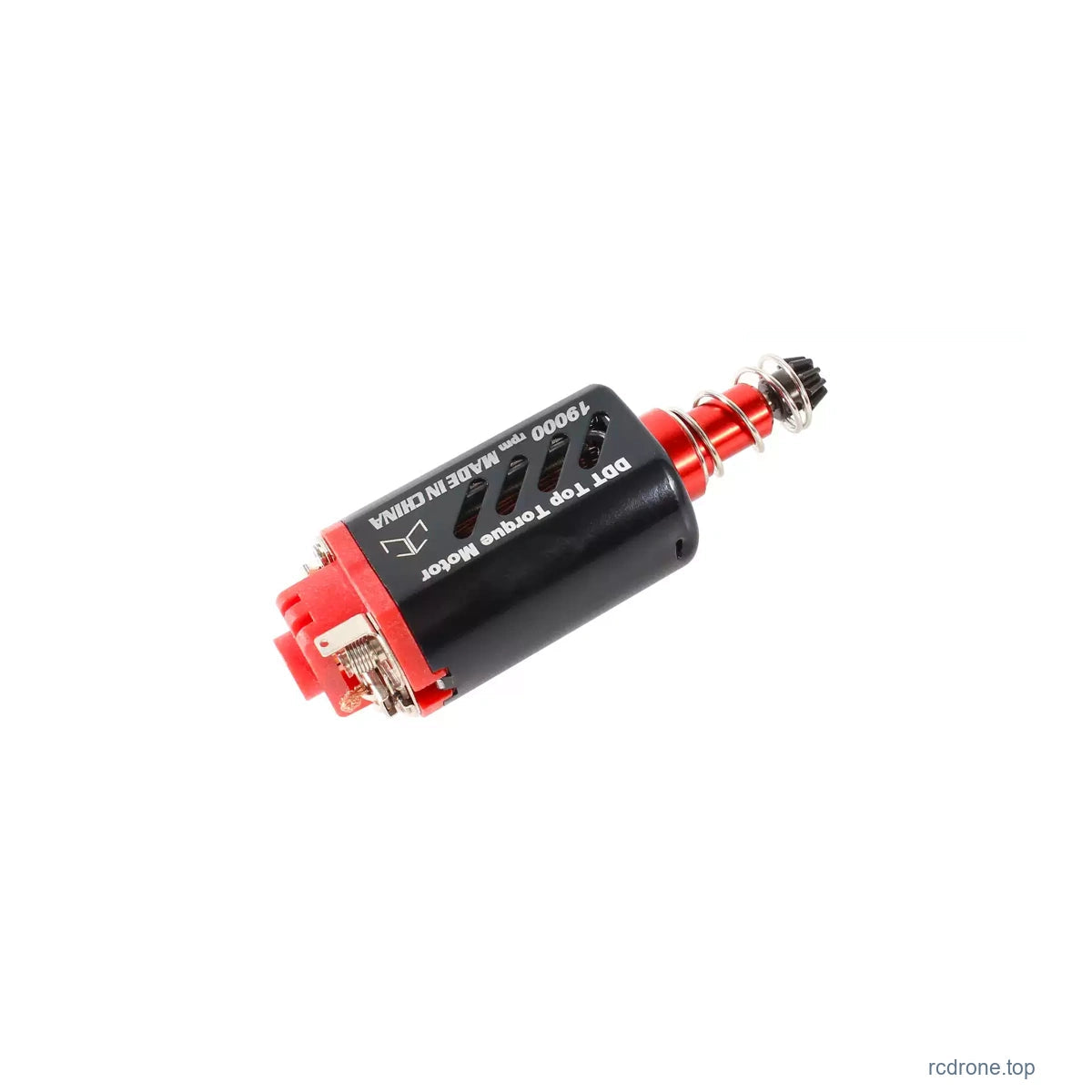

| Motor cooling | Vented housing on114/113/102/130/131; No123 enclosed magnetic-locking shell configuration |
| 114/113/102 end cap | Heat-resistant nylon |
| 123 end cap | CNC-machined thermally conductive aluminum alloy; carbon-brush construction |
| 130/131 construction | Eight angled cooling slots, heat-resistant nylon end cap, wear-resistant carbon brushes and dynamic balancing |
| Direction and polarity | Observe marked positive/negative terminals; mechanically compatible external drive required |
Model Selection
| Model | Shaft | 11.1V no-load rpm | Other no-load speed reference | Overall mm | Shaft/pinion projection mm | Magnet |
|---|---|---|---|---|---|---|

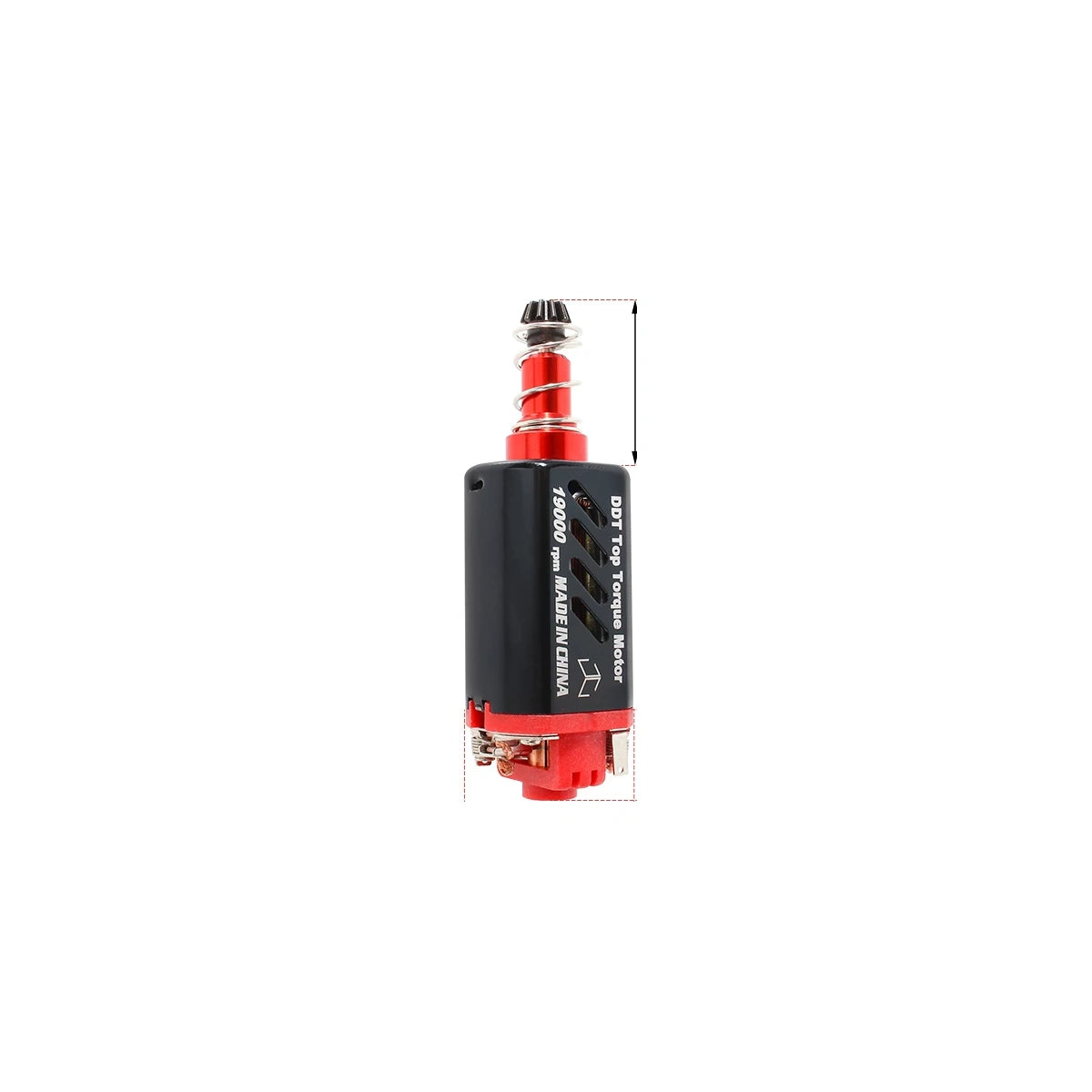

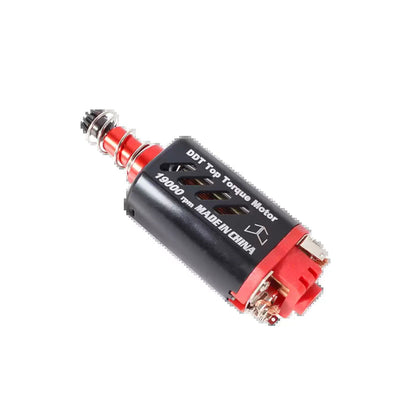

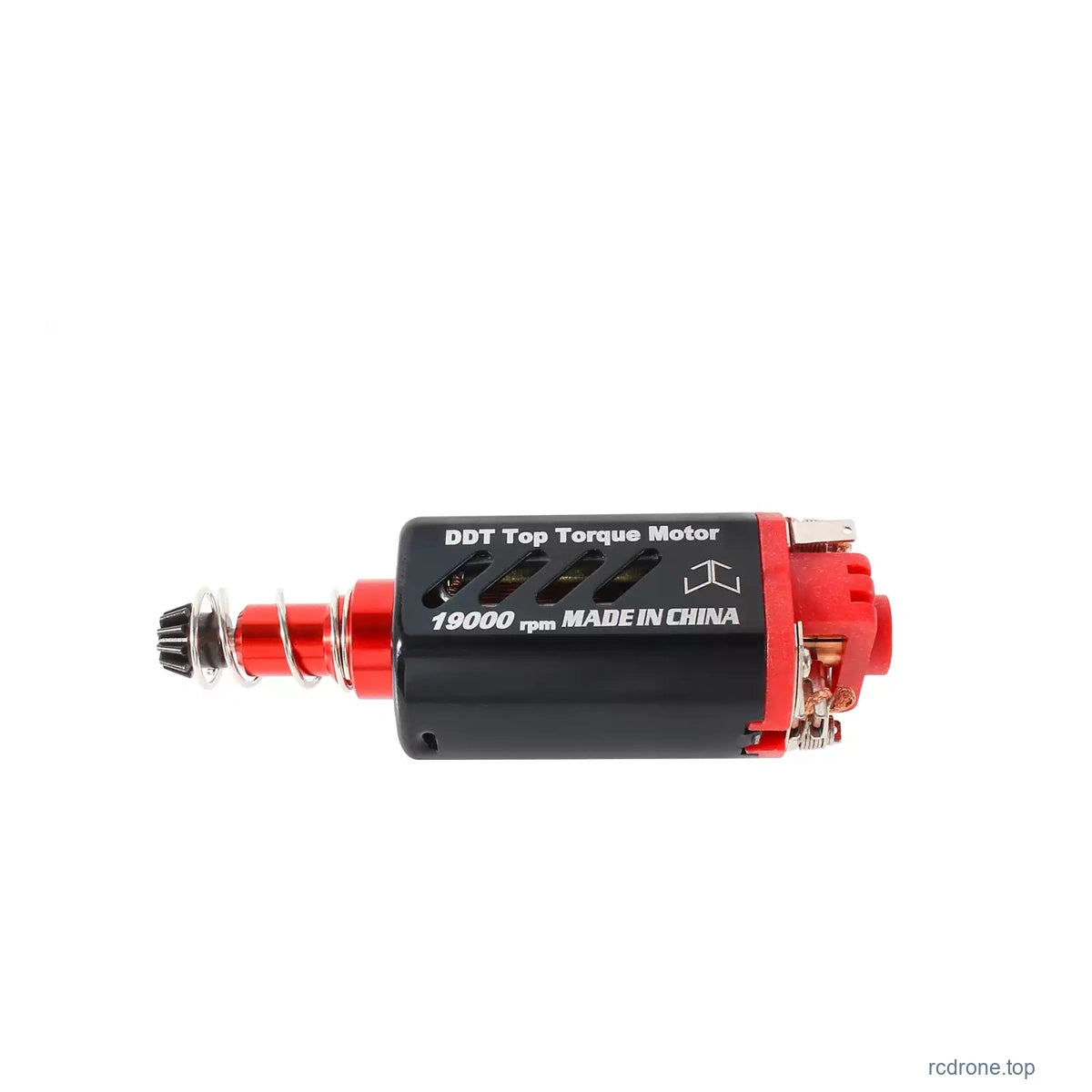

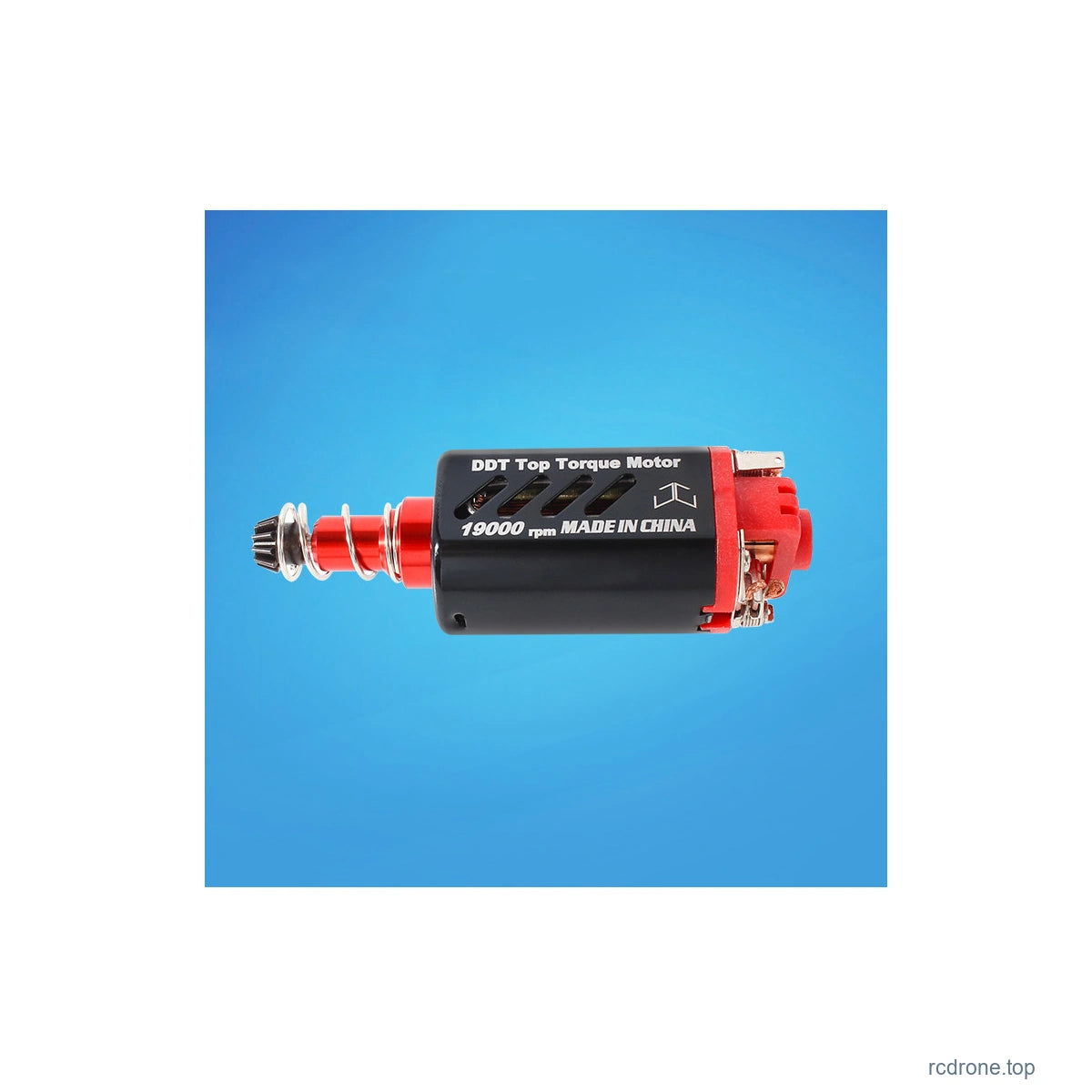

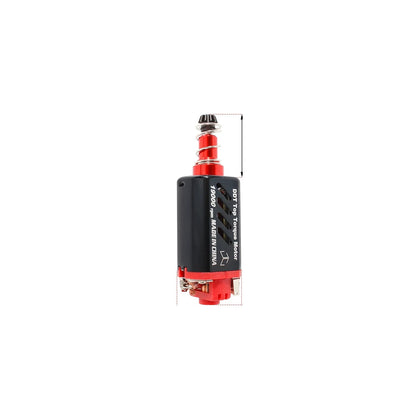

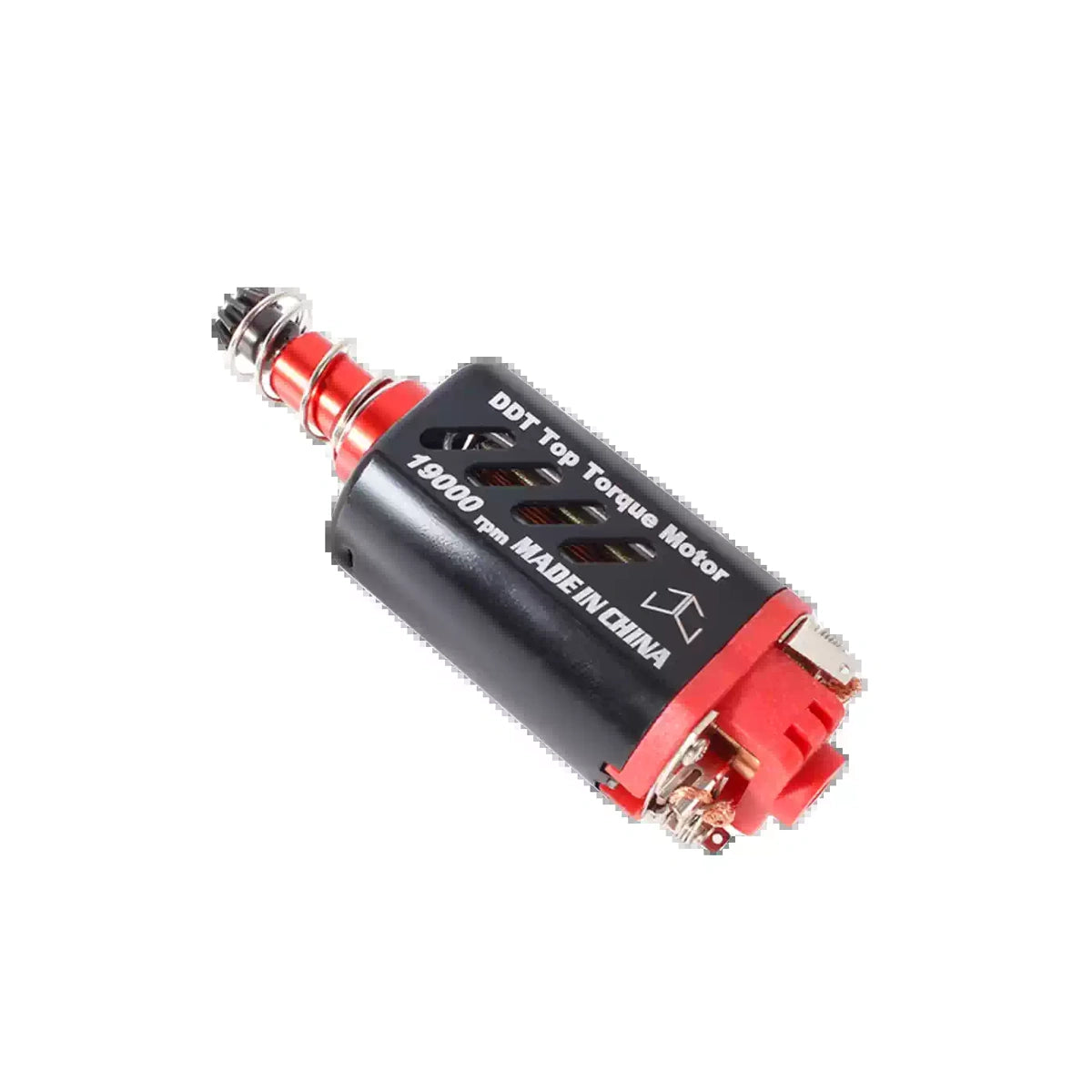

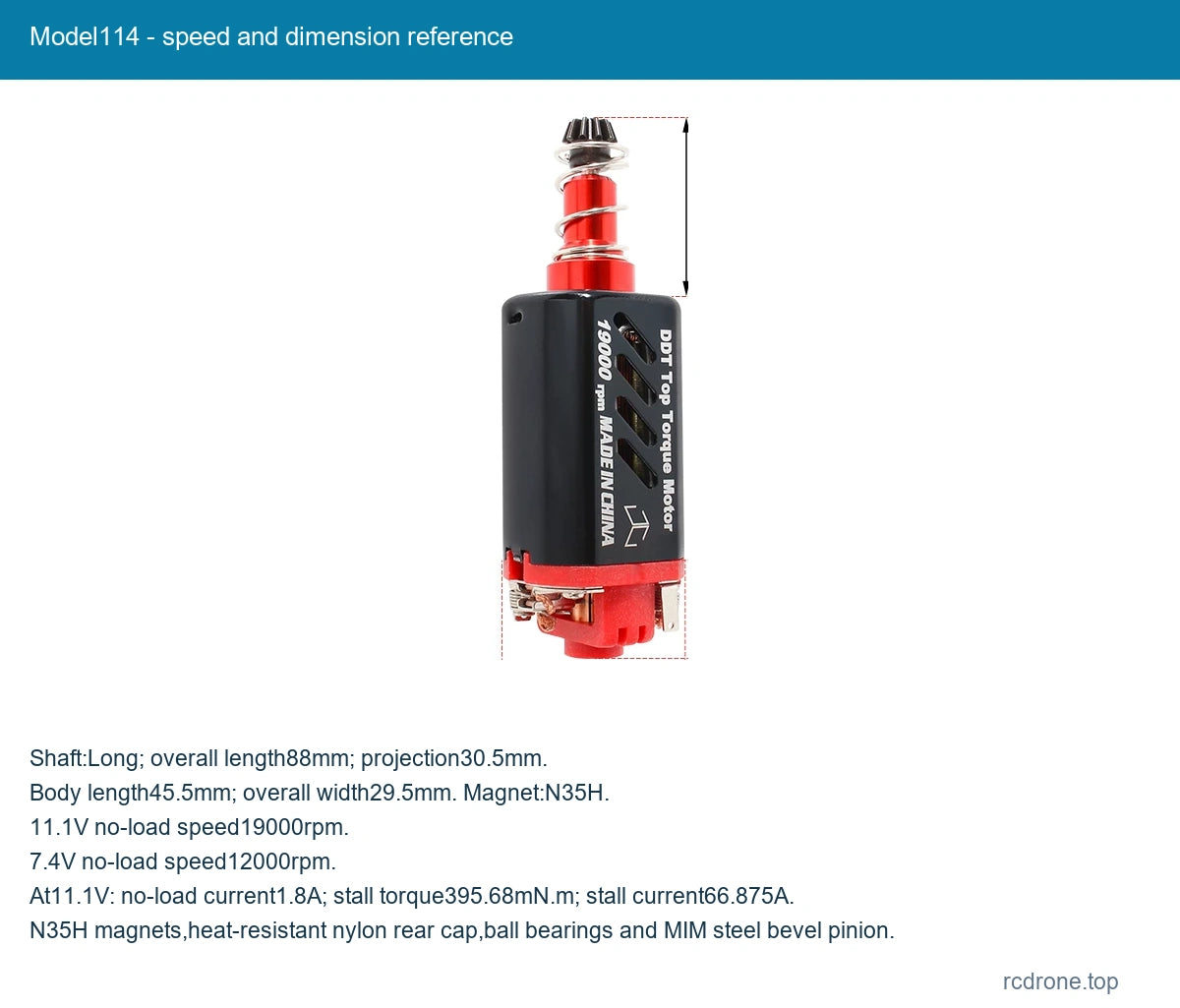

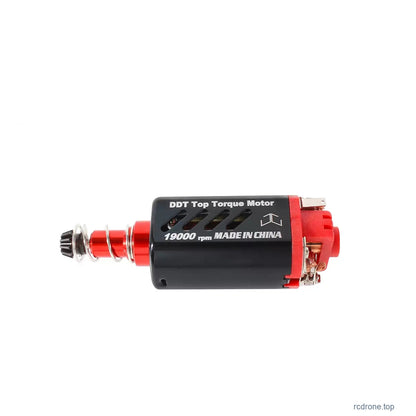

| 114 | Long | 19000 | 12000rpm at7.4V | 88 | 30.5 | N35H |

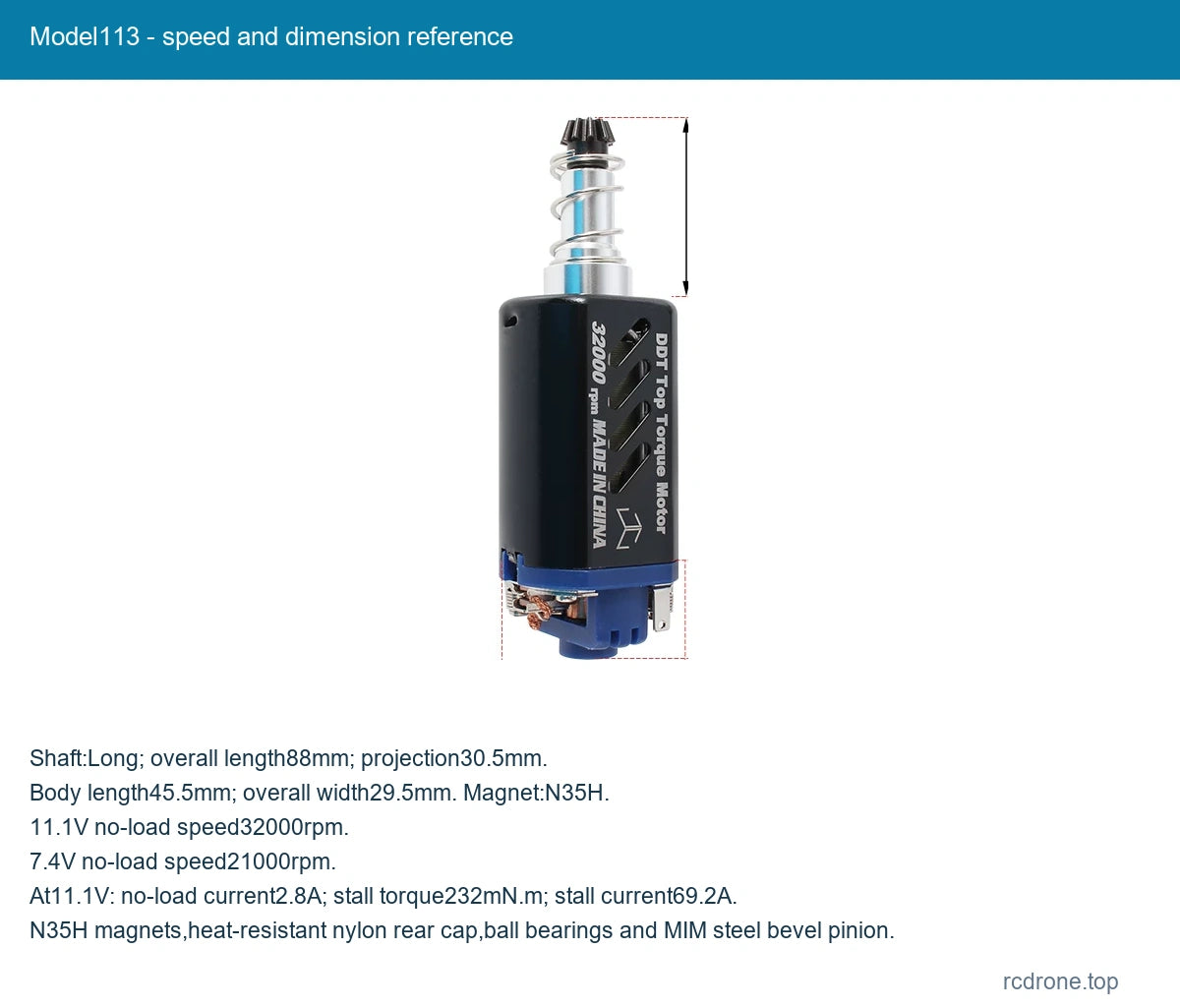

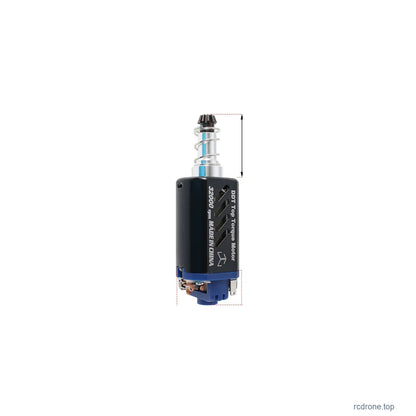

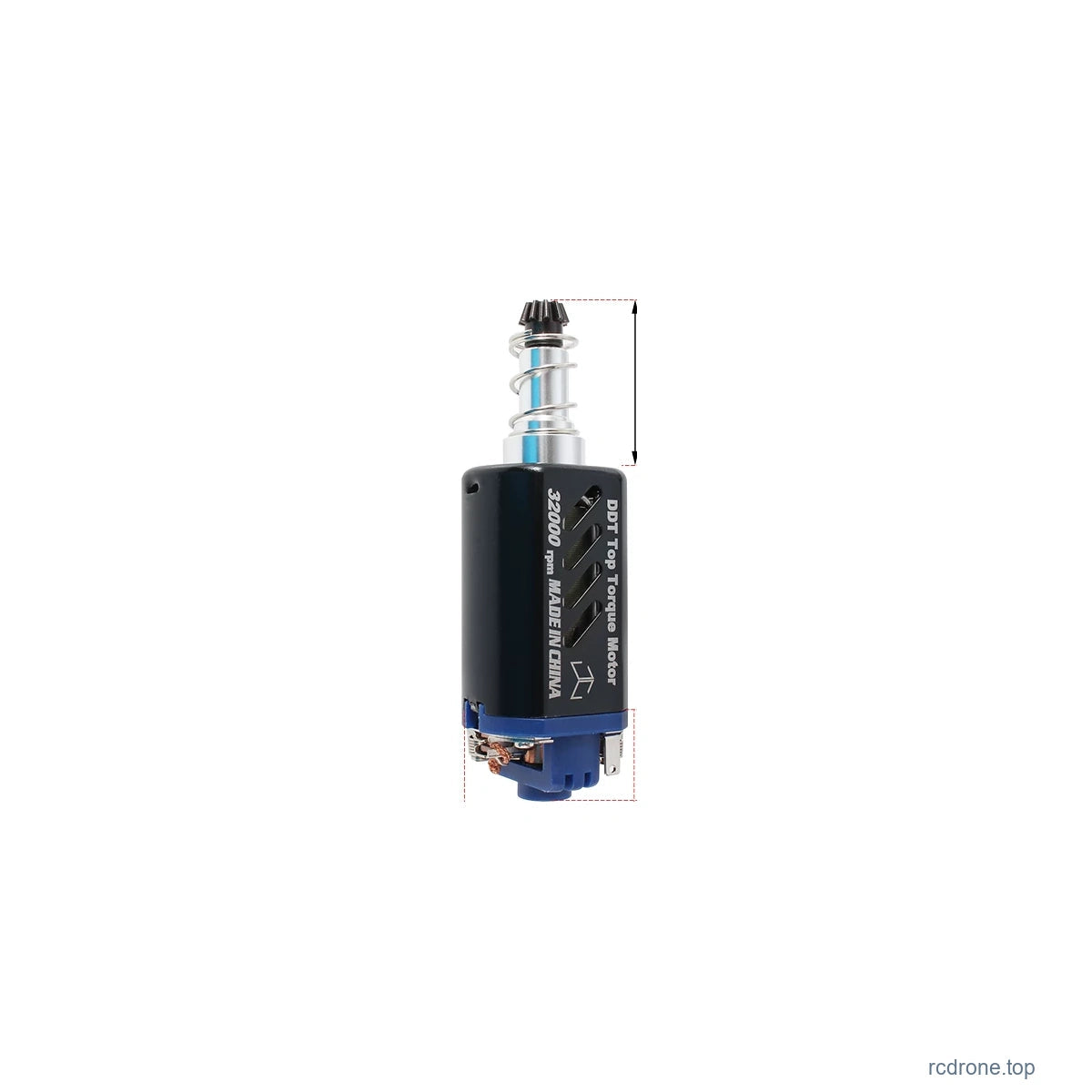

| 113 | Long | 32000 | 21000rpm at7.4V | 88 | 30.5 | N35H |

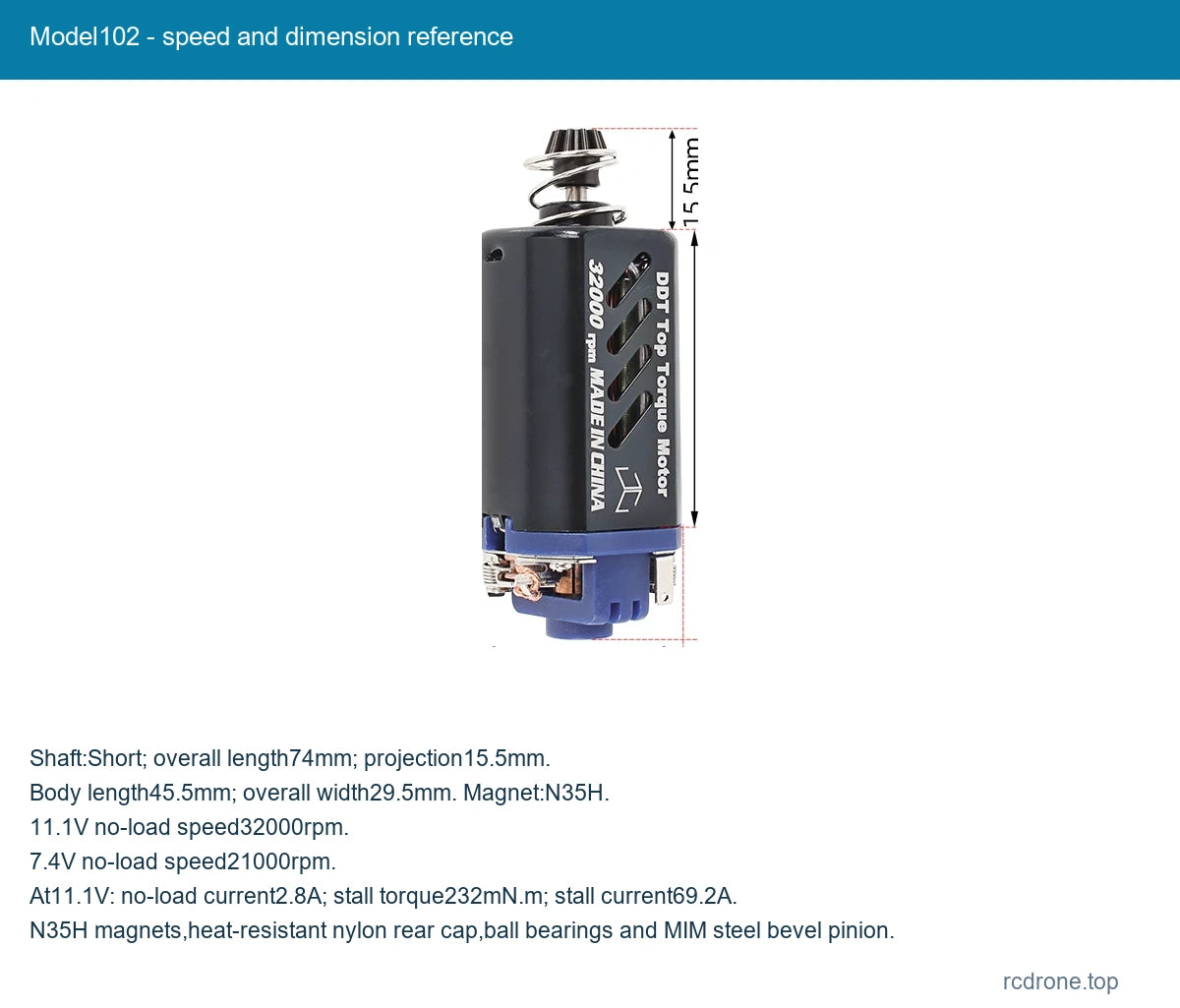

| 102 | Short | 32000 | 21000rpm at7.4V | 74 | 15.5 | N35H |

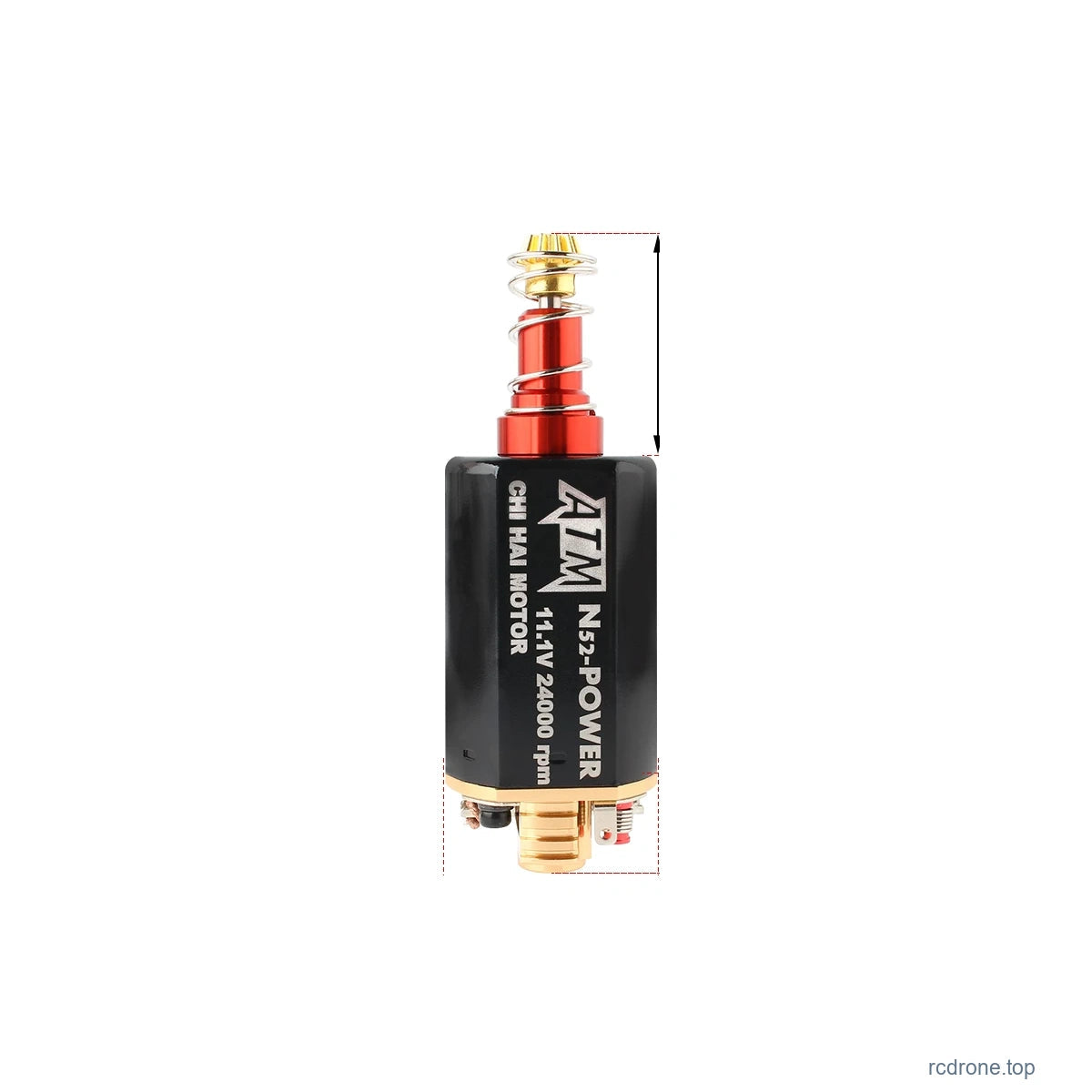

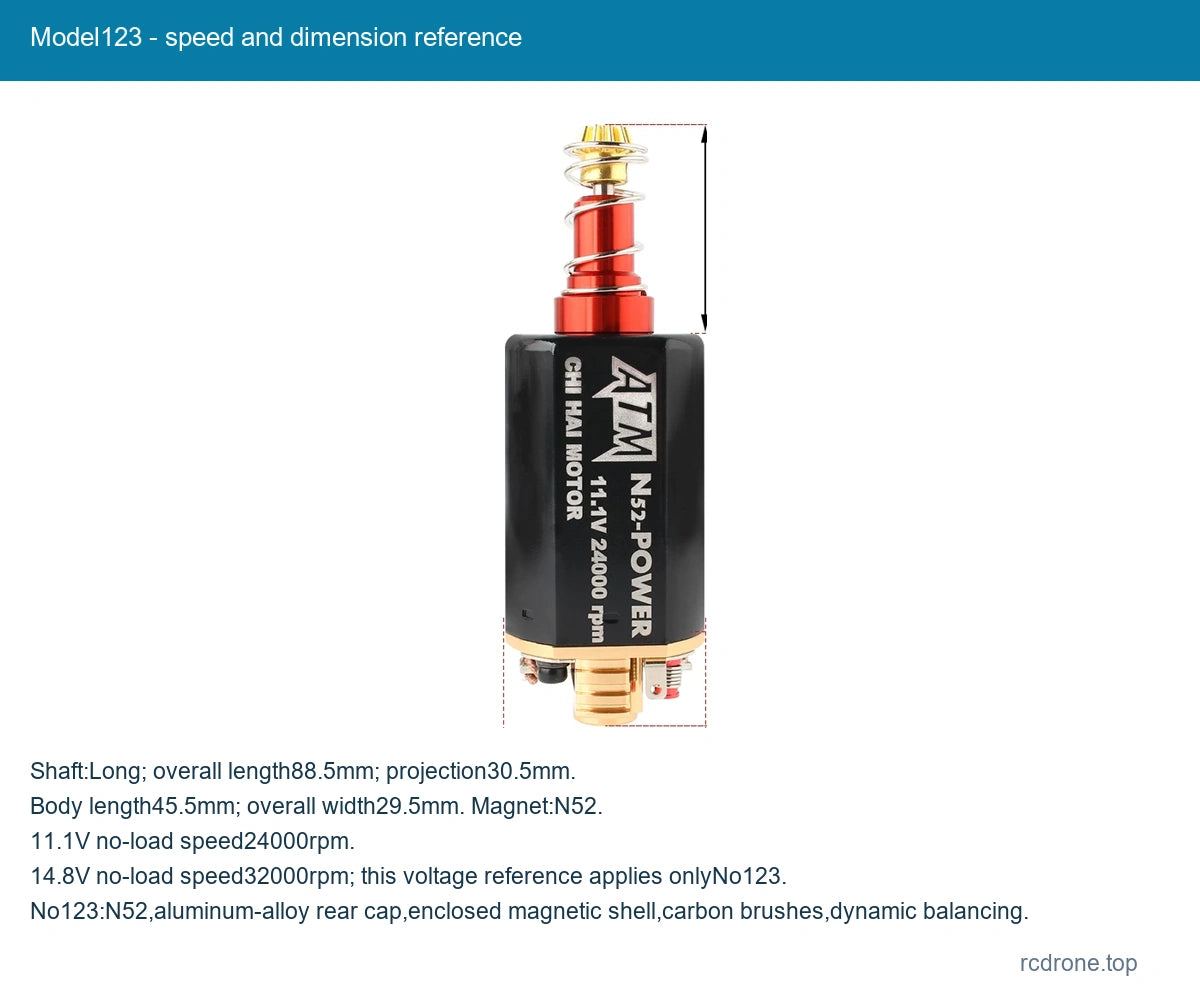

| 123 | Long | 24000 | 32000rpm at14.8V | 88.5 | 30.5 | N52 |

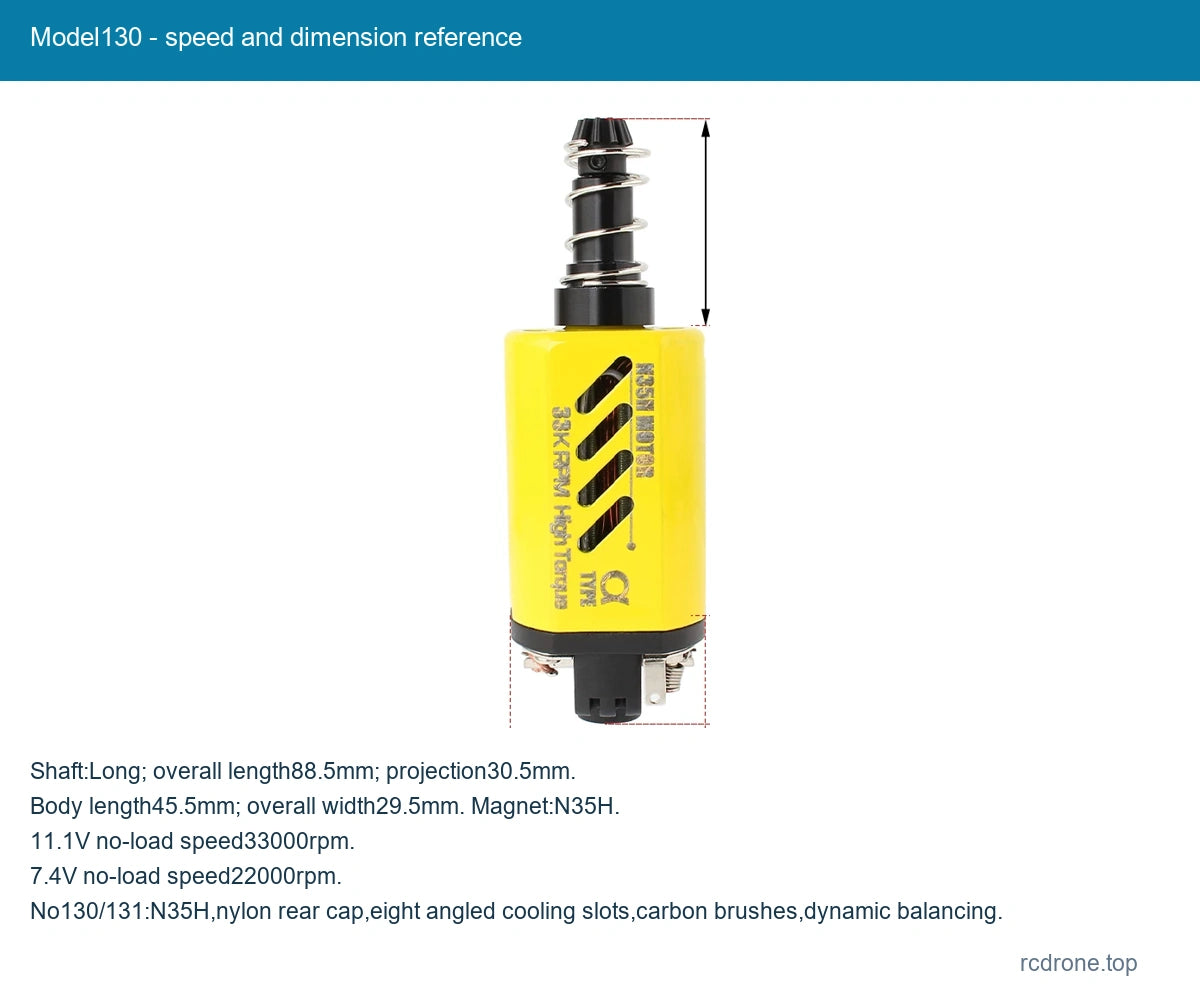

| 130 | Long | 33000 | 22000rpm at7.4V | 88.5 | 30.5 | N35H |

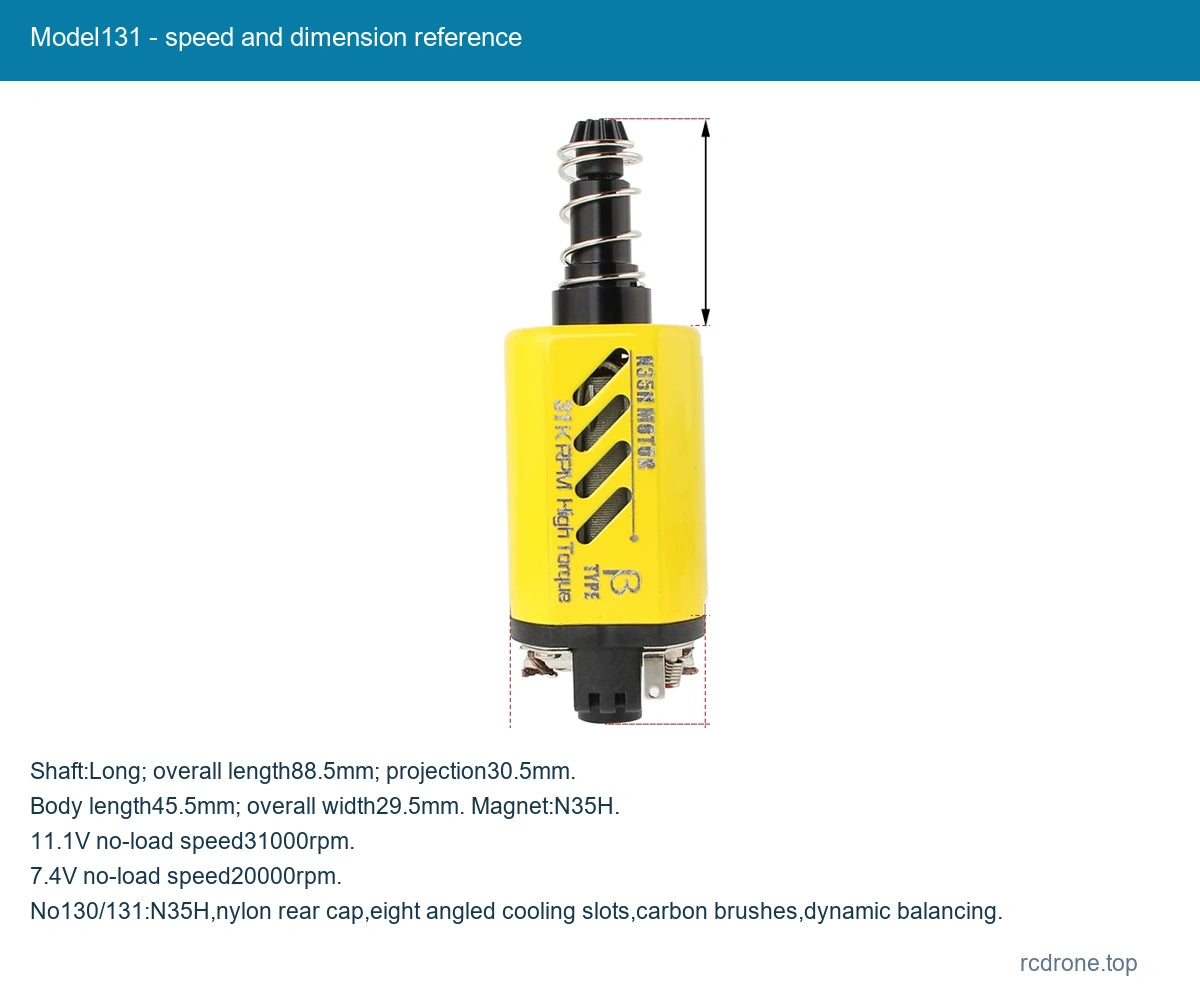

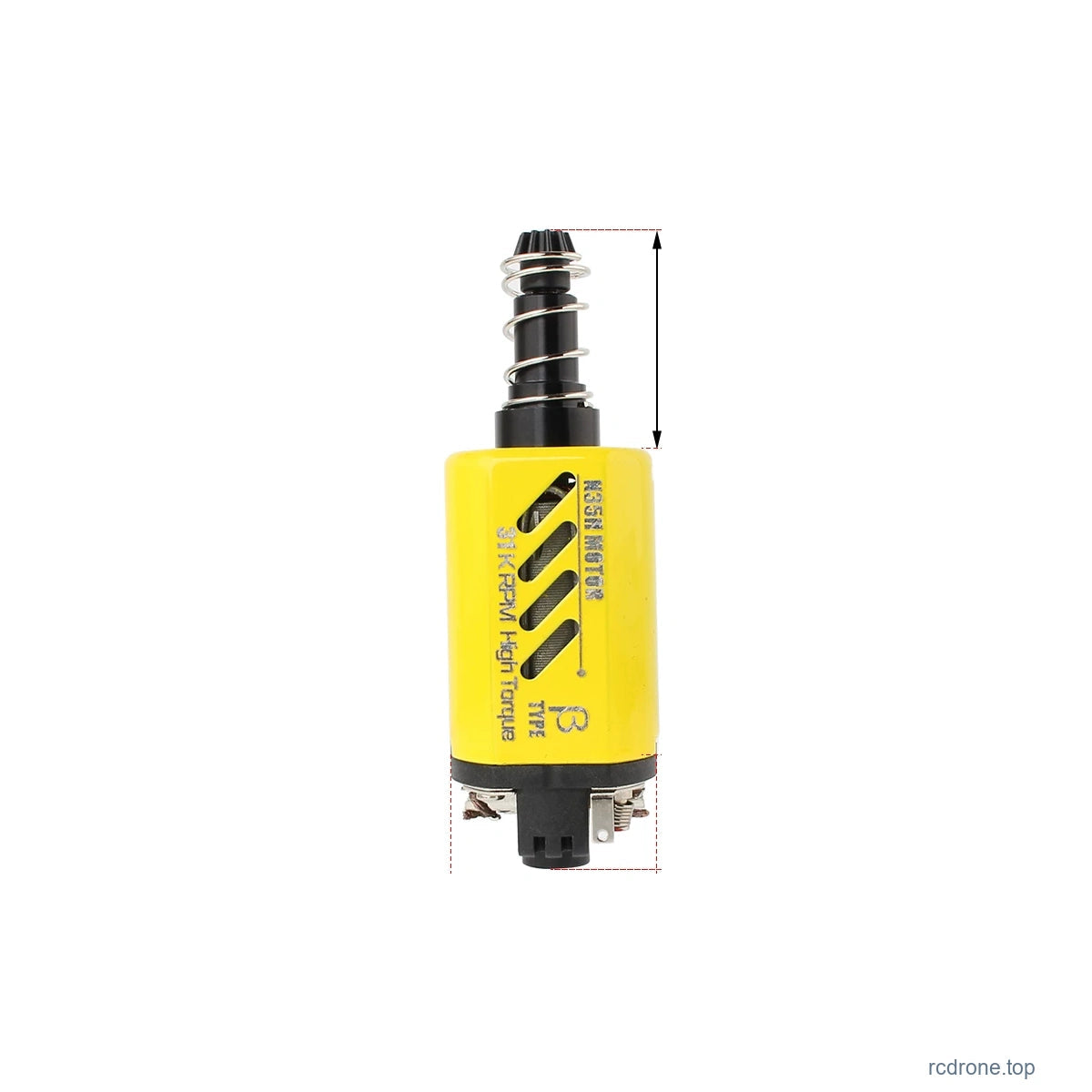

| 131 | Long | 31000 | 20000rpm at7.4V | 88.5 | 30.5 | N35H |
The motor-body length reference is45.5 mm and overall width reference is29.5 mm. No102 is the short-shaft configuration. No123 has its own11.1V/14.8V references; the other numbered choices show7.4V/11.1V references. Match the complete model and actual mechanical clearance rather than using one drawing for all variants.
Electrical Operating Points
| Model | Voltage | No-load current A | Stall torque mN·m | Stall current A |
|---|---|---|---|---|
| 114 | 11.1V | 1.8 | 395.68 | 66.875 |
| 113 | 11.1V | 2.8 | 232 | 69.2 |
| 102 | 11.1V | 2.8 | 232 | 69.2 |
No-load, efficiency, maximum-output and stall figures describe separate operating conditions. No114 performance values below apply only to No114 at11.1V; do not apply them to the other motor choices. Stall figures are transient references, not continuous operating ratings. Avoid prolonged stall and provide a suitable driver,power system and current protection.

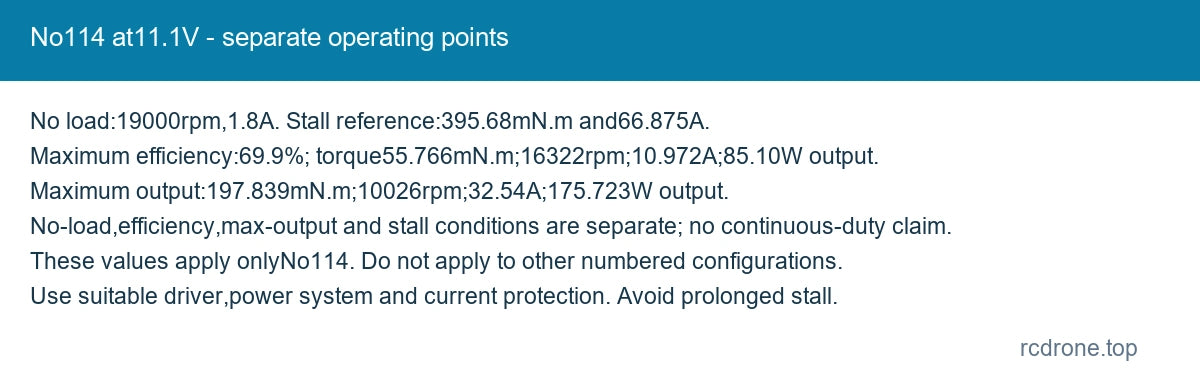

| Operating point | Reference values |
|---|---|
| No114 at11.1V,maximum-efficiency point | 69.9% efficiency;55.766 mN·m torque;16322 rpm;10.972 A;85.10 W output |
| No114 at11.1V,maximum-output point | 197.839 mN·m torque;10026 rpm;32.54 A;175.723 W output |
Model Construction

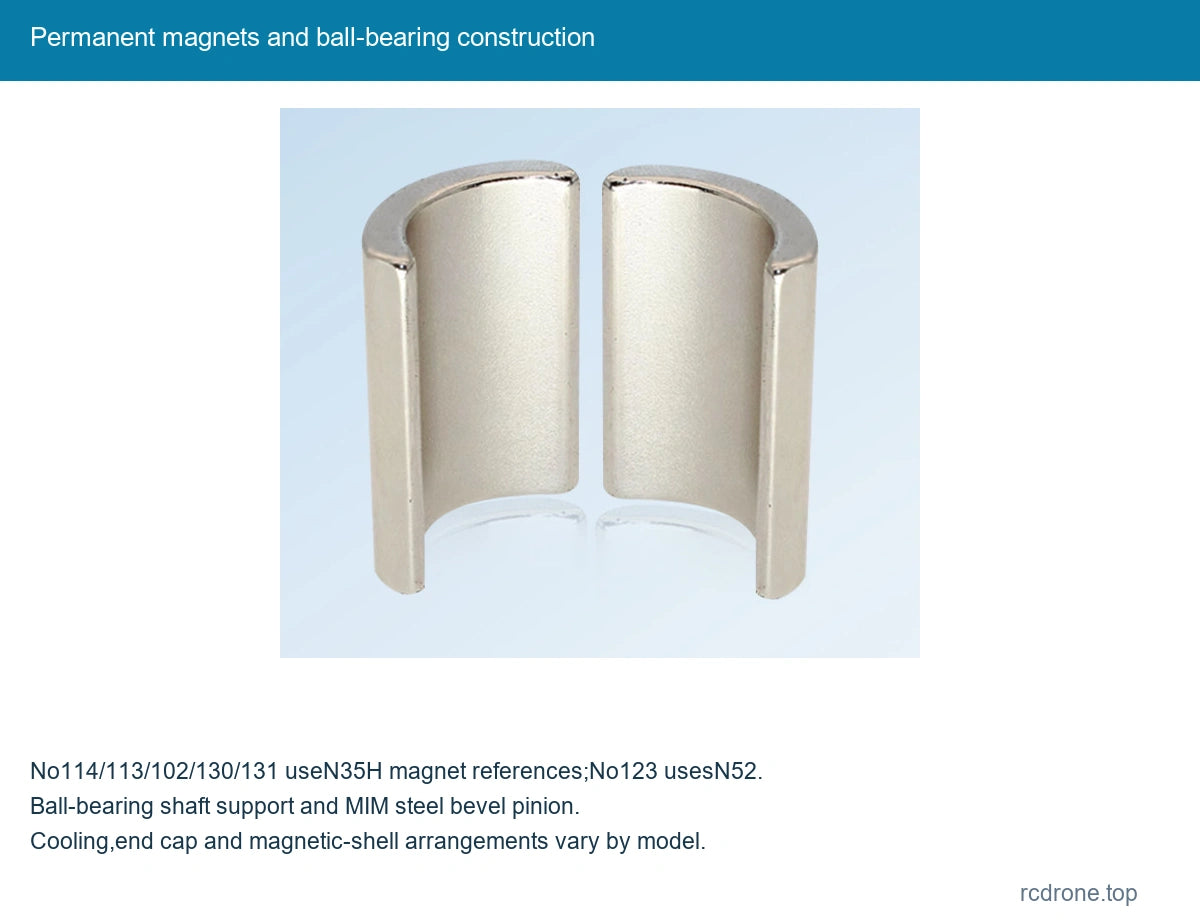

No114,113 and102 use N35H magnets, a heat-resistant nylon end cap, ball-bearing construction and MIM steel bevel pinion. No123 uses N52 magnets, a CNC-machined thermally conductive aluminum-alloy rear cap, carbon brushes, an enclosed magnetic shell, ball bearings and dynamic balancing. No130 Alpha and131 Beta use N35H magnets, eight angled cooling slots, a nylon end cap, carbon brushes, ball bearings and dynamic balancing. Compatibility with external control electronics depends on the intended system; no controller is built into the bare motor.
Installation and Power

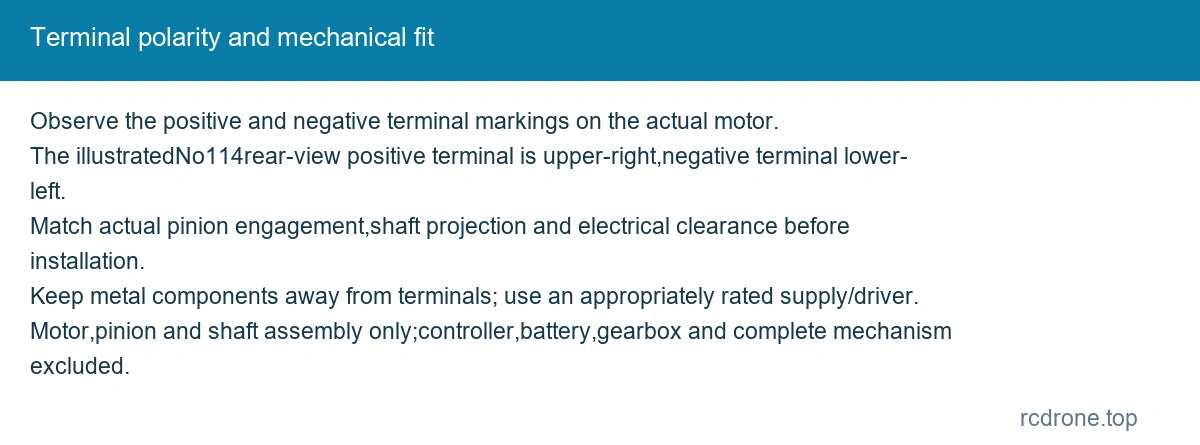

Check motor length, shaft projection,pinion engagement and terminal clearance against the intended assembly. Observe terminal polarity and use a power supply or battery and driver able to support the selected load and startup current. A spring-loaded motor/pinion assembly is shown in the model photographs; confirm mechanical fit before installation. Keep metal parts clear of the electrical terminals. Do not overload or sustain a stall.
Applications
Suitable for compatible ATM-style model drive mechanisms and compact high-torque motor assemblies requiring the selected pinion,shaft length and speed. The terms high torque and low speed are relative to this motor family and do not indicate a built-in reduction gearbox.
What's Included

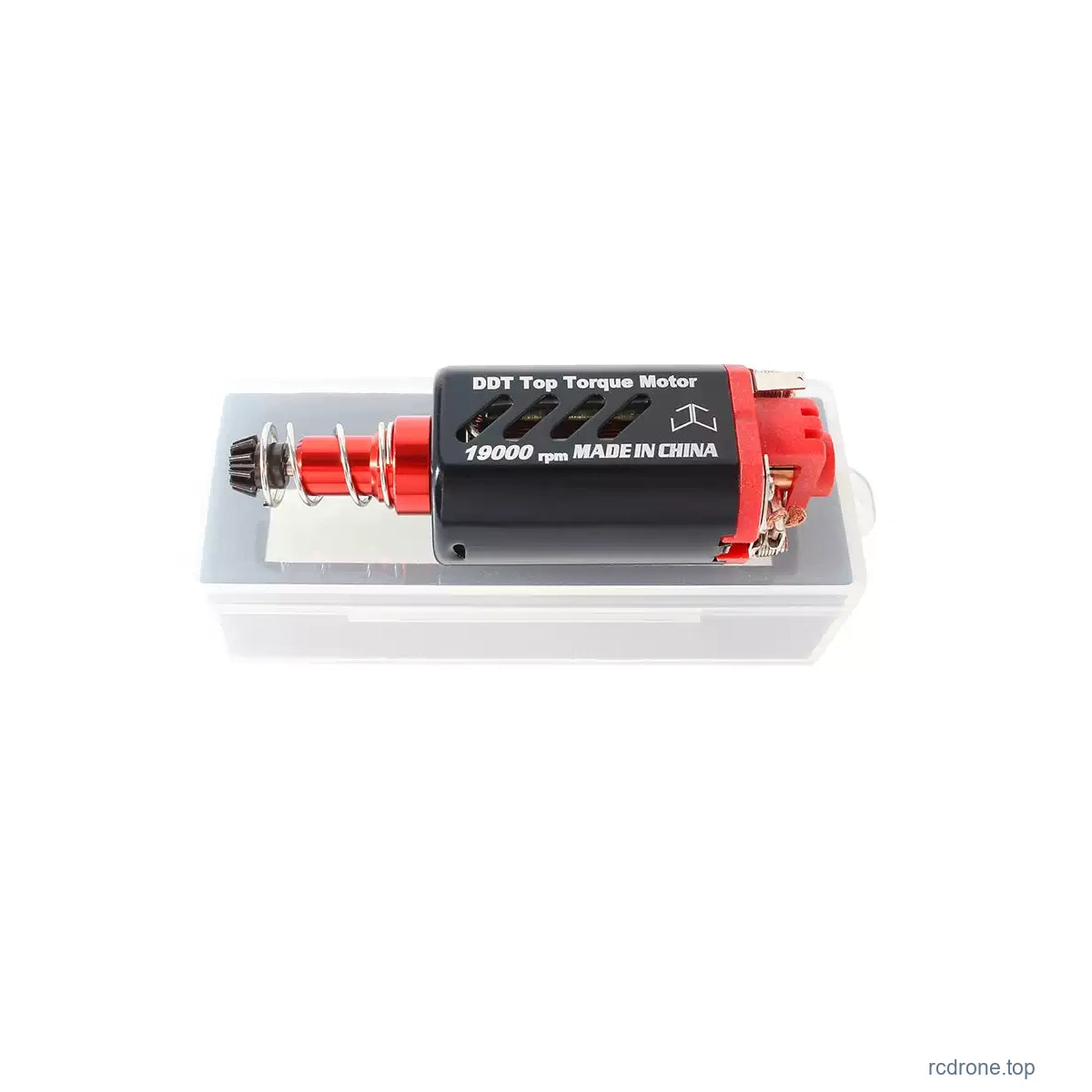

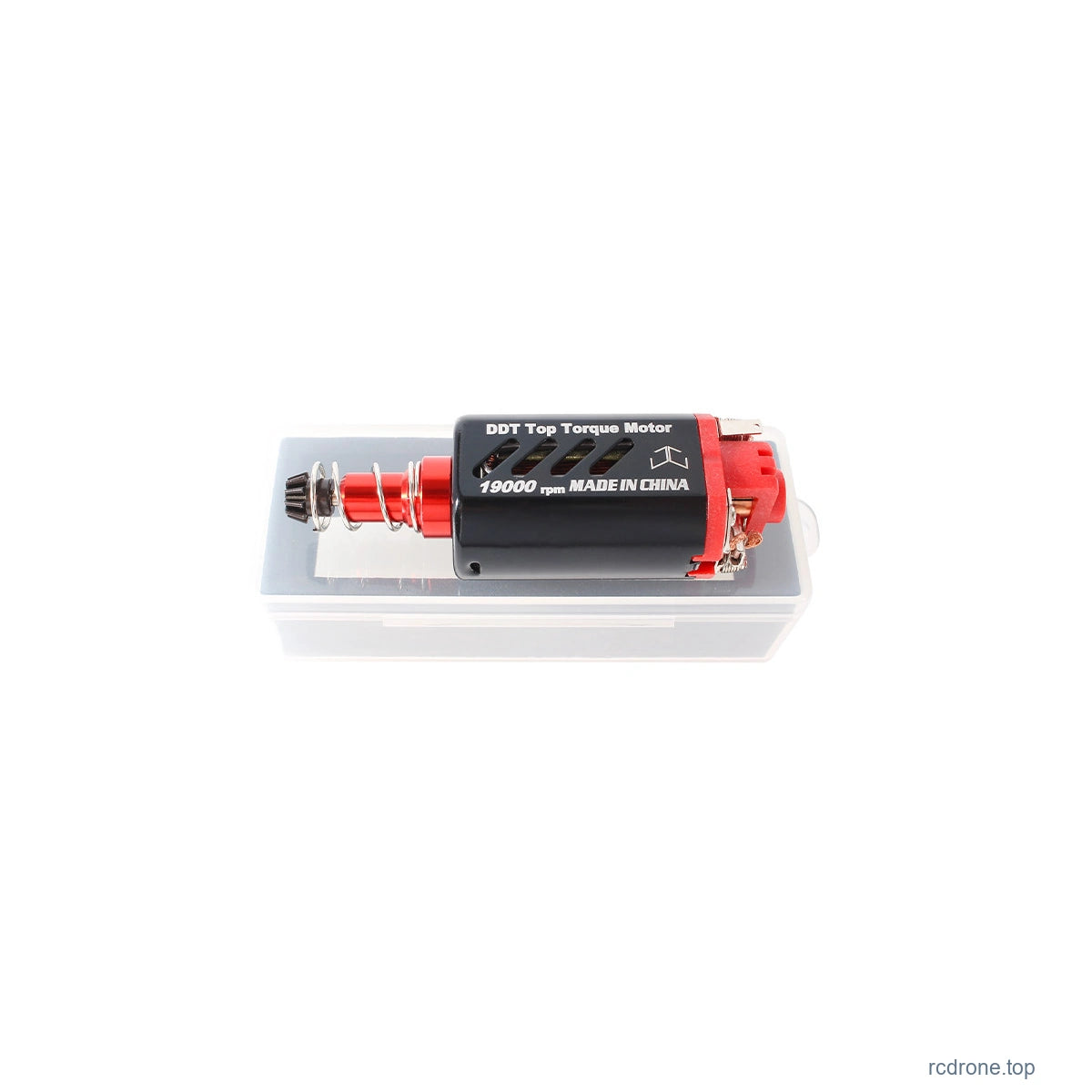

One selected numbered motor with its illustrated pinion and shaft assembly. The storage case is a packaging reference where illustrated. A motor driver,controller,battery,power supply,gearbox and complete model mechanism are not included.
FAQ
Which option has the short shaft?

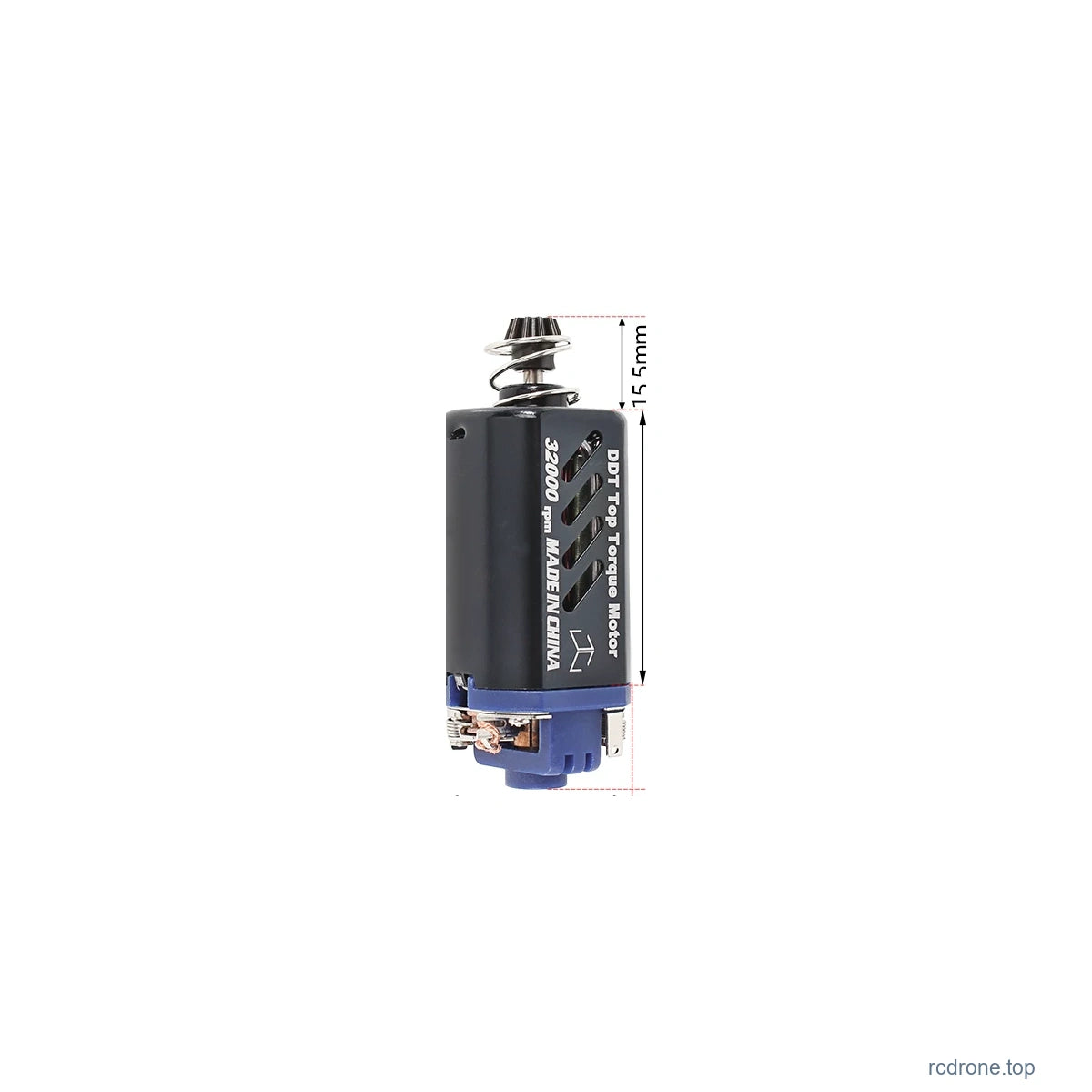

No102 has a15.5 mm shaft/pinion projection reference and74 mm overall length. The other choices use the long-shaft arrangement.
Do all variants share the No114 performance table?
No. The detailed maximum-efficiency and maximum-output figures apply only to No114 at11.1V. Use the model-specific speed and electrical references.
Does the motor include a reduction gearbox?
No. It is a brushed DC motor with a pinion for a separate compatible drive mechanism.
