FLYWOO CineRace20 V2 SPECIFICATIONS

Warranty: six months

Video Capture Resolution: Other

Type: Airplane

State of Assembly: Ready-to-Go

Remote Control: No

Recommend Age: 14+y

Plugs Type: XT30

Package Includes: Original Box

Origin: Mainland China

Operator Skill Level: Beginner

Indoor/Outdoor Use: Indoor-Outdoor

Features: Auto Return,FPV Capable,GPS

Controller Mode: MODE2

Control Channels: 12 Channels & Up

Camera Mount Type: Fixed Camera Mount

Brand Name: FLYWOO

Aerial Photography: No

*Please note that this is the version without O3 air unit.

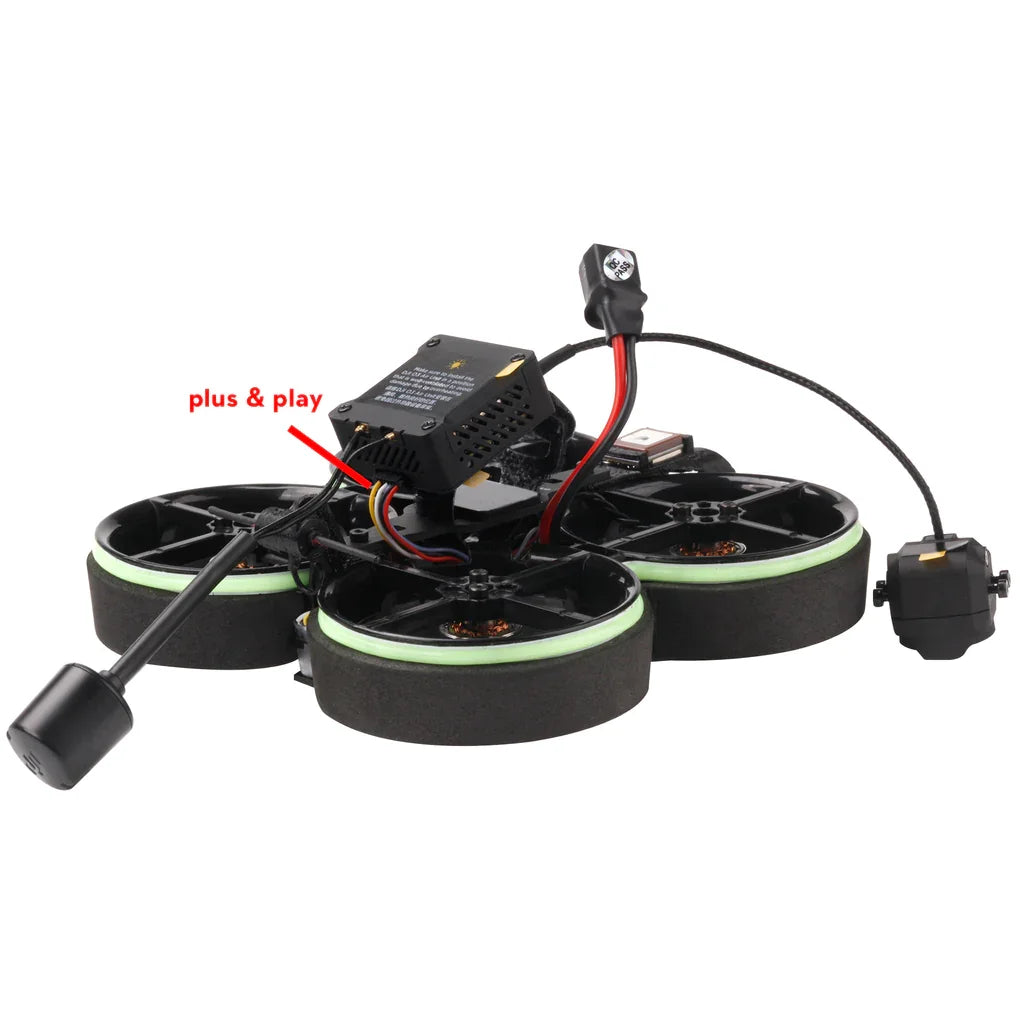

The CineRace20 O3 edition is currently the smallest cinewhoop of FLYWOO that is equipped with the DJI O3 Air unit module, measuring only 2 inch in size.
It features neon LED lights, offering a variety of color options for added fun during races or other events.
A specially designed GM10 Nano V3 GPS module is tailored to fit the CineRace20, providing minimal weight but the ability to search up to 30 satellites.
Use TPU soft material to prevent jelly effect. Pilots can quietly enjoy the fun of shooting a video without jelly
This is a truly innovative duct design. It is designed to block certain winds, increasing the thrust of the drone. The duct completely surrounds the propeller, making flying safer.

• Sub250 (even with battery)

• Support 4K\60fps recording

• GPS up to 30 satellites

• No Propellers in view, NO Jello flight Footage, stable flight picture

• Neon LED, various options. buzzer alarm

• Built-in SanDisk Extreme microSD card 128GB

• Innovative duct design

Specifications ：

• Model: CineRace20 HD DJI O3 2inch

• Brand: FLYWOO

• Frame:CineRace20 O3 (Different fromCineRace20 V1.2\V2 frame )

• FC and ESC :GOKU GN 405S 20A AIO

• GPS: GOKU GM10 Nano V3 GPS

• Buzzer : 5PCS Active Alarm Buzzer

• Propeller: D51-5 51mm

• Antenna: DJI O3 antenna

• Motor:NIN V2 1203PRO 4850Kv

• Weight: 139g

• Recommended Battery:
  Exploer 450mah 4S( flight time  5mins )
  Explorer 750mah 4S ( flight time  6mins )

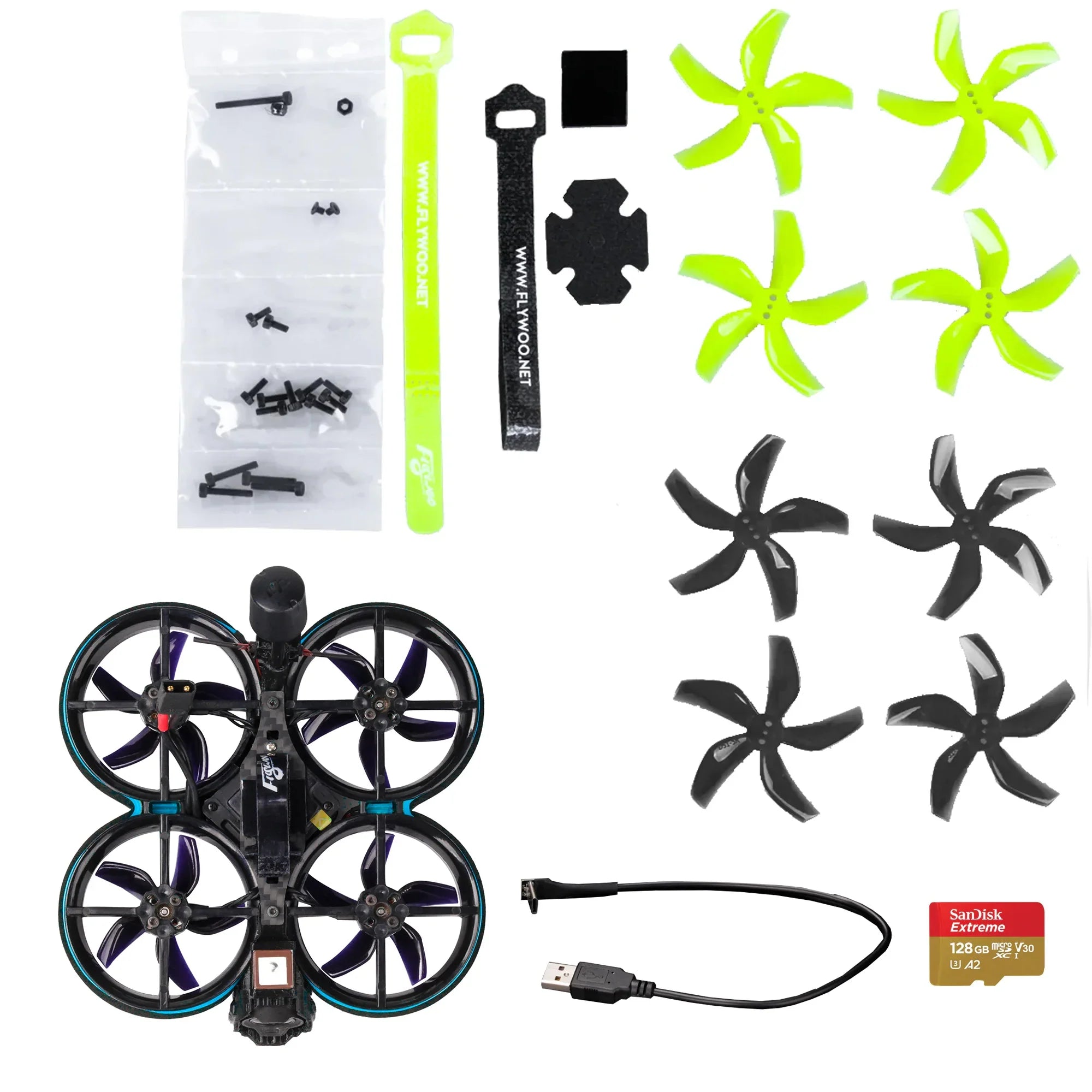

In the Box :

• 1 x CineRace20 HD DJI O3 (Without O3 Air unit)

• 8 x D51-5 props

• 2 x Battery strap  9x150mm \ 9x200mm

• 1 x Set of screws

• 1 x 90° USB Type-C
  1x GOKU GM10 V3 NANO GPS

--------------

Related Article:

FLYWOO CineRace20 V2 HD Review

 **FLYWOO CineRace20 V2 HD DJI O3 2-inch Cineshoop: A Compact and Powerful Cinematic Drone**

Introduction:

The FLYWOO CineRace20 V2 HD DJI O3 2-inch cineshoop is a remarkable drone designed specifically for capturing high-quality aerial footage. Packed with advanced features and a compact frame, this drone offers an exceptional flying experience for both professionals and hobbyists. In this evaluation article, we will explore the product composition, parameters, advantages, operating instructions, and frequently asked questions to provide a comprehensive overview of this impressive drone.

Product Composition:

The FLYWOO CineRace20 V2 HD DJI O3 2-inch cineshoop consists of carefully selected components that work together to deliver exceptional performance. The key components include:

1. Frame: The CineRace20 O3 frame sets this drone apart from its predecessors, providing enhanced durability and stability during flight. This frame is specifically designed for the DJI O3 Air unit, ensuring a seamless integration.

2. Flight Controller (FC) and Electronic Speed Controller (ESC): Equipped with the GOKU GN 405S 20A AIO FC and ESC, this drone offers reliable and precise control. The GOKU GN 405S 20A AIO is known for its advanced features, including multiple flight modes and integrated power distribution.

3. GPS: The FLYWOO CineRace20 V2 HD DJI O3 2-inch cineshoop incorporates the GOKU GM10 Nano V3 GPS module, which provides accurate positioning and navigation capabilities. The GPS functionality enhances the drone's stability and enables advanced flight modes such as return-to-home and waypoint navigation.

4. Buzzer: The inclusion of five active alarm buzzers ensures that the drone remains easily locatable in case of an emergency or loss of signal. This is a valuable safety feature that adds an extra layer of security to the drone.

5. Propellers: The D51-5 51mm propellers offer an ideal balance between efficiency and maneuverability. These propellers are designed to maximize thrust while maintaining stable flight characteristics, contributing to the overall performance of the drone.

6. Antenna: The DJI O3 antenna ensures reliable communication between the drone and the remote controller, allowing for seamless transmission of HD video and control signals.

7. Motor: The NIN V2 1203PRO 4850Kv motor is a high-performance component that provides ample power and responsiveness. This motor is designed to handle the demands of fast-paced cinematic flights, ensuring smooth and precise maneuvers.

Parameters:

- Model: CineRace20 HD DJI O3 2-inch
- Brand: FLYWOO
- Frame: CineRace20 O3 (Different from CineRace20 V1.2\V2 frame)
- FC and ESC: GOKU GN 405S 20A AIO
- GPS: GOKU GM10 Nano V3 GPS
- Buzzer: 5PCS Active Alarm Buzzer
- Propeller: D51-5 51mm
- Antenna: DJI O3 antenna
- Motor: NIN V2 1203PRO 4850Kv
- Weight: 139g
- Recommended Battery:
- Exploer 450mAh 4S (flight time 5 minutes)
- Explorer 750mAh 4S (flight time 6 minutes)

Advantages:

1. Compact and Lightweight: The FLYWOO CineRace20 V2 HD DJI O3 2-inch cineshoop boasts a compact design, making it highly portable and easy to carry. Its lightweight construction contributes to improved

maneuverability and flight performance.

2. High-Quality Video: The integration of the DJI O3 Air unit and antenna allows for high-definition video transmission, ensuring crystal-clear footage. Filmmakers and content creators can capture stunning aerial shots with exceptional clarity and detail.

3. Enhanced Flight Control: The GOKU GN 405S 20A AIO FC and ESC provide precise and responsive flight control. With multiple flight modes and customizable settings, pilots can tailor the drone's behavior to suit their preferences and specific filming requirements.

4. Reliable GPS Navigation: The GOKU GM10 Nano V3 GPS module enhances the drone's stability and enables advanced flight features. Users can rely on accurate positioning, waypoint navigation, and the convenience of return-to-home functionality.

Operating Instructions:

1. Assembly: Carefully follow the provided instruction manual to assemble the drone components. Ensure all connections are secure and double-check the propeller installation.

2. Powering On: Connect the battery to the drone and power it on using the designated power button or switch. Make sure the remote controller is also powered on and properly paired with the drone.

3. Pre-flight Check: Before each flight, perform a thorough pre-flight check, including inspecting the propellers, verifying GPS signal lock, and confirming the battery level.

4. Flight Modes: Familiarize yourself with the available flight modes supported by the GOKU GN 405S 20A AIO FC. Experiment with different modes to understand their effects on the drone's behavior and adjust settings accordingly.

5. Camera Setup: Set up the DJI O3 Air unit according to the manufacturer's instructions. Ensure the video feed is stable and of high quality before commencing any recording or live streaming.

6. Flight Safety: Adhere to local regulations and guidelines for safe drone operation. Avoid flying near restricted areas, maintain line-of-sight, and be mindful of weather conditions that could affect flight stability.

FAQs (Frequently Asked Questions):

Q1: Can I use different propellers with the FLYWOO CineRace20 V2 HD DJI O3?

A1: While it's possible to experiment with different propellers, it's recommended to use the provided D51-5 51mm propellers for optimal performance and compatibility.

Q2: What is the maximum range of the DJI O3 antenna?

A2: The maximum range of the DJI O3 antenna may vary depending on environmental factors and interference, but it typically offers a reliable signal transmission range of several kilometers.

Q3: Is the FLYWOO CineRace20 V2 HD DJI O3 suitable for beginners?

A3: This drone is more suited for intermediate to advanced users due to its advanced flight control features and technical specifications. Beginners may find it more challenging to operate compared to entry-level models.

Q4: Can I use a different battery with the FLYWOO CineRace20 V2 HD DJI O3?

A4: While the recommended battery options are specified for optimal flight time and performance, you may experiment with other compatible batteries. Ensure they are within the recommended specifications and take into account the impact on flight characteristics.

Conclusion:

The FLYWOO CineRace20 V2 HD DJI O3 2-inch cineshoop is a remarkable cinematic drone that offers a winning combination of advanced features, compact design, and high-quality aerial footage capabilities. With its durable frame, reliable flight control system, and integration of DJI O3 Air unit, this drone is an excellent choice for capturing stunning visuals in various environments. While it may require some experience to fully utilize its capabilities, the FLYWOO CineRace20 V2 HD DJI O3 2-inch cineshoop provides an immersive and exhilar

ating flying experience for both professionals and enthusiasts alike.
