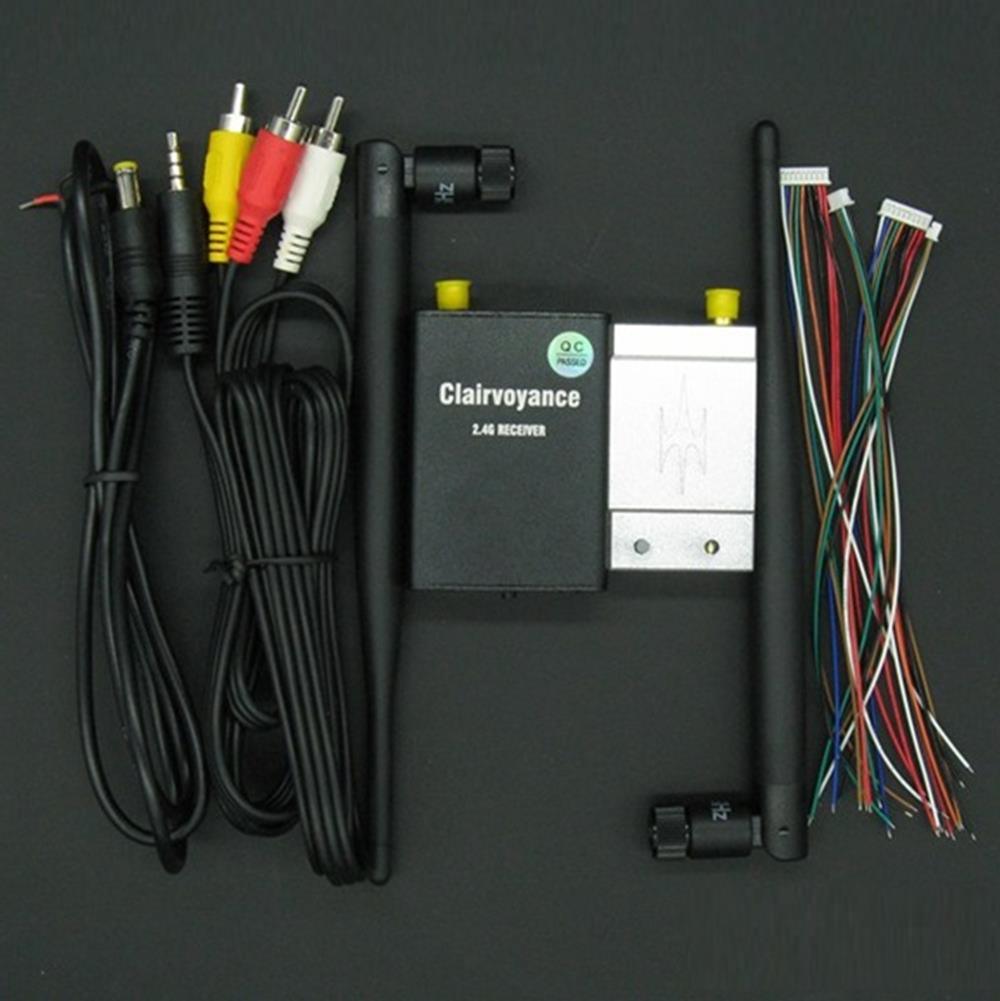

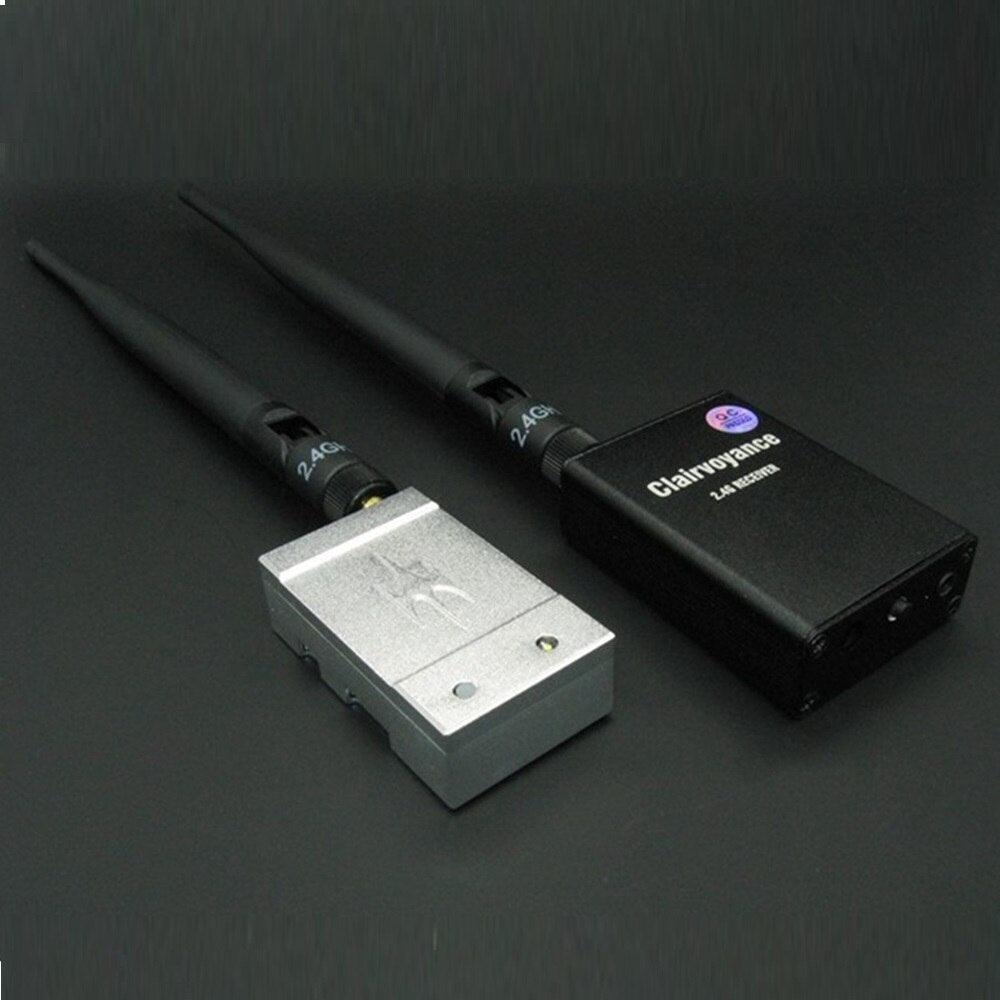

CT210+CR800 TX RX Combo - 50KM Long Range 2.4GHz 2.4G FPV 1W 1000mw AV Wireless Transmission Telemetry Transmitter Receiver

50KM Long Range 2.4GHz 1W FPV AV Wireless Transmission Telemetry Transmitter Receiver TX RX CT210+CR800 Combo

Best Design:

1.Best heat dissipation, only 40 degree.
2.Longest distance, 18km clear video.
3.Lowest power dissipation, only 300mA current.
4.Most function, with 3-way video switch, support 3 camera, switching in work.

Specifications:

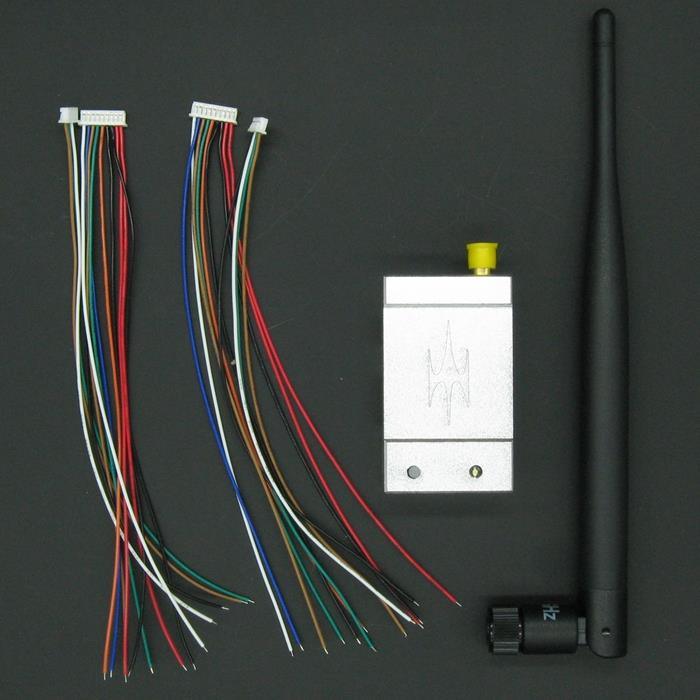

- Model: CT210
- Voltage range: 7~27V
- Send power: 1000mW/30DB
- Send current: 12V 300mA
- Dimension: 33*56*17mm
- Sender N.W.: 39g
- Work frequency: 2.4GHz
- Send power: 1W(30DB)
- Receive sensitivity: -93db
- Antenna gain: 6db
- Dimension: 62*45*19mm
- Receiver Weight: 24g
- Channels: CH1 2370; CH2 2390; CH3 2414; CH4 2432; CH5 2450; CH6 2468; CH7 2490; CH8 2510

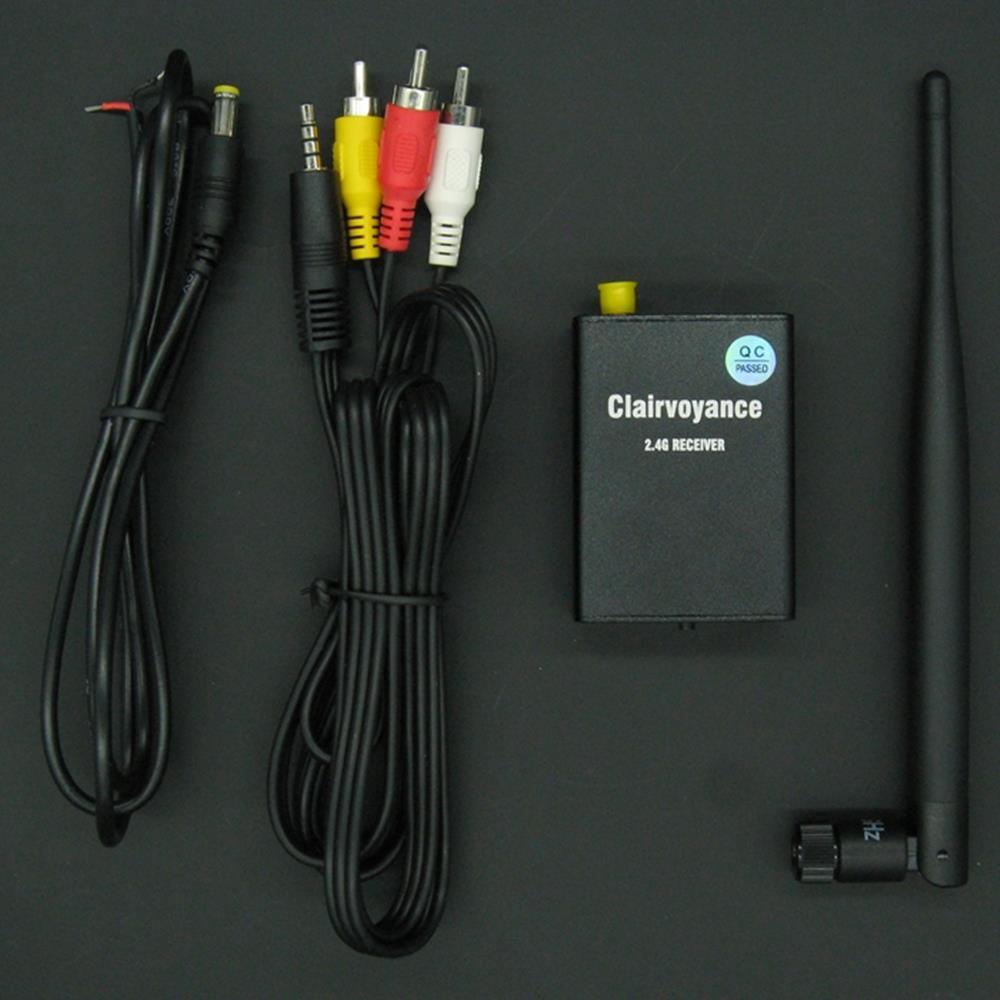

- Model: CR800
- Work frequency: 2.4GHz
- Receive sensitivity: -93db
- Antenna gain: 6db
- Dimension: 62*45*19mm
- Weight: 24g
- Channels: CH1 2370; CH2 2390; CH3 2414; CH4 2432; CH5 2450; CH6 2468; CH7 2490; CH8 2510

Product Feature:

1.The surface is made of aerolite, which show perfect look.
2.Great heat dissipation, working 30mins in temperature of 20 degree, the temperature of the module is lower than 50degree.
3.Low power dissipation, only 300mA current under 12V
4.Super light with only 39g
5.Support  switch in work
6.Support 7-27V wide-band input, support 2-6S battery.
7.Indicator light show the frequency
8.Built in with three-way video switch module.
9.JST1.25 connector can decrease voltage compared with DUPONT connector.
