CUAV Open Source NEW Nora+ Integrated Autopilot Flight Controller PX4 SPECIFICATIONS
Wheelbase: Bottom Plate
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Flight controller
Tool Supplies: Assembled class
Technical parameters: KV1100
Size: 64*46*22mm
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 14+y
RC Parts & Accs: Speed Controllers
Quantity: 1 pcs
Origin: Mainland China
Model Number: Nora+
Material: Metal
Four-wheel Drive Attributes: Shell/Chassis/Wing/Head
For Vehicle Type: Helicopters
Certification: CE,FCC
Brand Name: CUAV

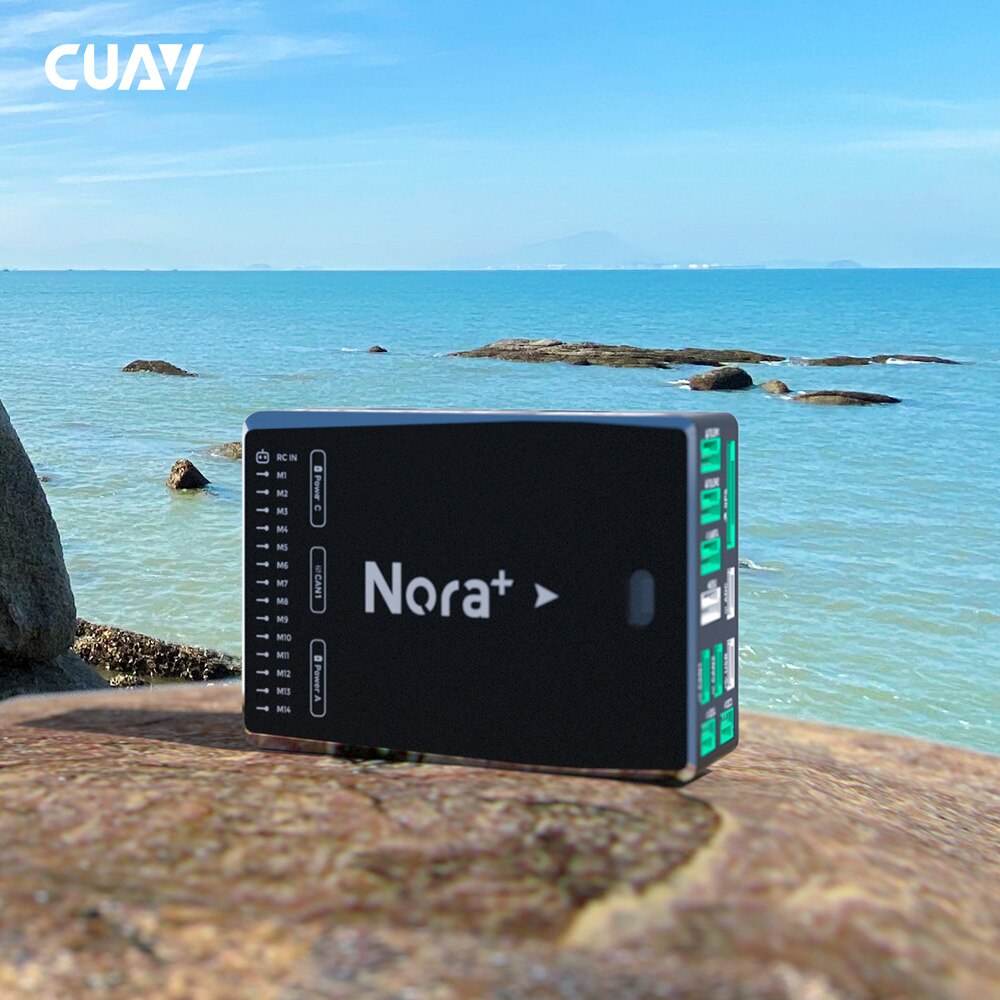

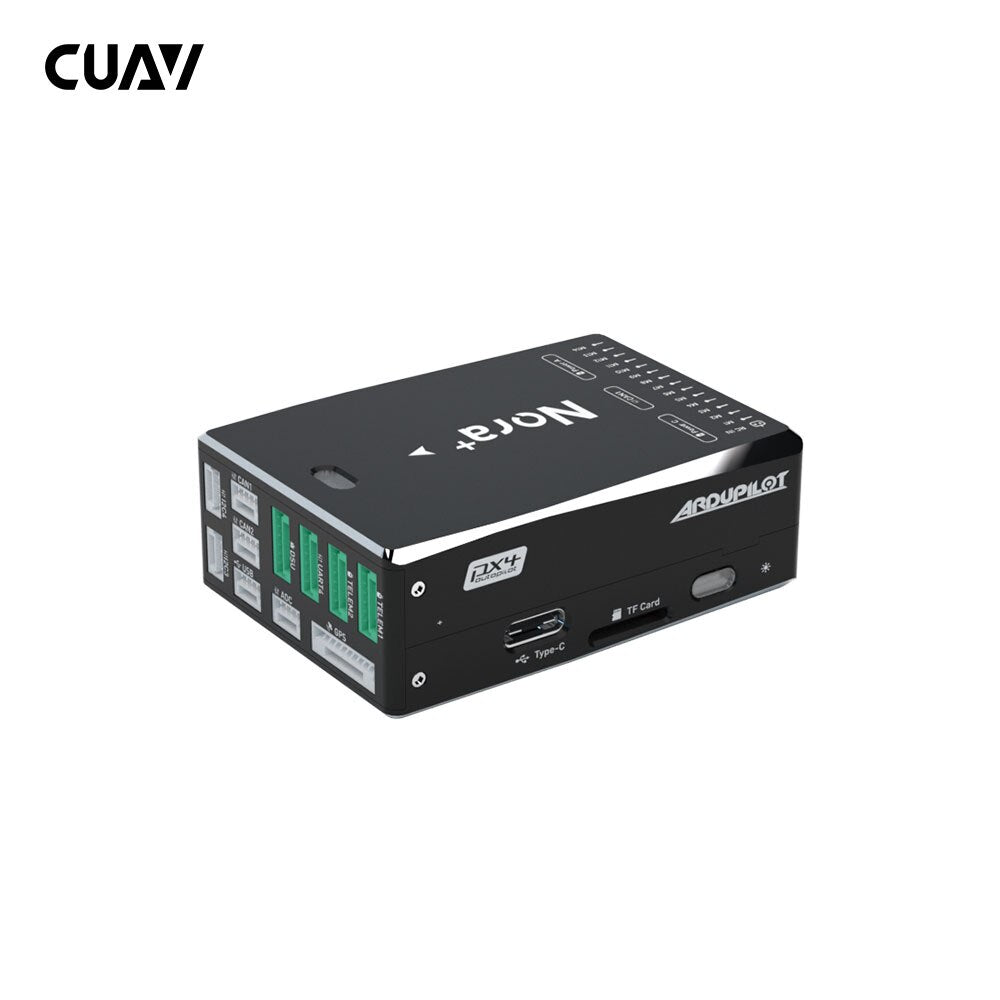

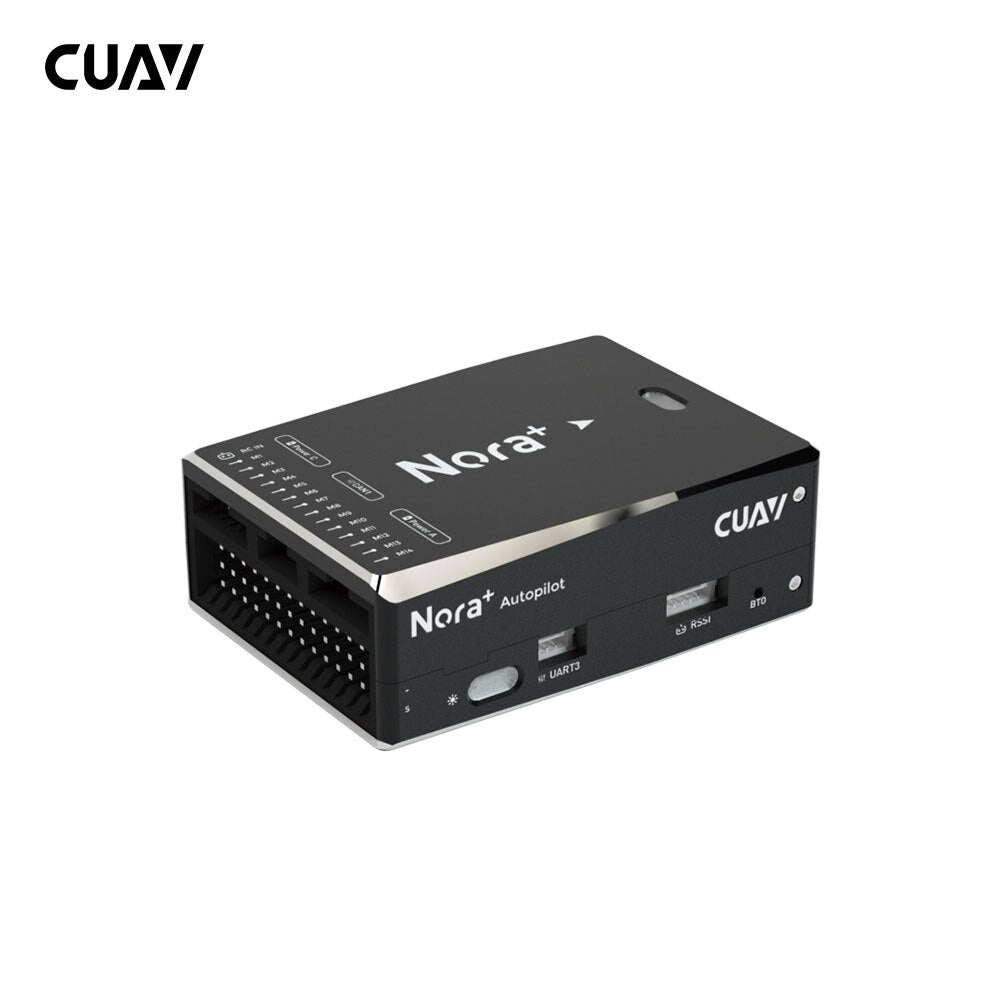

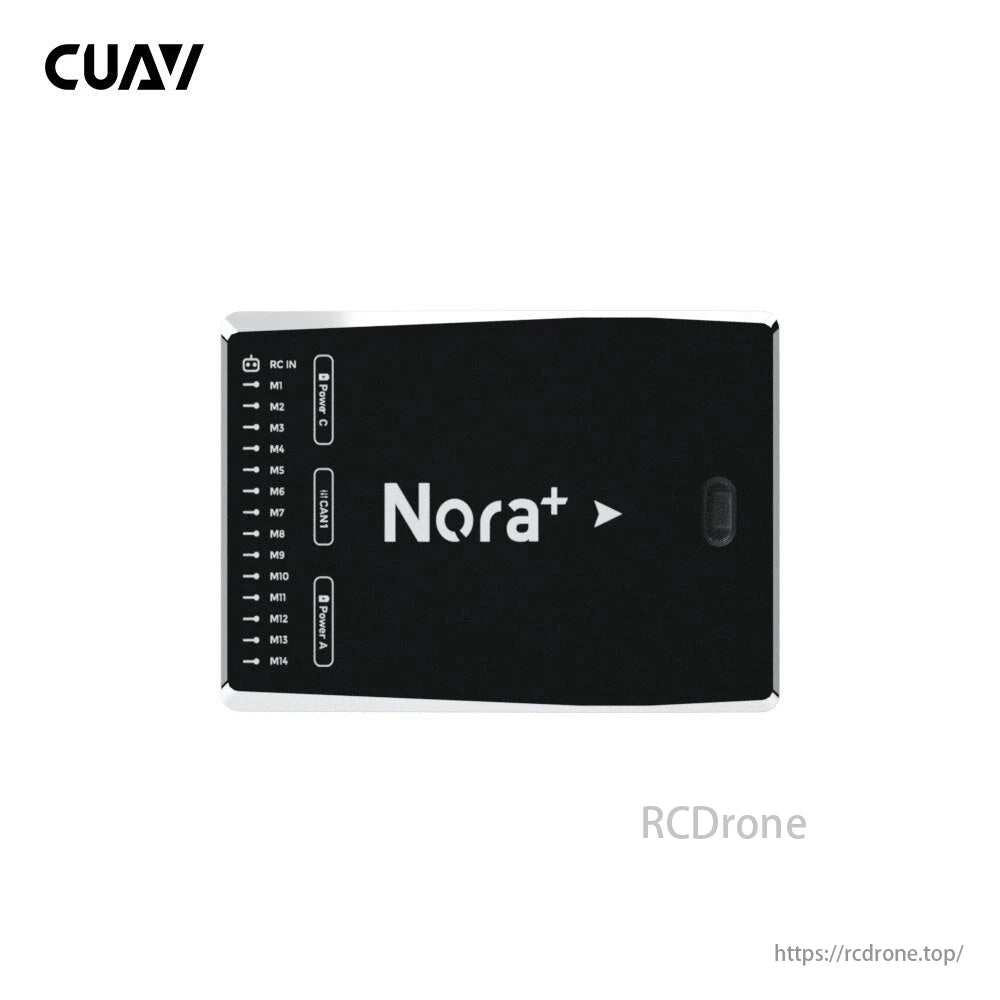

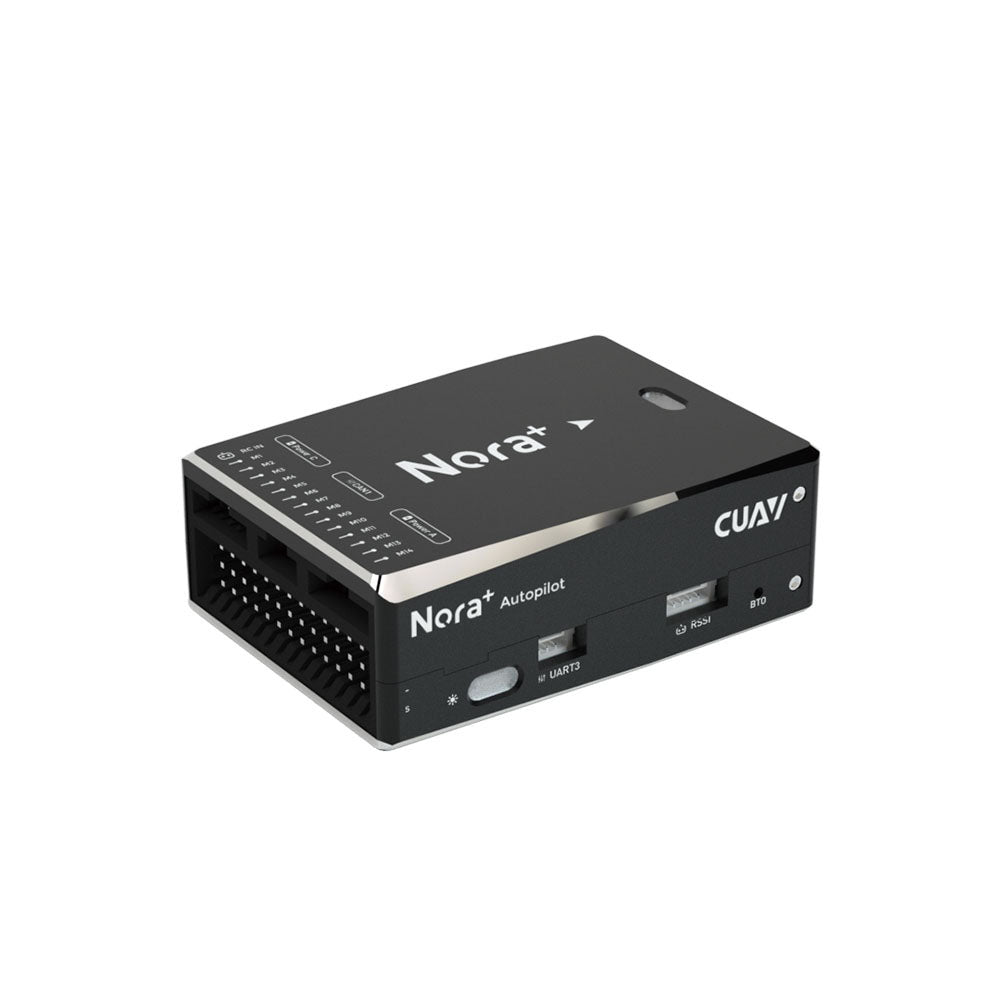

CUAV Nora+ Autopilot
CUAV NEW Nora+ Autopilot Integrated Flight Controller for FPV RC Drone Quadcopter Helicopter pixhawk
Nora+ Introduction:
Nora+ is a cost-effective flight controller with excellent performance, compact body and light size. Built-in industrial GRADE RM3100 compass, CUAV patented shock absorption design and temperature compensation system for better stability and interference immunity.
Nora+ Features:
1 --Classic side interface design
2 --Built-in shock absorption
3 --3 sets of Imus support intelligent failover
4 --Support temperature compensation
5 --Support CAN ammeter
6 --Modular design, support custom baseboard
The Nora+ autopilot system utilizes a powerful STM32H743-series processor featuring a dual-core Cortex-M7 architecture with a built-in double-precision floating-point unit, delivering exceptional performance.
The Nora+ flight controller continuously monitors data from multiple sensors in real-time, and in the event of a failure, it instantly switches to redundant systems, ensuring improved flight safety through redundancy.
The Nora+ features an integrated shock-absorption system, designed to fit within a compact volume, allowing you to enjoy smoother and more stable flight experiences without compromise.
The Nora+ autopilot features an integrated design, incorporating a single-piece FPCB (Flexible Printed Circuit Board) that forms the overall structure, eliminating the need for secondary welding or inserted components.
The Nora+ autopilot features the ICM-42688-P, which boasts a significantly reduced noise figure (40% reduction) and enhanced temperature stability, offering two times better performance in this regard.
The Nora+ autopilot features a built-in high-precision sensor temperature compensation system, which ensures that sensors operate at a consistent temperature, thereby enabling stable and precise performance across a wide range of high and low temperatures.
The Nora+ autopilot's Standard Pack Digital Power Module includes a digital power detection module, utilizing CUAV's proprietary R&D ITT algorithm to provide accurate real-time measurement of voltage and current in UAV systems, thereby enhancing flight time estimation reliability.
The Nora+ autopilot features Air LTE-LINKe 23MR link technology, which establishes a connection to support LTE Link series 4G telemetry, enabling seamless transmission of flight video and data without distance limitations.
The Nora+ autopilot offers CUAV's RTK&PPK series products, enabling centimeter-level positioning accuracy when purchased separately. Additionally, the DP GPS RTK and C-RTK 2 system are also available for further precision.
The Nora+ autopilot features a processor based on the STM32H743/753 architecture, operating at a frequency of 48 MHz. The specifications include: * Flash memory: 2 MB * RAM: 1 MB * Accelerometer and Gyro: ICM-42688-P (2-axis) * Serial interfaces: + 2 UARTs + 12C (6 channels, with 2 interfaces integrated in GPS, SAFETY, and UART4) * CAN bus * Analog-to-digital converter (ADC) input: 1 channel (supports 6.6V/3.3V) * SPI interface * PWM output: 14 channels (M1-M12 support DSHOT protocol) * RC input: supports PPM, SBUS, DSM, and RSS protocols
The Nora+ autopilot includes accessories such as: * X1 CAN PMU Lite Power Module * Dupont cable for CAN extension board * Pw-Link module * USB-C cable * SamDisk 16G8M memory card
