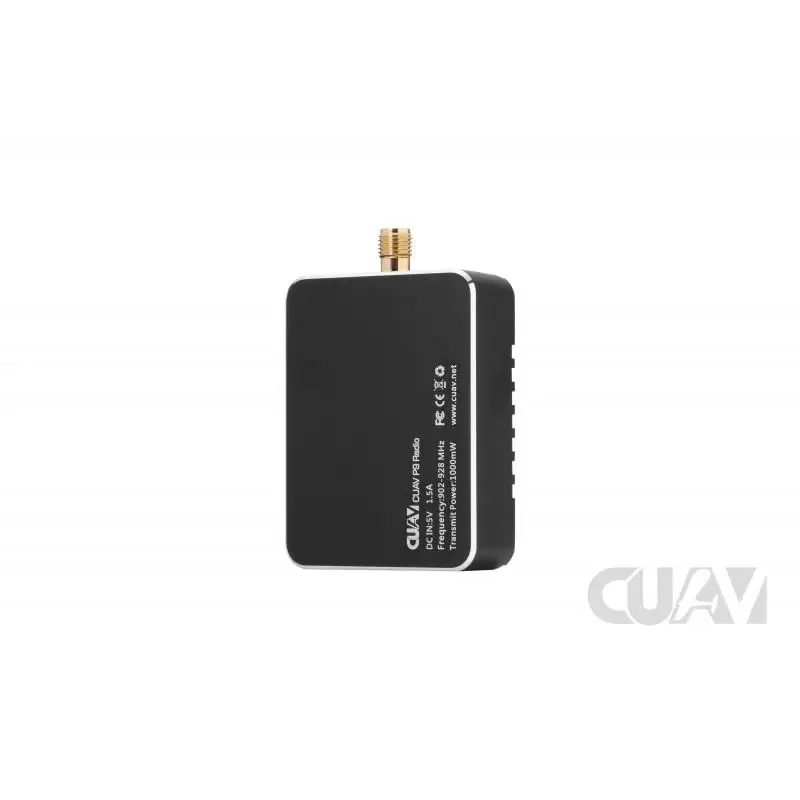

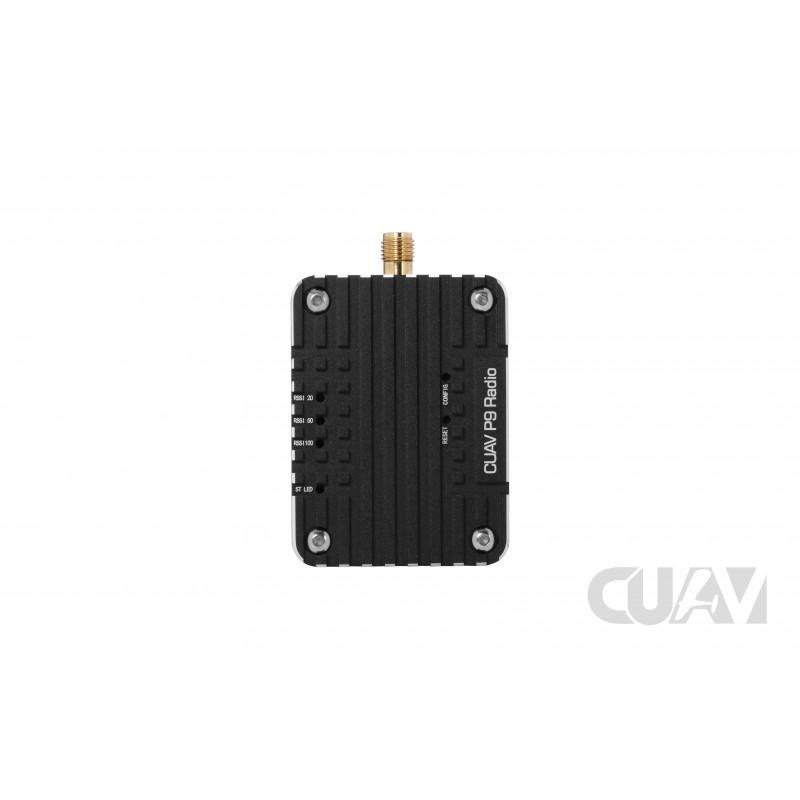

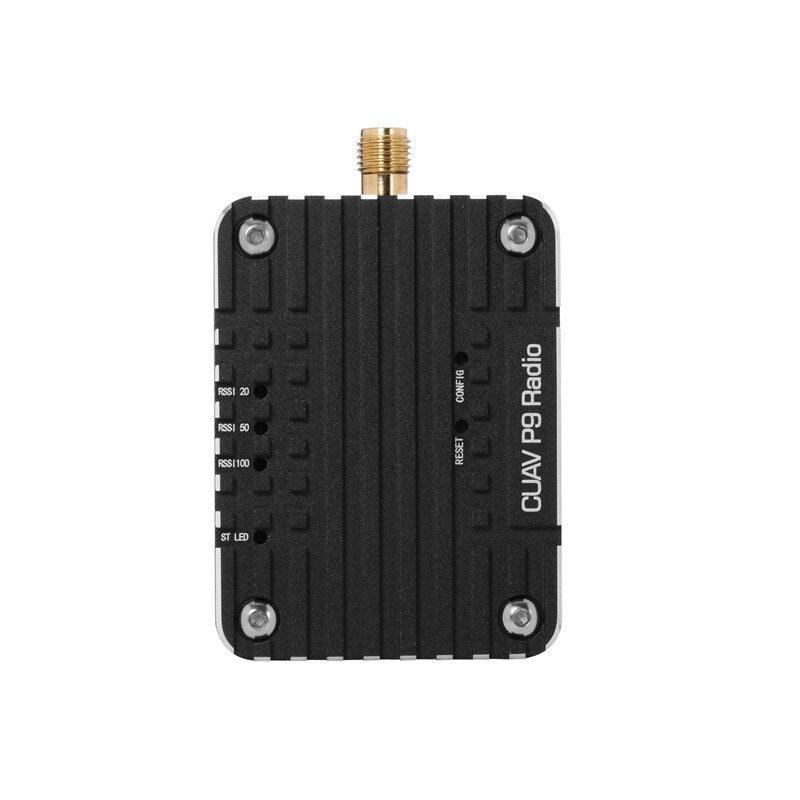

CUAV P900 - 60KM Radio Telemetry RADIO DATA Digital TRANSMISSION MODULE 1000MW 1W 2PCS For station pixhack Data Transmit

CUAV P900 - 60KM Radio Telemetry RADIO DATA Digital TRANSMISSION MODULE 1000MW 1W 2PCS For station pixhack Data Transmit

CUAV

Regular price $332.38 USD
Regular price $465.33 USD Sale price $332.38 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

35 orders in last 90 days

Color

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

CUAV P900 Radio Telemetry SPECIFICATIONS

Wheelbase: Screws

Upgrade Parts/Accessories: Adapter

Tool Supplies: Cutting

Technical parameters: Value 2

Size: As description

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Receivers

Quantity: 1 pcs

Origin: Mainland China

Model Number: CUAV P900 RADIO DATA TRANSMISSION MODULE

Material: Metal

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

60KM Radio Telemetry CUAV P900 RADIO DATA Digital TRANSMISSION MODULE 1000MW 1W 2PCS For station pixhack Data Transmit



Items included:
2*P9 radio
1*3-12s power module
2*900MHz antenna
1* micro USB line
2*flight control data line

Remark:Will send according your choose



Item description:

Frequency: 902-928 MHz
Spreading Method: Frequency Hopping
Forward Error Detection: Hamming /BCH/Golay/Reed-Solomon
Error Detection: Error Detection 32 bits of CRC, ARQ
Encryption: Optional (see –AES option)
Range: 40 miles (60 km)



Sensitivity
-110 dBm @ 115.2 kbps
-108 dBm @ 172.8 kbps
-107 dBm @ 230.4 kbps

Output Power: 100mW – 1W (20-30dBm)
Serial Interface: 3.3V CMOS TTL
Serial Baud Rate: Up to 230.4 kbps asynchronous
Link Rate: 115 – 276 kbps

Operating Modes: Mesh, Auto Routing, Store and Forward,Self Healing, Packet Routing Modes



Blocking:
+/- 1 MHz > 55 dBc
+/- 2.5 MHz > 60 dBc
+/- 5 MHz > 65 dBc
> 930 MHz > 70 dBc
< 890 MHz > 70 dBc

Remote Diagnostics: Battery Voltage, Temperature, RSSI,Packet Statistics
Core Voltage: 5.0V + -0.25V



Power Consumption:
Sleep < 1mA
Idle 3.5mA
Rx: 35mA to 80mA
Tx : 800mA to 1200mA

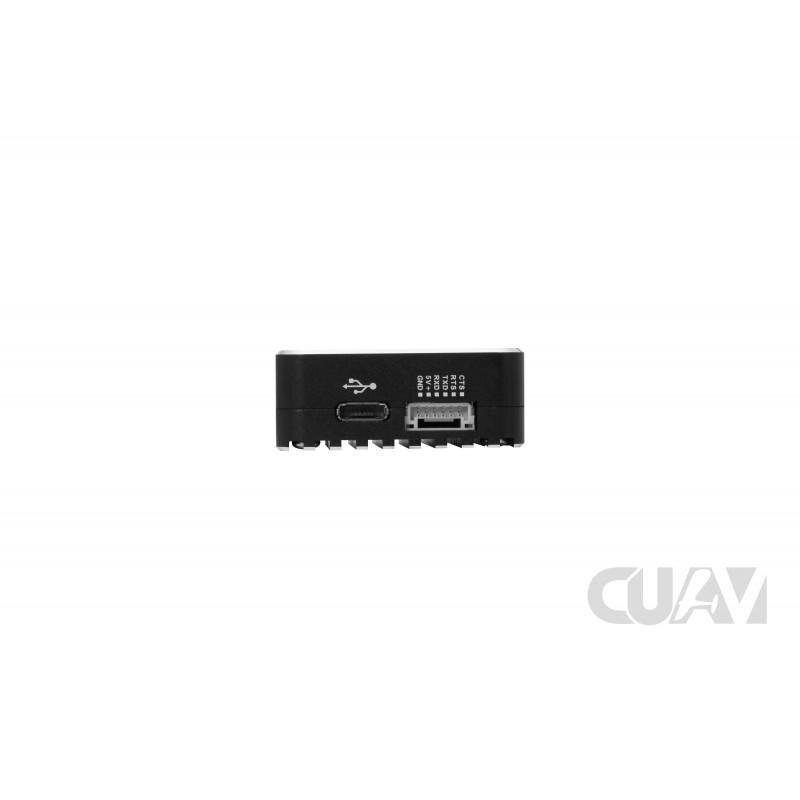

Connectors:
Anternna: SMA
DATA: GH1.25-6P&USB
Environmental: -55o C – +85o C

Size: 51.2MM*38.2MM*15.5MM



Order Options
-AES: 128-bit AES Encryption (requires permit for export outside of Canada and USA.)
-ENC: Enclosed Model



1

2

3

4

P900 radio is the latest unmanned aerial vehicle data link communication module, which has the characteristics of high power, high speed, high receiving sensitivity and so on. The P900 radio data transmission module is very suitable for UAV Communication System.
