CUAV PMU 2 Lite Power Module 15V/5V, CAN Bus Power Management Unit, 220A, 20-70V Input

Overview

CUAV PMU 2 Lite is a power module (power management unit module) designed to measure system voltage and current in real time and provide regulated power output for compatible controllers via CAN bus communication.

Key Features

• Current detection: 0-220A, with overcurrent warning function
• Wide voltage input for 16S battery compatibility (supports 20V to 70V; 5V version label shows 12V-70V)
• Measurement accuracy: ±0.1A / ±0.05V
• Built-in STM32H5 Arm Cortex-M33 processor (250MHz); runs self-developed M4C architecture software
• Adopts ITT3 temperature impedance tracking algorithm
• Supports CAN bus communication protocol; compatible with ArduPilot and PX4 (as stated)
• Aluminum alloy shell with thermal design for improved heat dissipation
• Factory pre-calibrated and temperature-learned; ready to use without additional calibration
• Non-contact, coreless busbar current detection technology with CNC-machined current sensing sheets
• 15V / 5V output options (version dependent)

For customer service and order support, contact support@rcdrone.top or visit https://rcdrone.top/.

Specifications

What’s Included

• PMU 2 Lite-15V [X25 Version] package: PMU 2 Lite 15V Power Module x 1; PMU 2 Lite-15V Controller Power Cable (Length: 30cm) x 1
• PMU 2 Lite-5V [V5+ Version] package: PMU 2 Lite 5V Power Module x 1; PMU 2 Lite-5V Controller Power Cable V5+ Version (Length: 25cm) x 1
• PMU 2 Lite-5V [X7+ Version] package: PMU 2 Lite 5V Power Module x 1; PMU 2 Lite-5V Controller Power Cable X7+ Version (Length: 25cm) x 1

Applications

• Power management and telemetry for large drone and other unmanned system devices
• CAN bus integration with compatible controller platforms

Details

CUAV PMU 2 Lite is a CAN bus power management module with 0–220A current detection and versions labeled for 5V or 15V power output.

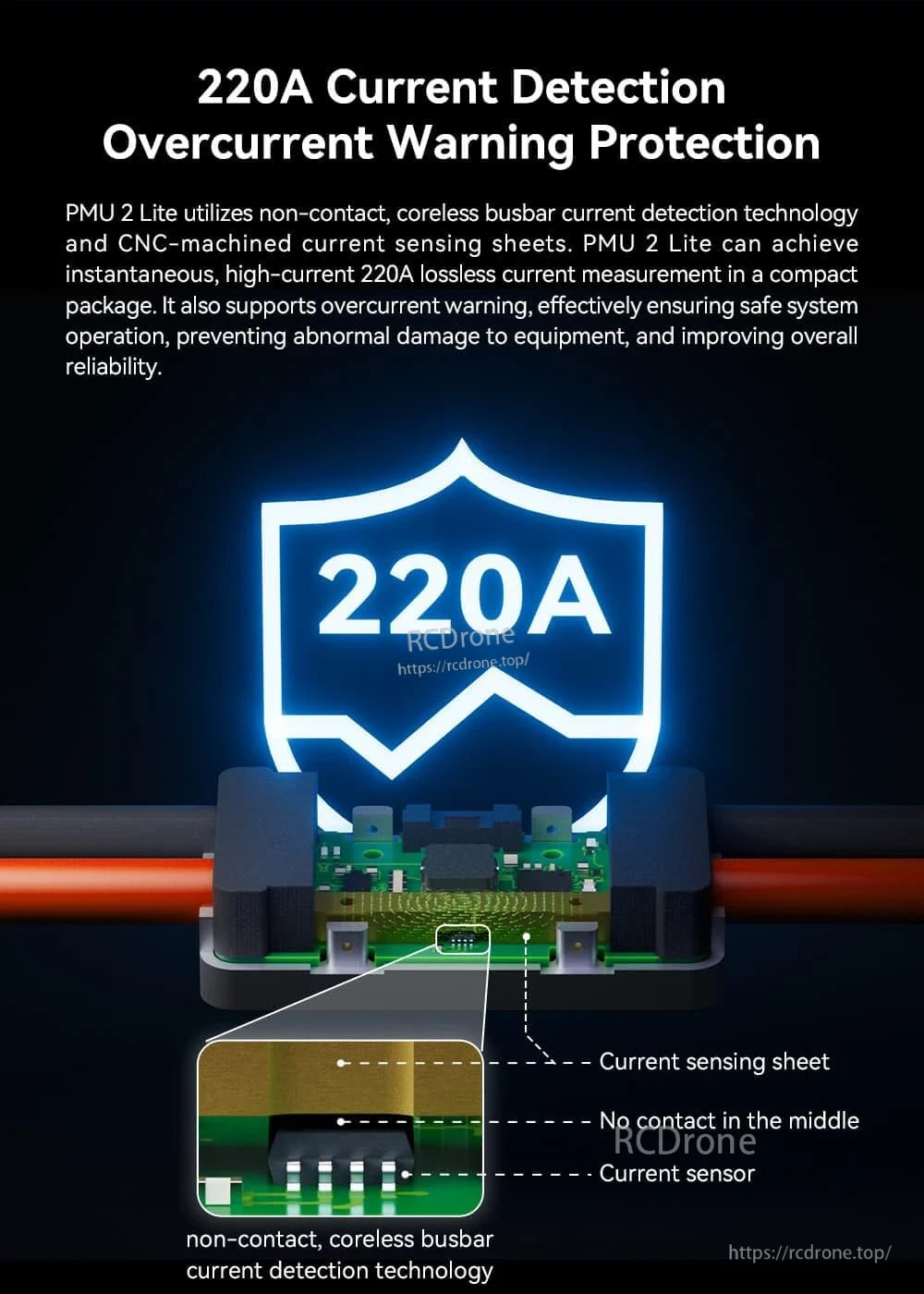

CUAV PMU 2 Lite uses non-contact busbar current sensing with 220A current detection and overcurrent warning protection.

CUAV PMU 2 Lite supports a 16S battery input with a wide 20–70V range for flexible power integration.

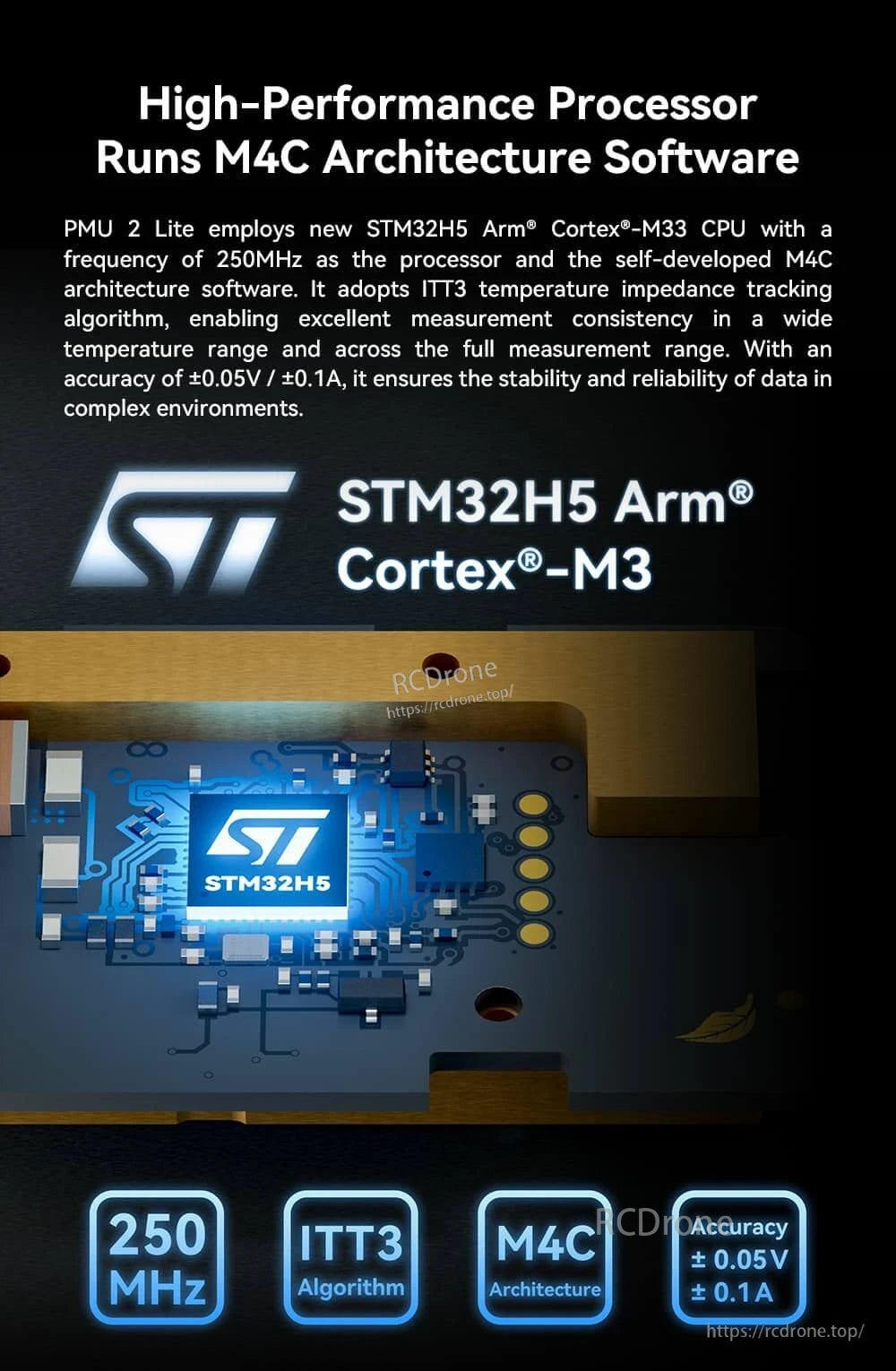

PMU 2 Lite uses an STM32H5 Arm Cortex‑M33 processor rated at 250MHz and lists measurement accuracy of ±0.05V and ±0.1A.

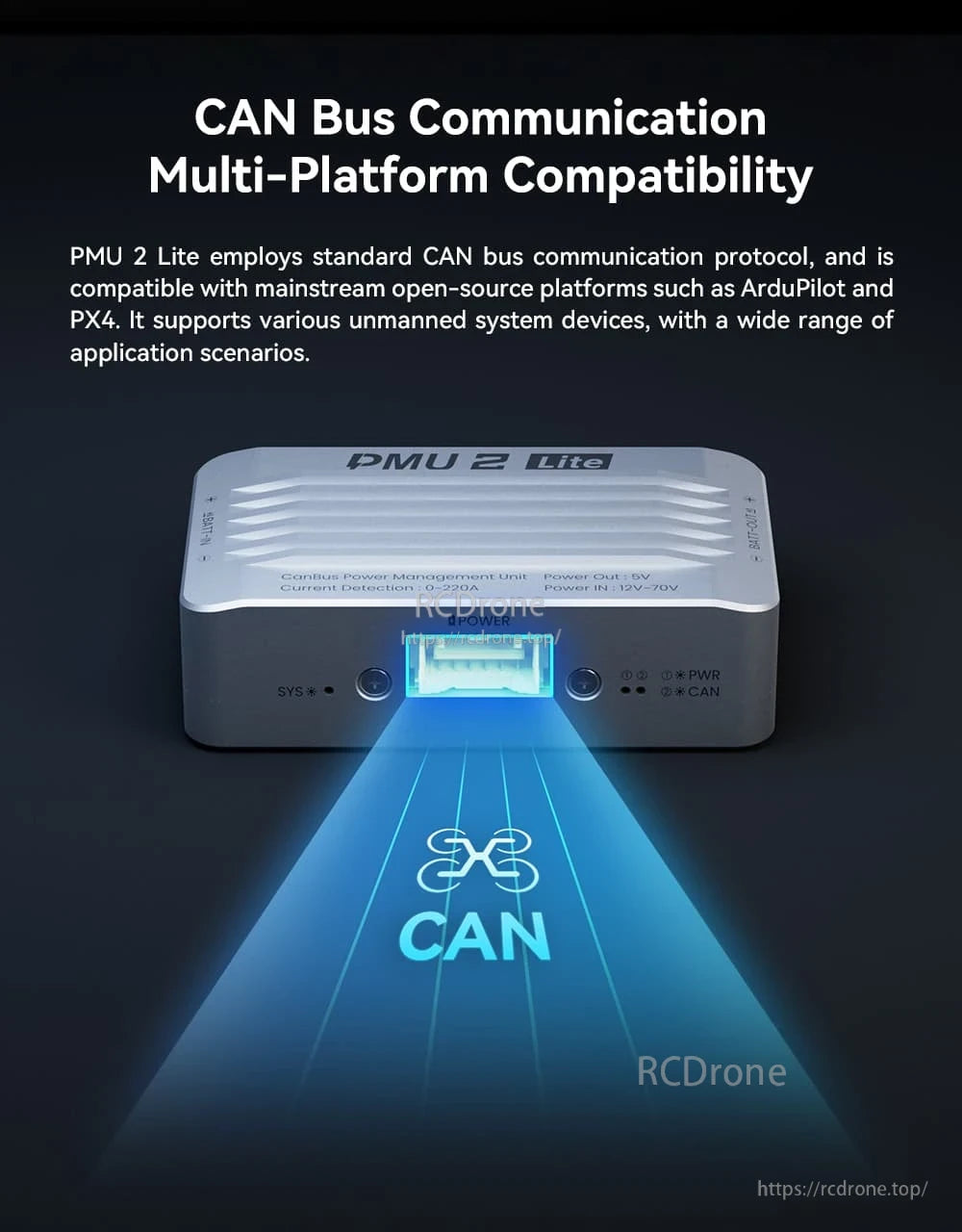

CUAV PMU 2 Lite uses CAN bus communication for integration with platforms like ArduPilot and PX4, with 12–70V input and 5V output.

CUAV PMU 2 Lite provides optional 15V or 5V output to match the power needs of different controllers and onboard devices.

CUAV PMU 2 Lite uses an aluminum alloy shell with heat-conducting protrusions and thermal conductive silicone pads to help manage operating temperatures.

The CUAV PMU 2 Lite power module is factory pre-calibrated and ready to use for straightforward power and current monitoring in your build.

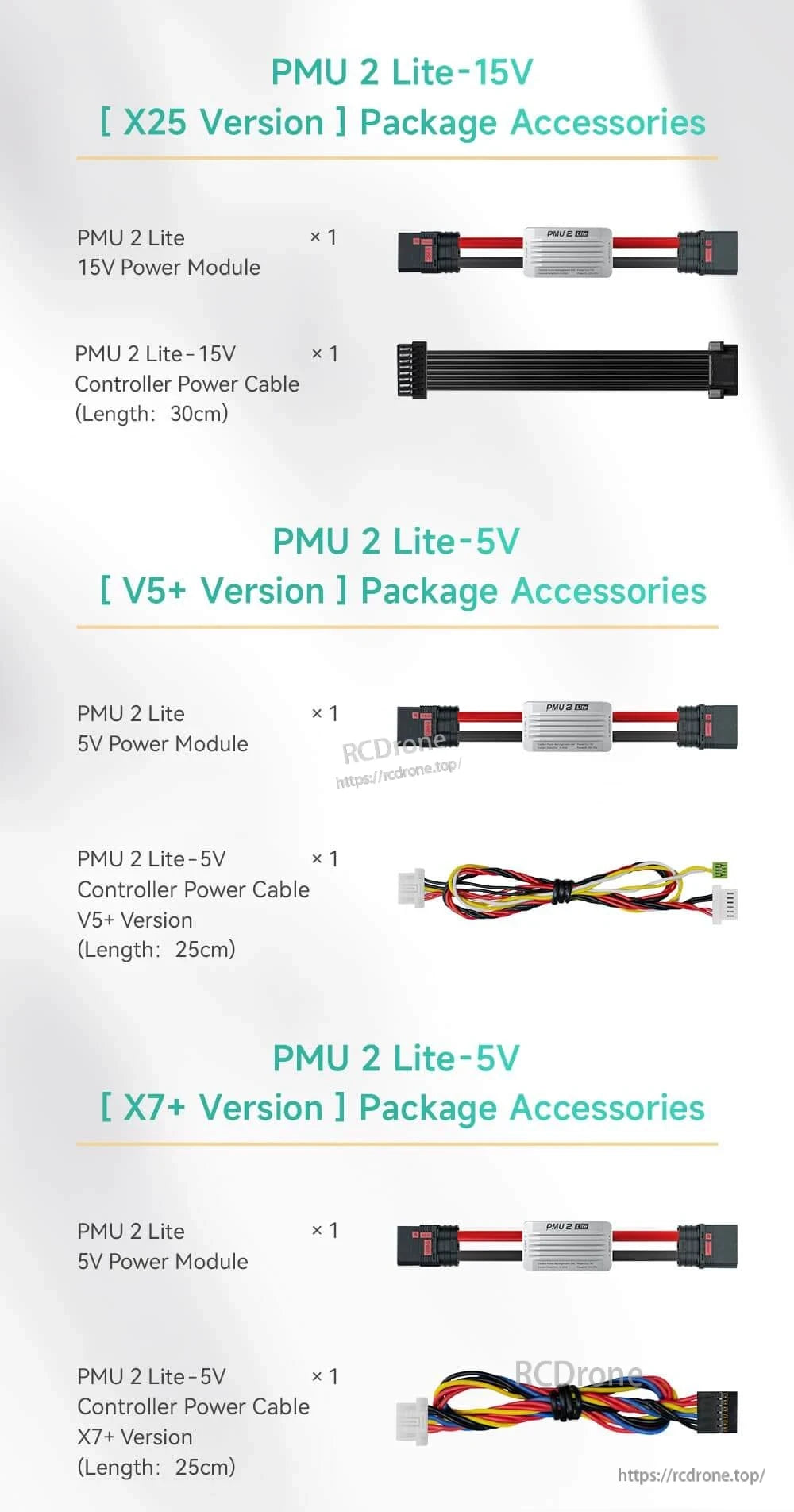

CUAV PMU 2 Lite packages include the power module and a controller power cable, with 15V (30cm) and 5V (25cm) version options.
