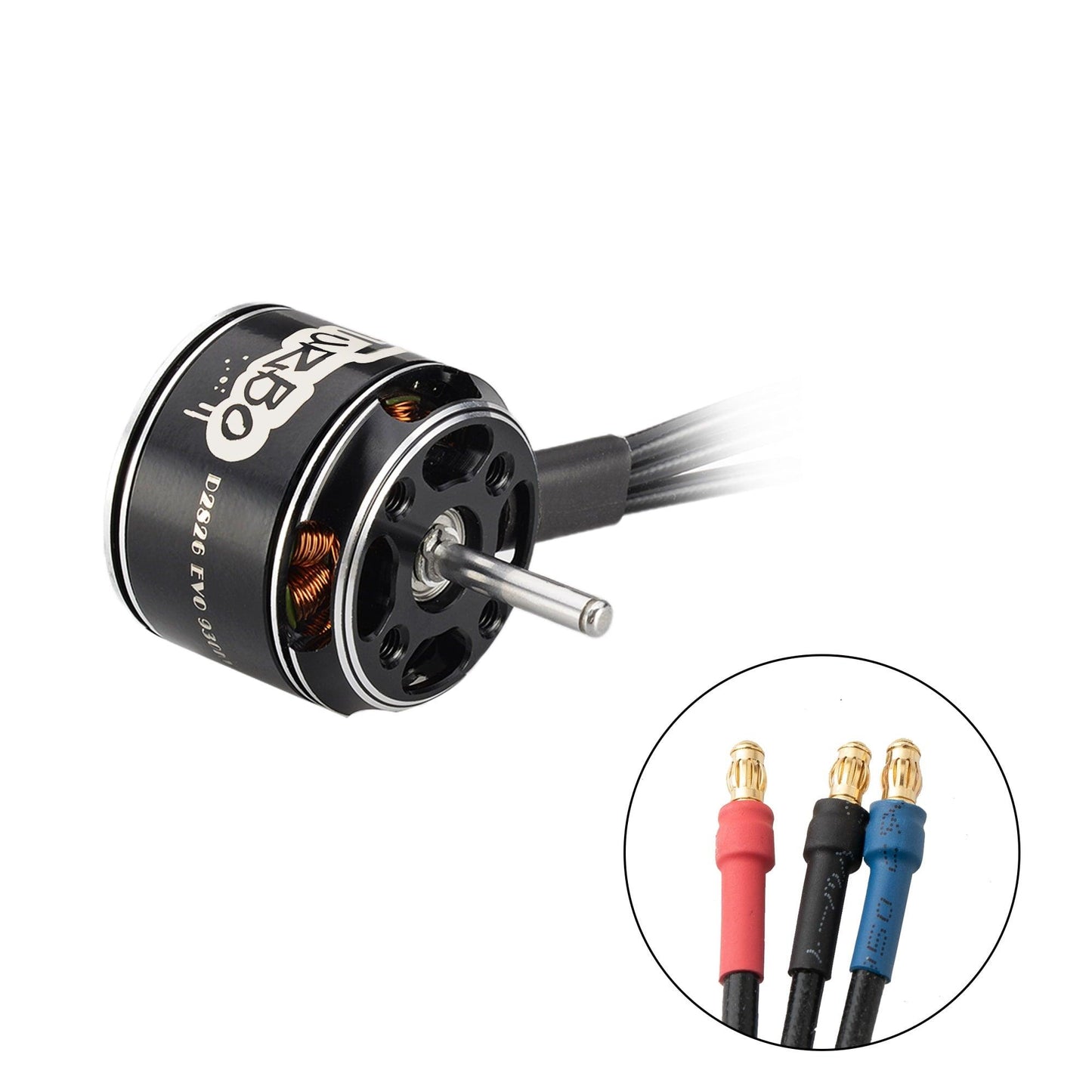

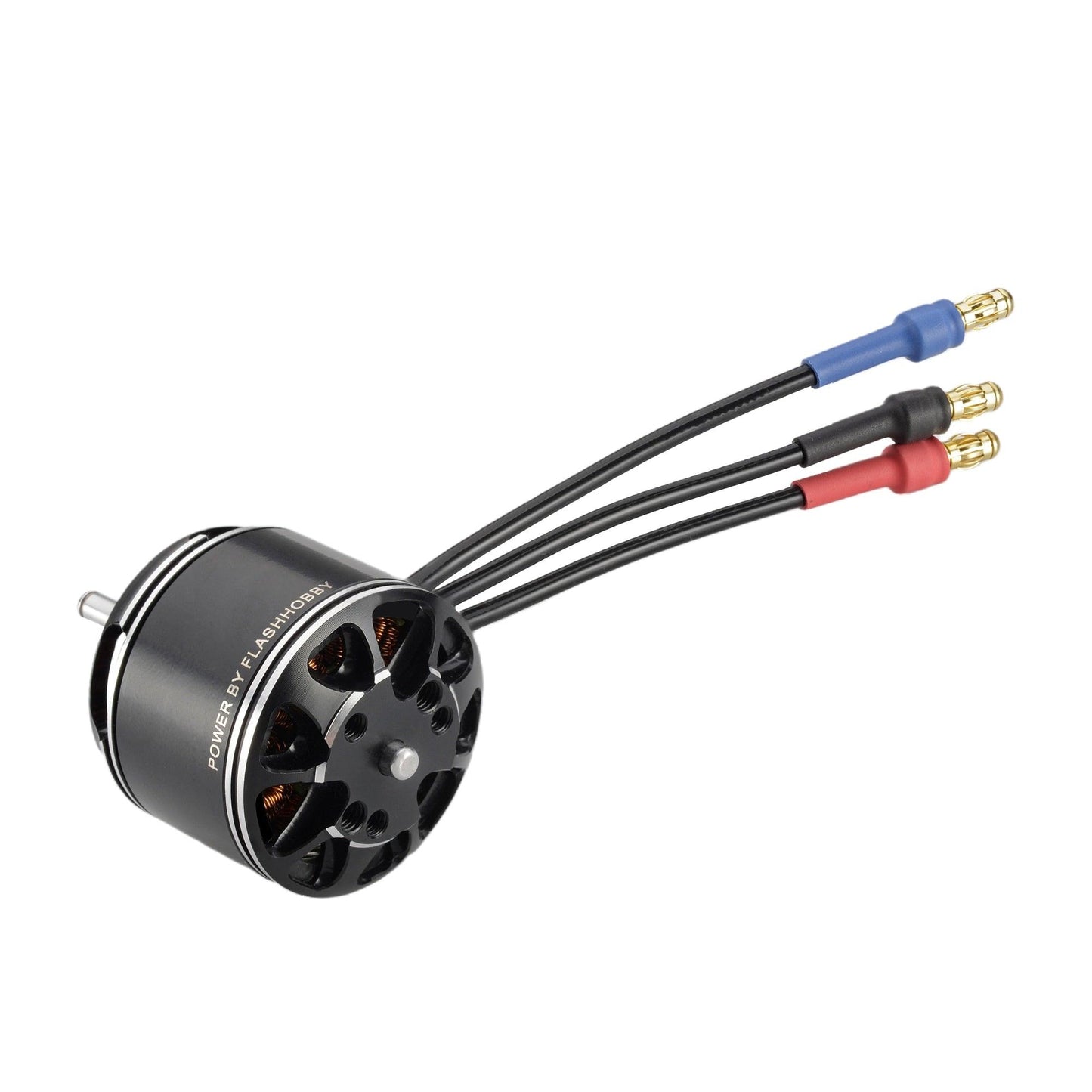

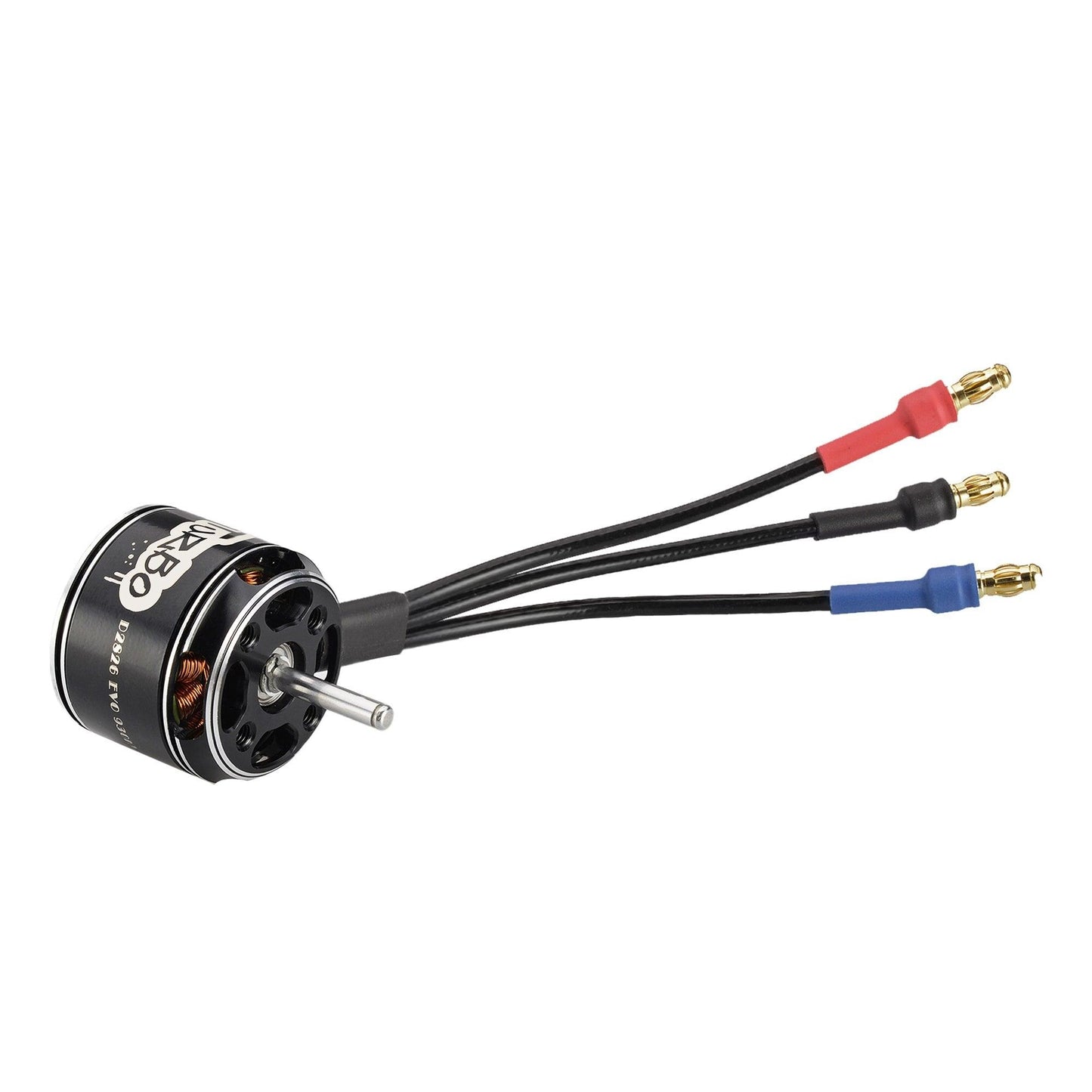

D2826EVO 2826 930KV 1000KV 1450KV 2200KV RC Brushless Motor for FPV UAV Aircraft Multicopters RC Plane Helicopter
D2826EVO 2826 930KV 1000KV 1450KV 2200KV RC Brushless Motor for FPV UAV Aircraft Multicopters RC Plane Helicopter
RCDrone
135 orders in last 90 days
Couldn't load pickup availability
Warehouse: China/USA/Europe, can delivery to all countries;
Free Shipping: 9-15 days;
Express Shipping: 5-8 days;
Return&Refund: 30 Days.
SPECIFICATIONS
Wheelbase: Upper Shell
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Motor
Tool Supplies: Grinded
Technical parameters: Value 2
Remote Control Peripherals/Devices: Motor
Recommend Age: 14+y
RC Parts & Accs: Motors
Origin: Mainland China
Model Number: D4250
Material: Metal
Four-wheel Drive Attributes: Motors
For Vehicle Type: Airplanes
Brand Name: Skyquist
Features:
48H Level Magnet
Precision Balanced Rotor Test
14P12N High Torque Motor Design
CNC 6061-T6 Aluminum Bell
High RPM Imported(NSK/NMB) Bearing
High Temperature Resistant Copper Wire Winding

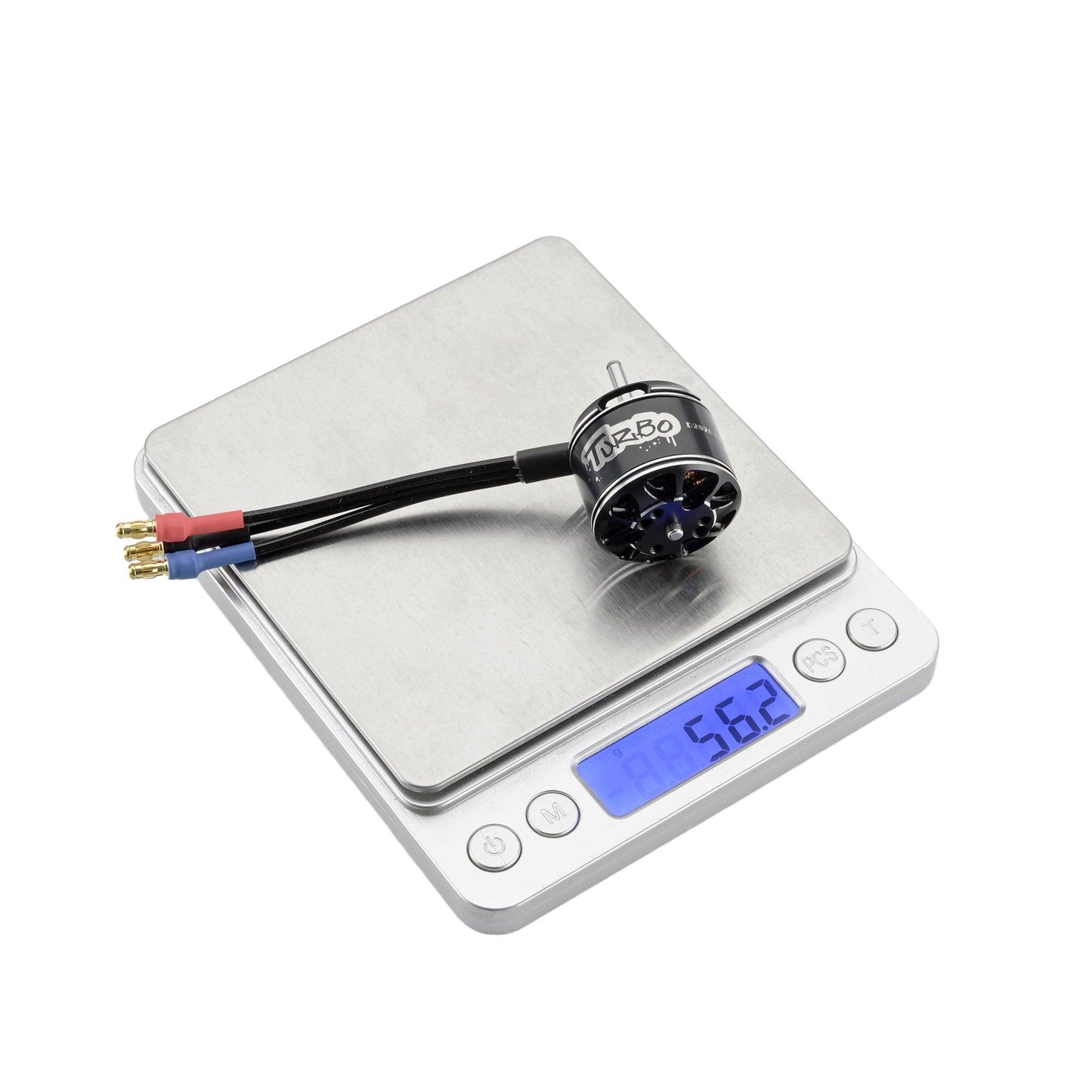

Weight: 55.7g(Including wires)
Motor Size: 28 x26mm
Shaft Size: 3.0*43.0mm
Motor Mount: 16*19mm(M3*4)
Configuration: 12N14P
KV Value: 930KV, 1000KV,1450KV,2200KV or customed KV
Working Temperature Range:-0℃~+80℃
Control Method:Use ESC And Adjust PWM signal For Control,PWM Adjustment Range 900- 2100US
Motor Type: Outrunner Brushless Motor,Three-phase Motor
KV: 930KV
Max watts: 162.9W
Max Current: 13.2A
No Load current: 0.63A
Resistance: 156.3mΩ
Battery: 3-4S Lipo
Suggested Prop: 9 inch prop
KV: 1000KV
Max watts: 292W
Max Current: 18.43A
No Load current: 0.7A
Resistance: 137.9mΩ
Battery: 3-4S Lipo
Suggested Prop: 9 inch prop
KV: 1450KV
Max watts: 367W
Max Current: 30.97A
No Load current: 1.26A
Resistance: 30.5mΩ
Battery: 3-4S Lipo
Suggested Prop: 9 inch prop
KV: 2200KV
Max watts: 311.5W
Max Current: 26.1A
No Load current: 1.26A
Resistance: 30.5mΩ
Battery: 3-4S Lipo
Suggested Prop: 9 inch prop
