DarwinFPV AKK 5.8G 1.6W (1600mW) VTX SmartAudio MMCX 7-28V In 5V Out Mic JST-6Pin

DarwinFPV

$81.99 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Style DarwinFPV AKK 5.8G 1.6W VTX

Quantity

View full details

Overview

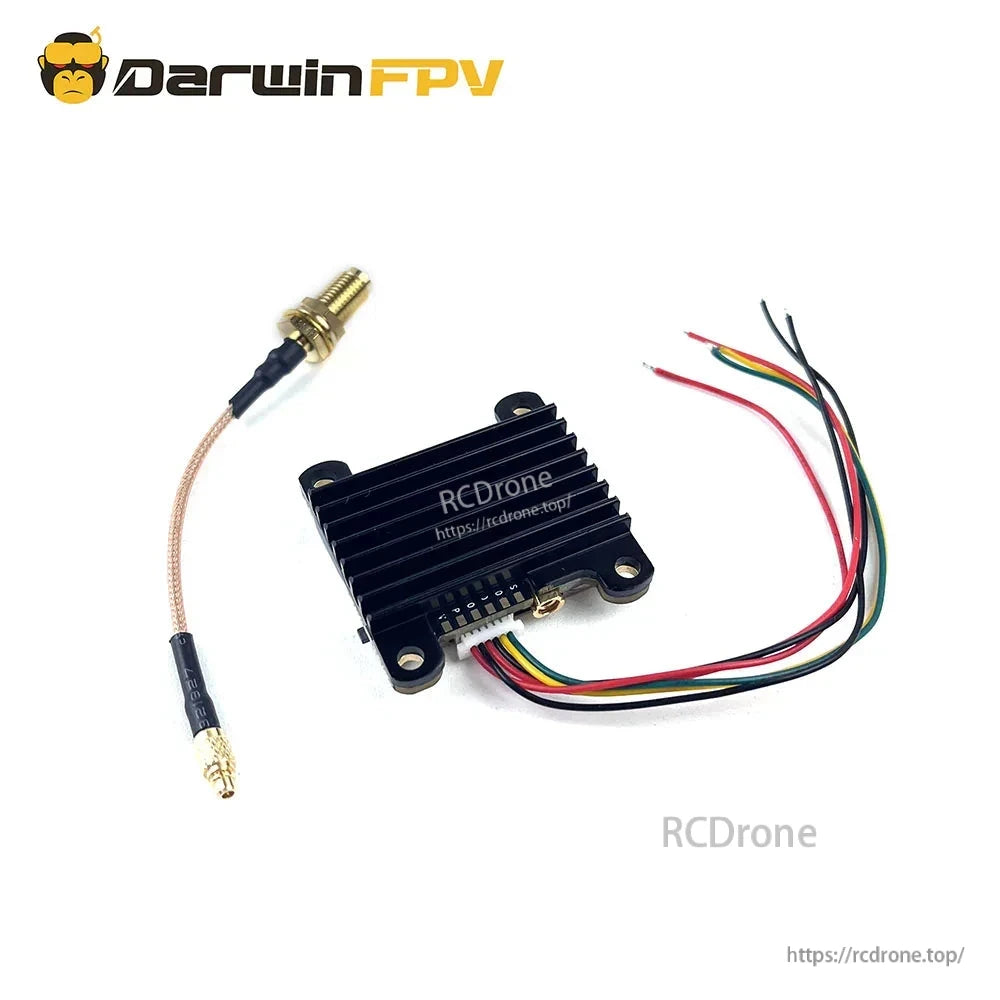

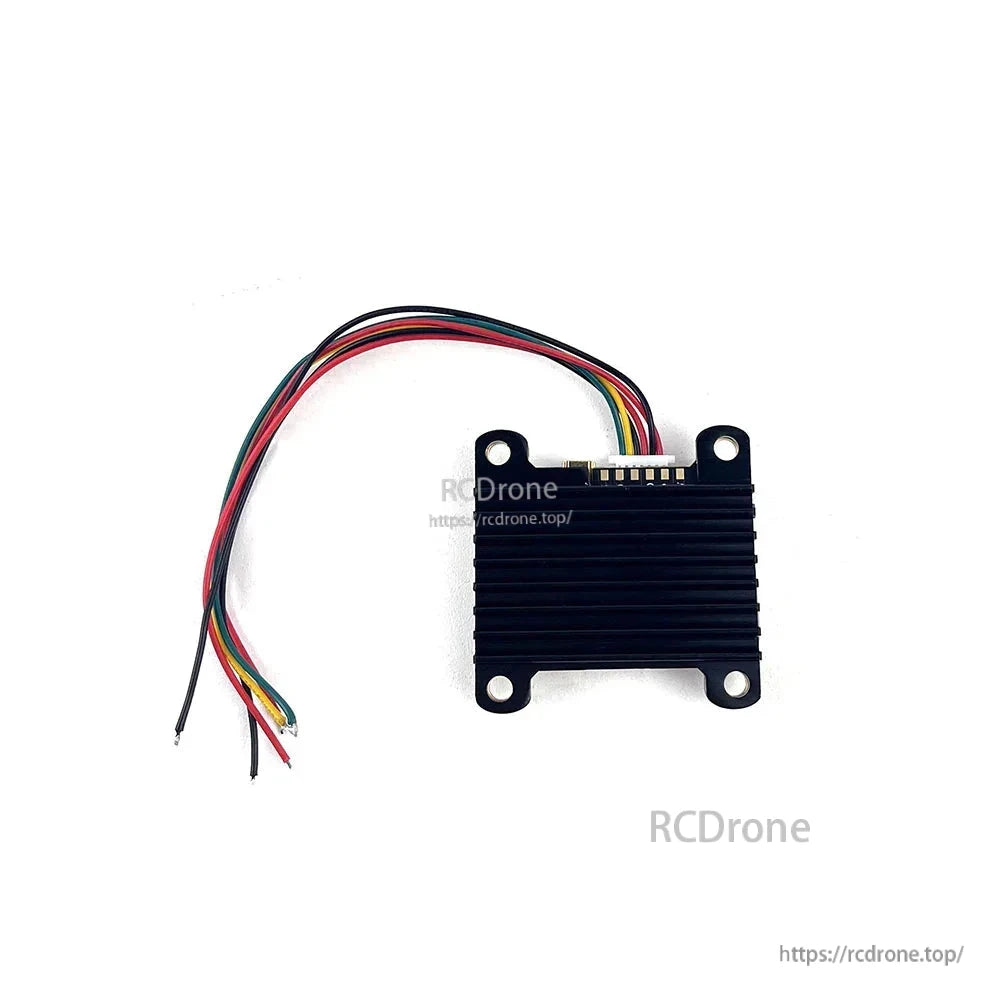

DarwinFPV AKK 5.8G 1600mW (1.6W) VTX is a 5.8GHz FPV video transmitter (VTX) with SmartAudio support and switchable output power (200mW/400mW/800mW/1600mW). It features one-button frequency and power setup, SmartAudio OSD configuration, an integrated microphone, and an onboard heatsink (do not remove).

Key Features

SmartAudio support; OSD configuration via SmartAudio
Output power switchable: 200mW / 400mW / 800mW / 1600mW (International version)
One-button frequency and power setup
7V-28V input with 5V camera output (under 500mA max.)
MMCX antenna connector
JST 6-pin cable connector
With microphone (MIC)

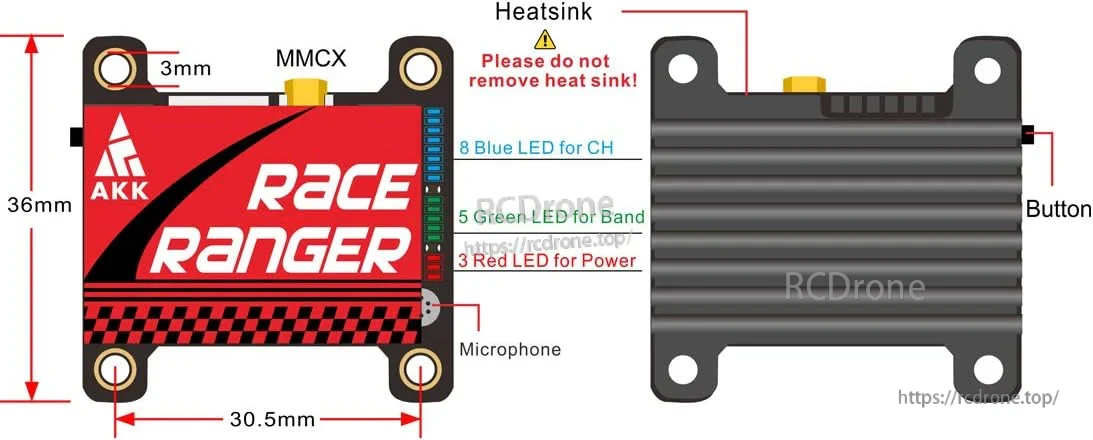

Status LEDs: 8 blue LED for CH; 5 green LED for Band; 3 red LED for Power

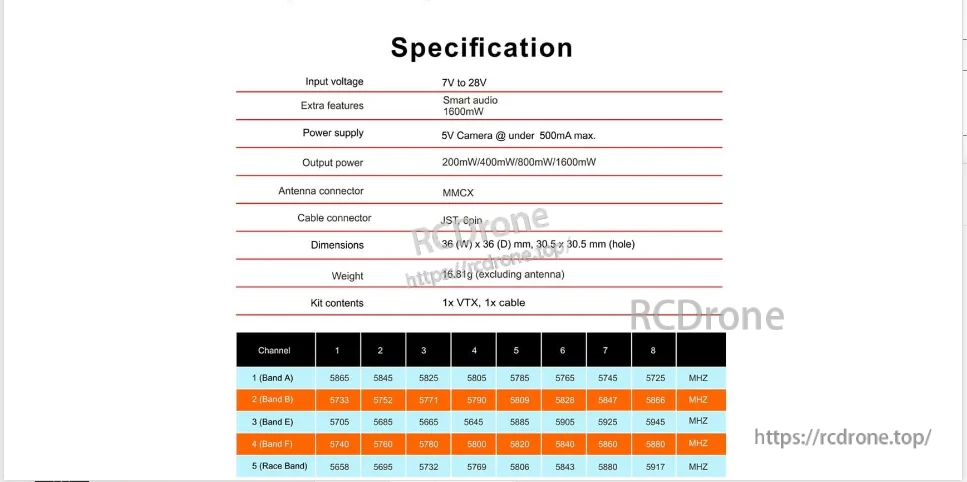

Specifications

Input voltage	7V to 28V
Extra features	Smart audio; 1600mW
Power supply	5V camera @ under 500mA max.
Output power	200mW / 400mW / 800mW / 1600mW (International version)
Antenna connector	MMCX
Cable connector	JST 6pin
Dimensions	36(W) x 36(D) mm; 30.5 x 30.5 mm (hole)
Mounting hole	3 mm

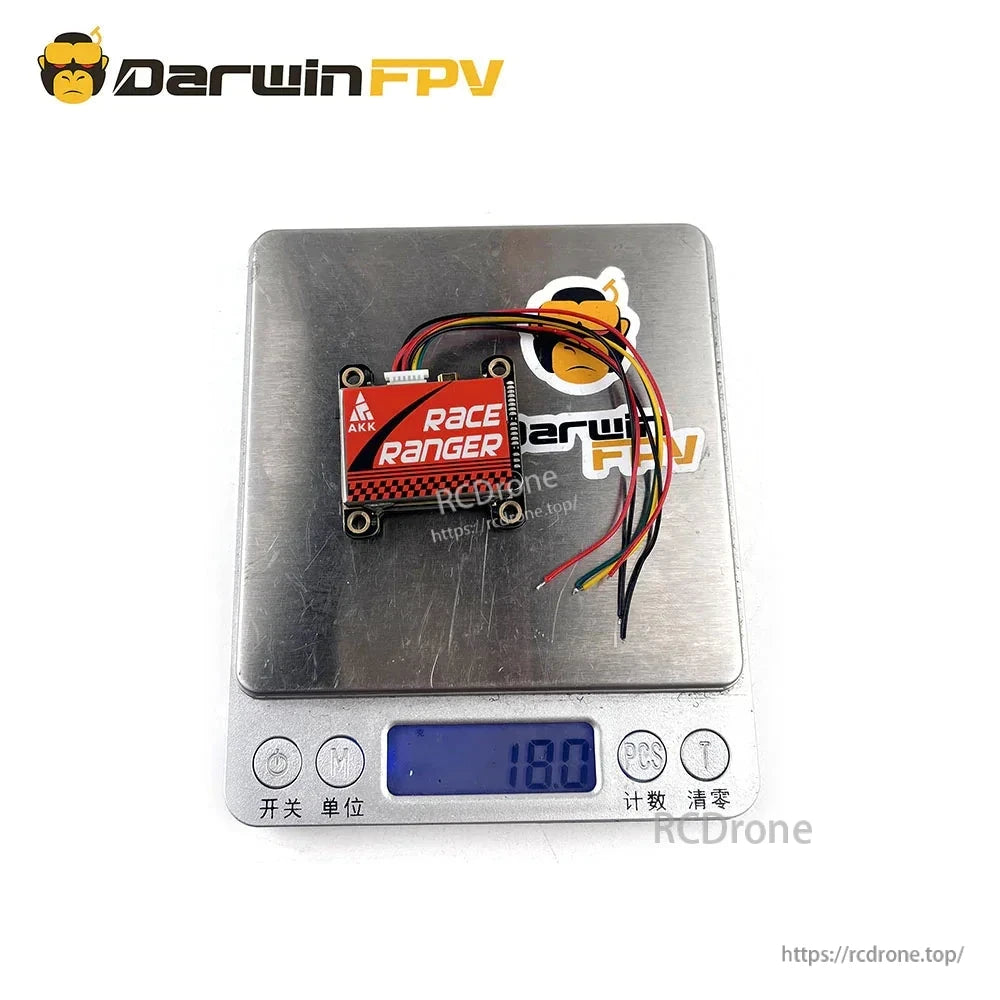

Weight	16.81g (excluding antenna)

5.8GHz Channel Table (MHz)

Band A	CH1 5865	CH2 5845	CH3 5825	CH4 5805	CH5 5785	CH6 5765	CH7 5745	CH8 5725
Band B	CH1 5733	CH2 5752	CH3 5771	CH4 5790	CH5 5809	CH6 5828	CH7 5847	CH8 5866
Band E	CH1 5705	CH2 5685	CH3 5665	CH4 5645	CH5 5885	CH6 5905	CH7 5925	CH8 5945
Band F	CH1 5740	CH2 5760	CH3 5780	CH4 5800	CH5 5820	CH6 5840	CH7 5860	CH8 5880
Race Band	CH1 5658	CH2 5695	CH3 5732	CH4 5769	CH5 5806	CH6 5843	CH7 5880	CH8 5917

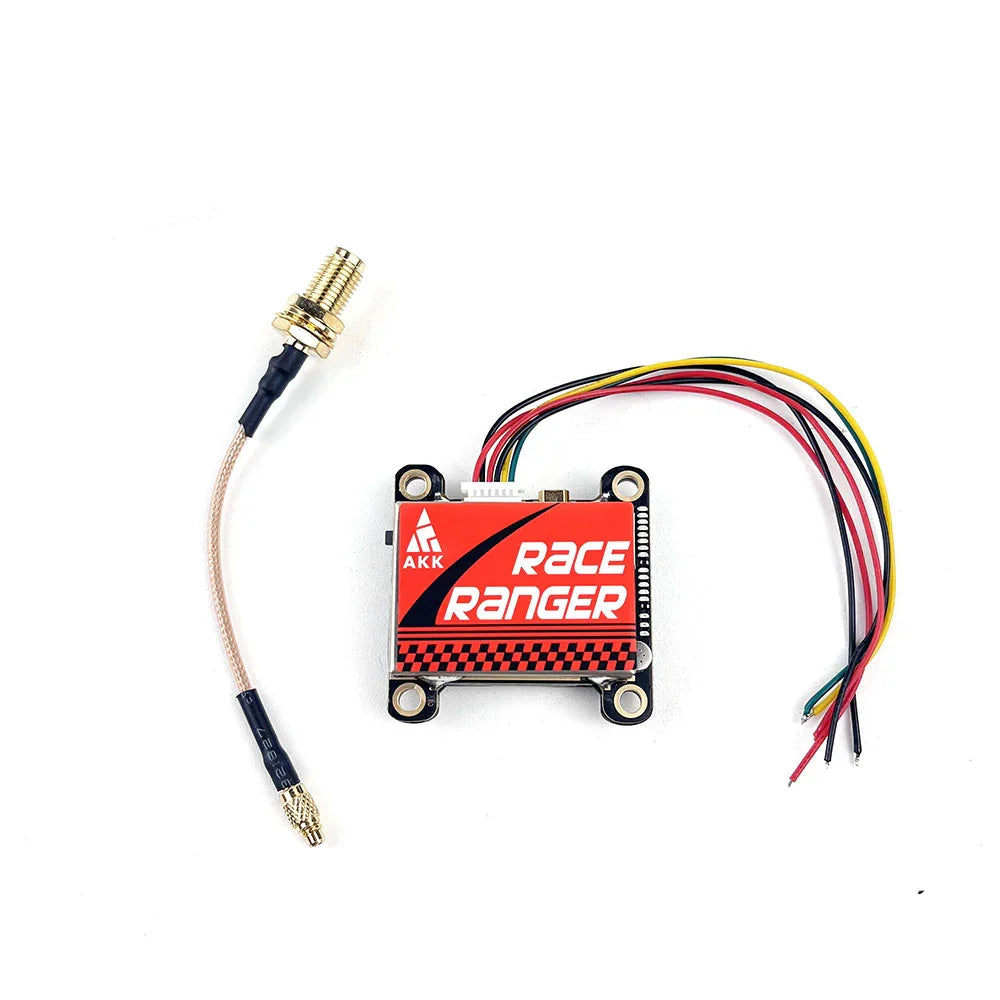

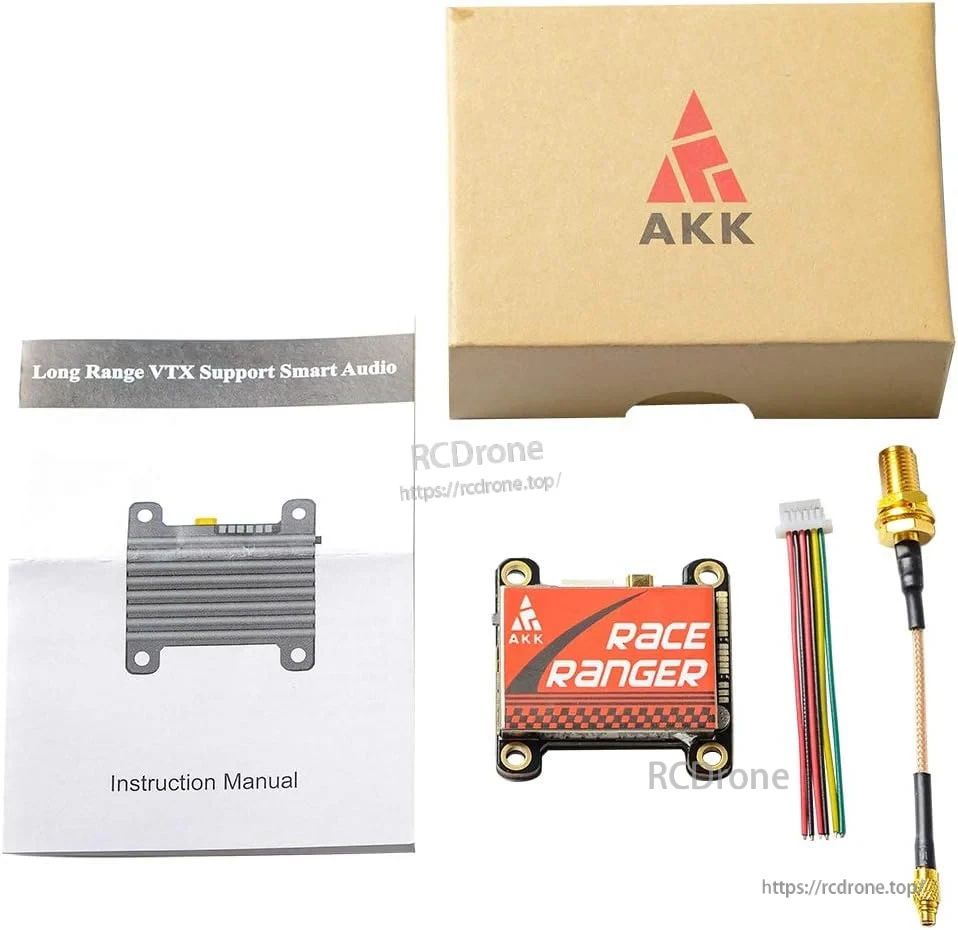

What’s Included

1x VTX
1x Cable

Applications

5.8GHz analog FPV builds requiring SmartAudio control and a 30.5 x 30.5 mm mounting pattern

For installation and compatibility questions (SmartAudio wiring, band/channel setup, MMCX antennas), contact support@rcdrone.top or visit https://rcdrone.top/.
