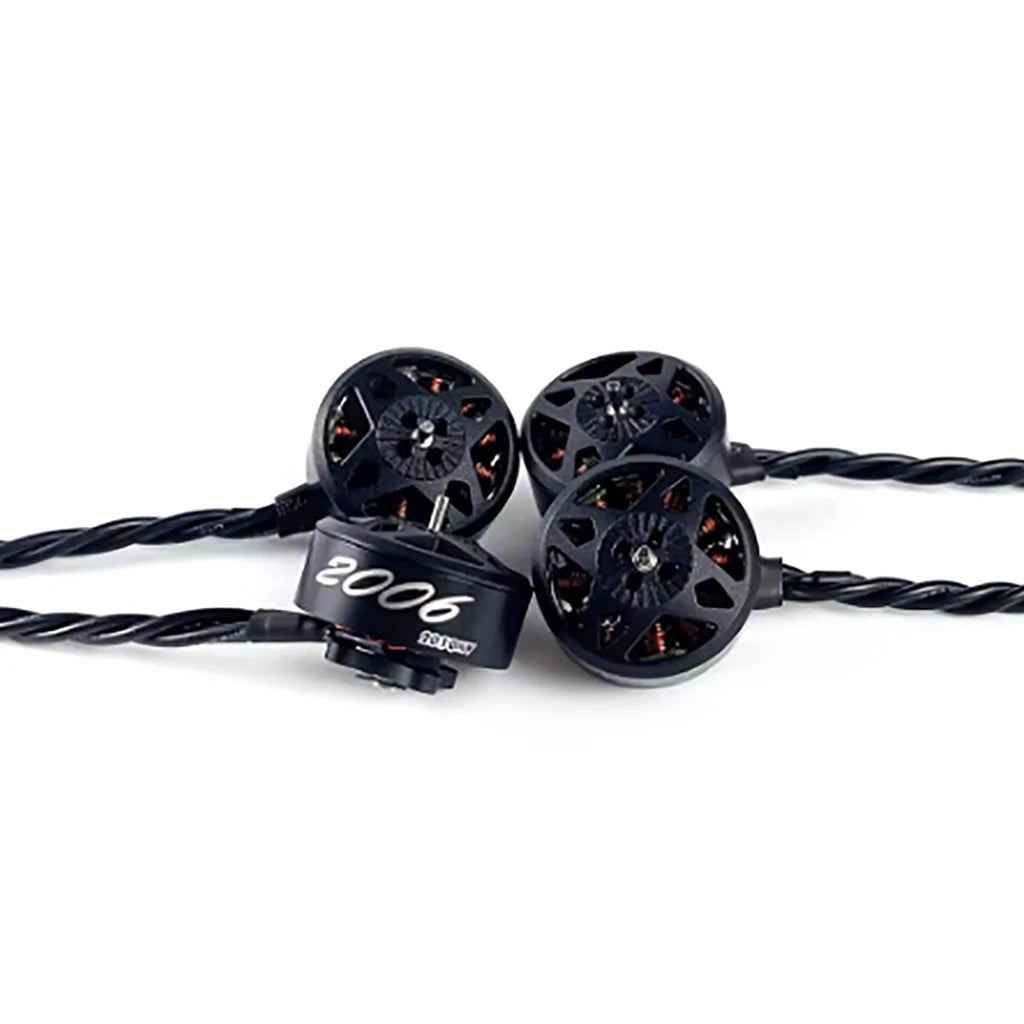

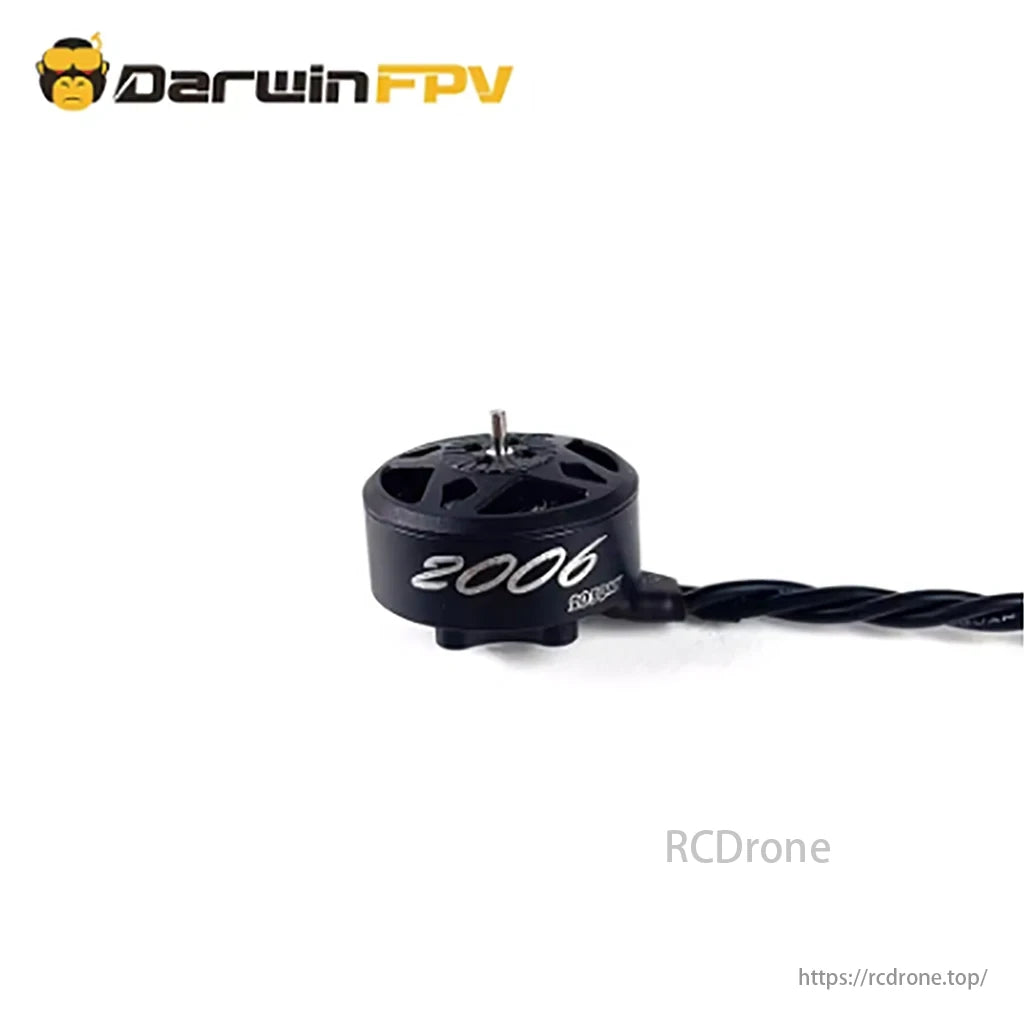

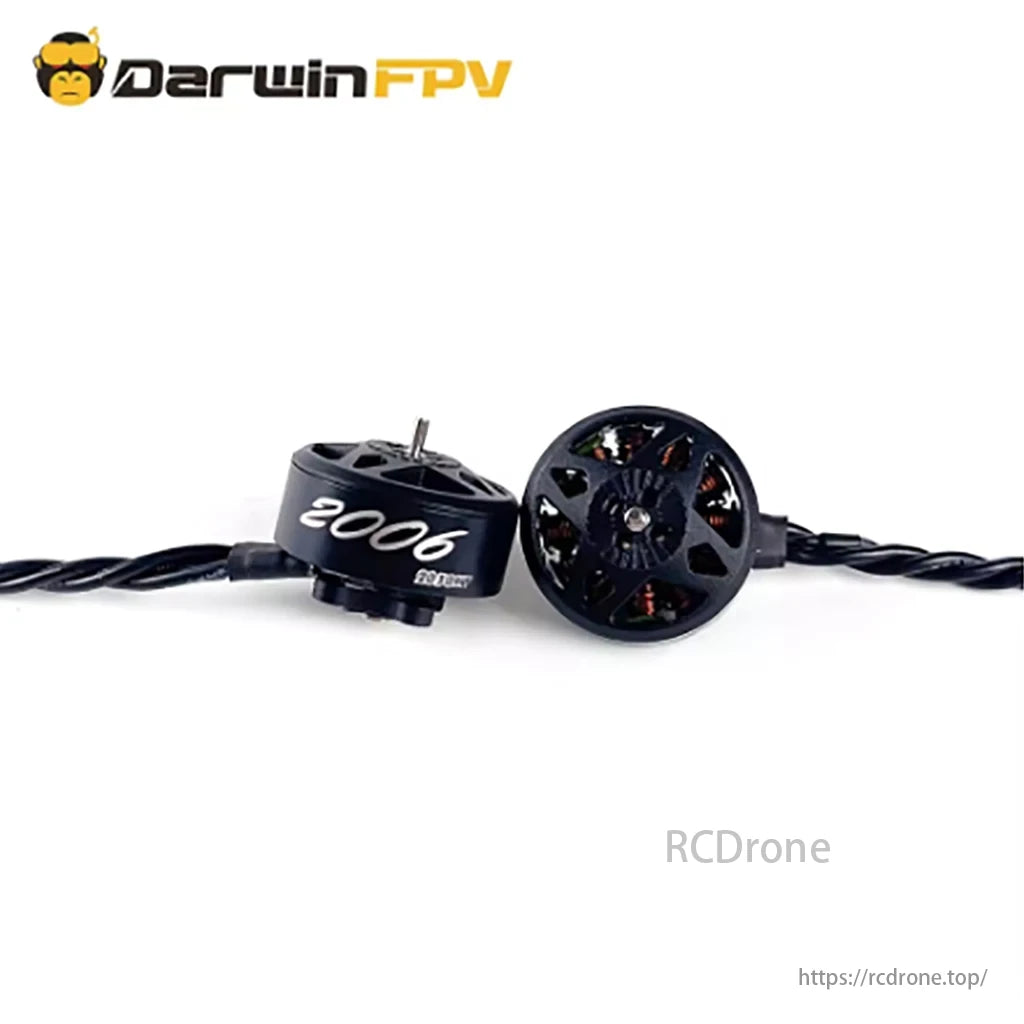

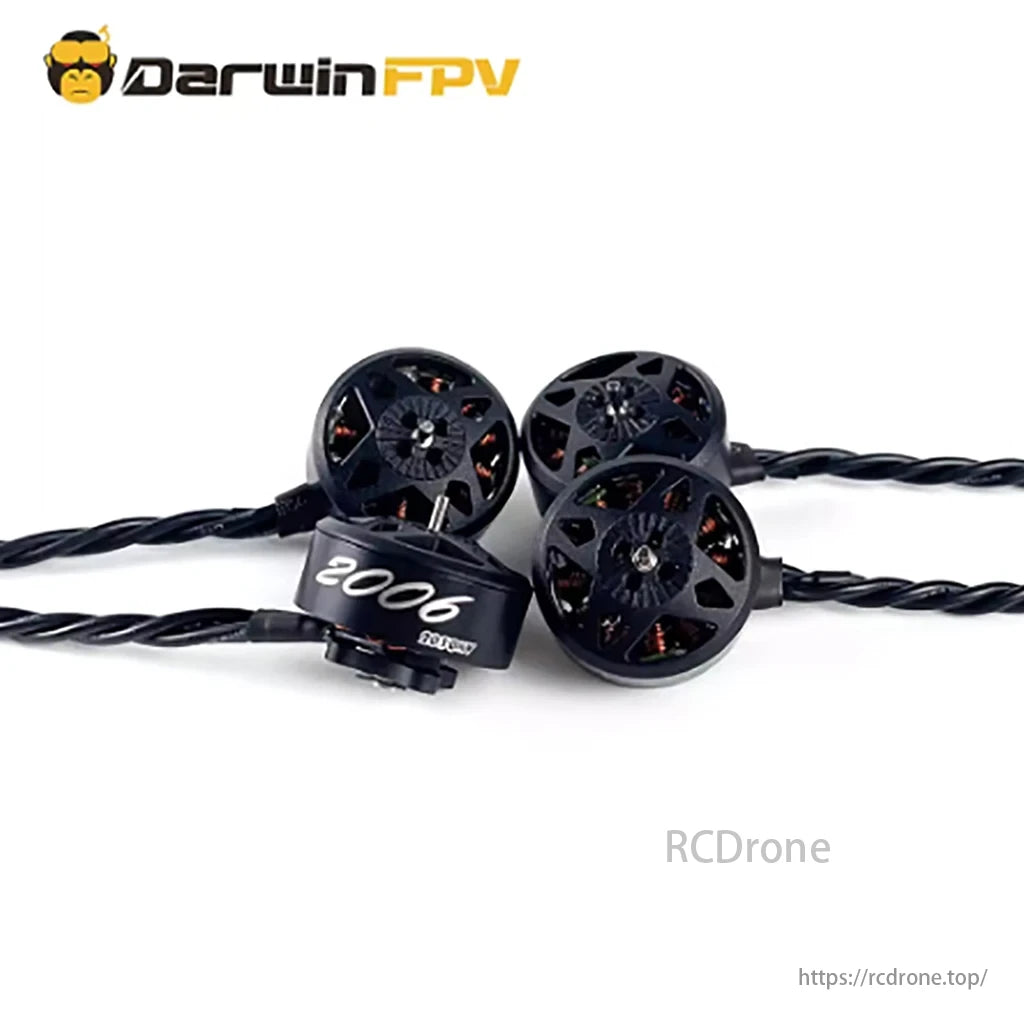

DarwinFPV CineApe35 2006 2030KV / 3400KV Brushless Motor for 3.5 Inch FPV Cinewhoop Long Range Racing Drones

Overview

The DarwinFPV CineApe35 2006 Brushless Motor is a powerful and efficient upgrade for 3.5-inch cinewhoop FPV drones and 4–6 inch long-range quads. Available in 2030KV for 6S setups and 3400KV for 4S builds, this motor is a superior alternative to traditional 2004 motors—delivering higher torque, stronger lift, and stable flight even when carrying full-size GoPro cameras.

Engineered with DJI-level magnetic circuit design, it offers enhanced efficiency, endurance, and battery performance. A custom titanium anti-detachment shaft ensures better impact resistance, making it ideal for freestyle and cinematic FPV applications.

Key Features

• Two KV Options

  • 2030KV for 6S long-range drones (5–6 inch)

  • 3400KV for 4S cinewhoops and 3–4 inch freestyle quads

• Perfect for 3.5” Whoop Drones

  • Specifically optimized for CineApe35 and similar ducted designs

  • Compared to 2004 motors, it provides greater thrust and payload capacity

• DJI-Grade Magnetic Design

  • Uses the same magnetic circuit principles as DJI motors

  • Offers higher efficiency and significantly extended battery life

• Durable Titanium Alloy Shaft

  • Custom step shaft resists bending and detachment during crashes

  • Φ1.5mm shaft × 3.5mm length

• Cost-Effective, High-Performance

  • Materials comparable to motors costing twice as much

  • Optimized copper winding and N52H arc magnets

  • Excellent heat dissipation and mechanical strength

Specifications

Recommended Application

• 3–4 Inch Freestyle Drones

• 3.5 Inch Cinewhoop (e.g., CineApe35)

• 5–6 Inch Long-Range FPV Quads

Package Contents (1 piece)

• 1 × DarwinFPV 2006 Brushless Motor

• 5 × M2×6mm Hexagon Socket Screws

• 1 × DarwinFPV Logo Sticker

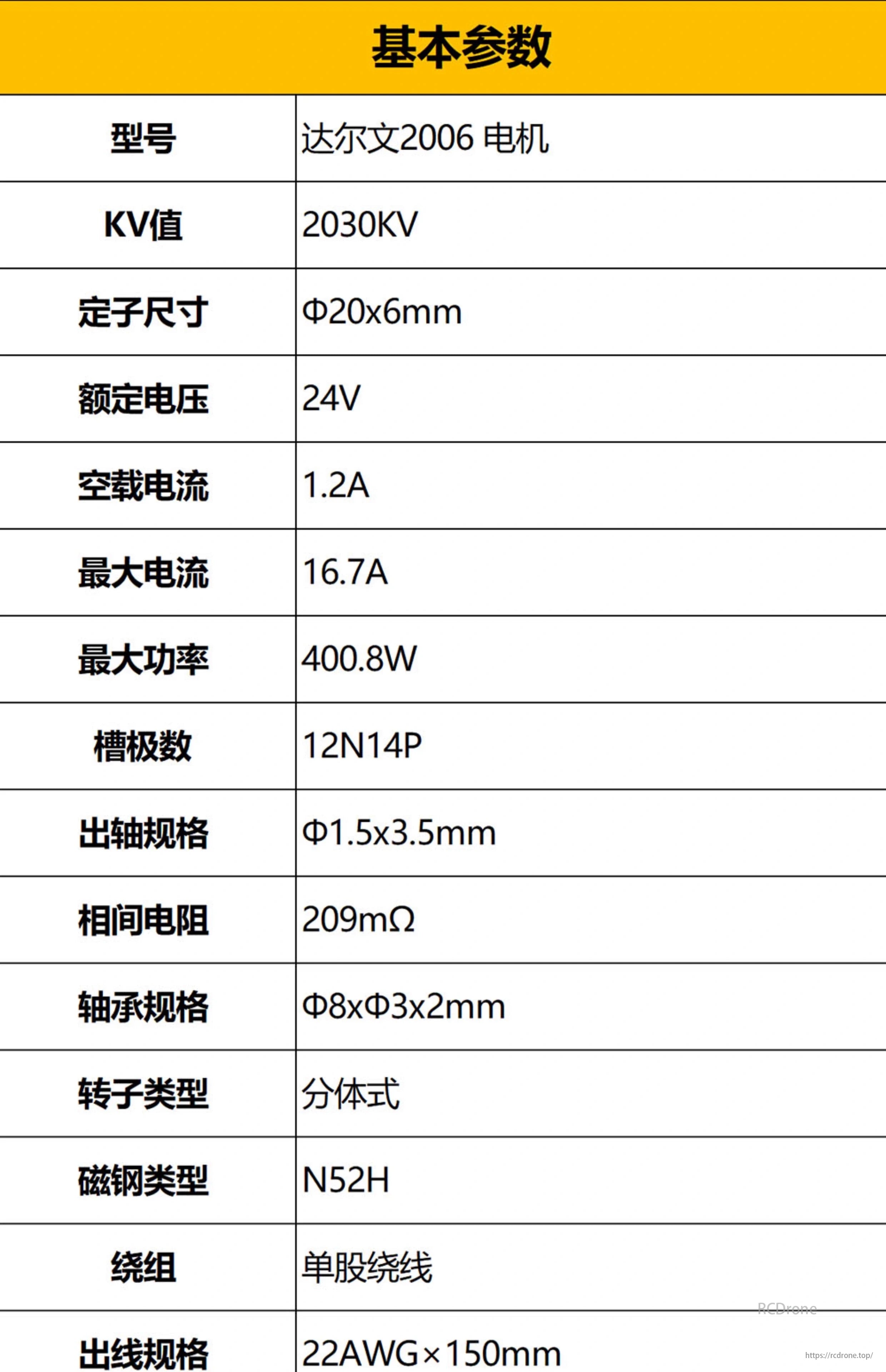

Model: Darwin 2006. KV: 2030. Stator size: 20x6mm. Rated voltage: 24V. No-load current: 1.2A. Max current: 16.7A. Max power: 400.8W. Slots/poles: 12N14P. Shaft: 1.5x3.5mm. Resistance: 209mΩ. Bearings: 8x3x2mm. Rotor: segmented. Magnets: N52H. Winding: single-strand. Wire: 22AWGx150mm.

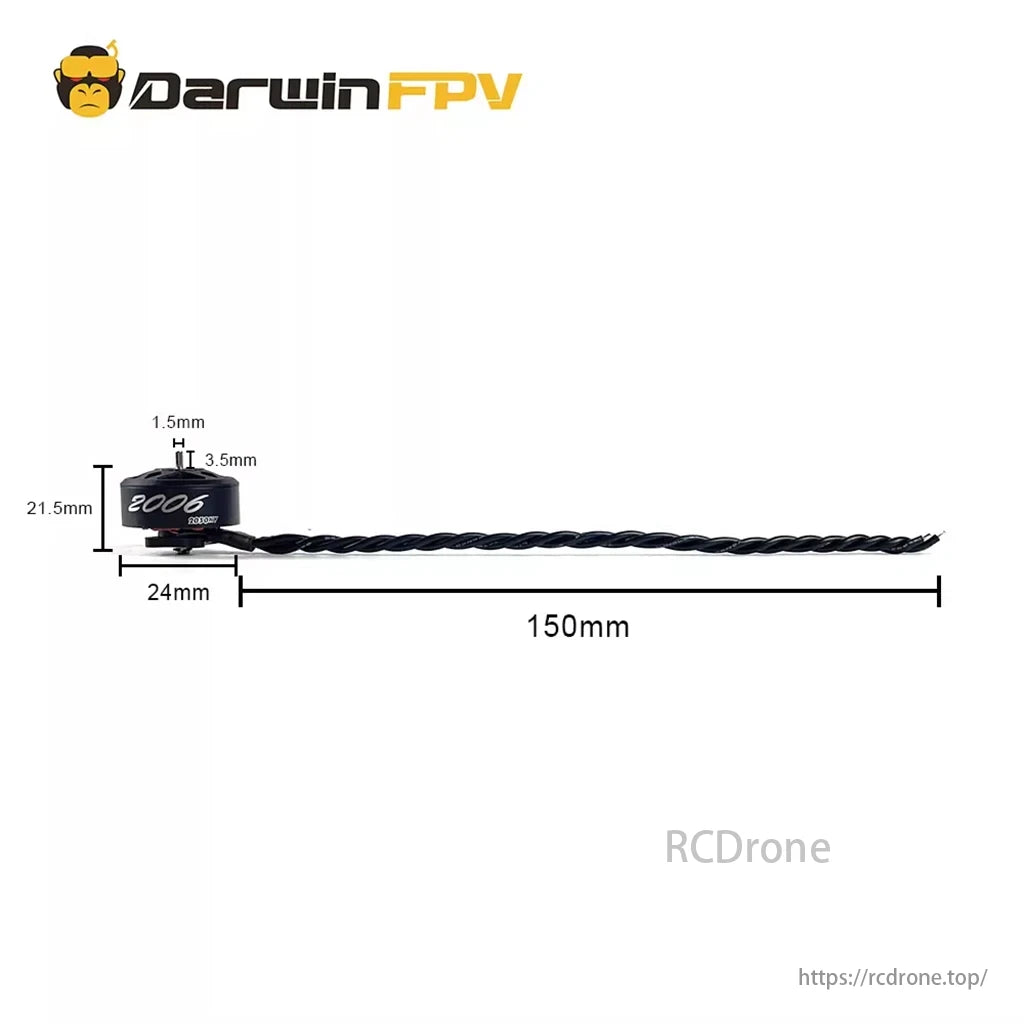

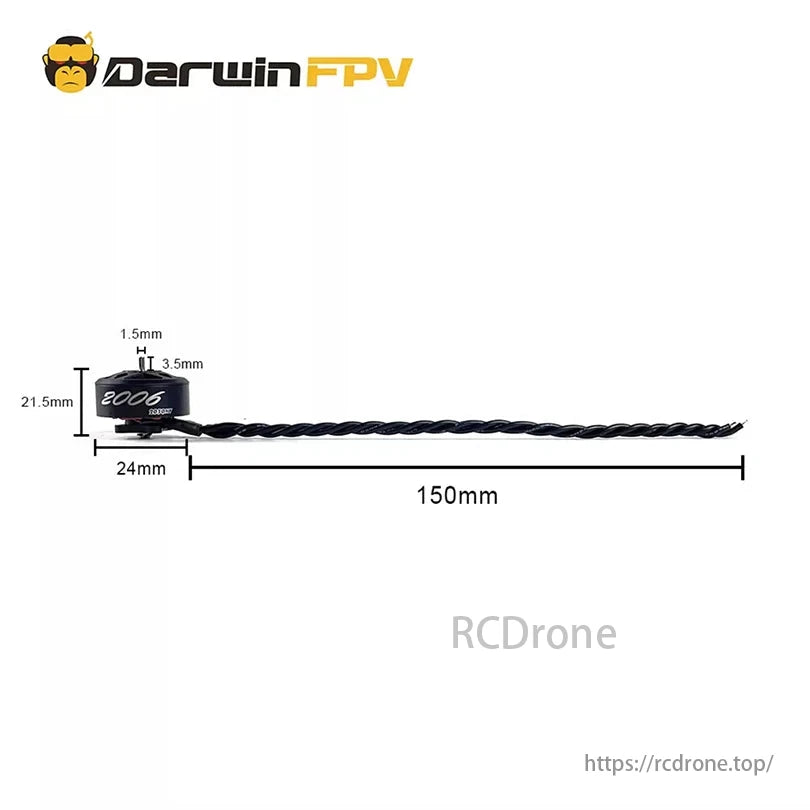

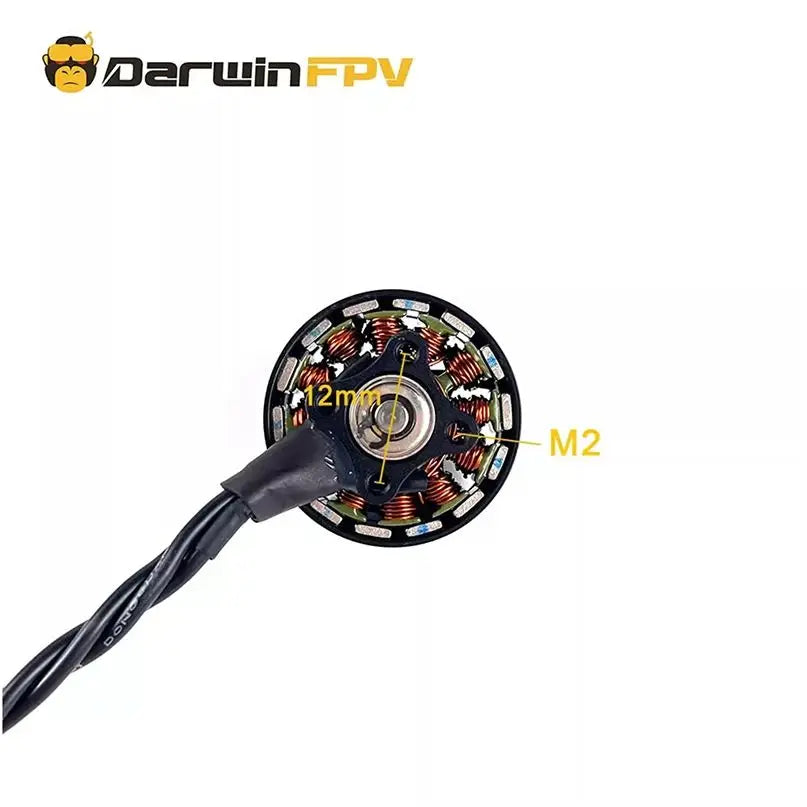

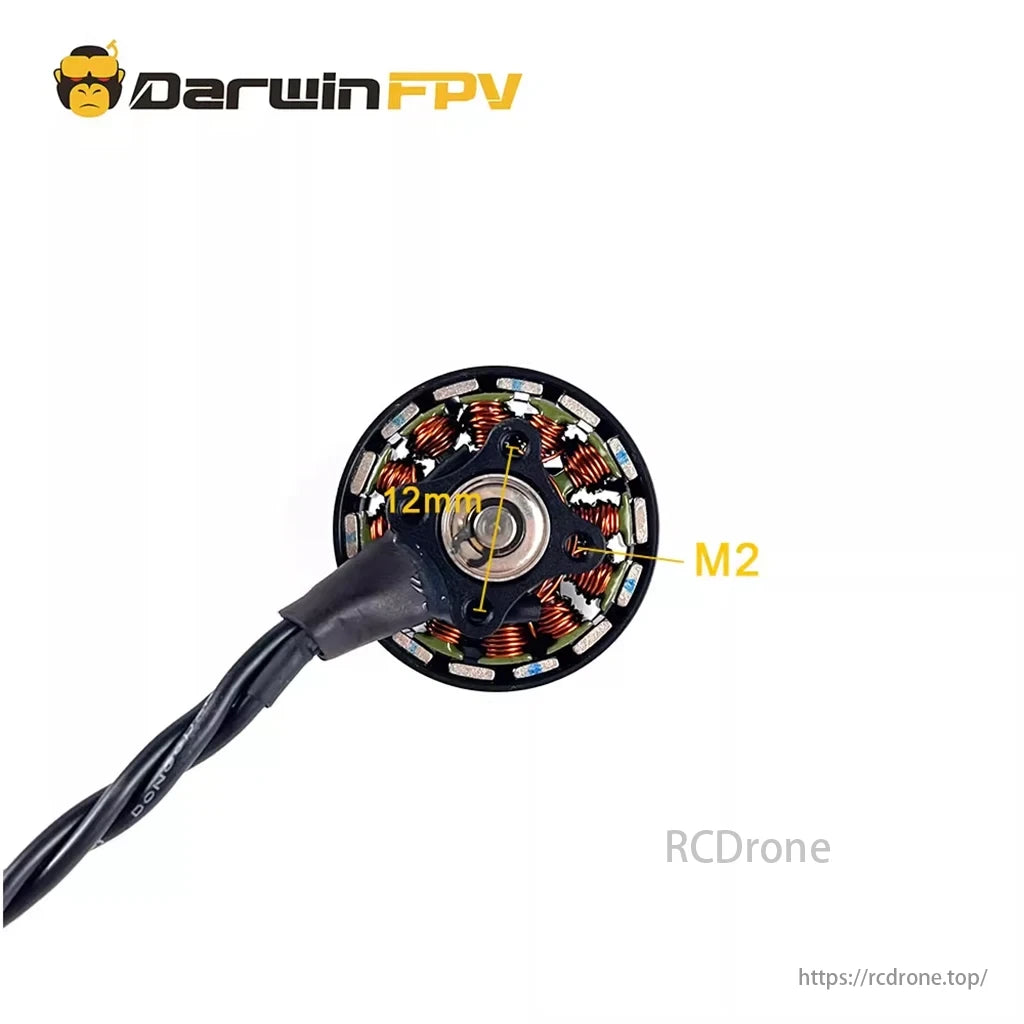

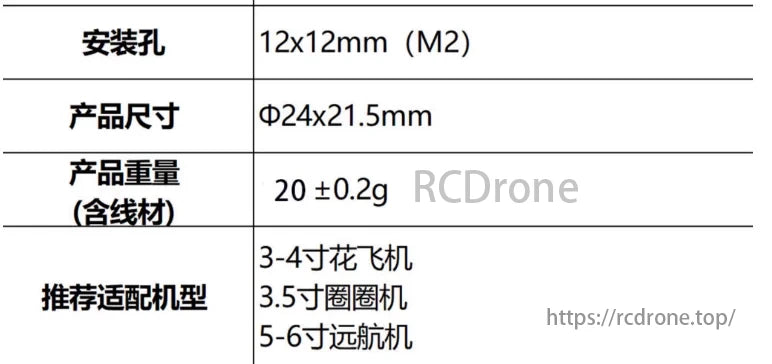

Installation hole: 12x12mm (M2). Product size: Ø24x21.5mm. Weight: 20±0.2g. Recommended for 3-4 inch FPV, 3.5 inch racing, 5-6 inch long-range drones.

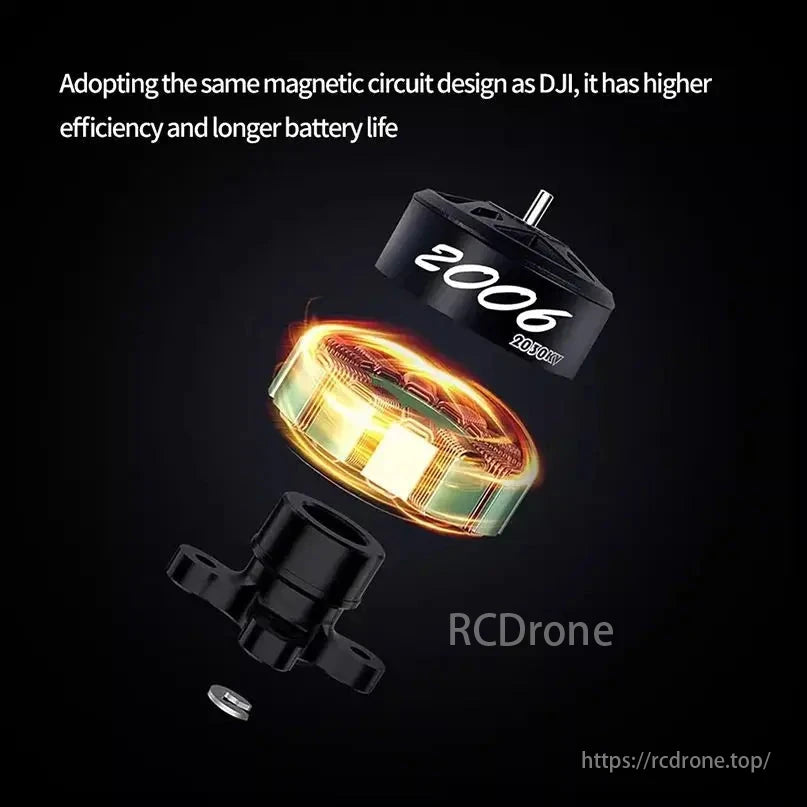

CineApe35 Brushless Motor, 2006 model, high efficiency, longer battery life.

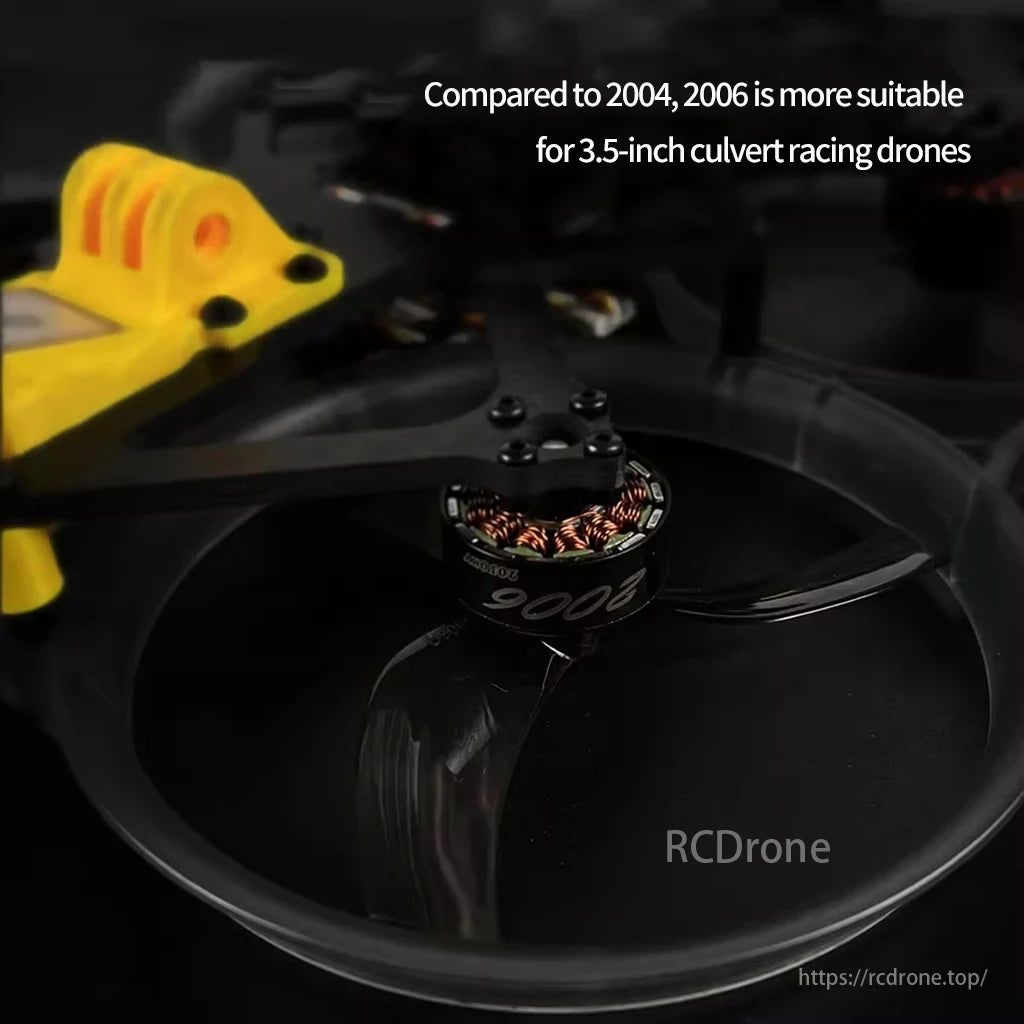

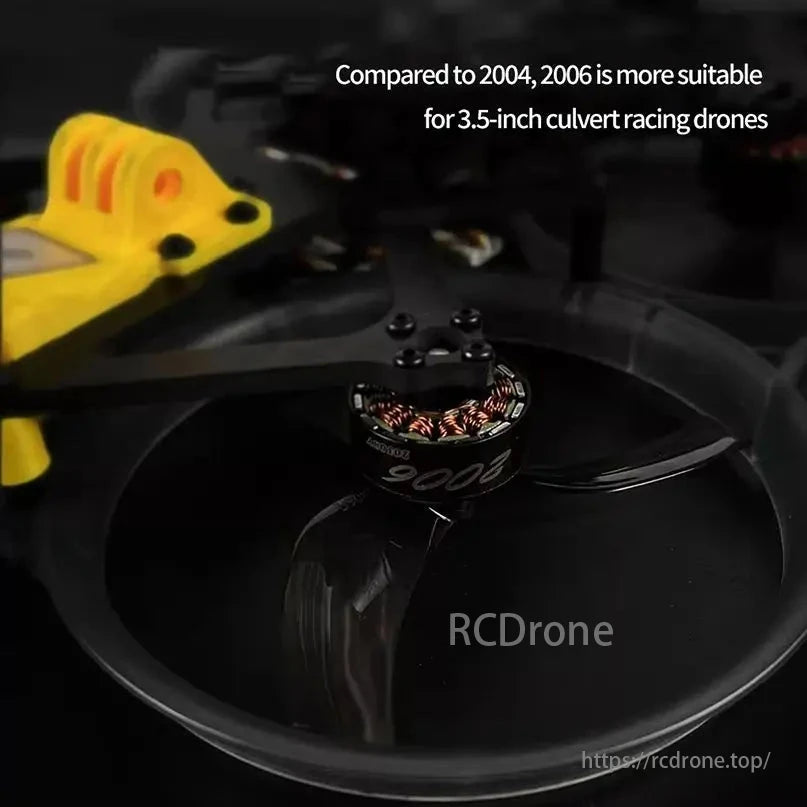

CineApe35 Brushless Motor, model 2006, suits 3.5-inch culvert racing drones better than the 2004 version.

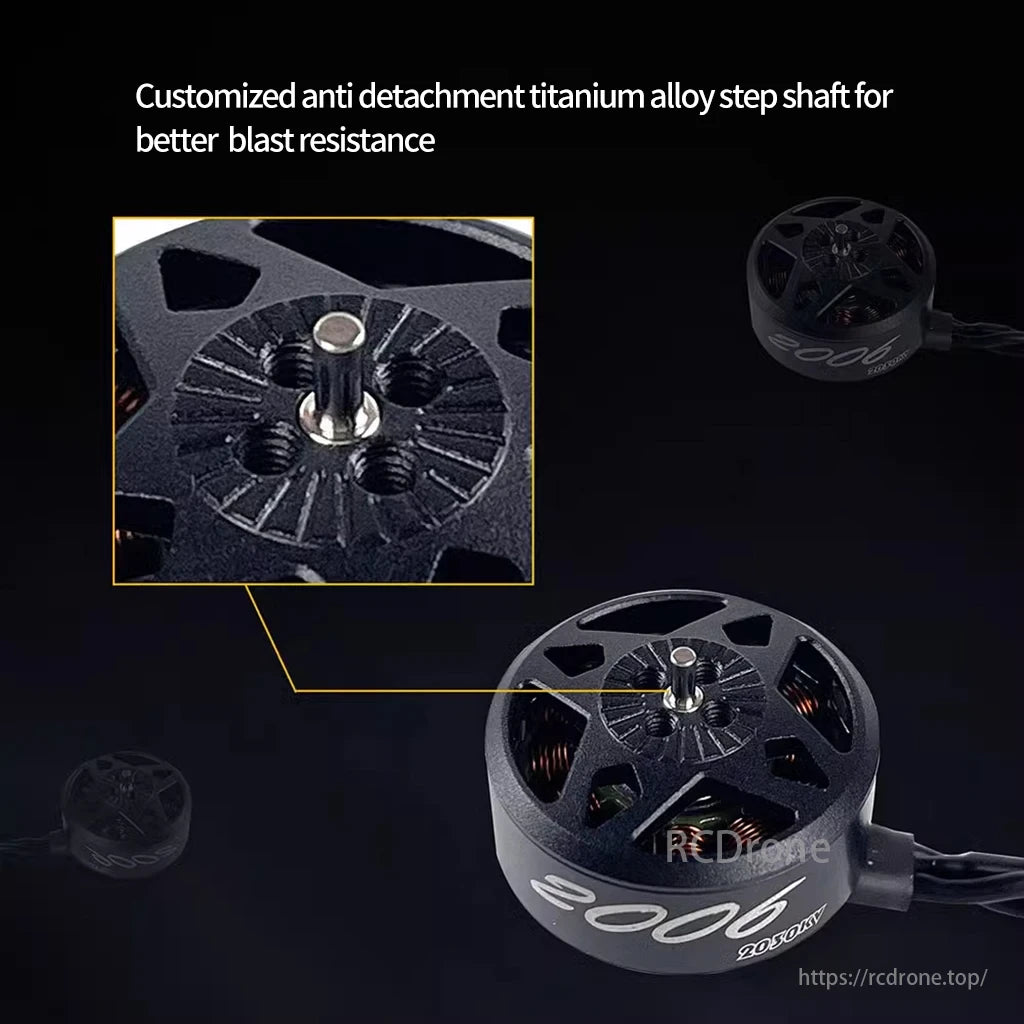

CineApe35 Brushless Motor has a titanium alloy step shaft for better blast resistance. Model: 2006.
