Overview
DarwinFPV 1.2G 1.6W FPV VTX (video transmitter) is a low-frequency analog video transmitter designed for clearer, more stable reception and longer-range transmission compared with 5.8G systems, making it suitable for complex environments. It is intended as a replacement option for Matek 1.2G/1.3G 1.6W VTX setups.
Legal notice: This product requires an amateur radio license to operate legally. Check local laws and regulations before purchasing or using.
Stated range: more than 5 km in an open area when using a 5 dB omnidirectional antenna; up to 10 km when connected to an external high-gain directional antenna. The specifications also list 5 km transmission distance (no interference at the beach).
Key Features
- 1.6W stable output for long periods, designed to avoid power drop due to excessive temperature

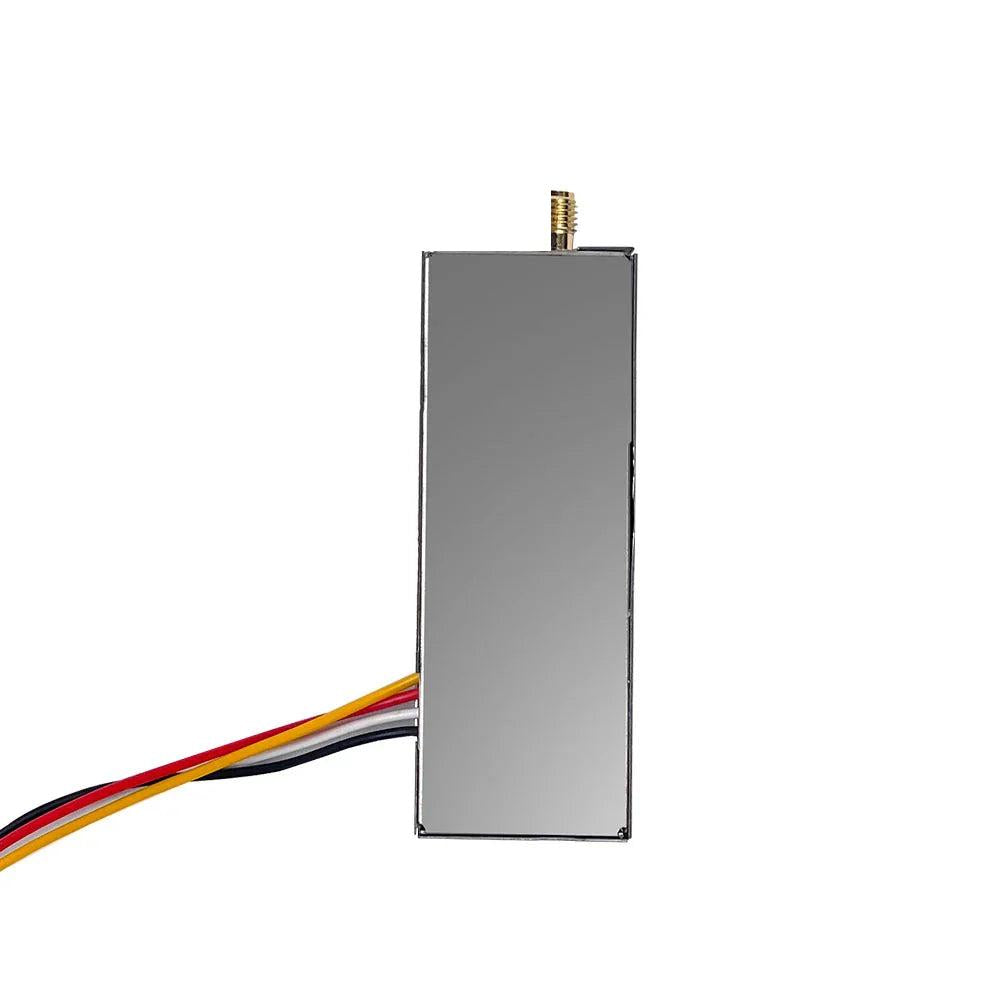

- Fully enclosed metal shell for shielding to help reduce interference and support longer transmission distance
- Button-based frequency adjustment across 8 channels for faster, easier setup

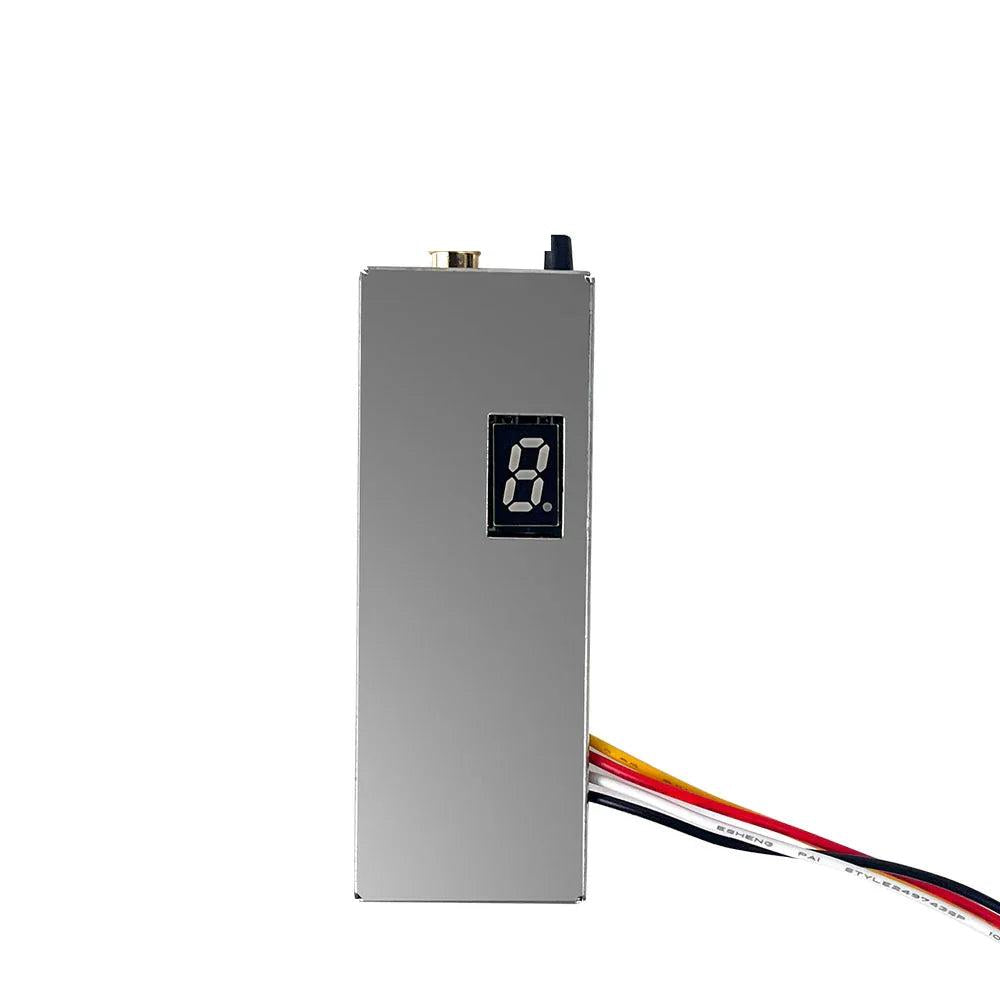

- Digital tube indicator display (4/5/6/7/8/9/A/B)
For compatibility questions (antenna, receiver, frequency planning) or order support, contact https://rcdrone.top/ or support@rcdrone.top.

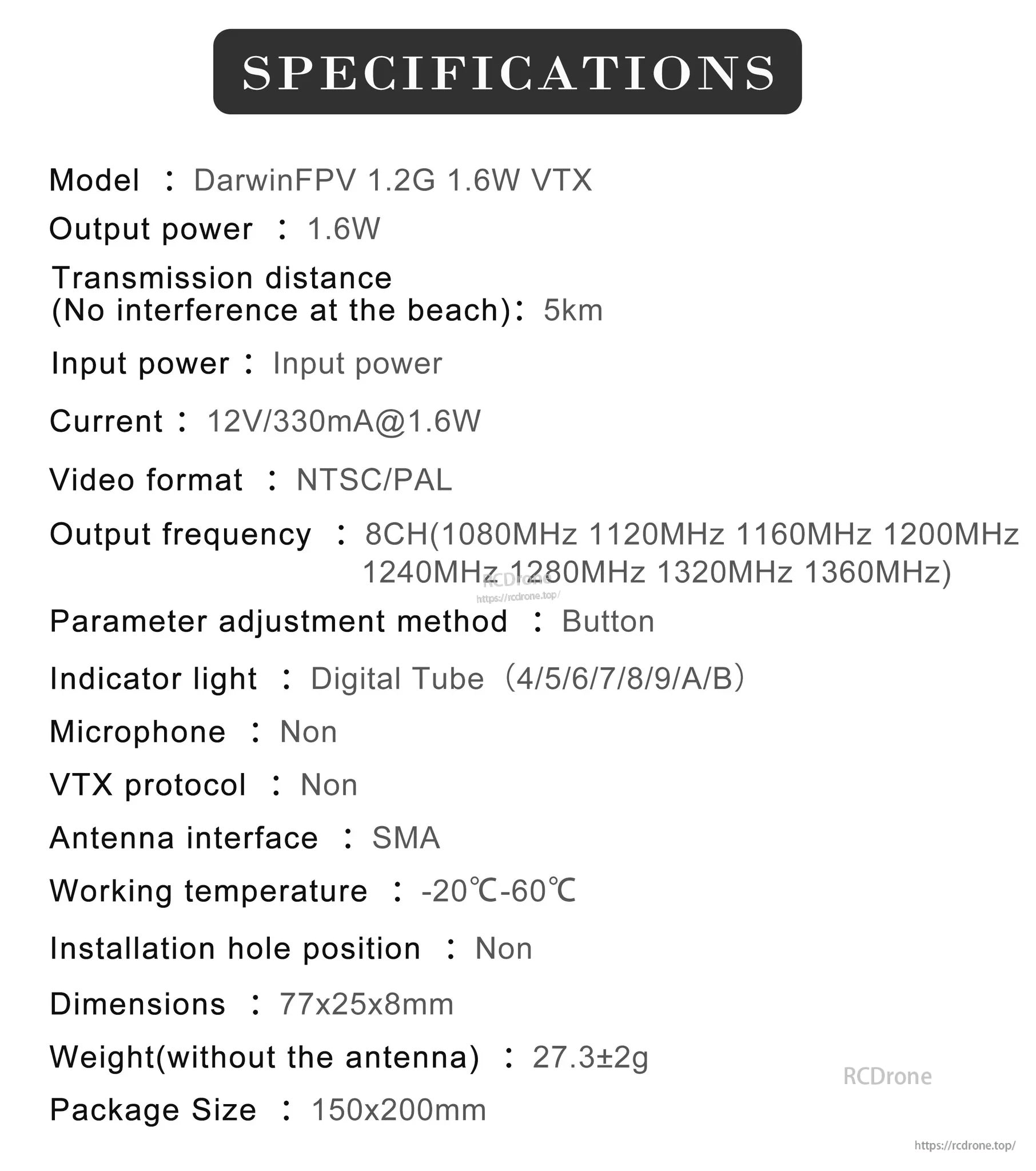

Specifications
| Model | DarwinFPV 1.2G 1.6W VTX |
| Output power | 1.6W |
| Transmission distance | 5 km (no interference at the beach) |
| Input power | Input power |
| Current | 12V/330mA@1.6W |
| Video format | NTSC/PAL |
| Output frequency | 8CH (1080MHz, 1120MHz, 1160MHz, 1200MHz, 1240MHz, 1280MHz, 1320MHz, 1360MHz) |
| Parameter adjustment method | Button |
| Indicator light | Digital Tube (4/5/6/7/8/9/A/B) |
| Microphone | None |
| VTX protocol | None |
| Antenna interface | SMA |
| Working temperature | -20C to 60C |
| Installation hole position | None |
| Dimensions | 77 x 25 x 8 mm |

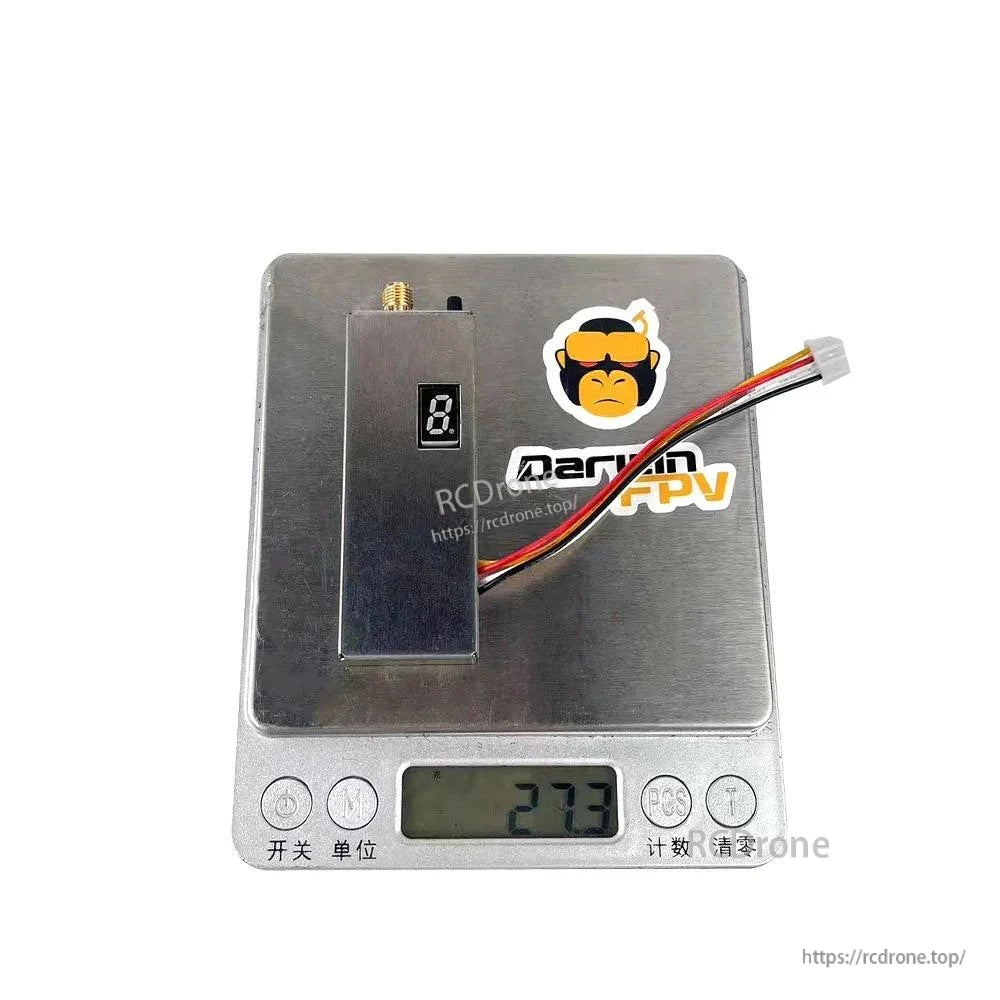

| Weight (without the antenna) | 27.3 012 g |
| Package size | 150 x 200 mm |

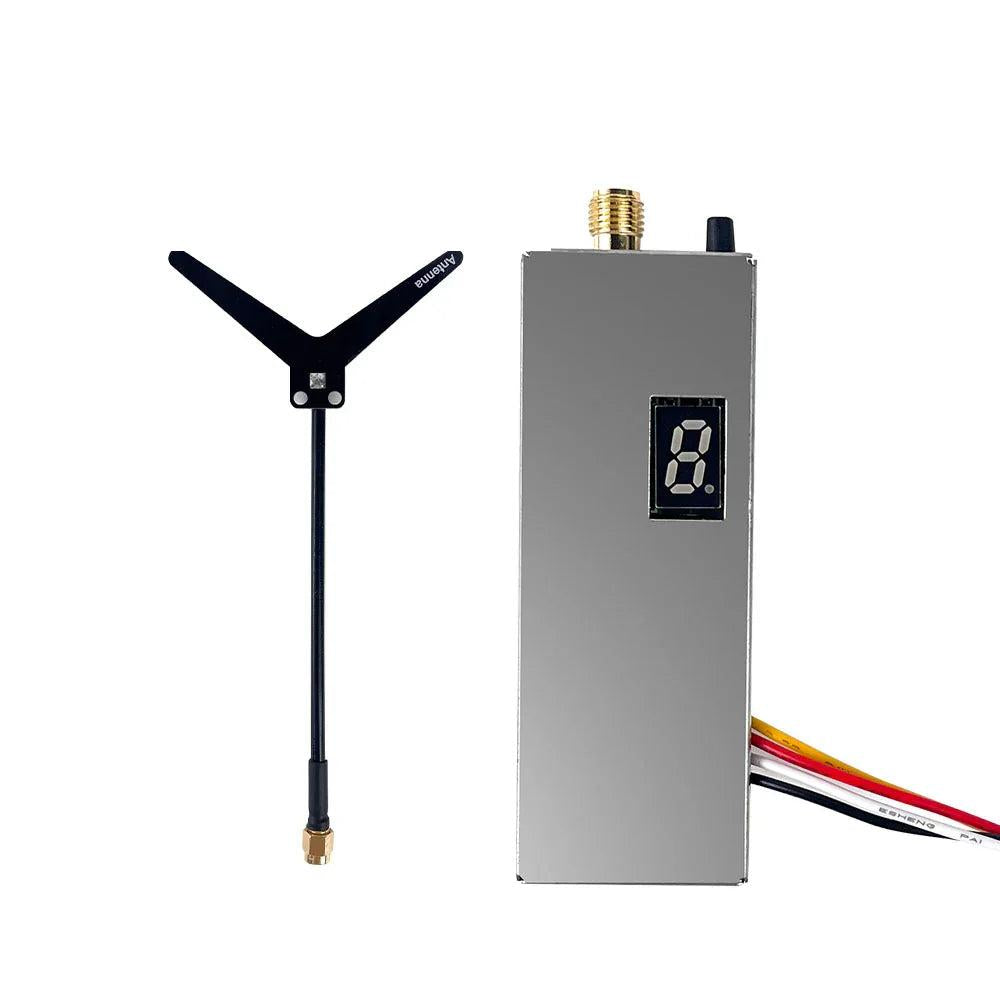

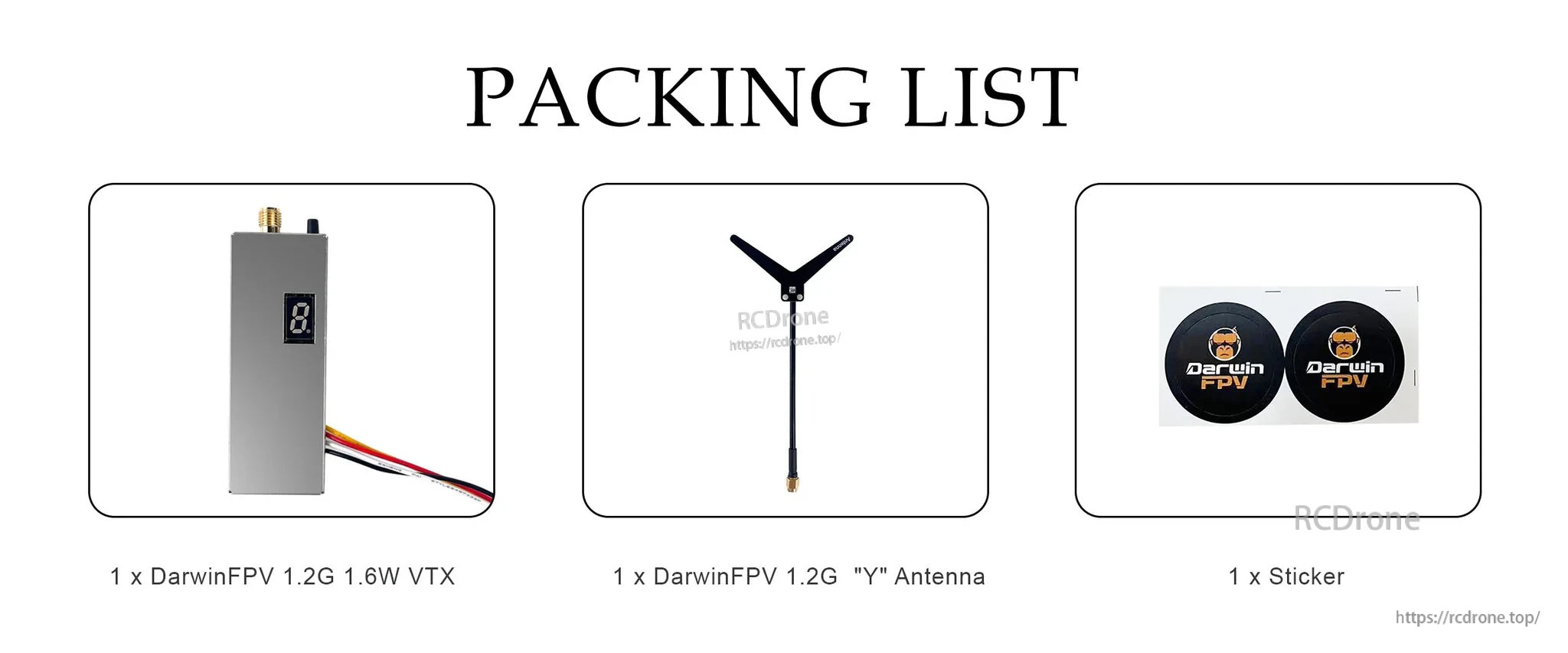

Whats Included
- 1 x DarwinFPV 1.2G 1.6W VTX

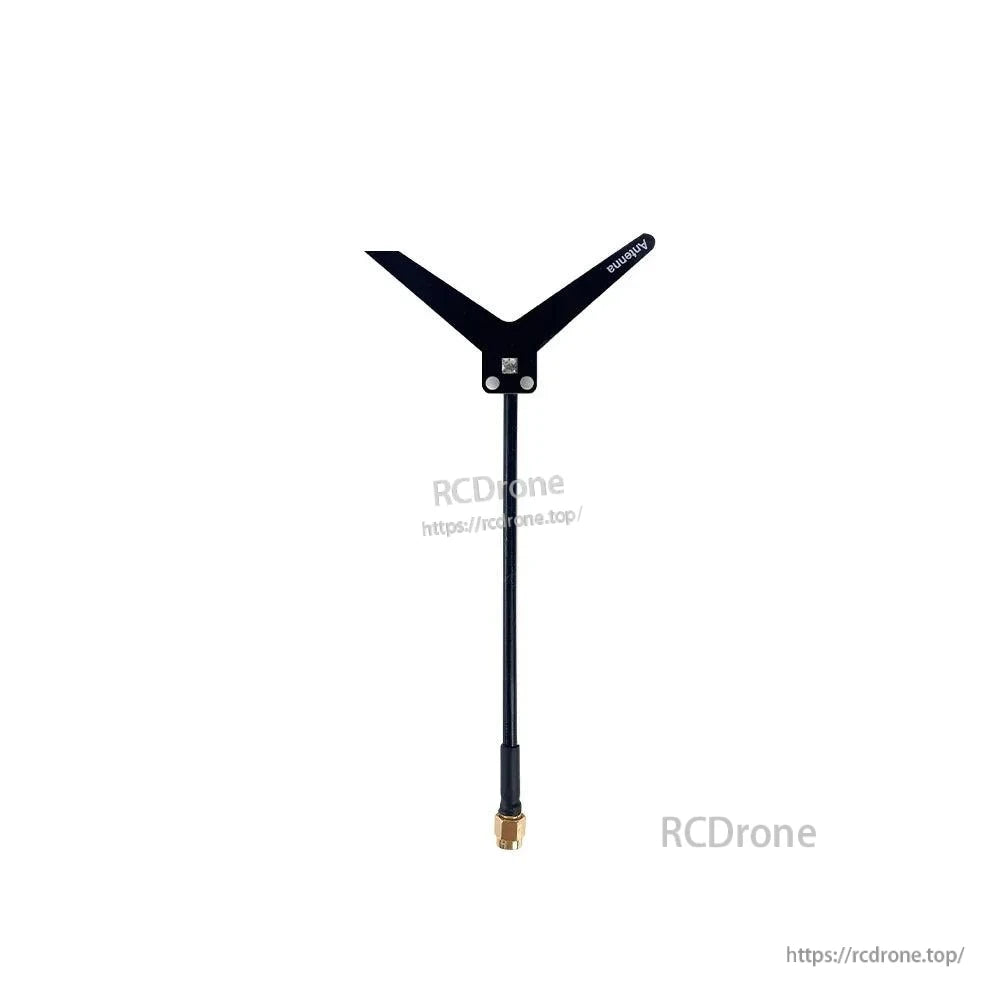

- 1 x DarwinFPV 1.2G Y Antenna
- 1 x Sticker
Details

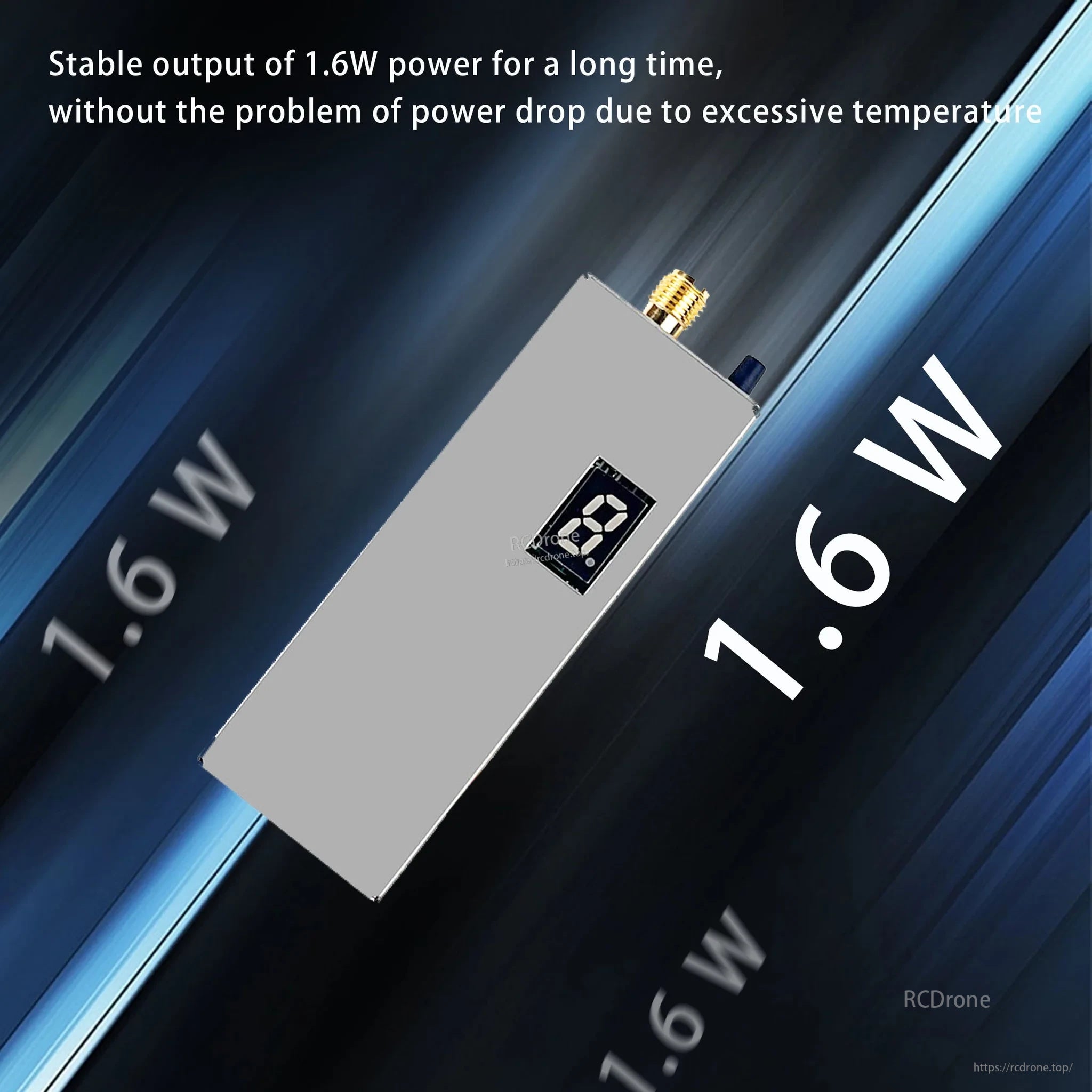

Built for long-range analog FPV, the 1.6W output is designed for stable power over extended flights.

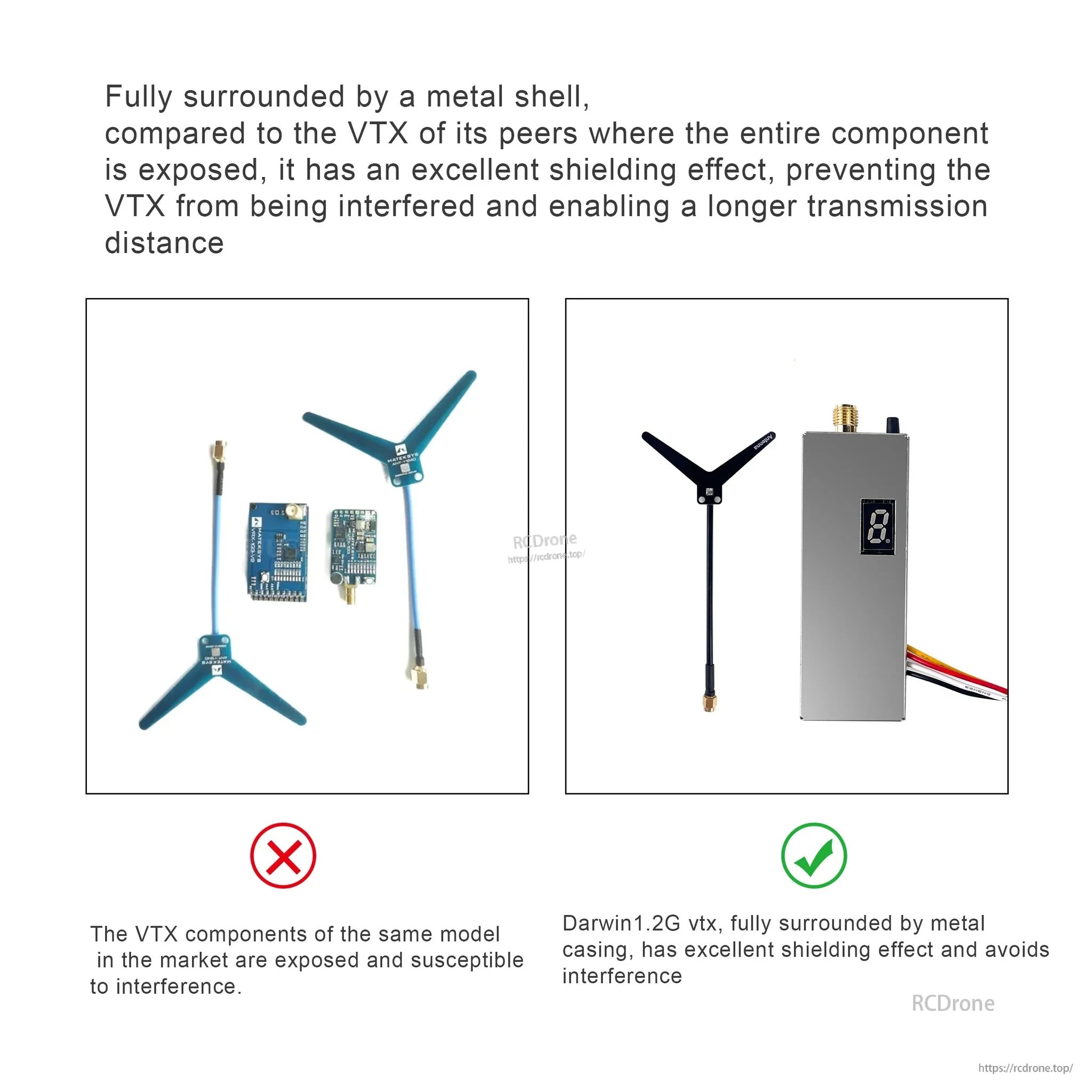

A fully enclosed metal shell helps shield the transmitter from interference for clearer reception in complex environments.

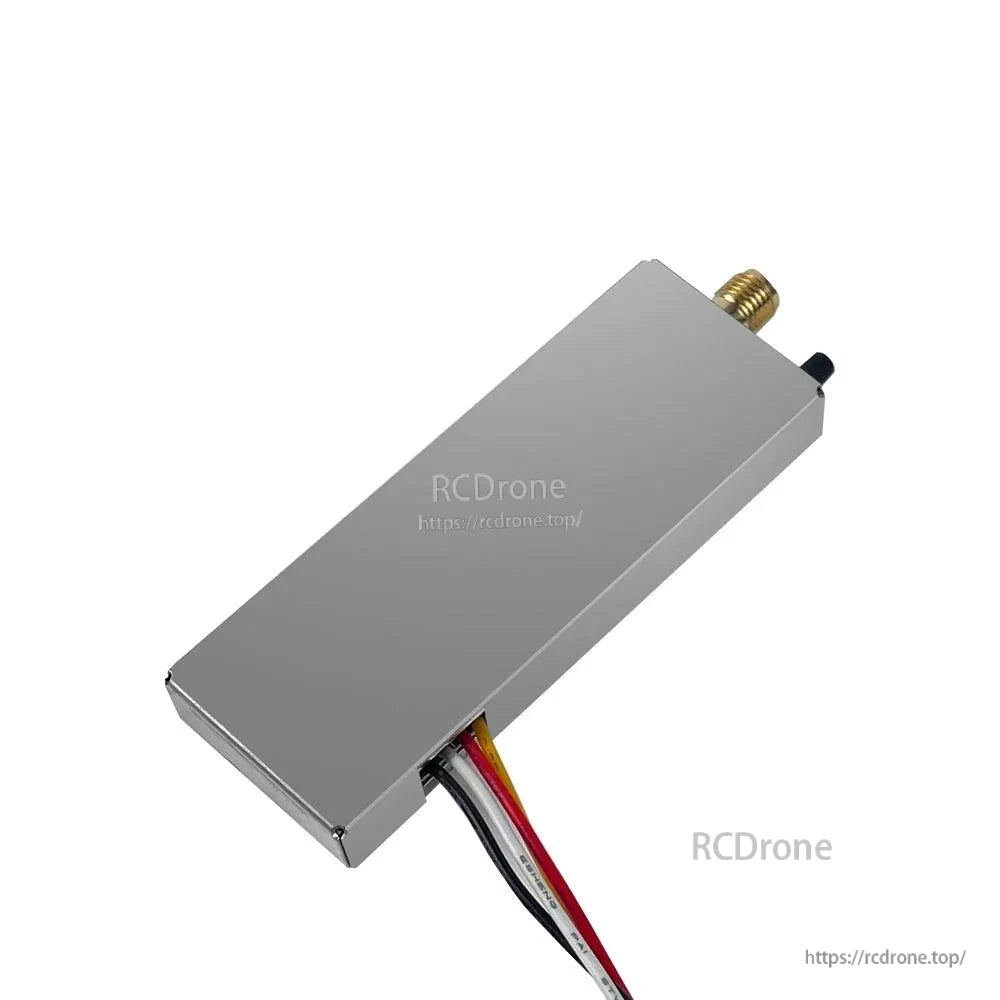

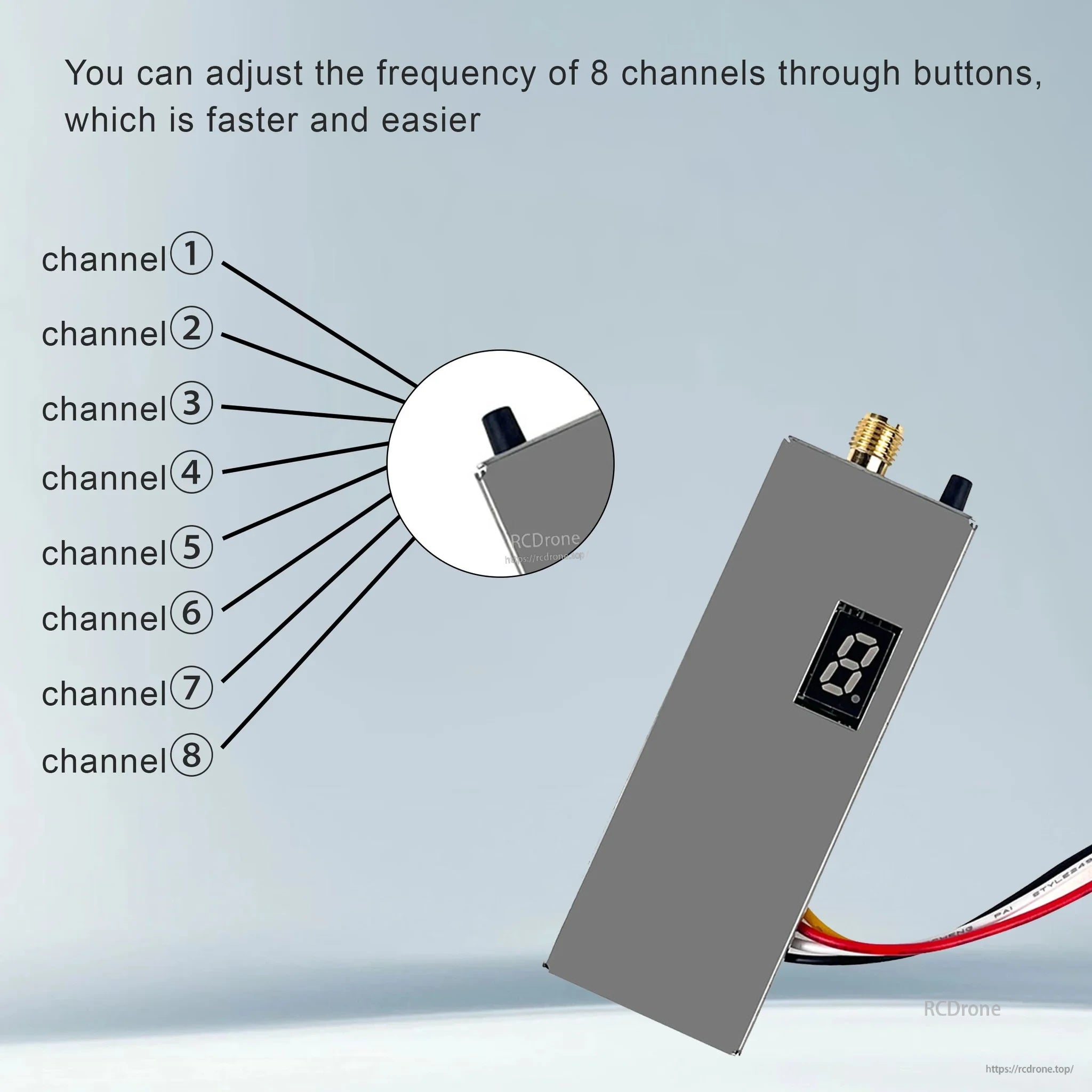

Switch between 8 channels using the onboard button, with the digital tube readout for quick confirmation.
