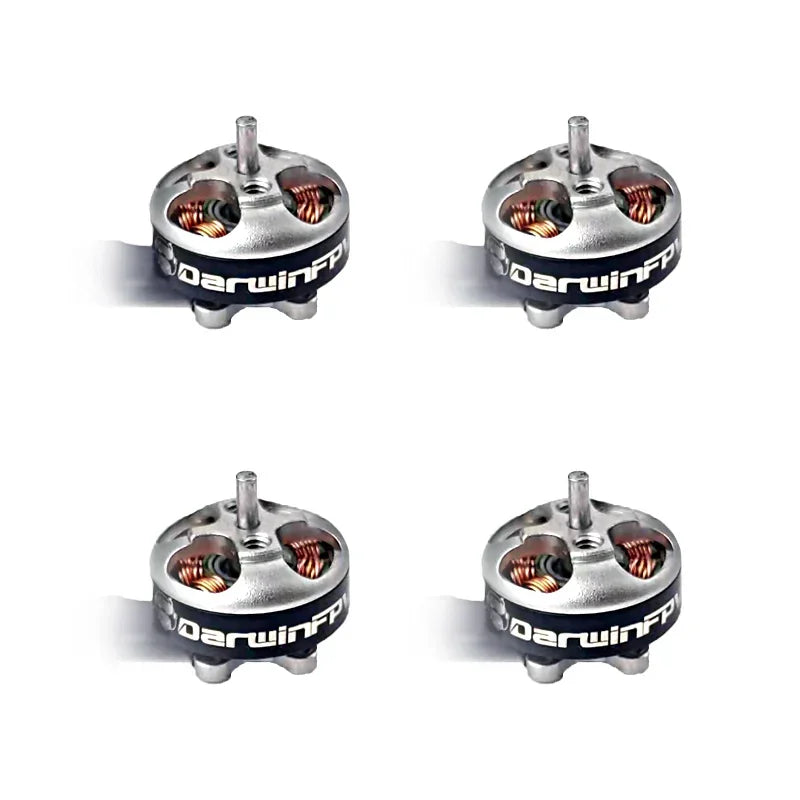

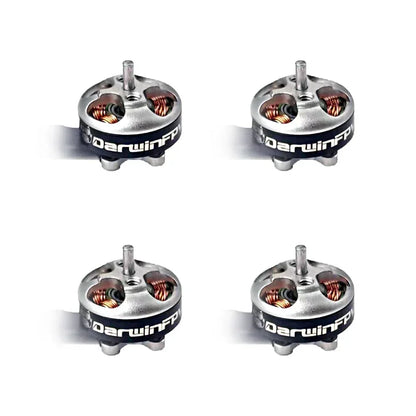

• DarwinFPV TinyApe 1103 8000KV Brushless Motor, TinyApe 1103 8000KV brushless motor for FPV drones, compact with copper coils, suitable for 2-3S racing.
  • DarwinFPV TinyApe 1103 8000KV Brushless Motor, DarwinFPV TinyApe 1103 8000KV brushless motor for 2-3S FPV racing drones, featuring silver color with copper coils.
  • DarwinFPV TinyApe 1103 8000KV Brushless Motor, DarwinFPV TinyApe 1103 8000KV brushless motor, designed for FPV racing drones, offers high performance and efficiency.
  • DarwinFPV TinyApe 1103 8000KV Brushless Motor, Close-up of DarwinFPV TinyApe 1103 8000KV brushless motor for FPV racing drones.
  • DarwinFPV TinyApe 1103 8000KV Brushless Motor, DarwinFPV TinyApe 1103 8000KV motor for FPV drones, compact and high-performance, suitable for 2-3S racing.
1 5

DarwinFPV TinyApe 1103 8000KV Brushless Motor for 2-3S FPV Racing Drone

DarwinFPV TinyApe 1103 8000KV Brushless Motor for 2-3S FPV Racing Drone

DarwinFPV

$25.97 USD
$33.76 USD $25.97 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

This is the recommended motor for TinyApe.


Specifications:

KV:   8000

Configu-ration:   9N12P

Stator Length:     3mm

Shaft Diameter:   1.5mm

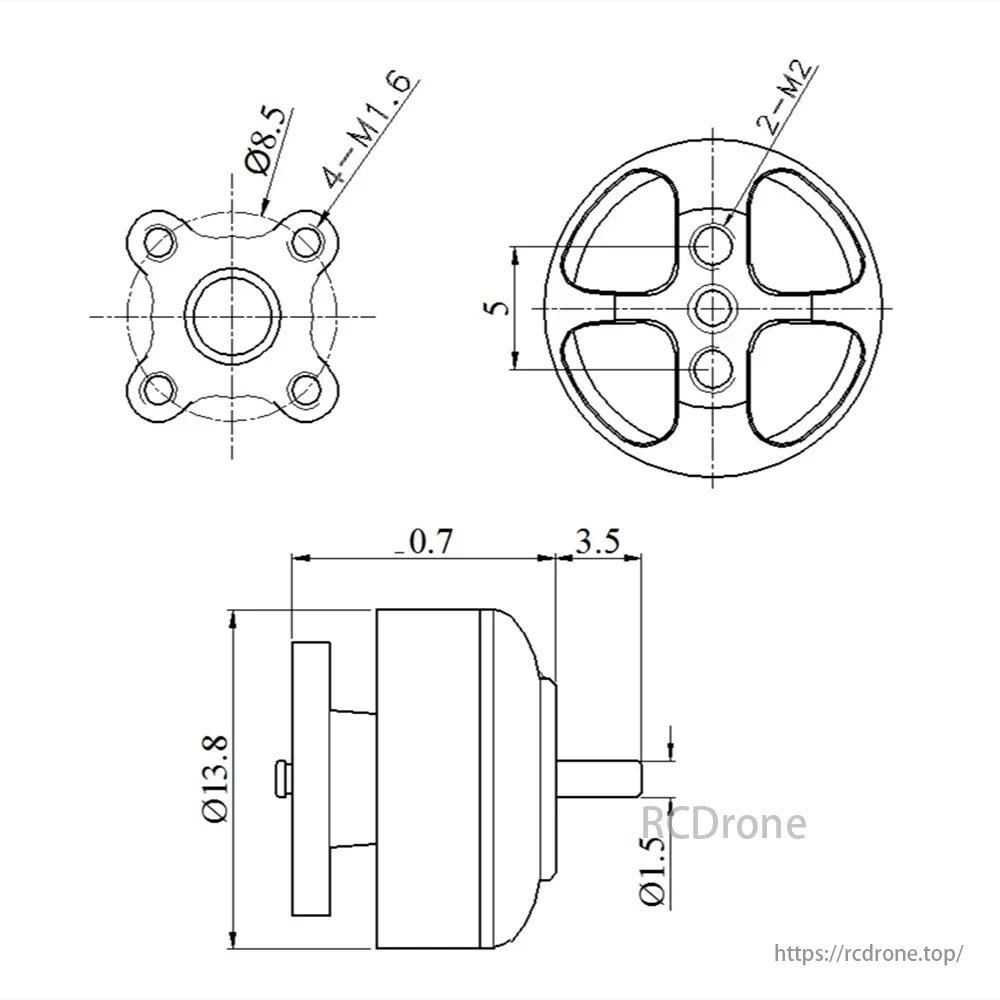

Motor Dimension(Dia.*Len):   Φ13.8*10.7mm

Weight(g):   3.7

Idle current(10)   @5V(A); ≤0.4

No.of Cells(Lipo):    2-3S

Max Continuous Power(W)60S:    120

Internal Resistance:    245mΩ

Max Current(60S):    10A

DarwinFPV TinyApe 1103 8000KV Brushless Motor, Motor specifications: KV 8000, configuration 9N12P, stator length 3mm, and shaft diameter 1.5mm.

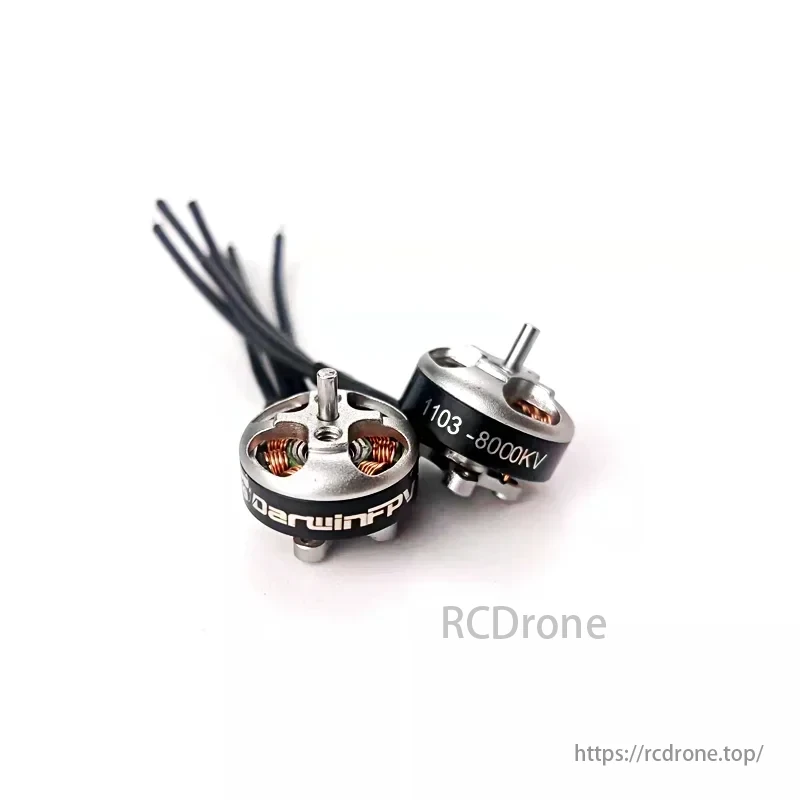

DarwinFPV TinyApe 1103 8000KV Brushless Motor, TinyApe motor suitable for 2-3S FPV racing drones with high KV value and excellent performance.

DarwinFPV TinyApe 1103 8000KV Brushless Motor, Electronics component specifications: Φ13.8*10.7mm size, 3.7g weight, 0.4A idle current at 5V, and various power and resistance metrics.

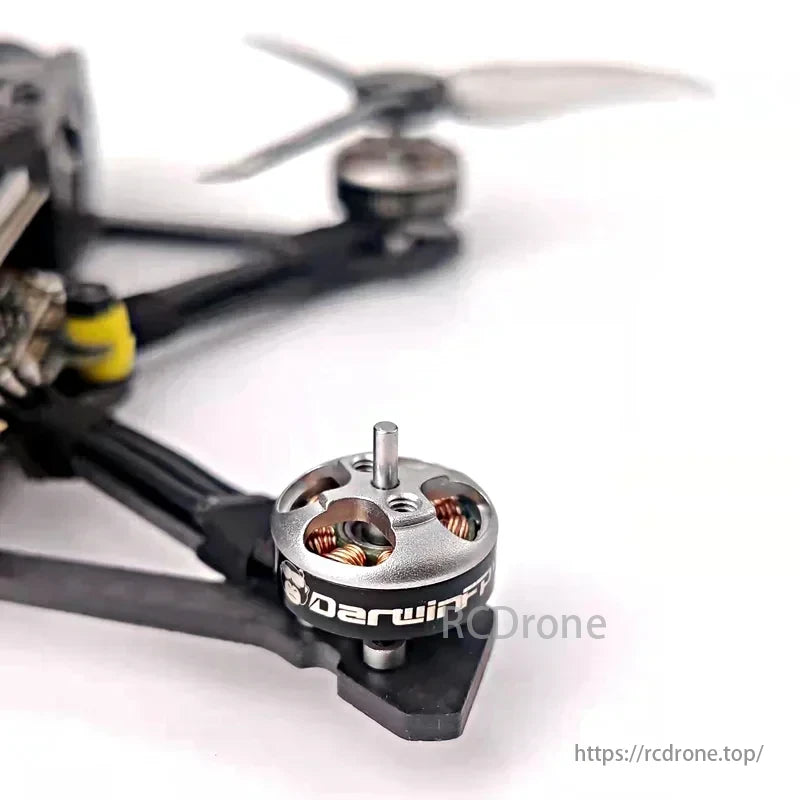

DarwinFPV TinyApe 1103 8000KV Brushless Motor, Φ13.8*10.7mm battery with 3.7g weight, idle current ≤0.4A, and max continuous power of 120W.DarwinFPV TinyApe 1103 8000KV Brushless Motor for 2-3S FPV Racing Drone

DarwinFPV TinyApe 1103 8000KV Brushless Motor, Specifications for a motor including KV, configuration, stator length, and shaft diameter.
