DarwinFPV TX8 ELRS Radio FPV Transmitter, 2.4GHz ExpressLRS SX1280, 8CH, USB-C, SMA, 201.8g

DarwinFPV

$88.99 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Transmitter TX8 ELRS Transmitter (without Battery) TX8 ELRS Transmitter( with 2600mAh Battery)

Receiver Cement ELRS 2.4g Waterproof Receiver No Need

Care Card(ge the 25% discount code for the next transmitter) Need Care Card( choose this will get a free battery) No Need

Quantity

View full details

Overview

DarwinFPV TX8 is an FPV transmitter (ELRS radio transmitter) designed for simple setup and portable use, with an integrated 2.4GHz ExpressLRS (SX1280) TX module. It supports simulator practice and PC-based parameter adjustment via DarwinFPV RadioConfig.

Key Features

Built-in ELRS module: ExpressLRS 2.4GHz ISM; TX power 25-100mW.
Control range: >=2km (no electromagnetic interference in the surrounding area).
8 channels: 8 channels (4 joysticks + 4 switches).

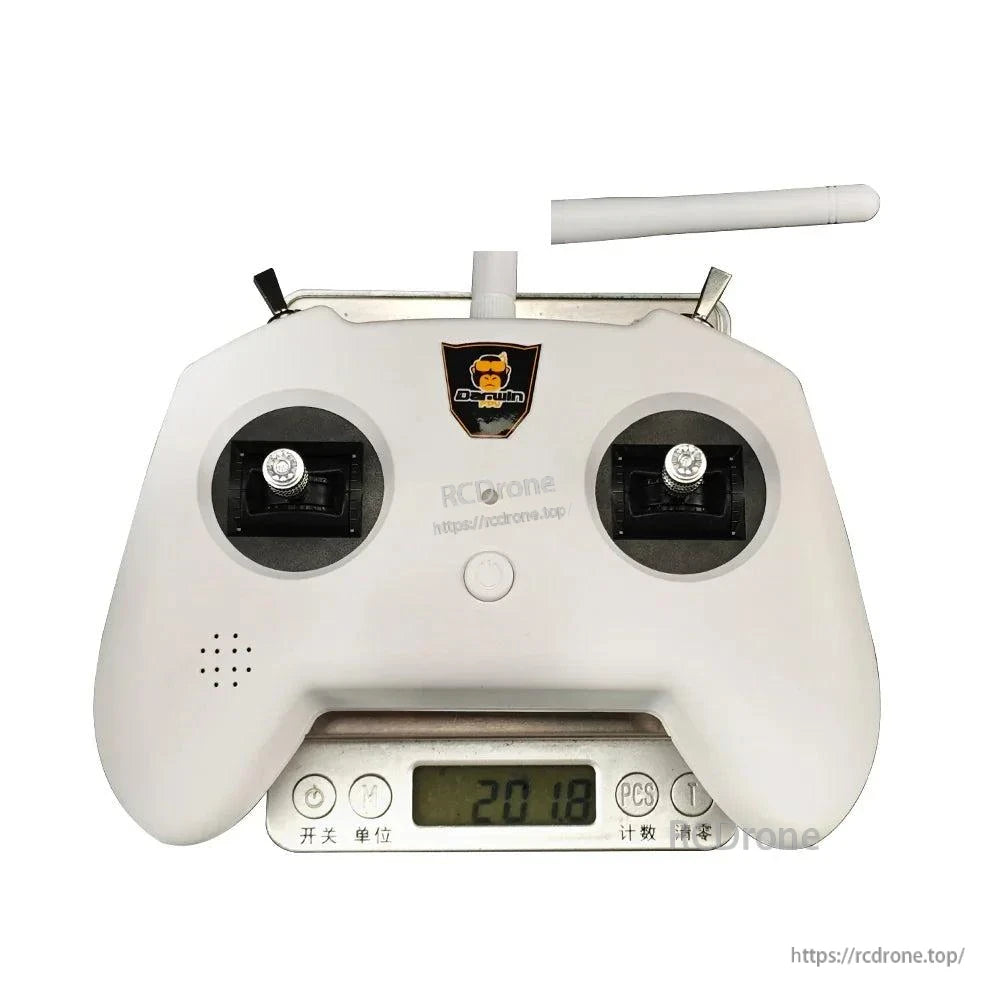

Compact and portable: transmitter weight 201.8g; transmitter dimensions 162x141x58mm.
Battery and charging: 2600mAh battery mentioned; charging via USB Type-C 5V/1.2A. Battery life listed as 6H, and the description mentions lab-tested 8+ hours.
Joystick: high precision low temperature drift potentiometer joystick.
Simulator support (listed): Liftoff, Uncrashed, TRYP, DRL, DCL.

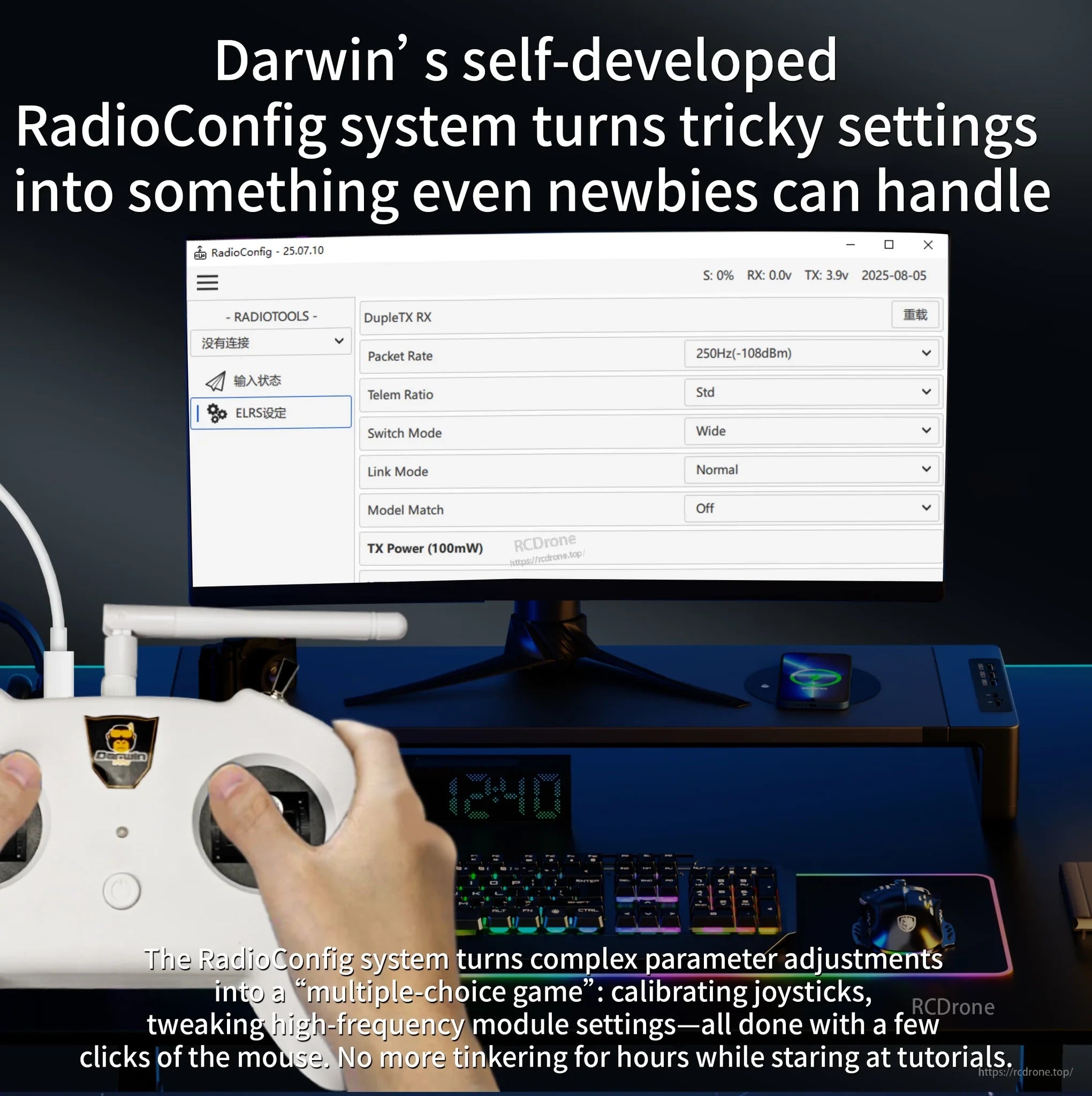

Configuration & upgrades: Transmitter firmware supports USB online upgrade; TX module firmware supports WiFi wireless upgrade. RadioConfig provides settings such as Packet Rate, Telem Ratio, Switch Mode, Link Mode, Model Match, and TX Power (100mW shown in the interface).
Antenna interface: SMA.

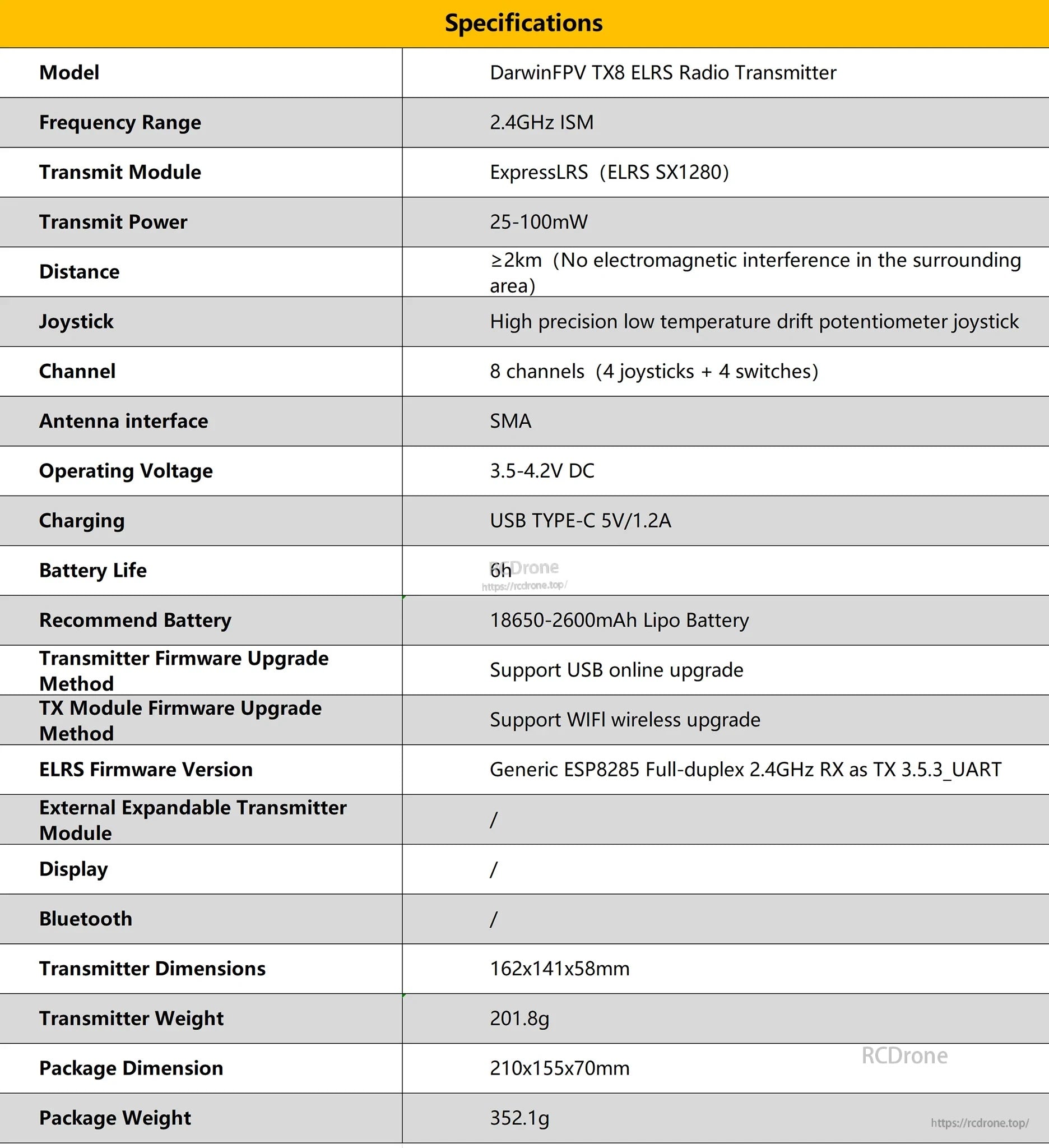

Specifications

Model	DarwinFPV TX8 ELRS Radio Transmitter
Frequency Range	2.4GHz ISM
Transmit Module	ExpressLRS (ELRS SX1280)
Transmit Power	25-100mW
Distance	>=2km (No electromagnetic interference in the surrounding area)
Joystick	High precision low temperature drift potentiometer joystick
Channel	8 channels (4 joysticks + 4 switches)
Antenna interface	SMA
Operating Voltage	3.5-4.2V DC
Charging	USB TYPE-C 5V/1.2A
Battery Life	6H

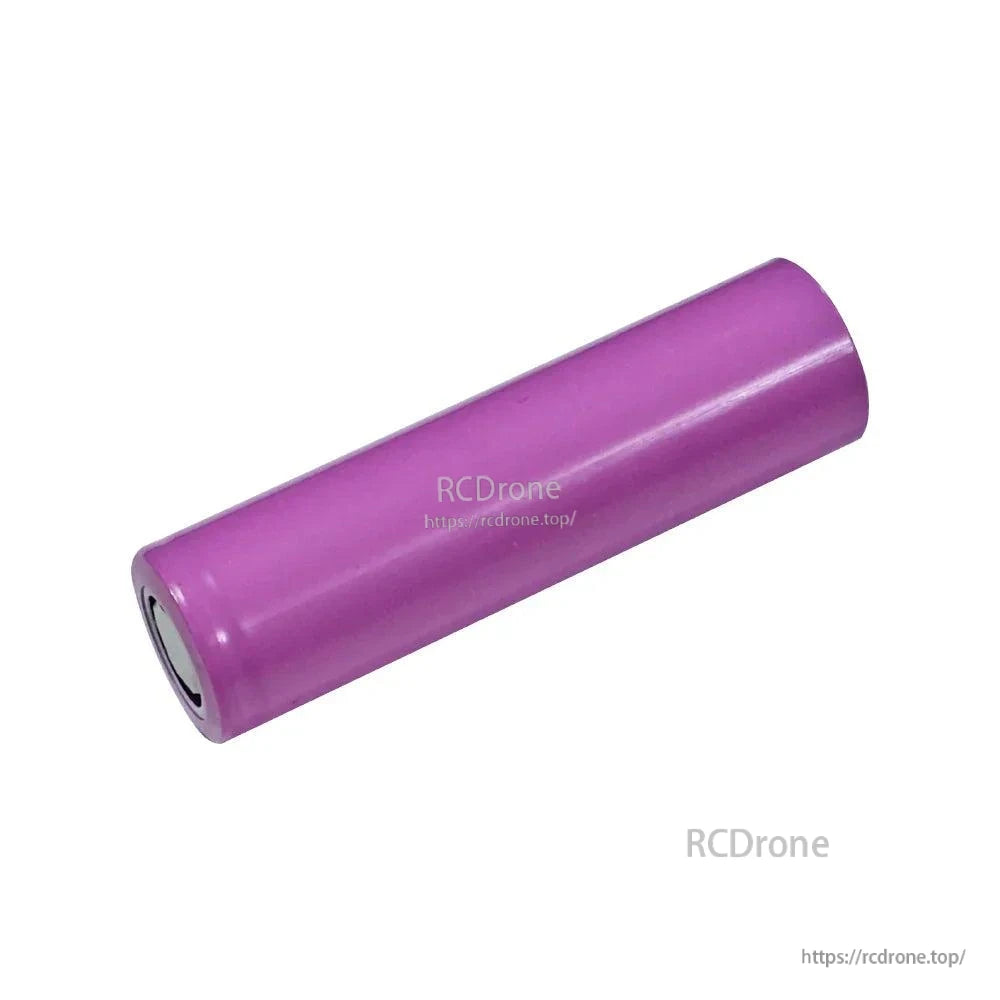

Recommend Battery	18650-2600mAh Lipo Battery
Transmitter Firmware Upgrade Method	Support USB online upgrade
TX Module Firmware Upgrade Method	Support WIFI wireless upgrade
ELRS Firmware Version	Generic ESP8285 Full-duplex 2.4GHz RX as TX 3.5.3_UART
External Expandable Transmitter Module	/
Display	/
Bluetooth	/
Transmitter Dimensions	162x141x58mm
Transmitter Weight	201.8g
Package Dimension	210x155x70mm
Package Weight	352.1g

What’s Included

1 x DarwinFPV TX8 ELRS Radio Transmitter
1 x 120*120mm Logo Sticker
1 x Manual / Manual Card

For setup, simulator use, or firmware/RadioConfig questions, contact support at https://rcdrone.top/ or email support@rcdrone.top.

Applications

FPV drone control using 2.4GHz ExpressLRS
FPV simulator training (Liftoff, Uncrashed, TRYP, DRL, DCL)

DarwinFPV Care Card (Optional Terms Shown)

Provides an accident solution for DarwinFPV products, covering product damage caused by various reasons.
If the product is damaged, pay 75% of the corresponding fee to get the same new product (same version as originally ordered).
After ordering the Darwin Care Card, a 25% discount code can be used twice within a year.
Examples listed: falling due to impact, accidental water ingress, drone lost, wrong solder.

Details

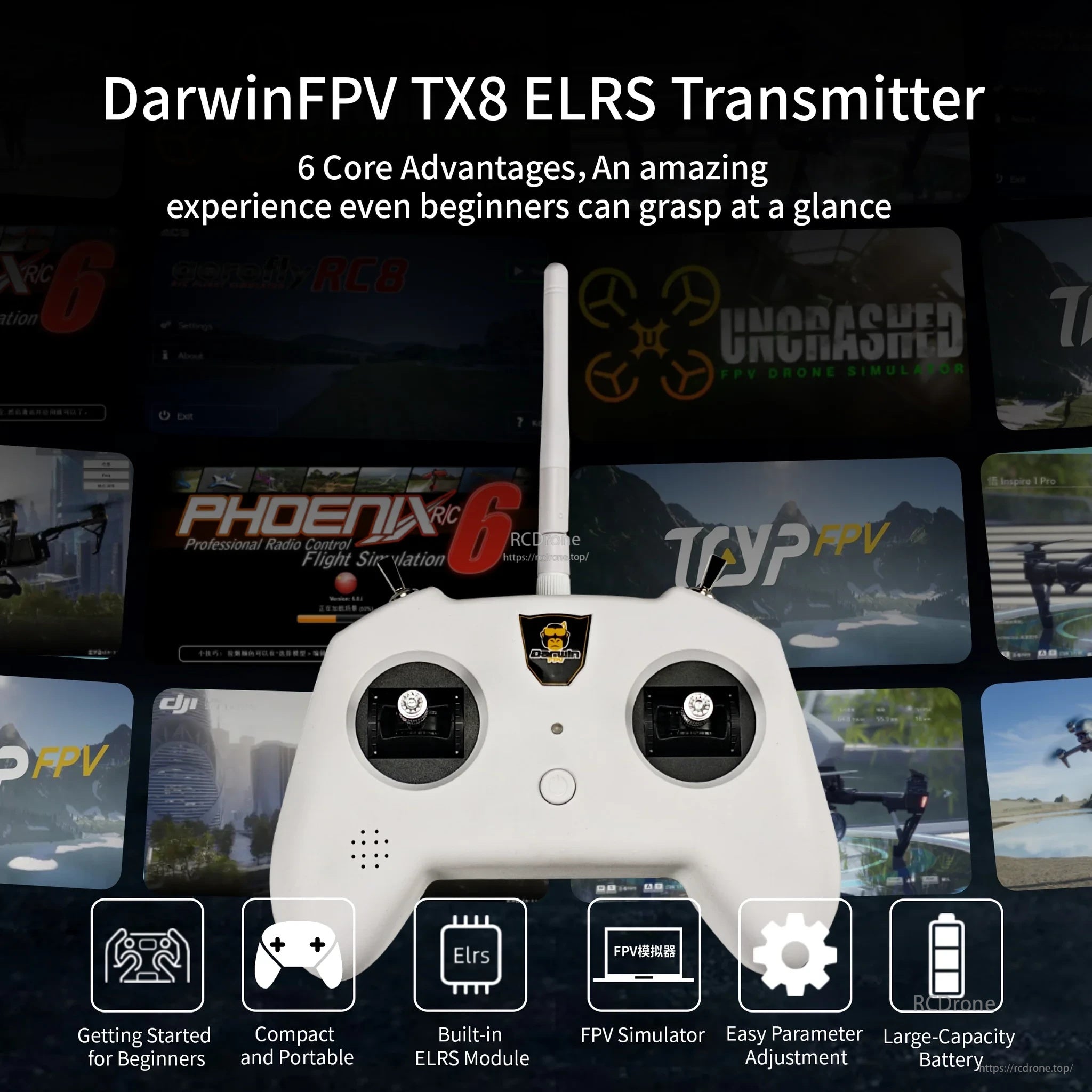

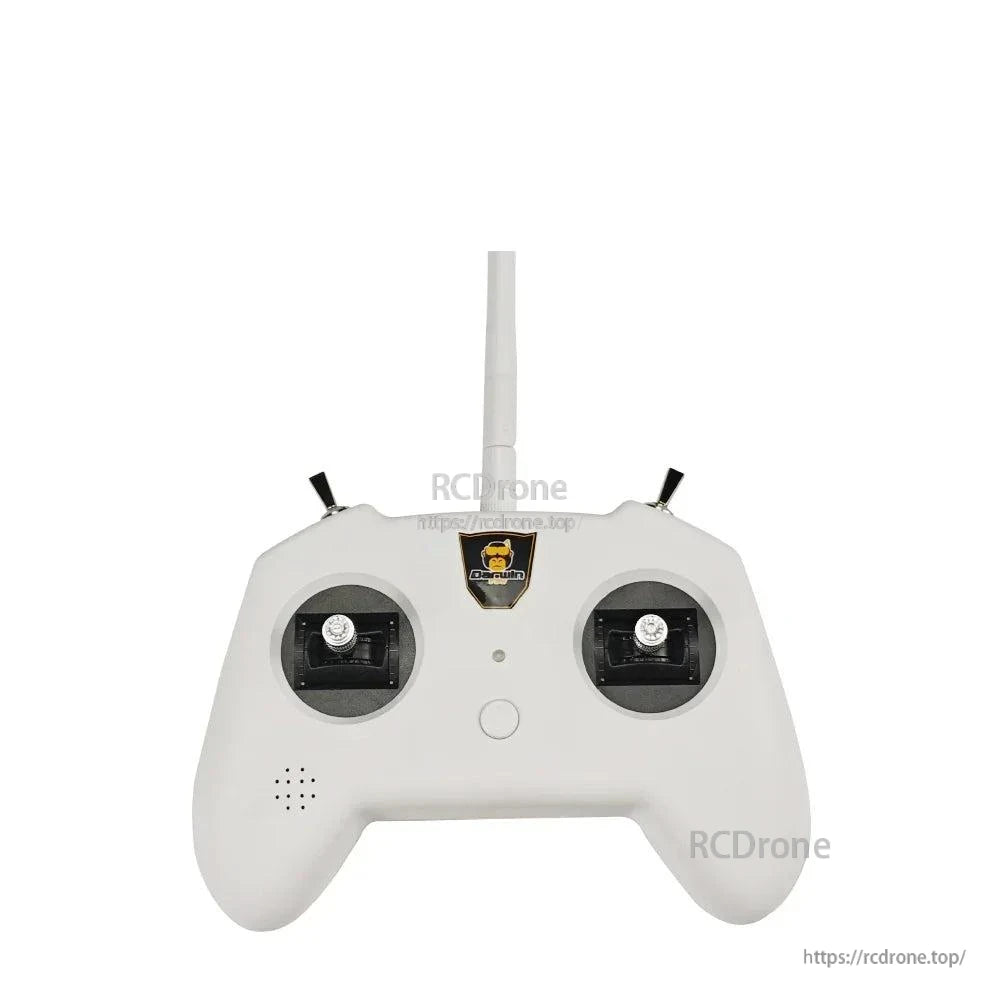

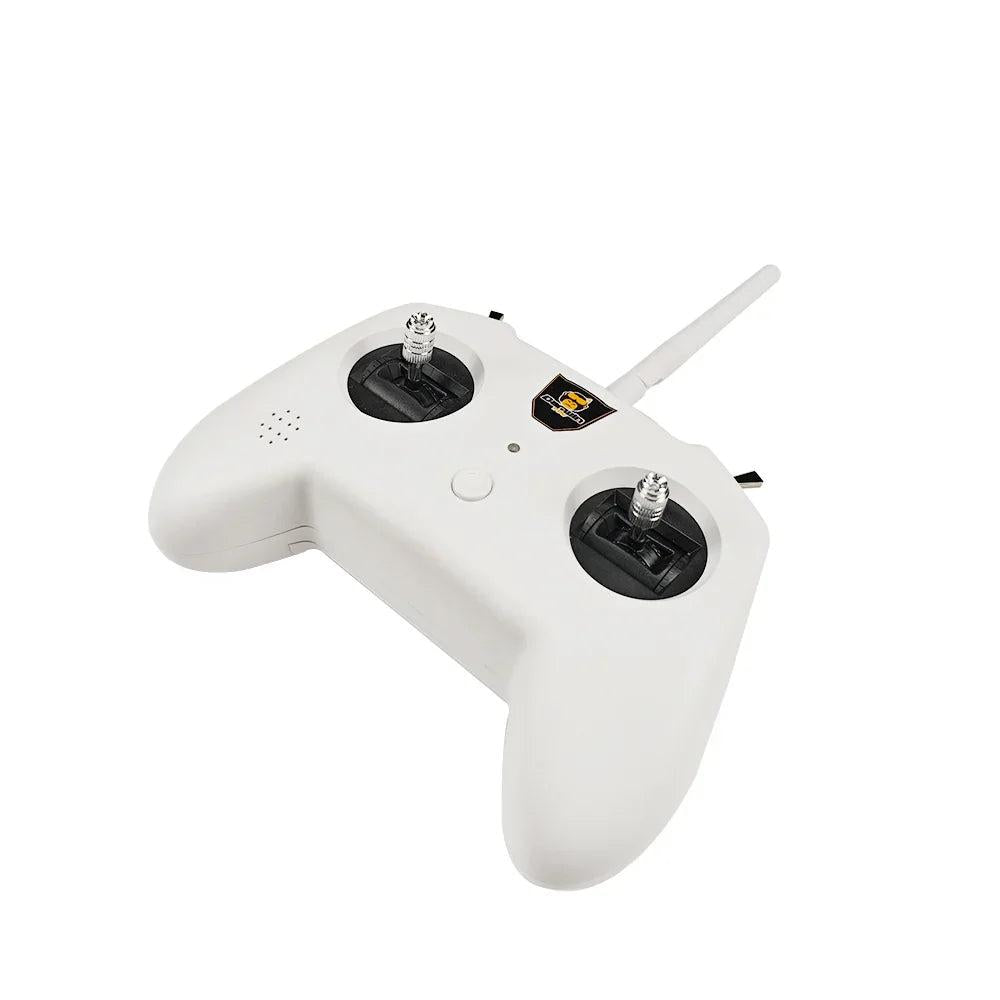

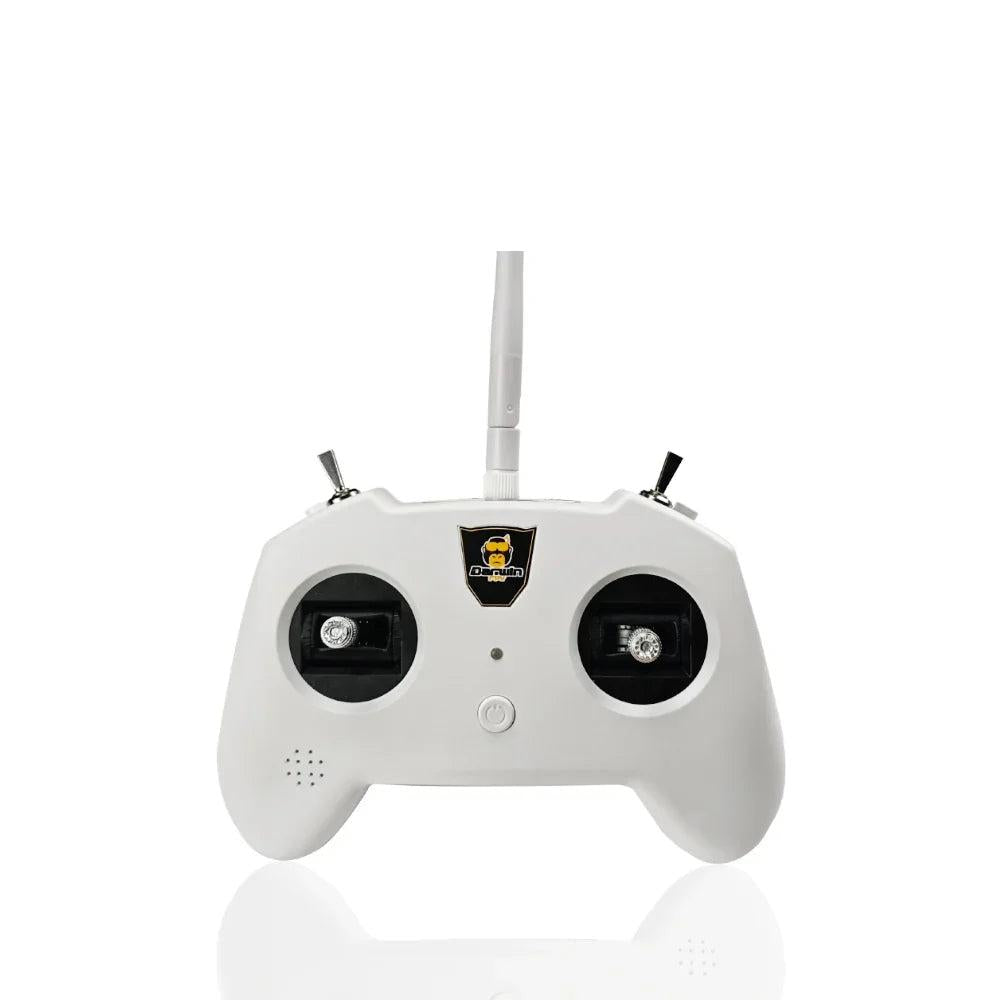

DarwinFPV TX8 ELRS radio transmitter with built-in 2.4GHz ExpressLRS module and compact white body

Skip the steep learning curve with a compact TX8 ELRS radio built for easy setup, travel-friendly size, and quick simulator practice.

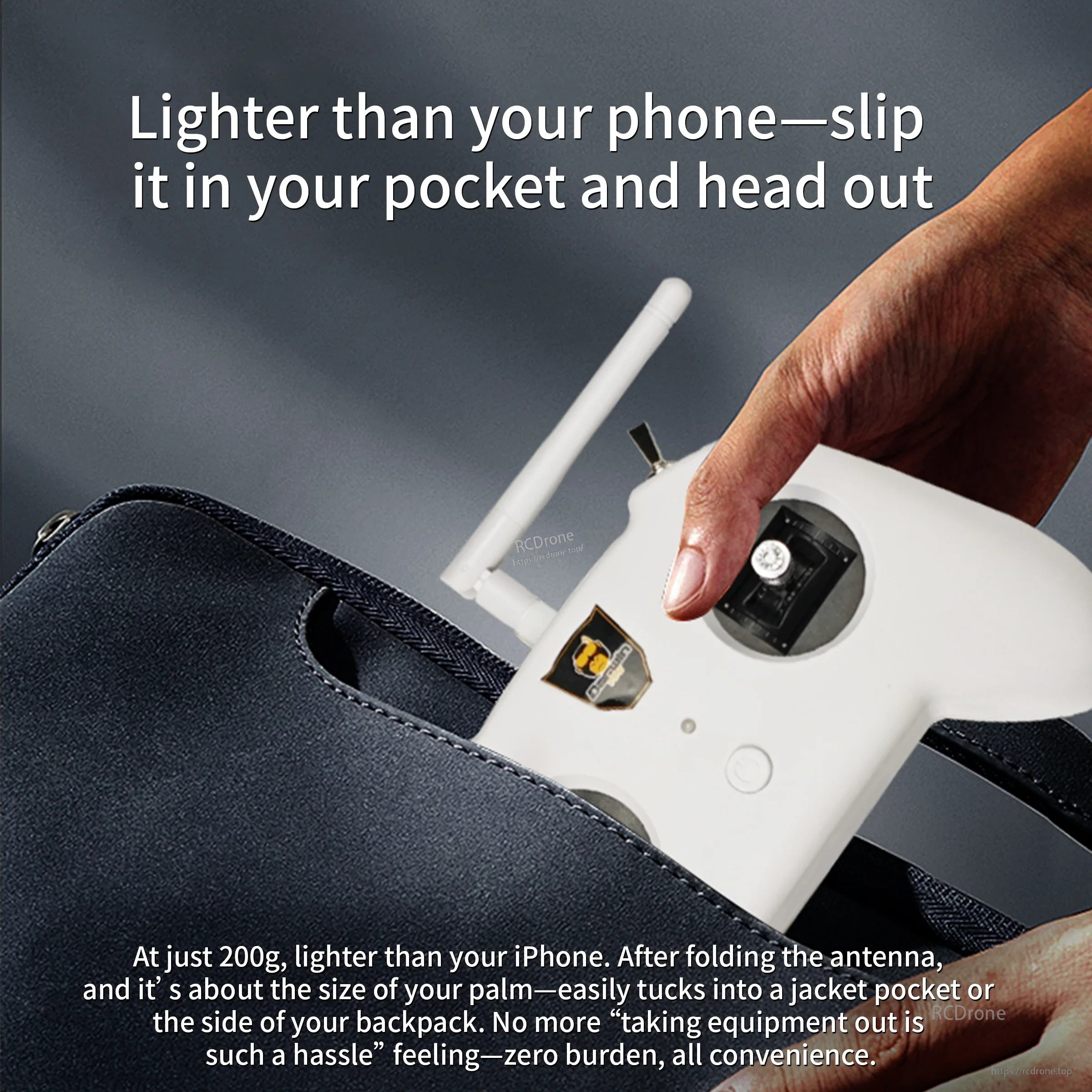

Pocketable DarwinFPV TX8 controller held above a bag, highlighting lightweight portable design and foldable antenna

At roughly 200g, the TX8 slips into a jacket pocket or backpack side pouch for grab-and-go FPV sessions.

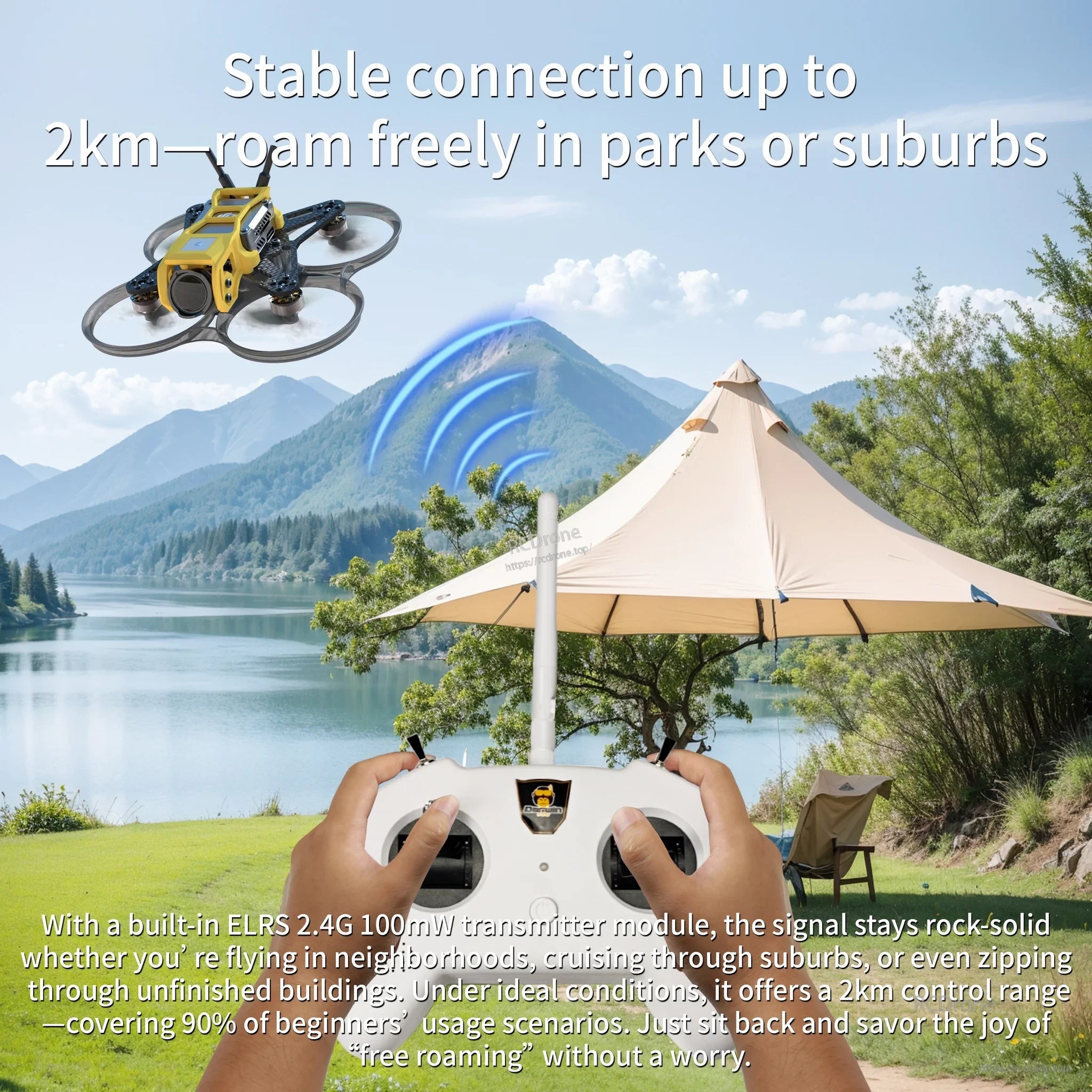

Hands holding TX8 transmitter outdoors with drone graphic, emphasizing stable ExpressLRS link up to 2km range

ExpressLRS 2.4GHz control helps keep the link stable for park flying and open-area cruising, with a rated range up to 2km in low-interference conditions.
