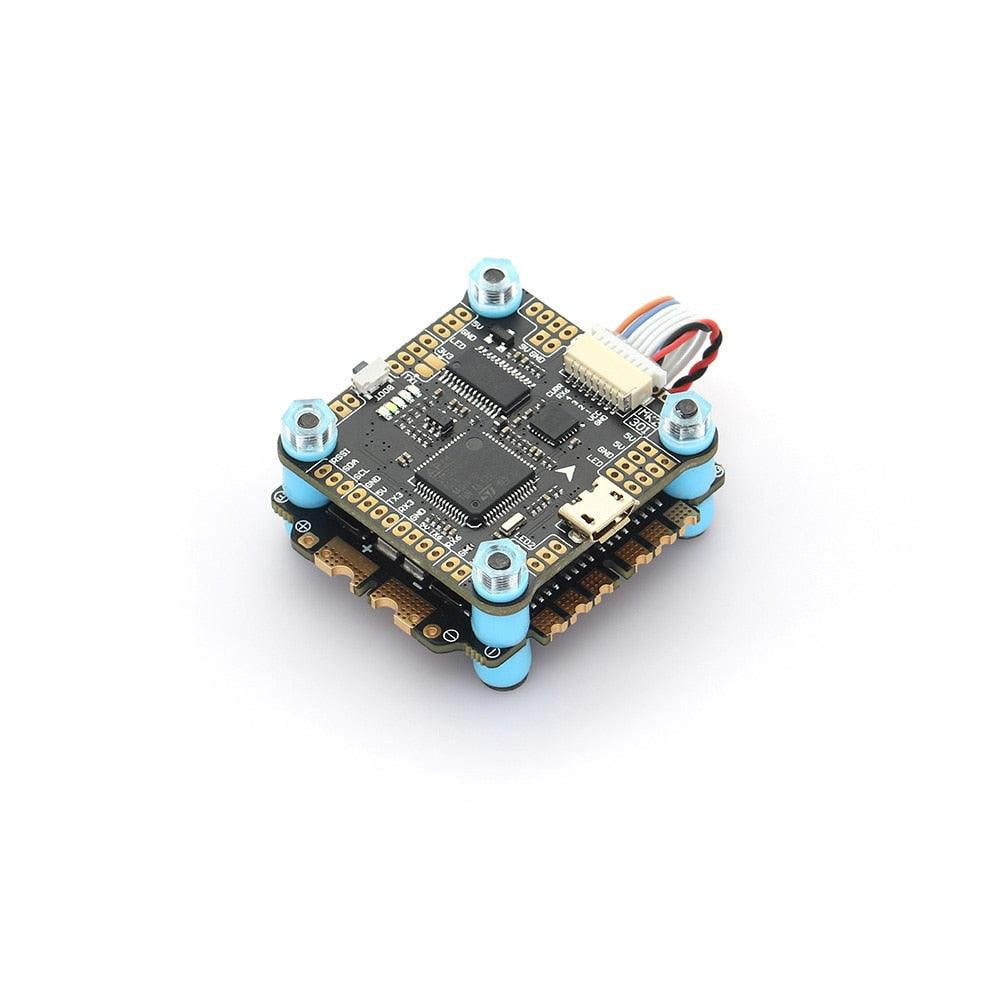

DIATONE MAMBA Flight Stack - Combo F405 MK2 Betaflight Flight Controller and F50 50A3-6S Blhelis DSHOT600 OSD FPV Racing Brus

DIATONE MAMBA Flight Stack - Combo F405 MK2 Betaflight Flight Controller and F50 50A3-6S Blhelis DSHOT600 OSD FPV Racing Brus

RCDrone

$113.21 USD
$169.82 USD $113.21 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

21 orders in last 90 days
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

DIATONE MAMBA Flight Stack SPECIFICATIONS

Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Technical parameters: Value 2

Size: 36*36mm

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Antennas

Quantity: 1 pcs

Origin: Mainland China

Model Number: MAMBA STACK F405 MK2 F50

Material: Metal

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Brand Name: DIATONE

Notice：

Photos is for reference .

Subsequent versions will cancel the ESC heat sink.


MAMBA F405 Betaflight Flight Controller &50A BLS ESC 3-6S FPV Racing Brushless ESC

Firmware Target ：FURYF4OSD （Legacy）

Specifications:
FC Specifications
MAMBA Basic F405MK2
MCU: 168MHz STM32F405RGT6
GYRO: MPU Series Six-Axis
Barometer: No
OSD: Yes
Blacbox: 16M Flash Memory
Uarts: 3Set
ESC Soft: Dshot300/600/1200
ESC Telemetry: Yes
Power Led: Yes
LED Controller:BF LED（4 Set 2812 LED）
F.Port: No
RSSI: Yes
Buzz: Yes
Input: 3~6S Lipo (12.6~25.2V)
TVS Protection: Yes
BEC:3.3V 0.5A& 5V 2A & 9V 2A
MOUNTING:30.5mm,M3

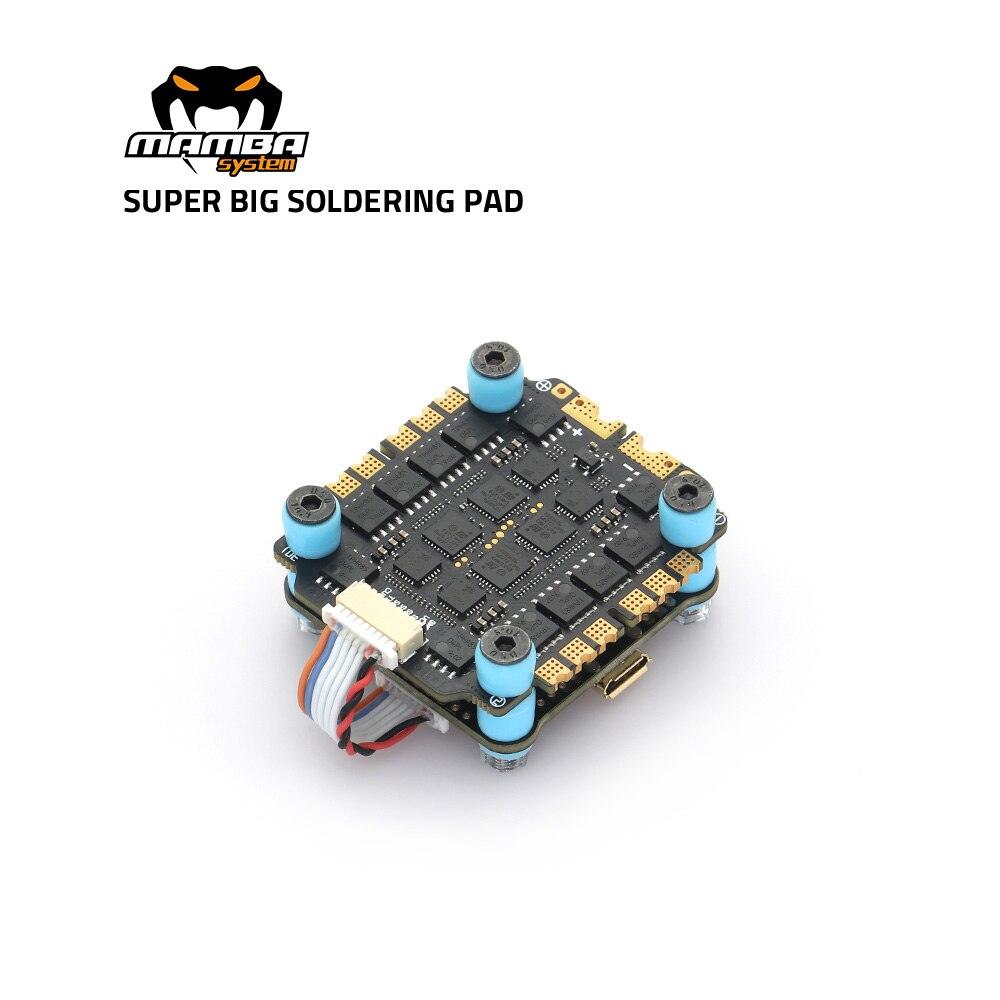

ESC Specifications
MAMBA F50 BLS
INPUT VOLTAGE: 3~6S Lipo (12.6V~25.2V)
CONTINUE CURRENT:50A×4
BURST CURRENT:60A (10S)
BEC: No
Target：BLHeli_S CH40
SOFT: Dshot300/600
TVS Protection: Yes
MOUNTING:30.5mm/M3
Supply :
High Frequency 470uF/35V ×1
8pin sh1.0 ×2
12AWG 100mm ×2


DIATONE MAMBA Flight Stack, MCU STM3ZF405 Frequency 168MHz 5 0

MCU STM3ZF405 Frequency 168MHz 5 0 83382.88583 GYRO MPU Series Six-Axis ooooood0 OSD AT74S6E Blackbox 16M Memorv Uarts 3 Set GHV 3 5V 9V Receiver TBSIPPMI LED GND g30 SBUSIIBUSIDSM GND 1 3.3v LED VID RSSI Pad Yes PPi TXI Buzzer Pad Yes SB

DIATONE MAMBA Flight Stack, CURR Mounting 30.5x30.5mm,8 3 Size 44.5x40

CURR Mounting 30.5x30.5mm,8 3 Size 44.5x40x6.8mm MOTOR 4 MOTOR 3 Weight 14g Amperage Meter 3 Capacitor requested 80 Scale[1/10th mVIA] Battery 0.OOA 3 35V 470pF when using 6S battery Offset [mA]
