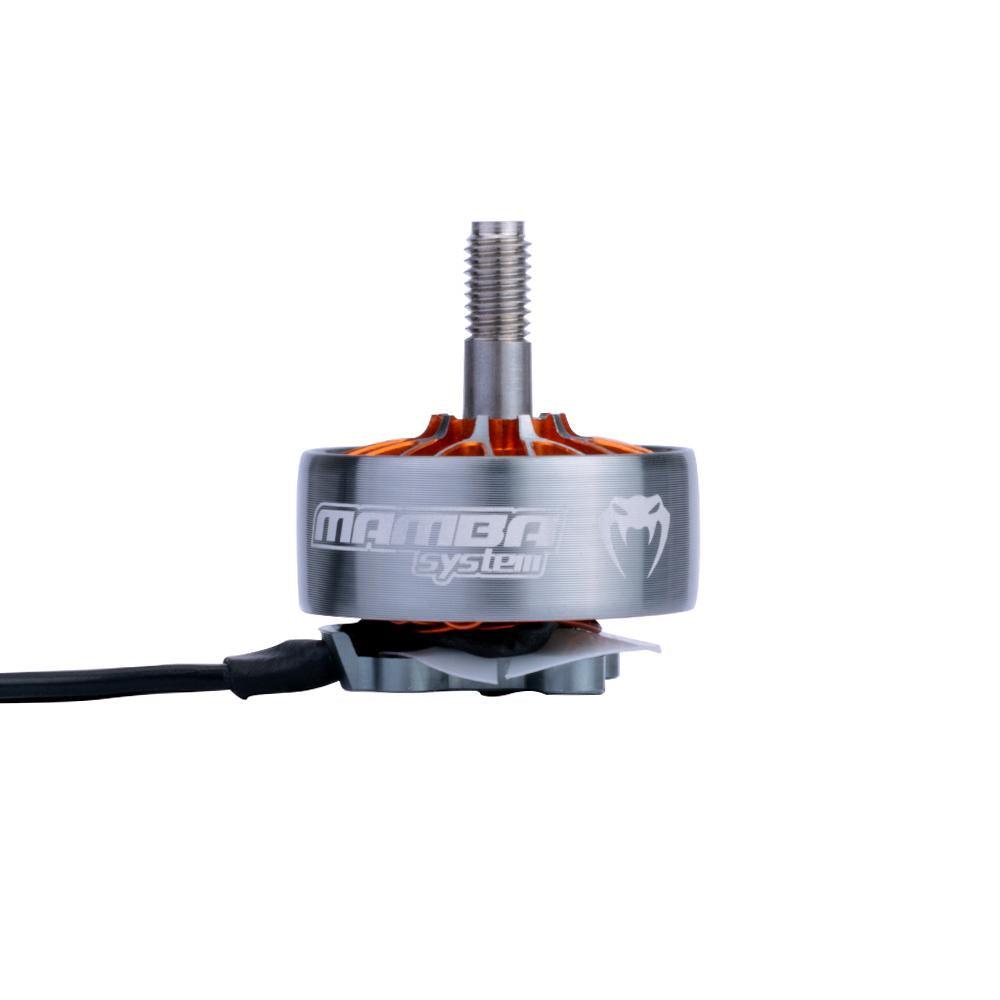

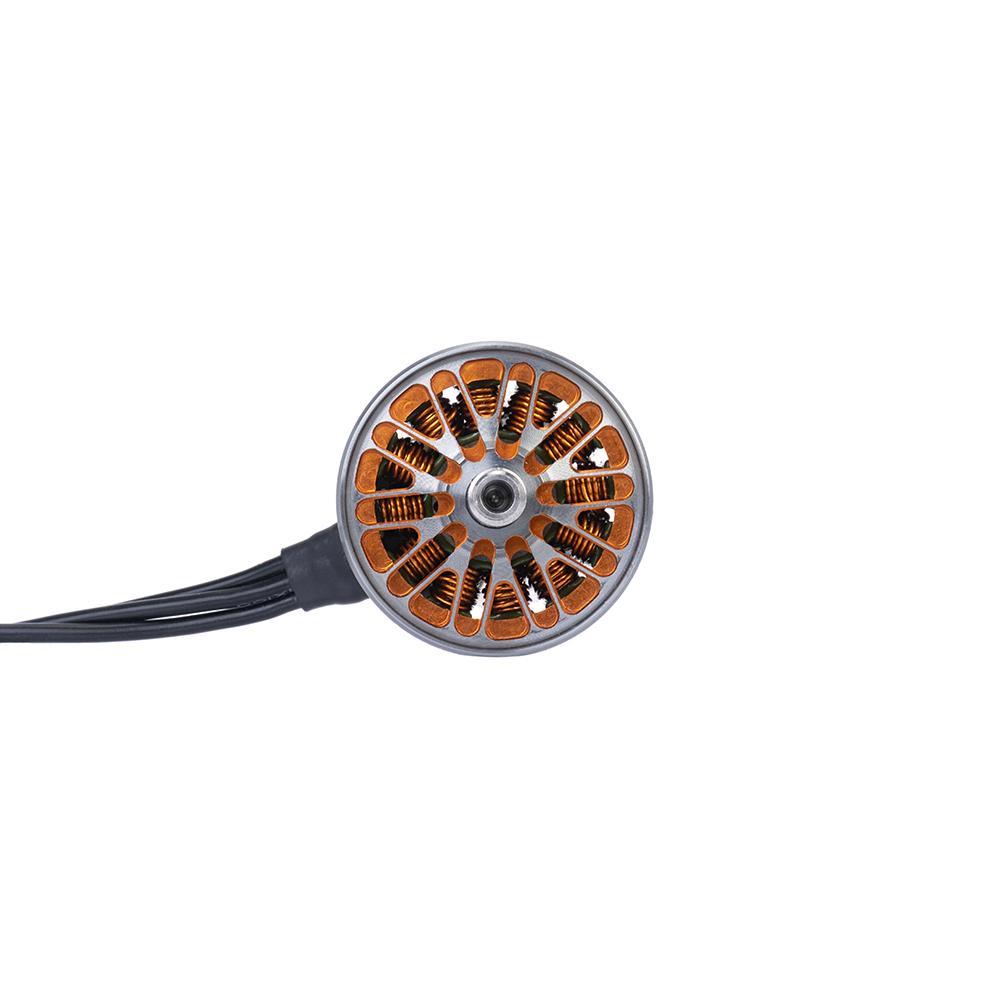

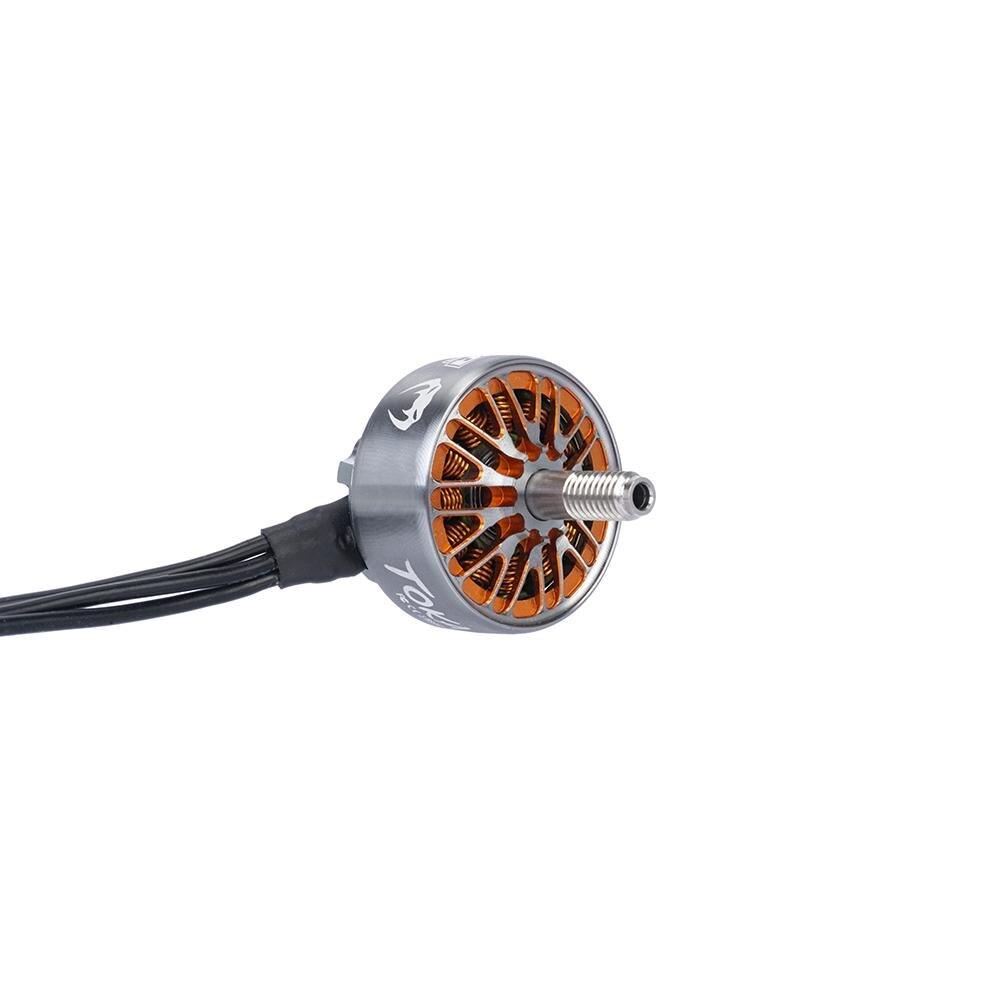

DIATONE MAMBA TOKA 2207.5 SERIES 2207 1700KV 1800KV 2450KV 2650KV 3-6S Brushless Motor for FPV Racing Freestyle Roma F5 Parts

DIATONE MAMBA TOKA 2207.5 SERIES 2207 1700KV 1800KV 2450KV 2650KV 3-6S Brushless Motor for FPV Racing Freestyle Roma F5 Parts

DIATONE

Regular price $40.64 USD
Regular price $60.96 USD Sale price $40.64 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

142 orders in last 90 days

Color

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SPECIFICATIONS

Wheelbase: Bottom Plate

Upgrade Parts/Accessories: Frame

Tool Supplies: Assembled class

Technical parameters: KV1100

Size: As show

Remote Control Peripherals/Devices: Motor

RC Parts & Accs: Motors

Quantity: 1 pcs

Origin: Mainland China

Model Number: Mamba 220

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Helicopters

DIATONE MAMBA TOKA 2207.5 SERIES 2207 1700KV 1800KV 2450KV 2650KV 3-6S Brushless Motor for FPV Racing Freestyle Roma F5 Parts



DIATONE ROMIA F5 Sinch Freestyle



Model:2207.5
KV:1700
Overall Dimension:Φ28.5×32.65mm
prop mounting shaft diameter :M5
Installation hole position :16×16mm,M3
Prop: 5inch~6inch
Bearing: 4*9*4
Shaft Diameter:4mm
Lead Wire Size:24AWG ×190mm
slots/poles:12N14P
Magnet Wire: Class H,220℃ Enameled Wire
Stator Diamter:22mm
Stator Height:7.5mm
Rated Voltage: 4~6S (16.8V~25.2V)
Peak Current: 38.5A
Maximum Power: 924W



Model:2207.5
KV:1800
Overall Dimension:Φ28.5×32.65mm
prop mounting shaft diameter :M5
Installation hole position :16×16mm,M3
Prop: 5inch~6inch
Bearing: 4*9*4
Shaft Diameter:4mm
Lead Wire Size:24AWG ×190mm
slots/poles:12N14P
Magnet Wire: Class H,220℃ Enameled Wire
Stator Diamter:22mm
Stator Height:7.5mm
Rated Voltage: 4~6S (16.8V~25.2V)
Peak Current: 42.1A
Maximum Power: 1011W



Model:2207.5
KV:2450
Overall Dimension:Φ28.5×32.65mm
prop mounting shaft diameter :M5
Installation hole position :16×16mm,M3
Prop: 5inch~6inch
Bearing: 4*9*4
Shaft Diameter:4mm
Lead Wire Size:24AWG ×190mm
slots/poles:12N14P
Magnet Wire: Class H,220℃ Enameled Wire
Stator Diamter:22mm
Stator Height:7.5mm
Rated Voltage: 3~4S (12.6V~16.8V)
Peak Current: 44.1A
Maximum Power: 706W



Model:2207.5
KV:2650
Overall Dimension:Φ28.5×32.5mm
prop mounting shaft diameter :M5
Installation hole position :16×16mm,M3
Prop: 5inch~6inch
Bearing: 4*9*4
Shaft Diameter:4mm
Lead Wire Size:24AWG ×190mm
slots/poles:12N14P
Magnet Wire: Class H,220℃ Enameled Wire
Stator Diamter:22mm
Stator Height:7.5mm
Rated Voltage: 3~4S (12.6V~16.8V)
Peak Current: 51.2A
Maximum Power: 819W



RC Parts & Accs : Motors Quantity : 1 RC Parts & Accs : Motors Quantity : 1
