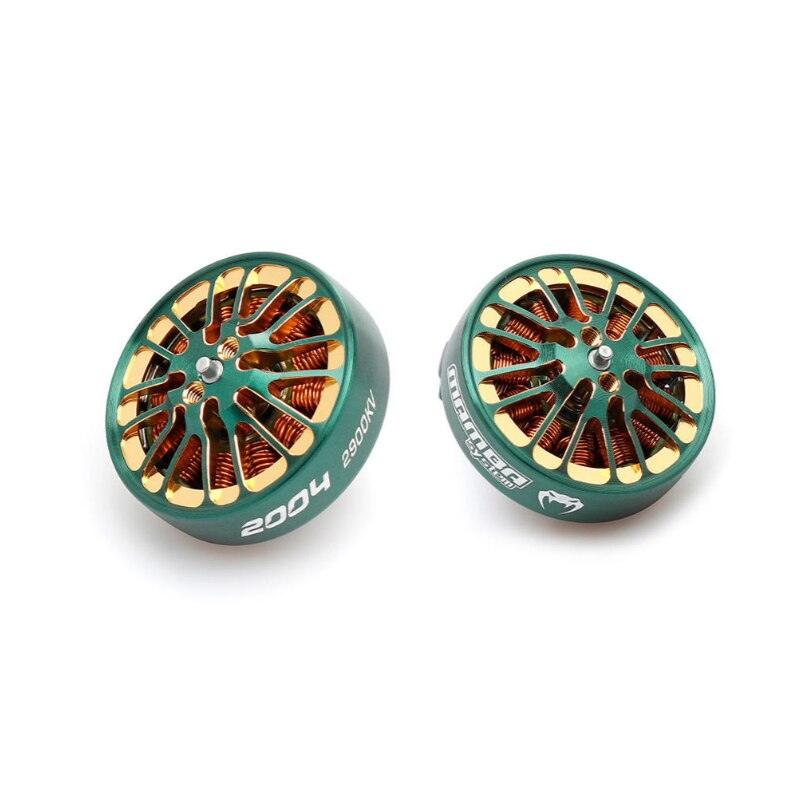

DIATONE MAMBA TOKA 2004 1700KV/2900KV Brushless Motor Racing Motor Green For Racing 3-5inch Toothpick Micro Range Drones RC FPV

DIATONE MAMBA TOKA 2004 1700KV/2900KV Brushless Motor Racing Motor Green For Racing 3-5inch Toothpick Micro Range Drones RC FPV

RCDrone

Regular price $27.58 USD
Regular price $46.88 USD Sale price $27.58 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

150 orders in last 90 days

Color

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Size: 7*3*3

Recommend Age: 12+y

Origin: Mainland China

Model Number: 2004 1700kv 2900kv

Material: Metal

For Vehicle Type: Airplanes

Brand Name: NoEnName_Null

Mamba Toka 2004 1700kv 2900kv Brushless Motor Green Parameter
Item: DIATONE MAMBA TOKA 2004 1700KV/2900KV Brushless Motor Racing Motor Green
Parameters:
Mamba Toka 2004 1700KV Racing Motor
Overall Dimension:Φ26.2×15.3mm
prop mounting shaft diameter:1.5mm

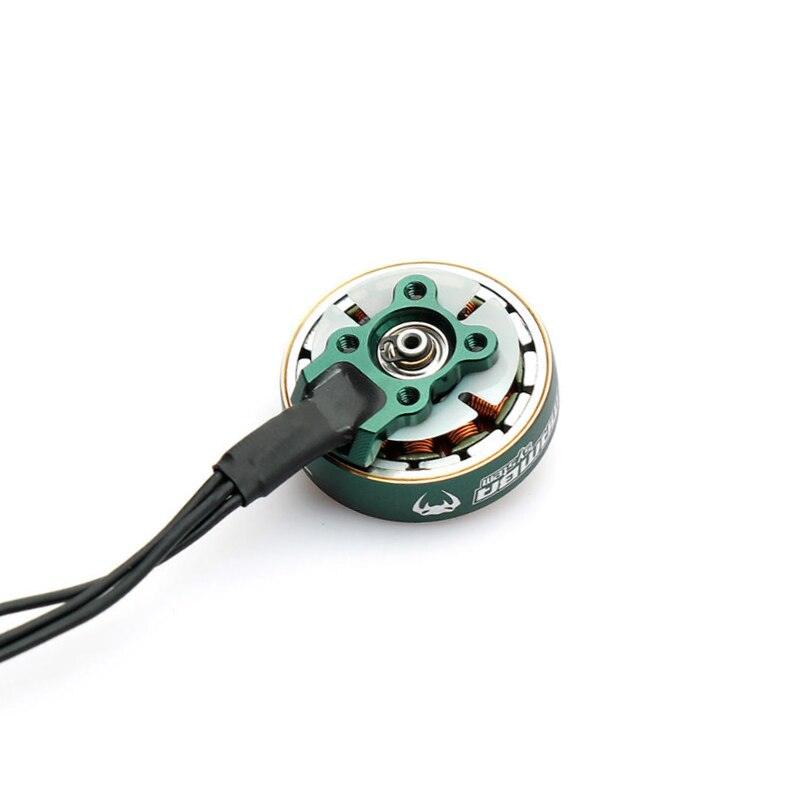

Installation hole position:12×12mm,M2
Prop: 3.5inch~5inch
Bearing:7*3*3
Shaft Diameter:3.0mm
Lead Wire Size:24AWG×150mm
slots/poles:12N14P
Magnet Wire: 240℃Enameled Wire
Stator Diamter:20mm
Stator Height:4mm
Rated Voltage:4~6S (16.8V~25.2V)
Peak Current: 17.52A
ldle Current:10V/0.3~0.8A
Maximum Power: 418.1W
Internal Resistance:210Ω

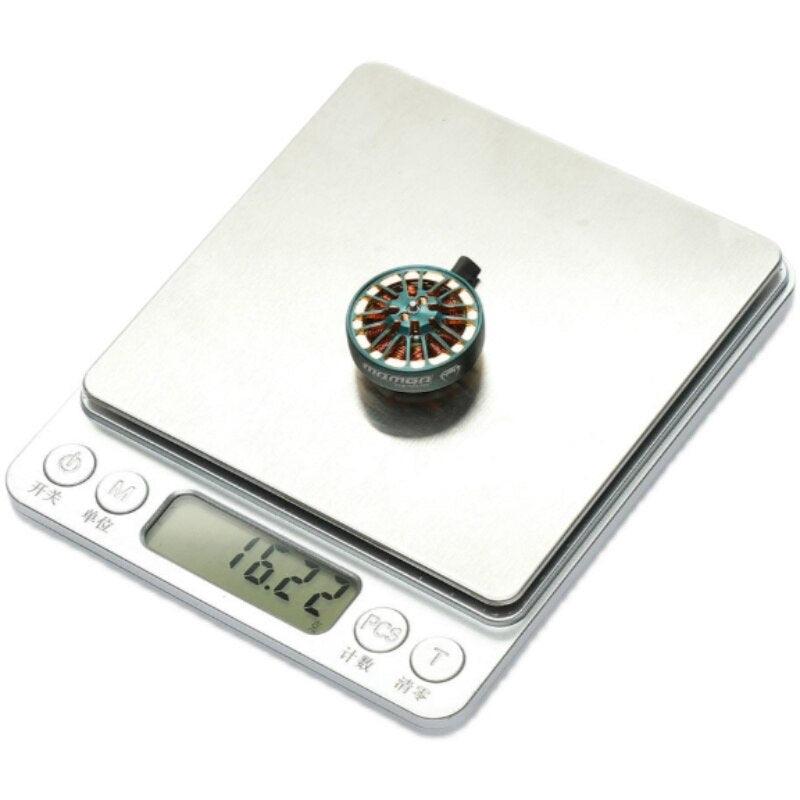

Weight: 16.3g

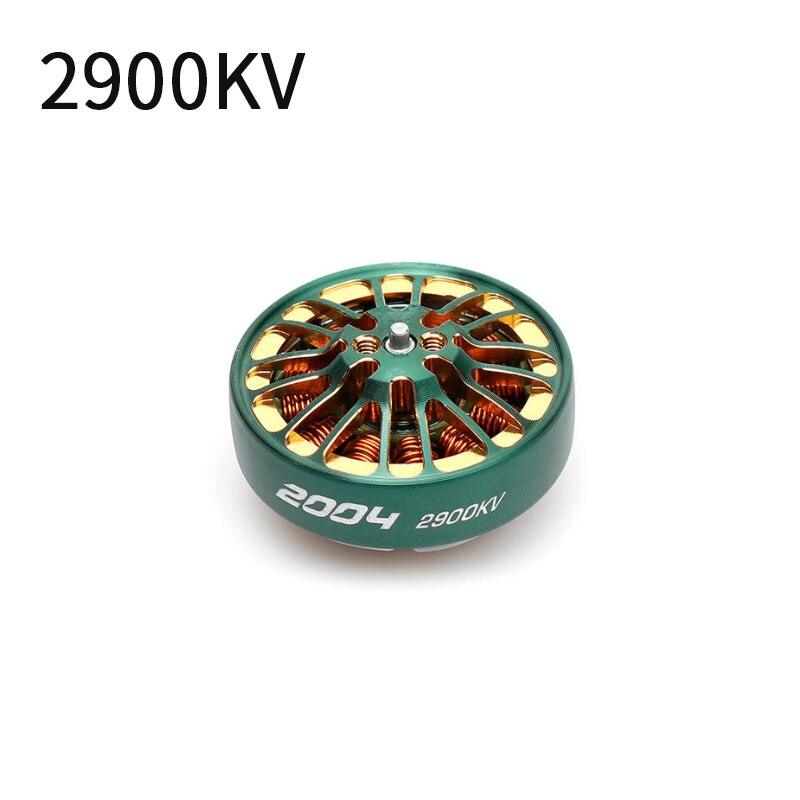

Mamba Toka 2004 2900KV Racing Motor
Overall Dimension:Φ26.2×15.3mm
prop mounting shaft diameter:1.5mm
Installation hole position:12×12mm,M2
Prop: 3.5inch~5inch
Bearing:7*3*3
Shaft Diameter:3.0mm
Lead Wire Size:24AWG×150mm
slots/poles:12N14P
Magnet Wire: 240℃Enameled Wire
Stator Diamter:20mm
Stator Height:4mm
Rated Voltage:3~4S (12.6V~16.8V)
Peak Current: 31.63A
ldle Current:10V/0.9~1.5A
Maximum Power: 418.1W
Internal Resistance:90Ω
Weight: 16.3g

  • Package Included:

  • 1PC 2004 1700KV

  • Or 1PC 2004 2900KV

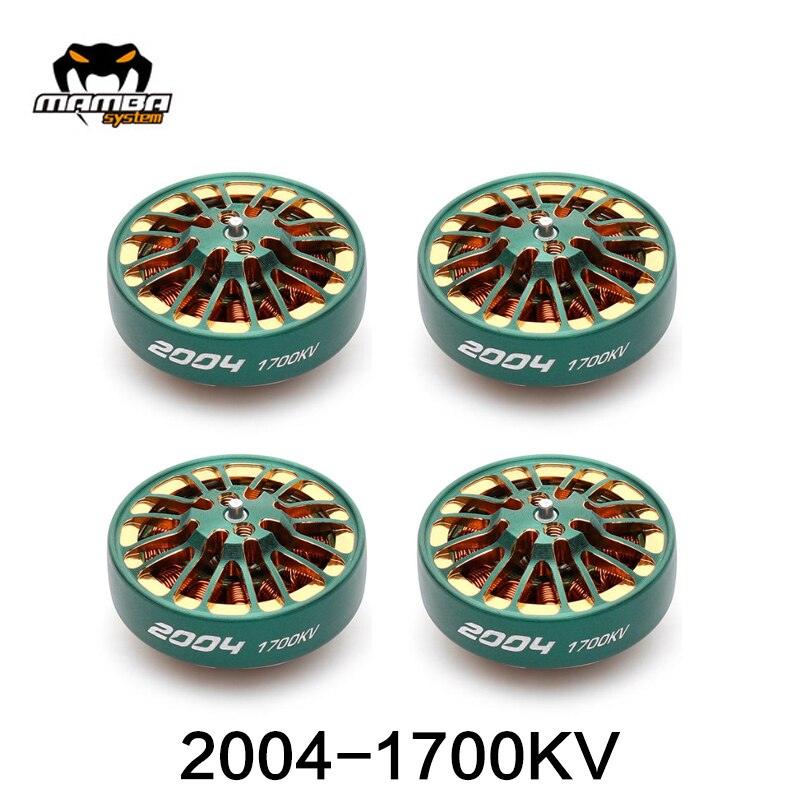

  • Or 4PCS 2004 1700KV

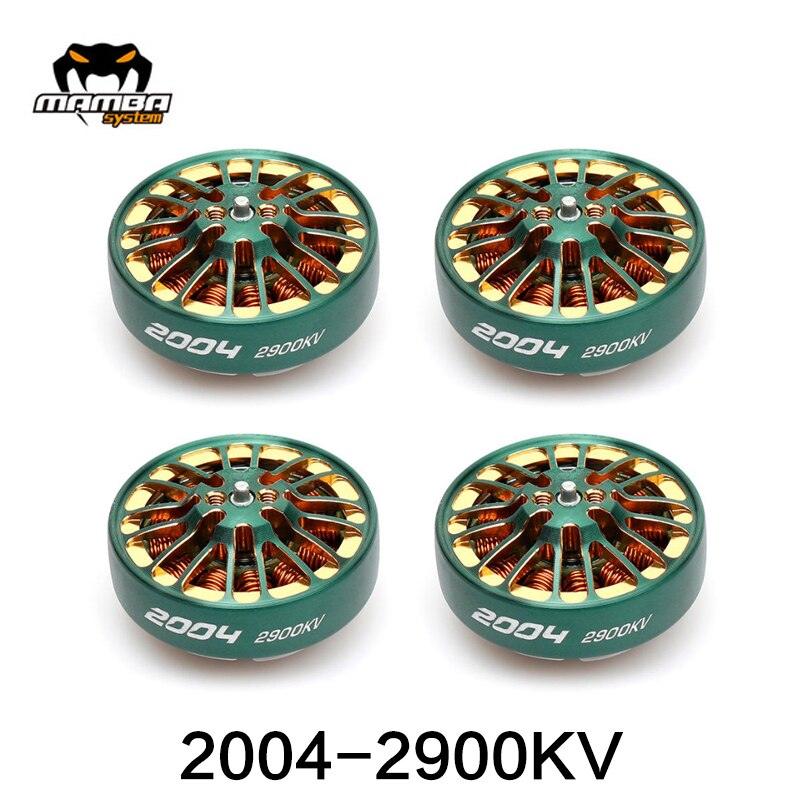

  • Or 4PCS 2004 2900KV

Mamba Toka 2004 1700kv 2900kv Brushless Motor Green Parameter

Mamba Toka 2004 1700kv 2900kv Brushless Motor Green ParameterGF5125 60%6 21902 196.74 70%6 24138 281.8

GF5125 60%6 21902 196.74 70%6 24138 281.86 80% 14.51 25926 346.81 908 15.89 27121 379.73 100%6 17.52 418.10 04km ToKA 2004 - 1700kv xiaeit 4-65 Model Support Battery 13t 12N14P #biaezpb 2100 Slots/Poles Interna Resistance RE.M2z 1.5 RtrM 17.52A Prop Mounting Shaft Maximun

DIATONE MAMBA TOKA 2004

DIATONE MAMBA TOKA 2004 Brushless Motor: This motor features a high-speed 2900KV rating, suitable for racing applications with 3-5 inch propellers. It has a built-in ESC, supports 12-14 cell NiMH or LiPo batteries, and can deliver up to 31.63A of current. The motor's dimensions are as follows: diameter (mm) - 26.2; length (mm) - unknown. Maximum current (A) is 240C. The motor is designed for high-temperature applications and has an internal resistance of R02t0nZ ( unknown units). It also features a prop mounting shaft, maximum current rating, and a temperature-resistant design.

Mamba Toka 2004 1700kv 2900kv Brushless Motor Green ParameterMamba Toka 2004 1700kv 2900kv Brushless Motor Green ParameterMamba Toka 2004 1700kv 2900kv Brushless Motor Green ParameterMamba Toka 2004 1700kv 2900kv Brushless Motor Green ParameterMamba Toka 2004 1700kv 2900kv Brushless Motor Green Parameter
