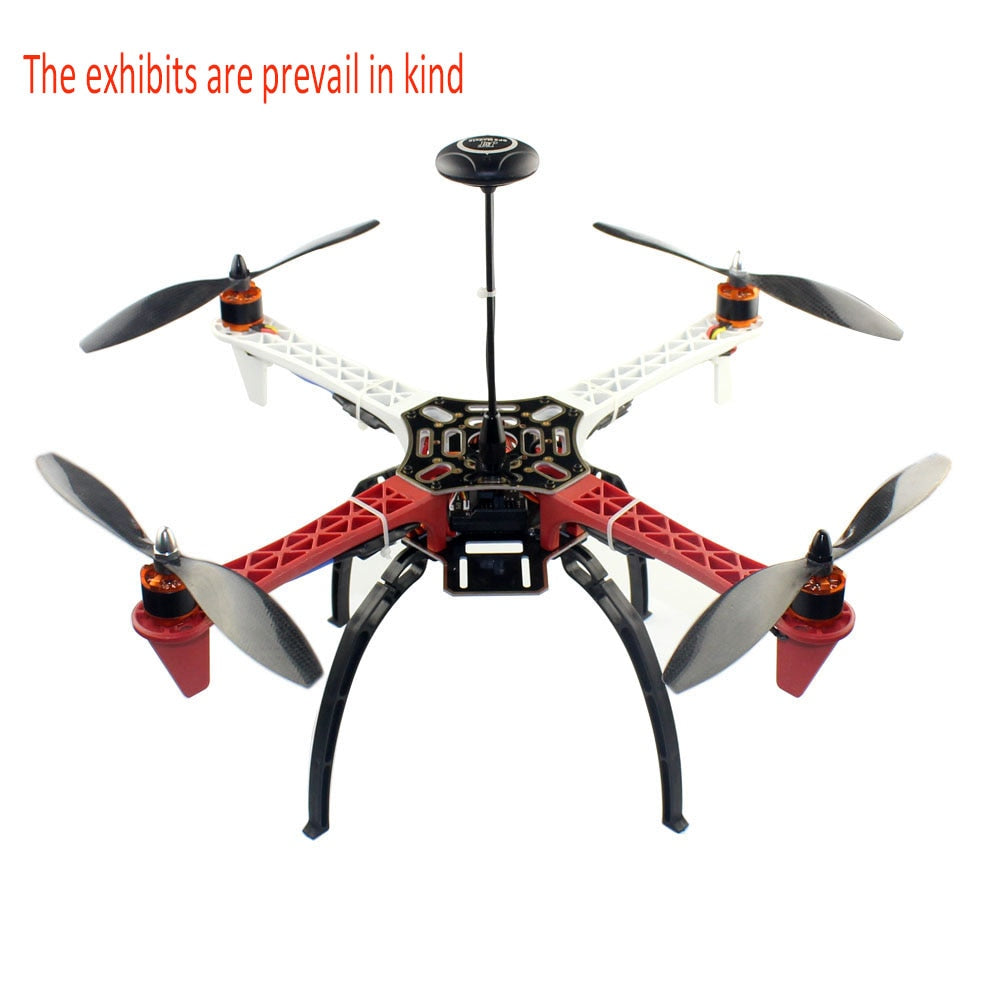

DIY RC FPV Drone Kit 4-axis Quadcopter SPECIFICATIONS
Origin: Mainland China
Compatible Drone Brand: GoPro
Brand Name: jmt
Best Upgrade !!! AT9 Upgrade to AT9S Transmitter !!!!
Package including:
1 HJ 450 Multicopter 450F nylon Fiber Frame Airframe kit Strong Smooth RC KK MK MWC DIY Quadcopter plane
2 Pair JMT 920KV CW CCW Brushless Motor
4 pcs 30A Brushless ESC Speed Controller
2 pair 1045 Carbon Fiber Propeller

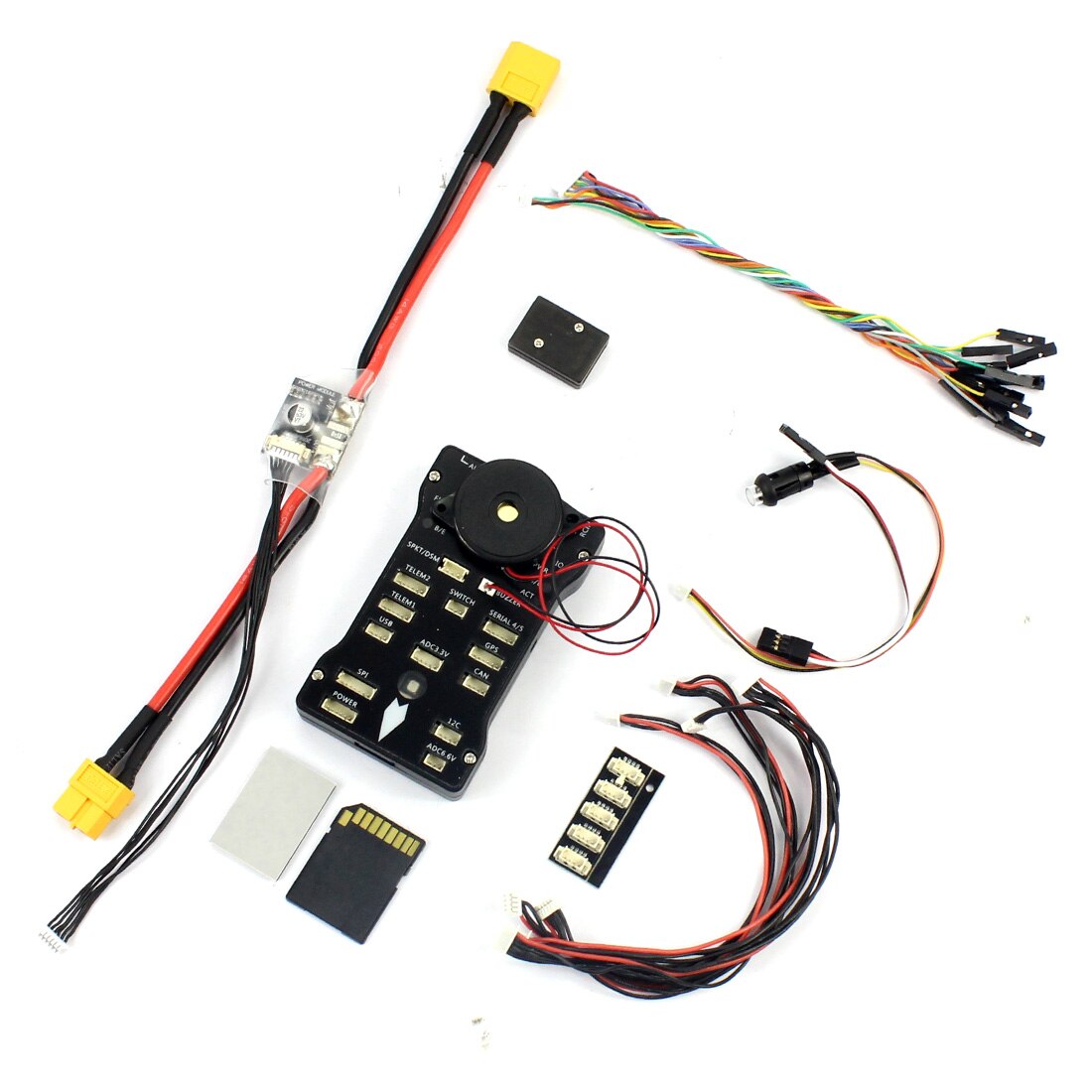

1 pcs PIXHAWK PIX PXI PX4 Flight Controller
1 pcs 6M GPS with Compass L5883 25cm Cable

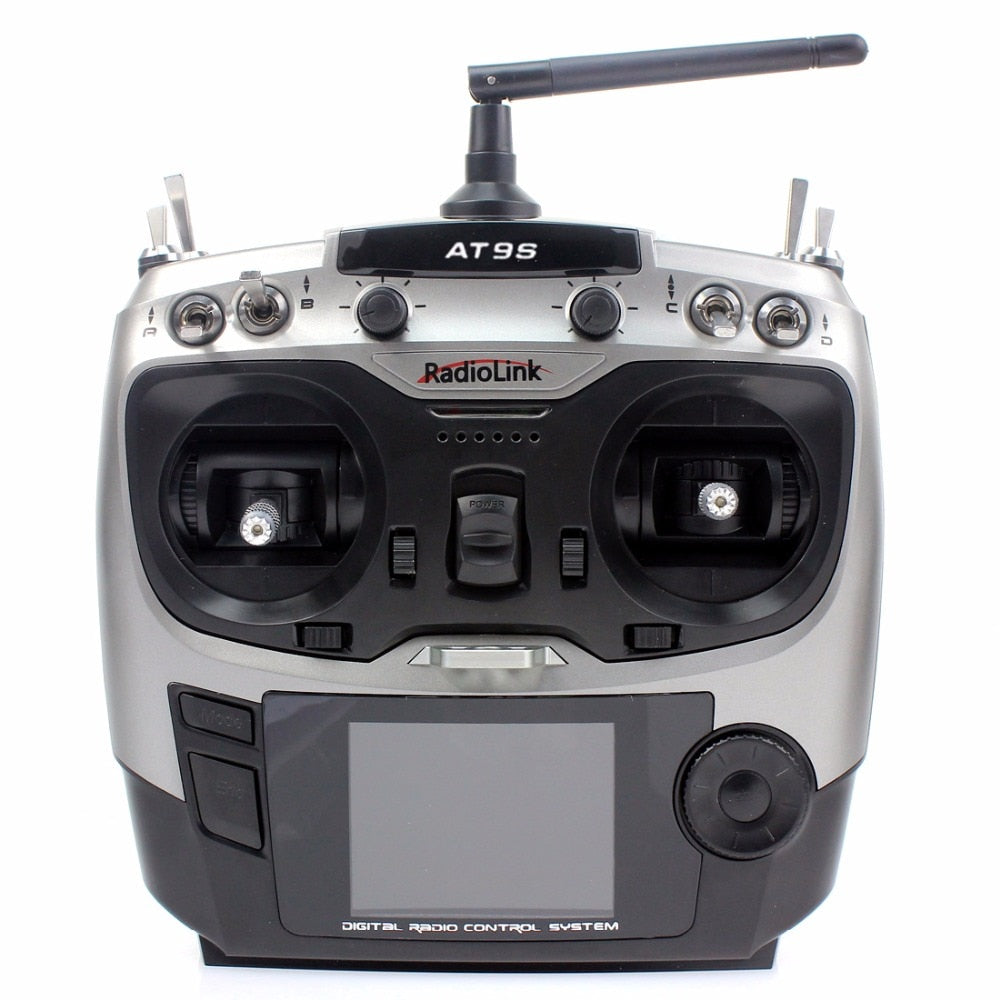

1 pcs Radiolink AT9S 2.4GHz 9 Channel Transmitter Radio &
Receiver TX &RX
1 pcs DJI GPS Folding Antenna Mount Holder Metal
12 pcs 3.5mm Bullet Connector ( banana plug )
1 pcs Hook & Loop Fastening Tape
1 pcs T Plug Male Connector
1 pcs IMAX RC B3 Pro Compact Balance Charger
4 PCS Black 140MM High Landing Gear Skid Wheels Tripod
1 pcs 11.1V 4400MAH 30C 3S1P battery
1 pcs Aluminum 2-axle Gimbal Camera Mount PTZ Steady with Brushless Motor Controller
Specifications:
GPS Hardware processor
1.32 2 MB flash STM32F427 Cortex M4, with hardware floating-point processing unit
2. frequency: 168MHZ, 256K RAM
3.32 STM32F103 backup coprocessor
sensor
1.L3GD20 3-axis digital gyroscope 16
2.LSM303D 3-axis accelerometer 14 / Magnetometer
3.MPU6000 6-axis accelerometer / magnetometer
4.MS5611 precision barometer
interface
1.5 high voltage compatible UART 1, 2 with hardware flow control
2.2 CAN
3. DSM / DSM2 / DSM-X satellite receiver compatible input
4.Futaba SBUS compatible inputs and outputs
5.PPM Signal Input
6.RSSI (PWM or voltage) Input
7.I2C
8.SPI
9.3.3 and 6.6VADC input
10. External MICRO USB Interface
