DSpower DS-F002 Digital Slim-Wing Servo, 8 kgf·cm, for RC Gliders

DSpower

$77.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Version DS-F002

Quantity

View full details

Overview

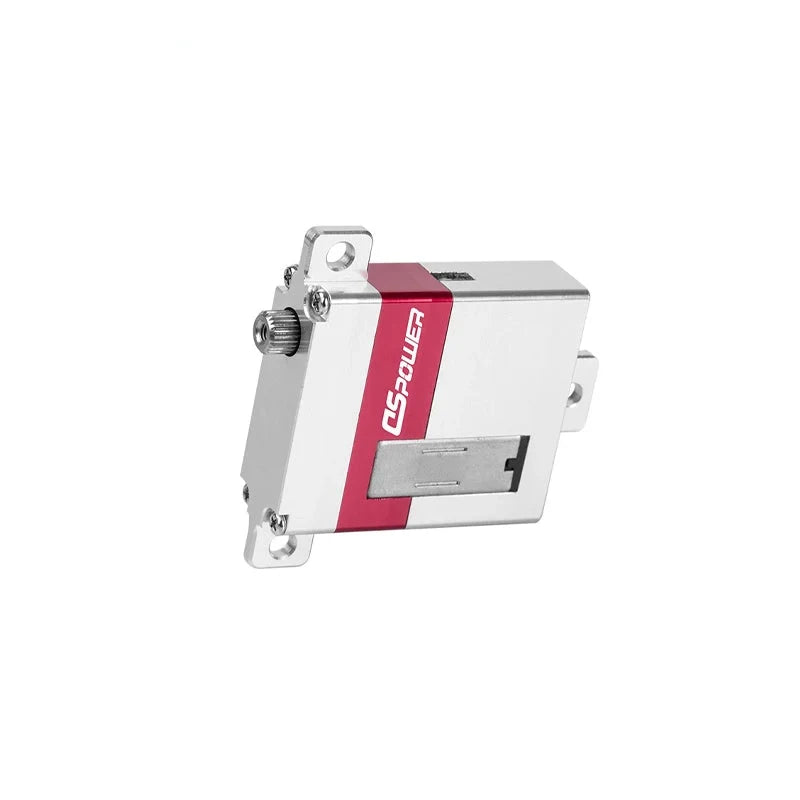

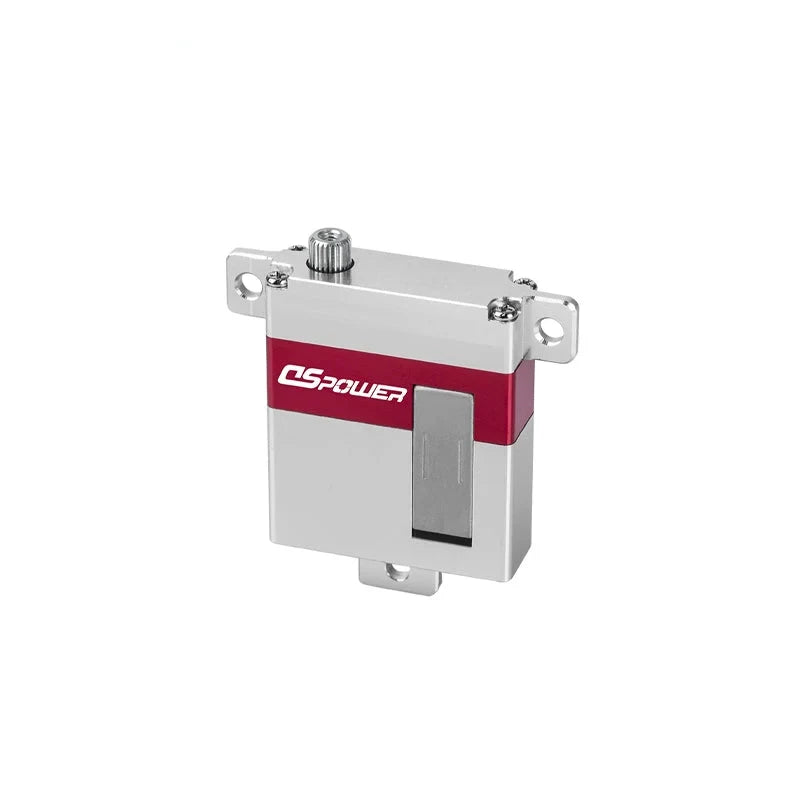

The DSpower DS-F002 is a digital slim-wing servo for RC gliders, sport planes, and 1:16 scale power boats. It operates from 6.0–8.4 V DC and provides a stall torque of at least 8 kgf·cm, with a 180° ± 10° operating travel angle. Its 29.1 ± 0.5 g aluminium-alloy case and metal gear set suit slim-wing control installations.

Features

Digital high-voltage wing-servo design.
Slim wing-servo form for high-performance glider applications.
Aluminium-alloy case.

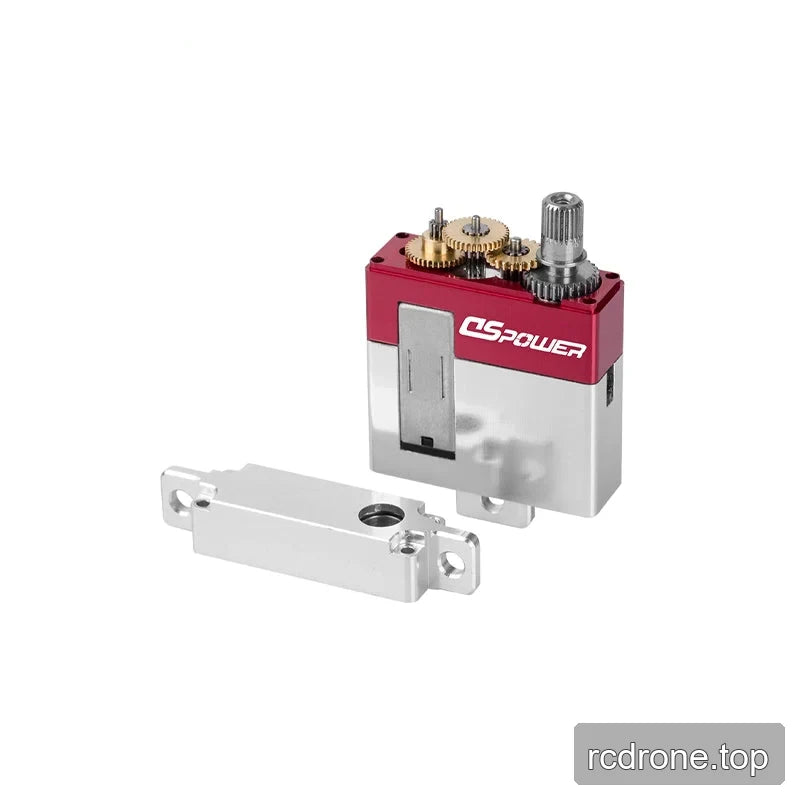

Metal gear set; the product graphic identifies high-precision, hard-anodised steel gears.
Pulse width range of 500–2500 μs.
180° ± 10° operating travel angle with a 360° mechanical limit angle.

Specifications

Parameter	Value
Operating Voltage	6.0–8.4 V DC
No Load Speed	≤0.14 sec./60° at 7.4 V
Stall Current	≤3.2 A at 7.4 V
Stall Torque	≥8 kgf·cm
Rated Torque	1.2 kgf·cm at 7.4 V
Pulse Width Range	500–2500 μs
Operating Travel Angle	180° ± 10°
Mechanical Limit Angle	360°
Weight	29.1 ± 0.5 g
Case Material	Aluminium alloy
Gear Set Material	Metal

Applications

RC gliders and high-performance gliders: the slim-wing design supports control-surface installations where wing thickness is limited.
Sport planes: use for servo-actuated control surfaces within the specified voltage, travel, and torque limits.
1:16 scale power boats: listed application for compact servo-actuated controls.
Humanoid robots, robotic arms, exoskeletons, quadruped robots, AGV vehicles, and ARU robots: listed application scenarios requiring servo actuation.
