DSpower DS-H008-C HV Coreless Servo, Up to 28 kgf·cm at 7.4 V for Robotics and RC Vehicles

DSpower

$67.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Version DS-H008-C

Quantity

View full details

Overview

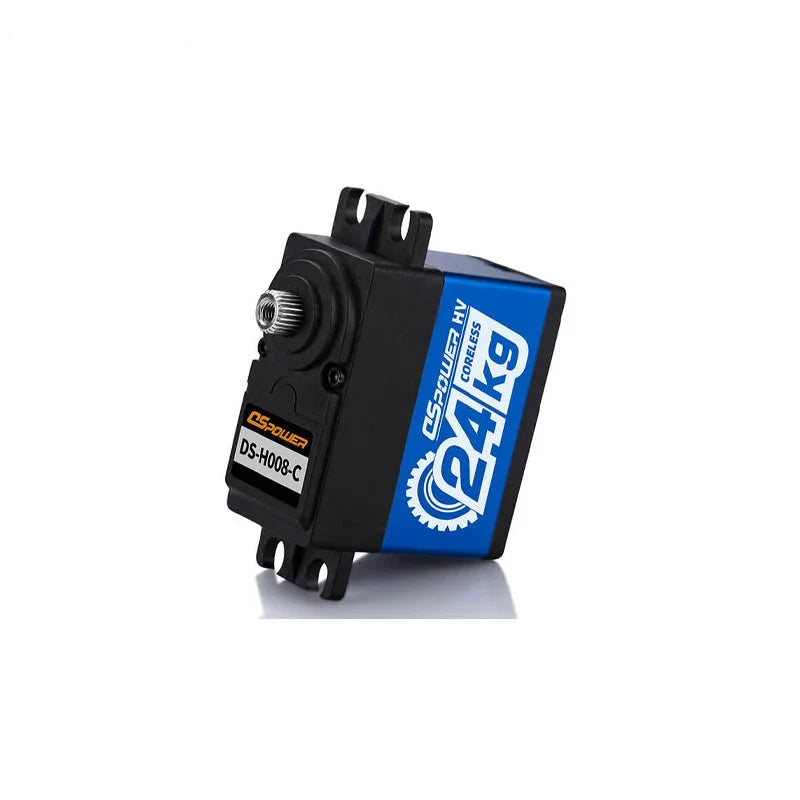

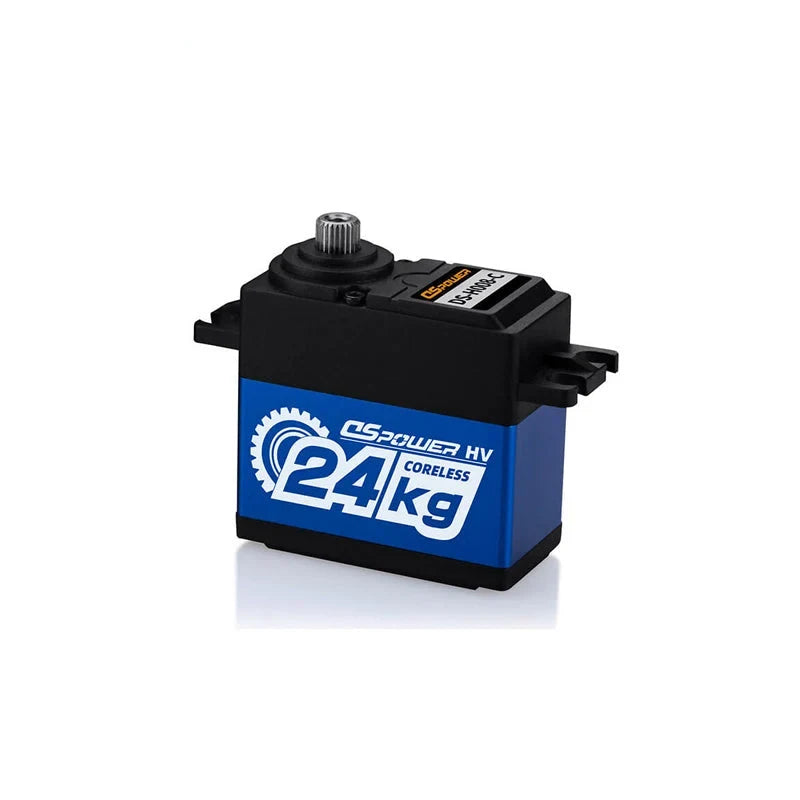

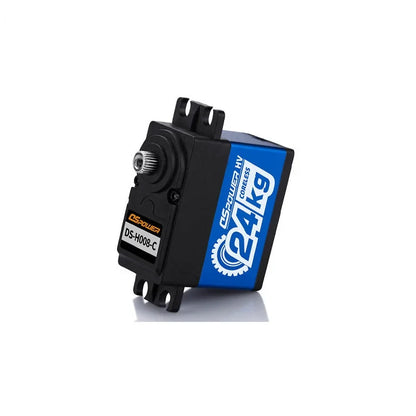

The DSpower DS-H008-C is an HV coreless servo for robotic mechanisms and RC vehicle applications. It operates from 6.0–7.4 V DC and provides a 180° ±10° operating angle, with no-load speed rated at ≤0.16 sec./60° at 6.0 V and ≤0.12 sec./60° at 7.4 V. Select it where its voltage-specific torque, current, travel, and 64 ± 0.5 g weight suit the design.

Features

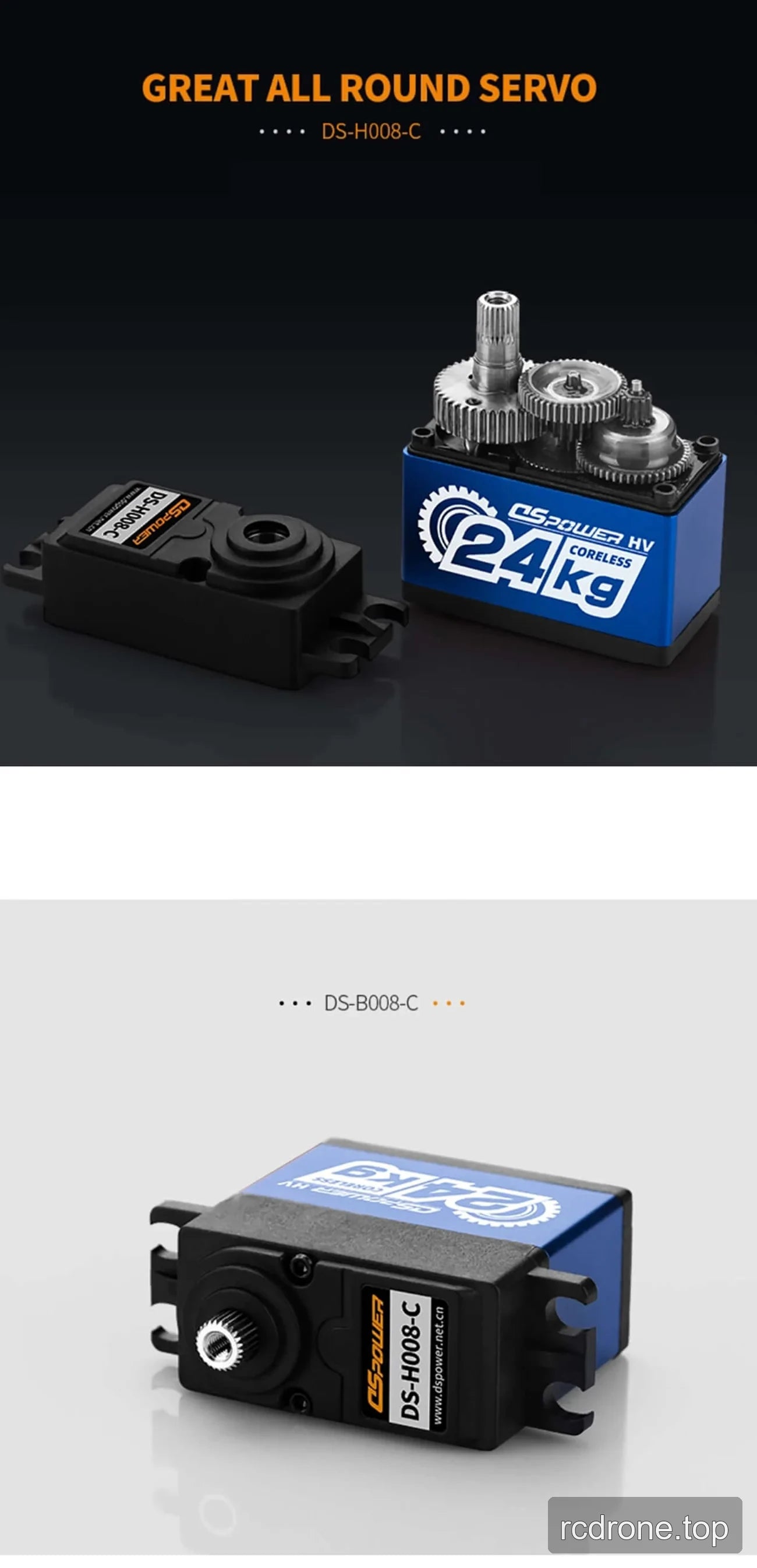

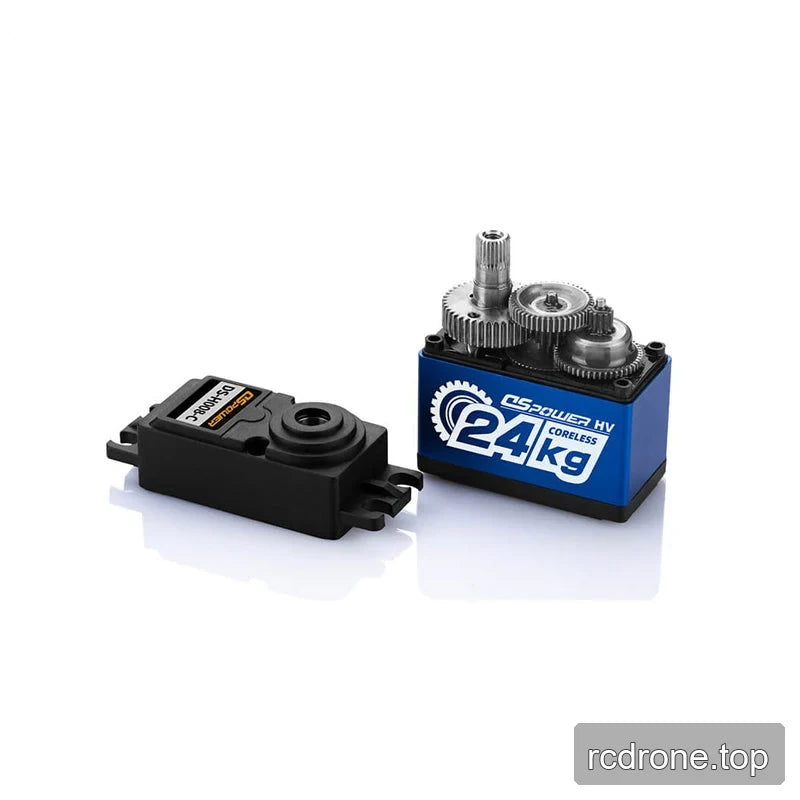

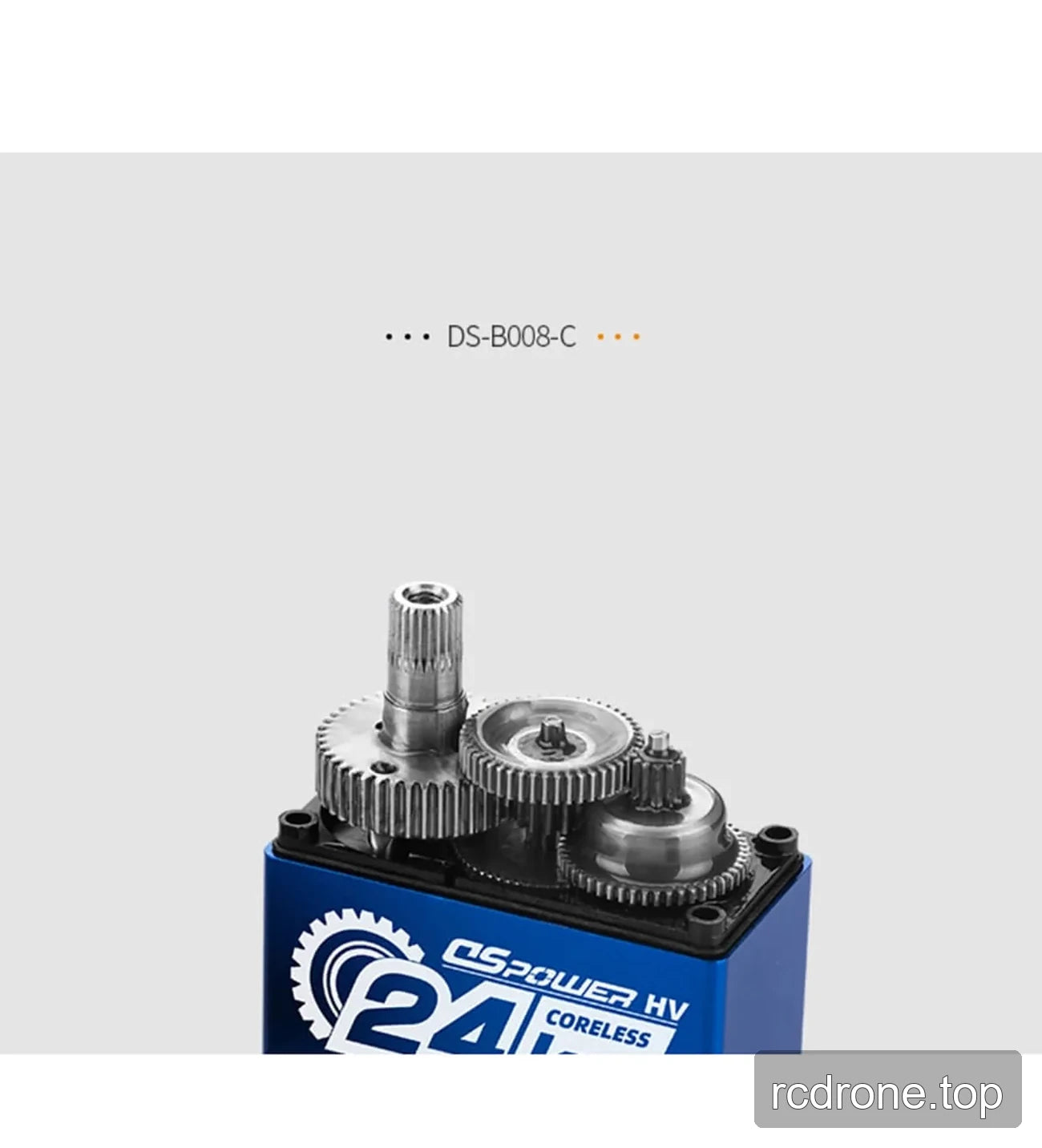

Coreless motor with metal gears.
PA+30%GF housing with an aluminum middle case.
High heat resistance and good water resistance claims.

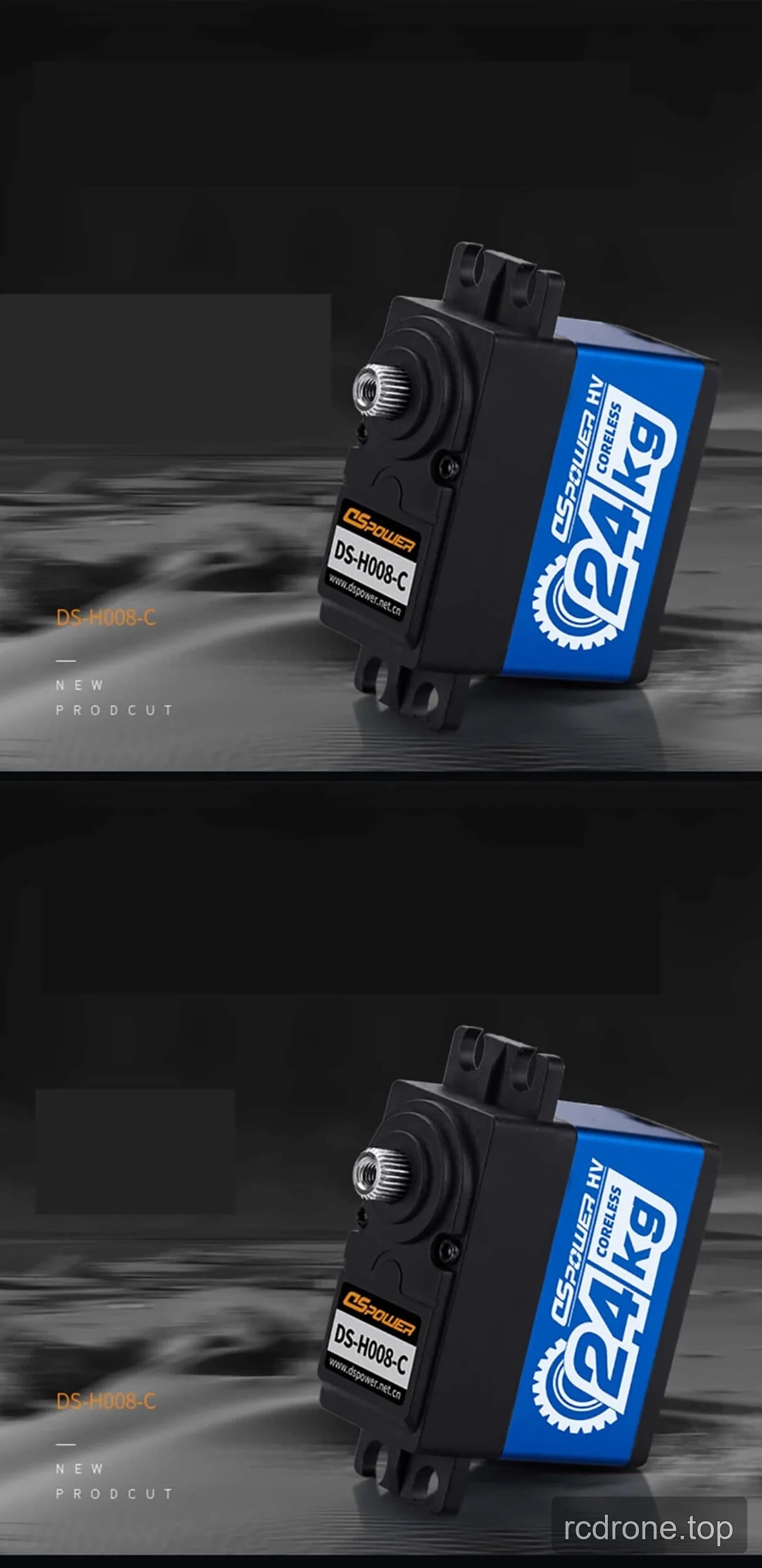

HV marking and 24 kg marking; refer to the voltage-specific maximum-torque ratings below.

Specifications

Parameter	Value
Operating Voltage	6.0–7.4 V DC
No-Load Speed	≤0.16 sec./60° at 6.0 V ≤0.12 sec./60° at 7.4 V
Rated Torque	6 kgf·cm at 6.0 V 7 kgf·cm at 7.4 V
Stall Current	≤3.3 A at 6.0 V ≤4.1 A at 7.4 V
Maximum Torque	≥24.0 kgf·cm at 6.0 V ≥28.0 kgf·cm at 7.4 V
Pulse Width Range	500–2500 μs
Operating Angle	180° ±10°
Mechanical Limit Angle	210°
Weight	64 ± 0.5 g
Housing Material	PA+30%GF, aluminum middle case
Gear Material	Metal gears
Motor Type	Coreless motor

Applications

Humanoid robots and robotic arms: use the specified operating angle and pulse width range for articulated motion mechanisms.
Exoskeletons and quadruped robots: select according to the required voltage-specific torque and stall-current limits.
AGV vehicles and ARU robots: use where the servo’s travel range, weight, and mechanical-limit angle fit the mechanism design.
RC vehicles: a supported application context for this HV coreless servo.
