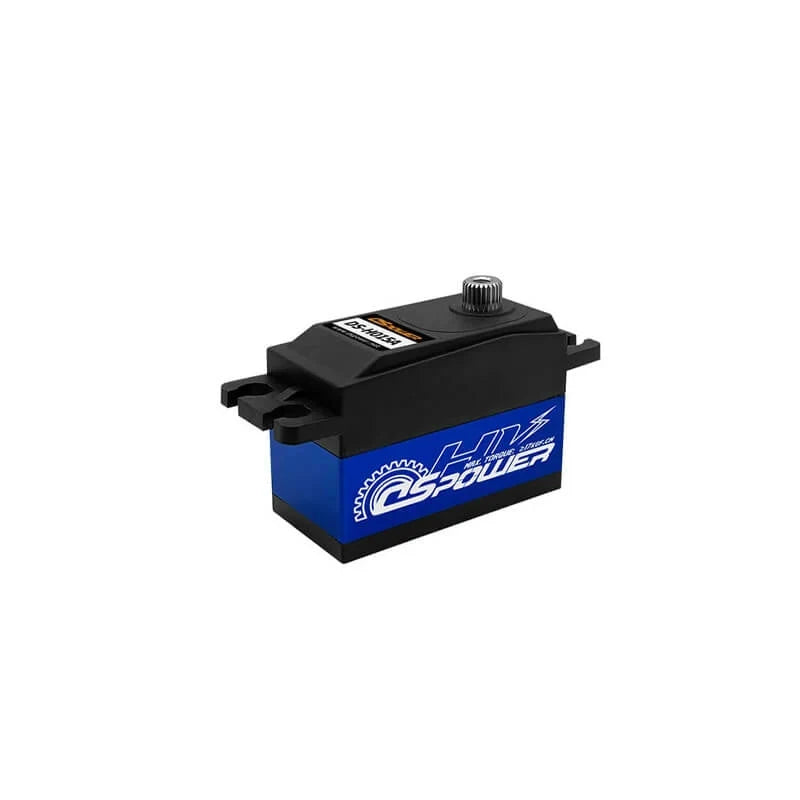

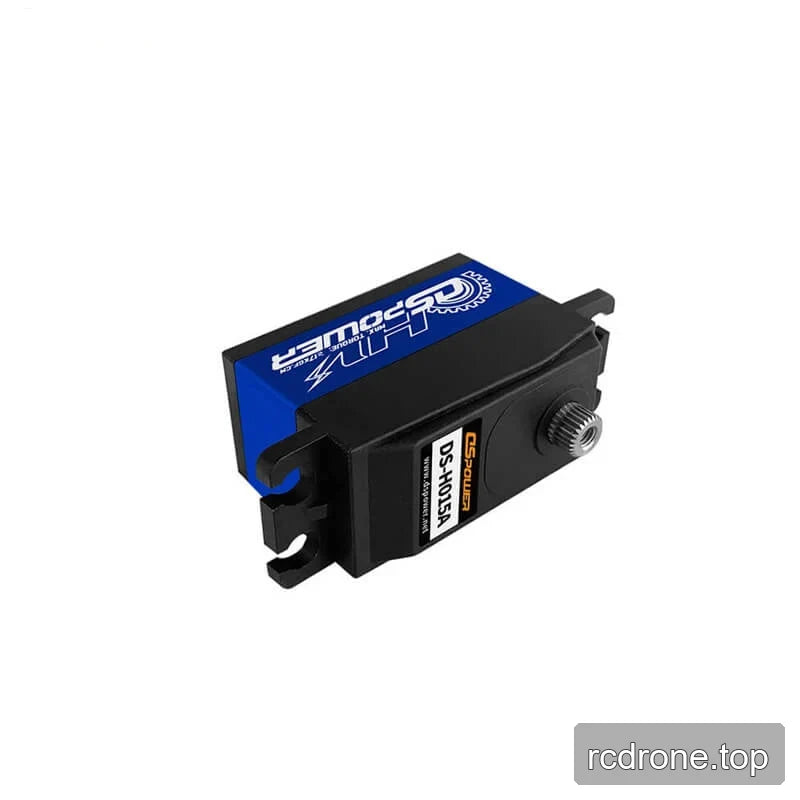

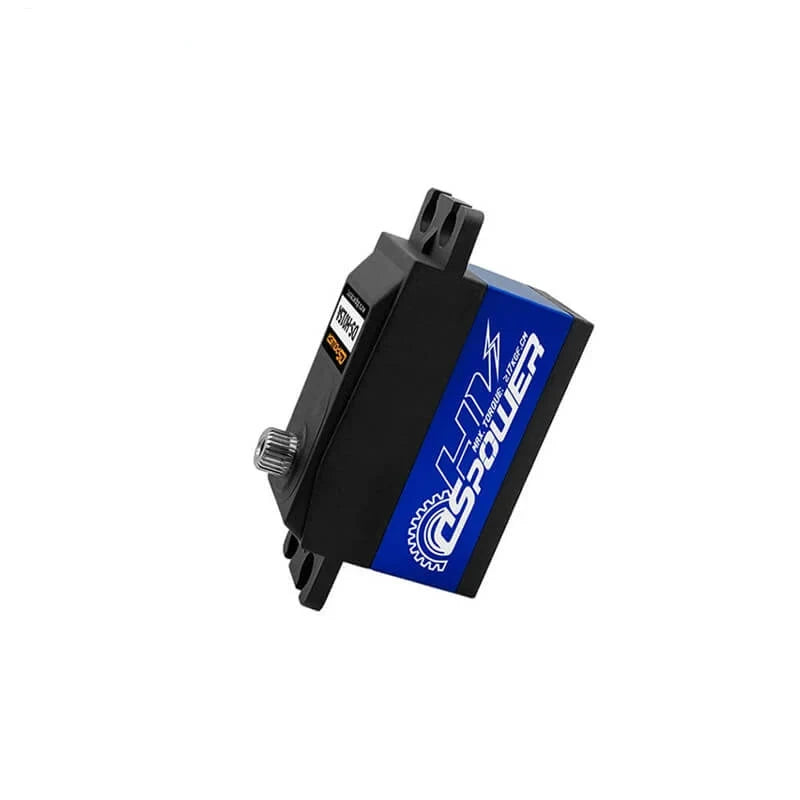

DSpower DS-H015A Low-Profile Metal Gear HV Servo, 16 kgf·cm for 1/10 On-Road Cars

DSpower

$37.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Version DS-H015A

Quantity

View full details

Overview

The DSpower DS-H015A is a low-profile HV servo motor for space-conscious control installations, including 1/10 on-road cars. It operates from 6.0–7.4 V DC and provides rated torque of 13 kgf·cm at 6.0 V or 16 kgf·cm at 7.4 V. Metal gears, a plastic-and-aluminium-alloy case, and a 180° ±10° operating travel support controlled rotary movement within its specified pulse range.

Features

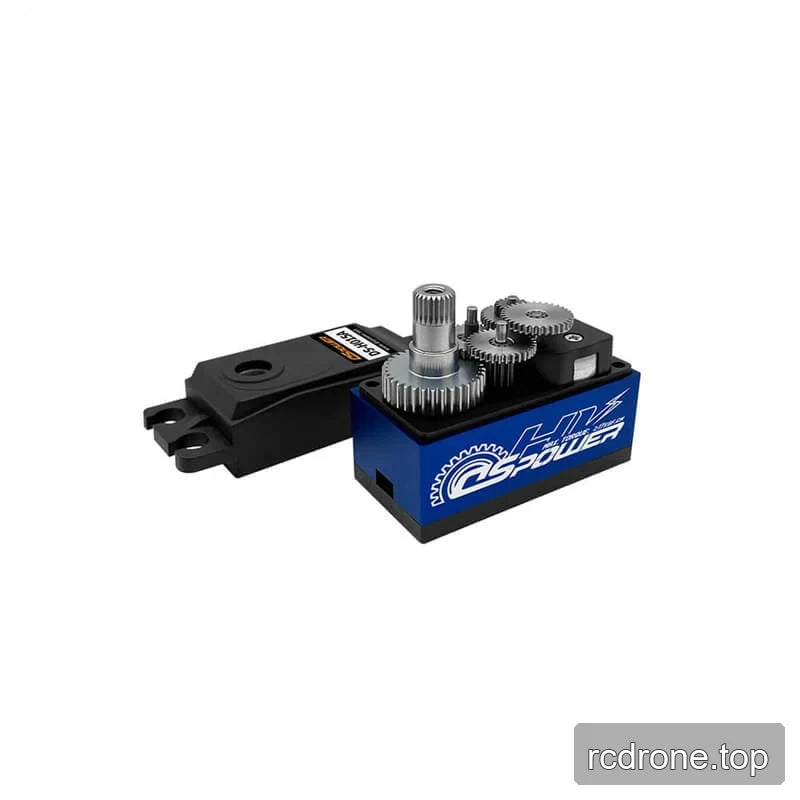

Low-profile servo design with metal gears and a metal centre section of the case.
Plastic casing with aluminium alloy construction.
H25T industry-standard output spline.
180° ±10° operating travel at a 500–2500 µs pulse width; 360° mechanical limit angle.
Iron core motor.

Specifications

Parameter	Value
Model	DS-H015A
Operating voltage	6.0–7.4 V DC
No-load speed	≤0.16 sec./60° at 6.0 V
No-load speed	≤0.12 sec./60° at 7.4 V
Rated torque	13 kgf·cm at 6.0 V
Rated torque	16 kgf·cm at 7.4 V
Stall current	≤3.6 A at 6.0 V
Stall current	≤4.2 A at 7.4 V
Consumption current, no load	≤90 mA at 6.0 V
Consumption current, no load	≤100 mA at 7.4 V
Pulse width range	500–2500 µs
Operating travel angle	180° ±10° (500–2500 µs)
Mechanical limit angle	360°
Weight	42.5 ± 0.5 g
Case material	Plastic casing + aluminium alloy
Gear set material	Metal gears
Motor type	Iron core motor
Output spline	H25T industry-standard output spline
Illustrated dimensions	40.50, 20.50, 25.30 (unit not stated)

DS H015A 1 DSpower Servo Motor DRAW — Draw (PDF)

Applications

Use the DS-H015A for 1/10 on-road cars where a low-profile servo can help fit space-limited installations while providing the specified 7.4 V speed and torque figures. The existing application scope also includes humanoid robots, robotic arms, exoskeletons, quadruped robots, AGV vehicles, and ARU robots for rotary control tasks within the stated electrical and travel limits.

What's Included

DS-H015A servo motor
Mounting hardware pack with multiple output arms, a round servo horn, mounting screws, black mounting inserts, and brass-coloured fittings
