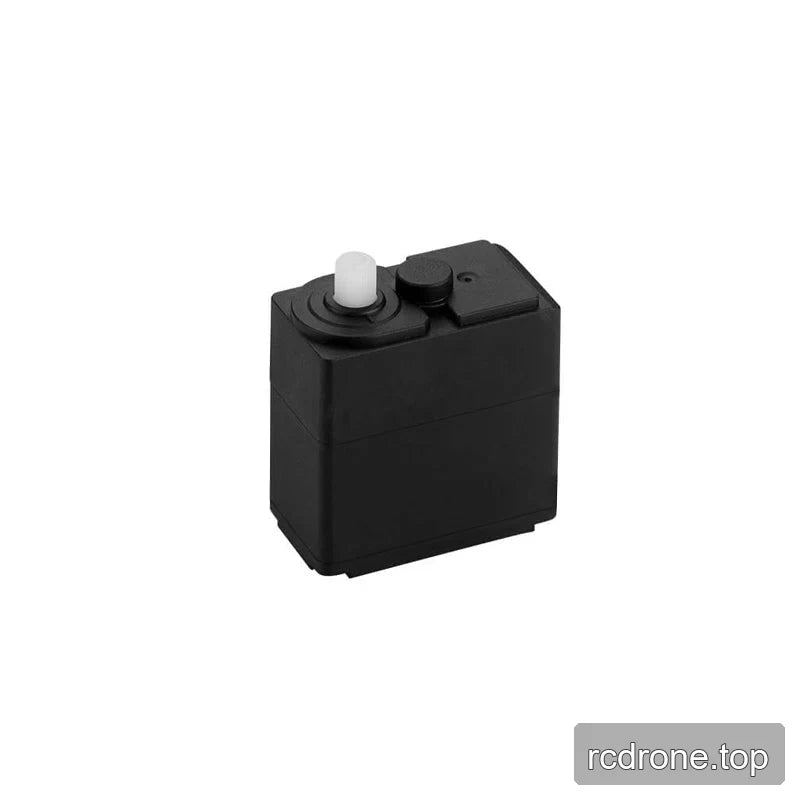

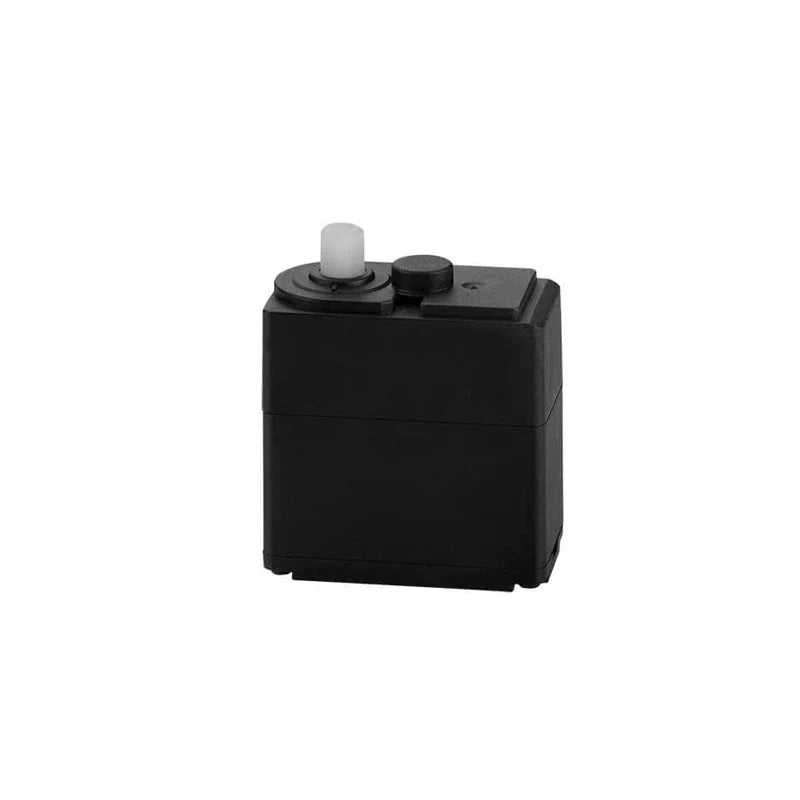

DSpower DS-R005 Smart Servo Motor, 4.8–6 V, 180° for Robotics

DSpower

$35.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Version DS-R005

Quantity

View full details

Overview

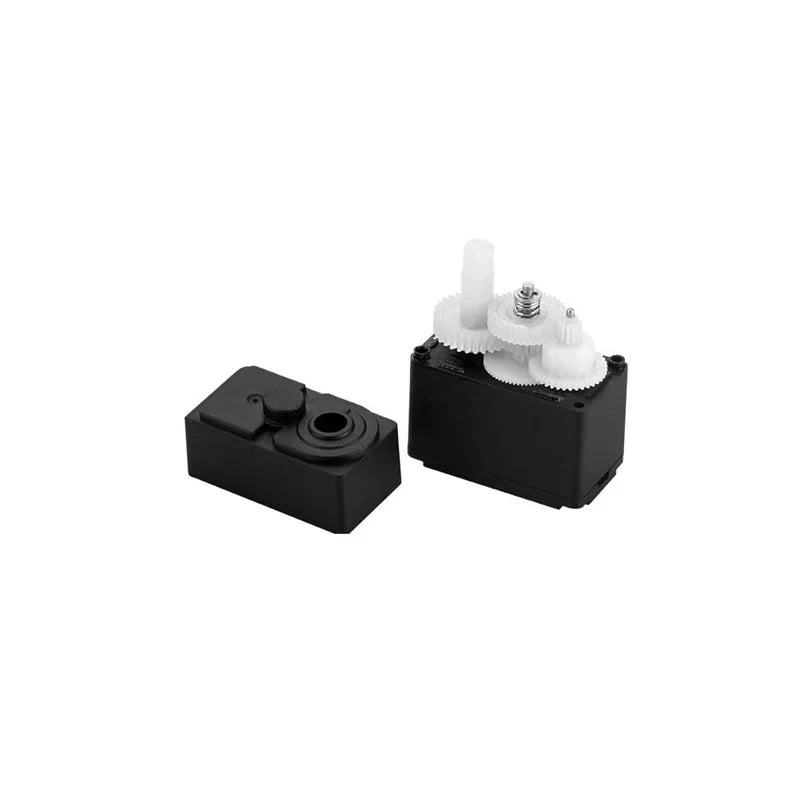

The DSpower DS-R005 smart servo motor is a 4.8–6 V DC actuator for robot motion tasks, including humanoid robots, robotic arms, exoskeletons, quadruped robots, AGV vehicles, ARU robots, and sweep robots. It provides 180° ± 10° operating travel, a 500–2500 μs pulse-width range, plastic gears, and an iron-core motor. An H25T output spline, clutch function, and electronic protection support integration assessment.

Features

Smart servo designation
H25T industry-standard output spline
Clutch function and electronic protection
180° range of motion

Specifications

Parameter	Value
Operating Voltage	4.8–6 V DC
No Load Speed	≤ 0.15 sec./60° at 4.8 V ≤ 0.13 sec./60° at 6.0 V
No Load Current	≤ 110 mA at 4.8 V ≤ 120 mA at 6.0 V
Stall Current	≤ 700 mA at 4.8 V ≤ 800 mA at 6.0 V
Stall Torque	≥ 1.6 kgf·cm at 4.8 V ≥ 2.0 kgf·cm at 6.0 V
Pulse Width Range	500–2500 μs
Operating Travel Angle	180° ± 10°
Mechanical Limit Angle	360°
Weight	20 ± 0.5 g
Case Material	ABS
Gear Set Material	Plastic gear
Motor Type	Iron Core

DS R005 1 DSpower Servo Motor DRAW — Draw (PDF)

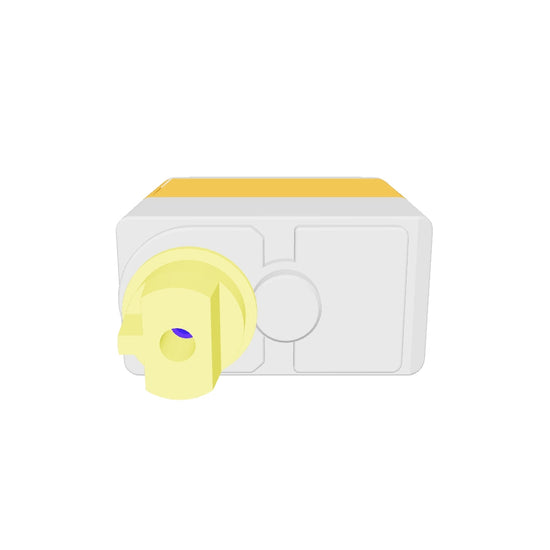

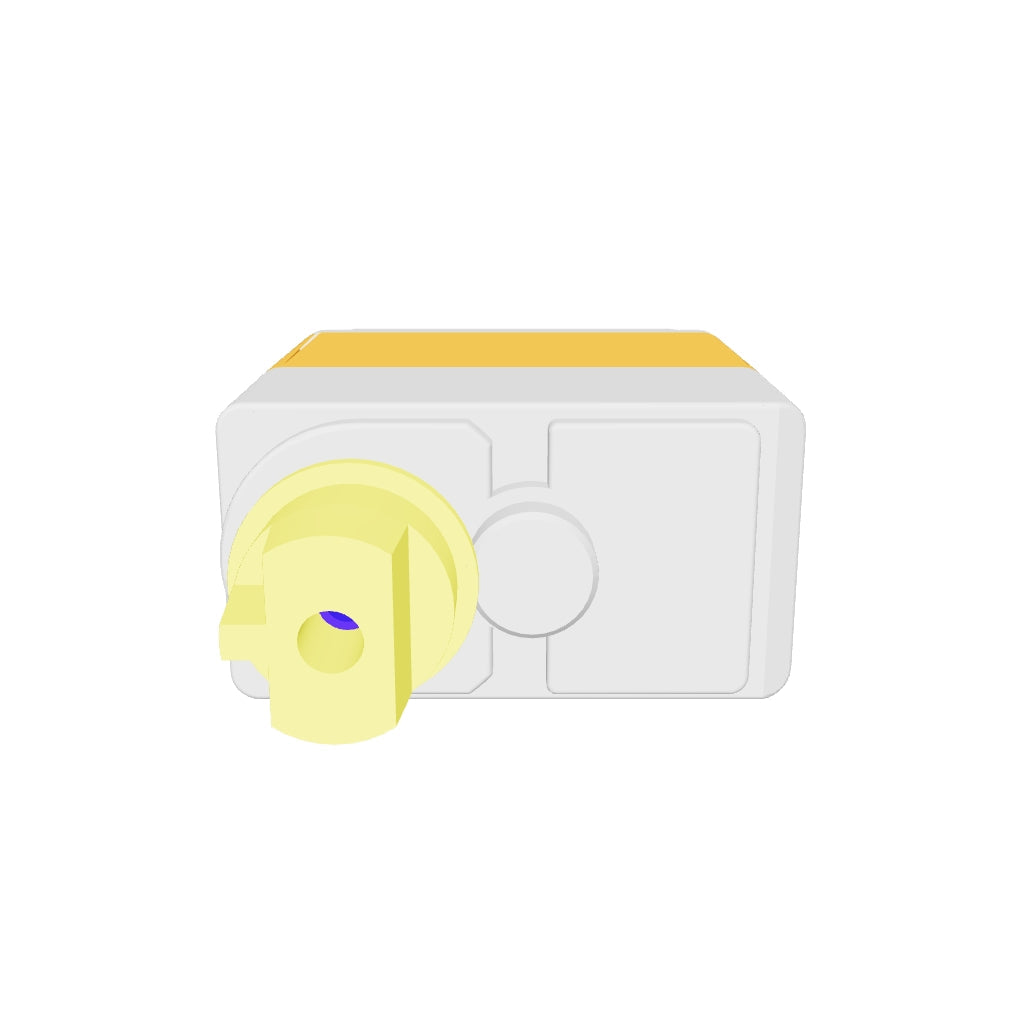

r005 DSpower DS Servo Motor — 3D Model (STP)

Applications

For robotics projects requiring rotary motion, the 180° ± 10° operating travel and stated voltage-dependent stall torque provide selection details for articulated movement tasks. Listed application scenarios include humanoid robots, robotic arms, exoskeletons, quadruped robots, AGV vehicles, ARU robots, and sweep robots.
