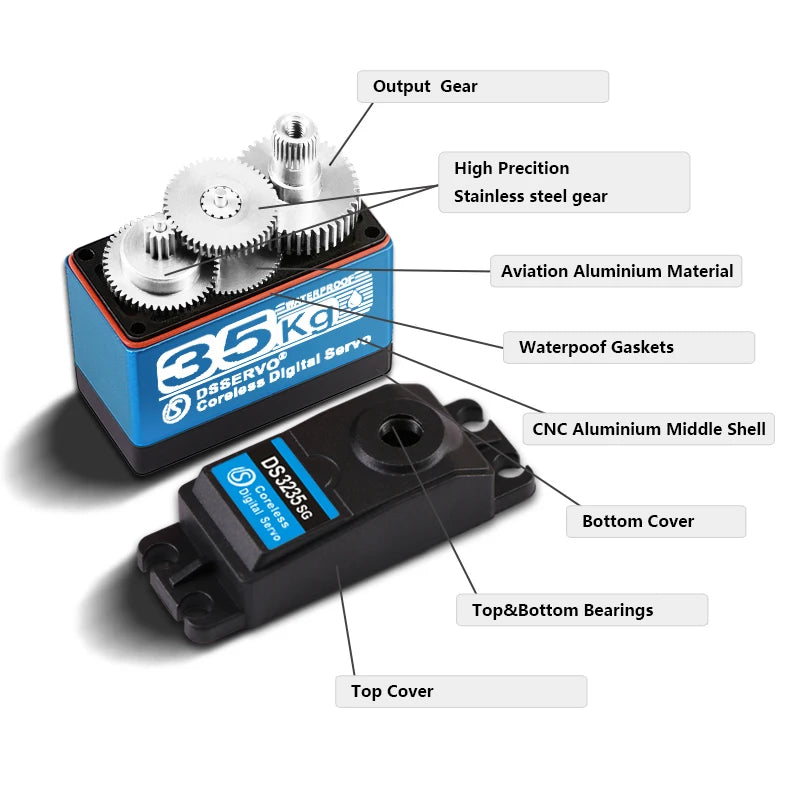

  • DSServo, Stainless steel gear Aviation Aluminium Material Waterpoof Gaskets CNC Aluminium Middle Shell 46 Bottom
  • DSServo, Iedebeo IH 85ka eorsErvgigltal

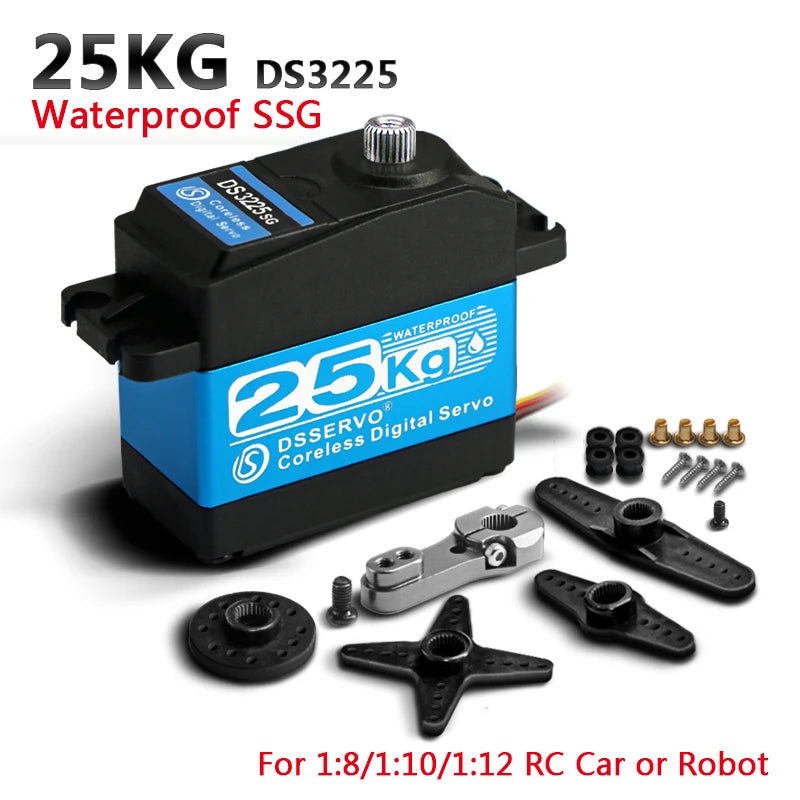

  • DSServo, 25KG DS3225 Waterproof SSG 3 0666 88 For 1.8/1

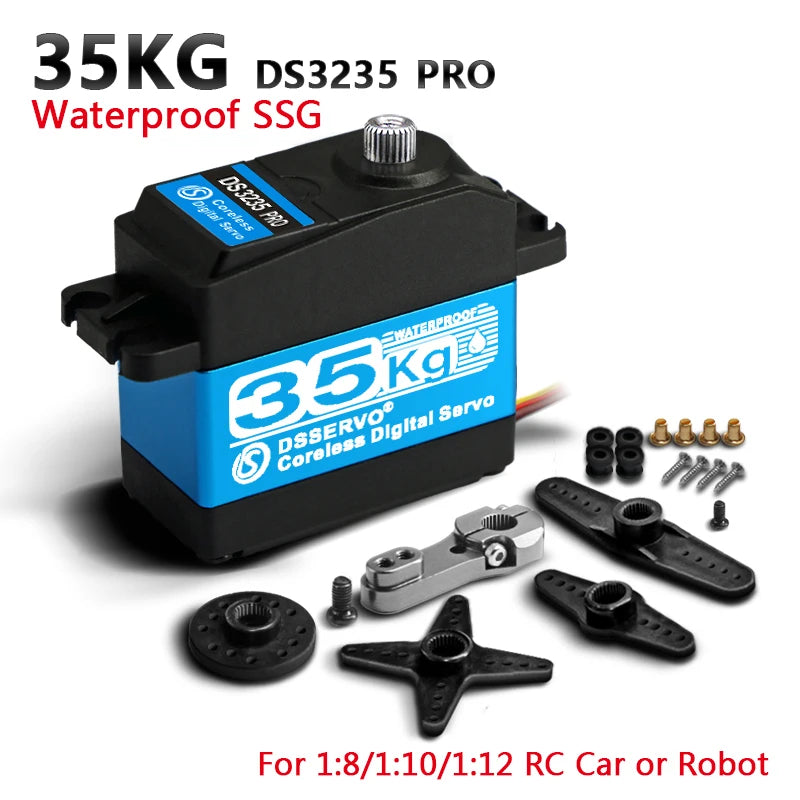

  • DSServo, 35KG DS3235 PRO Waterproof SSG 0 7 6666 88
  • DSServo, Communication Interface: PWM T;30-30ms (Delautt 20ms)
1 9

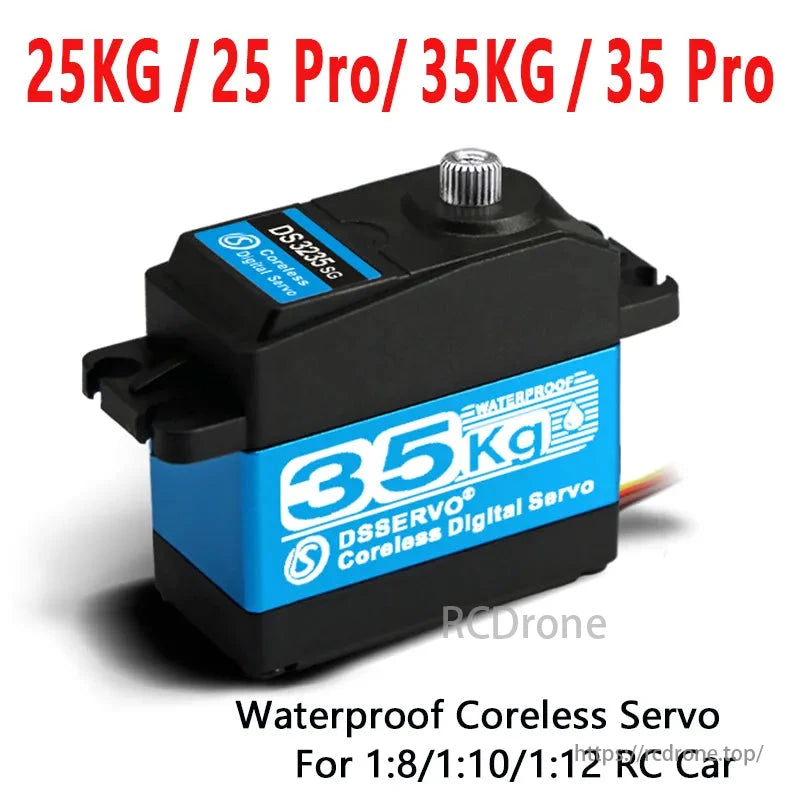

DSServo DS3225 DS3235 Pro - Coreless servo 25kg 35KG high speed servo pro digital and Stainless Steel gear servo arduino servo for Robotic DIY,RC car

DSServo DS3225 DS3235 Pro - Coreless servo 25kg 35KG high speed servo pro digital and Stainless Steel gear servo arduino servo for Robotic DIY,RC car

DSServo

$25.70 USD
$25.70 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

DSServo DS3225 DS3235 Pro SPECIFICATIONS

Brand Name: Dsservo

Origin: Mainland China

Material: Metal

Recommend Age: 14+y

RC Parts & Accs: Servos

For Vehicle Type: Cars

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Tires

Remote Control Peripherals/Devices: Remote Controller

Tool Supplies: Cutting

Technical parameters: KV1100

Model Number: DS3235 SSG waterproof

Four-wheel Drive Attributes: Assemblage


Sepcification:DSServo, DS3225 PRO ds3235 PRO 21kg cm@Sv l

DS3225 PRO ds3235 PRO 21kg l23kg cm@Sv i26kg cm @Sv 31kg.cm@sv Torque 25kg cm @7.Av I3okg cm@7.av cm@8.4v cm @8. 4v 0.14sec/60r 74vl0.13sec /60*@74v/o.O6sec/ 60* @7,4v 0.09sec/608 73v
Brand:Dsservo

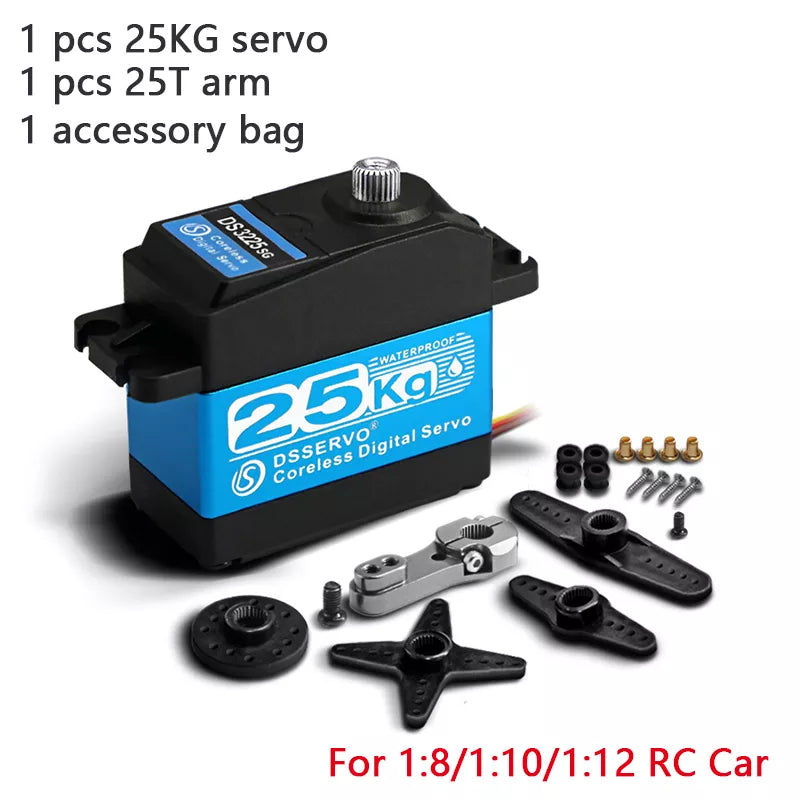

Packing List:
1x 25T adjustable metal servo arm
1x accessory bag

Apply Environmental Conditon:
1.Storage Temperature Range:-30°C~80°C
2.Operating Temperature Range:-25°C~70°C

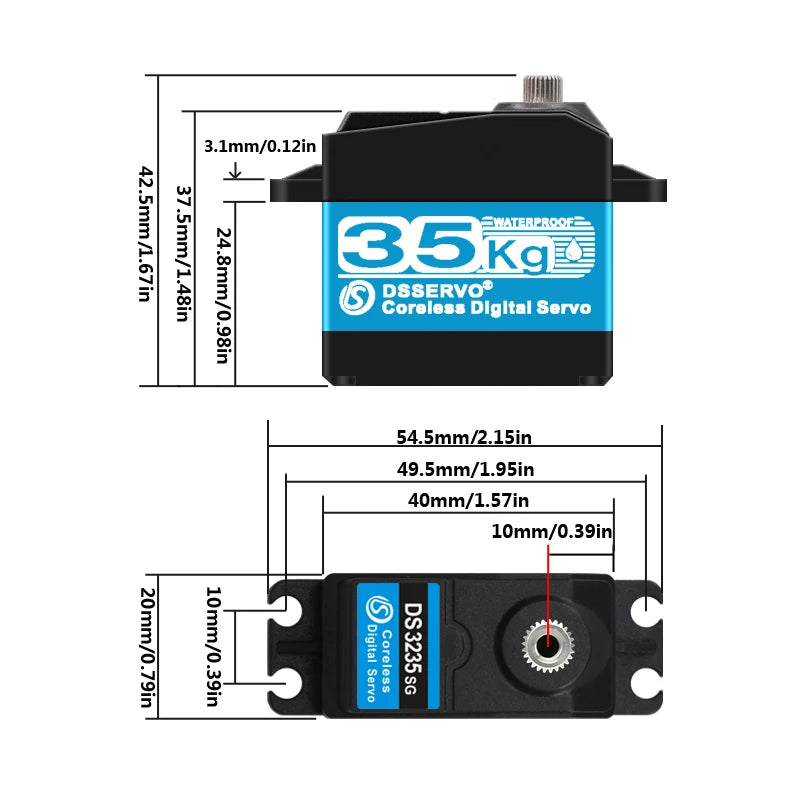

Mechanical Specification:
1. Size: 40.0*20.5*40.5mm
2. Weight: 58g±2g
3. Limit angle: 360°
4.Bearing: 2BB
5.Horn gear spline: 25T   Diameter:5.9mm
6.Case : Engineering plastics+Aluminum alloy
7.Connector wire: 320mm±5mm
8.Motor: Coreless brush motor

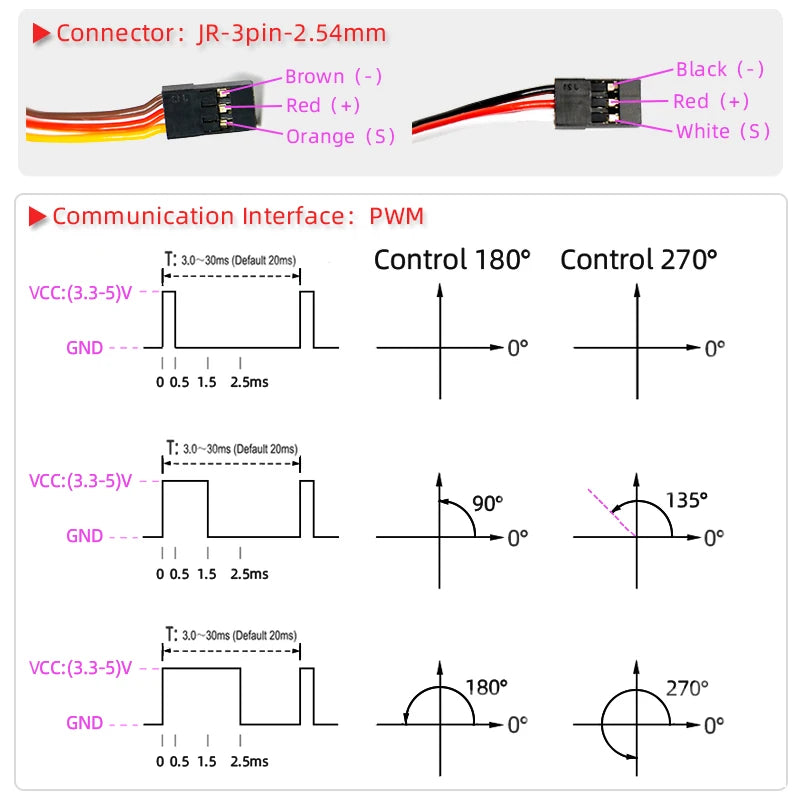

Electrical Specification:
1.Working voltage range:  5 - 8.4V
2.Command signal: Pulse width modification
3.Amplifier type: Digital controller
4.Pulse width range: 500～2500usec
5.Neutral position: 1500usec
6.Running degree: 180±3°(PWM 500～2500usec) or 270±3°(PWM500～2500usec)
7.Dead band width: 3 usec
8.Rotating direction Counterclockwise: (when 1000～2000usec)

DSServo, 35KG DS3235 SSG Waterproof 6666 88 For 1.8/1

35KG DS3235 SSG Waterproof 6666 88 For 1.8/1.10/1.12 RC Car or Robot DS 3235s6 Iosgtal veles$ INEAPEOEE 35k9 'Sorvo DSSERVO _ 'Coroloss nt'
