DSServo DS3225 update servo SPECIFICATIONS
Brand Name: Dsservo
Origin: Mainland China
Material: Metal
RC Parts & Accs: Servos
For Vehicle Type: Cars
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Tires
Remote Control Peripherals/Devices: Remote Controller
Tool Supplies: Cutting
Technical parameters: KV1100
Model Number: DS3225 and DS3225 coreless
Four-wheel Drive Attributes: Assemblage
|
usual Waterproof version Sepcification: Brand:Dsservo

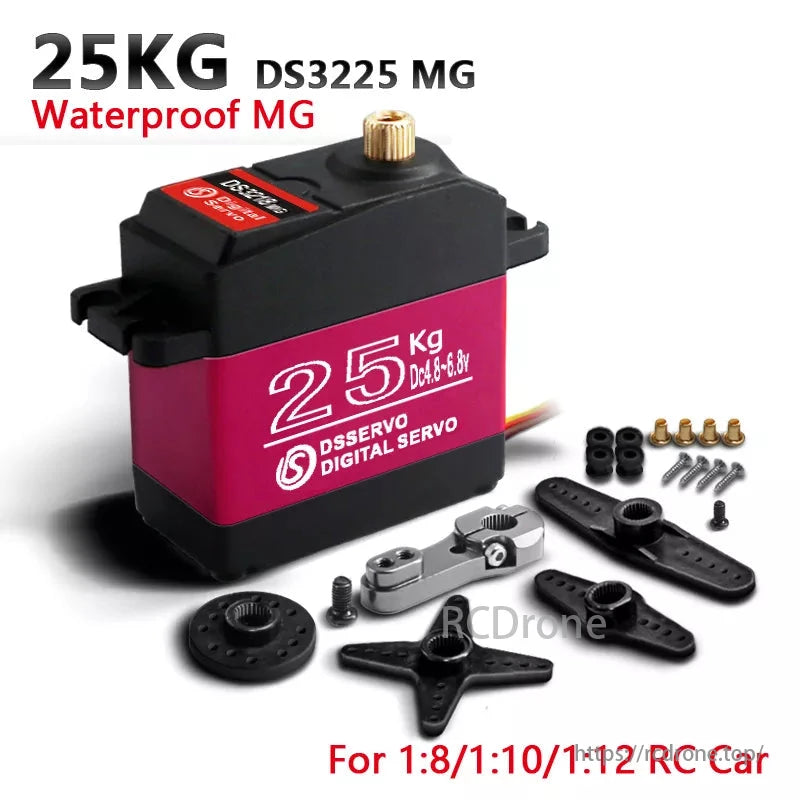

Item: DS3225 25KG Large Torque Digital Servo
DS3225 25KG Coreless Stainless Steel Gear Digital Servo
Operating Voltage: 5 ~ 6 DC Volts (DS3225)
5 ~ 7.4 DC Volts (DS3235)
Runing degree: 180°or 270° (when 500~2500 μ sec) Dead brand:3μs / 2 μs
Weight: 60 g (2.12 oz)
Motor Type: DC Motor / Coreless Motor
Gear Type: Copper & Aluminum /Stainless Steel & Aluminum
Working frequence: 50-333Hz
Size: 40 x 20 x 40.5 mm ( 1.58 x 0.79 x 1.60 in)
40 x 20 x 38.5 mm ( 1.58 x 0.79 x 1.50 in)
Features:
- High performance digital standard servo
- High-precision metal gears with hard anodizing
- CNC aluminium middle Shell
- Dual ball bearings
Package Included:
1 x DS3225 25KG Large Torque Digital Servo
1 x 25T Adjustable metal servo arm
Or
1 x DS3225 25KG Coreless Stainless Steel Gear Digital Servo
1 x 25T Adjustable metal servo arm
a set of accessories
1 x accessory bag
MG 93 3 Kg 0666 88 For 1.8/1:10/1.12 RC Car 253 Dctd-6ax DSSERVO SERVO DIGITAL ttt . 3.1mm/O.12in Hp N 25k9a DSSERVO 1 DIGITAL SERVO 54.5mm(2.15in) 40mm/1.57in 10mm/o.39in 1 [ 8 7 9 9] 25KG DS3225 SSG Waterproof 3 6666 88 For 1.8/1.10/1.12 RC Car or Robot . Goox WateRPROOE B5k Servo DSSERVO Digital . 3.1mm/O.12in Mi;ncot IH 25kg gor9ErvBigital Bervo 54.5mm(2.15in) 49.5mm/1.95in 40mm/1.99in 10mm/o.39int 1 | 1 7 7 if you need the servo arm,please click the link:
|
