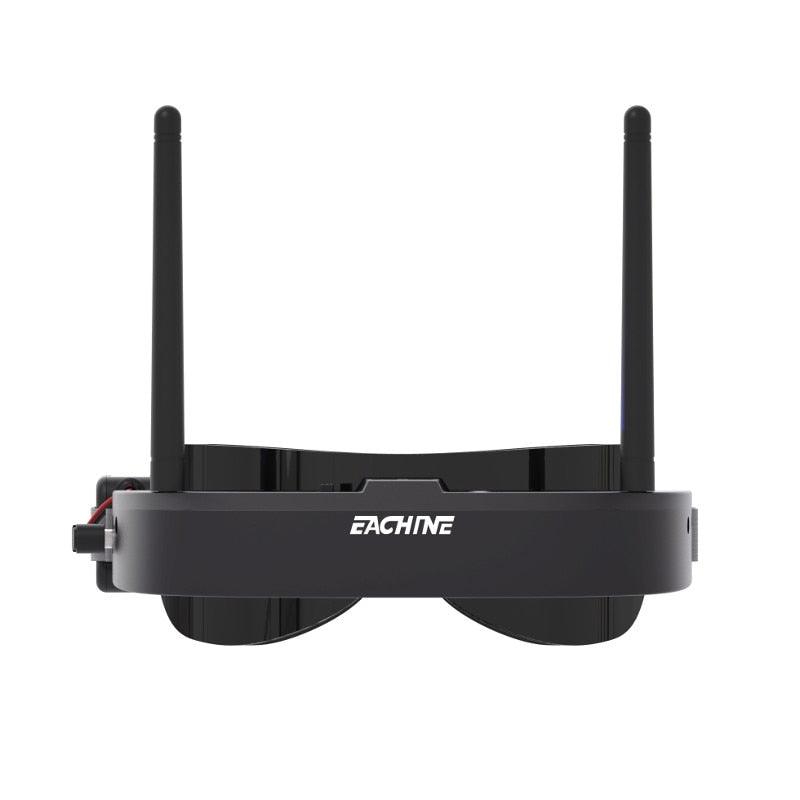

Eachine EV100 FPV Goggle - 720*540 5.8G 72CH FPV Goggles With Dual Antennas Fan 18650 Battery RC Drone FPV Drone Spare Part

Eachine EV100 FPV Goggle - 720*540 5.8G 72CH FPV Goggles With Dual Antennas Fan 18650 Battery RC Drone FPV Drone Spare Part

Eachine

Regular price $144.33 USD
Regular price $202.06 USD Sale price $144.33 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

49 orders in last 90 days

Color

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

Eachine EV100 FPV Goggle SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: FPV Goggles

Tool Supplies: FPV Goggles

Technical parameters: Value 10

Remote Control Peripherals/Devices: FPV Goggles

Recommend Age: 12+y

RC Parts & Accs: FPV Goggles

Origin: Mainland China

Model Number: EV100

Material: Composite Material

Four-wheel Drive Attributes: FPV Goggles

For Vehicle Type: Helicopters

Brand Name: EACHINE


Eachine EV100 FPV Goggle - 720*540 5.8

Note:

The battery will be changed to 18650 battery case in order to facilitate transport,thank you for your understanding!

The receiver on EV100 Goggles doesn't receive audio. But the goggles support audio input, that you can hear the audio if inputs the video to goggles.

Warning:Don't use balance plug to charge the battery
Description
Brand Name : Eachine
Item Name : EV100
Size : 165mm*76mm*30mm
Weight : 221g(with battery 57g and antenna 13g)
Package Weight : 400g
Display
Resolution  : 720*540
FOV : 28° diagonal
IPD : 58-68mm
Ratio : 4:3
Focal length adjusting:  under 400 degree of myopia and hyporopia 150 degree
Specification
Frequency : 5.8G 5333Mhz-5945Mhz
Sensitivity : <=-93dB
Antenna Impedance : 50Ω
Antenna Gain : 3dBi
Antenna Connector : RP-SMA
Video Formate : NTSC/PAL
Support AV IN/OUT
Support Focal Length/Brightness/Contrast Adjustment
Suport Firmware Upgrading
Power Input : 7.4V
Low Voltage : 6.8V
Battery : 18650 battery case
Charging : USB Cable(not included)
Working Temp. : -10℃-+40℃

Features
Support AV Input and Output( it doesn't support Audio in FPV mode, for the build-in receiver can't receive audio. But in AV-IN mode, the audio is available.)
Support External HDMI to AV Module
Support External DVR module
Single receiver with Dual Antennas, enhance the reception and stable performance.
With Fan, can defog the glasses for good visual experience.
Adjustable focal length,allows pilots under 400 degree myopia view directly via naked eye
Adjustable IPD 58~68mm
Auto Search function, can auto search all frequencies and select the channel of stongest signal.
Has 3 Racing Modes : 4/6/8 pilots. 60-80MHz interval between adjacent channels greatly decrease interference.
Has Debug Mode, requires a corresponding VTX which support pitmode and extra frequency 5300MHz


Package Included
1 x Eachine EV100 5.8G 72CH FPV Goggles
1 x 18650 Battery case
2 x RP-SMA 3dBi Antenna
1 x User Manual

Eachine EV100 FPV Goggle, Eachine EV100 has Debug Mode, requires a corresponding VTX which

Eachine EV100 FPV Goggle, EATHHINE SHOPPING NOTES Delivery time: we will arrange delivery within days

EATHHINE SHOPPING NOTES Delivery time: we will arrange delivery within days after placing the order . we will deliver according to the mailing method you choose: logistics inquiry: can track packages based on 3 tracking numbers .

Eachine EV100 FPV Goggle, AFTER-SALES SERVICE If item DOA(Dead of Arrival)

After-Sales Service: For any Dead on Arrival (DOA) items, buyers can return them within 14 days. In such cases, we will replace the item with a new one after receiving the returned DOA item.

Eachine EV100 FPV Goggle, 5 STAR FEEDBACK PRODUCT AS DESCRIPTION: COMMU



Warning:Don't use balance plug to charge the battery

Description

Brand Name : Eachine
Item Name : EV100
Size : 165mm*76mm*30mm
Weight : 221g(with battery 57g and antenna 13g)
Package Weight : 400g
Display
Resolution  : 720*540
FOV : 28° diagonal
IPD : 58-68mm
Ratio : 4:3
Focal length adjusting:  under 400 degree of myopia and hyporopia 150 degree
Specification
Frequency : 5.8G 5333Mhz-5945Mhz
Sensitivity : <=-93dB
Antenna Impedance : 50Ω
Antenna Gain : 3dBi
Antenna Connector : RP-SMA
Video Formate : NTSC/PAL
Support AV IN/OUT
Support Focal Length/Brightness/Contrast Adjustment
Suport Firmware Upgrading
Power Input : 7.4V
Low Voltage : 6.8V
Battery : 2S 7.4V 1000mAh
Charging : USB Cable(not included)
Working Temp. : -10℃-+40℃

Features
Support AV Input and Output( it doesn't support Audio in FPV mode, for the build-in receiver can't receive audio. But in AV-IN mode, the audio is available.)
Support External HDMI to AV Module
Support External DVR module
Single receiver with Dual Antennas, enhance the reception and stable performance.
With Fan, can defog the glasses for good visual experience.
Adjustable focal length,allows pilots under 400 degree myopia view directly via naked eye
Adjustable IPD 58~68mm
Auto Search function, can auto search all frequencies and select the channel of stongest signal.
Has 3 Racing Modes : 4/6/8 pilots. 60-80MHz interval between adjacent channels greatly decrease interference.
Has Debug Mode, requires a corresponding VTX which support pitmode and extra frequency 5300MHz
Package Included
1 x Eachine EV100 5.8G 72CH FPV Goggles
1 x 7.4V 1000mAh Battery
2 x RP-SMA 3dBi Antenna
1 x User Manual

Note:
Eachine EV100 FPV Goggle, IPD 5868mm auto search function, can search all frequencies and select the channel
