Eachine Nano Plus FPV VTX Video Transmitter - 5.8GHz 48CH 800mW Transmitter for RC Racing Drone Plane FPV Drone DIY Kit Accessories Support Microphone 6-36V FPV Goggle

Eachine Nano Plus FPV VTX Video Transmitter - 5.8GHz 48CH 800mW Transmitter for RC Racing Drone Plane FPV Drone DIY Kit Accessories Support Microphone 6-36V FPV Goggle

Eachine

Regular price $54.66 USD
Regular price $81.99 USD Sale price $54.66 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

144 orders in last 90 days

Color
Ships From

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

Eachine Nano Plus FPV Transmitter SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 12+y

Origin: Mainland China

Material: Composite Material

Certification: CE

Brand Name: EACHINE

Eachine Nano Plus FPV VTX, Eachine Nano Plus 800mW VTX Input Voltage: DC 6-36V

Features
- 5.8GHz 48CH FPV transmitter
- 6-36V HV DC input voltage
- PIT/25mW/200mW/400mW/800mW power switchable
- Built-in microphone,real time transmission of audio
- Ultra small size, reduce installation space.
- Compatible with 30.5mm * 30.5mm / 36.5mm * 36.5mm Mounting Size.
- 5.8G ISM band
- 1-2km long transmission distance
- Support OSD configuring via Betaflight flight controller
- Support 8 drones flying at the same time without interference
- It can ensure that the image has no snowflake,no stripes under the maximum throttle situation.

Parameter
Brand Name: Eachine
Item Name: Nano Plus 800mW VTX
Input Voltage: DC 6-36V
Output Voltage: 5V/1A
12V/PIT@30mA
12V/25mW@140mA/16dBm
12V/200mW@190mA/24.5dBm
12V/400mW@280mA/28dBm
12V/800mW@330mA/30dBm
Antenna Interface: MMCX
Output Power: PIT/25mW/200mW/400mW/800mW switchable
Frequency: 5.8GHz 6 bands, 48 channels
Size: 36.5mm x 36.5mm (30.5*30.5mm)

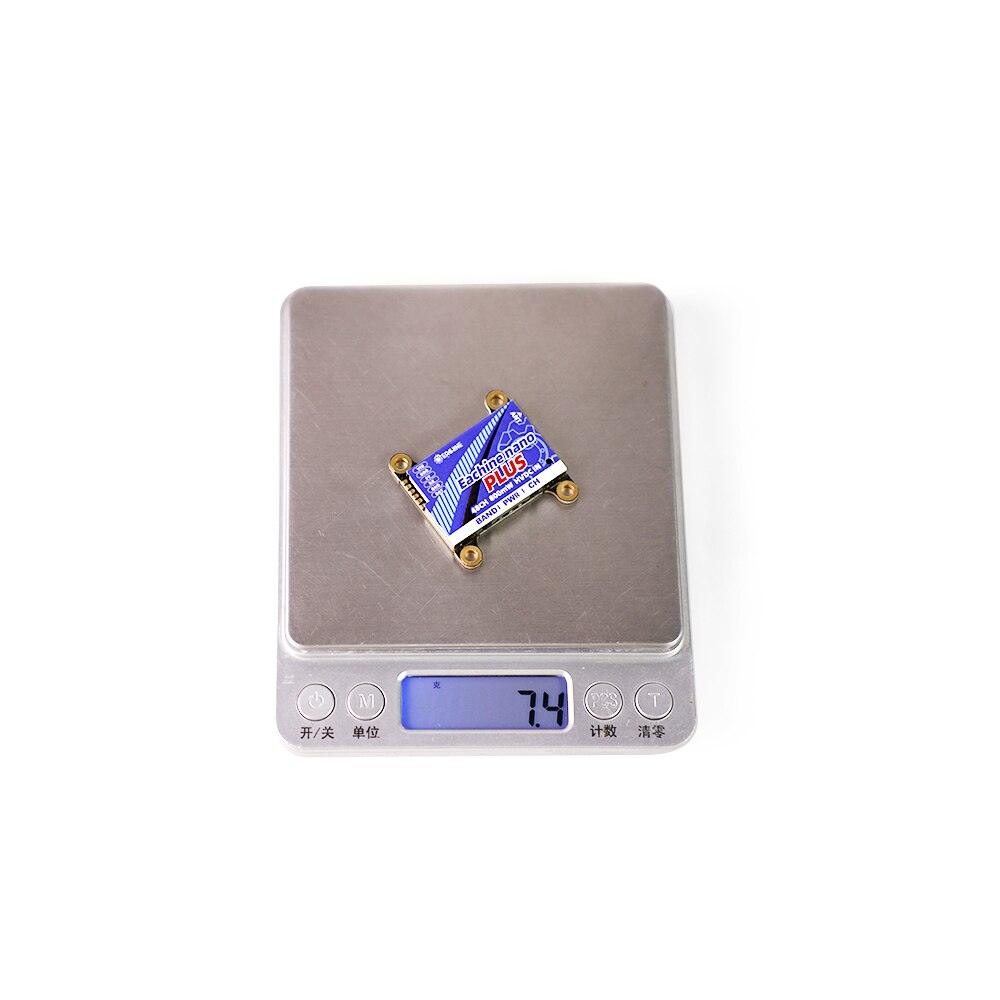

Weight: 7.4g (External expansion board included)

Frequency Table
Band A: 5865/5845/5825/5805/5785/5765/5745/5725
Band B: 5733/5752/5771/5790/5809/5828/5847/5866
Band E: 5705/5685/5665/5645/5885/5905/5925/5945
Band F: 5740/5760/5780/5800/5820/5840/5860/5880
Band R: 5658/5695/5732/5769/5806/5843/5880/5917
Band L: 5362/5399/5436/5473/5510/5547/5584/5621

Power Indicator Status
Indicator Light: Red ( Power )
Solid ( PIT )
Flash Once ( 25mW )
Flash Twice ( 200mW )
Flash Three Times ( 400mW )
Flash Four Times ( 800mW )

Packing List
Eachine Nano Plus 5.8GHz 48CH FPV Transmitter*1
Packing*1


Eachine Nano Plus FPV VTX, Eachine Nano Plus FPV Transmitter SPECIFICATIONS Use :

Eachine Nano Plus FPV VTX, EANHHINE Eachine nano plus 80OmW VTX For FPV

Eachine Nano Plus VTX: A compact, high-power video transmitter designed for FPV racing drones, operating on the 5.8GHz frequency band with adjustable power output (25mW, 200mW, or 400mW) and 48 channels of transmission. Features include ultra-small size (30.5mm x 30.5mm), reduced installation space, and a compatible M3 mounting hole.


Eachine Nano Plus FPV VTX, MID_ JEACHINE OND OND D Eadfnenano
Eachine Nano Plus FPV VTX, 5.8G ISM band - 1-2km long transmission distance - Support OSD
Eachine Nano Plus FPV VTX, Eachine Nano Plus 800mW VTX Input Voltage: DC 6-36V
Eachine Nano Plus FPV VTX, - Compatible with 30.5mm * 300.5mm / 36.5mm * 36.5


Eachine Nano Plus FPV VTX, AFTER-SALES SERVICE If item DOA(Dead of Arrival)

AFTER-SALES SERVICE If item DOA(Dead of Arrival) Buyers Can return it in 14 Days, Return: We will Replace it with New item after we receive DOA item .

Eachine Nano Plus FPV VTX, 5 STAR FEEDBACK PRODUCT AS DESCRIPTION: COMMU
