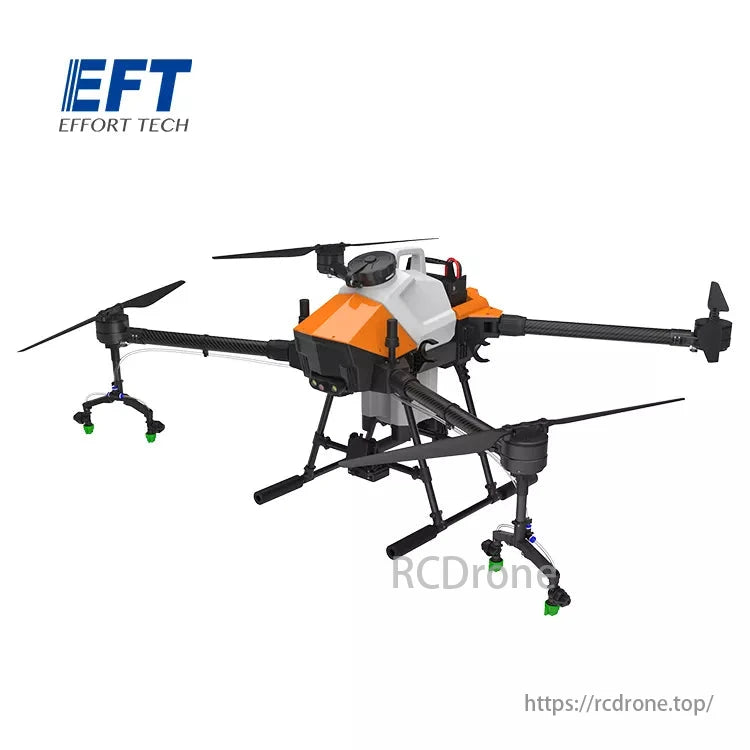

EFT G410 10L Agriculture Drone - 4 Axis Drone Frame Kit 10L Water tank Brushless Spraying System With Hobbywing X8 Motor, JIYI K++ V2, Skydroid H12, Tattu 12S Battery

EFT G410 10L Agriculture Drone Specifications

Item Model: G410
Diagonal wheelbase: 1513mm
Size: 946*1545*673mm
Folded Size: 850*505*673mm
Arm Diameter: 40mm
Effective Capacity: 11L
Frame Weight: 6.35kg
Frame+Spraying System Weight: 12.5kg
Frame+Power System Weight: 11.5kg
No-Load take-off weight: 17.3kg
Max take-off weight: 27.3kg
No-load flight Time: 21minutes (42.8V)
Full-Load flight time: 8.5 minutes (42.8V)



Package List :

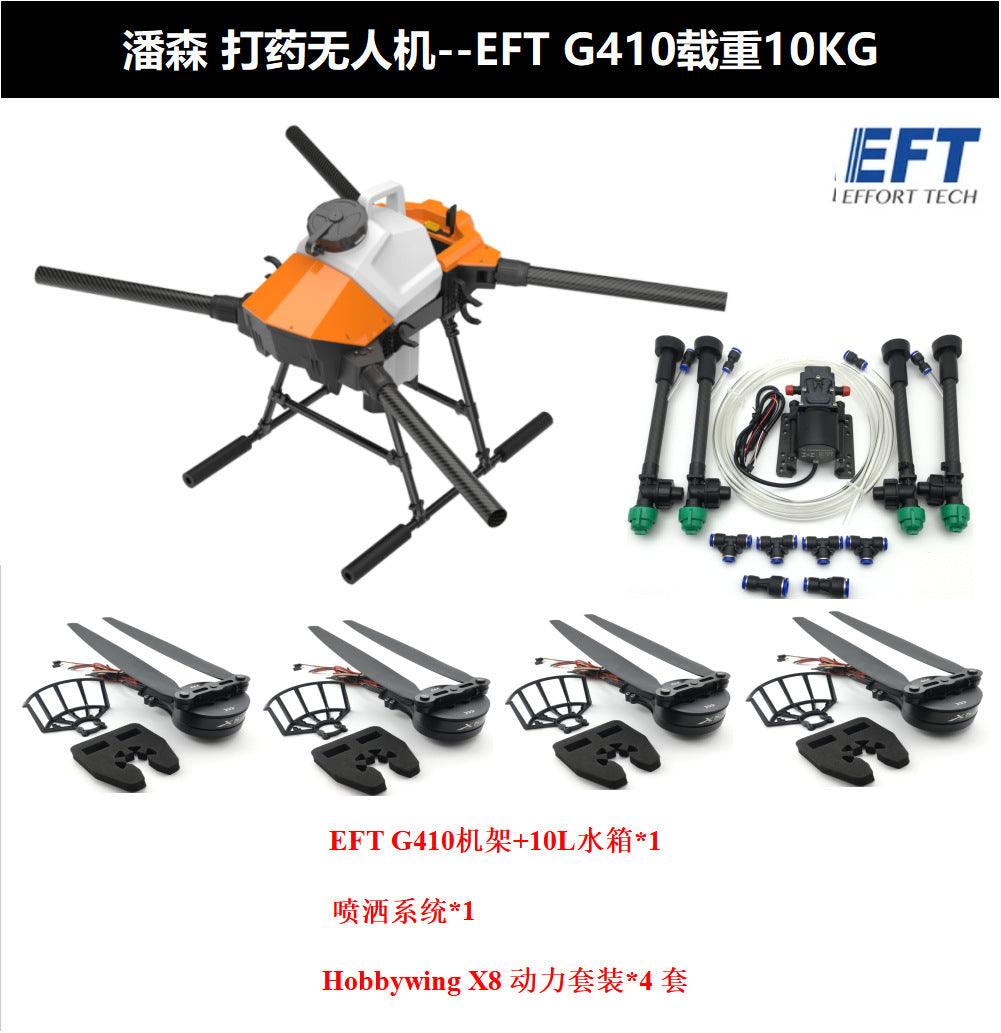

Kit 3 Included:
EFT G410 4 Axis Drone Frame Kit x 1
10L Water tank x1
Brushless Spraying System x 1
Hobbywing X8 Power System for drones x 4 (2CW+2CCW)

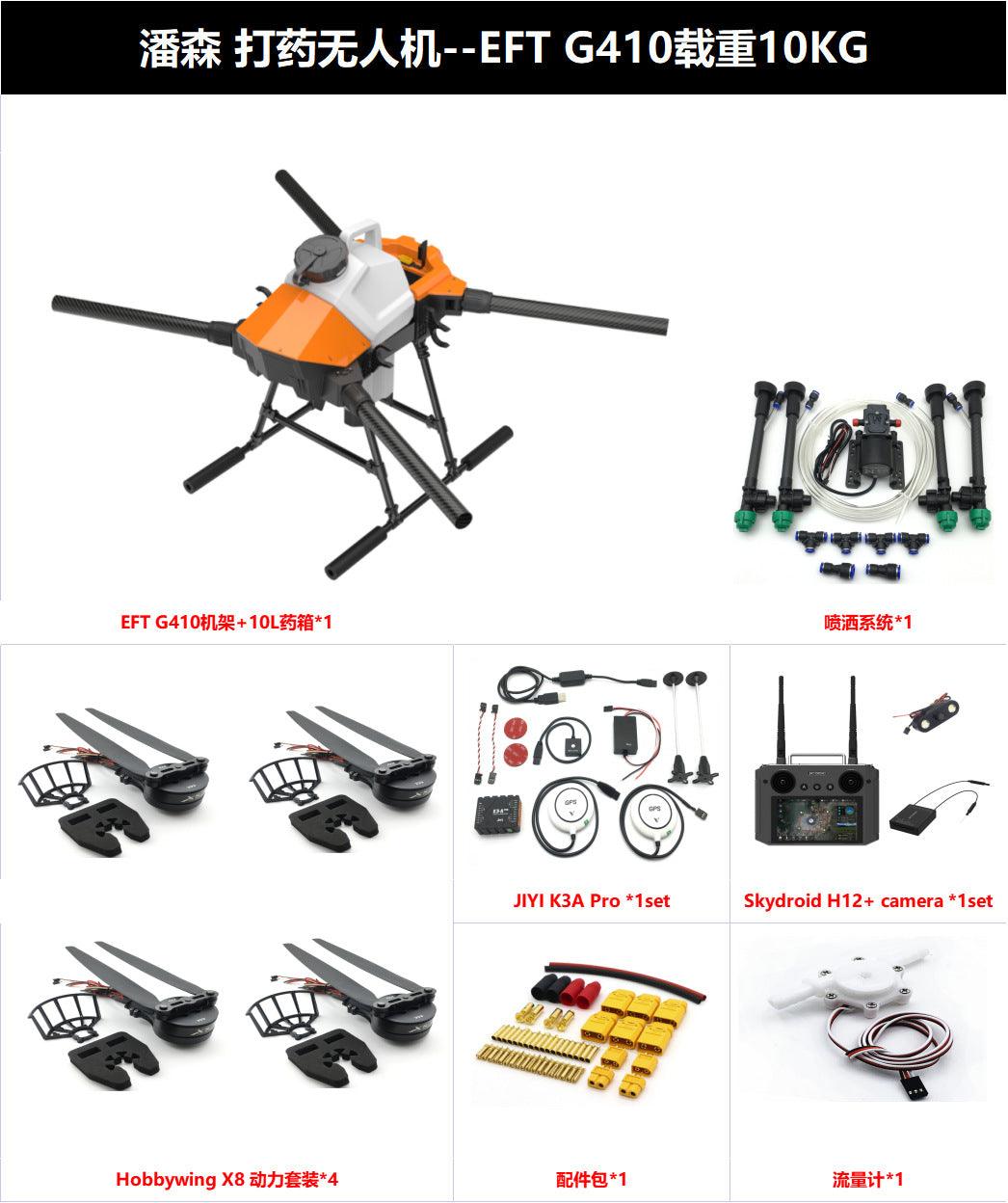

Kit 4 Included:
EFT G410 4 Axis Drone Frame Kit x 1
10L Water tank x1
Brushless Spraying System x 1
Hobbywing X8 Power System for drones x 4 (2CW+2CCW)
JIYI K++ V2 Flight Controller x 1 (or JIYI K3A pro x1)
Skydroid H12 Remote Controller x 1
Camera x1
Connectors and Wires Accessories x 1
Flow meter x1

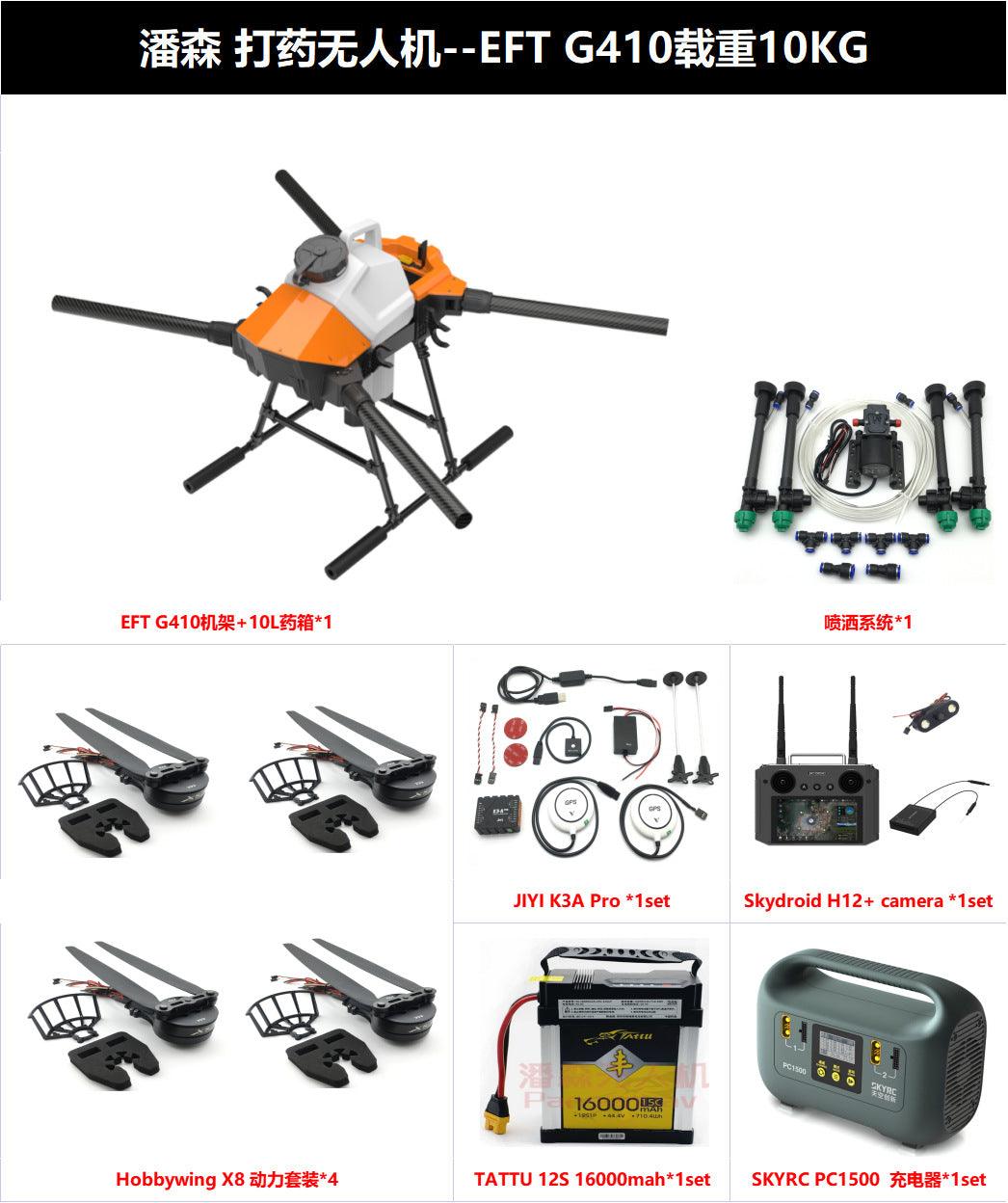

Kit 5 Included:
EFT G410 4 Axis Drone Frame Kit x 1
10L Water tank x1
Brushless Spraying System x 1
Hobbywing X8 Power System for drones x 4 (2CW+2CCW)
JIYI K++ V2 Flight Controller x 1  (or JIYI K3A pro x1)
Skydroid H12 Remote Controller x 1
Camera x1
Connectors and Wires Accessories x 1
TATTU 12S 16000mah Smart Battery x 1
SKYRC PC1500 Dual Channel Charger for 12S Battery x 1



EFT G410 agriculture drone Parameters

Usage: Agriculture

Applicable Industries: drone agriculture sprayer

Showroom Location: None

Place of Origin: Anhui, China

Sprayer Type: Unmanned aerial vehicle (UAV)

Diameter: 146 cm

Condition: New

Warranty: 3 months

Key Selling Points: High-accuracy

Marketing Type: New Product 2020

Machinery Test Report: Not Available

Video outgoing-inspection: Provided

Warranty of core components: 3 months

Core Components: frame

Weight: 6.35 KG

frame weight: 6.35KG

wheelbase: 1513mm

Full load weight: 27.3

Smart battery: 12S 16000mah

Ordinary battery: 2pcs 6S 16000mah

Flight control: K++

remote control: Skydroid H12+ Camera SIYI AK28+Camera

Motor: HobbywingX8

propeller: 30inch

Fully loaded flight time: 8min 16s



Component	Specification
Frame:	EFT G410 Drone Frame Diagonal wheelbase: 1513mm Size: 946*1545*673mm Folded Size: 850*505*673mm Arm Diameter: 40mm Frame Weight: 6.35kg
Tank Capacity	10L
Power System	Hobbywing X8 Power System   Max Thrust 15.3kg/Axis (48V, Sea Level ) Recommended LiPo Battery 12S LiPo Recommended Takeoff Weight 5-7kg/Axis(48V，Sea Level) Product Weight (ESC/Motor/Prop) 1040g Waterproof Rating IPX7 Operating Temperature -20℃~50℃ Motor Stator Size 81*20mm KV Rating 100KV O.D of Carbon Fiber Tube Φ35mm/Φ30mm (*Tube Adapter will be Needed) Bearing NSK Ball Bearing (Waterproof) ESC Recommended LiPo Battery 6-12S LiPo PWM Input Signal Level 3.3V/5V (Compatible ) Throttle Signal Frequency 50-500Hz Operating Pulse Width 1100-1940 μs (Fixed or cannot be Programmed ) Max. Input Voltage 52.2V Max. Input Current (Cont.) 80 A(w/ Good Heat Dissipation ) Max. Peak Current (10s) 100 A (w/ Good Heat Dissipation ) BEC No Nozzle Mounting Holes Φ30mm/35mm Propeller Diameter×Thread Pitch 3090 Weight 180g
Flight Controller	JIYI K++ V2.0 Flight Controller Flight characteristics Hovering accuracy: horizontal direction ±1.5 m; vertical direction ±0.5 m Maximum tilt angle: 30° Maximum yaw speed: 150°/ sec SBUS receiver Maximum vertical speed: 6 m / s Wind resistance: continuous wind: 4 Gust: Level 5 Hardware specification Weight: Total net weight: 321g FC: 87g PMU: 41g PMU2 (UPS): 44g Size FC: 72.6mm × 48.0mm × 22.8mm PMU: 53.4mm × 34.4mmx14.5mm PMU2 (UPS): 53.4mm × 34.4mmx14.5mm GPS: 62*14.3mm LED: 24*24*8mm
Remote Controller & Video Transmission	Skydroid H12 Remote Controller Camera Resolution : 1920x1080 Transmitter Specification: Model: H12 Channels: 12 Working Voltage: 4.2V Frequency: 2.400 - 2.483GHZ Frequency Hopping: Newest FHSS Update Way: App Update Online Receiver Specification: Model: R12 Channels: 12 Working Voltage: 4.5-5.5V Working Current: 140MA@5V Weight:14g
Battery	Tattu 14S 22000mah Battery Minimum Capacity: 22000mAh Configuration: 14S1P /51.8V Discharge Rate: 25C Net Weight(±20g): 8500g Dimensions: 279mm x 236mm x 91mm
Battery Charger	SKYRC PC1500 25A Dual Channel 12S 14S 1500W Charger Item Model: SKYRC PC1500 Battery Type：Lithium Battery LiPo Battery Cells： 12S/14S LiHV Battery Cells：12S Power Supply: AC Input: 100-240V Charging Power: AC220V：1500W AC120V：600W Charger/Discharge: AC 220V: Fast Charge Current: 25A Slow Charge Current: 25A AC 120V: Fast Charge Current: 9A Slow Charge Current：9A Discharge Power：60W Charging Mode：Fast charge, Slow, Storage Size: 294x136x212mm Weight: 4.2Kg Working and Storage: Working Temperature: 0℃-40℃ Working Humidity: 0%-75% Storage Temperature: -10℃-70℃ Storage Humidity: 0%-75%
Flow Meter	Flow accuracy: (0.2-6L/min) ±10% Working water pressure: 0.1-0.35MPa Interface outer diameter: 8-10mm (inserted inner diameter 8mm hose) Operating voltage: DC5-24V (rated 5V) Signal output: NPN pulse signal Electrical access DC5V/10ma condition: output high level DC4.5V or more, low level DC0.5V or less Response time: 0.2S (seconds) Pulse characteristics: F = (23 * Q) ± 10% Q = L / min Wiring method: red positive, black negative, yellow signal output Lead length: 25CM (3P terminal XH2.54)



 EFT Tutorial video || GX Plug-in Agricultural Drone Installation



EFT G410 10L Agriculture drone  Details



WIth the popularity of the G06 and G20, here comes the G10 series 10L agriculture spraying drones. 10L agriculture crop spraying drone is always the most popular. EFT G10 10L agriculture drone is specially designed for the most popular 10L capacity. There are two versions: 4 Axis 10L-G410, and the 6 Axis 10L-G610. The effective capacity of the drone is 10L. It adopts a quick-release water tank and battery, compact body, light in weight and convenient to fold. Radar and FPV cameras are the first choice for entry-level plant protection drones, there reserved installation space for them on the G10 series drones.

Main Features:
Crossfolding Method
The arms of the G410 are folded in a staggered way, minisize the folding size, more convenient for transportation.

Integrated Fuselage Frame
The fuselage frame of the G410 Agriculture spraying drone is formed n one body, which simplify the structure and improve the strength of the frame. Therefore, the G410 has good durability and reliability.

Quick Release Battery & Tank

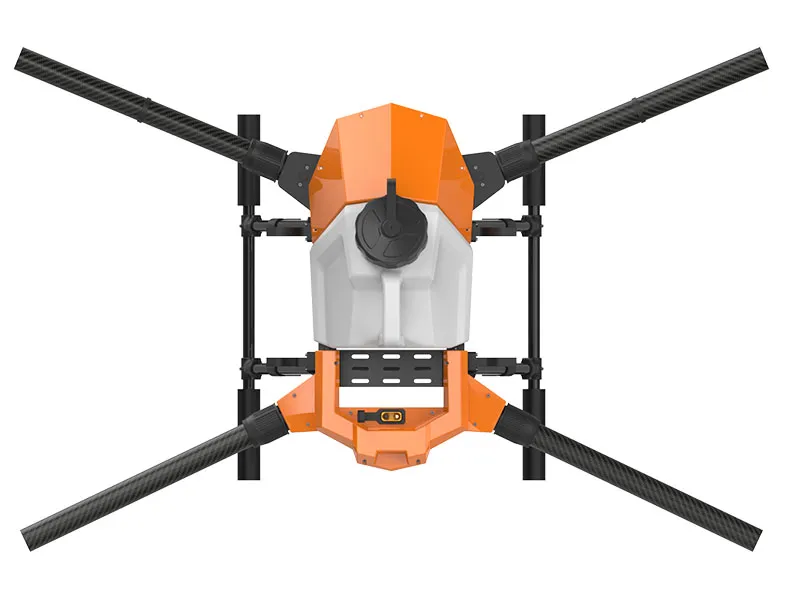

The water tank of the G410 adopts plug-in design, and the battery can be placed vertically in the battery compartment.The size of the battery compartment is 168mm in length, 93mm in width and the height is not limited. Any 12S battery in this size can use on the G410 drone. It is convenient to replace the tank and battery.

Dustproof and Waterproof
The whole drone is dustproof and waterproof, and the waterproof grade reachs IP65. The frame can be washed directly with water.

Great Expandability
The radar, fpv camera, pump and some other parts can install on the drone. The below picture is just for reference.

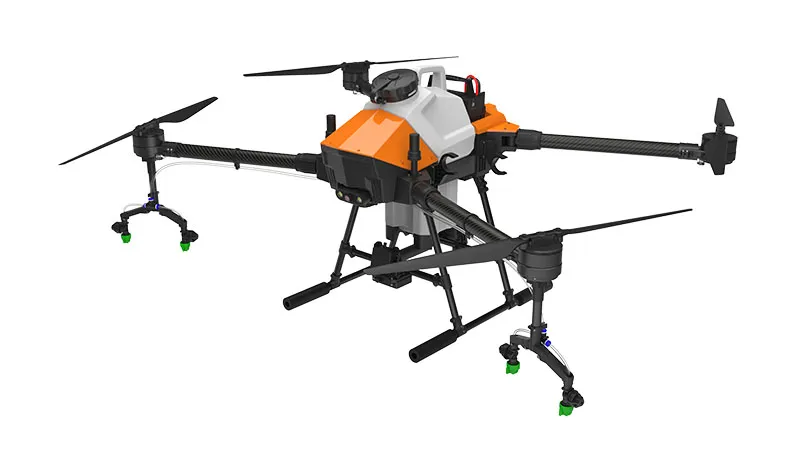

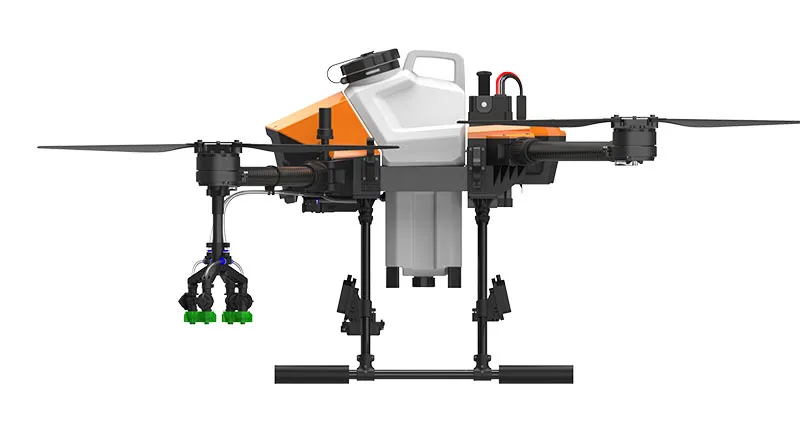

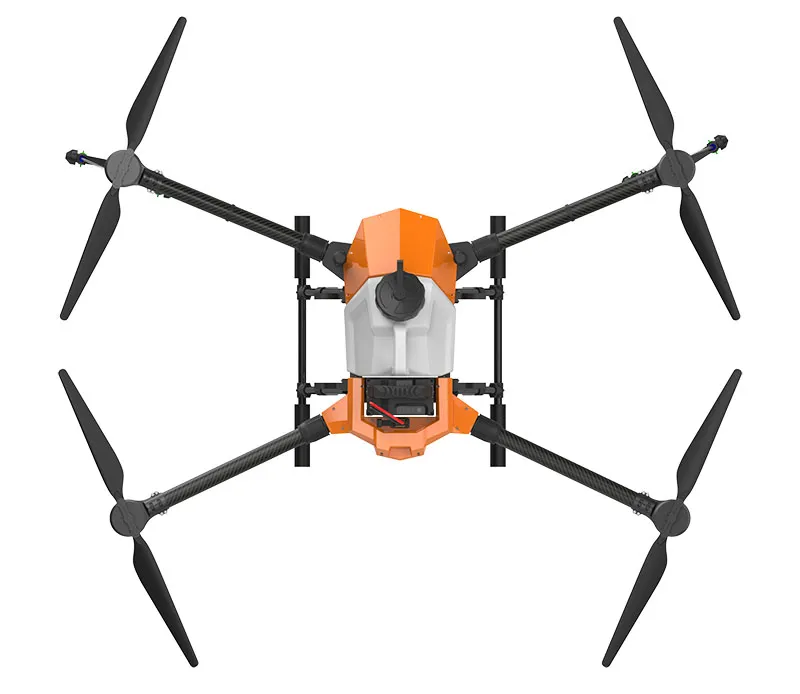

Here are some pictures of the assembled drones.



======



EFT G410 Review:

(If there is any information error in the article, the product description shall be the standard.)

The EFT-G410 Agriculture Drone, available at rcdrone.top, is a product designed specifically for agricultural applications. This drone offers various features and capabilities tailored to meet the needs of farmers and agricultural professionals.

The EFT-G410 Agriculture Drone is equipped with a robust frame and advanced flight control system, enabling it to withstand challenging environmental conditions and ensure stable flight performance. It incorporates a powerful propulsion system that allows for efficient and precise maneuvering, even in difficult terrains.

One of the standout features of this drone is its payload capacity. The EFT-G410 Agriculture Drone can carry a significant payload, making it suitable for various agricultural tasks. It can be equipped with different types of sensors and cameras, such as multispectral or thermal imaging cameras, enabling farmers to gather critical data about their crops and make informed decisions.

The drone's ability to capture high-resolution imagery and collect data from above gives farmers a unique perspective on their fields. By analyzing the collected data, farmers can identify areas of concern, monitor crop health, detect pest infestations, and optimize irrigation and fertilization practices. This data-driven approach can lead to increased crop yields, reduced resource wastage, and overall improved agricultural management.

Furthermore, the EFT-G410 Agriculture Drone offers advanced autonomous flight capabilities. It can be programmed to follow pre-defined flight paths, allowing for consistent coverage of large areas. This automation simplifies the operation and reduces the manual effort required, enabling farmers to focus on other essential tasks.

In conclusion, the EFT-G410 Agriculture Drone from rcdrone.top is a highly capable and versatile tool for modern agriculture. Its sturdy construction, payload capacity, advanced sensors, and autonomous flight features make it an ideal choice for farmers looking to leverage the power of aerial data collection and analysis to optimize their agricultural practices.
