EMAX GT2215 GT2215/09 brushless motor airplane 905kv 1100kv 1180kv outrunner GT 4mm shaft 2-3s 28.5mm for RC plnae Fpv Drone

Emax GT2215/12 Outrunner Brushless Motor 905KV 35A Max thrust:1100g,good for multi-copter,airplane,sport planes weighing 18 to 35 ounces, and 3D models weighing 15 to 25 ounces.

EMAX GT Series Motor:
- Easy to revert output shaft direction;
- Adopts 0.2mm silicon steel, ensures high performance and low temperature;
- GT Series motors have a better compatibility with more different speed controllers and propellers;
- GT Series utilizes imported bearings;
- Compare to other series motors, the GT Series are more precise, lighter in weight and higher in efficiency

Type: GT2215/12
RPM/V: 905 RMP/V
Weight: 70g

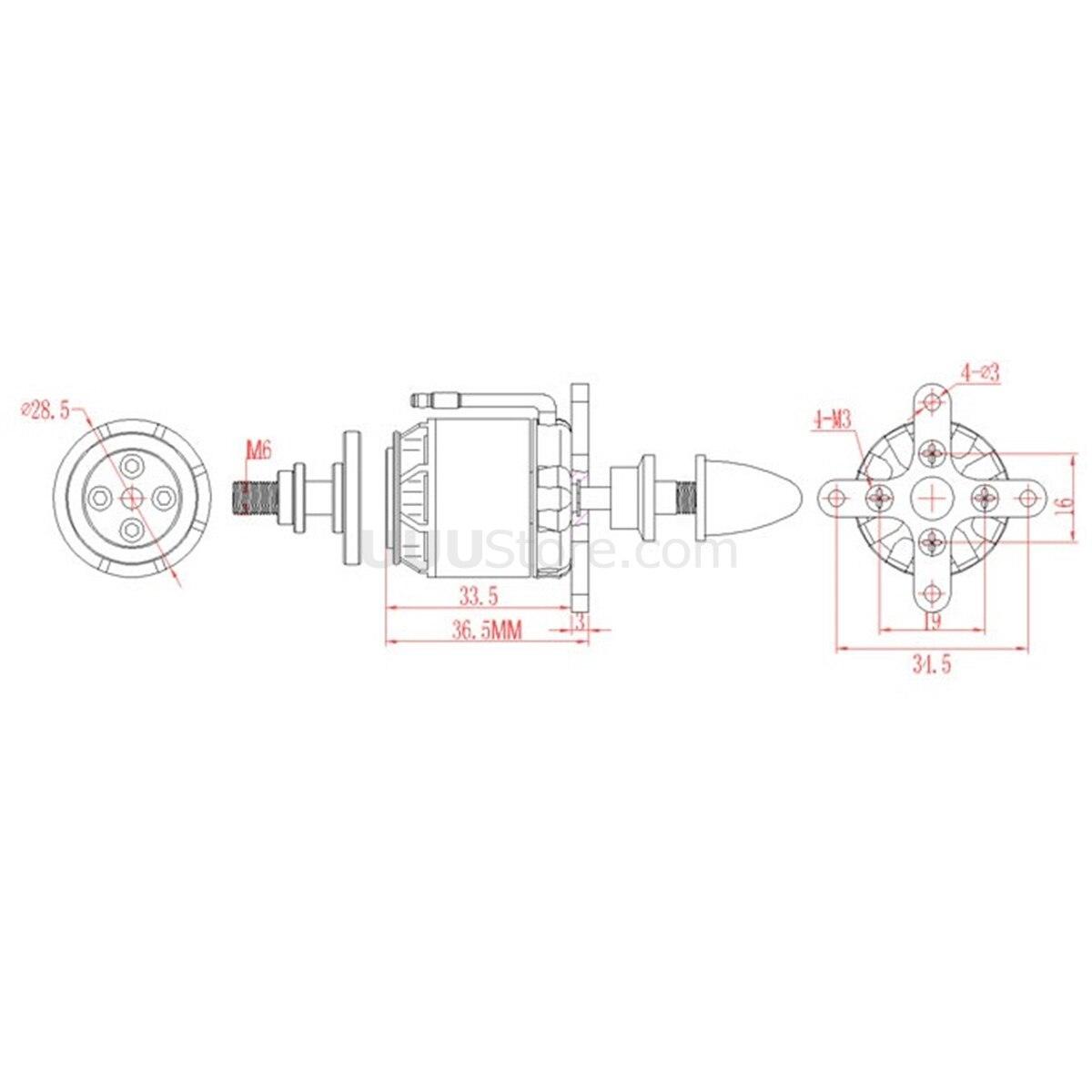

Dimension: 28.5mm (Dia) x 33.5mm (Length)
Shaft diameter: 4 mm
Max thrust: 1100g
Cell number: 2-3S Lipo
Recommended prop size: 11x3.8 10x4.7

Good prop choices for the GT2215/12 include the APC 10x4.7SF for best all around performance, the APC 11x3.8SF for maximum 3D performance, and the APC 10x7E for higher speed sport models.

We suggest using a 3 cell Lipo battery that is rated for about a 30 amp continuous discharge (or more), such as an 11.1v 1000 30C to 11.1v 2200 30C.

We recommend using a 20A to 35A Electronic Speed Control (ESC) with this motor.

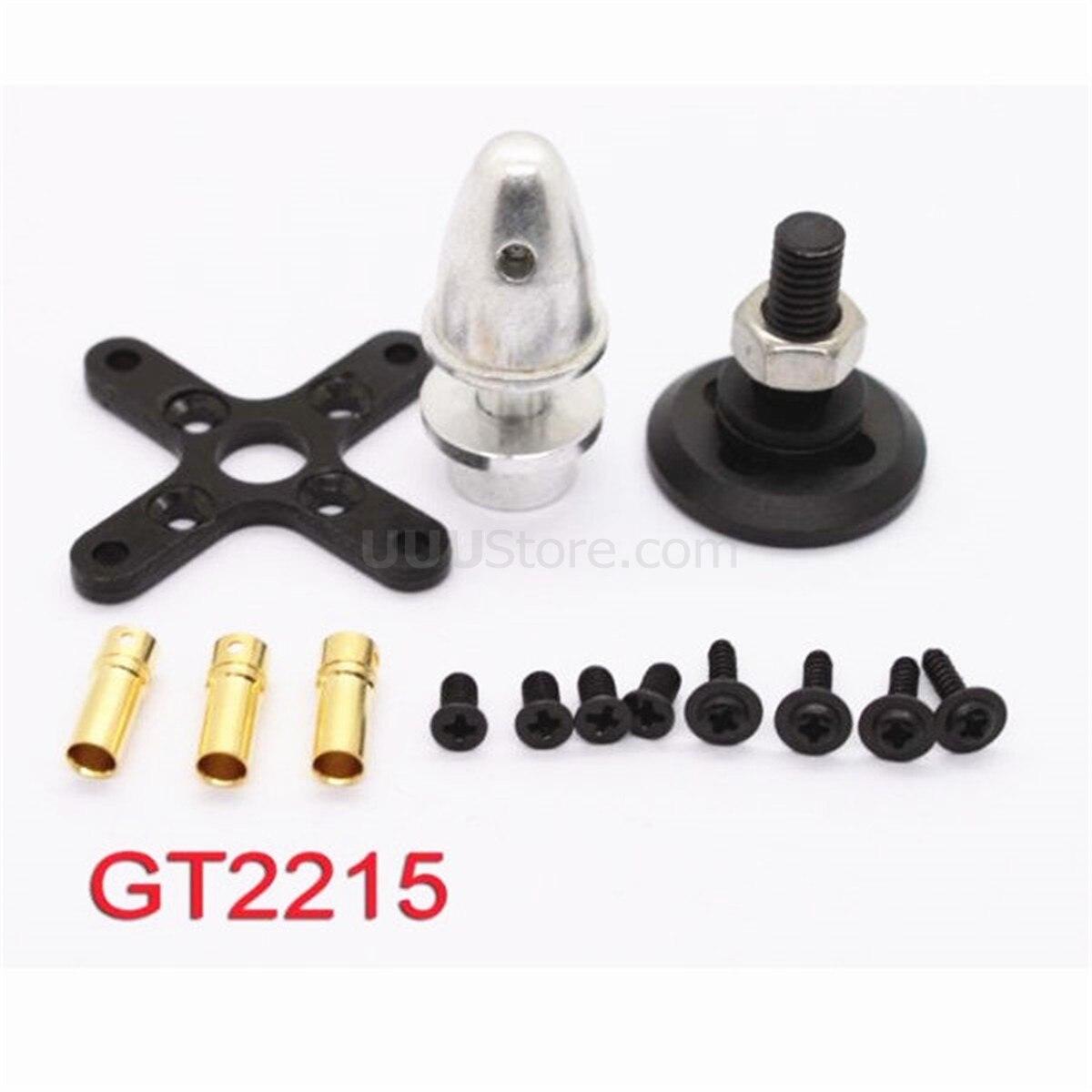

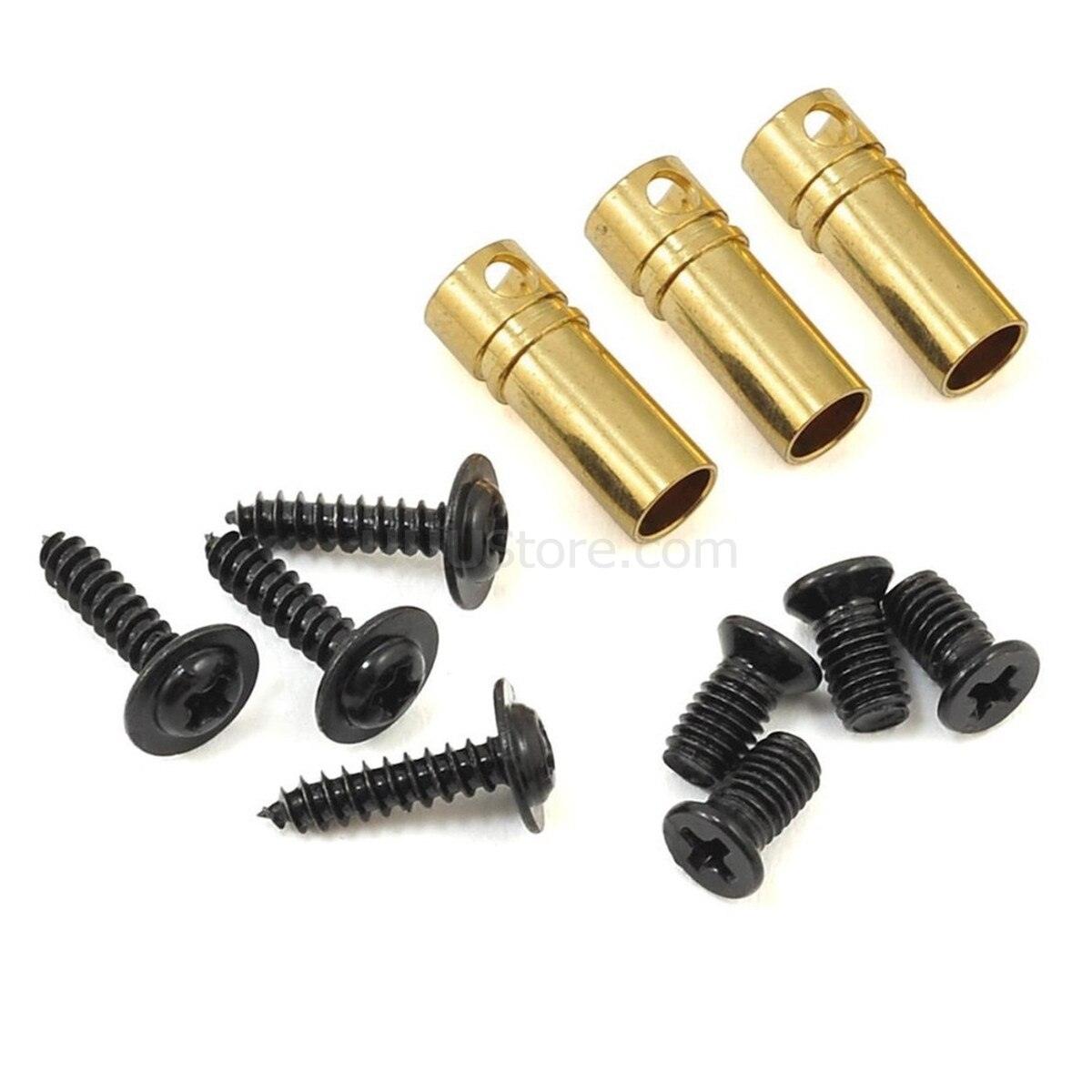

The GT2215/12 comes with 3.5mm male connectors installed, and female connectors are included for your ESC.

MOUNTING OPTIONS: The GT2215/12 can be mounted in front of a firewall using the included X mount and rotor end prop adapter. It can also be mounted behind a firewall using the included 4mm prop adapter to mount a prop on the motor shaft.

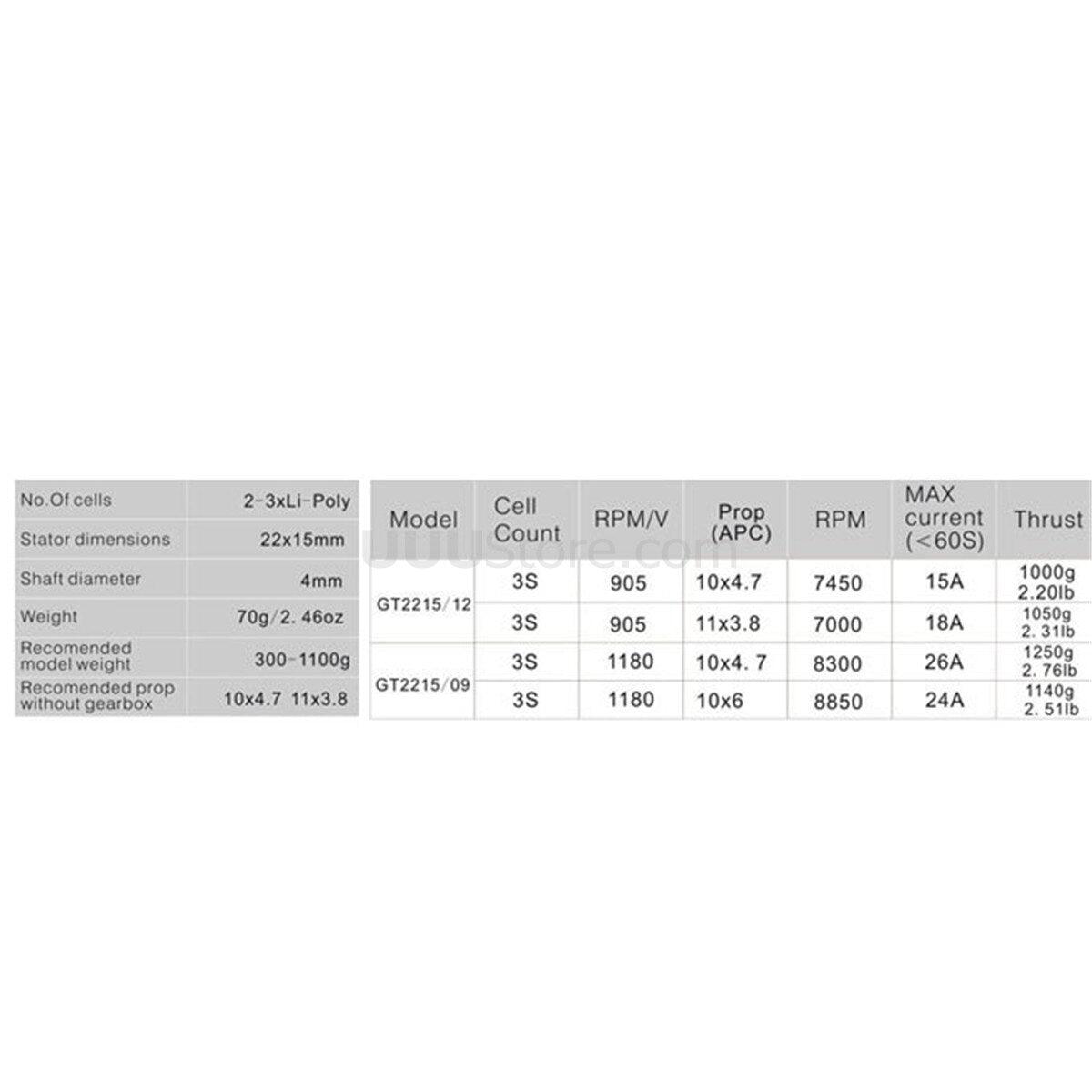

Propeller data for the GT2215/12 using a 3-cell Lipo battery:

It's a good idea to balance all propellers with a Propeller Balancer before using them on this motor.

Rotating propellers are dangerous. Please stay clear of prop and wear eye protection.

APC 11 x 3.8SF: 34 oz thrust at 15 amps

APC 11 x 4.7: 34 oz thrust at 16 amps

APC 11 x 5.5E: 31 oz thrust at 14 amps

APC 10 x 4.7SF: 31 oz thrust at 14 amps

APC 10 x 5E: 26 oz thrust at 12 amps

GWS EP1060: 27 ounces of thrust at 12 amps

APC 10 x 7E: 28 oz thrust at 14 amps
