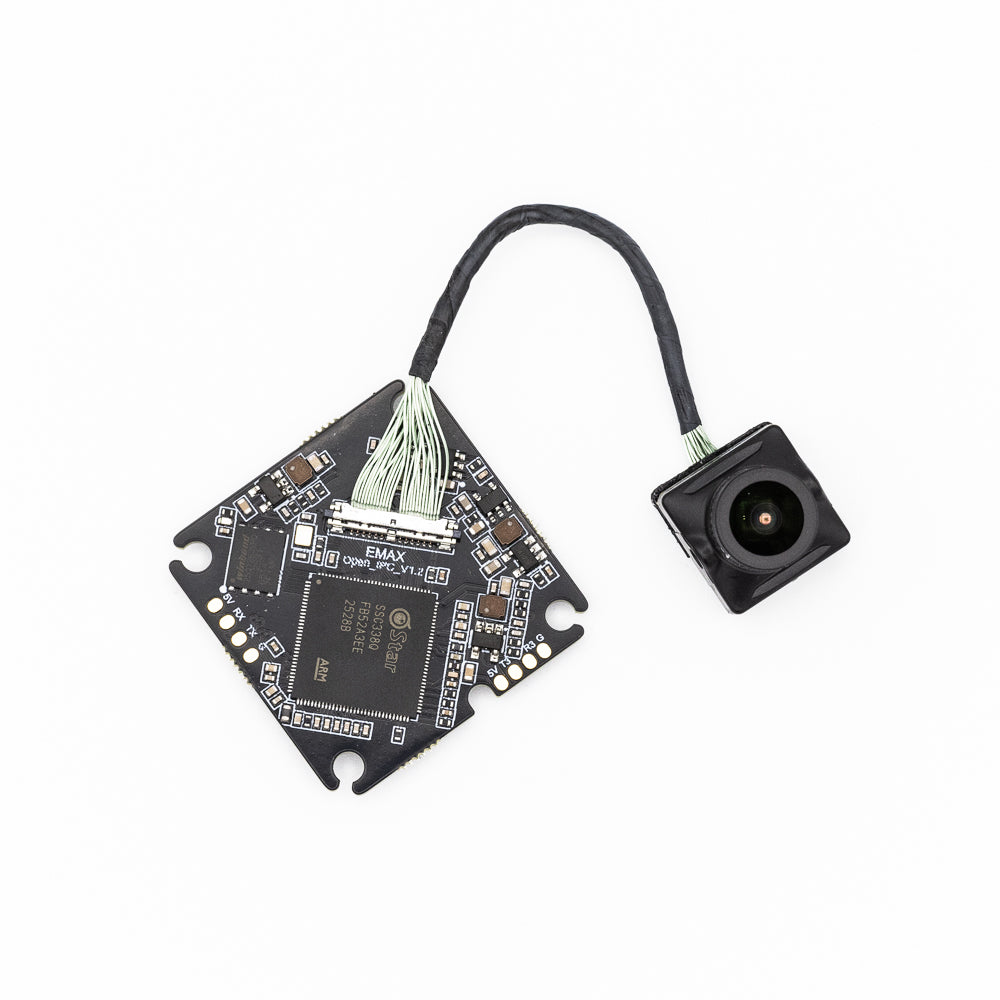

• EMAX OpenIPC Wyvern Link Alpha 200mW VTX board with wired FPV camera module on white

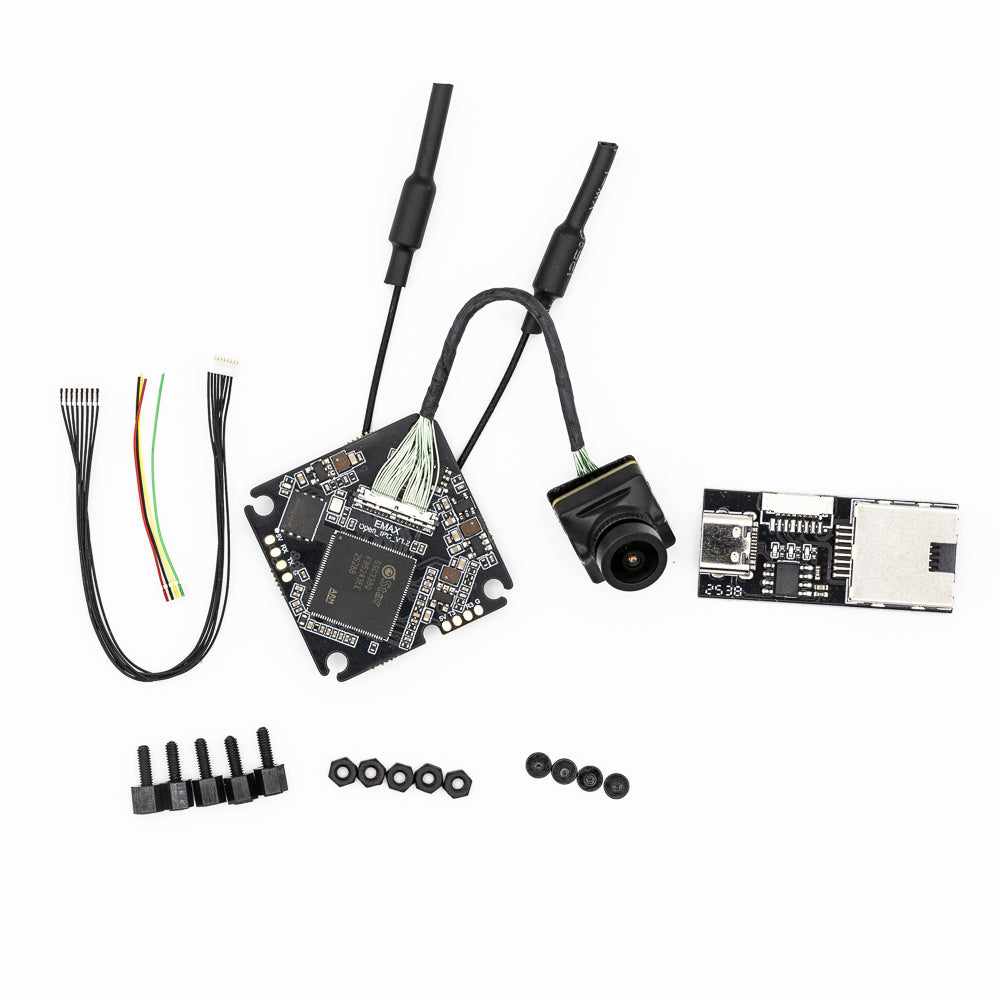

  • EMAX OpenIPC Wyvern Link Alpha 200mW VTX kit layout with camera, antennas, cables, standoffs and nuts

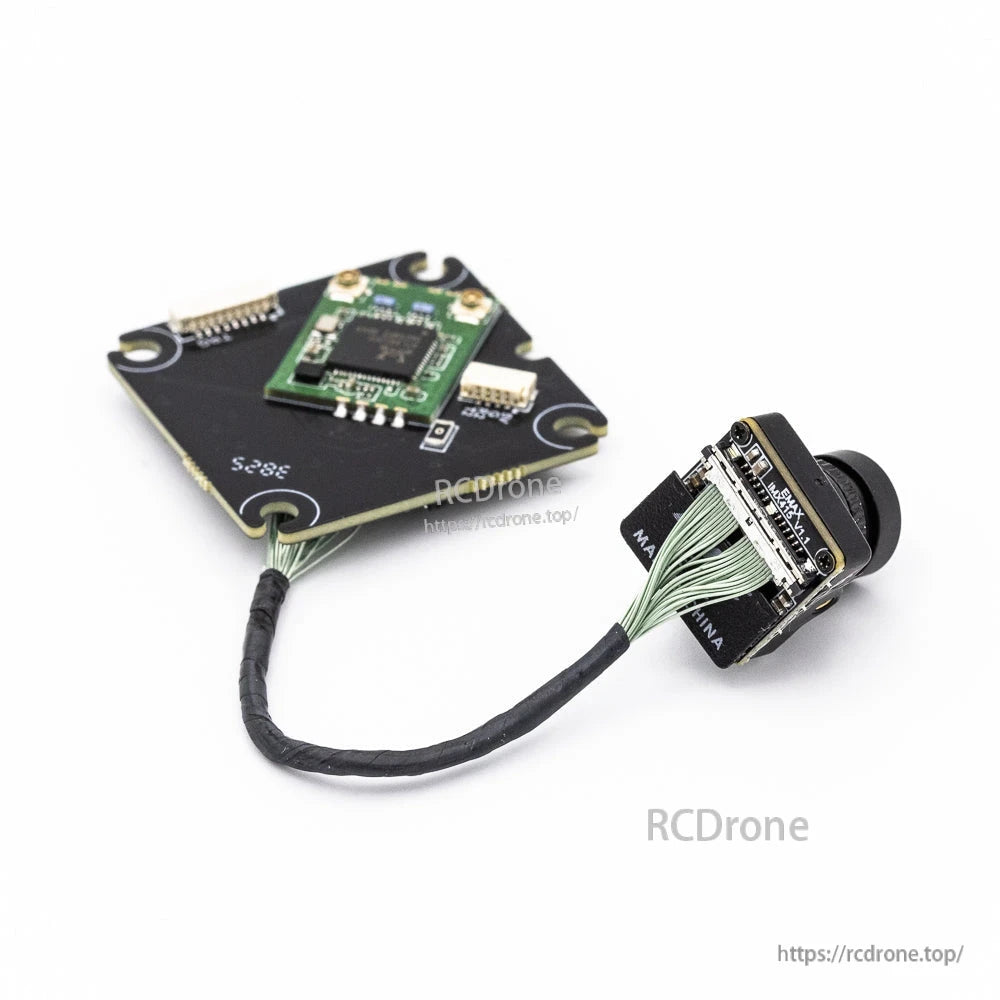

  • Wyvern Link Alpha VTX underside view with camera pigtail cable and connector detail

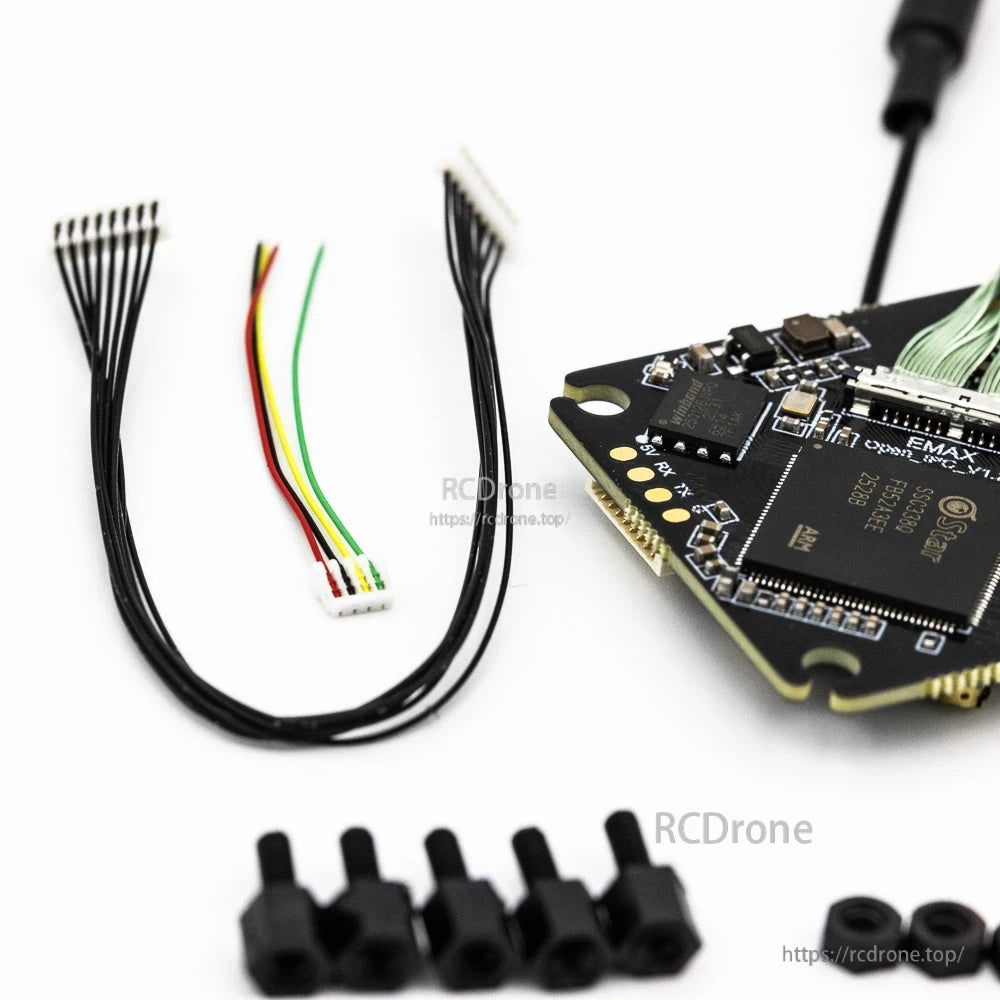

  • Included wiring harnesses and mounting hardware next to the VTX main board close-up
  • Interface board close-up showing USB-C port and microSD card slot next to the camera

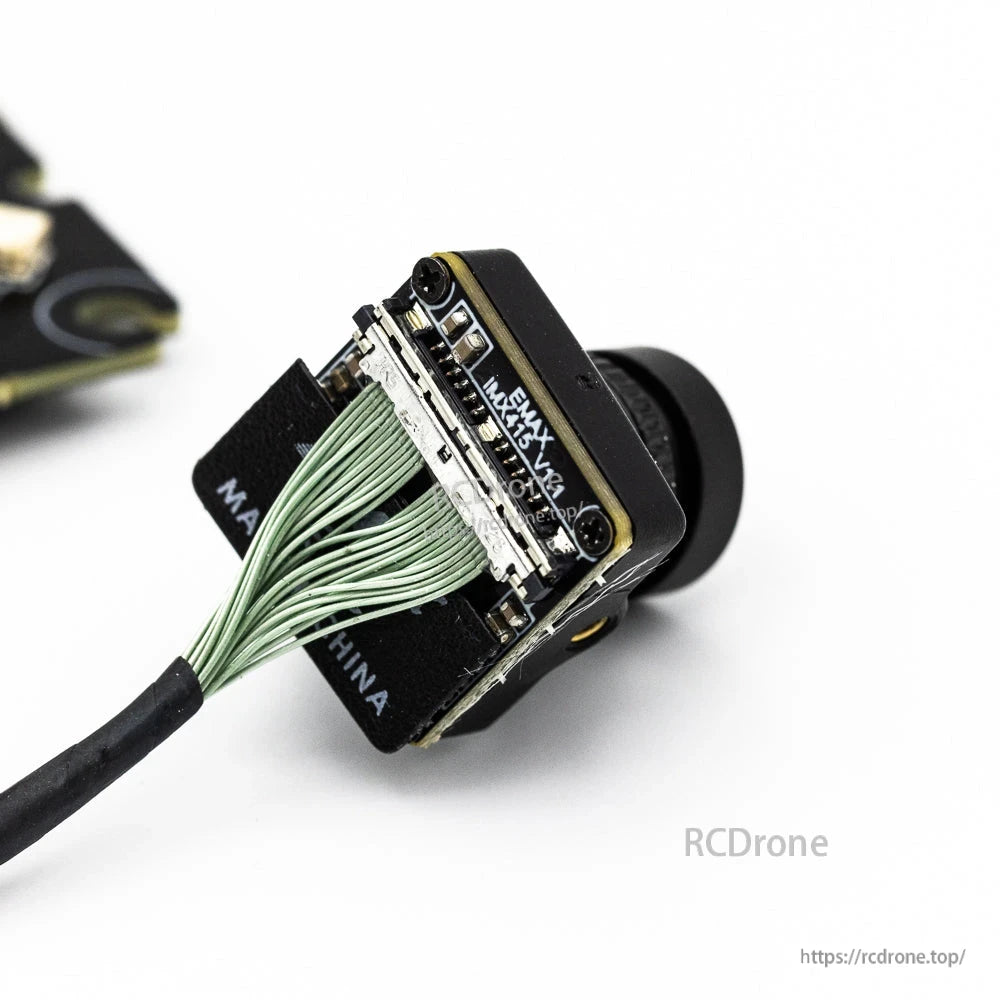

  • FPV camera module close-up showing ribbon connector and mounting bracket

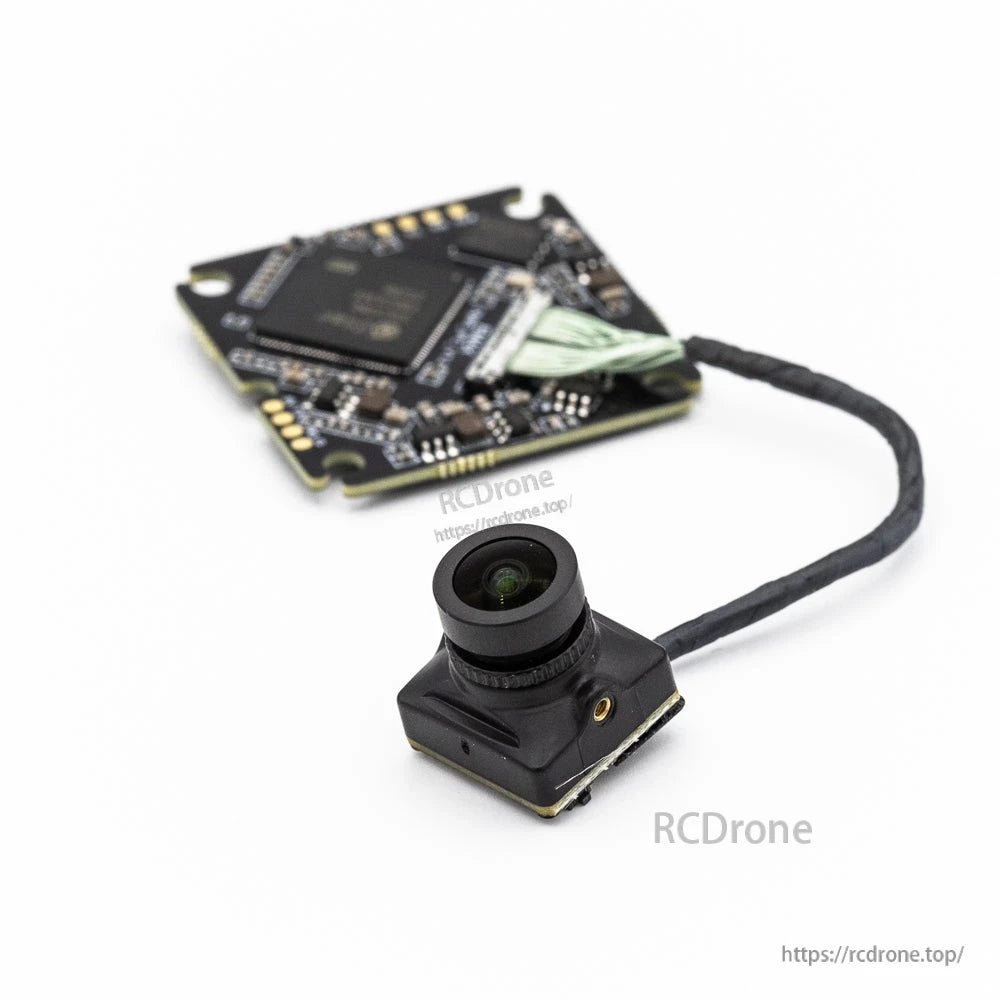

  • Camera lens front view with compact FPV camera housing and VTX board blurred behind

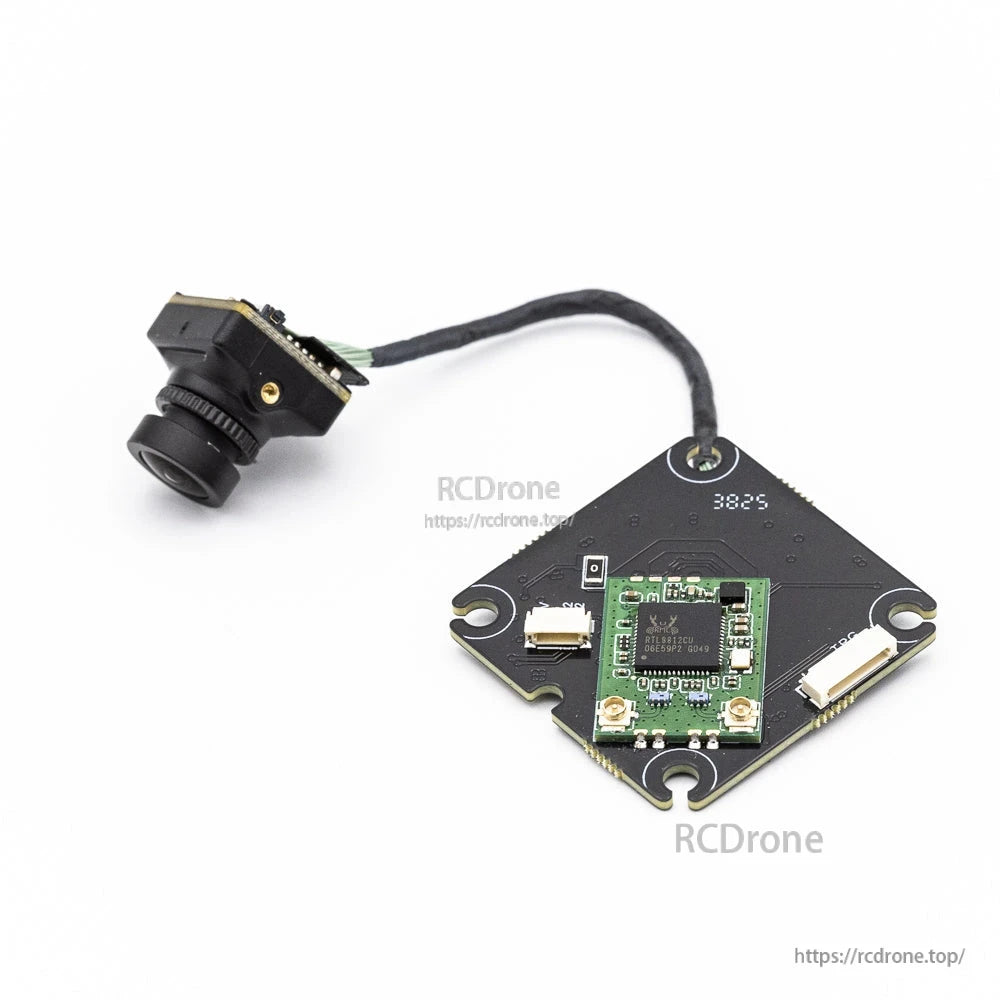

  • Back view of VTX main board with small daughterboard and side connectors, camera attached

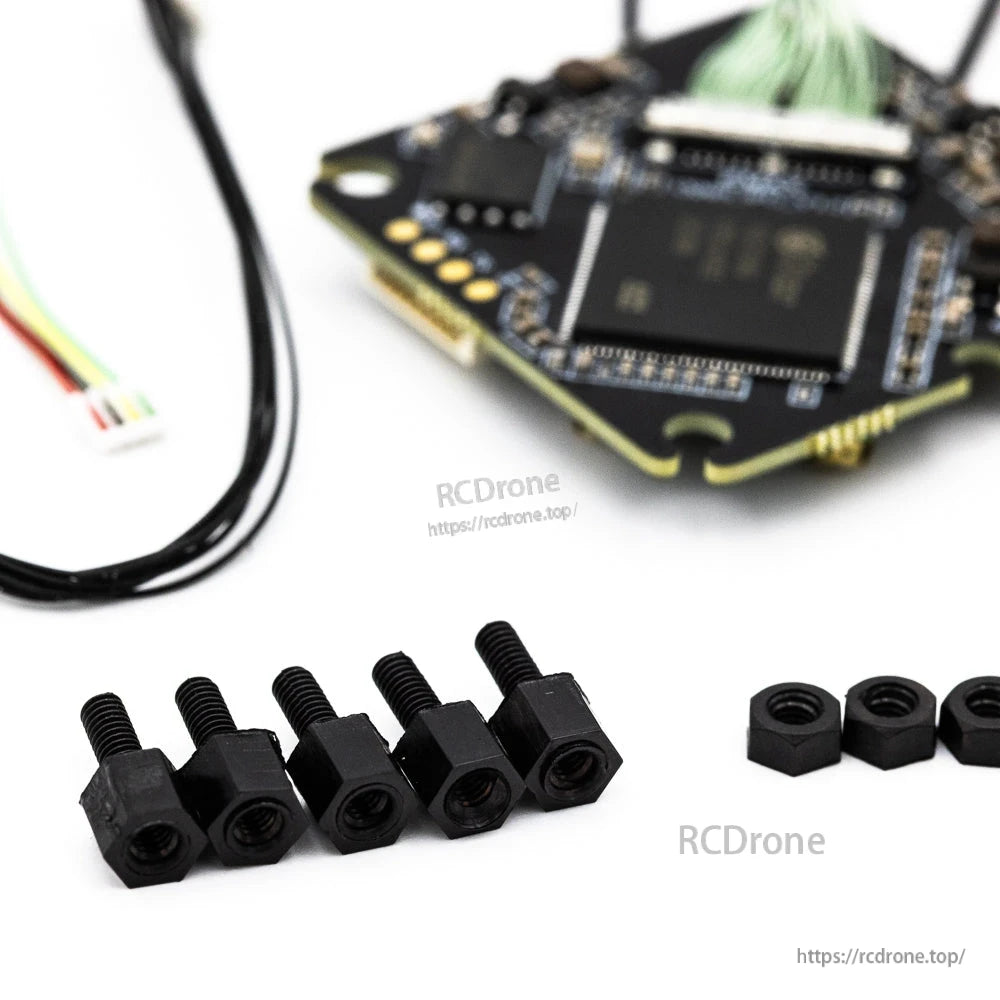

  • Mounting hardware close-up with black standoffs and nuts included with the VTX kit
1 9

EMAX OpenIPC Wyvern Link Alpha 200mW VTX v2 for FPV HD Video (IMX415, 1080p 90fps)

EMAX OpenIPC Wyvern Link Alpha 200mW VTX v2 for FPV HD Video (IMX415, 1080p 90fps)

Emax

$153.74 USD
$153.74 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The EMAX OpenIPC Wyvern Link Alpha 200mW VTX is an OpenIPC-based FPV video transmission solution designed for low-latency, high-definition video streaming with a customizable, open-source firmware platform.

Key Features

  • OpenIPC open-source firmware platform for FPV systems, designed for a customizable and efficient video transmission workflow.
  • IMX415 image sensor support with maximum video specifications of 1080p at 90fps or 720p at 120fps.
  • Wyvern Link 200mW VTX v2 for stable video transmission.
  • Computer connection options for configuration via Ethernet or USB-C using the included adapter concept described for customization of VTX/camera settings.
  • Wyvern Link Goggle VRX feature set described for OpenIPC systems: 2S–6S LiPo power input, HDMI output, and integrated DVR with onboard storage.
  • Alpha positioning described as an early-stage, Limited Edition release aligned with OpenIPC project development and improvement.

For compatibility questions (goggles, wiring, power, and setup), contact support@rcdrone.top or visit https://rcdrone.top/.

Specifications

VTX output power 200mW
VTX version v2
Image sensor IMX415
Max video specification 1080p at 90fps
Max video specification (alternate) 720p at 120fps
Adapter connectivity Ethernet or USB-C
Goggle VRX power input 2S–6S LiPo
Goggle VRX output HDMI output
Goggle VRX recording Integrated DVR with onboard storage

Applications

  • FPV flying requiring low-latency HD video streaming with OpenIPC-based configuration flexibility
  • Custom FPV builds where Ethernet/USB-C access is used to adjust transmission power, resolution, and advanced settings

Details

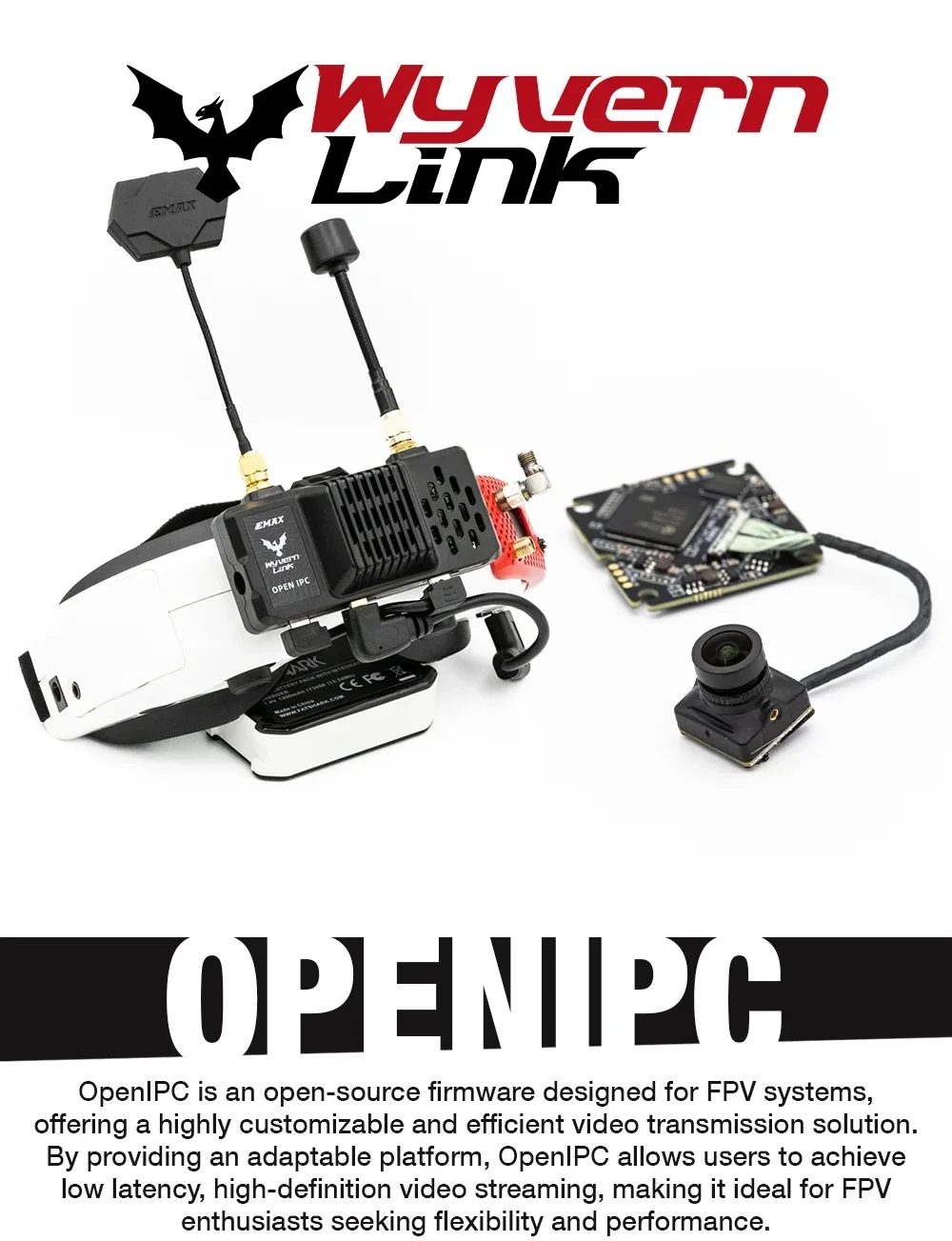

EMAX OpenIPC Wyvern Link Alpha 200mW VTX FPV HD video system with antennas, VRX, and camera

OpenIPC-based Wyvern Link Alpha pairs a 200mW VTX with an HD camera and VRX for low-latency FPV video.

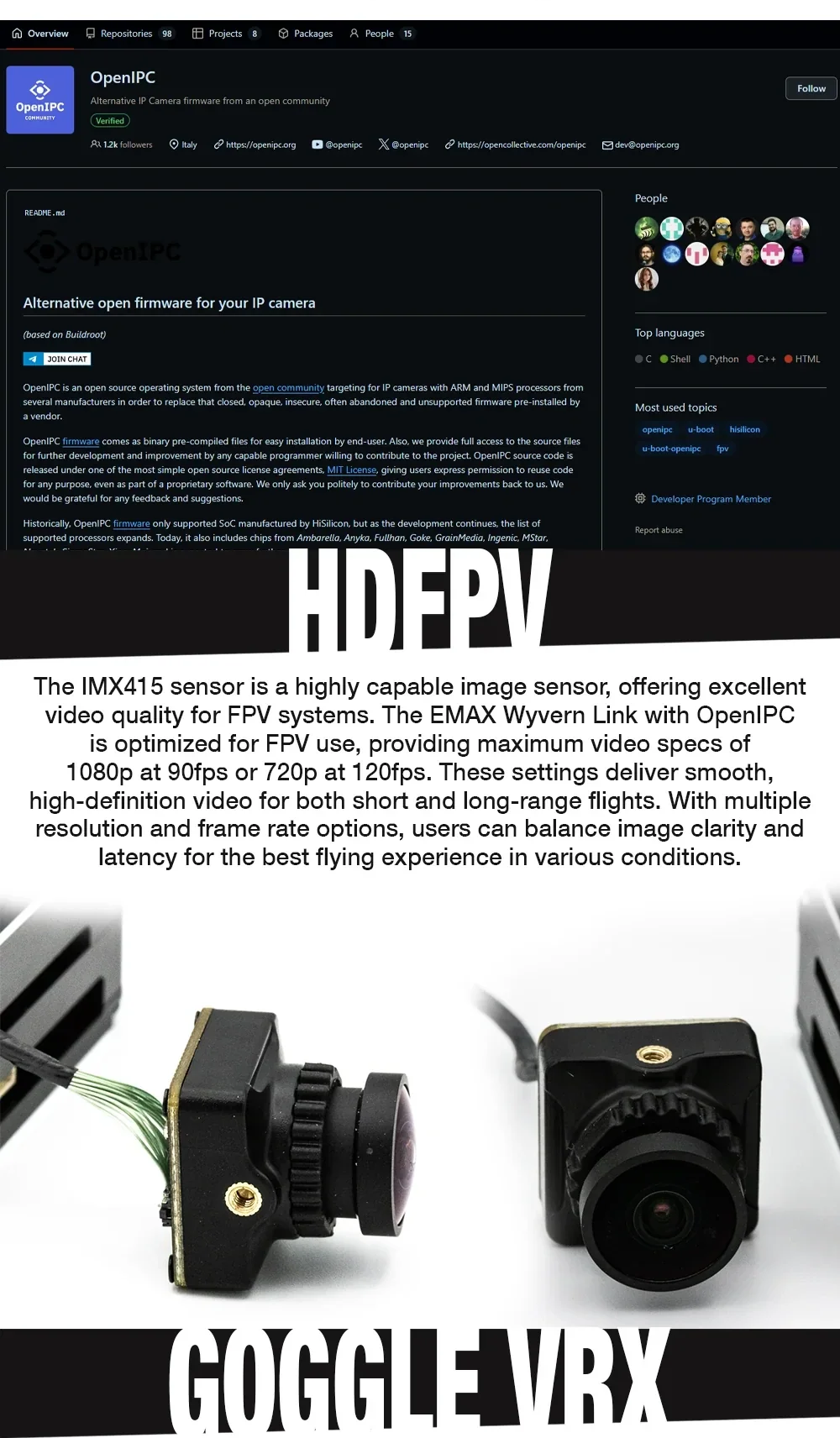

OpenIPC firmware platform page with IMX415 FPV camera views highlighting HD settings for Wyvern Link

Open-source OpenIPC firmware unlocks flexible tuning, with IMX415 camera support for high-frame-rate HD video.

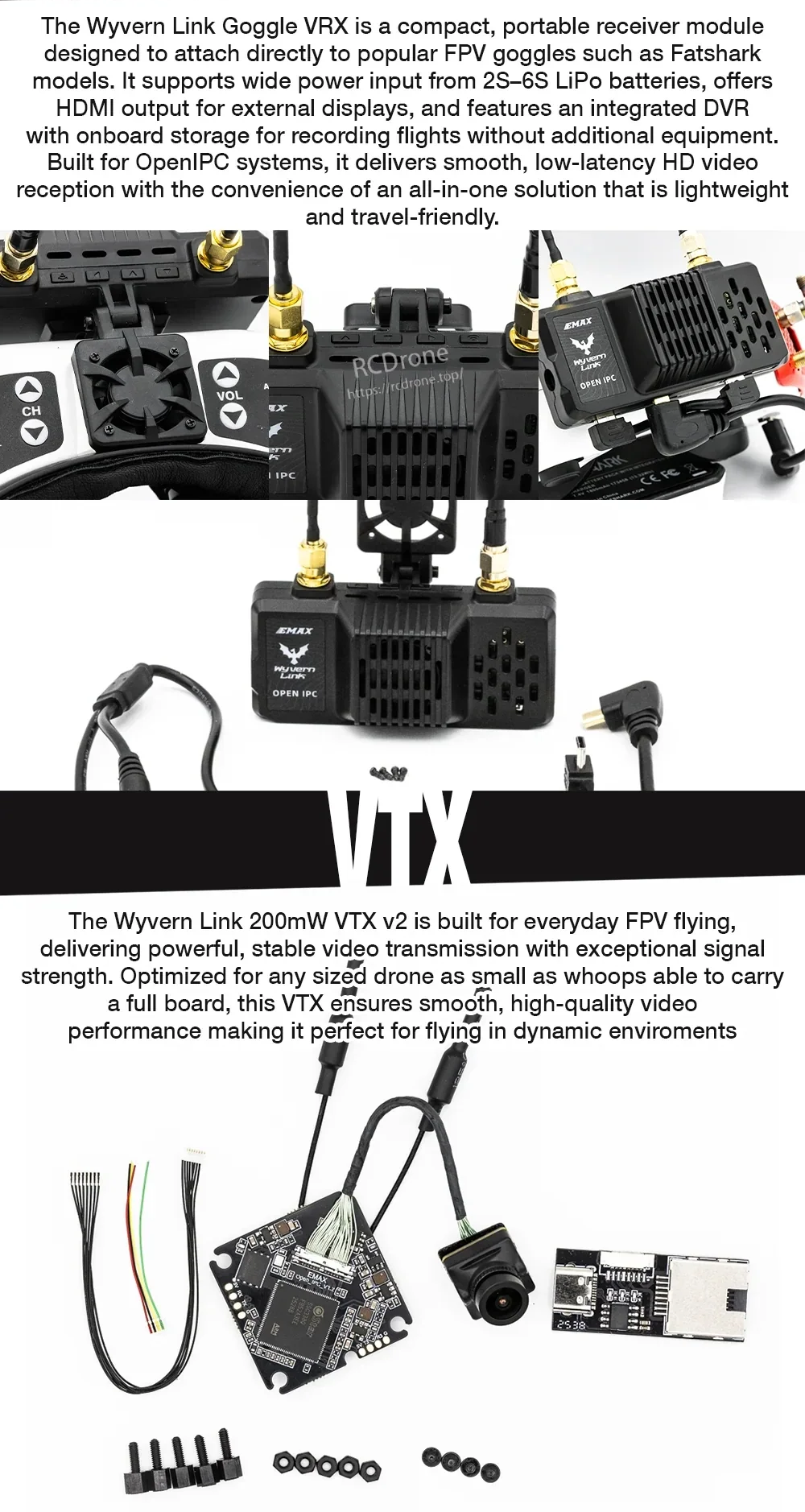

Wyvern Link goggle VRX receiver and full kit layout including VTX module, camera, and wiring accessories

The goggle VRX adds HDMI output and onboard DVR recording for convenient HD playback and capture.

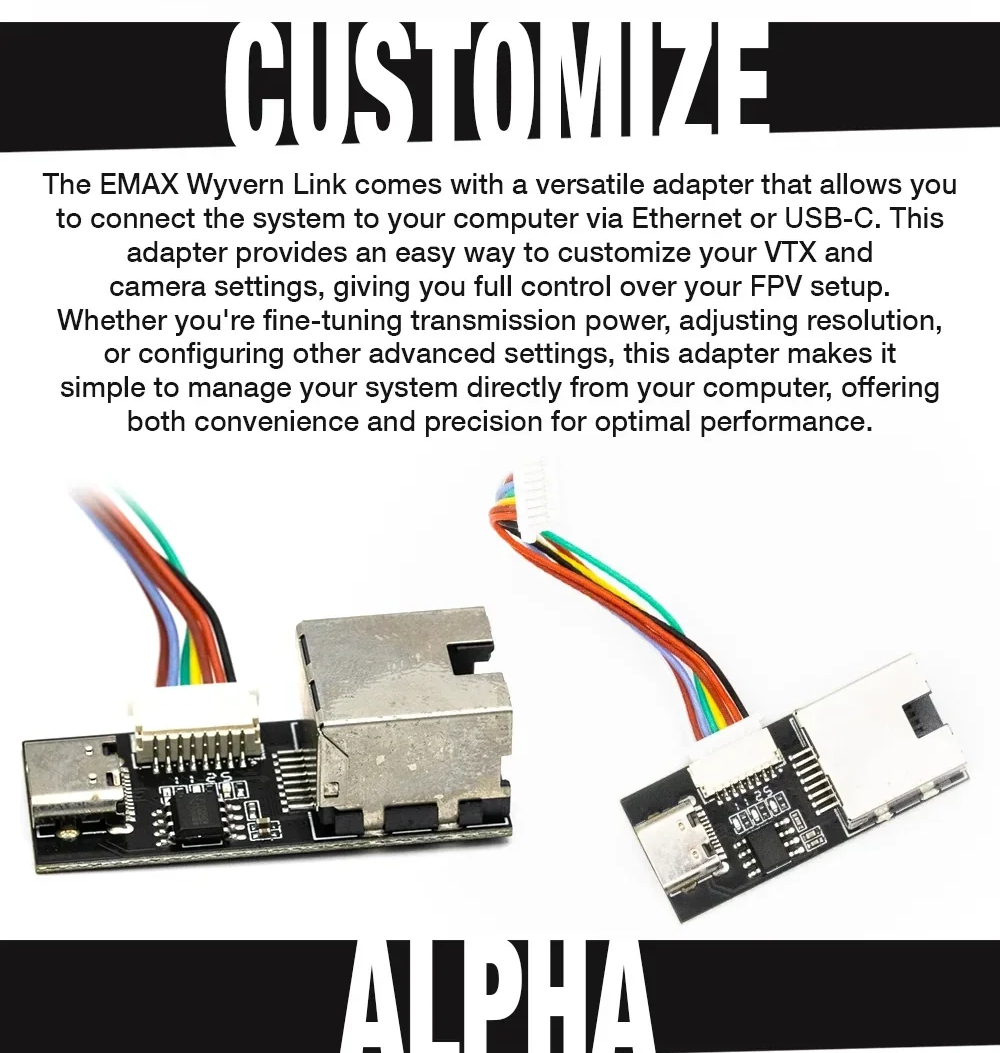

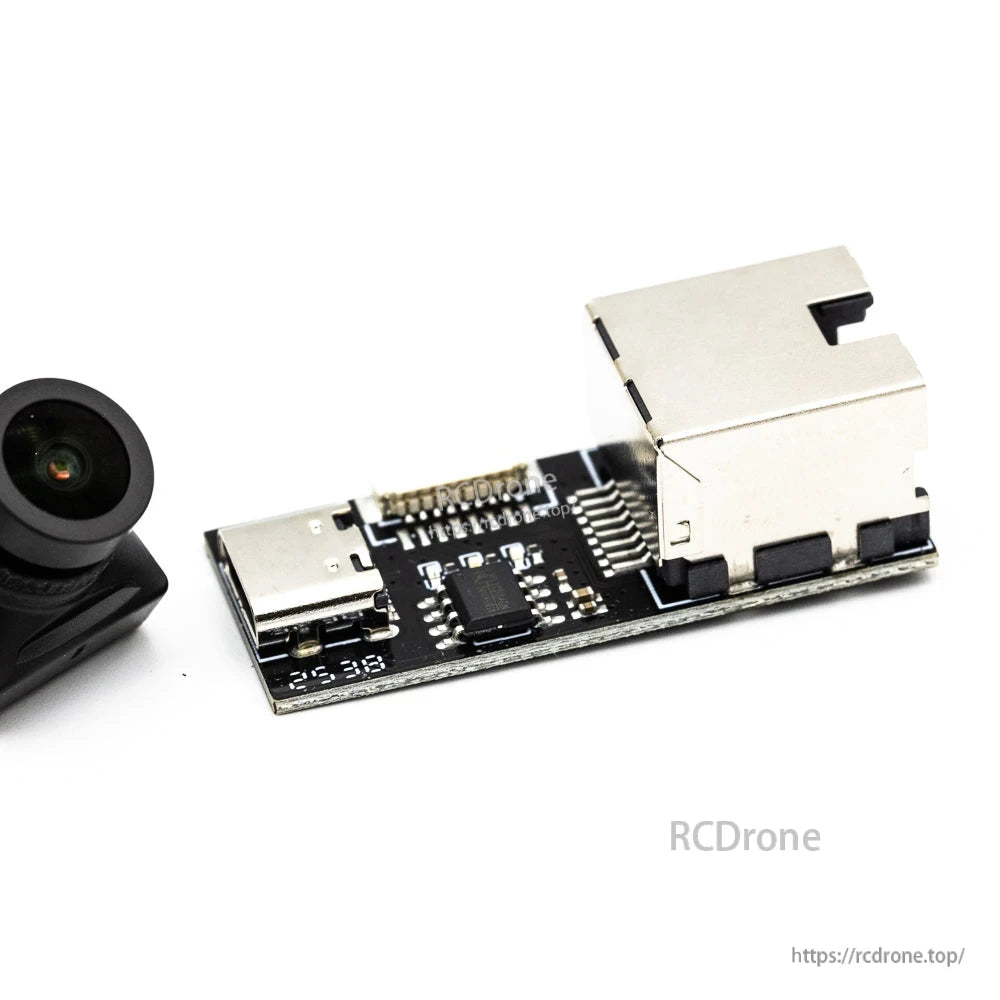

Ethernet/USB-C configuration adapter board with ribbon cable for connecting Wyvern Link to a computer

Configure the system over Ethernet or USB‑C using the included adapter for quick setup and adjustments.

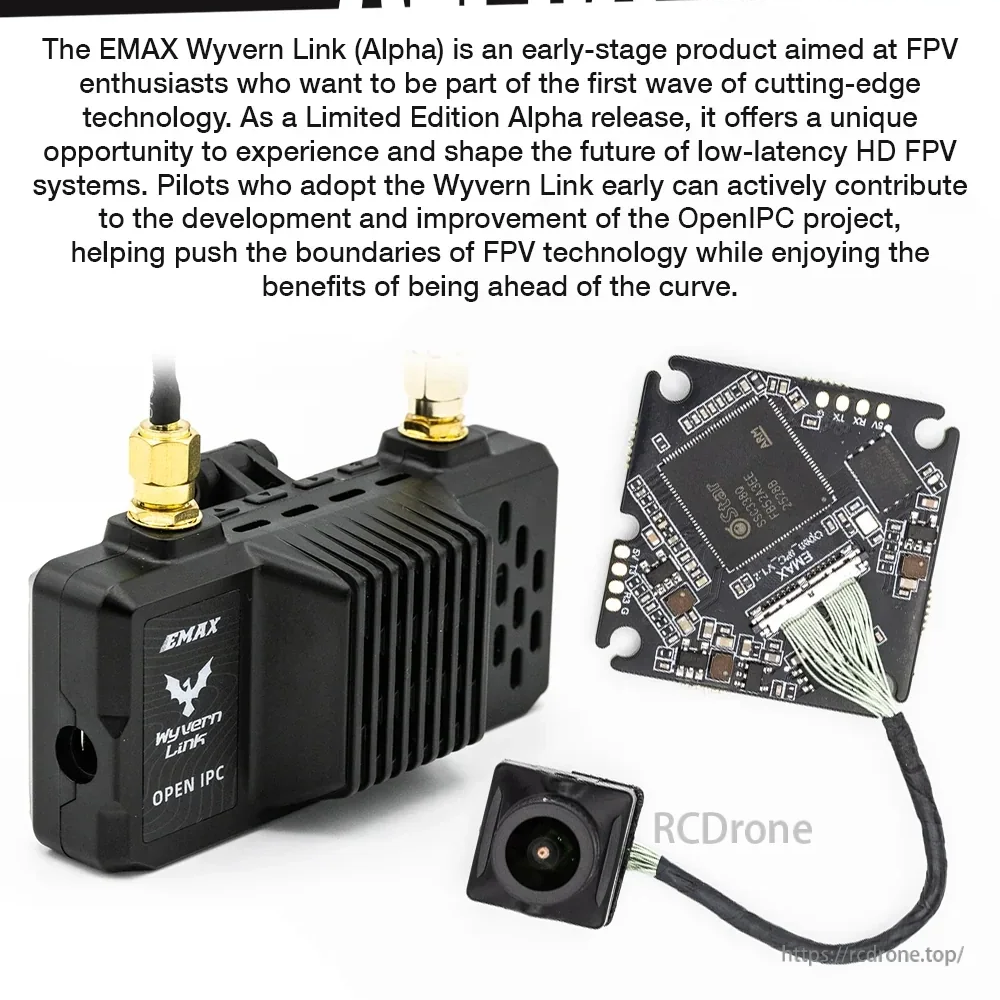

EMAX OpenIPC Wyvern Link Alpha 200mW VTX close-up with heatsink housing, main board, and FPV camera

Limited Edition Alpha hardware highlights the compact VTX, camera, and controller board at the core of the Wyvern Link build.
