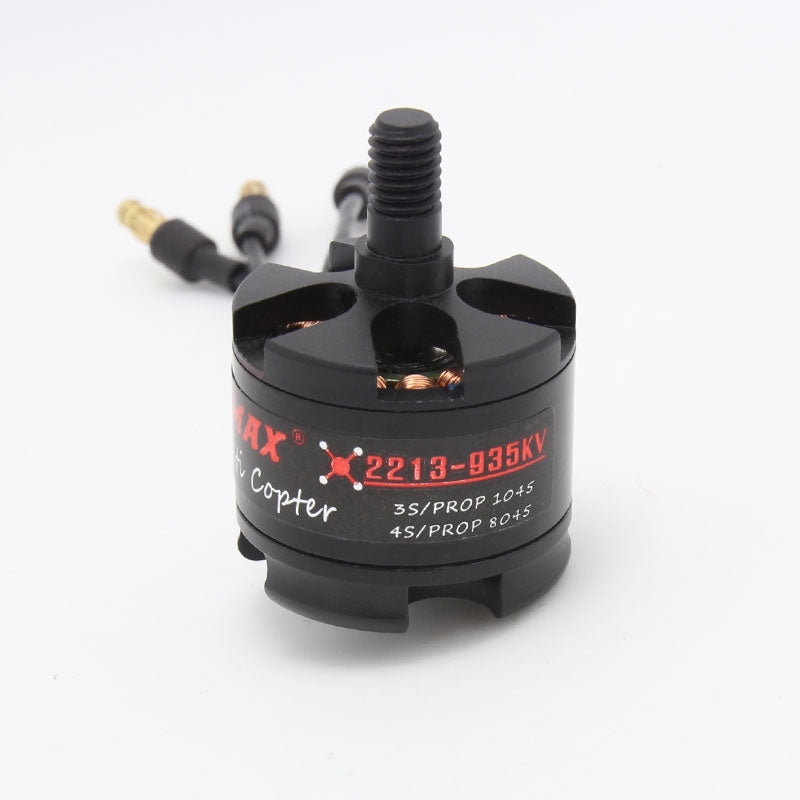

• EMAX MT2213 935KV multicopter motor close-up showing top shaft and 3.5mm bullet connectors
  • EMAX MT2213 brushless motor with red prop adapter cap; inset shows two-blade propeller

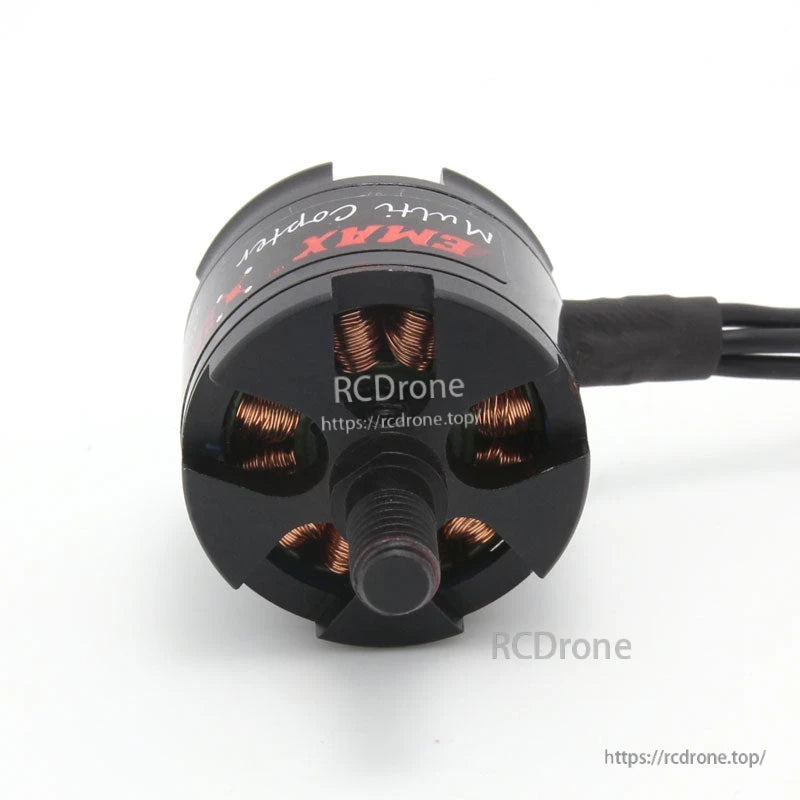

  • Side view of EMAX MT2213 motor can with attached lead wires (partially obscured)

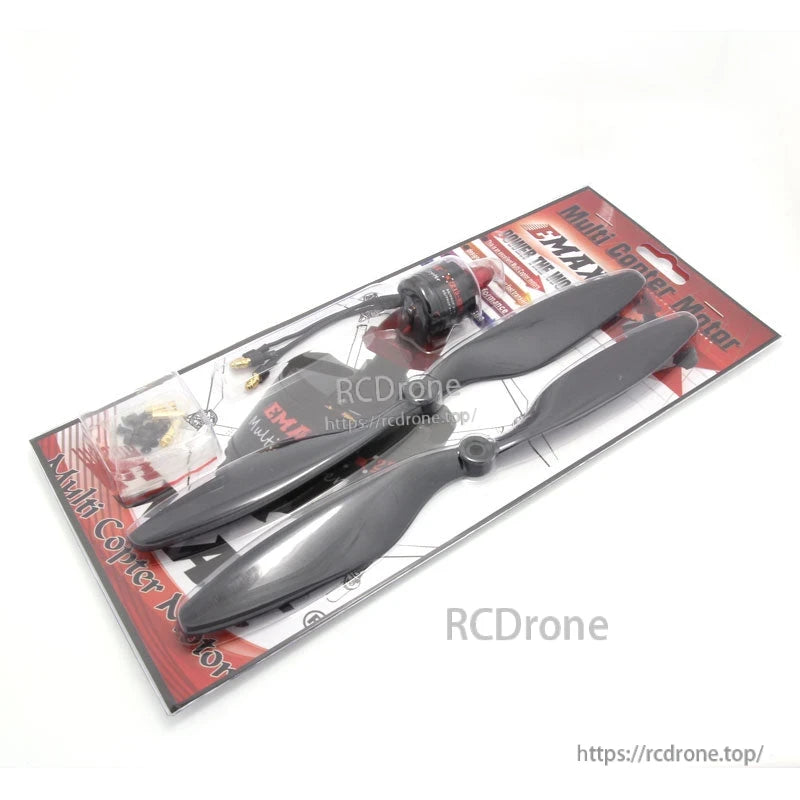

  • Retail blister pack with MT2213 motor, 10x4.5 propeller pair, and mounting accessories

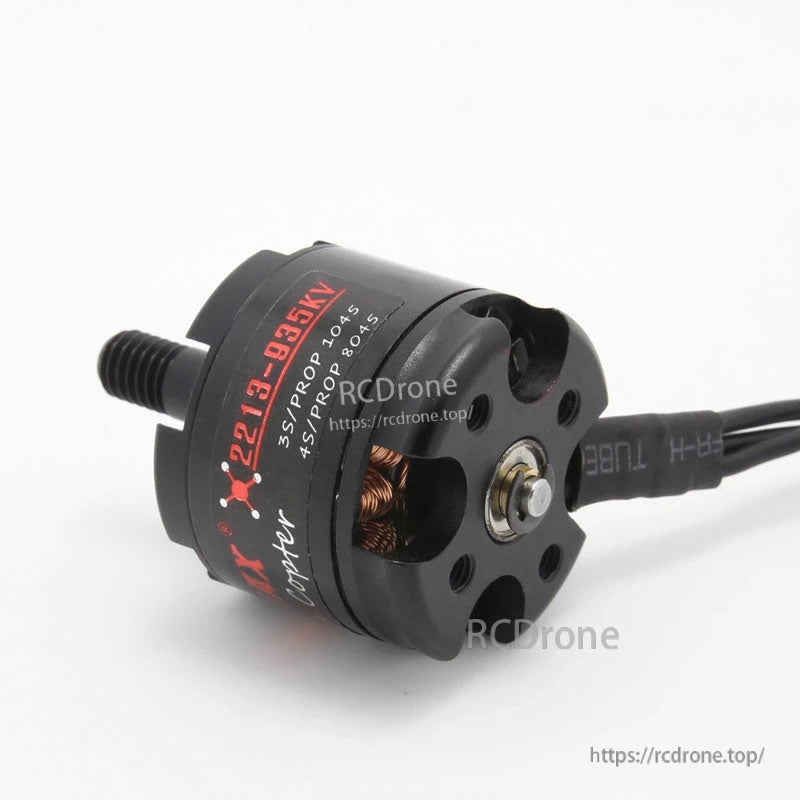

  • Angle view of MT2213-935KV motor showing base mounting holes and copper windings

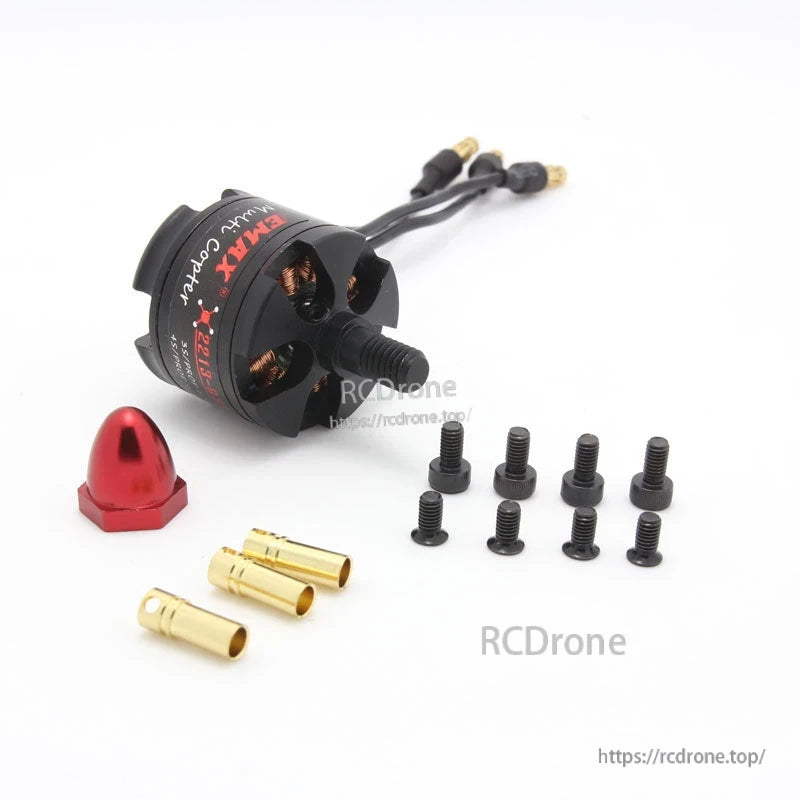

  • Package contents laid out: MT2213 motor, red adapter cap, bullet connectors, and screws

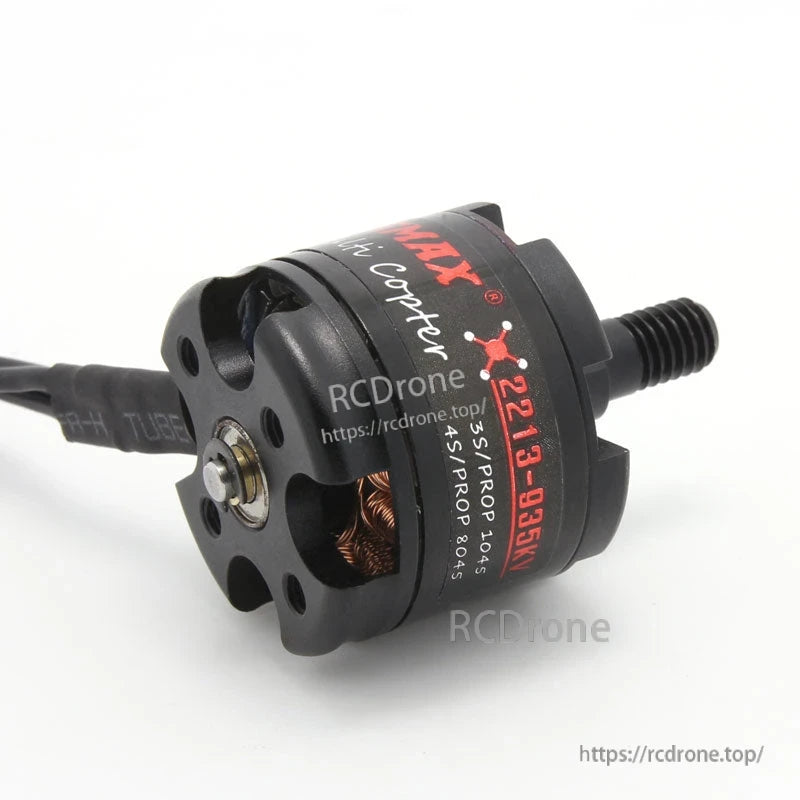

  • EMAX MT2213-935KV motor close-up showing printed label and bottom bearing plate

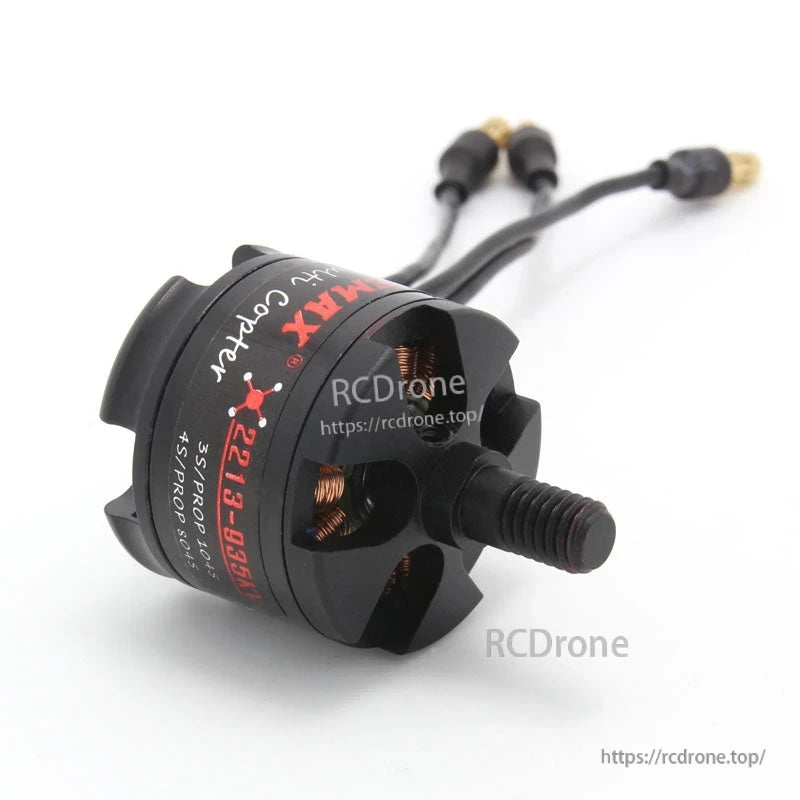

  • Top angle of MT2213 motor showing threaded shaft, vented bell, and attached connectors
1 8

EMAX MT2213 935KV Multicopter Motor with 1045 Prop Combo, 3S/4S Pairing, 18A ESC, 860g Thrust

EMAX MT2213 935KV Multicopter Motor with 1045 Prop Combo, 3S/4S Pairing, 18A ESC, 860g Thrust

Emax

$38.42 USD
$38.42 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Shaft Thread
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The EMAX Multicopter motor MT2213 (With Prop1045 Combo) 935KV is a motor and propeller combo designed for multi copters such as tri, quad, hex and octo platforms, focusing on fast transient response performance, stability, and efficient operation. It includes a prop adapter designed to support both CW (clockwise) and CCW (counter-clockwise) propeller rotation.

Key Features

  • Motor and propeller combo for multi copters (tri/quad/hex/octo)
  • Fast transient response and stable performance
  • High efficiency materials (as stated by manufacturer)
  • Prop adapter for CW and CCW propeller rotation

Specifications

Model MT2213
KV 935KV
Diameter 27.9MM
Length 39.7MM
Weight 53G
ESC recommended 18A
Max thrust 860G
Prop pairing (chart) 3S: 1045; 4S: 8045

11V Performance Table

Voltage (V) Paddle size Current (A) Thrust (G) Power (W) Efficiency (G/W) Speed (RPM) Working temperature (°C)
11 EMAX8045 1 110 11 10.0 3650
11 EMAX8045 2 200 22 9.1 4740
11 EMAX8045 3 270 33 8.2 5540
11 EMAX8045 4 330 44 7.5 6200
11 EMAX8045 5 390 55 7.1 6700
11 EMAX8045 6 440 66 6.7 7150
11 EMAX8045 7.1 490 78.1 6.3 7400 36
11 EMAX1045 1 130 11 11.8 2940
11 EMAX1045 2 220 22 10.0 3860
11 EMAX1045 3 290 33 8.8 4400
11 EMAX1045 4 370 44 8.4 4940
11 EMAX1045 5 430 55 7.8 5340
11 EMAX1045 6 480 66 7.3 5720
11 EMAX1045 7 540 77 7.0 5980
11 EMAX1045 8 590 88 6.7 6170
11 EMAX1045 9 640 99 6.5 6410
11 EMAX1045 9.6 670 106 6.3 6530 43

Applications

  • Tri, quad, hex, and octo multicopter builds
  • General multirotor propulsion upgrades where 935KV and 10x4.5-class props are required

For compatibility questions (airframe size, battery choice, or prop selection), contact support@rcdrone.top.

Details

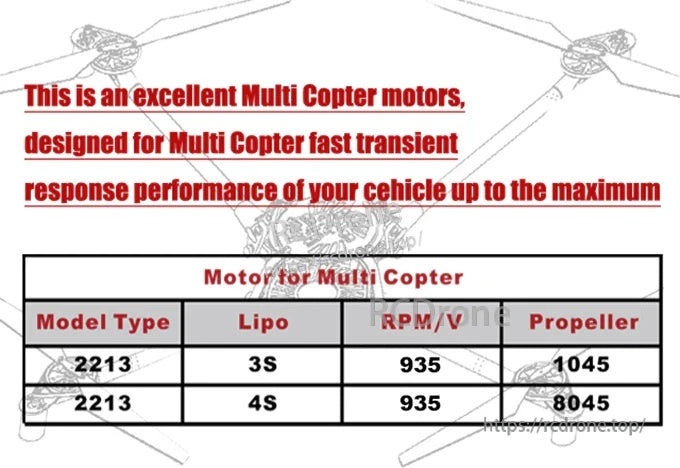

Prop pairing guide for EMAX MT2213 935KV multicopter motor: 10x4.5 on 3S, 8x4.5 on 4S

Pick the recommended prop size for your battery setup: 10x4.5 on 3S or 8x4.5 on 4S for the MT2213 935KV platform.

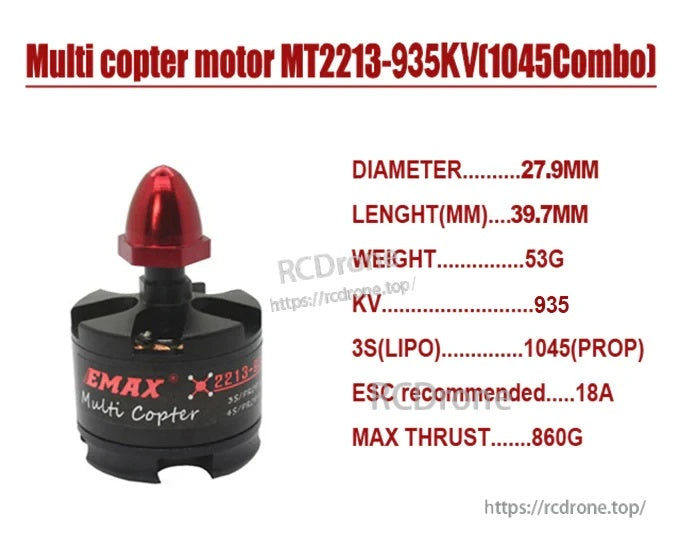

EMAX MT2213 935KV multicopter motor with prop adapter, listing 27.9mm diameter, 39.7mm length and 53g weight

Core dimensions, weight, KV rating, recommended ESC, and max thrust are summarized for quick build planning.

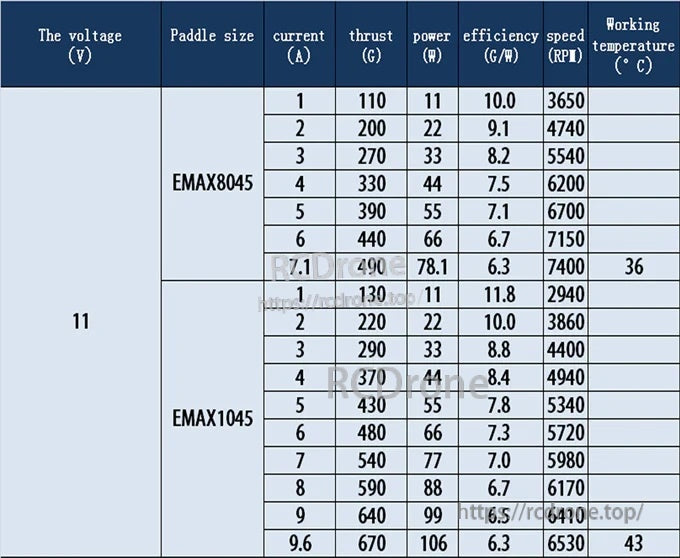

11V performance table for MT2213 935KV with EMAX 8045 and 1045 props: current, thrust, power, efficiency and RPM

Performance data at 11V compares current draw, thrust, power, efficiency, RPM, and temperature with 8045 and 1045 props.
