Emax ES3005HV High Voltage Metal Gear Digital Servo (PWM) 6.0V/7.4V/8.4V, 23T, 43g
Emax ES3005HV High Voltage Metal Gear Digital Servo (PWM) 6.0V/7.4V/8.4V, 23T, 43g
Emax
Regular price
$48.09 USD
Regular price
Sale price
$48.09 USD
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Overview

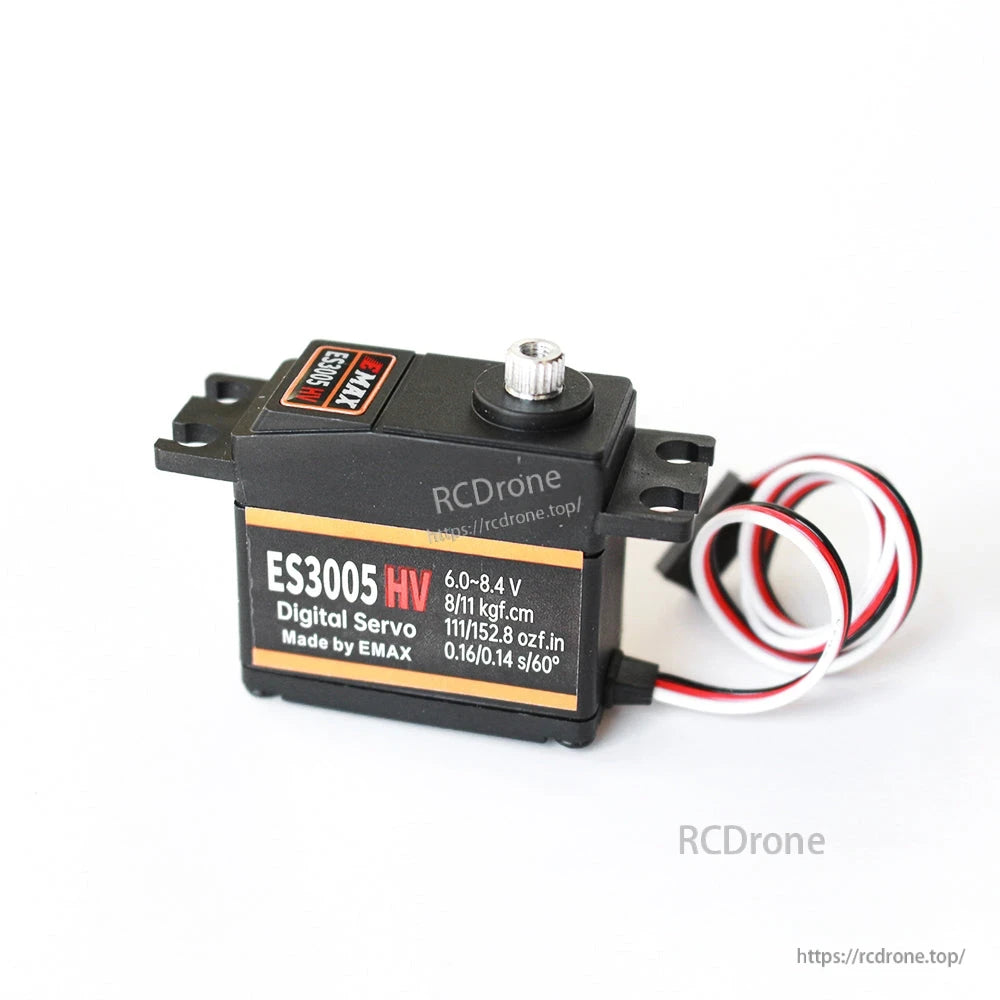

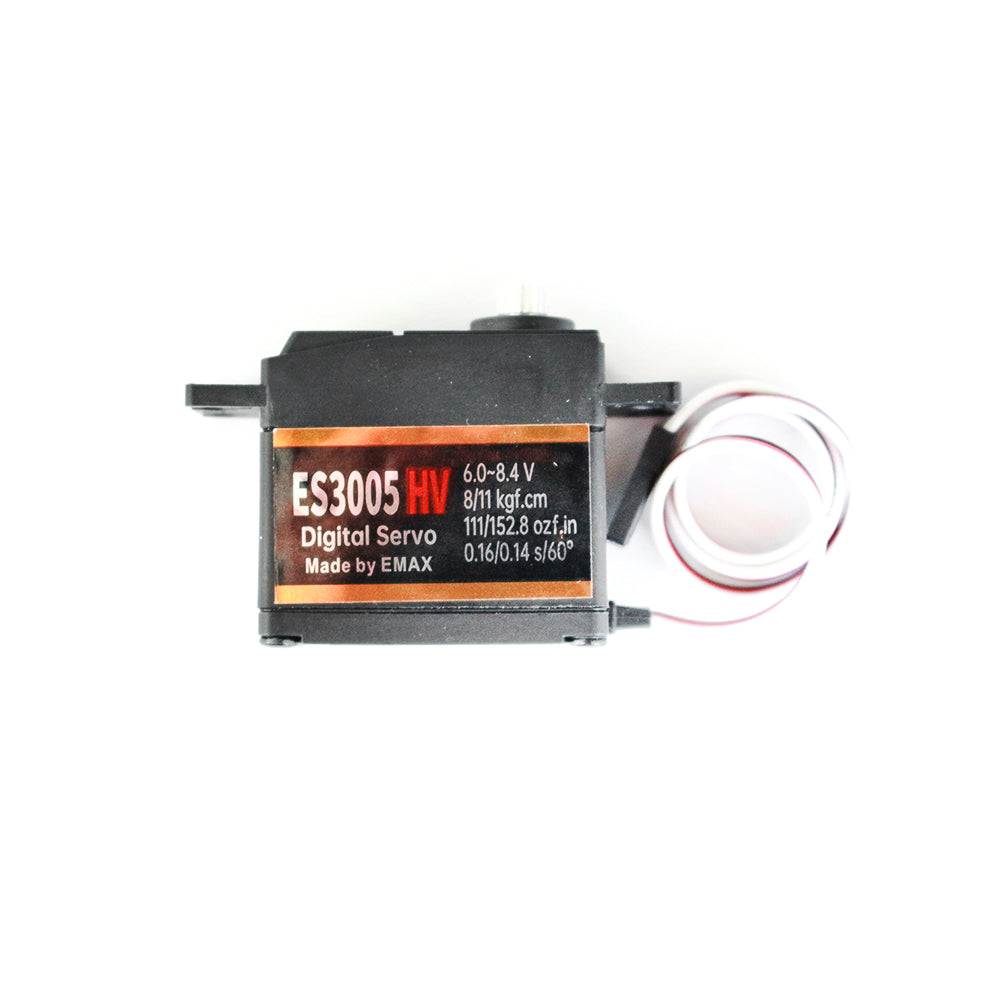

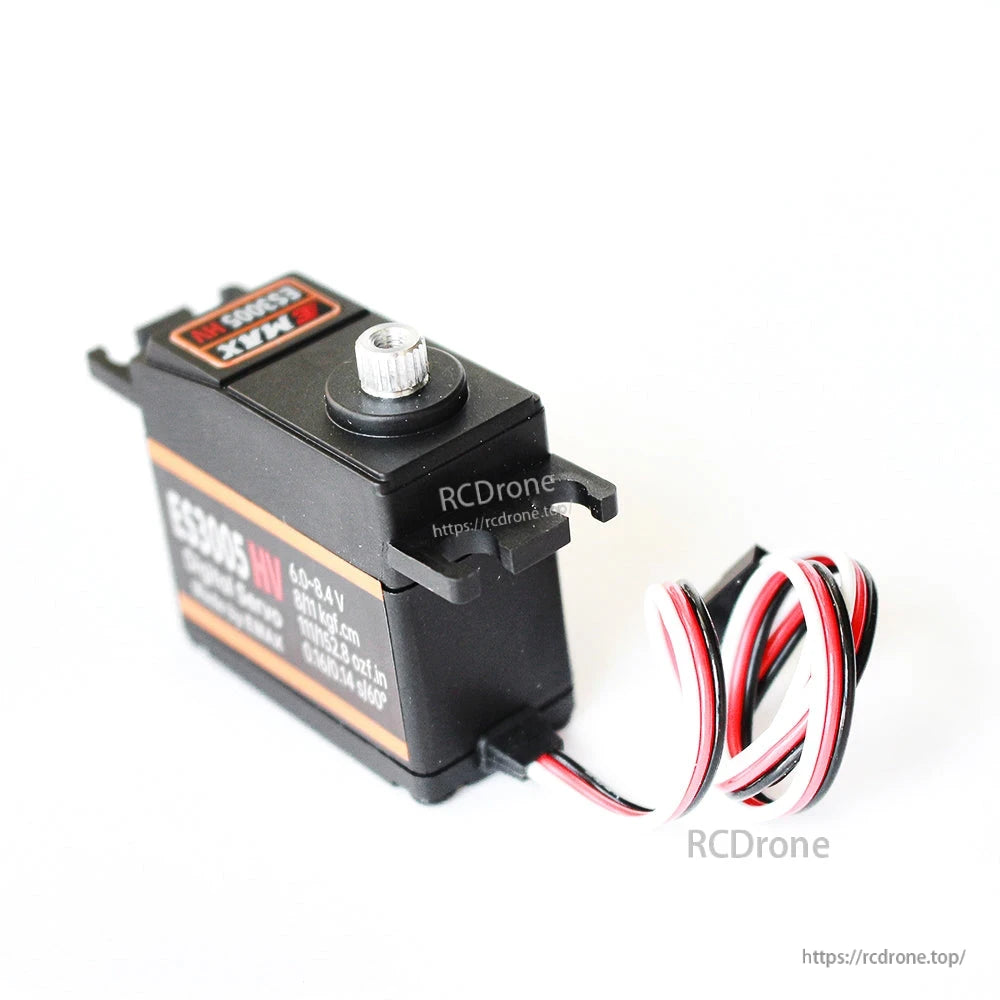

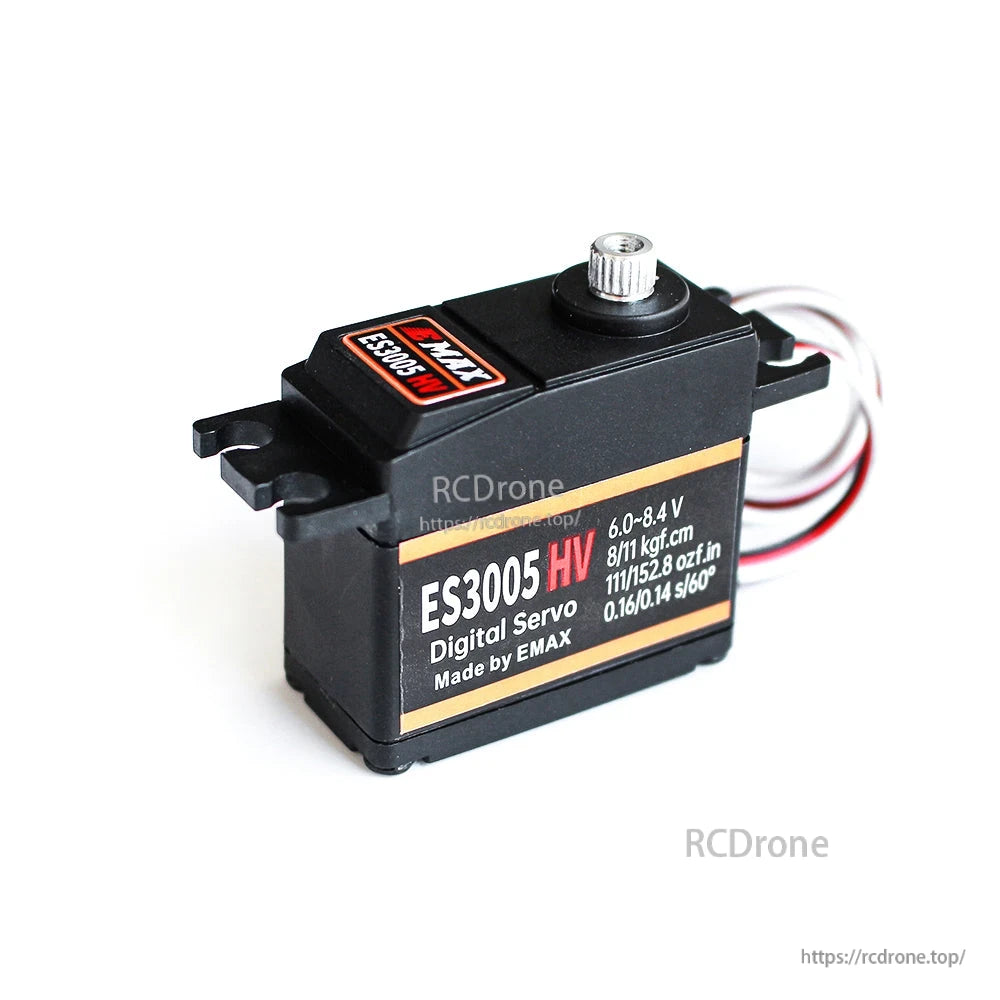

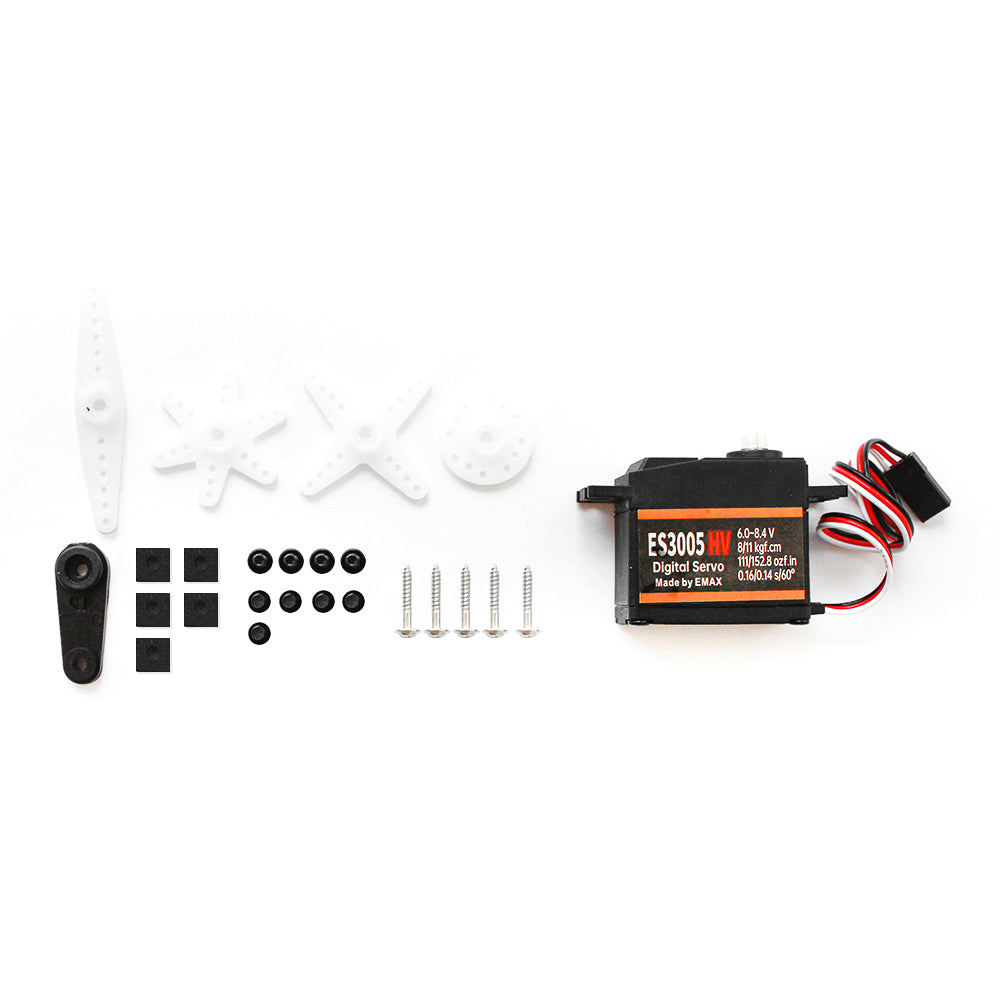

Emax ES3005HV is an all-purpose high voltage metal gear digital servo for RC models and robotics applications requiring PWM control and multi-voltage operation (6.0V / 7.4V / 8.4V). It features a 23T output gear spline, 2BB bearings, and supports up to 220° extreme angle.
Key Features
- High voltage operation: 6.0V / 7.4V / 8.4V
- Metal gear train, 2BB bearing design
- 23T output gear spline
- PWM control system with wide pulse width range (500-2500 us)
- Extreme angle: 220°
Specifications
Working Environment
| Storage temperature range | -20°C to 70°C |
| Operating temperature range | -10°C to 55°C |
Electrical Specification (Function of the Performance)
| Item | 6.0V | 7.4V | 8.4V |
|---|---|---|---|
| Operating speed (at no load) | 0.15 sec/60° | 0.12 sec/60° | 0.11 sec/60° |
| Running current (at no load) | 450 mA Max | 580 mA Max | 650 mA Max |
| Stall torque | 8 kg.cm Max | 10 kg.cm Max | 11 kg.cm Max |
| Maximum current | 2.5 A Max | 3.2 A Max | 3.6 A Max |
| Idle current | 9.5 mA | ||
Mechanical Specification
| Weight | 43 ± 0.5 g |
| Connector wire gauge | JR |
| Connector wire length | 240 ± 8 mm (W/O Connector) |
| Output gear spline | 23T |
| Bearing | 2BB |
| Gear type | Metal |
| Extreme angle | 220° |
Control Specification
| Control system | PWM |
| Operating travel | 90° ± 8° (when 1000-2000 us) |
| Neutral position | 1500 us |
| Rotating direction | Counter clockwise / Pulse traveling 1500 to 1900 us |
| Pulse width range | 500-2500 us |
| Maximum travel | 180° ± 10° (500-2500 us) |

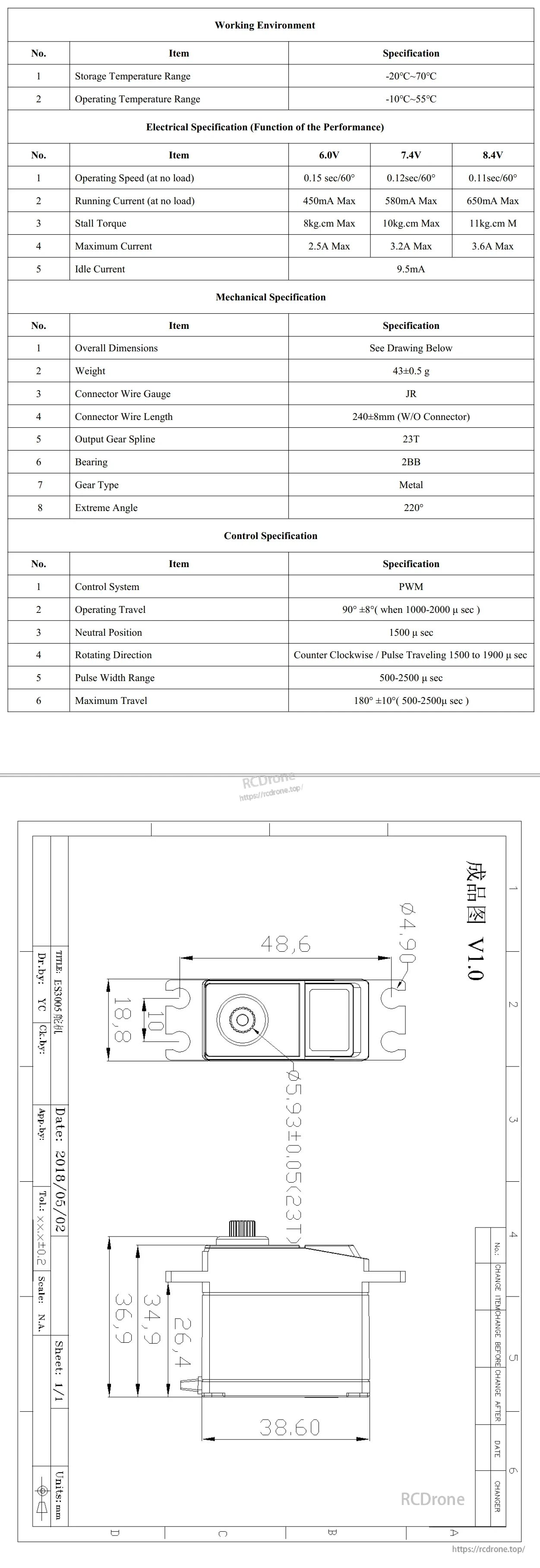

Dimensions (from drawing, units: mm)
| Top view length | 48.6 |
| Top view width | 18.8 |
| Dimension | 10 |
| Dimension | Ø4.90 |
| Output dimension | Ø5.93 ± 0.05 (23T) |
| Side view length | 38.60 |
| Height | 36.9 |
| Height | 34.9 |
| Height | 26.4 |
Applications
- RC aircraft control surfaces and general-purpose actuation
- RC cars/trucks steering and auxiliary mechanisms
- Robotics joints, linkages, and PWM-controlled motion projects
For product selection and technical support, contact https://rcdrone.top/ or email [email protected].
Details
Full performance specifications and mechanical dimensions for planning a precise ES3005HV servo installation.
