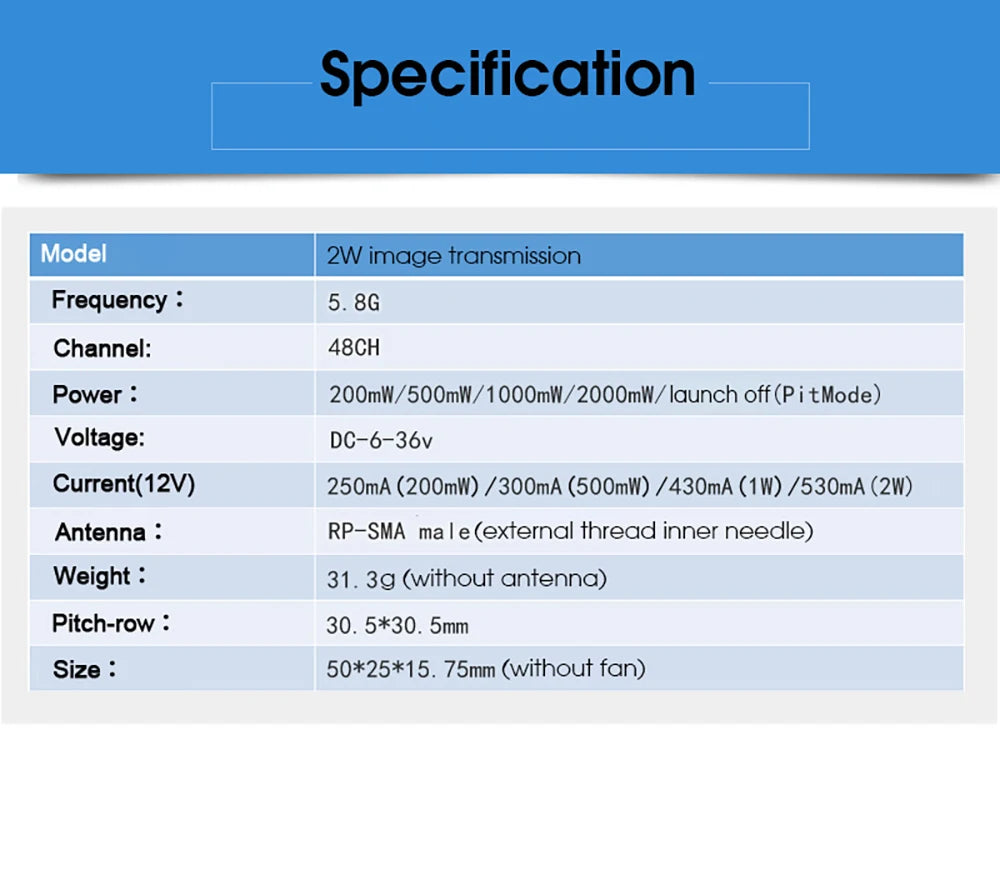

Specifications:

Model: 2W Image Transmission

Frequency: 5.8G

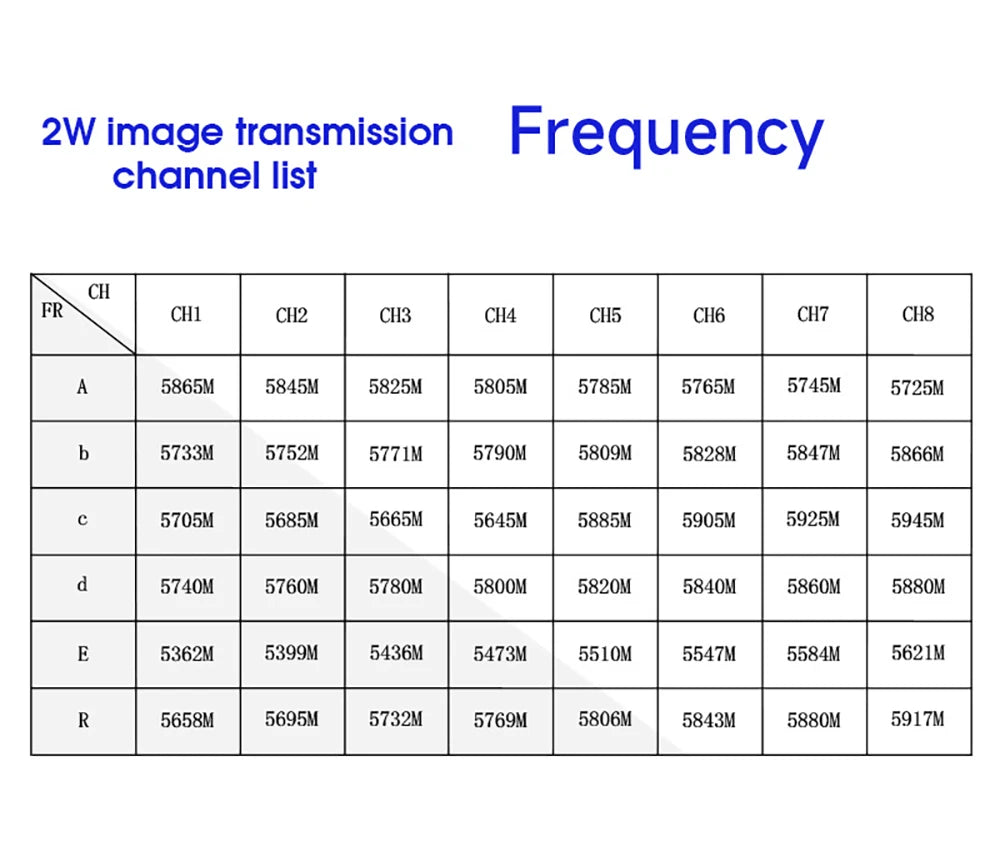

Channel: 48CH

Power : 200mW/500mW/1000mW/2000mW/launch off(Pi code)

Voltage: DC-6-36v Current(12V) 250mA (200mW) /300mA (500mW) /430mA (1W) /530mA (2W)

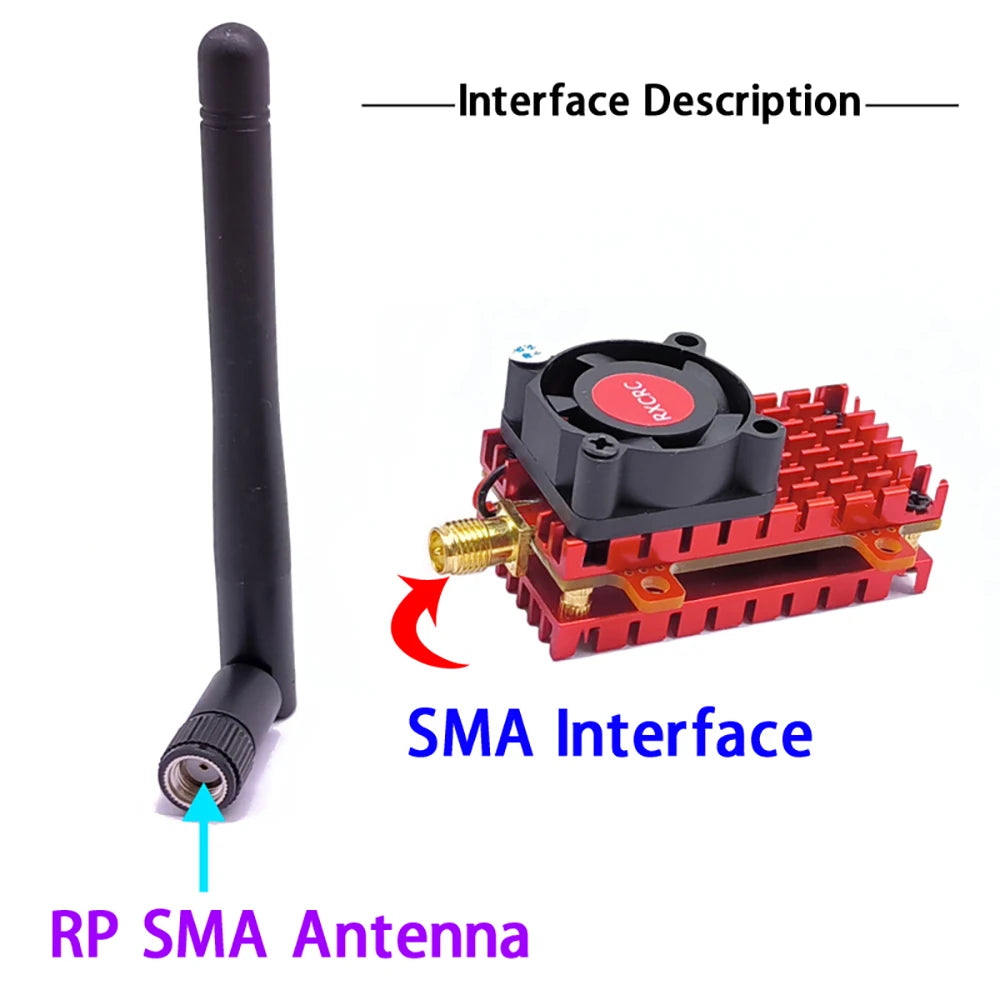

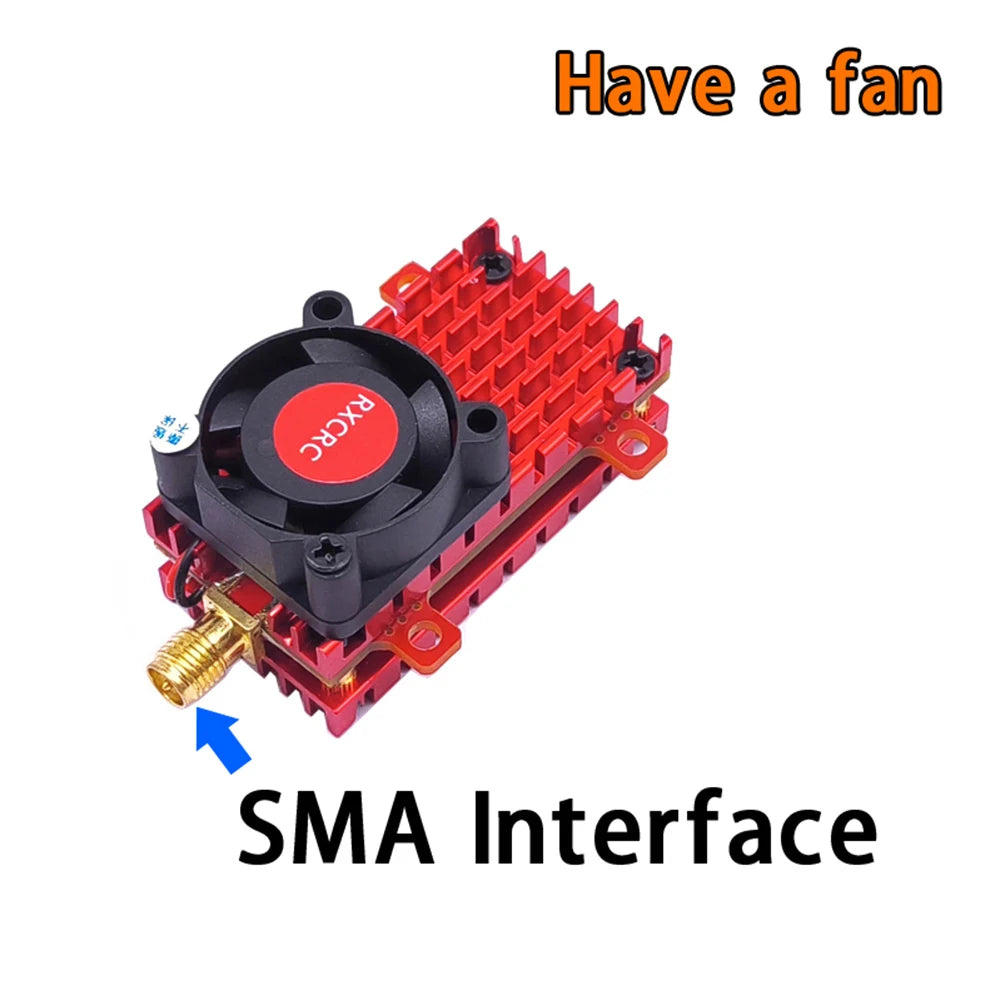

Connector: RP-SMA female (external thread inner needle)

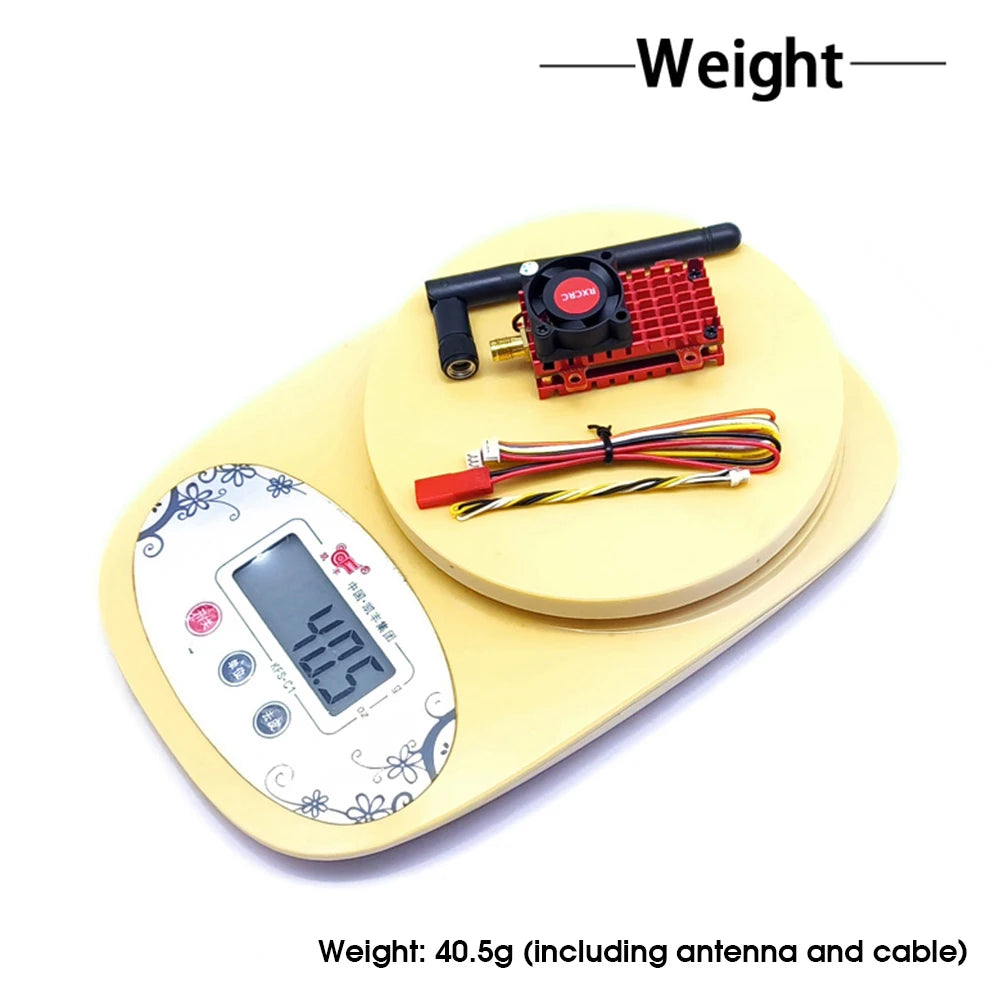

Weight: 31. 3g (without antenna)

Pitch-row: 30.5*30.5mm

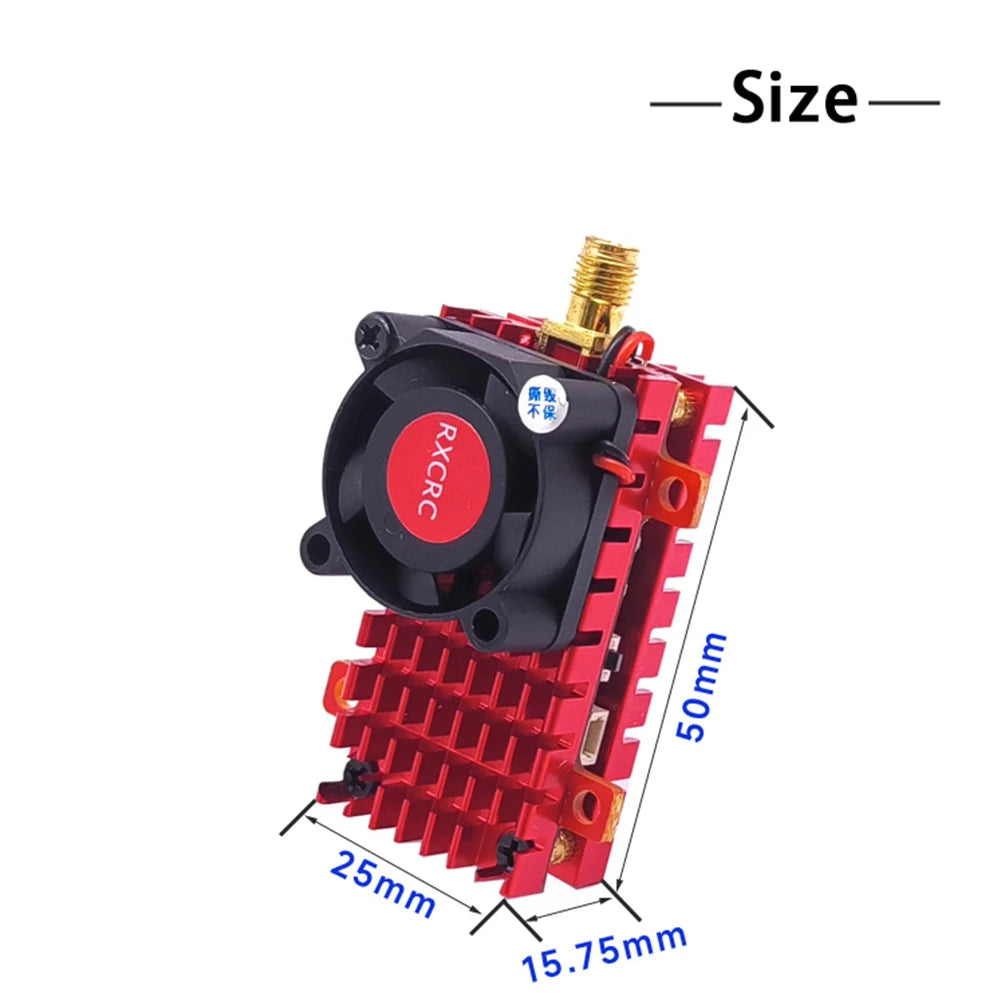

Size :50*25*15.75mm(without fan)

Features:

Long Range Performance: The 2W Image Transmission offers over 20Km range on 5.8Ghz frequency, perfect for long-distance FPV

applications.

Versatile Power Options: With adjustable power settings from 200mW up to 2000mW, it ensures strong signal even in the most challenging

environments.

Perfect for Drone Enthusiasts: Ideal for those passionate about drone flying and exploring new horizons.

Easy to Use: The FPV transmitter is simple to set up and operate, making it suitable for beginners and experts alike.

48 Channels: With 48 channels, it offers a wide range of options for avoiding interference.

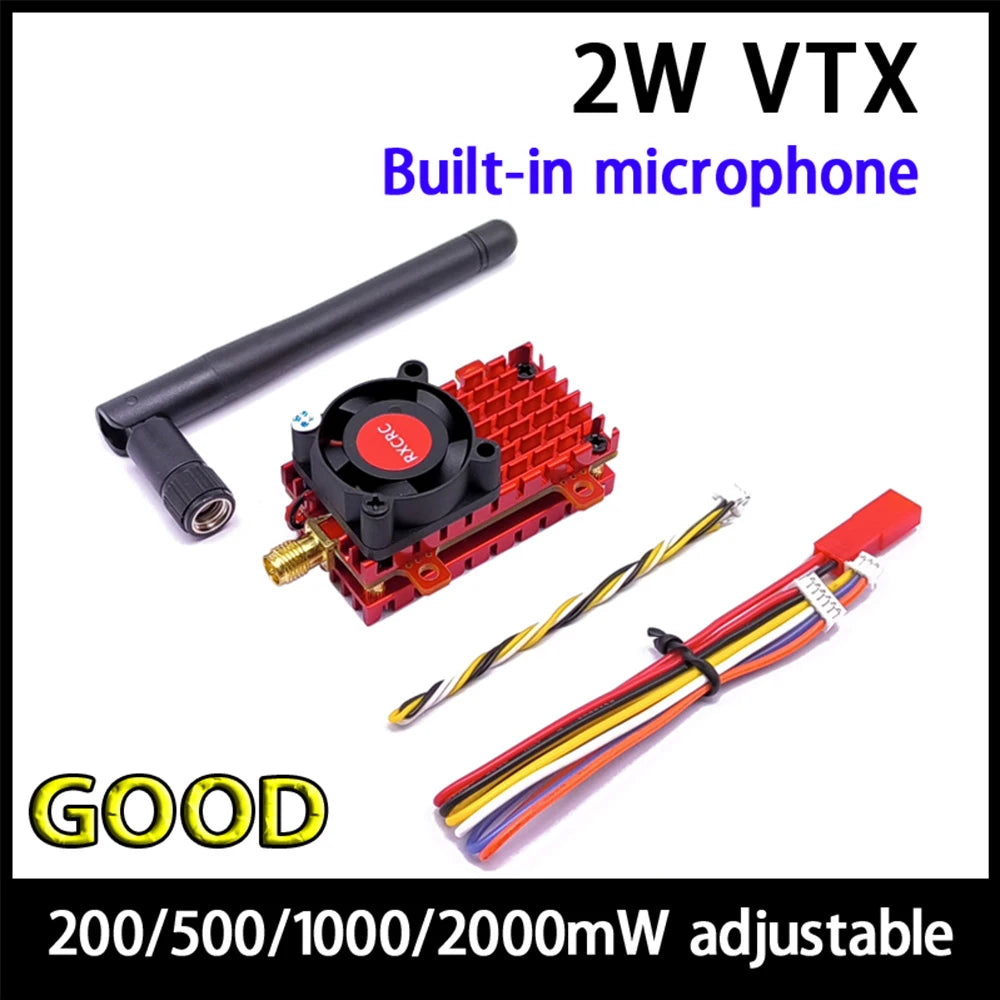

Package Included:

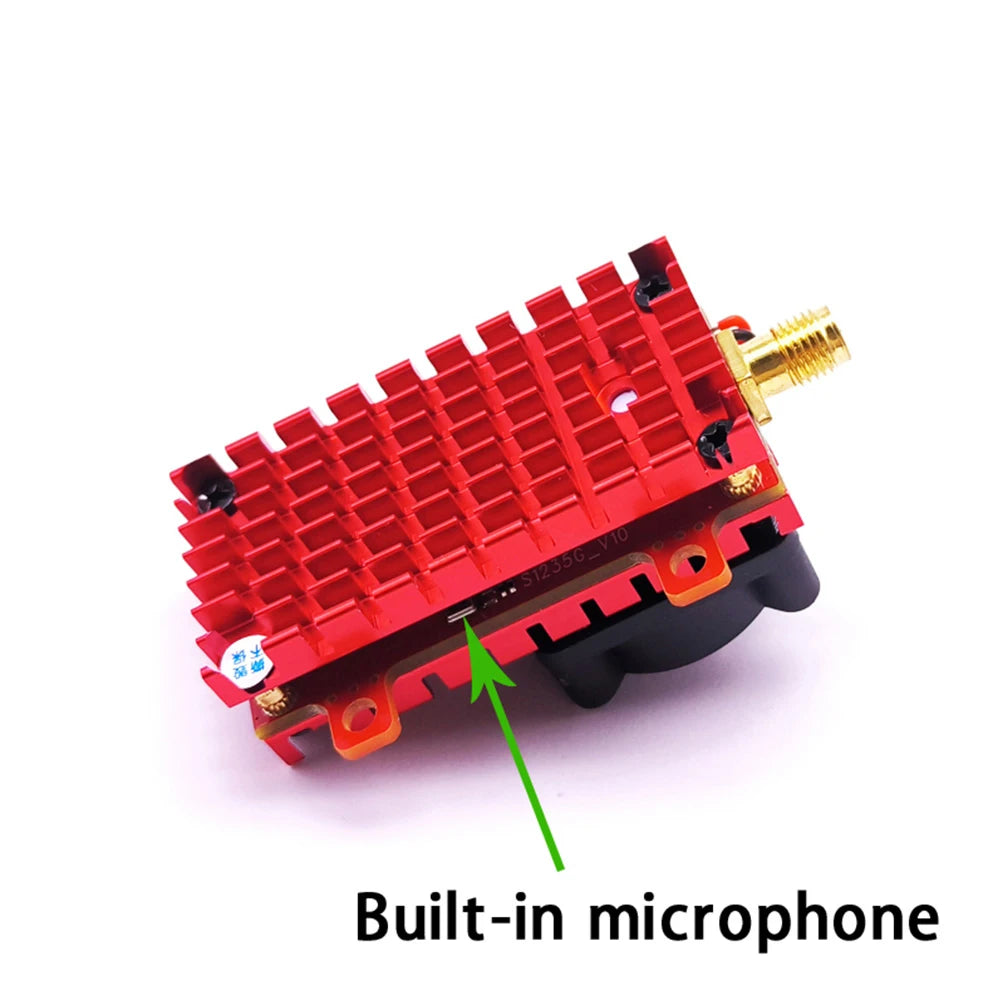

1 set x 2W 5.8G Microphone Image Transmission

RP-SMA ma | e (external thread inner needle) Weight 31. 3g (without antenna) Pitch-row 30. 5*30. 5mm Size 50*25*15. 75mm (without fan)

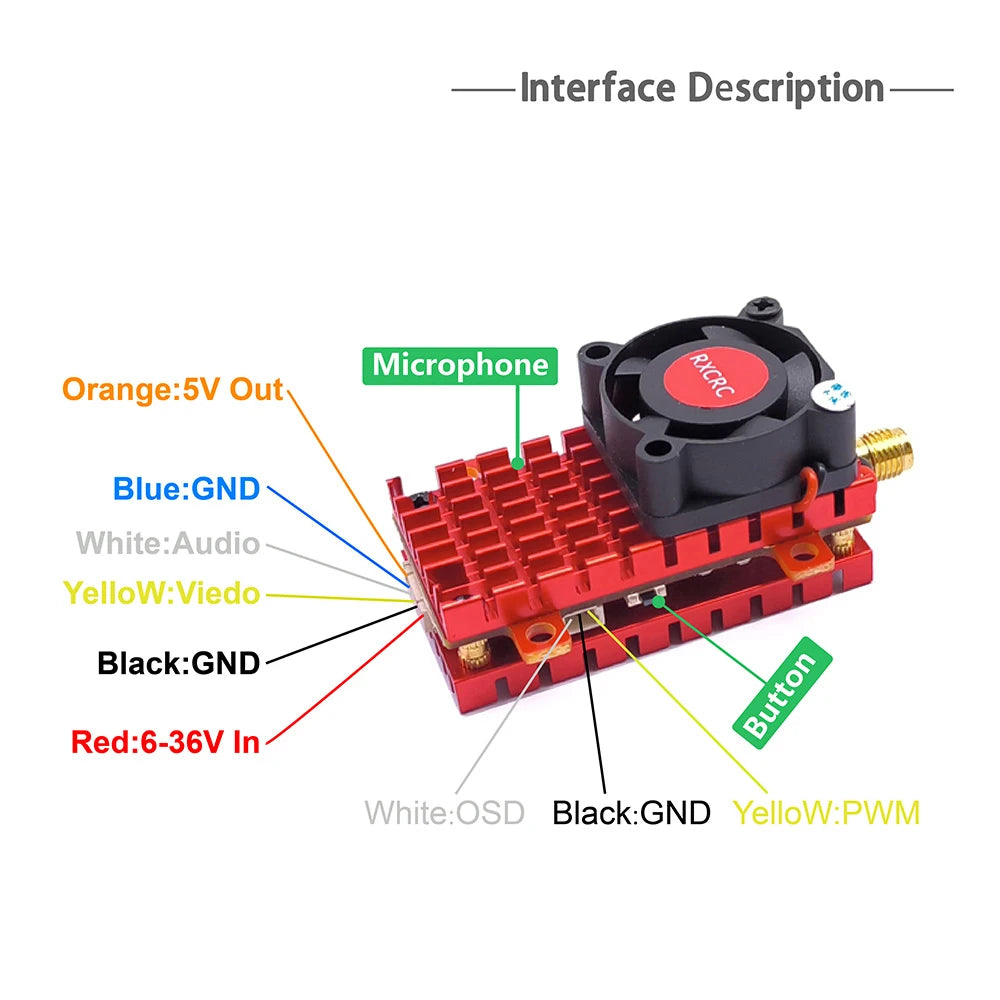

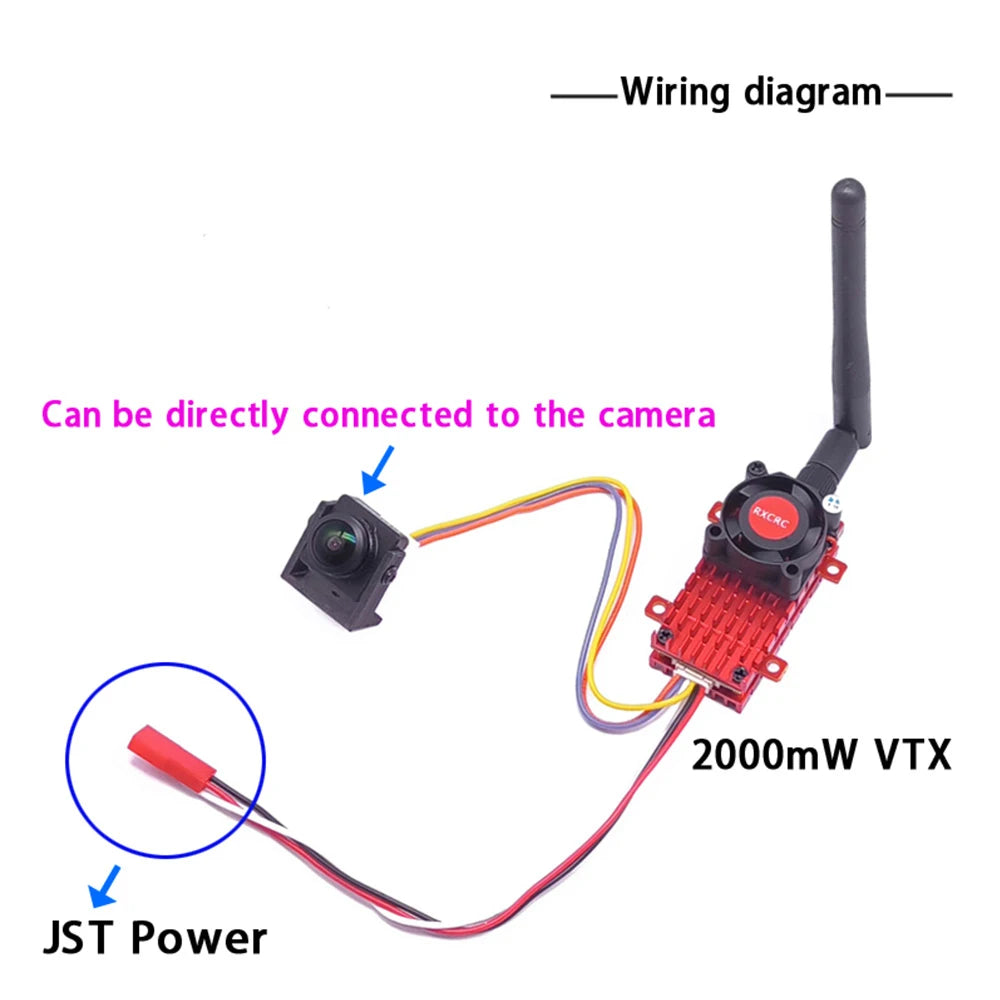

Interface Description Microphone Orange:SV Out: Blue:GND White Audio YelloW:Viedo Black:GND Red:6-36V In White:OSD Black:GN D YELLOW PWM 8

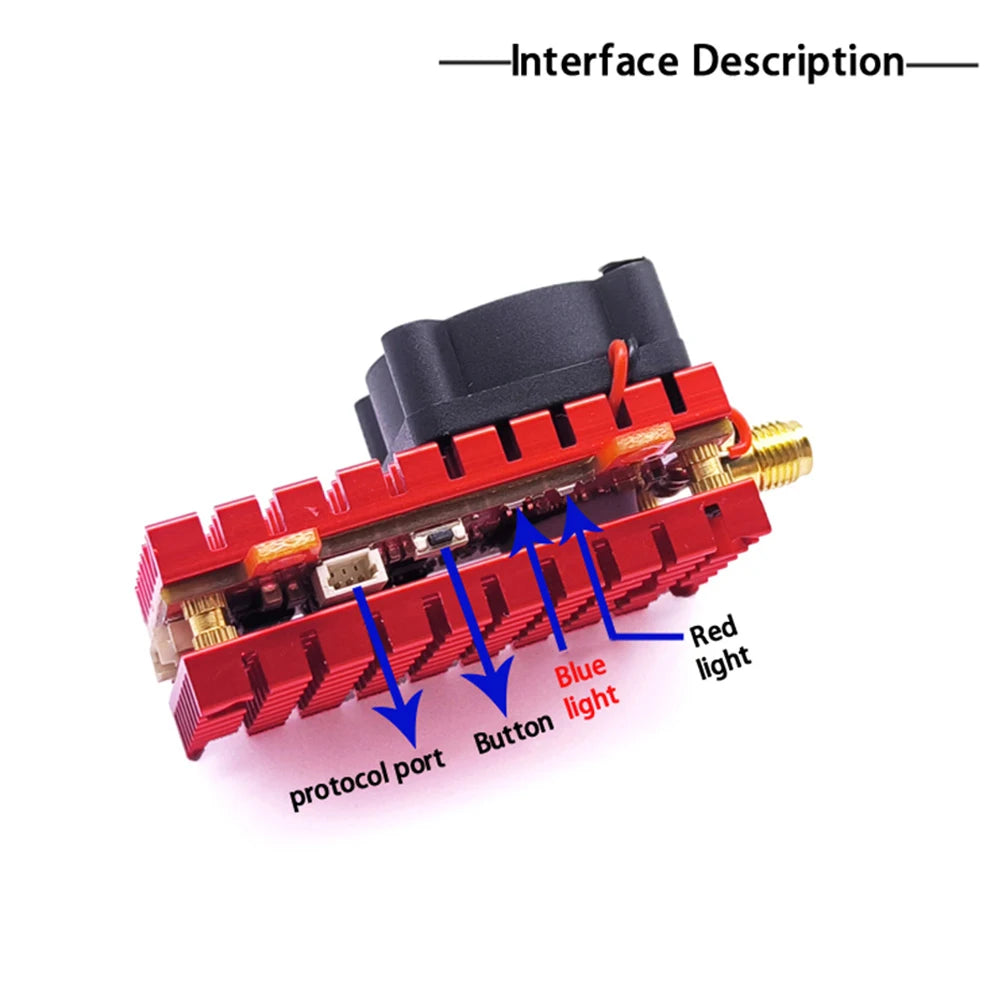

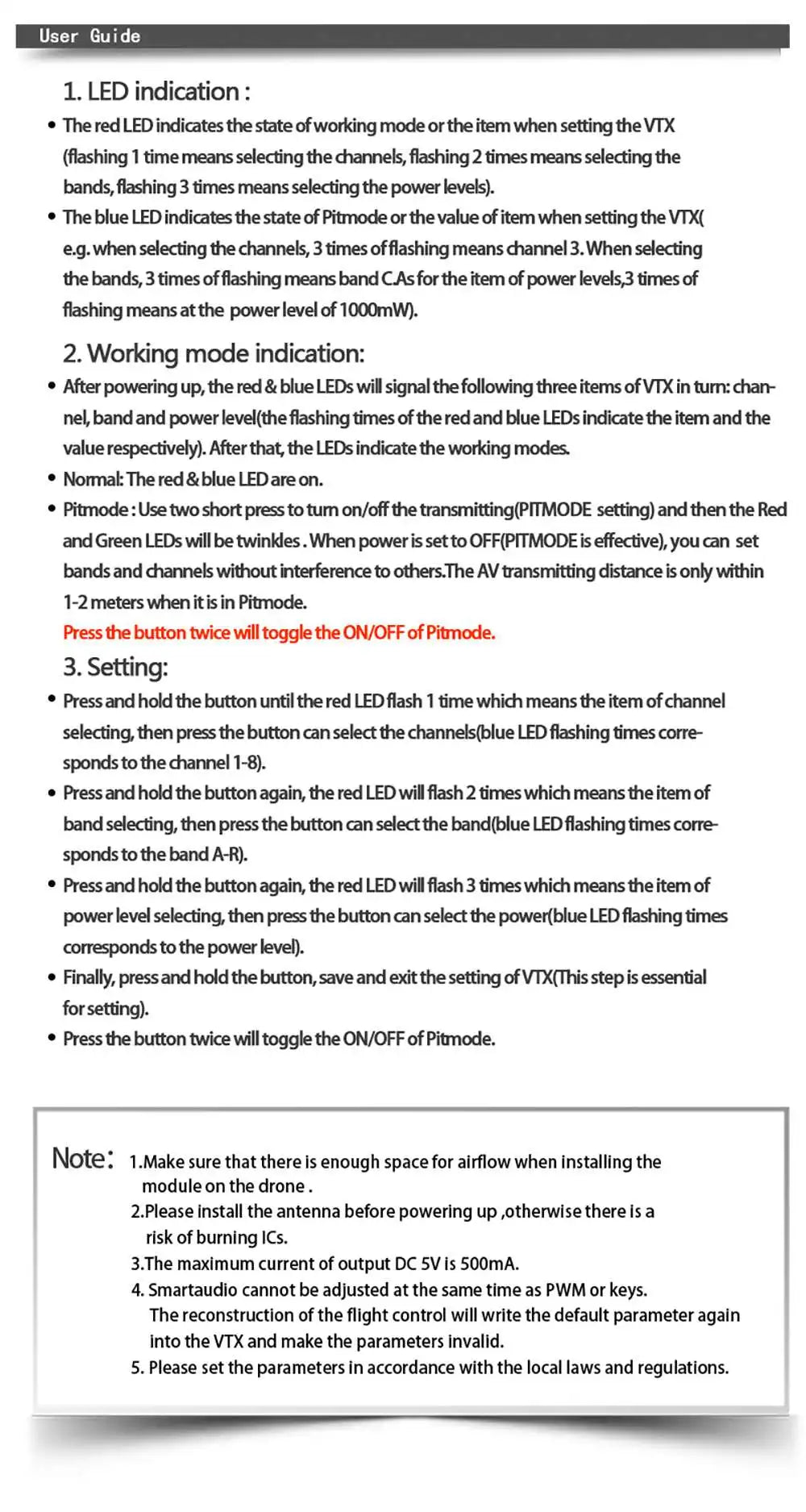

the red LED indicates the state of workingmodeor the value ofitem when setting the VTX . the blue LEDindicatesthe state of pitmode or the value when settingthe VIX (when selecting the channels, 3 times offlashingmeans channel3)

?
