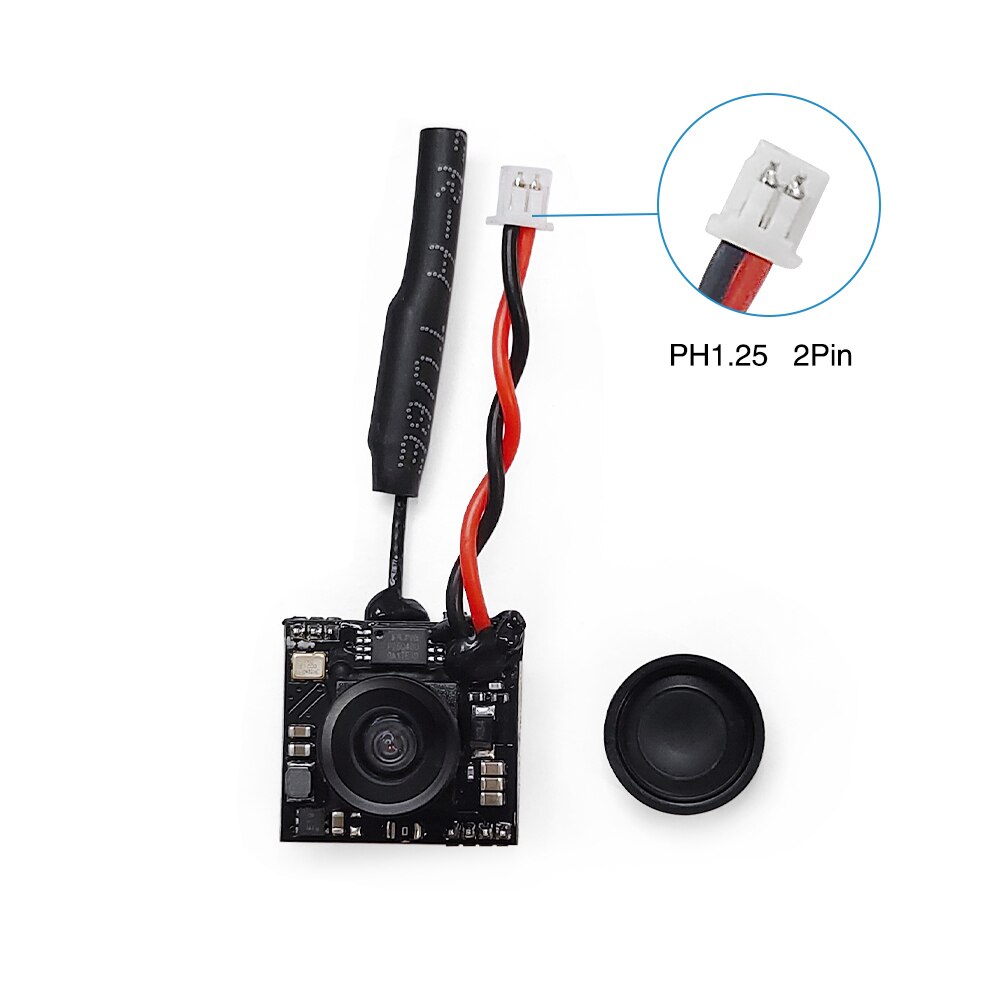

EWRF 800TVL Micro Camera with OSD SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 12+y

Origin: Mainland China

Material: Plastic

For Vehicle Type: Airplanes

Brand Name: RadioLink

5.8G Micro Camera with OSD Specification:

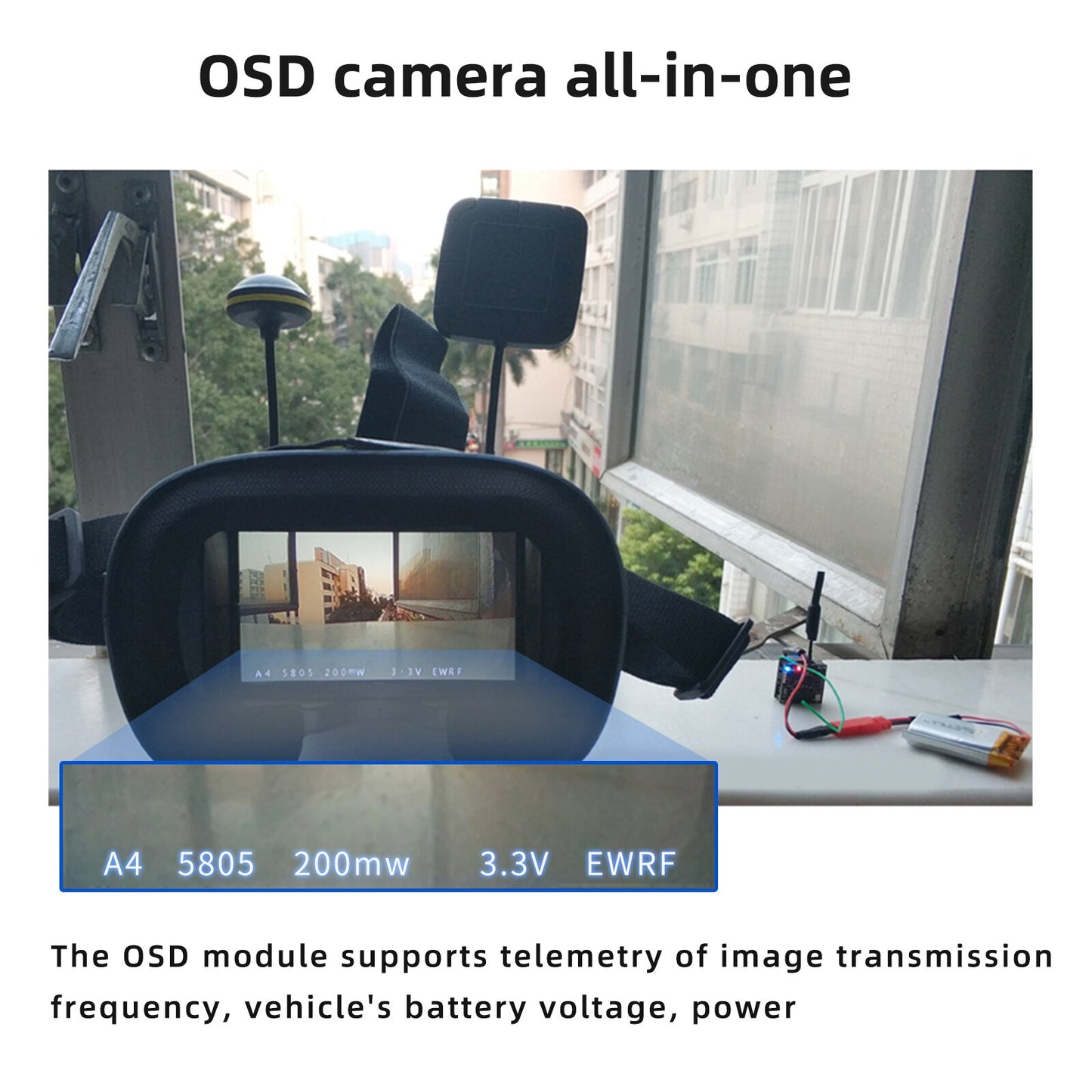

• Telemetry Content: image transmission, frequency point, power battery voltage

• Frequency: 5.8G 48CH, 6 bands.

• Camera Resolution: 800TVL(720P)

• Transmitting Power: Adjustable, 25mW/100mW/200mW(Factory default is 25mW)

• Power Input: DC3V-5.2V

• Current(4.2v)：320mA(25mW)/400mA(100mW)/460mA(200mW)

• Video system: PAL

• FOV: 150°

• Focal length: 1.2mm

• Aspect Ratio: 4:3

• Wire Type: 28AWG

• Size: 18.03*16.83*16.55mm

• Weight: 4.4g


Features:

• 5.8G 800TVL Micro Camera with OSD

• Super mini size and light weight

• Support image flip function

• 2 LED lights, 1 button


Package List:

Camera *1

Micro Camera with OSD 5.8G 48CH 25mW 80OTVL One button to change the LED status 4.4g light weight and mini size Easy to install 16.83mm JVh 16.55mm 18.03mm 47062VR Ad

Operation instruction:

Frequency switching:

1.Long press the button for 5 seconds, the Red led flashes one time to enter frequency switching mode.

2.Short press the button one time to change frequency,1-8 adjustable.

3.Blue light flashes 1 time to indicate frequency 1, blue light flashes 2 times to indicate frequency 2, and then 3-8.

Band switching:

1. Long press the button for 5 seconds, the Red led flashes 2 times to enter band switching mode.

2. Short press the button one time to change band,1-6 adjustable.

3. Blue light flashes onetime to indicate band 1, blue light flashes 2 times to indicate band 2, and then 3-6.

Transmission power switching:

1. Long press the button for 5 seconds, the Red led flashes 3 times to enter power switching mode.

2. Short press the button one time to change transmission power, A-F adjustable.

3. Blue light flashes onetime to indicate 25mw, 2 times to indicate 100mw, 3 times to indicate 200mw. The greater the power, the longer the transmission distance.

Note: The default transmission power is 25mw to oversea because of the policy. Please switch as you need.

Transmission mode switching:

1. Normal working mode: The red and blue led is always on.

2. Low power modulation mode(Pitmode): The red led is on and blue led is off. Under this mode, the transmission distance is 1-2 meters.

3. Short press the button 2 times to switch the mode.

Note: After all the parameters are setup, long press the button, and the red and blue light on indicates to enter the save mode, and then the working mode, otherwise the module cannot exit the setting state and cannot save the set parameters.

Note:

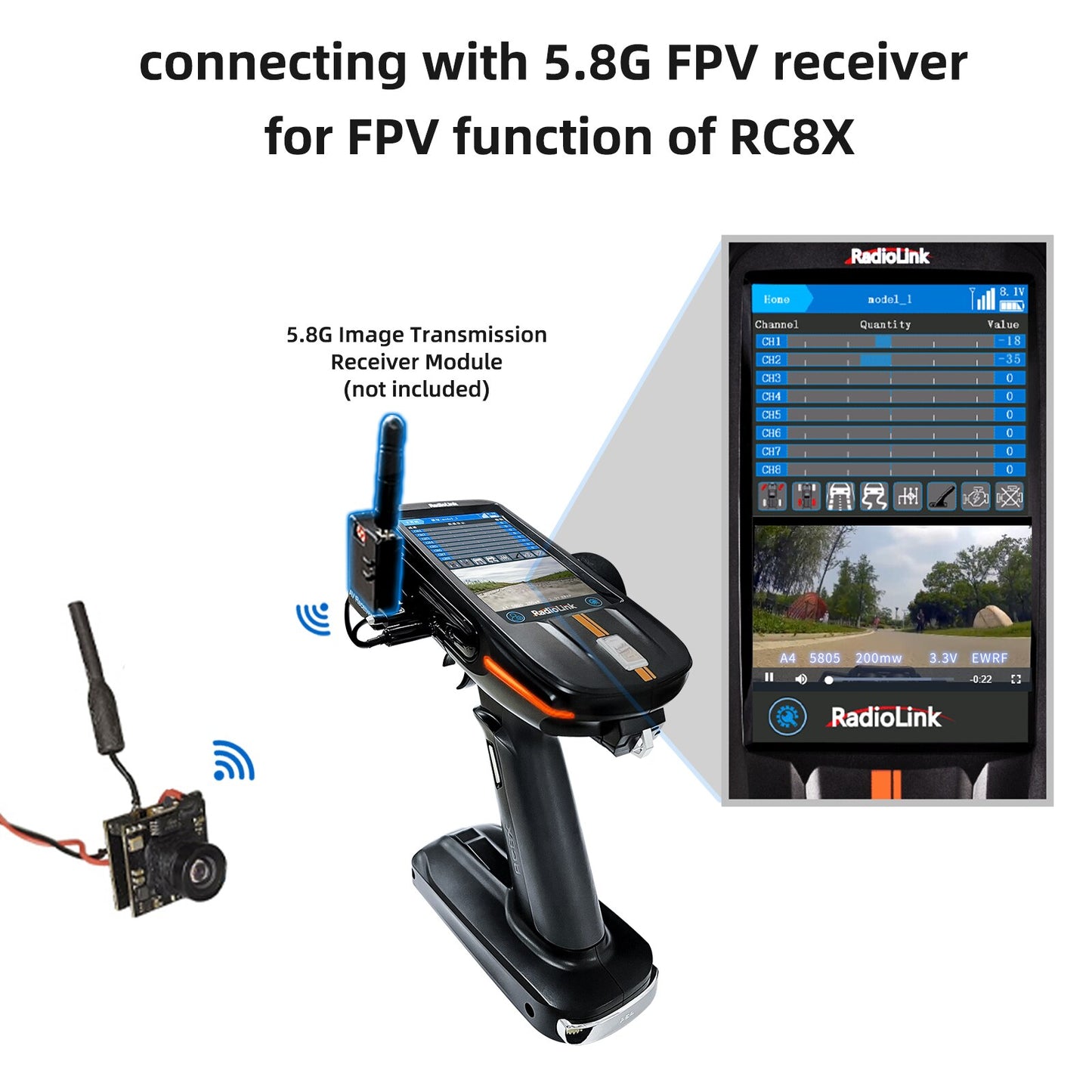

If there's no image on your RC8X screen when everything is ready, please kindly press the channel 2 of the FPV receiver to search for the camera.

5.8G FPV Receiver Specifications:

• Model: EWRF 708R

• Product name: 5.8G FPV receiver

• Frequency: 5.8G

• Channels: 48

• Working Current: 100mA at 12V

• Working Voltage: DC7-24V

• Size: 27x42.8mm

• Net weight: 11.8G

Package includes:

• 1 x 5.8G FPV Receiver

• 1 x 2 in 1 AV Connect Cable

  CH1 Automatic scan channel CH2 Channel Configuration Audio cable Video Ground Cable Video Cable AV Receiver Negative poles DC7-24V

Idbuk 8.1V Home model_1 Channel Servo view Value CH1 CH2 CH3 CHA CHS CH6 CH7 CHB 76 HM IG Radio
