FLYWOO Explorer LR 4 V2.2 Analog SPECIFICATIONS

Warranty: six months

Video Capture Resolution: Other

Type: Airplane

State of Assembly: Ready-to-Go

Remote Control: No

Recommend Age: 14+y

Power Source: Electric

Plugs Type: XT30

Package Includes: Original Box,Operating Instructions

Origin: Mainland China

Operator Skill Level: Beginner

Model Number: 4S

Material: Metal,Plastic,Carbon Fiber

Indoor/Outdoor Use: Indoor-Outdoor

Features: FPV Capable,GPS

Controller Mode: MODE2

Control Channels: 12 Channels & Up

Camera Mount Type: Fixed Camera Mount

Brand Name: FLYWOO

Aerial Photography: No

Main Changelog Analog  V2.2

1、 Equipped with Caddx Ratel V2 Camera, perform better ( Link )
2、HM850 850mw VTX & AGC Microphone module  ( Link )
3、Using the latest GOKU GN405 Nano FC

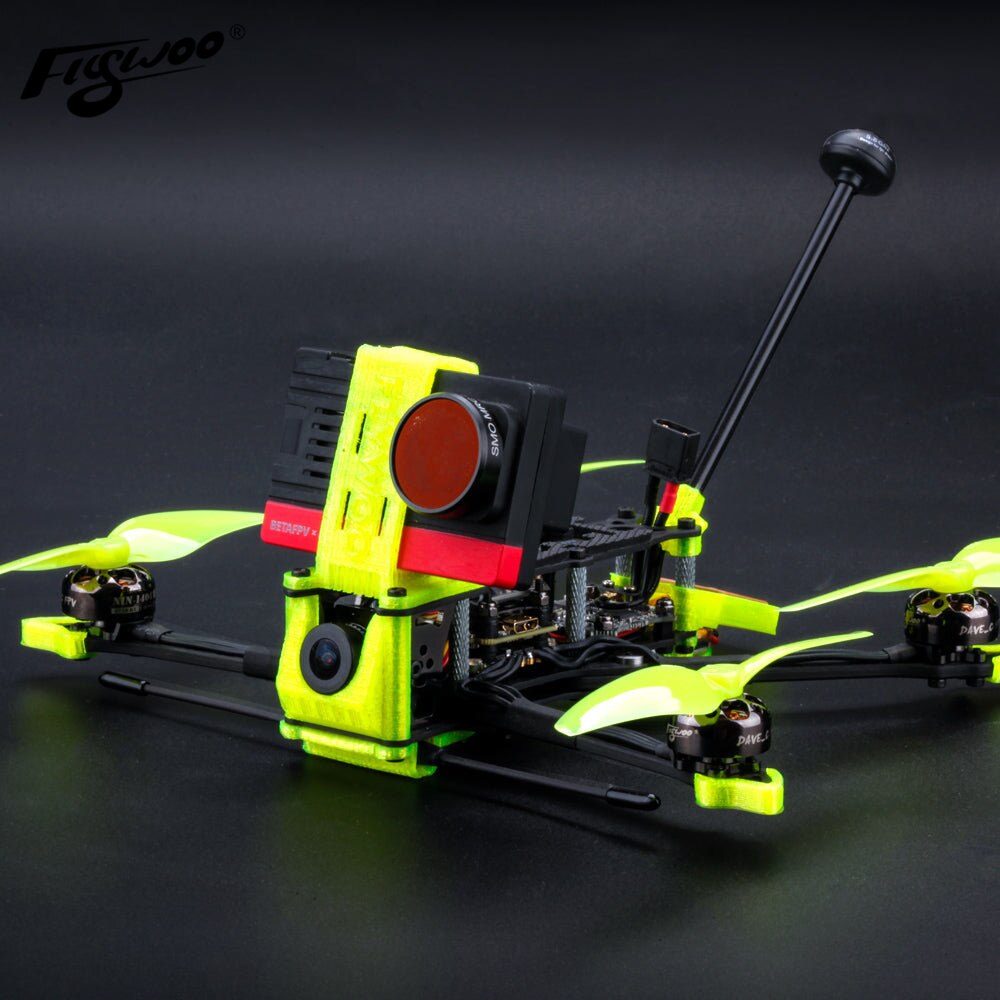

Explorer LR quad is the masterpiece of the collaboration between Flywoo and #micro long range original creator Dave_C .  #Micro long range is a brand new field, and we will explore more fun in this field with Dave_C in the future.

Message from Dave_C FPV:

For me personally, Long Range cruising through epic landscapes is the best thing about FPV! But unfortunately, it was always kind of difficult to practice legally and without bothering people with all the noise a massive 6 or 7" long-range quad produces.

So the basic idea behind the original Project #MicroLongRange was born: Scale down a 7" long-range quad until it is below 250g take-off weight. With the support of an awesome community on Facebook and Instagram as well as a massive development effort by Flywoo, this concept has seen a lot of improvements that are now all implemented in the Explorer LR!

This tiny quad is equipped with GPS, Crossfire, and an independent model finder to give you the necessary confidence to push it to the maximum range of digital and analog video transmission. The powertrain with its GOKU 16x16 stack and the all-new 2750kV 1404 motors spinning 4" props is optimized for maximum efficiency and low weight: Flight times of way over ten minutes on a regular 850mah 4S LiPo battery are easily achievable! Cruising speeds of 40-50 kph (25-30mph) are astonishingly high for such a small quad and have allowed me to do 10km (6 miles) round trips easily. And the best thing about it: It's incredibly quiet! You will barely be able to hear it flying by as soon as you are a few dozen meters away. ”

Specifications

• FC & ESC Combo : GOKU GN405 Nano 13A STACK ( 16*16 )

• vTX : GOKU HM850 5.8Ghz ufl 850mw vtx w/ AGC Microphone

• Camera: Caddx Ratel 2 1200TVL 1.8mm FPV Camera

• Motor:NIN V2 1404-2750KV

• MIC :Flywoo AGC-MIC  Microphone

• GPS : FLYWOO GM8 MINI V2.0 GPS

• Propeller:Gemfan 4024  ( 4pcs Green \ 4pcs Gray )

Features

• The lightweight 4-inch quad below 250g even if you connect with the battery, meet the current requested of FAA rules. Easy to control and long flight time, we strongly recommend to FPV beginners and pilots who like to cruise!

• Equipped with GOKU 16X16 MICRO STACK, and NIN 1404 v2-2750kv, support 4s battery. You can get up to 20 minutes cruising! So this is a quad that is very suitable for FPV beginners and long-range enthusiasts!

• It is recommended installing side carbon fiber plate to increase the strength and stability of the Arm.

• How to Work Flywoo Finder v1.0？

1. Flywoo Finder v1.0 can power itself to beep and LED light to flash even the quad battery has been ejected.

2. Fingder v1.0 can work for 4-5 hours.

3. Press the button for 3 seconds to close it

How to Work Flywoo Goku GPS Mini V2.0  Rescue Function?

1. Before disarm, GPS must search for more than 5 satellites to lock the home position.

2. After disarming, observe the OSD data during the flight, and the rescue function can work normally only if the distance exceeds 100 m. Otherwise, the quad will crash.

3. If the remote control suddenly loses signal, the GPS rescue function will work automatically and return to the home position. (Set the AUX of GPS rescue mode in betaflight Failsafe, the default is AUX3 2000)

Package : GOKU GN405 Nano
This is  a Flywoo another smallest but most spowerfu l GOKU 405 Nano flight controller packed with features including a barometer, 16MB blackbox, 6 complete hardware serial ports, I2C functionality and WS2812 LEDs on each corner.

1* Prebuilt and tested Explorer LR Drone w/ Rhcp Antenna
1* Side carbon plate 1 set
1* Spare srew
2*Gemfan 4024 4pcs
