The Lumenier AXII 5.8GHz Patch Antenna offers you the highest performance you can get from a mini patch antenna designed for FPV. The Lumenier AXII Patch has an industry leading 8.4 dBiC gain for long range flying and excellent penetration through objects compared to standard omnidirectional FPV antennas. It also features a best in class 95% efficiency (most mini patch antennas are below 75%), which means you get amazing performance and the best picture in your video goggles. Lumenier, designed in collaboration with renowned FPV antenna designer Hugo of TrueRC, brings you the Lumenier AXII 5.8GHz Patch Antenna.

The Lumenier AXII Patch Antenna features an ultra-thin active element suspended above the reflector, which allows for a higher velocity factor and lowers losses. This technology along with precision manufacturing results in a top of the line receiving antenna. It works great on both video goggles or ground stations for 5.8GHz, and capabale of receiving signal up to many miles away.

Features

    Circularly Polarized
    High 8.4 dBiC
    Incredible 95% efficient
    Wide 76 degree beam width
    Compact low profile design on your goggles
    Designed for goggles or base stations

Specifications

    Frequency: 5.8GHz
    Bandwidth: 220 Mhz
    Gain: 8.4 dBiC
    Beam Width: 76°
    Right Hand Circularly Polarized
    SMA Connector (Fits Fat shark Goggles and others using SMA)
    Dimensions: 35mm x 35mm x 9mm (20mm with SMA)
    Weight: 10grams

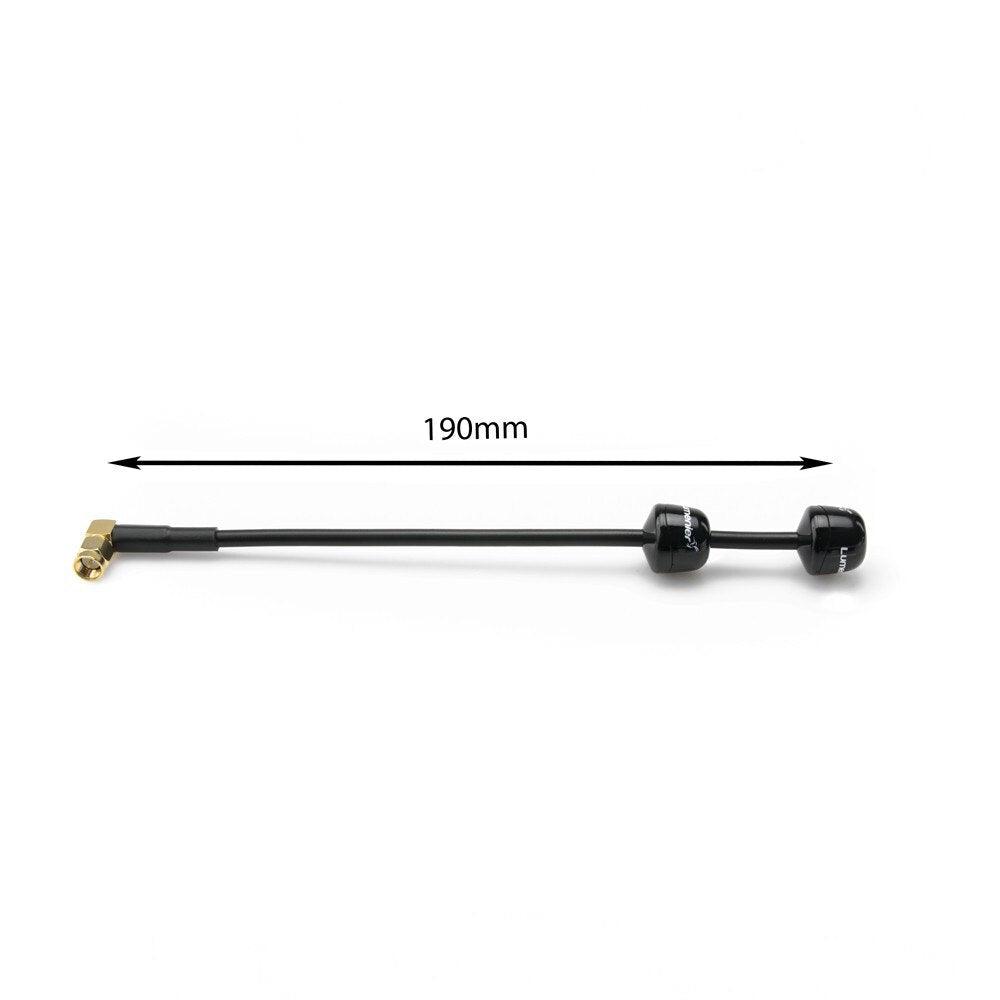

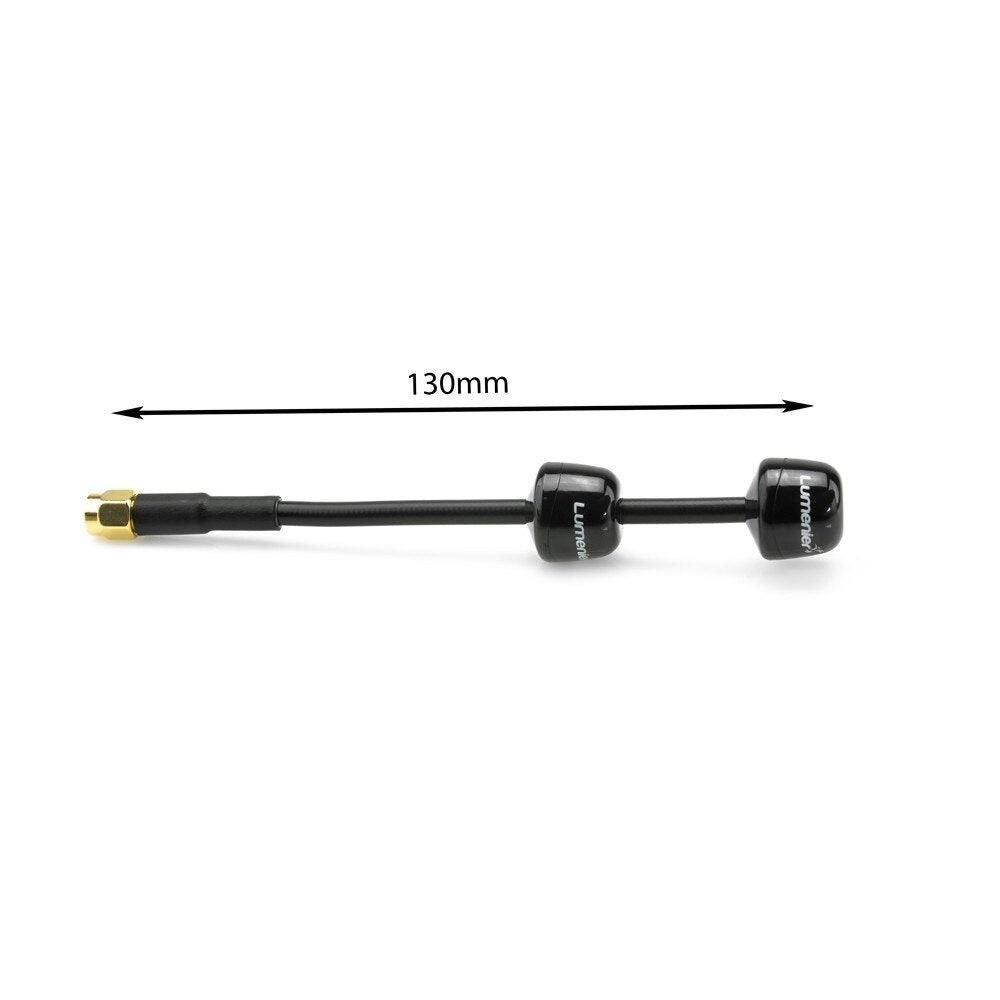

4.Lumenier Double AXII

Improved Features Over Standard AXII V1

• Significantly Improved Range with a Higher Gain (4.7dBiC Gain)
• Wider Bandwidth (5.3-6.2GHz)
• Cleaner Signal And Better Rejection to Interference
• More Durable - Improved Injection Molded Housing
• Virtually Perfect Axial Ratio

Precision engineering has given this antenna a virtually perfect 1.0 Axial ratio resulting in a true circularity. On top of that, the Double AXII 2 has an amazing max gain of 4.7dBiC, a true upgrade over the original AXII.

Super Tough

Antennas take a lot of abuse, especially when put onto a quad. The AXII 2's robust antenna housing is made out of a new injected molded polycarbonate, and ultra-sonically welded shut. This has significantly improved the durability of the AXII housing. The 120mm long semi-rigid RG402 cable allows for 90 degrees or more of freedom. The SMA connection is reinforced with a metal collar crimped to the base for extra support.

Note: When installing, secure the antenna via the SMA connector, do not twist the cap.

Also works great on the DJI digital FPV goggles! Just make sure to purchase RP-SMA to SMA adapters so they can properly mount to the RP-SMA connection the goggles.

• DJI Digital HD FPV Goggles
• RF RP-SMA Male to SMA Female Adapter
•
