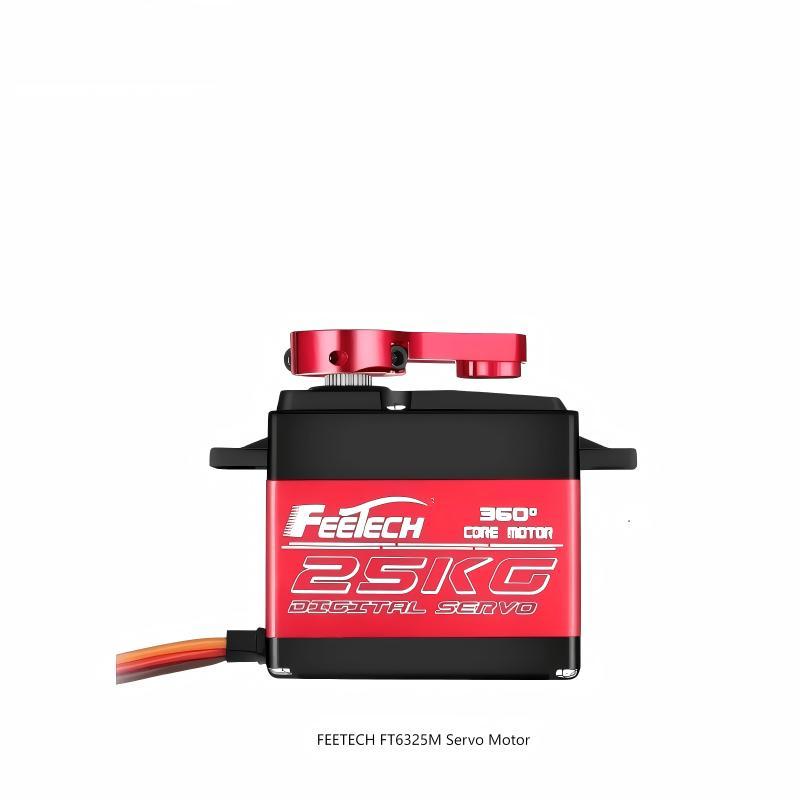

• FEETECH FT6325M servo side view with 25KG digital servo label and metal servo arm installed

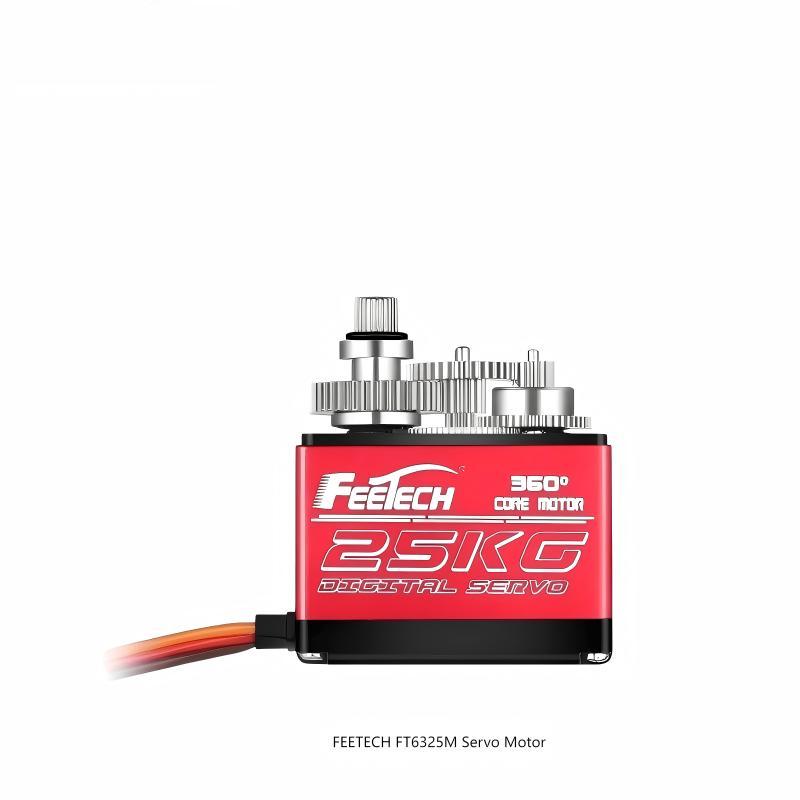

  • FEETECH FT6325M servo with top cover removed showing metal gear train and output spline

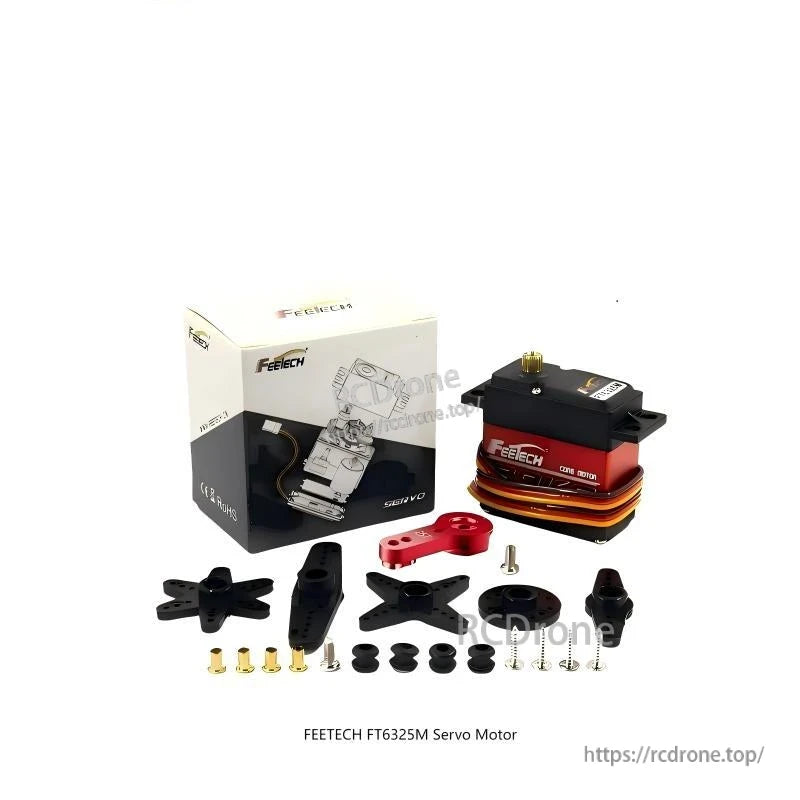

  • FEETECH FT6325M servo kit with retail box, horn/arm set, screws, bushings and mounting hardware

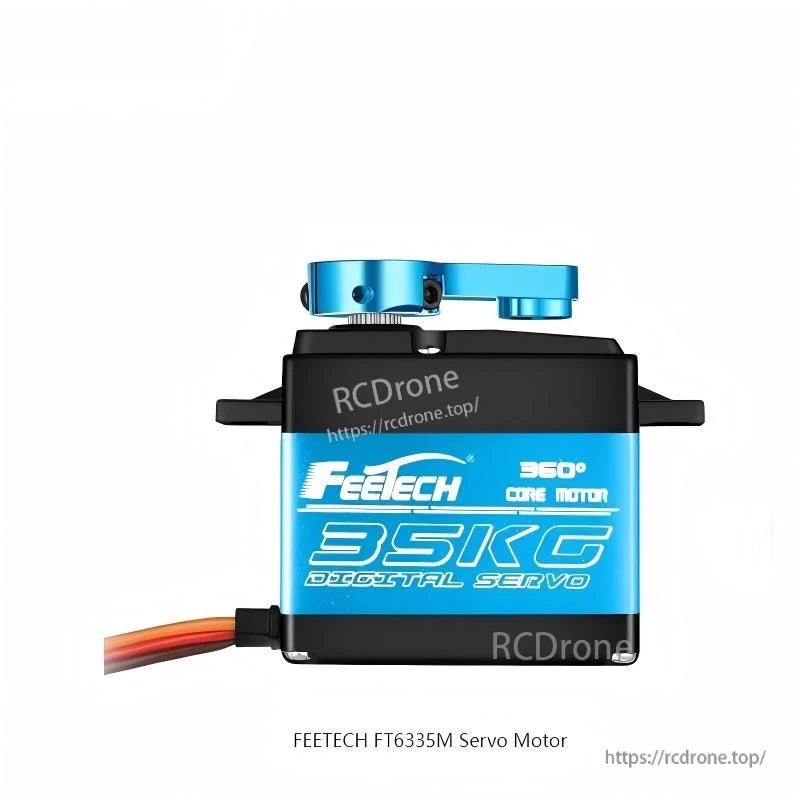

  • FEETECH servo labeled FT6335M, 35KG digital servo side view with blue case and metal arm

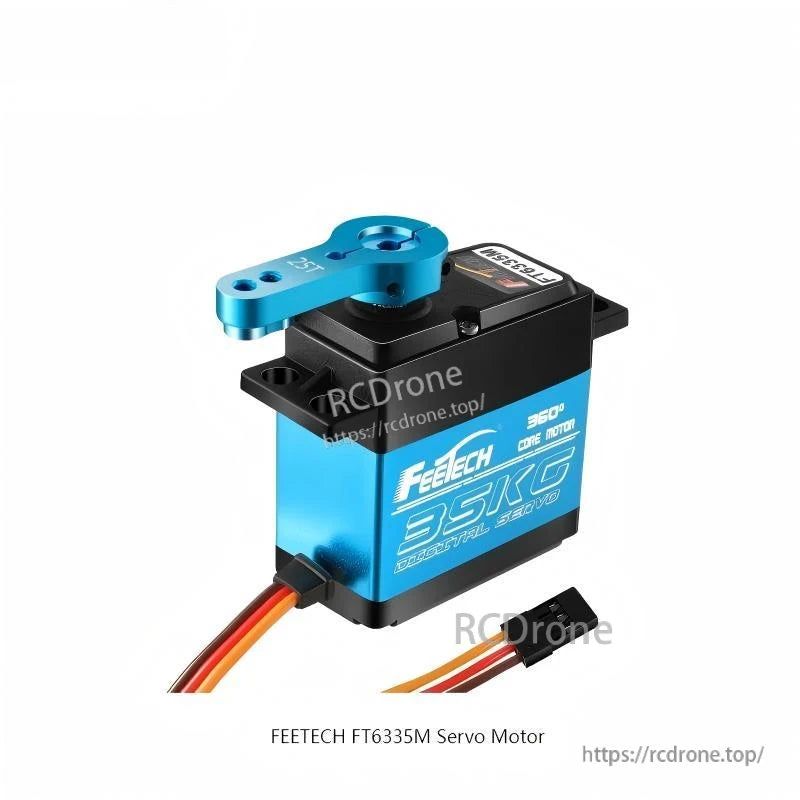

  • Angled view of blue FEETECH servo labeled 35KG with attached metal arm and 3-pin connector lead

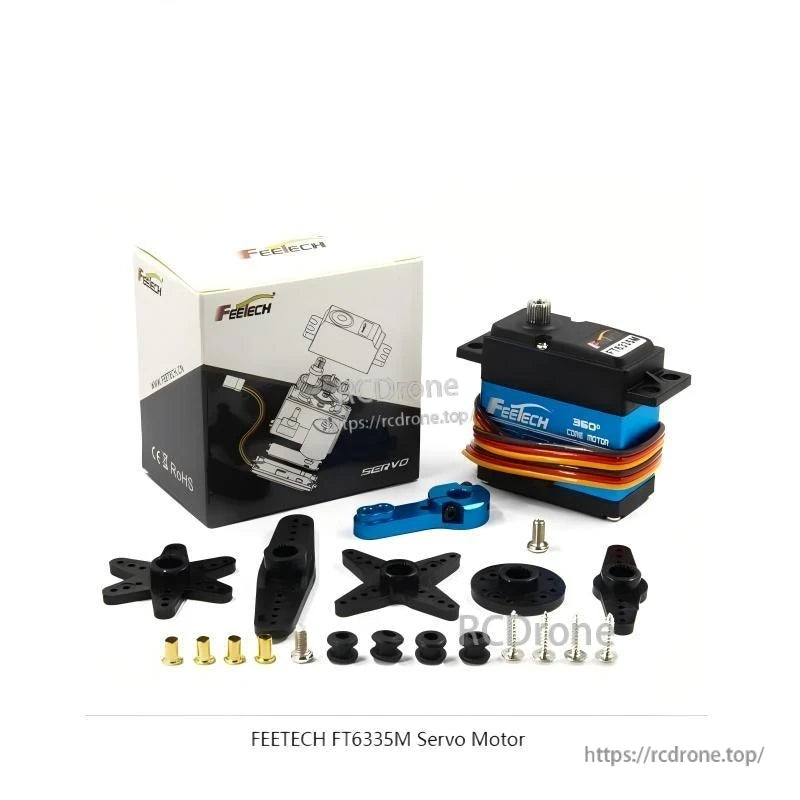

  • FEETECH FT6335M servo kit layout with box, servo, multiple horns, screws, grommets and brass inserts
1 6

FEETECH FT6325M Servo Motor, 7.4V Digital 360 Magnetic Coded 25kg.cm, Steel Gear 25T/5.9mm

FEETECH FT6325M Servo Motor, 7.4V Digital 360 Magnetic Coded 25kg.cm, Steel Gear 25T/5.9mm

Feetech

$54.00 USD
$54.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Version
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The FEETECH FT6325M servo motor is a 7.4V digital 360° magnetically coded servo with an aluminum mid-shell, steel gears, and a core motor. It supports pulse-width control with a 500-2500 us range and a 1500 us stop position, making it suitable for continuous-rotation applications where no angle limit is required.

Key Features

  • Digital comparator amplifier type
  • 360° running degree (at 500->2500 us), with no limit angle
  • Steel gear train, ball bearings, and 25T / 5.9 mm horn gear spline
  • PA + Aluminum case
  • Pulse width modification command signal (PWM)

Applications

  • Humanoid robots
  • Robotic arms
  • Exoskeletons
  • Quadruped robots
  • AGV vehicles
  • ARU robots

For build support or pre-sales questions about selecting the correct servo model for a project, contact support@rcdrone.top or visit https://rcdrone.top/.

Specifications

Parameter FT6325M FT6335M
Product name 7.4V 25kg.cm digital 360 degree magnetic coded aluminum mid-shell steel gear iron core servo 7.4V 35kg.cm digital 360 degree magnetically coded aluminum mid-shell servo
Storage temperature range -30C to 80C -30C to 80C
Operating temperature range -20C to 60C -20C to 60C
Size A: 55 mm, B: 20 mm, C: 43 mm A: 55 mm, B: 20 mm, C: 43 mm
Weight 67 1 g 67 1 g
Gear type Steel Steel
Limit angle No limit No limit
Bearing Ball bearings Ball bearings
Horn gear spline 25T / 5.9 mm 25T / 5.9 mm
Horn type Plastic POM Plastic POM
Case PA + Aluminum PA + Aluminum
Connector wire 30 cm 30 cm
Motor Core motor Core motor
Operating voltage range 6V-8.4V 6V-7.4V
Idle current (stopped) 6 mA @ 7.4V 6 mA @ 7.4V
No-load speed 0.151 sec/60 @ 7.4V 0.192 sec/60 @ 7.4V
Running current (at no load) 120 mA @ 7.4V 180 mA @ 7.4V
Peak stall torque 25 kg.cm @ 7.4V 35.5 kg.cm @ 7.4V
Rated torque 8.3 kg.cm @ 7.4V 11.8 kg.cm @ 7.4V
Stall current 3.5A @ 7.4V 3.9A @ 7.4V
Command signal Pulse width modification Pulse width modification
Amplifier type Digital comparator Digital comparator
Pulse width range 500-2500 us 500-2500 us
Stop position 1500 us 1500 us
Running degree 360 (at 500->2500 us) 360 (at 500->2500 us)
Dead bandwidth <= 4 us <= 4 us
Rotating direction Counterclockwise (1500->2000 us) Counterclockwise (1500->2000 us)
