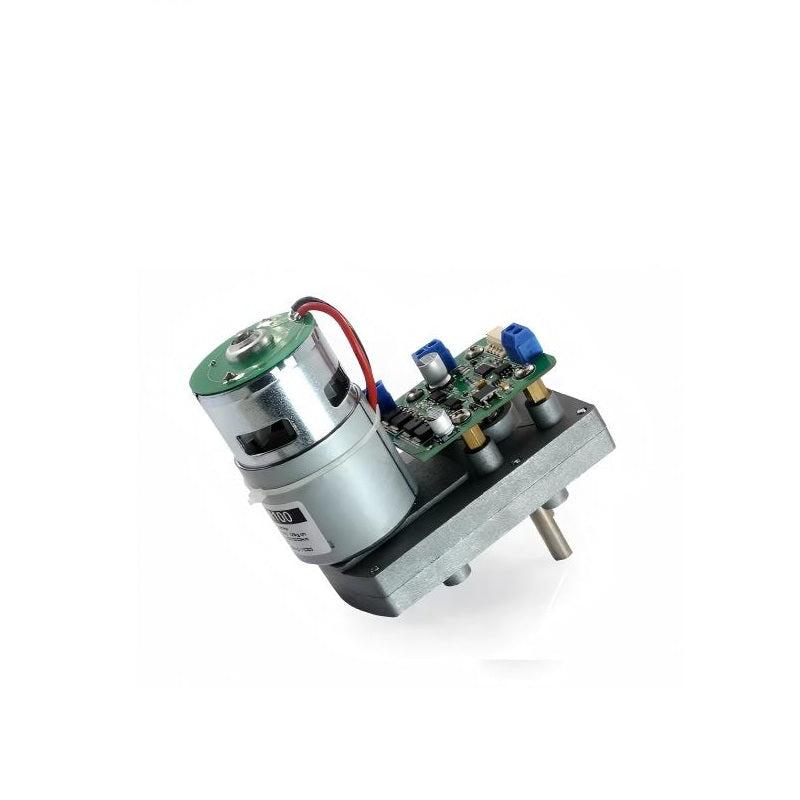

• FEETECH SM1500/1000 servo motor assembly with control PCB, angled top view on metal base
  • FEETECH SM1500/1000 servo rear-side view showing output shaft, metal housing, and wiring to PCB

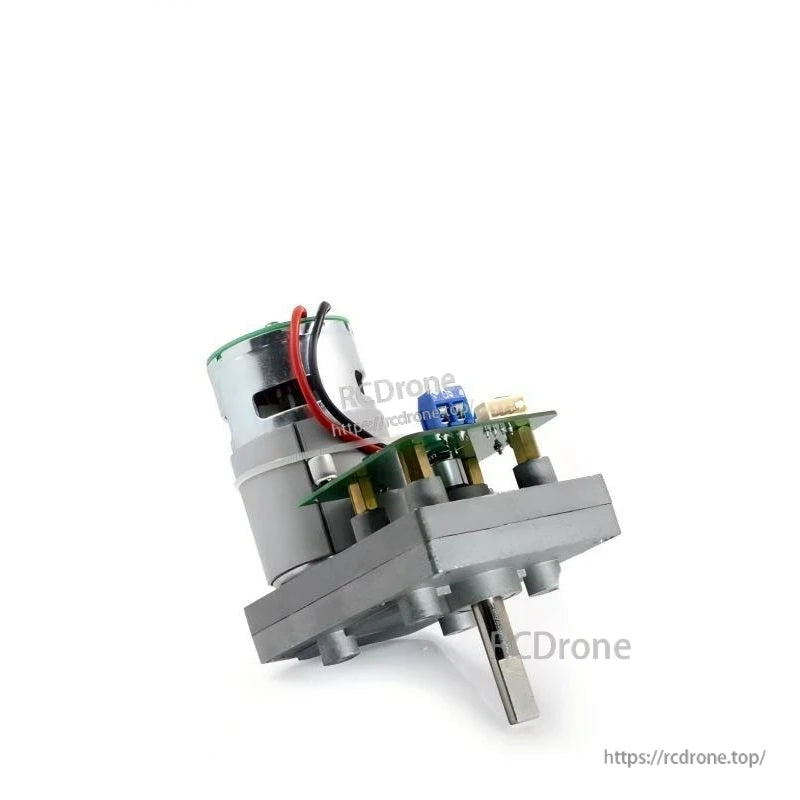

  • Control board close-up on servo base with blue screw terminal and white plug connectors, side angle
1 3

FEETECH SM1500/1000 Servo Motor SM-1500-C001 12V 180kg.cm RS485 Bus 360° (4096) Metal Gear

FEETECH SM1500/1000 Servo Motor SM-1500-C001 12V 180kg.cm RS485 Bus 360° (4096) Metal Gear

Feetech

$103.00 USD
$103.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Version
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

FEETECH SM1500/1000 Servo Motor (Model: SM-1500-C001) is a 12V RS485 bus servo designed for serial control systems using half-duplex asynchronous communication. It supports 360° operation (0–4096) and provides feedback data including load, speed, input voltage, and current.

Applications

  • Humanoid robots
  • Robotic arms
  • Exoskeletons
  • Quadruped robots
  • AGV vehicles
  • ARU robots

Key Features

  • Bus packet communication via RS485
  • Half-duplex asynchronous serial communication
  • 360° running degree (0–4096) with position sensor resolution 0–4095
  • Feedback: load, speed, input voltage, current
  • Metal gear train, metal case, and 2 ball bearings
  • ID range: 0-253; communication speed: 38400bps ~ 1 Mbps

Specifications

Parameter Value
Model SM-1500-C001
Product Name 12V 180kg.cm 485/Magnetic Coded Serial Control BUS Servo
Storage Temperature Range -30°C ~ 80°C
Operating Temperature Range -20°C ~ 70°C
Size A: 95.5mm, B: 65mm, C: 85mm
Weight 860g ±0.2
Gear Type Metal Gear
Limit Angle 360degree (4096)
Bearing 2 Ball bearings
Horn Gear Spline D shape dia=8.0mm
Case metal
Connector Wire 150mm ±5 mm
Motor carbon motor
Operating Voltage Range 12V
Idle Current (at stopped) 15mA
No Load Speed 0.67sec/60degree 15RPM
Running Current (at no load) 200mA
Peak Stall Torque 180kg.cm@12V
Rated Torque 60kg.cm@12V
Stall Current 4500mA@12V
Command Signal Bus Packet Communication RS485
Protocol Type Half duplex Asynchronous Serial Communication
ID Range 0-253
Communication Speed 38400bps ~ 1 Mbps
Running Degree 360°(when 0~4096)
Feedback Load, Speed, Input Voltage, Current
Position Sensor Resolution 360° (when 0-4095)-CVV

For pre-sales compatibility questions or integration support, contact https://rcdrone.top/ or email support@rcdrone.top.
