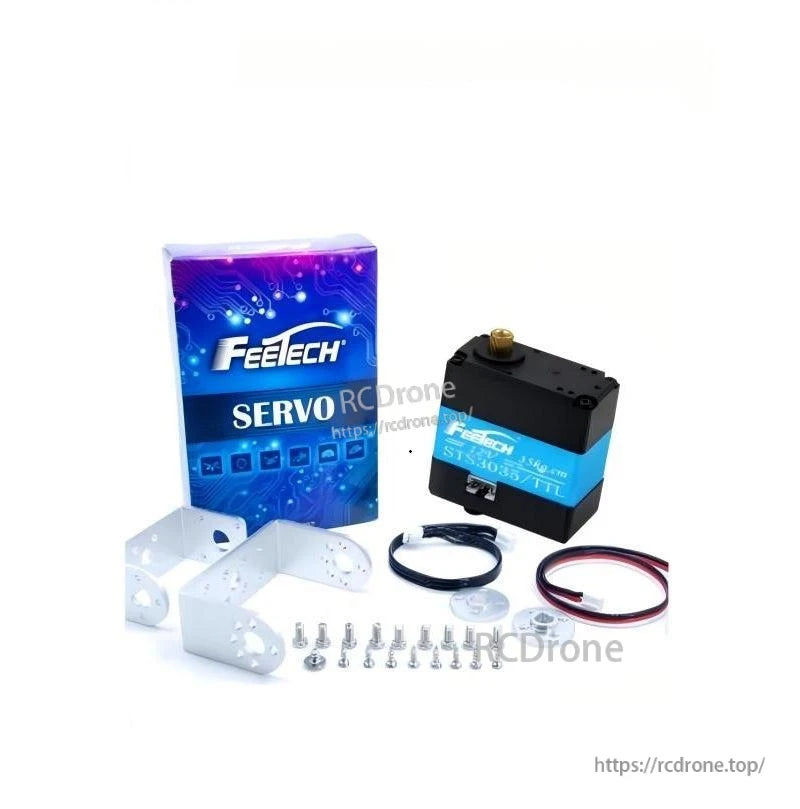

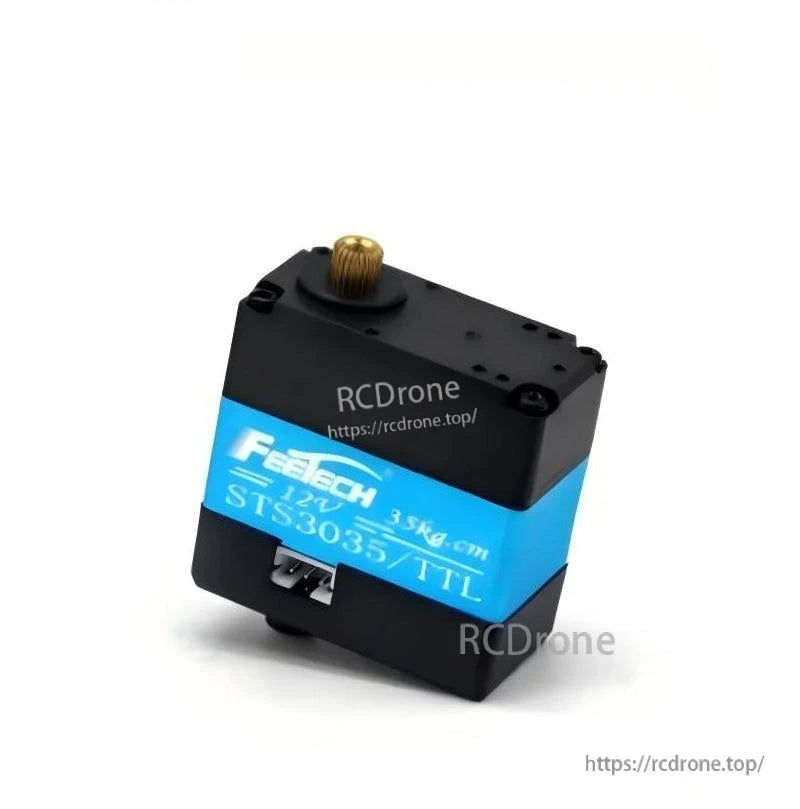

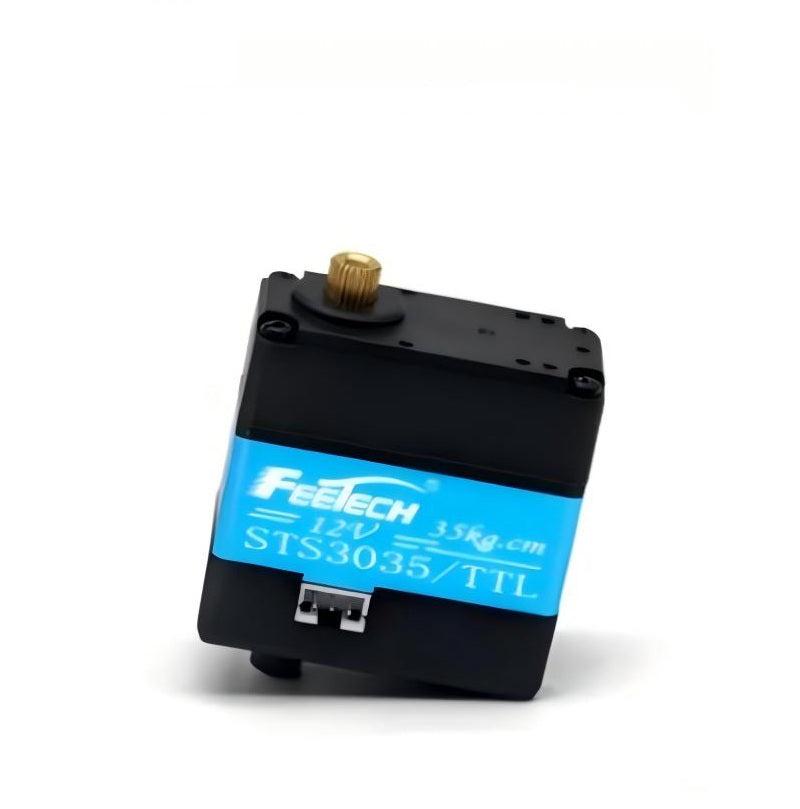

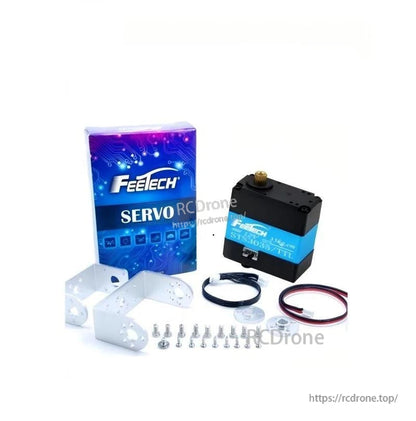

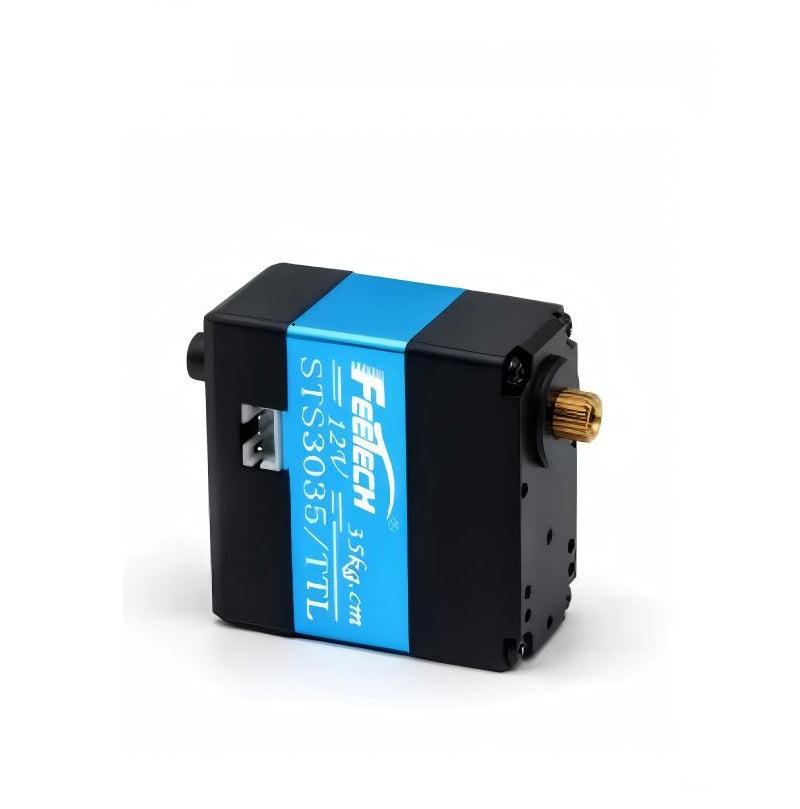

FEETECH ST3035 (ST-3035-C001) Servo Motor, 12V 35kg.cm TTL Serial, 360° Feedback, 25T OD5.9mm

Feetech

$47.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Version ST-3035-C001 (12V35KG) ST-3035-C001 + URT Debug Board

Quantity

View full details

Overview

The FEETECH ST3035 servo motor (model ST-3035-C001) is a 12V 35kg.cm TTL serial control servo designed for applications requiring 360° operation and onboard feedback reporting.

Key Features

TTL serial control with digital packet command signal
Half duplex asynchronous serial communication, ID range 0-253
Communication speed: 38400bps ~ 1 Mbps
360° running degree (when 0~4095) with 12Bits magnetic coding (360°/4095)
Feedback supported: Load, Position, Speed, Input Voltage, Current, Temperature
Copper gear train and ball bearings
PA + Aluminum case
PH2.0-3P interface type with 15cm connector wire

Specifications

Model	ST-3035-C001
Product Name	12V 35kg.cm TTL Serial Control Servo
Storage Temperature Range	-30°C~80°C
Operating Temperature Range	-10°C~60°C
Size	A: 40.2mm B: 20.2mm C: 40mm
Weight	62.5±2g
Gear Type	Copper
Limit Angle	NO limit
Bearing Type	Ball bearings

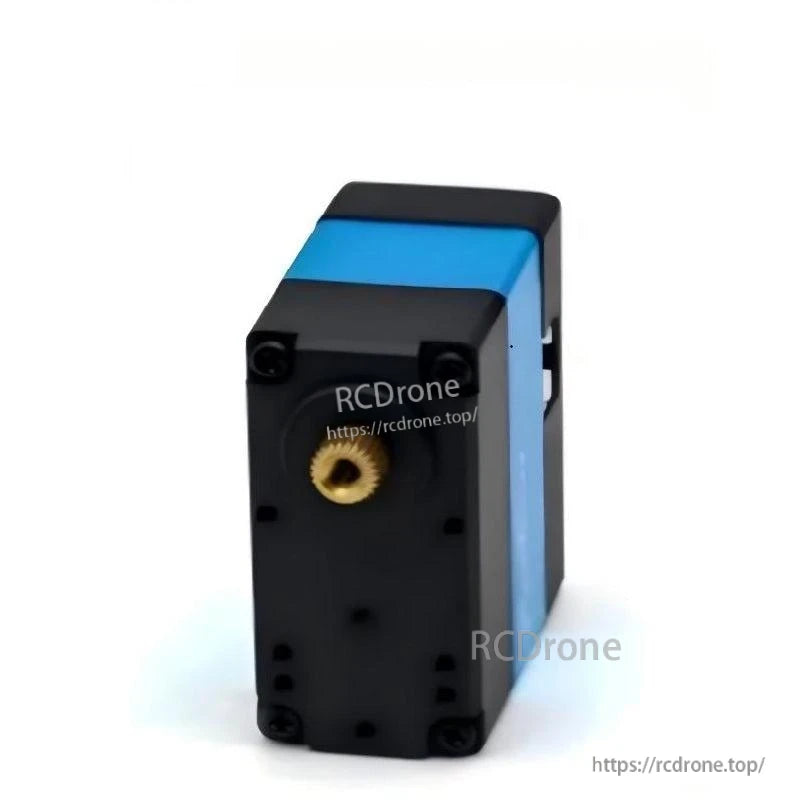

Horn Gear Spline (Output Shaft)	25T/OD5.9mm
Case	PA+Aluminum
Type	PH2.0-3P
Connector Wire	15cm
Motor	Core Motor
Operating Voltage Range	9V-12V
Idle Current (at stopped)	32mA@12V
No Load Speed	0.22sec/60°(45RPM)@12V
Running Current (at no load)	220mA(Max)@12V
Peak Stall Torque	35kg.cm@12V
Rated Torque	11.6kg.cm@12V
Stall Current	900mA@12V
Command Signal	Digital Packet
Protocol Type	Half Duplex Asynchronous Serial Communication
ID Range	0-253
Communication Speed	38400bps ~ 1 Mbps
Running Degree	360° (when 0~4095)
Feedback	Load, Position, Speed, Input Voltage, Current, Temperature
Position Sensor Resolution	12Bits Magnetic Coding(360°/4095)
